How to Create a 3D Model from 2D Views in AutoCAD

Most AutoCAD users start their careers working in 2D: drawing lines, arcs, and polylines on a flat plane. At some point, the need arises to take those 2D drawings, whether they are orthographic views from a hand drawing, a scanned technical sketch, or an existing 2D CAD file, and construct a proper 3D solid model from them. This is the fundamental skill that bridges 2D drafting and 3D engineering design.

It is also, honestly, one of the tasks that AutoCAD tutorials handle poorly. Most guides either teach 3D modelling from scratch without explaining how to interpret existing 2D views, or they explain how to generate 2D drawings FROM an already-completed 3D model. Neither of those answers the question most engineers and students are actually asking: I have a set of 2D orthographic drawings and I need to build the 3D solid from them. Where do I start?

This guide answers that question from beginning to end. It covers the complete workflow: understanding orthographic projection, setting up the AutoCAD 3D modelling workspace, configuring the User Coordinate System (UCS) for each operation, building the 3D solid using EXTRUDE, REVOLVE, LOFT, SWEEP, and PRESSPULL, adding features using Boolean operations, and finally generating professional 2D drawing views from the completed 3D model using FLATSHOT and VIEWBASE. Every section includes numbered steps and practical guidance that works in the real drawing environment.

Quick Overview: The process of creating a 3D model from 2D views in AutoCAD has five stages: (1) Read and understand the 2D orthographic views to mentally reconstruct the 3D shape. (2) Set up the 3D Modelling workspace and configure visual styles. (3) Draw 2D profiles on the correct planes using the UCS. (4) Use solid creation commands (EXTRUDE, REVOLVE, LOFT, SWEEP, PRESSPULL) to generate 3D geometry from those profiles. (5) Use Boolean operations (UNION, SUBTRACT, INTERSECT) to combine and cut geometry to produce the final form.

Understanding Orthographic Projection: Reading 2D Views Correctly

Before touching AutoCAD, the most important skill for creating a 3D model from 2D views is the ability to read orthographic projection drawings correctly. Orthographic projection is the system used to represent a 3D object on a 2D drawing sheet using multiple flat views, each showing the object from a different direction.

First angle versus third angle orthographic projection diagram showing view arrangement and projection symbols for engineering drawing interpretation

First Angle vs Third Angle Projection

There are two projection systems used globally, and confusing them leads to completely wrong 3D models:

Projection Type	Used In	View Arrangement	Symbol
First Angle (European)	UK, Europe, Asia (except USA/Canada/Australia)	The front view is in the centre. The right-side view is placed to the LEFT of the front view. The top view is placed BELOW the front view.	Circle with a truncated cone pointing left
Third Angle (American)	USA, Canada, Australia	The front view is in the centre. The right-side view is placed to the RIGHT of the front view. The top view is placed ABOVE the front view.	Circle with a truncated cone pointing right

Always check which projection system a drawing uses before modelling. The projection symbol is usually located in the title block. Building from the wrong projection system produces a mirror-image or incorrectly oriented 3D model.

The Three Standard Views and What Each Shows

Front View (Elevation): Shows the height and width of the object as seen from the front. This is almost always the most informative view and the starting point for 3D modelling.
Top View (Plan): Shows the width and depth of the object as seen from above. Reveals the footprint and any features on the top surface.
Side View (Right or Left): Shows the height and depth of the object. Reveals the profile of the side face and any features not visible from the front.

The golden rule of orthographic reading: any dimension that appears in two adjacent views refers to the same feature. Width is shared between the front view and the top view. Height is shared between the front view and the side view. Depth is shared between the top view and the side view. When a feature is visible in all three views, it is fully defined: you know its exact position, shape, and size in 3D space.

Hidden Lines and Centre Lines in 2D Views

On engineering drawings, hidden lines (dashed lines) indicate edges and features that exist behind the visible surface being shown. These are critically important when 3D modelling: they reveal holes, channels, recesses, and internal features that are not visible in the current view but must be represented in the 3D solid. Centre lines (dashed-dot lines) indicate the axis of symmetry, the centre of circular features, and the position of holes. Always account for every hidden line in your 3D model.

Read pillar content: AutoCAD tutorials for beginners and professionals

Setting Up the AutoCAD 3D Modelling Workspace

AutoCAD organises its tools into workspaces. The default Drafting and Annotation workspace is configured for 2D work and hides the 3D tools. Before any 3D modelling, switch to the dedicated 3D environment.

AutoCAD 3D modelling four-viewport layout showing top, front, right, and isometric views of a 3D bracket model simultaneously

Switching to the 3D Modelling Workspace

Click the Workspace Switching icon in the bottom-right of the status bar (gear icon).
Select 3D Modelling from the menu. The ribbon updates to show 3D-specific tabs and panels: Home (with 3D tools), Solid, Surface, Mesh, Visualize, and others.

Setting Up the Visual Style

AutoCAD’s visual style controls how 3D geometry is displayed on screen. For most 3D modelling work, the ideal visual style is Conceptual or Shades of Gray: these display solid faces with shading that makes the 3D form clearly visible while keeping edges defined.

In the View tab > Visual Styles panel, click the dropdown and select Conceptual or Shades of Gray.
Alternatively, type VSCURRENT in the command line, press Enter, and type C for Conceptual.

Setting Up Multiple Viewports

Working in 3D is significantly easier when you can see the model from multiple directions simultaneously. Setting up a four-viewport layout (Top, Front, Right, Isometric) at the start of any 3D session is strongly recommended.

Go to View tab > Viewports panel > Named Viewports.
Select Four: Equal from the standard viewports list and click OK.
Click in each viewport and use the View Cube (top-right corner) or type VIEW to set each viewport to a different view direction: Top, Front, Right/Left, and SE Isometric.

Professional Habit: Before starting 3D work, set your 3D coordinate system to World UCS by typing UCS and pressing Enter, then W and Enter. This resets the UCS to the standard X (right), Y (up), Z (toward you) orientation. All subsequent modelling operations will reference a known, consistent coordinate base.

Understanding the User Coordinate System (UCS) in 3D

The User Coordinate System (UCS) is the single most important concept to understand in AutoCAD 3D modelling. Every drawing operation in AutoCAD happens relative to the current UCS. In 2D work, the UCS is always flat on the screen and most users never think about it. In 3D, you must actively control the UCS to draw profiles on the correct planes.

Think of the UCS as a movable drawing board. When you draw a 2D profile to extrude, AutoCAD draws it on the current XY plane of the UCS. If the UCS is oriented with its XY plane aligned to the front face of your model, you will draw the front profile correctly. If you need to draw on the top face, you rotate or move the UCS so its XY plane aligns to the top. Getting the UCS wrong is the most common cause of 3D profiles appearing in the wrong position or orientation.

Key UCS Commands

Command / Option	What It Does	When to Use It
UCS > W (World)	Resets UCS to the default World coordinate system: X right, Y up, Z toward viewer	At the start of any modelling session and whenever you want to return to the global reference system
UCS > F (Face)	Aligns the UCS XY plane to a selected face of a 3D solid	When you need to draw on or extrude from a specific face of an existing solid
UCS > V (View)	Aligns the UCS to the current view direction (XY plane perpendicular to the view)	When you need to draw text or 2D annotation flat to the current view
UCS > 3P (3 Points)	Defines the UCS using three picked points: origin, X direction, Y direction	When you need to define a custom inclined or angled plane not aligned to any standard view
UCS > X / Y / Z	Rotates the current UCS around the specified axis by a defined angle	When you need to tilt the drawing plane by a known angle from its current orientation
UCSMAN (UCS Manager)	Opens the UCS Manager dialogue to save, restore, and manage named UCS configurations	In complex models where you use many different UCS orientations and need to switch between them reliably

The Most Common UCS Mistake: Drawing a 2D profile for extrusion without first verifying the current UCS orientation. If you draw what you think is a front-face profile but the UCS is still set to Top view orientation, the profile will be flat on the ground plane and the extrusion will go sideways rather than forward. Always check the UCS icon orientation before drawing. The X arrow should point in the direction you expect, and the Y arrow should point upward (for front-face profiles).

Step 1: Draw Your 2D Profiles in the Correct Planes

The foundation of AutoCAD 3D modelling is a correctly drawn 2D profile. A profile is a closed 2D shape (polyline, region, or a closed boundary of lines and arcs) that defines the cross-section or outline of a 3D feature. The accuracy of your 3D model depends entirely on the accuracy of these profiles.

Rules for Profiles That Work Reliably

Profiles must be closed: A polyline must have its last segment connecting back to its first point. Use PEDIT > Close to close an open polyline, or REGION to convert a set of connected objects into a closed region.
Profiles must be on the correct plane: Set the UCS before drawing. Draw all profile geometry while the UCS XY plane is aligned to the intended extrusion plane.
Profiles must be drawn at true scale: Draw dimensions exactly as stated on the 2D drawing. Use the exact dimensions from the front, top, or side view as appropriate. Do not scale or approximate.
Use OSNAP for all intersections: Ensure endpoints connect precisely. Use PEDIT > Join to combine separate line segments into a single closed polyline before extruding.
One profile per closed region: If your profile has nested closed shapes (for example, an outer rectangle with a circular hole), you can create both as separate closed profiles and then subtract the inner from the outer after extrusion.

Drawing a Profile from a 2D Front View

Set the UCS to World (type UCS, Enter, W, Enter).
In your isometric or front viewport, type PL (POLYLINE) and Enter.
Draw the outline of the front view profile using the dimensions from the 2D drawing, using ORTHO (F8) to constrain to horizontal and vertical.
When the polyline is closed back to the start point, type C and Enter to close it exactly. Verify closure with PEDIT > Close if needed.
To include arcs within a polyline profile, switch between line and arc mode within the POLYLINE command using the A (Arc) and L (Line) sub-options.

Step 2: EXTRUDE — Pushing a 2D Profile into a 3D Solid

EXTRUDE is the most fundamental and widely used 3D solid creation command in AutoCAD. It takes a closed 2D profile and pushes it a specified distance perpendicular to its plane, generating a 3D solid with the cross-section of the profile.

When to Use EXTRUDE

Use EXTRUDE for any component that has a consistent cross-section along one axis: prismatic parts, beams, channels, frames, extruded aluminium profiles, panels, plates with cutouts, and most architectural elements. It is the right command when the front view and side view are different but the top view shows a uniform shape.

Full Step-by-Step: EXTRUDE Command

Draw your closed 2D profile on the correct UCS plane (see Step 1).
Type EXT (EXTRUDE) and press Enter.
Select the closed profile (polyline or region). Press Enter to confirm selection.
AutoCAD prompts: Specify height of extrusion or [Direction/Path/Taper angle/Expression]:
For a straight extrusion to a specific depth, type the depth dimension from your 2D side view and press Enter. The profile extrudes perpendicular to its drawing plane.
The 3D solid appears. Use the orbit tool (type 3DORBIT or press Shift + middle mouse button) to inspect the result from different angles.

EXTRUDE Advanced Options

Direction: Specify two points to define the direction vector of the extrusion instead of the default perpendicular. Allows diagonal extrusions.
Path: Extrude the profile along a drawn path (line, arc, polyline, or spline). Produces tapered or curved extrusions following the path. Similar to SWEEP (covered next).
Taper angle: Adds a draft angle to the extrusion walls. Positive angle tapers inward, negative angle tapers outward. Used for injection moulded parts and castings requiring draft.

Best Practice: After extruding, immediately check the result in the isometric viewport. The depth of the extrusion should match the depth dimension shown in the top view of your 2D drawing. If the solid looks correct in the front viewport but wrong from above, the extrusion direction may need to be reversed. Type EXTRUDE, select the profile, and enter a negative depth value to extrude in the opposite direction.

Step 3: REVOLVE — Creating Solids of Revolution

The REVOLVE command creates a 3D solid by rotating a 2D profile around a specified axis. It is the correct command for any object that is radially symmetric: shafts, bolts, cylinders, cones, pipes, flanges, turned components, and any part whose cross-section, when rotated 360 degrees around its centre axis, produces the complete 3D form.

Identifying Parts That Require REVOLVE

On 2D orthographic drawings, parts suited to REVOLVE are easy to identify: the front view and side view are identical or nearly identical (circular symmetry), and the top view shows a circle or concentric circles. The 2D profile for REVOLVE is drawn as a half-section: the right half of the cross-sectional outline from the centre axis outward.

Full Step-by-Step: REVOLVE Command

Draw the half-profile of the component as a closed polyline or region. Draw it on the side you want to revolve: one edge of the profile must lie exactly on the intended axis of revolution.
Draw the axis line for the revolution, or identify that the profile’s straight edge will serve as the axis.
Type REV (REVOLVE) and press Enter.
Select the closed profile. Press Enter.
AutoCAD prompts: Specify axis start point or define axis by [Object/X/Y/Z]:. Click the first point of the revolution axis.
Click the second point of the revolution axis, or type X to revolve around the X axis, Y for Y axis, or Z for Z axis.
AutoCAD prompts: Specify angle of revolution:. For a complete solid, type 360 and press Enter. For a partial revolution (e.g. a half-pipe or swept arc), enter the angle.

Step 4: LOFT — Blending Between Two or More Profiles

The LOFT command creates a 3D solid or surface that blends smoothly between two or more cross-section profiles located at different positions along the model. It is the correct command when a component changes shape from one cross-section to another: tapered housings, aircraft fuselage shapes, transitions between square and round ducts, and any component whose profile varies along its length.

Full Step-by-Step: LOFT Command

Draw at least two closed 2D profiles at different positions along the intended axis of the solid. Each profile defines the cross-section of the solid at that location.
Type LOFT and press Enter.
Select the cross-section profiles in order from one end of the solid to the other. Press Enter after selecting all profiles.
AutoCAD prompts with options: Guides / Path / Cross-sections only / Settings. For most cases, press Enter to accept cross-sections only and AutoCAD creates the lofted solid.
In the Loft Settings dialogue, choose Smooth Fit for organic shapes or Ruled for a linear (flat-faceted) transition between profiles.

Step 5: SWEEP — Extruding a Profile Along a Path

The SWEEP command extrudes a 2D profile along any drawn path: a line, arc, polyline, circle, ellipse, or spline. Unlike EXTRUDE (which always extrudes perpendicular to the profile plane), SWEEP follows the geometry of the path. It is the correct command for curved parts: pipe bends, handrails, spiral springs, cam profiles, and any component with a consistent cross-section following a curved or complex path.

Full Step-by-Step: SWEEP Command

Draw the cross-section profile (the shape you want to sweep). This must be a closed polyline or region.
Draw the path that the profile will follow (a line, arc, polyline, circle, or spline).
Type SWEEP and press Enter.
Select the cross-section profile. Press Enter.
AutoCAD prompts: Select sweep path or [Alignment/Base point/Scale/Twist]:. Click the path object.
AutoCAD sweeps the profile along the entire path, generating the 3D solid.

Step 6: PRESSPULL — The Fastest Way to Add or Remove Material

PRESSPULL is one of the most intuitive and fastest tools for modifying 3D solids in AutoCAD. It detects closed bounded regions on the surface of a solid or within a 2D drawing and either pushes (removes material) or pulls (adds material) those regions to create features. It works like a physical push-and-pull action: click inside a bounded area and drag to add or subtract a boss or pocket.

Full Step-by-Step: PRESSPULL Command

Type PRESSPULL and press Enter.
Move the cursor over the bounded region you want to press or pull (a face of a solid, a closed polyline on a solid face, or a 2D closed boundary in model space). The region highlights.
Click inside the highlighted region.
Move the cursor upward to pull (add material) or downward to press (remove material). The solid face deforms dynamically.
Type the exact distance and press Enter, or click a second point to define the depth of the press or pull.

PRESSPULL vs EXTRUDE: PRESSPULL is best for quickly adding or removing features on an existing solid (adding a boss, cutting a pocket, pushing a hole). EXTRUDE is better for creating the initial solid from a flat profile or for complex extrusions with taper or path options. In practice, most engineers use EXTRUDE or REVOLVE to create the base solid and PRESSPULL to add or remove features.

Step 7: Boolean Operations — Combining and Cutting Solids

Boolean operations are the fundamental tools for combining, cutting, and intersecting 3D solids to create complex forms from simpler ones. In AutoCAD, the three Boolean commands are UNION, SUBTRACT, and INTERSECT. Together they form the backbone of constructive solid geometry (CSG) modelling, the approach underlying most 3D solid modelling workflows.

AutoCAD SUBTRACT Boolean operation diagram showing 3D solid body and cylinder cutter before and after subtraction to create a through hole

UNION — Combining Two or More Solids

UNION merges two or more overlapping or touching 3D solids into a single combined solid object. Use it to combine separate solid features into one complete component.

Type UNION and press Enter.
Select all the 3D solid objects you want to combine. Press Enter.
AutoCAD merges all selected solids into one unified solid.

SUBTRACT — Cutting One Solid from Another

SUBTRACT removes the volume of one solid from another. It is used to create holes, pockets, slots, recesses, and any feature that removes material. The workflow is: create the solid body first, then create the cutting solid (a cylinder for a hole, a box for a rectangular pocket), then subtract the cutter from the body.

Create the body solid (the part from which material will be removed).
Create the cutter solid (the shape of the material to be removed: a CYLINDER for a hole, BOX for a rectangular pocket, etc.). Position it precisely where the hole or pocket needs to be.
Type SU (SUBTRACT) and press Enter.
Select the body solid (the one you are cutting FROM). Press Enter.
Select the cutter solid (the one being subtracted). Press Enter.
AutoCAD removes the cutter volume from the body, creating the hole or pocket.

INTERSECT — Keeping Only the Overlapping Volume

INTERSECT retains only the volume where two or more solids overlap, discarding everything outside the intersection. It is useful for complex shapes that can be defined as the intersection of two simpler shapes, and for checking whether components clash in an assembly.

Type INTERSECT and press Enter.
Select the two or more solids to intersect. Press Enter.
AutoCAD keeps only the overlapping volume.

Step 8: Adding Holes, Fillets, and Chamfers to the 3D Model

After the primary 3D form is established using EXTRUDE, REVOLVE, LOFT, or SWEEP and combined using Boolean operations, most mechanical components require additional features: holes, fillets (rounded edges), and chamfers (bevelled edges). These are added directly to the 3D solid.

Adding Holes Using SUBTRACT

To add a hole to a 3D solid: type CYLINDER and press Enter. Specify the centre of the hole (snap to the exact position using OSNAP and the dimensions from the 2D drawing), the radius (from the drawing), and the height (at least as deep as the solid thickness). Then use SUBTRACT: select the body solid, Enter, select the cylinder, Enter. The hole is cut.

Adding Fillets Using the 3D FILLET Command

The FILLET command works on 3D solid edges as well as 2D objects. Type FILLET (or F) and press Enter. Select the edge(s) of the 3D solid you want to round. Type the fillet radius from the engineering drawing and press Enter. AutoCAD rounds the selected edges.

Adding Chamfers Using the 3D CHAMFER Command

Similarly, the CHAMFER command (CHA) works on 3D solid edges. Select the base surface first (AutoCAD may highlight a face), confirm the correct face, select the edge to chamfer, and specify the chamfer distances. Chamfers on external edges of machined components are common and necessary to represent accurately for manufacturing.

Step 9: Generating 2D Drawing Views from the 3D Model

Once the 3D model is complete, the final step in the workflow is generating professional 2D drawing views from it for documentation, manufacturing, or client delivery. AutoCAD provides two main approaches: FLATSHOT for quick 2D projections directly in model space, and VIEWBASE/VIEWPROJ for full paper space drawing view management.

Method A: FLATSHOT — Quick 2D Projections

FLATSHOT creates a flat 2D projection of all visible geometry from the current view direction, placing the result as a block in model space. It is fast and simple, ideal for quickly generating a front, top, or side view outline.

Set the current view to the direction you want to flatten (e.g. Front View using the View Cube).
Type FLATSHOT and press Enter.
In the Flatshot dialogue, set visible lines to a solid line and hidden lines to the HIDDEN linetype (or no hidden lines if not required).
Click Create. AutoCAD asks where to insert the resulting block.
Click a location in model space to place the 2D view. Scale it to your requirements.

Method B: VIEWBASE — Professional Drawing Views in Paper Space

VIEWBASE generates intelligent, associative 2D drawing views from a 3D model directly in a paper space layout. These views update automatically if the 3D model is modified, making VIEWBASE the professional standard for generating 2D documentation from AutoCAD 3D models.

Switch to a Layout tab (paper space).
Go to Layout tab > Create View panel > Base > From Model Space.
In the Drawing View Creation tab that appears, set the view orientation (Front, Top, etc.) and scale.
Click to place the base view on the layout sheet.
AutoCAD automatically prompts you to add projected views. Click to the right of the base view to add a right-side view, above for a top view, and diagonally for an isometric view.
Press Esc when all required views are placed.
Add dimensions, annotations, and title block as normal. If you later modify the 3D model, all views update automatically.

Complete Worked Example: Bracket from Orthographic Views

To tie all of the above together, here is a complete step-by-step workflow for building a typical mounting bracket from a three-view orthographic drawing. The bracket is an L-shaped plate with two mounting holes and a fillet on the internal corner.

Stage	What You Do	Commands Used
1. Read the drawing	Identify front, top, and side views. Note the L-shape in the front view, the depth dimension in the side view, and the hole positions in the top view.	None — analysis only
2. Set up workspace	Switch to 3D Modelling workspace. Set visual style to Conceptual. Set up 4 viewports (Top, Front, Right, Isometric). Type UCS > W to reset to World.	VSCURRENT, VPORTS, UCS
3. Draw base profile	On World UCS (XY = front plane), draw closed polyline of the L-shape from the front view dimensions. Include the inner corner at exact coordinates.	PL (POLYLINE), ORTHO (F8)
4. Extrude base	Select the L-profile, type EXT, press Enter. Enter the bracket thickness (depth from side view). 3D L-shape solid appears.	EXT (EXTRUDE)
5. Add fillet to internal corner	Type F (FILLET), select the internal vertical edge of the L-solid, enter fillet radius from drawing.	F (FILLET)
6. Create hole cutters	Type CYLINDER, snap to hole centre positions (from top view dimensions), enter hole radius and full height through bracket. Create one cylinder per hole.	CYLINDER, OSNAP
7. Subtract holes	Type SU (SUBTRACT). Select the L-solid (body). Press Enter. Select all cylinders (cutters). Press Enter. Holes are cut.	SU (SUBTRACT)
8. Inspect the model	Use 3DORBIT to rotate and inspect all faces. Check holes appear in correct positions, fillet is correct, proportions match the drawing.	3DORBIT, ZOOM
9. Generate 2D views	Switch to Layout tab. Use VIEWBASE > From Model Space to place Front, Top, Right, and Isometric views at correct scale in paper space.	VIEWBASE, VIEWPROJ
10. Add dimensions and annotations	Dimension all views using DIMLINEAR, DIMRADIUS, etc. Add surface finish, GD&T, and title block information.	DLI, DRA, MTEXT

Common Mistakes When Creating 3D Models from 2D Views

Mistake	What Happens	How to Avoid It
Drawing profiles without setting the UCS first	The profile is created on the wrong plane, and the extrusion goes in the wrong direction or appears at an unexpected location	Always type UCS > W (World) to reset first. Then reorient the UCS to the correct face before drawing any profile.
Open polyline profile	EXTRUDE fails with ‘Object is not a closed loop’ error, or creates a surface instead of a solid	Before extruding, type PEDIT, select the polyline, choose Close. Or use REGION to convert connected line objects into a closed region.
Not checking projection type (First vs Third Angle)	The side view is placed on the wrong side, leading to an incorrectly mirrored or rotated 3D model	Always check the projection symbol in the title block before reading any orthographic drawing.
Extruding in the wrong direction	The solid extrudes toward the viewer instead of into the screen, or vice versa	After extruding, inspect in the isometric viewport. If depth is wrong, use EXTRUDE with a negative value, or use MOVE to reposition the solid.
Forgetting to account for hidden lines	The 3D model represents only the visible features, missing internal channels, recesses, or holes shown by dashed lines in the 2D views	Go through every dashed line in every view before starting the model. Create a checklist of features represented by hidden lines.
SUBTRACT selecting objects in wrong order	The wrong object gets subtracted, leaving the cutter solid and removing the body instead	SUBTRACT: first click selects the body (what you cut FROM). Second click selects the cutter (what you remove). Always confirm which is body and which is cutter before pressing Enter.
Not verifying dimensions against all three views	A feature looks correct in one view but is the wrong size or position when checked against another view	After completing each feature, check it against all three views. The object must read consistently from front, top, and side.

Frequently Asked Questions (FAQ)

How do you create a 3D model from 2D views in AutoCAD?

To create a 3D model from 2D views in AutoCAD: (1) Read the orthographic projection views to understand the 3D shape. (2) Switch to the 3D Modelling workspace and set the visual style to Conceptual. (3) Set the UCS (User Coordinate System) to align with the plane you want to draw on. (4) Draw closed 2D profiles representing the cross-sections of the component. (5) Use EXTRUDE, REVOLVE, LOFT, or SWEEP to generate 3D solids from those profiles. (6) Use UNION and SUBTRACT to combine and cut solids. (7) Add fillets, chamfers, and holes. (8) Use VIEWBASE to generate 2D drawing views from the completed model.

What is the EXTRUDE command in AutoCAD?

The EXTRUDE command (EXT) in AutoCAD takes a closed 2D profile (polyline or region) and pushes it a specified distance perpendicular to its plane, creating a 3D solid with that profile’s cross-section. It is the most commonly used 3D modelling command for prismatic parts, plates, frames, and any component with a consistent cross-section. It supports tapered extrusions (with a draft angle) and path-following extrusions.

What is the difference between EXTRUDE and REVOLVE in AutoCAD?

EXTRUDE creates a 3D solid by pushing a 2D profile straight in one direction (or along a path). It is used for prismatic parts with a constant cross-section. REVOLVE creates a 3D solid by rotating a 2D profile around a specified axis, producing a radially symmetric solid. It is used for turned parts, shafts, cylinders, flanges, and any component that is symmetric around an axis of rotation. If the front and side views are identical in shape, REVOLVE is almost certainly the right command.

What is the UCS in AutoCAD 3D and why does it matter?

The User Coordinate System (UCS) defines the orientation of the drawing plane in AutoCAD 3D. All drawing operations happen relative to the current UCS’s XY plane. In 3D modelling, you must actively manage the UCS to ensure profiles are drawn on the correct face or plane of the model. If the UCS is on the wrong plane, your 2D profiles will be in the wrong position and your extrusions will go in the wrong direction. Type UCS > W to reset to World UCS, or UCS > F to align to a specific face of an existing solid.

How do I generate 2D drawings from a 3D model in AutoCAD?

AutoCAD provides two main methods. FLATSHOT creates a quick 2D projection from the current view direction directly in model space as a block. VIEWBASE (in a paper space layout) creates intelligent, associative drawing views that update automatically if the 3D model changes. VIEWBASE is the professional standard: switch to a Layout tab, go to Layout > Create View > Base > From Model Space, place the base view, then add projected views (right, top, isometric) using VIEWPROJ. Annotate with dimensions in the layout as normal.

What are Boolean operations in AutoCAD 3D?

Boolean operations are commands that combine or modify 3D solids by performing mathematical set operations on their volumes. UNION merges two or more solids into one. SUBTRACT removes one solid’s volume from another (used to cut holes, slots, and pockets). INTERSECT keeps only the overlapping volume of two solids. Together, these three commands allow complex 3D forms to be built from combinations of simpler solid primitives (boxes, cylinders, cones) and profile-based solids (extruded or revolved shapes).

Can I create a 3D model from a scanned 2D drawing in AutoCAD?

Yes, with some preparation. Insert the scanned 2D drawing as an image (use INSERT > Attach or the IMAGEATTACH command) and scale it to the correct dimensions using a known reference length. Then trace the 2D profiles over the image using POLYLINE with OSNAP. Once you have accurate traced profiles, delete or turn off the image reference and use EXTRUDE, REVOLVE, or other solid creation commands as normal. This method works well for relatively simple parts. For complex components, redrawing the profiles from the scanned dimensions (rather than tracing) typically produces more accurate results.

Conclusion

Creating a 3D model from 2D views in AutoCAD is the skill that completes the engineering CAD workflow. It transforms flat orthographic drawings into solid models that can be inspected from any angle, analysed, modified, and documented to manufacturing standards. The workflow is logical and methodical: read and understand the 2D views, set up the 3D environment correctly, draw accurate profiles on the right planes, build the solid geometry using the appropriate creation commands, combine and cut using Boolean operations, and generate professional 2D drawing output.

The UCS is the key that unlocks everything in AutoCAD 3D. Getting comfortable with setting and re-setting the UCS to align with different faces and planes is the single skill that most transforms a beginner’s 3D modelling ability. Every other concept in this guide builds on it.

Practise the worked example in this guide using a simple bracket or plate, then progress to more complex parts. The same workflow — read, profile, extrude/revolve, boolean, document — applies whether you are modelling a simple bracket or a multi-feature mechanical component.

Continue building your AutoCAD 3D skills: read How to Make a 3D Solid from Profile Outlines for a deeper dive into profile-based modelling, or return to the full guide: AutoCAD Tutorials for Beginners and Professionals.

June 19, 2026

Version Control for Engineering Drawings | Revision Guide

Picture this: your manufacturing team is three weeks into production, cutting steel and assembling components, when someone discovers they have been working from the wrong revision of a critical assembly drawing. The updated hole pattern from Rev C never made it to the shop floor. They have been building from Rev A. The cost? Thousands of dollars in rework, delayed shipment, and a client relationship that takes months to repair.

This scenario plays out in engineering firms, manufacturing plants, and design offices every week. It is not a technology failure. It is a version control failure.

Managing revisions in engineering drawings is one of the most overlooked yet consequential disciplines in technical work. Unlike software code, where a bad commit can be rolled back in seconds, a machined part built from the wrong revision may be impossible to undo. The stakes are real and the margin for error is slim.

This guide walks you through everything you need to know about version control for engineering drawings: what it means, how revision systems work, what tools are available, and what best practices separate teams that get it right from those that constantly fight drawing chaos.

1. What Is Version Control for Engineering Drawings?

Version control, in the context of engineering drawings, refers to the systematic process of tracking, managing, and preserving every change made to a technical drawing over its lifecycle. Each change is documented with a unique revision identifier, a description of what changed, who made the change, and when it was made.

At its core, version control ensures that at any point in time, every person on a project is working from the correct, approved version of a drawing, and that the full history of previous revisions remains accessible for reference, audit, or analysis.

This is fundamentally different from simply saving multiple copies of a file. True version control is structured, traceable, and governed by defined rules about how changes are approved and communicated.

Key Terms You Need to Know

Revision: A formally approved change to a drawing, typically labeled alphabetically (Rev A, Rev B) or numerically depending on the organization’s standard.
Revision Block / Title Block: The section of a drawing, usually in the lower right corner, that records the revision history including revision letter, date, description, and authorization.
Release: The formal process of issuing a drawing for use in production or construction after it has been reviewed and approved.
ECO / ECR (Engineering Change Order / Request): A formal document that initiates, describes, and authorizes a change to an engineering drawing or design.
As-Built Drawing: A drawing updated after construction or manufacturing to reflect the actual final state of the built item.
Controlled Copy: An official version of a drawing distributed through a managed process, ensuring it matches the current approved revision.

2. Why Drawing Revision Management Matters

If you have worked in manufacturing, construction, aerospace, or any engineering-heavy field, you already know that drawings are not static documents. They evolve. Materials change. Tolerances are refined. Assembly sequences get optimized. Customer requirements shift mid-project.

What separates high-performing engineering organizations from those constantly in firefighting mode is not the absence of change. It is the ability to manage change systematically.

The Business Cost of Poor Revision Control

Poor drawing revision management creates a cascade of downstream problems:

Rework and scrap costs: Parts manufactured to an outdated drawing must be scrapped or expensively reworked. In precision machining, a single wrong revision can cost thousands of dollars in material and labor.
Project delays: When teams cannot quickly identify which drawing revision is current, time is wasted chasing clarification instead of executing work.
Safety risks: In structural, aerospace, and medical device engineering, using a superseded drawing can have life-safety consequences. This is why regulatory bodies like the FAA and ISO mandate formal revision control procedures.
Audit failures: Companies in regulated industries are required to demonstrate traceability of design changes. Without proper version control, passing a quality audit becomes nearly impossible.
Communication breakdown: When suppliers, subcontractors, and internal teams operate from different revisions, collaboration breaks down. Finger-pointing replaces problem-solving.

3. How Engineering Drawing Revision Systems Work

Most engineering organizations follow a structured revision numbering convention. While the specifics vary by company and industry, the underlying logic is consistent.

Alphabetical vs. Numerical Revision Schemes

The two most common approaches are alphabetical and numerical revision systems. Each has practical advantages depending on the type of project and the organization’s workflow.

Scheme	Format	Typical Use Case	Pros	Cons
Alphabetical	Rev A, B, C…	General engineering, manufacturing	Simple, widely understood	Limited to 26 revisions; ambiguity with I, O
Numerical	Rev 1, 2, 3…	Software-influenced teams, PLM systems	Unlimited revisions, easy sorting	Less intuitive in traditional shops
Alpha-Numeric	Rev A1, A2, B1…	Complex, multi-phase projects	Tracks major/minor changes	Can become confusing without clear rules
Date-Based	2024-03-15	Construction as-builts	Self-explanatory timestamps	Hard to determine sequence at a glance

The Revision Block: The Heart of Drawing Version Control

Every properly formatted engineering drawing includes a revision block, typically located in the title block area. This block is the official record of the drawing’s revision history and should include:

Revision letter or number
Date of revision
Description of the change (brief but specific)
Name or initials of the person who made the change
Authorization or approval signature

The revision block should be updated every time a formal change is made. Informal or undocumented changes (sometimes called ‘pencil changes’ in traditional shops) are a major source of version control breakdown.

The Role of the Engineering Change Order (ECO)

For any organization handling product design, the ECO is the formal mechanism that bridges the gap between someone identifying a needed change and that change being officially incorporated into the drawing. A well-designed ECO process includes:

Change Request: Anyone on the team can submit a request identifying the problem or improvement needed.
Impact Assessment: Engineering reviews the request to understand how the change affects related drawings, parts, assemblies, and processes.
Approval Workflow: The change goes through an approval chain (engineering, quality, manufacturing, program management depending on impact).
Drawing Update: The drafter or engineer updates the drawing, increments the revision, and records the change in the revision block.
Release and Distribution: The new revision is formally released and distributed to all stakeholders, and old revisions are clearly marked as superseded.

Flowchart of an Engineering Change Order process showing steps from change request to drawing release and distribution

4. Manual vs. Digital vs. PLM-Based Version Control

The method an organization uses to manage drawing revisions has a massive impact on efficiency, accuracy, and scalability. There is no single right answer. The best approach depends on team size, project complexity, and industry requirements. Let us walk through the three primary models.

Manual Revision Control (Paper and Shared Folders)

Many small shops and independent contractors still manage drawings through physical files or shared network folders. This approach works at a small scale but introduces serious risk as teams grow.

Common signs of a manual system include: print-and-mark revision tracking, emailed drawings with revision numbers in the filename, and a shared folder structure like ‘Engineering > Drawings > Current’ with a separate ‘Archive’ folder.

The core problem with manual systems is that they rely entirely on human discipline. One person saving over the wrong file, or forgetting to move the old version to the archive, can create silent errors that do not surface until significant damage is done.

Digital Version Control (CAD Software and EDM Systems)

Modern CAD platforms including SolidWorks PDM, Autodesk Vault, PTC Windchill, and CATIA come with built-in document management and revision control capabilities. These systems track file versions at the software level, making it much harder (though not impossible) to lose or overwrite revision history.

Key features to look for in a digital drawing management system include:

Check-in and check-out functionality to prevent simultaneous editing
Automatic version incrementing on save or release
Audit trail showing who made changes and when
Role-based access control (not everyone should be able to release drawings)
Search and retrieval by revision number, date, or associated project
Integration with CAD software to link drawing files directly to revision records

PLM-Based Version Control (Enterprise-Scale)

Product Lifecycle Management (PLM) systems like Siemens Teamcenter, PTC Windchill, and Dassault Enovia represent the most comprehensive approach to engineering drawing revision control. PLM systems manage not just the drawings themselves, but the entire product data ecosystem: BOMs, change orders, supplier drawings, manufacturing processes, and quality records.

For large manufacturers, aerospace companies, and automotive OEMs, PLM is often mandatory. These systems ensure that every drawing revision is linked to its originating change order, the associated BOM impact has been assessed, and all downstream teams receive automatic notification when a new revision is released.

The tradeoff is cost and complexity. PLM implementations require significant investment in software licensing, IT infrastructure, and training. They are overkill for a 10-person fabrication shop but essential for a tier-1 aerospace supplier.

5. Best Practices for Managing Drawing Revisions

Whether your team uses paper folders or a full PLM system, the following practices consistently separate organizations with clean revision control from those drowning in drawing chaos.

Establish a Revision Numbering Convention and Stick to It

Pick a revision scheme and document it formally. Define what triggers a new revision (versus an informal markup), how revisions are labeled, and where the revision history lives. Share this standard with every person who touches drawings, including external suppliers and contractors.

Consistency is more important than the specific scheme you choose. A team using alphabetical revisions impeccably will outperform one with a sophisticated system applied inconsistently.

Never Delete Old Revisions

This one cannot be overstated. Superseded revisions must be retained, not deleted. Why? Because products already in service were built from those older revisions. If a field failure occurs, your maintenance team needs to know exactly what design was in place at the time of manufacture. If you have deleted Rev B because Rev C is current, you have lost critical traceability.

In digital systems, superseded revisions should be moved to an ‘Obsolete’ status, not deleted from the database. They should still be searchable and accessible to authorized personnel but clearly marked so no one accidentally uses them for production.

Use Meaningful Change Descriptions

A revision block entry that says ‘Updated per ECO-1042’ is useful only if someone can look up ECO-1042. An entry that says ‘Updated per ECO-1042: changed hole pattern on flange face from 4x M6 to 6x M8 per customer RFI-217’ is genuinely informative to anyone reading the drawing years later without access to the ECO database.

Train your team to write revision descriptions that stand alone. Future engineers, quality auditors, and production teams will thank you.

Control Distribution of Drawings

The best revision control system in the world fails if people can bypass it. Establish a single source of truth for current drawings, whether that is your PDM system, your PLM, or a strictly managed shared drive with clear folder governance.

When a new revision is released, formally notify all stakeholders and pull back or obsolete distributed copies of the previous revision. In digital environments, this means updating the file status. In physical environments, it means collecting and stamping old prints as ‘superseded.’

Separate Internal Working Revisions from Released Revisions

Many teams use a preliminary revision scheme (often lowercase letters or draft numbers) for drawings that are in development but not yet formally released. This protects the integrity of the official revision record while still providing version tracking during the design phase.

For example, a drawing might go through internal iterations a, b, c as the design evolves, then be formally released as Rev A when it is ready for production. This way, the official revision record stays clean and only reflects formally approved states.

Engineering drawing title block showing revision history from Rev A to Rev D with change descriptions, dates, and initials

Implement a Formal Drawing Review and Release Workflow

Drawings should not be released directly by the person who created them. A formal review step, even a lightweight one for small teams, catches errors before they propagate into production. At minimum, define who can review drawings, who can approve them, and who can release them. These can be the same person in a small shop but the process should still be intentional.

For higher-stakes drawings (safety-critical parts, customer-deliverable documents, regulatory submissions), require multi-discipline review including manufacturing, quality, and sometimes the customer.

6. Common Revision Control Mistakes (and How to Avoid Them)

Using File Names as the Version Control System

File names like ‘bracket_assembly_FINAL_v3_REVISED_USE-THIS-ONE.dwg’ are a warning sign. When the file name is your only version indicator, you are one accidental save away from losing your revision history. Use a proper revision tracking system and keep file names simple and consistent.

Maintaining Multiple ‘Current’ Folders

Teams under pressure sometimes create parallel folder structures (‘Current,’ ‘Current-2024,’ ‘Latest from Supplier’) that each claim to hold the authoritative version. This leads directly to the scenario described in the introduction. Enforce a single source of truth.

Skipping the Revision Block Update

When a drawing is updated quickly or informally, it is tempting to skip updating the revision block. This creates a drawing that has changed physically but whose metadata says otherwise. Make revision block updates a non-negotiable step in the drawing change process, not an optional one.

Not Linking Drawings to Change Orders

A revision with no associated change order is a revision with no traceable rationale. Future engineers, auditors, and customers cannot understand why a change was made if it was never documented. Even for minor updates, a simple ECR takes five minutes and creates invaluable traceability.

7. Tools and Software for Engineering Drawing Version Control

Choosing the right tool depends heavily on your workflow, team size, and industry. Here is a practical overview of what is available across the spectrum.

Tool / System	Type	Best For	Key Feature
SolidWorks PDM Standard	CAD-Integrated EDM	Small to mid-size teams using SolidWorks	Check-in/out, vault storage, revision workflow
Autodesk Vault	CAD-Integrated EDM	Autodesk Inventor / AutoCAD users	Tight CAD integration, lifecycle management
PTC Windchill	Full PLM	Mid to large manufacturers, OEMs	BOM management, multi-site collaboration
Siemens Teamcenter	Full PLM	Aerospace, automotive, defense	Digital twin integration, regulatory compliance
Onshape	Cloud CAD + PDM	Distributed teams, cloud-first orgs	Built-in branching, real-time collaboration
SharePoint + Custom Workflow	Document Management	Organizations already using Microsoft 365	Low cost, familiar interface
Git / Git LFS	Software-style VCS	Teams with CAD text formats (e.g. OpenSCAD)	Branching, diffing, open source

A Note on Git for Engineering Drawings

Software developers use Git as their version control backbone, and some engineering teams have explored applying Git to CAD files. This works reasonably well for text-based CAD formats (OpenSCAD, FreeCAD, KiCad) where actual file differences can be compared line by line. For binary formats like CATIA or SolidWorks native files, Git stores the entire file on each commit rather than the difference, which becomes storage-intensive. Git LFS (Large File Storage) partially addresses this. For most traditional engineering workflows, a purpose-built PDM or PLM system will be more practical than Git.

8. Version Control in Regulated and Aerospace Industries

In regulated industries, drawing revision control is not a best practice. It is a legal and contractual requirement.

ISO 7200 and Drawing Title Block Standards

ISO 7200 defines the required fields for technical drawing title blocks used in ISO-compliant organizations. It specifies fields for legal owner, document status, revision identifier, dates, approvals, and related document references. Organizations seeking ISO certification are expected to maintain drawings that conform to this standard or an equivalent organizational standard derived from it.

AS9100 and Aerospace Drawing Control

The AS9100 quality management standard, used throughout the aerospace and defense supply chain, mandates rigorous control of technical documentation including engineering drawings. AS9100 requires that organizations control documents to ensure only the correct revision is available at points of use, changes are reviewed and approved by authorized personnel, the identity of the current document status is clear, and records of obsolete documents are maintained.

Failure to demonstrate compliant drawing revision control can result in failed audits, lost contracts, and in the case of safety-critical parts, regulatory action.

FDA and Medical Device Drawing Requirements

Medical device manufacturers operating under FDA 21 CFR Part 820 (Quality System Regulation) and the ISO 13485 standard face similar requirements. Device History Records (DHR) must be traceable to specific drawing revisions. If a device is manufactured to a revision that differs from what was validated, it constitutes a serious regulatory non-conformance.

FAQ:

What is the difference between a revision and a version in engineering drawings?

In engineering practice, a ‘revision’ typically refers to a formally approved and released change to a drawing, documented in the revision block. A ‘version’ is a more informal term and may refer to any iteration of a file, including working drafts not yet formally released. Some organizations use these terms interchangeably, but best practice is to reserve ‘revision’ for formally controlled changes only.

How do you handle drawing revisions when working with external suppliers?

When sharing drawings with external suppliers, always include the revision number prominently on the drawing and in any accompanying purchase order or work order documentation. Establish a formal process for notifying suppliers when a new revision is released, and confirm that they have received and acknowledged the update before production begins. Include drawing revision numbers in acceptance criteria and inspection records.

Should you use letters or numbers for engineering drawing revisions?

Either works, and the choice depends largely on organizational convention and industry norms. Alphabetical revisions (A, B, C) are traditional in manufacturing and aerospace. Numerical revisions (1, 2, 3) are common in software-influenced organizations and some PLM systems. What matters most is consistency: pick a scheme, document it, and apply it uniformly across all drawings.

What should be included in a drawing revision description?

A good revision description should be specific enough to be understood without referencing other documents. Include what changed (the specific geometry, dimension, note, or specification), why it changed (customer requirement, design improvement, manufacturing feedback), and the reference number of any associated change order. Aim for one to three sentences of clear, factual description.

How long should you retain obsolete drawing revisions?

Retention requirements vary by industry and contractual obligation. As a general rule, retain all superseded revisions for the full service life of the product plus the applicable statutory limitation period. In aerospace and defense, this often means 20 to 30 years or longer. In regulated industries, consult applicable standards (AS9100, ISO 13485, FDA QSR) and your legal counsel for specific requirements.

Can you use cloud storage like Google Drive or Dropbox for engineering drawing version control?

Cloud storage platforms can provide basic version history for files, but they are not purpose-built for engineering drawing revision control. They lack features like formal release workflows, revision block integration, role-based approval authority, and audit trails required by quality standards. They can serve as a step up from unmanaged shared drives for small teams, but growing organizations should invest in a proper PDM or EDM system.

Conclusion:

Version control for engineering drawings is ultimately about trust. When your manufacturing team picks up a drawing, they need to trust that it is the correct revision. When your quality auditor traces a field failure back to its source, they need to trust that the revision history is complete. When your customer asks for the design documentation package, they need to trust that what they receive reflects exactly what was built.

No software system, however sophisticated, creates that trust on its own. It is built through disciplined processes, clear standards, and a team culture that treats drawing revision control not as administrative overhead but as a core engineering responsibility.

Start where you are. If your organization is still managing revisions through file names and shared folders, move to a structured naming convention and a formal release process first. If you have a basic PDM system, audit how consistently it is being used and tighten the workflows. If you are at the PDM stage and scaling fast, evaluate whether a PLM investment is justified.

The cost of getting revision control right is modest. The cost of getting it wrong, measured in rework, audit failures, and damaged customer relationships, is substantial.

June 11, 2026

How AI Is Changing Engineering Design: Real vs Hype 2026

A few years ago, the engineering software industry seemed to reach a collective agreement: AI was going to change everything. Vendors rewrote their marketing pages. Conference keynotes promised autonomous design systems that would shrink development cycles from months to days. Engineering managers were told to prepare for transformation.

It is now 2026, and the honest assessment is more nuanced than the pitch decks suggested. Some of what was promised is genuinely here, deployed in real workflows at real companies, producing real time and cost savings. A meaningful part of it is still vendor theater: capable in demos, limited in production, and often solving the wrong problems.

This article is written for engineers, engineering managers, and technical decision-makers who want a clear-eyed view of what AI is actually doing in engineering design today. Not what it might do by 2030. Not what a simulated benchmark shows. What is working right now, what is not, and what you should actually be paying attention to in your organization this year.

We draw on the SimScale 2026 State of Engineering AI Report, Autodesk’s State of Design and Make survey, Gartner’s 2025 hype cycle analysis, firsthand feedback from engineers, and published research to give you a ground-level view of the current state of the art.

1. The State of AI in Engineering Design: 2026 at a Glance

Before separating real from hype, you need a baseline picture of where the industry actually stands.

Metric	Data Point	Source
Organizations using AI in at least one business function	88%	McKinsey / Intuit survey, 2026
AEC firms that have formally adopted AI	27%	ASCE survey, late 2025
AEC AI adopters planning to expand usage in 2026	94%	ASCE survey, late 2025
Engineering teams using AI generating design variants per program	~4x more than non-AI teams	SimScale 2026 State of Engineering AI Report
Simulation request speed-up for AI-enabled engineering workflows	2.8x faster than conventional	SimScale 2026 Report
Top barrier to scaling AI in engineering	Data preparation and availability (74%)	SimScale 2026 Report
Organizations getting measurable ROI from AI projects (2025 MIT study)	5% (95% report zero ROI)	MIT NANDA GenAI Divide Report, 2025
Digital twin market projected value by 2030	$150 billion (from $21B in 2025)	Industry analyst consensus

These numbers tell a revealing story. Adoption is accelerating, particularly in engineering-heavy industries. But the gap between organizations that have installed AI tools and those generating measurable business impact from them remains enormous. The 95 percent figure from MIT’s NANDA report deserves direct acknowledgment: most AI projects in enterprise settings have not yet produced return on investment. That does not mean AI is failing. It means most organizations have not yet done the hard work of integrating AI meaningfully into real workflows.

The engineering firms and manufacturing organizations that are generating impact share a common pattern, noted in the SimScale report: they are embedding AI into core engineering workflows rather than running it as a parallel experiment. The ones still running AI ‘pilots’ are, in most cases, not generating results.

2. Understanding the Hype Cycle: Where Engineering AI Sits Right Now

Gartner’s 2025 Hype Cycle for AI is instructive. Generative AI, after dominating the Peak of Inflated Expectations in 2023 and 2024, is now beginning its descent toward the Trough of Disillusionment. This is not a disaster. It is a normal and healthy maturation. The technologies that survive the trough, and most of the genuinely useful ones do, emerge on the slope of enlightenment as practical, well-understood tools that deliver consistent value.

For engineering specifically, Autodesk’s State of Design and Make 2025 report found a meaningful drop in positive AI sentiment compared to the prior year. Fumihiro Ojima, general manager of digital innovation at Tokyu Construction, captured the shift clearly when he said the industry has come to understand that AI is suited to some things and not others, and that the initial impression of AI being able to do everything has passed.

That recalibration is healthy for the engineering profession. It creates space for a more honest question: not ‘what can AI do eventually?’ but ‘what is AI reliably doing right now in engineering workflows, and what should I actually invest in?’

DATA: Gartner Trough Finding. Generative AI moved from Peak of Inflated Expectations toward Trough of Disillusionment in 2025. Technologies entering the trough typically reach practical productivity 2 to 5 years after initial peak hype.

3. What Is Actually Working: AI Applications Delivering Measurable Value

Let us be direct. These are the areas where AI in engineering design is producing documented, repeatable, commercially meaningful results in 2026, not in lab conditions, and not in vendor demos.

Simulation Acceleration

This is arguably the most consequential real-world application of AI in engineering today. Traditional finite element analysis (FEA) and computational fluid dynamics (CFD) simulation runs are computationally expensive and slow. A complex thermal analysis might take 12 to 48 hours to run on conventional infrastructure. AI surrogate models, trained on prior simulation data, can approximate simulation results in minutes, sometimes seconds, at acceptable accuracy for early-stage design decisions.

The SimScale 2026 report found that engineering teams using AI-enabled simulation workflows process requests 2.8 times faster on average than those using conventional workflows. More significantly, these teams test nearly four times as many design variants per program. That is not marginal improvement. That is a structural change in what is practically possible within a given development timeline.

REAL: Simulation surrogate models. AI-accelerated simulation is working in production environments now. Teams at aerospace and automotive companies are using it to explore design spaces that were previously computationally prohibitive.

Automated Drawing Production

Autodesk’s Fusion has shipped an Automated Drawings feature that auto-generates 2D engineering drawings from 3D models, with automatic view selection, dimension placement, and basic annotation. Since launch, millions of automated dimensions and constraints have been applied. Engineers using it describe the feature as having moved from experimental to genuinely useful for routine drawing production over the past 12 months.

SolidWorks 2026 has introduced a Command Predictor (currently in beta) that anticipates the next modeling command based on session context, a Contextual Assistant that recommends workflow optimizations in real time, and a Fastener Recognition feature that identifies and mates hardware components automatically. These are not capabilities that transform the design process on their own, but they represent real, daily time savings in routine modeling work.

REAL: Automated drawing generation. Autodesk Fusion’s Automated Drawings and SolidWorks’ Sketch AutoConstrain are in daily production use at engineering firms globally. Real time savings, not just demo capabilities.

Topology Optimization

Topology optimization is the process of computationally determining the most efficient material distribution within a defined design space, given specified loads and constraints. This is not a new idea, but AI has meaningfully improved both the speed of optimization runs and the manufacturability of the resulting geometries.

Aerospace and automotive applications have been the primary beneficiaries. Airbus famously used topology optimization to redesign a cabin bracket, reducing its mass by 45 percent while meeting the same structural performance requirements. That specific project predates current AI tools, but it established the value proposition. Current AI-enhanced topology optimization in tools like Autodesk Fusion’s Generative Design, Siemens NX, and Altair OptiStruct is producing similar results with significantly shorter compute times and better integration with manufacturing constraints.

REAL: Topology optimization. Working reliably for structural, thermal, and aerospace applications. Best results come from combining AI topology output with engineer-applied manufacturing feasibility judgment.

Part Search and Design Reuse

One of the less glamorous but high-impact AI applications in engineering is intelligent part search. Most engineering organizations maintain libraries of thousands of existing parts, but engineers routinely create new parts that are near-duplicates of ones that already exist because finding the right existing part is harder than building a new one. AI-powered geometry search (tools like Leo AI and integrated PDM search in Siemens Teamcenter and PTC Windchill) allows engineers to search by shape similarity rather than name or part number.

This addresses a genuine bottleneck that generative design tools largely ignore. According to Leo AI’s 2026 analysis of the CAD workflow, the biggest time sink in engineering design is not generating new geometry from scratch. It is finding and reusing what already exists.

REAL: AI-powered part search. Geometry-based part retrieval is delivering measurable productivity gains in organizations with large existing CAD libraries. High ROI with relatively low implementation complexity.

Predictive Maintenance in Manufacturing

AI-driven predictive maintenance has moved firmly from pilot to operational deployment in manufacturing. Systems that analyze sensor data from production equipment to predict failure before it occurs are now standard infrastructure at large manufacturers in automotive, aerospace, and process industries.

A 2025 research analysis of 1,094 manufacturing companies in Visegrad Group countries found that companies deploying predictive maintenance algorithms generated higher operational profits and lower sales costs relative to those using conventional maintenance approaches. A separate 2025 publication in the American Journal of Advanced Technology and Engineering Solutions reported that AI-driven predictive maintenance for electrical systems now reaches 85 to 95 percent accuracy in failure prediction.

REAL: Predictive maintenance. This is the most commercially mature AI application in engineering-adjacent domains. Production deployments with documented ROI exist across automotive, aerospace, energy, and process manufacturing.

4. Generative Design: Genuine Breakthrough or Overhyped Feature?

Generative design is the poster child of AI in engineering, and it deserves honest examination. The concept, that you define your design constraints (loads, materials, manufacturing methods, cost targets) and an AI generates multiple optimized geometry options that meet those constraints, is genuinely powerful. It is also genuinely limited in ways that vendor marketing does not advertise.

Where Generative Design Delivers

For well-defined, single-objective design problems with clear constraints, generative design works well. Structural components that must meet specific load cases with minimum weight, under manufacturing constraints like casting or CNC machining: this is the sweet spot. Autodesk’s generative design in Fusion, SolidWorks’ generative capabilities, and Altair OptiStruct have produced documented weight reductions and performance improvements in aerospace, automotive, and industrial applications.

The SimScale report finding that AI-enabled engineering teams generate nearly four times as many design variants is substantially powered by generative design tools that can produce dozens of candidate geometries in the time it would take an engineer to produce one manually. That expanded design space exploration is real.

Where Generative Design Falls Short

The limitations are significant and are not often discussed in vendor materials. Dessia, a specialist in AI-based design engineering, published a direct 2026 analysis of what generative design still cannot do, and the list is instructive:

Multi-objective tradeoffs requiring human judgment: Generative algorithms can optimize for a stated objective. They cannot resolve unstated tradeoffs, manage competing stakeholder priorities, or understand that a design needs to be manufacturable by a specific supplier’s existing tooling, not just theoretically manufacturable in principle.
Context beyond the model: Generative design operates on the geometry and constraints you define. It has no awareness of supply chain realities, assembly ergonomics, serviceability requirements, cost of manufacturing change, or the political realities of getting a new design approved by a customer.
Selection and judgment: Generative design produces candidates. It does not select the right one. That decision requires engineering judgment that weighs factors the system cannot model. The bottleneck shifts from generation to evaluation, and evaluation is still a human job.
Novel design problems: AI-driven generative design is essentially extrapolating from patterns in training data and prior simulations. For genuinely novel engineering problems, outside the distribution of what the system has seen, the output quality degrades and engineer oversight becomes critical.

HYPE: Generative design as autonomous design tool. Generative design is a powerful computational tool. It is not an autonomous design system. The claim that it eliminates the need for experienced design engineers misrepresents what the technology actually does.

5. AI in Simulation and Digital Twins: The Most Consequential Development

If you want to identify the AI application in engineering with the greatest long-term structural impact, the combination of AI and digital twins is the leading candidate. And unlike many AI applications in engineering, this one has a solid foundation of peer-reviewed research, commercial deployment cases, and measurable outcomes.

What a Digital Twin Actually Is (and Is Not)

A digital twin is a continuously updated virtual model of a physical asset or system, connected to real-time data from sensors on the physical counterpart. The digital twin does not just represent the asset as-designed; it represents the asset as it actually exists and behaves in its current operational state. This is fundamentally different from a CAD model or a simulation model, both of which are static snapshots.

The combination with AI adds the capability to run predictive models against the digital twin: predicting how the physical asset will behave under future conditions, identifying early signs of degradation before failure, and optimizing operational parameters in real time. Published research in Frontiers in Artificial Intelligence (December 2025) describes how this architecture enables real-time monitoring, predictive maintenance, and intelligent process optimization in manufacturing environments.

Real Deployments and Outcomes

Digital twin deployments are no longer confined to aerospace primes and automotive OEMs with unlimited R&D budgets. Cloud platforms from Siemens (Teamcenter X), PTC (ThingWorx), and Ansys (twin builder) have made digital twin infrastructure increasingly accessible to mid-size manufacturers.

The Ansys 2026 R1 release, launched March 2026, introduces generative AI and the portfolio’s first agentic capabilities into simulation workflows. The release specifically addresses faster design exploration, validation earlier in development, and reduced reliance on physical testing. These are not theoretical roadmap items; they are shipping in the current product.

In civil infrastructure, published 2026 research in Spectrum of Engineering Sciences documents digital twin deployments using AI-based structural performance modeling for predictive maintenance of bridges and buildings, integrating IoT sensor data with BIM models to create assets that self-monitor and flag deterioration before it becomes a structural risk.

REAL: AI-powered digital twins. This is the most technically mature and commercially deployed application of AI in engineering systems today. ROI cases exist across manufacturing, aerospace, energy, and civil infrastructure.

Where Digital Twins Are Still Maturing

The implementation complexity is substantial. Building a functioning digital twin requires clean, structured sensor data (74 percent of organizations in the SimScale study cite data preparation as their top AI scaling barrier), integration between IT and OT systems, ongoing model maintenance as the physical asset evolves, and cybersecurity infrastructure to protect what is essentially a real-time data connection to critical equipment.

For organizations that have not yet built clean data infrastructure, the digital twin is not a starting point. It is a destination that requires significant foundational work first.

6. AI Copilots in CAD: What the Major Platforms Are Actually Shipping

Every major CAD platform now has an AI story. The critical question is whether the features being shipped are solving problems that engineers actually have in daily work, or whether they are impressive demos that engineers rarely reach for after the first week.

Side-by-side comparison of AI assistant interfaces in SolidWorks 2026, Autodesk Fusion, and Siemens NX showing copilot and generative design features

[IMAGE 2] Screenshot composite showing AI assistant interfaces from SolidWorks 2026, Autodesk Fusion, and Siemens NX side by side. Placement: After Section 6 intro paragraph. ALT: ‘Side-by-side comparison of AI assistant interfaces in SolidWorks 2026, Autodesk Fusion, and Siemens NX showing copilot and generative design features’

CAD Platform	Key AI Features (2025-2026)	What Is Working in Practice	Honest Limitation
SolidWorks 2026 (Dassault)	AURA design companion, Command Predictor (beta), Fastener Recognition, Contextual Assistant, Generative Assembly	Sketch AutoConstrain, Fastener Recognition, and Selection Accelerators are in daily use; real time savings on routine tasks	AURA’s generative assembly is still beta; significant generation capabilities remain works-in-progress
Autodesk Fusion	Automated Drawings, Sketch AutoConstrain, Autodesk Assistant (GenAI copilot), Fusion MCP for third-party AI integration, Generative Design	Automated Drawings widely adopted; millions of dimensions auto-generated; MCP integration with Claude for natural language design actions	Generative Design valuable for constrained structural problems; limited for complex multi-discipline design
Siemens NX	Adaptive UI, AI Chat Copilot, AI-assisted meshing, generative design tools	Chat Copilot reduces documentation lookup time; adaptive UI improves workflow discovery	Full workflow automation still requires significant setup; best results require experienced NX users directing the AI
PTC Creo 12 / Onshape	AI-driven generative design with thermal physics integration, AI Advisor, Design Assistant, real-time Ansys simulation integration	Onshape AI Advisor useful for beginners; Creo’s generative design strong for mechanical-thermal combined optimization	Complex regulatory and standards compliance still manual; AI outputs require experienced engineer review
Ansys 2026 R1	Generative AI, first agentic capabilities, AI-enhanced simulation, digital twin integration	AI-accelerated simulation workflows delivering 2-3x speed improvement in benchmarks; agentic features in early access	Full agentic automation requires clean data infrastructure most organizations do not yet have

The pattern across platforms is consistent. Features that accelerate routine, well-defined tasks (auto-dimensioning, fastener recognition, documentation lookup, view generation) are genuinely useful and widely adopted. Features that promise to generate complex designs from high-level intent are more constrained in practice than their marketing suggests and require experienced engineers to evaluate, filter, and refine their outputs before anything is usable.

Leo AI’s 2026 analysis of the CAD tool landscape makes this point precisely: most AI CAD tools in 2026 solve problems engineers do not actually have, while leaving the painful ones untouched. Documentation chatbots, for instance, primarily help new users find commands. Experienced engineers already know the commands. The bottleneck they face is workflow context and institutional knowledge, not documentation lookup.

7. Predictive Maintenance and AI in Manufacturing: Real Outcomes, Honest Limitations

The Clear Successes

AI-driven predictive maintenance is the commercial success story of AI in engineering-adjacent domains. The application is well-suited to AI: large volumes of structured sensor data, clear ground truth labels (a machine either failed or it did not), and high economic value in predicting failure before it occurs.

Published research now consistently demonstrates prediction accuracy of 85 to 95 percent for failure events in electrical and mechanical systems. Industry deployments at automotive manufacturers, energy companies, and aerospace maintenance organizations have documented reductions in unplanned downtime of 30 to 50 percent, with corresponding maintenance cost reductions.

What Makes Predictive Maintenance Different from Other AI Applications

Predictive maintenance works in practice where many other AI engineering applications struggle because the problem is well-structured. The data is digital (sensor readings), the label is binary (failure/no failure), the business case is directly quantifiable (cost of downtime), and the human oversight model is clear (the AI flags, the maintenance engineer decides). This combination of clear problem definition, clean training data, and a well-designed human-in-the-loop process is the template for AI engineering applications that actually deliver ROI.

Honest Limitations

Not every manufacturing environment has the sensor infrastructure to make predictive maintenance viable. Older equipment may lack the connectivity to generate the data the models need. Environments with significant process variability can degrade model performance. And the maintenance scheduling integration, ensuring that flagged maintenance actions are actually acted on within the right window, requires operational discipline that is not automatically provided by the AI system.

REAL: Predictive maintenance. ROI is documented and consistent across industries. This is the application to prioritize if you are looking for near-term, provable AI value in a manufacturing context.

8. The Hype That Has Not Delivered Yet (And Why)

Intellectual honesty requires naming the capabilities that were widely promoted but have not materialized as advertised.

Fully Autonomous AI Design Systems

The vision of describing what you want in plain language and receiving a production-ready engineering design back has not been realized. This is not surprising to anyone who understands what engineering design actually involves: managing constraints that are never fully specified, resolving tradeoffs between competing stakeholder requirements, applying domain knowledge about manufacturing realities, supply chains, standards compliance, and product history. AI can assist at many points in this process. It cannot replace it.

HYPE: Autonomous engineering design from natural language. No shipping product in 2026 can accept a high-level engineering brief and return a production-ready design without substantial expert human involvement. This capability may eventually arrive, but it is not here.

AI Completely Eliminating Physical Prototyping and Testing

AI-accelerated simulation is reducing the number of physical prototypes needed and shifting testing earlier in the design cycle. It is not eliminating physical testing. Physical testing remains essential for safety validation, regulatory certification, and the discovery of failure modes that simulation models, however sophisticated, do not capture. Structural engineers still certify and stamp. Aerospace hardware still goes through qualification programs. Medical devices still require bench and clinical validation. AI makes the front end faster. It does not make the back end disappear.

HYPE: AI replacing physical testing. AI simulation reduces but does not eliminate the need for physical validation. In regulated industries (aerospace, medical devices, structural engineering), this will remain true for the foreseeable future due to liability and certification requirements.

AI Copilots Usable Without Engineering Expertise

Several CAD vendors have suggested that AI copilots will lower the barrier to entry so significantly that non-engineers can produce engineering-grade designs. This has not happened. The AI tools shipping today augment experienced engineers. They do not substitute for engineering knowledge. An AI assistant that generates a structural joint geometry means nothing to a user who cannot evaluate whether the result is appropriate for the application, the material, the manufacturing process, and the applicable standard. The expertise required to use AI engineering tools well has not decreased; it has shifted toward higher-order judgment.

HYPE: AI democratizing engineering to non-engineers. AI tools reduce the mechanical burden of engineering workflows. They do not reduce the knowledge burden of engineering judgment. Output from AI design tools requires expert evaluation.

Agentic AI Running Autonomous Engineering Workflows

Agentic AI, systems that autonomously plan and execute multi-step engineering tasks without continuous human oversight, is a genuine research direction and an area of active development. In 2026, it is arriving in early access form in tools like Ansys 2026 R1. But the CIO article on agentic AI in engineering workflows (February 2026) offers the most accurate framing: agents remain brittle and are currently reliable only in constrained, well-defined domains. The engineer of 2026 is spending less time on keyboard-level execution and more time directing AI systems, but the idea that agentic AI will autonomously execute complex engineering workflows end-to-end is still a 2028-and-beyond conversation.

9. Will AI Replace Engineers? The Honest Answer

This question generates significant anxiety and no shortage of confident predictions from people who are not practicing engineers. Here is what the actual data and documented trends say in 2026.

The Numbers Do Not Support a Replacement Narrative

The BLS projects 9 percent job growth for mechanical engineers through 2034. The digital twin market alone is projected to grow from 21 billion dollars to 150 billion dollars by 2030, and that growth will require more engineers to design, validate, and maintain the systems involved, not fewer. Germany’s Bitkom 2025 survey of 855 companies found 109,000 unfilled IT and engineering positions, with 42 percent of those companies expecting to need additional technical specialists specifically because of AI adoption. The Jevons Paradox is already visible: cheaper AI-assisted engineering is not reducing demand for engineers. It is making more engineering work economically viable.

The ASCE survey finding that only 27 percent of AEC firms have formally adopted AI, while 94 percent of adopters plan to expand, signals an industry approaching an inflection point. The firms moving first will have a structural competitive advantage in 2027 and 2028. They will not have fewer engineers. They will have engineers who are dramatically more productive.

What Is Changing Is What Engineers Spend Time On

The genuine transformation is in the nature of engineering work, not the existence of engineering jobs. The CIO analysis of agentic AI in engineering frames this clearly: the engineer of 2026 is moving from hands-on execution of routine design tasks toward directing AI systems, defining objectives and constraints, validating outputs, and making judgment calls that AI tools cannot make.

A mechanical engineer who previously spent 40 percent of their time creating standard 2D drawings from 3D models can now delegate much of that to automated drawing tools. That time shifts to design exploration, FEA interpretation, supplier communication, and the contextual judgment calls that are genuinely hard for an AI to make. The job has not disappeared. The ratio of creative to mechanical work has shifted.

The Risk Is Real But Concentrated

The risk to individual engineers is not uniform. Entry-level positions that consist primarily of routine, well-defined tasks are genuinely more exposed. Junior engineering roles at large companies that have already deployed AI tools are seeing reduced new-grad hiring. Senior engineers, those with domain expertise, stakeholder judgment, systems thinking, and the ability to validate AI outputs critically, are not at meaningful risk and in many cases are in higher demand.

The World Economic Forum’s Future of Jobs Report 2025 listed AI and big data as the fastest-growing skills category. Engineers who develop AI fluency in their specific technical domain in 2026 are positioning themselves as organizational leaders. The window for building that differentiated advantage is open now, but it is not going to stay open indefinitely.

DATA: What this means practically. The engineers most at risk are those whose work consists entirely of tasks AI tools now automate reliably: routine 2D drafting, standard part modeling, documentation lookup. Engineers who combine domain depth with AI tool fluency are increasingly valuable.

10. What Engineering Managers Should Actually Do in 2026

If you manage an engineering team or an engineering-dependent business, here is practical guidance based on what is working, not on what the industry hopes will be working by 2030.

Start with simulation acceleration, not generative design.If you want near-term ROI from AI, invest in AI-assisted simulation. Teams using AI simulation workflows are generating nearly three times more design iterations at 2.8 times the speed. The productivity case is documented and the tooling is mature enough to deploy. Generative design is worth experimenting with for constrained structural applications, but it should not be your first AI investment.
Fix your data infrastructure before buying AI tools.74 percent of organizations in the SimScale report cited data preparation as their top barrier. AI tools run on clean, structured, accessible data. If your CAD library is disorganized, your simulation results are inconsistently named, and your sensor data is siloed in proprietary formats, investing in an AI overlay will not help. Fix the foundation first.
Pilot predictive maintenance if you have production equipment.This is the highest-confidence AI application in manufacturing. Mature tooling, documented ROI, clear human-in-the-loop model. If your organization has production equipment with connectivity, a predictive maintenance pilot has the best probability of delivering measurable results within a 6 to 12 month timeframe.
Evaluate the CAD AI features your team already has access to.SolidWorks 2026, Autodesk Fusion, Siemens NX, and PTC Creo all include AI features in your existing license. Before buying new AI tools, audit what your current software already provides. Automated drawing generation, sketch autoconstraint, command prediction, and geometry search may be available today with no additional investment.
Invest in AI fluency for your mid-level engineers.Mid-level engineers, experienced enough to evaluate AI outputs critically but adaptable enough to learn new workflows, are the optimal AI adoption target. The World Economic Forum identifies skill gaps as the primary barrier to AI-driven business transformation. Training your team to use AI tools effectively in your specific engineering domain will generate faster ROI than buying more software.
Resist the pressure to over-invest in agentic AI right now.Agentic engineering workflows are a genuine future direction. In 2026, they are fragile in production environments and most valuable in narrow, well-defined tasks. Gartner recommends pursuing agentic AI only where it delivers clear, defined value. Identify one or two high-value, well-defined workflow automation candidates and pilot those, rather than pursuing broad autonomous engineering as an organizational initiative.

11. Real vs Hype: Quick-Reference Verdict Table

Based on research, vendor disclosures, and firsthand engineering practitioner feedback, here is our 2026 verdict on the major AI claims in engineering design:

AI Application	Verdict	Evidence Basis	Practical Guidance
AI simulation acceleration	REAL	SimScale 2026: 2.8x speed, 4x design variants	Invest now; mature tooling, documented ROI
Automated 2D drawing from 3D models	REAL	Autodesk Fusion: millions of auto-dims applied	Adopt in current license; immediate daily time savings
Topology optimization for structural/aero	REAL	Documented weight reductions at Airbus, automotive OEMs	Useful for well-constrained, single-discipline problems
Predictive maintenance (manufacturing)	REAL	85-95% failure prediction accuracy in peer-reviewed studies	Highest-confidence ROI application in manufacturing
AI-powered part search and reuse	REAL	Documented productivity gains at large CAD library orgs	High ROI, often overlooked; lower complexity than generative design
Digital twins with AI for asset monitoring	REAL (growing)	Deployed at scale in aerospace, energy, civil infrastructure	Requires data infrastructure investment; powerful when built correctly
Generative design as autonomous design tool	HYPE	Works for constrained structural problems; fails at multi-objective, context-rich design	Useful as a starting point generator; not a design replacement
AI eliminating physical testing	HYPE	Not supported; regulations and liability require physical validation	AI reduces prototype count; physical testing remains mandatory
AI copilots usable by non-engineers	HYPE	No deployed tool produces engineering-grade output without expert evaluation	AI augments engineering expertise; does not substitute for it
Full agentic engineering automation	HYPE (for now)	Ansys 2026 R1 early access; described as brittle outside narrow domains	Watch actively; not ready for broad deployment in 2026
AI replacing engineers at scale	HYPE	BLS projects 9% growth; digital twin market growth drives more demand	Roles are transforming, not disappearing; AI fluency is the differentiator

12. FAQ:

Is generative design the same as AI design?

No, though the terms are often conflated in marketing. Generative design is a specific application where an algorithm explores a defined design space to produce geometry that meets stated constraints (loads, materials, manufacturing methods). AI in engineering design is a broader category that includes simulation acceleration, predictive maintenance, drawing automation, digital twins, copilot assistants, and generative design. Generative design is one subset of AI’s applications in engineering, and the one that receives the most marketing attention.

Which CAD software has the best AI features in 2026?

This depends on your discipline and workflow. For mechanical product design, SolidWorks 2026 and Autodesk Fusion lead in practical, daily-use AI features. For simulation-heavy work, Ansys 2026 R1 is the most advanced. For BIM and AEC workflows, Autodesk Revit and Bentley’s AI-integrated civil tools are the market leaders. All major platforms have shipped meaningful AI features in the 2025-2026 product cycle, but the quality gap is wide between features that are in general release versus features that are still in beta or limited preview.

How much faster does AI actually make engineering design?

Context-specific, but the SimScale 2026 data is instructive: teams using AI-enabled workflows process simulation requests 2.8 times faster and generate nearly four times as many design variants per program compared to conventional teams. For routine drawing production tasks, automated drawing generation can reduce drafter time by 40 to 70 percent on standard deliverables. Topology optimization can reduce structural mass 20 to 45 percent compared to manually designed baseline components. These numbers come from real deployments, not benchmarks.

What is stopping AI from fully automating engineering design?

Several things that are not going to be resolved quickly. Engineering design requires managing constraints that are never fully specified in a brief, resolving conflicts between stakeholder requirements that contradict each other, applying judgment about manufacturing realities that are not in any database, complying with regulations and standards that change and require interpretation, and taking legal and professional liability for signed and sealed documents. Until AI systems can reliably navigate all of those dimensions, experienced engineering professionals will remain essential for design work that matters.

Should engineering firms invest in AI tools right now?

For simulation acceleration, automated drawing generation, and predictive maintenance: yes, now. These applications are mature enough to deliver ROI within a 6 to 12 month window for most organizations. For broader generative design and agentic AI applications: selective pilots are appropriate, but full investment should wait until your data infrastructure is solid and you have engineering staff trained to critically evaluate AI outputs. The organizations generating the most value from AI in 2026 are those that started with specific, well-defined applications and built systematic competency before scaling.

How is AI affecting the engineering job market in 2026?

AI is shifting the distribution of engineering work more than it is reducing the total volume of engineering employment. Entry-level roles focused on routine drafting and standard modeling are seeing more pressure. Senior engineers and specialists are in higher demand. The World Economic Forum identifies AI fluency as the fastest-growing skills requirement for engineering professionals. Engineers who develop practical AI tool skills in their specific domain in 2026 are building a differentiator that will compound over the next three to five years.

Conclusion:

The most useful frame for AI in engineering design in 2026 is neither the vendor promise nor the skeptic’s dismissal. It is the practitioner’s view: AI is a genuine and growing capability that is delivering measurable value in specific, well-suited applications while falling well short of its most ambitious marketing claims in others.

The SimScale data showing that AI-enabled teams generate nearly four times as many design variants is not a technology prediction. It is a current operational reality at the firms doing this right. The MIT NANDA finding that 95 percent of enterprise AI projects generate zero ROI is equally real, reflecting the majority of organizations that have bought AI tools without the foundational workflow integration needed to make them productive.

Infographic showing SimScale 2026 data AI-enabled engineering teams generate 4x more design variants and process simulation requests 2.8x faster than conventional teams

The difference between those two outcomes is not the technology. It is the discipline of identifying where AI genuinely helps, building the data and workflow infrastructure to support it, training the humans who work alongside it, and maintaining the engineering judgment that no current AI system can replace.

For engineers reading this in 2026: AI is not going to make your expertise irrelevant. It is going to make your expertise more valuable if you develop the fluency to direct AI tools effectively. The competitive window for building that advantage is open now. Do not wait for the technology to mature further before starting.

Want to go deeper on AI in your engineering workflow?

Explore our related guides on CAD software comparison, in-house versus outsourced CAD drafting, and version control for engineering drawings to build a complete picture of modern engineering operations for your organization.

May 31, 2026

In-House vs Outsourced CAD Drafting: How to Decide

A mid-size mechanical engineering firm in Ohio recently found itself in a familiar bind. Their one full-time CAD drafter was maxed out, a large product redesign project had just landed, and the choice was either hire someone new or send overflow work to an outside firm. The owner asked what most business leaders eventually ask: which model actually makes more sense for us?

It is a question that sounds simple but gets complicated fast. The answer changes depending on how much drafting work you have, how sensitive your designs are, whether your projects are continuous or cyclical, and what your long-term business strategy looks like. Most articles on this topic give you a pros and cons list and leave the decision entirely to you. This guide does something different.

We have researched real salary benchmarks, actual outsourcing cost structures, and the practical operational realities that both models create. By the end, you will have a concrete framework for making the right call for your specific business, including a decision scorecard you can apply immediately.

1. What Is CAD Drafting and Why the Sourcing Decision Matters

CAD drafting is the process of creating precise technical drawings and 2D or 3D models using computer-aided design software such as AutoCAD, SolidWorks, Revit, CATIA, or MicroStation. These drawings serve as the authoritative technical language between designers, engineers, fabricators, contractors, and clients. A floor plan, a mechanical assembly drawing, an HVAC layout, a structural detail sheet: all of these are products of CAD drafting.

For most businesses in engineering, architecture, construction, and manufacturing, CAD drafting is not an optional activity. It underpins every project. The question is not whether to do it, but how to staff it.

Getting this decision wrong is expensive. Hire a full-time drafter when your workload does not justify it, and you are paying for idle capacity. Outsource when you should not, and you risk IP exposure, communication failure, and quality inconsistency. The right answer depends on a careful analysis of your workload pattern, budget, project complexity, and strategic direction.

2. What the Top-Ranking Articles on This Topic Miss

Before building this guide, we reviewed the articles currently ranking at the top of search results for this topic. They share a consistent set of weaknesses that leave business owners without the information they actually need to make this decision.

No real cost data: Most articles say outsourcing ‘saves money’ without citing any salary figures, hourly rates, or total cost calculations. We have included current 2025-2026 market data from salary.com, Glassdoor, and Indeed.
No hybrid model: Every top-ranking article treats this as a binary either/or choice. The reality is that most growing engineering businesses use a hybrid approach, and we cover exactly how that works.
No decision framework: Readers get a list of advantages and disadvantages but no structured way to weigh them against their specific situation. This guide includes a scored decision matrix you can actually use.
No vetting guidance: Articles that recommend outsourcing give no practical advice on how to find, evaluate, and manage an outsourcing partner responsibly.
No IP protection strategies: Intellectual property risk is mentioned as a concern but never addressed with actionable solutions like NDAs, data handling standards, or contractual protections.
No transition guidance: None of the top-ranking articles address what happens when your business needs to change models, either adding in-house capacity or transitioning to outsourcing.

This guide fills those gaps directly.

3. The Real Cost of In-House CAD Drafting

The most common mistake businesses make when evaluating in-house CAD staffing is looking only at salary. Salary is the largest line item, but the true cost of an in-house employee runs significantly higher when you account for the full cost stack.

Current CAD Drafter Salary Benchmarks (United States, 2025-2026)

Based on data from Salary.com, Glassdoor, and Indeed as of early 2026:

Experience Level	Annual Salary Range	Median	Hourly Rate
Entry Level (0-2 years)	$51,675 – $75,848	$66,200	~$32/hr
Mid-Level (3-6 years)	$65,000 – $90,000	$75,335	~$36/hr
Senior / Experienced	$75,433 – $105,809	$91,290	~$44/hr
Specialist / Expert	$100,000 – $138,000+	$117,900	~$57/hr

Source: Salary.com, Glassdoor (May 2026). Rates vary by geography. California and Massachusetts average 10-15% above national median.

The Full Cost of an In-House Employee: Beyond Salary

When businesses calculate ‘what it costs to hire a drafter,’ they almost always undercount. A commonly accepted rule of thumb in HR is that the fully loaded cost of an employee runs 1.25 to 1.4 times their base salary, accounting for:

Benefits (health, dental, vision): Typically 15-30% of base salary for employer contributions.
Payroll taxes (FICA, FUTA, SUTA): Approximately 7.65% federal, plus state unemployment taxes.
Paid time off: 10-15 days PTO plus holidays represents roughly 5-7% of total work capacity that is paid but non-productive.
Software licenses: AutoCAD seats run $2,500 to $4,500 per year. SolidWorks with PDM ranges from $4,000 to $10,000+ per year. CATIA and similar enterprise platforms cost considerably more.
Hardware: A capable CAD workstation costs $2,000 to $5,000 upfront with a typical 3-4 year refresh cycle.
Training and onboarding: Industry estimates place onboarding costs at one to three months of salary. Ongoing training for software updates, new standards, or skill development adds further cost.
Recruitment: Recruiting fees (if using an agency) run 15-20% of first-year salary. Internal recruiting time has an opportunity cost even without an agency.

Real-world example : A business that hires a mid-level CAD drafter at $75,000/year salary is likely incurring a true annual cost of $94,000 to $105,000 when all the above factors are included. A senior drafter at $91,000 salary likely costs $113,000 to $127,000 fully loaded.

Overhead and Utilization: The Hidden Efficiency Problem

In-house drafters have a fixed cost whether they are fully occupied or not. For businesses with cyclical project loads, this means paying for underutilized capacity during slow periods. If your drafting demand fluctuates significantly across quarters, the periods of low utilization are essentially a cost with no corresponding revenue-generating output.

At the same time, if a key drafter leaves the company, you face recruiting, onboarding, and knowledge transfer costs all over again. Industry data suggests the cost of replacing a technical employee runs between 50% and 200% of annual salary when you factor in lost productivity, recruiting fees, and training time.

4. The Real Cost of Outsourced CAD Drafting

The appeal of outsourcing is straightforward: you pay only for the work you actually need, with no payroll overhead, benefits, or idle capacity. The reality is nuanced. Outsourcing costs vary enormously depending on the provider’s location, specialization level, and engagement model.

Outsourced CAD Drafting Rate Ranges

Provider Type / Region	Typical Hourly Rate	Strengths	Considerations
Domestic US freelancer	$45 – $95/hr	Time zone alignment, no language barrier	Higher cost, limited scale
Domestic US firm	$65 – $150/hr	Accountability, quality standards	Most expensive outsource option
India-based firm	$8 – $25/hr	Large talent pool, established industry	Time zone gap, quality varies
Philippines-based firm	$10 – $30/hr	English proficiency, cultural alignment	Still requires vetting
Eastern Europe (Poland, Romania)	$25 – $55/hr	High technical quality, EU compliance	Higher than Asian rates
Latin America (Mexico, Colombia)	$20 – $45/hr	Near-shore, time zone proximity to US	Growing but smaller talent pool

Note: Rates as of 2025-2026. Actual pricing depends on project complexity, drawing type, software required, and contract structure (hourly vs. per-sheet vs. dedicated resource).

Hidden Costs in Outsourcing That Are Rarely Discussed

The advertised hourly rate is only part of the total outsourcing cost. Businesses that do not plan for these additional factors often find that their outsourcing savings are smaller than expected:

Management overhead: Someone on your internal team must coordinate with the outsourcing partner, review deliverables, and manage revisions. This is real labor time with a real cost.
Rework and revision cycles: If the outsourcing partner misunderstands your standards or specifications, correction cycles add time and cost. Proper brief writing and QC processes are essential.
Onboarding new partners: Every time you switch providers or onboard a new firm, there is a learning curve. They need to understand your drawing standards, title block formats, layer conventions, and project context.
Legal and compliance setup: NDAs, data handling agreements, and IP transfer clauses require legal review upfront.
Data transfer and file management: Secure file sharing platforms, version control, and format compatibility all have costs in time and sometimes in software.
Quality assurance: Building or buying a QA process for outsourced drawings adds cost that in-house work often absorbs implicitly.

Key insight : A project-based outsourced drawing that appears to cost $500 may actually cost $700 or more once management time, revision cycles, and QA are accounted for. This does not make outsourcing a bad choice – it simply means the comparison to in-house cost needs to be honest and complete on both sides.

5. In-House CAD Drafting: Advantages and Honest Disadvantages

'In-house CAD drafting team working at dual-monitor workstations with technical drawings displayed

Genuine Advantages of an In-House Team

Contextual knowledge: An in-house drafter who has worked with your team for two years understands your design standards, preferred tolerances, drawing conventions, and client preferences without being told. This institutional knowledge has real value and is genuinely difficult to replicate with an outside provider.
Speed on urgent requests: When a last-minute client change comes in at 4 PM, an in-house drafter can respond immediately. Outsourcing introduces a communication and handoff step that adds time, even with the best partners.
Collaboration and iteration: When engineering design and CAD drafting happen in the same room (or on the same Slack channel), iteration cycles are faster. Engineers can sketch something on a whiteboard and a drafter can model it in real time.
Quality consistency: In-house teams develop consistent habits and standards over time. Drawing quality tends to be predictable once onboarding is complete.
IP security: Proprietary designs and sensitive technical data stay within your organization’s own infrastructure, under your own security policies.
Career investment: Building an in-house team allows you to develop people who grow with the business, take on more responsibility, and become genuine technical assets.

Honest Disadvantages (That Articles Rarely Acknowledge)

Skills ceiling: A small in-house team’s expertise is bounded by who you hired. If a project requires specialized skills in, say, pressure vessel detailing or complex assembly animation, your team may simply not have that capability.
Single point of failure: One-person CAD teams are surprisingly common in small and mid-size firms. When that person is sick, on vacation, or resigns, the entire drafting workflow stops. This is a serious operational vulnerability.
Technology lag: Keeping an in-house team current on the latest CAD software versions, new BIM standards, and emerging tools requires dedicated investment in training. Busy teams often fall behind because there is never a ‘good time’ to upskill.
Recruiting difficulty: Skilled CAD drafters, particularly those with mechanical or structural specializations, are not always easy to hire. In markets with strong engineering employment, competition for qualified drafters is real.
Scalability limit: If a large project suddenly doubles your drafting workload for six months, an in-house team has limited ability to absorb the surge without significant overtime or delays.

6. Outsourced CAD Drafting: Advantages and Honest Disadvantages

Genuine Advantages of Outsourcing CAD Drafting

Cost flexibility: You pay only for the work performed, with no fixed overhead during slow periods. For businesses with irregular drafting workloads, this is a genuine and significant financial benefit.
Immediate access to specialization: Need BIM coordination drawings for a complex MEP project? Structural steel shop drawings for a one-off job? Outsourcing firms often have specialists in these areas ready to go, without the cost of maintaining those skills in-house year-round.
Scalability on demand: A reputable outsourcing firm can deploy multiple drafters to a large project simultaneously, compressing timelines in ways that a small in-house team simply cannot.
Around-the-clock production: Offshore partners in India or Southeast Asia can work while your team sleeps, creating a true follow-the-sun workflow that can significantly reduce project cycle times on deadline-driven engagements.
Access to current software: Established CAD outsourcing firms maintain current licenses across multiple platforms. You get access to those tools without carrying the license cost yourself.
Reduced management complexity: With a fixed-scope outsourcing arrangement, the provider manages their own team, quality control, and delivery. You own the brief and the outcome.

Honest Disadvantages (That Deserve Direct Acknowledgment)

Communication overhead: Every instruction must be clearly documented. Ambiguities that would be resolved in 30 seconds face-to-face can become multi-day email chains with an offshore team. This is a manageable problem with good process, but it is a real one.
Time zone challenges: A 12-hour time zone difference means that a question asked at the end of your day may not be answered until the next morning. For fast-moving projects, this rhythm can create friction.
Knowledge transfer loss: Every time you use a new outsourcing partner, you start from scratch on standards and context. Switching partners frequently is inefficient and error-prone.
Quality control responsibility: With in-house work, quality problems surface naturally through daily interaction. With outsourcing, you need a deliberate QC process for every deliverable, or problems may not be caught until late in the project.
IP exposure: Proprietary designs are transmitted to external systems and sometimes to individuals in jurisdictions with different IP law frameworks. This is manageable but requires contractual and technical safeguards.
Dependency risk: If a key outsourcing partner loses staff, changes ownership, or closes, you may face a sudden gap in your drafting capability with no internal fallback.

7. The Hybrid Model: Why the Best Answer Is Often ‘Both’

One of the most significant gaps in the existing literature on this topic is the failure to address the hybrid model seriously. The framing of ‘in-house versus outsourced’ suggests these are mutually exclusive choices. They are not, and treating them as such leads many businesses to a suboptimal decision.

The hybrid model involves maintaining a core in-house CAD capability while using outsourcing partners for specific, well-defined needs. This approach is increasingly common among mid-size engineering and architecture firms, and it often delivers better results than either pure model.

What the Hybrid Model Looks Like in Practice

Core team for context-sensitive work: The in-house drafter or drafting team handles complex or confidential drawings, works directly with engineers and clients, manages document control, and builds institutional knowledge.
Outsourcing for volume overflow: During peak periods or large project surges, the outsourcing partner handles defined, standardized drafting tasks with a clear brief. This avoids overtime burn and hiring cycles.
Outsourcing for specialty disciplines: When a project requires a skill set not maintained in-house (BIM clash detection, 3D rendering, structural steel detailing), the outsourcing partner fills that gap without requiring permanent headcount.
In-house oversight of outsourced work: The in-house team serves as QC reviewers and project coordinators for the outsourced output, ensuring it meets your standards before it enters your workflow.

Real-world example : A UK-based architectural firm maintains two in-house CAD technicians who handle all permit drawings and client-facing documentation. During planning submission seasons, they engage an outsourcing partner in the Philippines for as-built drawing production and drawing set formatting, reducing turnaround time by approximately one week without hiring additional permanent staff.

When the Hybrid Model Makes the Most Sense

Workload pattern: If your drafting workload peaks predictably (end of quarter, permitting seasons, product launch cycles), hybrid is usually more cost-effective than pure in-house.
Confidentiality stratification: If some of your work is highly sensitive and some is routine, keeping the sensitive work in-house while outsourcing routine production is a natural and efficient division.
Growth stage: If your business is growing but not yet large enough to justify a full drafting department, a hybrid approach bridges the gap while you scale.

8. Industry-Specific Guidance

The right model varies by industry. The following guidelines reflect the practical norms and specific pressures of different sectors.

Industry	Typical Best Fit	Key Reason	Common Outsource Use Case
Architecture / AEC	Hybrid	High project volume with cyclical peaks	As-builts, permit sets, BIM modeling
Mechanical / Product Mfg	In-house or Hybrid	IP sensitivity, tolerance precision, iteration speed	Overflow drafting, 3D rendering
Structural Engineering	Hybrid	Specialty detailing needs + standard production	Steel shop drawings, rebar detailing
Civil Engineering	Hybrid or Outsource	High drawing volume, standardized deliverables	Site plans, survey drawings, grading plans
Defense / Aerospace	In-house only	ITAR and security restrictions (see below)	N/A – regulatory prohibition
MEP Contracting	Outsource or Hybrid	High drawing volume, tight margins	Fabrication drawings, coordination drawings
Medical Device	In-house	FDA design control, quality system requirements	Typically not outsourced for IP and regulatory reasons
Construction Management	Outsource or Hybrid	Project-based, no sustained in-house need	Shop drawing review, record drawings

A Note on ITAR and Export Control

For US companies in defense, aerospace, or any program involving export-controlled technical data under ITAR (International Traffic in Arms Regulations), outsourcing CAD drafting to foreign nationals or overseas firms can constitute a violation of federal law without proper export licenses. ITAR restrictions apply to the sharing of technical drawings, not just physical items. If your projects involve defense hardware, munitions, or space systems, consult your legal counsel before considering any form of offshore outsourcing. The penalties for ITAR violations are severe.

9. The Decision Framework: A Practical Scorecard

Rather than leaving you with a list of considerations, this section gives you a structured scoring approach. Rate your business against each factor below using the scale provided, then total your score to see which model best fits your current situation.

CAD drafting decision scorecard flowchart showing in-house, hybrid, and outsourced zones based on business scoring'

Scoring Guide: Rate Each Factor 1-3

Factor	Score 1 (Points to Outsource)	Score 2 (Neutral / Hybrid)	Score 3 (Points to In-House)
Monthly drafting volume	Low (less than 40 hrs/month)	Medium (40-120 hrs/month)	High (120+ hrs/month)
Workload consistency	Highly variable / project-based	Seasonal peaks and valleys	Consistent year-round
IP sensitivity	Low sensitivity, generic drawings	Mixed sensitivity levels	High sensitivity, proprietary designs
Drawing complexity	Standardized, repeatable tasks	Mixed complexity	Complex, iterative, specialized
Response time needs	Days or weeks acceptable	Same-day to 48 hours	Hours – face-to-face access needed
Budget constraint	Minimize fixed overhead	Balance cost and quality	Can justify fixed headcount cost
Industry regulation	No special restrictions	Some compliance needs	ITAR / FDA / AS9100 restricted
Internal oversight capacity	Limited (no one to manage outsourcing)	Some management bandwidth	Sufficient to manage internal team

Interpretation: Total scores of 8-13 suggest outsourcing is likely the better fit. Scores of 14-19 suggest a hybrid model. Scores of 20-24 suggest in-house staffing makes the most business sense. Use this as a starting framework, not an absolute answer.

The One Question That Clarifies Most Decisions

If you find the scorecard ambiguous, ask yourself this: Is CAD drafting a core competency of our business, or is it a support function?

If drafting is core to your value proposition (a custom fabrication shop that differentiates on drawing quality, a design-build firm that competes on speed-to-drawing), in-house capability is a strategic asset worth the investment. If drafting is a support function that enables your core work but is not the reason clients choose you, it is a strong candidate for outsourcing or hybrid treatment.

10. How to Vet and Manage an Outsourcing Partner

If your decision scorecard points toward outsourcing or a hybrid model, the quality of your outsourcing partner will determine whether the arrangement succeeds or fails. These are the criteria that experienced firms use when evaluating CAD outsourcing providers.

Vetting Criteria

Portfolio and samplesReview actual deliverables from previous clients in your industry. Look for drawing quality, layering conventions, title block formatting, and annotation standards. Generic portfolio samples that do not reflect your type of work are a warning sign.
Industry specializationA firm that does mechanical engineering shop drawings every day will outperform a general drafting service on mechanical work. Ask specifically about their experience with your drawing type and industry.
Software capabilitiesConfirm the firm uses current, licensed versions of the CAD software your workflow requires. Ask about file format delivery (DWG, DXF, STEP, native CAD, PDF). Mismatched file formats create unnecessary friction.
Communication practicesAsk how they handle questions during a project. What is their typical response time? Do they assign a dedicated project manager or coordinator? Good communication infrastructure is predictive of successful engagements.
Quality control processAsk specifically: what does your internal QC process look like before drawings are delivered? A firm that cannot describe its QC process does not have one.
Data security practicesAsk about their data handling protocols. Do they use encrypted file transfer? Do they have NDAs with their own staff? Are drawings stored on isolated servers or on shared infrastructure?
ReferencesAsk for references from clients with similar project types and follow up with at least one call. A simple 10-minute reference conversation reveals more than any portfolio.

Managing an Outsourcing Partner Effectively

Create a drawing standards brief: Document your layer conventions, title block requirements, dimension and annotation standards, and file naming rules. Share this at the start of every new engagement and update it when your standards change.
Start with a paid pilot project: Do not commit to a large engagement without first running a smaller, lower-stakes project to evaluate the partner’s actual output quality. This is worth the extra time investment.
Establish clear communication rhythms: Agree on communication channels (email, Slack, a project management tool), response time expectations, and who the point of contact is on both sides.
Build a review and approval step: No outsourced drawing should enter your production workflow without a QC review by someone on your team. Build this step into your project schedule explicitly.
Define escalation paths: If a drawing is wrong, who gets contacted? What is the correction turnaround commitment? Agree on this upfront, before problems occur.

11. Protecting Your Intellectual Property When You Outsource

IP risk is the most frequently cited concern about CAD outsourcing, and the least frequently addressed in practical terms. Here is what actually needs to happen to protect your designs.

Contractual Protections

Non-Disclosure Agreement (NDA): Require a signed NDA before sharing any project files. The NDA should explicitly cover technical drawings, design concepts, specifications, and client information. Verify that the NDA is enforceable in the jurisdiction of both parties.
IP ownership clause: Your contract should explicitly state that all drawings produced by the outsourcing partner are work-for-hire and that IP ownership transfers to your organization upon delivery and payment. Do not assume this by default.
Data handling and deletion clause: Specify that the outsourcing partner must delete all project files from their systems within a defined period after project completion (typically 30-60 days). Request confirmation of deletion.
Subcontracting restriction: Some outsourcing firms subcontract work to additional third parties without disclosure. Require written approval for any subcontracting, and ensure that subcontractors are bound by the same IP and confidentiality terms.

Technical Protections

Use secure file transfer: Avoid emailing design files as attachments. Use encrypted file sharing platforms (ShareFile, Box with enterprise encryption, or a dedicated engineering file exchange portal).
Watermark preliminary files: For early-stage drawings shared for review or briefing, consider using visible or embedded watermarks that identify the recipient. This does not prevent copying, but it creates a paper trail.
Limit access to what is needed: Share only the files required for the specific task at hand. Do not provide access to your full project file library, BOM data, or client information unless directly necessary.
Consider physical data security requirements: For highly sensitive projects, some firms require outsourced drafters to work in isolated virtual desktop environments where files cannot be downloaded locally. This is common among defense-adjacent commercial work.

12. Transition Tips: Changing Models Without Disruption

Businesses change. An outsourcing arrangement that made sense when you were a 12-person firm may need to evolve when you grow to 50 people. An in-house team built during a period of strong growth may become difficult to justify during a contraction. Here is how to manage transitions well.

Transitioning from Outsourcing to In-House

Capture standards documentation before you hire: Use your outsourcing period to develop and document your drawing standards, approval workflows, and file management processes. This documentation becomes the onboarding foundation for your first in-house hire.
Overlap the transition: Keep your outsourcing relationship active for 90-120 days after your in-house drafter starts. This provides overflow coverage while your new hire comes up to speed and ensures no projects are disrupted.
Transfer institutional knowledge: Request that your outsourcing partner provide organized project file archives in a format your new hire can navigate. A clean handover file structure is worth negotiating as part of the contract wind-down.

Transitioning from In-House to Outsourcing

Document before departure: If an in-house drafter is leaving and you are transitioning to outsourcing, ensure that all drawing standards, template files, project archives, and process documentation are organized and preserved before they leave.
Run a parallel period: Engage your outsourcing partner while your in-house drafter is still available, even if only for a few weeks. This allows the outgoing drafter to review and provide feedback on the outsourced output quality before you are fully dependent on the new arrangement.
Rebuild standards documentation for external use: Standards that live in a drafter’s head need to be externalized. Invest time in creating a clear drawing standards package that can be shared with any outsourcing partner.

FAQ: In-House vs Outsourced CAD Drafting

Is outsourced CAD drafting cheaper than hiring in-house?

In most cases, outsourcing is cheaper on a per-drawing or per-hour basis, particularly when comparing offshore rates to fully-loaded domestic employee costs. However, the total cost comparison is more complex than the hourly rate gap suggests. You need to account for management overhead, revision cycles, onboarding, and QA processes on the outsourcing side, and set this against the true all-in cost (not just salary) of an in-house hire. For businesses with consistent, high-volume drafting needs, in-house may reach cost parity with a well-managed outsourcing arrangement, with the added benefit of institutional knowledge and faster turnaround.

What types of CAD work should never be outsourced?

Defense and aerospace work covered by ITAR, medical device design subject to FDA design control requirements, and drawings containing highly sensitive proprietary technology (novel processes, pending patent designs, core product innovations) are strong candidates for in-house-only handling. Beyond regulatory requirements, any work where the feedback iteration cycle is so rapid and context-dependent that external handoffs would be genuinely disruptive is also better suited for in-house treatment.

How do I maintain drawing quality standards with an outsourcing partner?

Quality management with an outsourcing partner requires three things: a clear, documented drawing standards brief that is shared at the start of every engagement; an internal QC review step built into your project schedule before outsourced drawings enter production; and a consistent, respectful feedback loop that helps the partner improve their understanding of your expectations over time. The firms that struggle with outsourcing quality are usually those that provide inadequate briefing, skip the review step, or change partners too frequently to build institutional knowledge.

Can a small business benefit from outsourcing CAD drafting?

Yes, and small businesses are often the best-suited candidates for CAD outsourcing. A 10-person engineering consultancy rarely has enough consistent drafting work to justify a full-time drafter, but needs high-quality drawings regularly. Outsourcing allows small firms to access professional drafting on a project basis, with no fixed overhead, while keeping their limited capital focused on revenue-generating work. The key is finding a reliable partner and investing in the brief and QC process, which takes effort upfront but pays off repeatedly.

What is the typical turnaround time for outsourced CAD drawings?

Turnaround varies significantly by complexity, drawing type, and provider. For straightforward 2D AutoCAD drawings (floor plans, layouts, simple mechanical details), turnaround from a good offshore provider is typically 24 to 72 hours after briefing. Complex assembly drawings, 3D models, or BIM deliverables may take several days. Offshore time zones can work in your favor for turnaround: a brief sent at 5 PM US Eastern Time may be answered with draft drawings by 8 AM the next morning.

How do I handle a situation where my outsourcing partner’s work is consistently below standard?

First, review whether the quality problem is caused by inadequate briefing on your side or poor execution on theirs. Many quality disputes are actually briefing failures. If the brief is clear and comprehensive and the work is still falling short, have a direct conversation with the firm’s project manager citing specific examples. A good outsourcing firm will take quality feedback seriously and make corrections. If the problem persists across multiple projects and conversations, it is time to find a different partner. Do not continue to invest in a relationship that is not delivering consistent results.

Conclusion: The Right Answer for Your Business

There is no universal correct answer to the in-house versus outsourced CAD drafting question. What there is, is a correct answer for your specific business, your workload pattern, your budget structure, your IP sensitivity, and your growth stage.

If your drafting work is consistent, confidential, fast-turnaround, and central to your competitive value, invest in building a strong in-house team. If your workload is variable, your sensitivity levels are mixed, and your need for specialized skills exceeds what a small team can maintain, a hybrid model will likely serve you better than either pure approach.

The businesses that consistently succeed with outsourcing are not those who went looking for the cheapest option. They are those who treated their outsourcing partner as a professional relationship, invested in clear communication and standards, and built a QC process that caught problems early. The businesses that succeed with in-house teams are those who planned for the full cost of employment, built redundancy against the single-point-of-failure risk, and invested in keeping their team’s skills current.

Use the scorecard in Section 9 as your starting point. Re-evaluate your model every one to two years as your business evolves. And if you are considering a change, the transition guidance in Section 12 will help you make the switch without disrupting the projects that depend on you.

Ready to make the right call for your business?

Explore our related guides on CAD document management, version control for engineering drawings, and PLM system selection to build a complete engineering operations framework for your organization.

May 23, 2026

Common CAD Drafting Mistakes That Cause Manufacturing Delays (and How to Avoid Them)

29% of project reworks in design teams come from simple drafting errors, not complex design failures (CAD Drafter industry report, 2025)
Top cause simple drafting errors are among the top causes of rework on-site, per multiple 2026 construction and manufacturing industry sources
10x cost multiplier of fixing a design error at production vs at the drawing stage; the same drafting mistake that takes minutes to fix in CAD costs days or weeks to correct in fabricated metal
Feb 2026 Printform published list of top 10 CAD design mistakes identifies DFM ignorance, incomplete GD&T, and revision control failures as the three most programme-impacting error categories

Introduction: Why Drawings That Look Right Still Delay Manufacturing

There is a specific kind of engineering problem that does not get caught by technical design review, does not show up in simulation, and does not appear in a structural calculation. It shows up when a drawing lands on a machinist’s desk and they cannot proceed because a dimension is missing, or when a fabricated batch arrives and the features are on the wrong face because the projection method was never stated.

These are CAD drafting mistakes. They are not design errors. The design intent is usually correct. The problem is that the drawing, the document that translates that intent into manufactured reality, fails to communicate it accurately, completely, or unambiguously enough for the manufacturer to proceed without stopping, querying, or guessing.

Industry data published in 2025 and 2026 consistently identifies simple engineering drawing errors as responsible for approximately 29 percent of project reworks. They are not caused by inadequate engineering knowledge. They are caused by habits, by shortcuts taken under time pressure, by the absence of a pre-release checklist, and by the assumption that if the drawing looks complete, it probably is.

This guide covers fifteen of the most common CAD drawing errors that cause manufacturing delays, what each one costs in time and money, and the specific prevention that eliminates each one before the drawing leaves the engineer’s desk.

Quick definition: A CAD drafting mistake is a documentation error in an engineering drawing that prevents or misleads the manufacturer, even when the underlying design intent is correct. It is distinct from a design error. It is fixable at the drawing stage for the cost of engineering time. The same mistake discovered after fabrication costs orders of magnitude more.

The Manufacturing Delay Chain From CAD Error to Production Impact which cause CAD Drafting Mistakes — *The same mistake. The cost is entirely determined by when it is caught.*

15 Common CAD Drafting Mistakes That Delay Manufacturing

The table below covers fifteen of the most consistently occurring CAD drafting mistakes in mechanical, structural, and civil engineering drawing practice. Each is identified by type, manufacturing consequence, and the specific prevention that addresses it. Use this table as a reference during drawing review.

CAD Drafting Mistake	Category	Manufacturing Consequence	How to Avoid It
Missing or incomplete dimensions	Drawing completeness	Manufacturer stops work to query; delay while engineer responds	Every feature required for manufacture must be fully dimensioned. Run a dimension audit before release.
Incorrect or undefined units	Setup error	Steel plate designed in mm cut in inches; complete scrapping of material and order	Set units in template before modeling. Confirm units on every drawing import with INSUNITS.
Outdated drawing revision issued	Revision control	Team builds from superseded design; structural or functional error discovered after fabrication	Use a revision control block on every sheet. Archive old versions. Single-source distribution only.
Ambiguous or missing tolerances	GD&T and tolerancing	Manufacturer applies own judgment; parts fail assembly or inspection	Apply ISO 2768-m as drawing default. Add explicit tolerances only where function requires them.
Wrong or missing projection symbol	Drawing standard	Views read as mirrored; features on wrong face	Always include the first-angle or third-angle projection symbol in the title block. Never omit it.
Mismatched layer structure	Drawing management	Reviewer cannot separate structure from annotation; critical notes hidden on wrong layer	Use a named layer standard file. Never draft on Layer 0. Assign line weights per layer.
No general tolerance block in title block	Drawing completeness	Every undimensioned feature is ambiguous; manufacturer queries whole drawing	Add general tolerance reference (ISO 2768-mK or ASME equivalent) to title block on every drawing.
Scale error in model space	CAD setup	Blocks and XREFs imported at wrong scale; printed dimensions do not match model	Always draw at 1:1 in model space. Set viewport scale in layout. Mark NTS where applicable.
Incorrect line weights and types	Drawing clarity	Hidden lines indistinguishable from visible; centre lines read as object lines	Assign line weights through layers not individual entities. Follow ISO 128 or ASME Y14.2 line standards.
No surface finish callout where required	Drawing completeness	Manufacturer applies default finish; sealing or mating surfaces fail in service	Specify Ra value by zone: mating faces, sealing surfaces, general. Reference ISO 1302 or ASME B46.1.
GD&T datum structure missing or inconsistent	GD&T errors	Inspection built on wrong reference; all positional measurements meaningless	Define a three-plane datum reference frame. Apply datums consistently throughout all views.
Single layer drafting	Drawing management	Impossible to isolate discipline layers; collaboration, printing, and review all fail	Minimum layer set: Object, Hidden, Centre, Dimension, Annotation, Titleblock, Viewport. Never merge.
No weld specification on welded assemblies	Fabrication documentation	Weld size, type, and process left to fabricator judgment; structural integrity at risk	Apply AWS or ISO welding symbols to every weld joint. Specify process where it affects quality.
File format incompatible with downstream tool	File management	Fabricator cannot open DWG version; CNC controller cannot read STEP; programme delayed	Confirm required format and version before release. Specify format in drawing notes or transmittal.
No revision cloud on changed areas	Revision management	Reviewer cannot identify what changed; entire drawing re-checked; review time tripled	Add a revision cloud around every changed region. Log the change description in the revision table.

What Each Type of Error Actually Costs: Discovery Stage vs Financial Impact

The cost of a CAD drawing error is not fixed. It is determined almost entirely by the stage at which the error is discovered. The same missing dimension costs minutes to fix at the drawing stage and days of programme delay if it reaches the fabricator. This table puts real numbers on the cost spectrum for the most common error types.

Error Type	Discovery Stage	Typical Direct Cost	Delay Impact
Missing dimension	Quoting stage	Engineer time only: 0 to $200	Hours: query and response turnaround
Wrong units (mm vs inches)	Fabrication	Material scrap plus rework: $500-$10,000	Days to weeks: reorder and remake
Outdated revision issued	Post-fabrication	Full part batch scrapped: $5,000-$100,000+	Weeks to months: tooling and remanufacture
Wrong projection (1st vs 3rd angle)	Fabrication	Features on wrong face: complete rejection	Weeks: remake of entire batch
Missing tolerance on critical fit	Assembly	Reassembly or selective fitting: $1,000-$50,000	Days to weeks: 100% inspection and rework
File format incompatible	Before fabrication	Conversion time: $0-$500	Hours to days: format conversion or resupply
Weld not specified	Post-inspection	Weld rework or full re-fab: $2,000-$30,000	Days to weeks: weld repair programme
Surface finish missing on seal face	In-service failure	Warranty claim or field rework: $10,000+	Weeks: field intervention plus investigation

These ranges are conservative estimates based on published industry case studies and fabrication cost benchmarks. On larger programmes with multiple trades, the cascade effects of a single drawing error can multiply these figures significantly when downstream trades are waiting on the affected component.

Error Cost vs Discovery Stage Before and After Bar Chart Common CAD Drafting Mistakes — *The engineering principle is the same at both stages. The economics are not.*

Missing and Incomplete Dimensions: The Most Frequent Delay Trigger

Missing or incomplete dimensions are the single most reported engineering drawing error category across manufacturing, construction, and infrastructure sectors. They are also the most preventable because their absence is, in principle, detectable by anyone who checks the drawing systematically.

The practical reason they persist is that engineers check drawings for correctness of what is there, not for completeness of what should be there. A drawing review that confirms every stated dimension is correct can still miss three dimensions that should have been stated but were not. The prevention requires a different type of check: a systematic audit of every feature against what is required for manufacture.

Dimension Error Type	What a Manufacturer Cannot Do Without It	Practical Fix
Missing linear dimension on a feature	Cannot set up machine to correct depth, width, or height	Dimension audit: every feature must have at least one dimension defining each axis of extent
Missing hole depth callout	Drills blind hole to default or to judgment; may break through	Use depth symbol with every blind hole callout. Specify depth from which face.
Missing thread specification	Taps wrong thread standard or pitch; fastener will not engage	Callout must include standard, nominal diameter, and pitch (M12x1.75 or 1/2-13 UNC)
Conflicting dimensions on same feature	Must choose one; chooses incorrectly; both can be wrong	Remove driven dimensions or reference them explicitly. Check all views show consistent values.
Reference dimension unmarked	Treated as production dimension; inspected; fails unnecessarily	Mark all reference dimensions as REF or in parentheses (50) so manufacturer knows intent.
Tolerance on non-critical feature too tight	Manufacturer applies premium process; cost uplift with no benefit	Audit every tolerance. Ask: does function change if this is at the wrong end of its tolerance range?
No GD&T on a feature that requires it	Size tolerance controls nothing about form or position	Apply GD&T where form, orientation, or position matters for assembly or function.

The Dimension Audit Method

A dimension audit is a feature-by-feature check of the drawing against the question: if a machinist builds this feature from this drawing alone, without reference to the 3D model, do they have everything they need? For each feature, identify: what defines its location in X, Y, and Z, what defines its size in every relevant direction, what defines its angular orientation where it is not parallel to a reference plane, and what defines its depth or extent.

Any feature for which any of these questions cannot be answered from the drawing has a missing dimension. The audit takes five to fifteen minutes on a typical mechanical part drawing. The rework it prevents can save days of programme delay.

The ‘machinist test’ for dimension completeness: Before releasing any drawing, ask yourself: if I handed this drawing to a skilled machinist with no access to the 3D model, no access to me, and no ability to ask questions, could they build this part exactly as intended? Every gap in that scenario is a missing dimension or specification that needs to be added before the drawing is released.

Unit and Scale Errors: Small Oversight, Catastrophic Consequence

Unit errors are among the most expensive single drafting mistakes in manufacturing. A part designed in millimetres that is cut in inches is 25.4 times larger than intended. A part designed in inches that is cut in millimetres is 25.4 times too small. The material is scrapped entirely. The order is repriced. The lead time restarts from zero.

The reason these errors happen is structural, not careless. CAD software assumes a unit system and does not always enforce it visibly. When drawing files are shared between teams using different unit conventions, the units embedded in the file may not match the units the recipient expects. An engineer who opens a file, checks the geometry looks right on screen, and proceeds without checking the unit setting is working from an assumption that may be wrong.

How to Eliminate Unit Errors Permanently

Use a company-standard drawing template (DWT file) with units set correctly for your primary manufacturing context. Every new drawing created from this template inherits the correct units automatically.
Check INSUNITS before inserting any external block or XREF. The INSUNITS variable controls how the CAD software scales inserted content. Mismatched INSUNITS between the source file and the destination file cause scale errors on insertion.
State the unit system explicitly in the title block. Millimetres or inches. Never leave it implicit. The title block statement is the authoritative reference for anyone who reviews or uses the drawing.
Add a dimension of a known element to a new import as a first check. If an imported block shows 25mm where you know it should show 1 inch (25.4mm), the units have mismatch. Catch it immediately, not after the drawing is built around the wrong scale.

The unit error that keeps happening: A steel plate designed in AutoCAD in metric units is exported to DWG and opened by a contractor working in an imperial-unit environment. The plate appears at the correct proportional size on screen because AutoCAD scales intelligently, but the file’s internal units are now ambiguous. The fabricator cuts to the dimensions on screen. The plate is 25.4 times too small. This exact sequence is one of the most consistently reported manufacturing disasters from cross-border drawing sharing. The fix is one line in the title block and one INSUNITS check.

Outdated Revisions on the Shop Floor: The Error That Cannot Be Unseen

Of all the common drafting errors covered in this guide, issuing an outdated drawing revision to the manufacturing floor is the one with the most consistently catastrophic consequences. When a fabricator builds from a superseded design, the error is invisible until the part either fails to fit, fails inspection, or fails in service. By that point, the material is consumed, the machining time is spent, and the programme impact is measured in weeks, not days.

Why Outdated Revisions Keep Reaching Manufacturing

The root cause is almost always a distribution problem rather than a revision control problem. The revision table on the drawing is correctly maintained. The drawing number is correct. But the drawing that reaches the fabricator is a copy from a previous issue, saved to a personal drive, an unmanaged shared folder, or an email attachment that predates the current revision.

The fabricator has no way of knowing the drawing is outdated because it looks identical to the current drawing in every visible respect. The only difference is the revision letter in the title block, which is easy to overlook if the process for checking revision currency before fabrication is not enforced.

The Three-Part Revision Control System

Revision control block on every sheet: Current revision letter, change description, date, and approver name visible in the title block on every sheet of a multi-sheet drawing set. If sheet 3 carries a different revision from sheet 1, the set is not coherent and must not be issued.
Single-source distribution: One controlled location where fabricators and site teams access drawings. Any copy of a drawing outside this controlled source is a liability. Archive superseded revisions with a clear SUPERSEDED watermark or move them to a separated archive folder.
Transmittal acknowledgement: When a revised drawing is issued, the transmittal record documents who received it, which revision, and on what date. This creates an auditable chain of custody and eliminates the ‘I did not receive the updated drawing’ dispute at the root cause.

Tolerance Errors: The Silent Cause of Failed Assemblies

Tolerance errors in CAD drawings fall into two categories that cost in opposite directions. Over-specified tolerances add cost and lead time without improving function because they require premium machining processes and 100 percent inspection of features that do not need precision control. Under-specified tolerances, or no tolerances at all, allow parts to be made within a range that prevents correct assembly or function, leading to selective fitting, rework, or rejection.

Both types of tolerance error are extremely common. A 2026 industry analysis by Printform identified incomplete GD&T and inconsistent tolerance application as one of the three most programme-impacting error categories in mechanical CAD design. The consistent pattern is engineers applying tight tolerances by default to all dimensions, or applying no GD&T at all and relying on plus/minus values that do not control form or position.

The Tolerance Strategy That Prevents Both Problems

The correct approach is selective tolerancing: apply tight tolerances only to features that genuinely require them for assembly or function, and let all other features default to a general tolerance standard. In practice, this means two steps before any drawing is released.

First, add a general tolerance block to the title block referencing ISO 2768-m (for ISO drawings) or the equivalent ASME general tolerance note. This covers all undimensioned and unlabelled features with a documented default. Second, go through every dimension that carries an individual tolerance and ask: does the function of this assembly change measurably if this dimension is at the opposite end of its tolerance range? If yes, the tolerance is justified. If no, replace the individual tolerance with a general tolerance reference.

This approach removes the cost of precision machining from features that do not require it, concentrates quality control effort on the features that genuinely matter, and communicates to the manufacturer which features are critical and which are not.

The Pre-Release Drawing Checklist: 13 Checks Before Every Issue

The majority of engineering drawing mistakes that cause manufacturing delays are detectable by a structured pre-release check. The following checklist addresses the most common error categories systematically. Build it into your drawing release workflow as a mandatory gate before any drawing is issued to manufacturing, procurement, or a client.

Pre-Release Check	What to Verify
Title block complete	Drawing number, revision, date, scale, units, projection symbol, approval signature all populated
General tolerance stated	ISO 2768-m or ASME equivalent in title block; no drawing issued without a general tolerance reference
All features dimensioned	Every feature a manufacturer needs to produce is dimensioned; no feature defined by scale alone
Tolerances selective and correct	Tight tolerances on mating and functional interfaces only; general tolerance everywhere else
Projection symbol present	First-angle or third-angle symbol visible in title block; never omitted
Surface finish specified by zone	Ra value on all sealing, mating, and cosmetic surfaces; general finish in notes for remaining surfaces
Weld symbols on all joints	Every joint that will be welded carries the correct AWS or ISO symbol with process note where relevant
GD&T datum structure defined	Primary, secondary, tertiary datums established and consistently referenced throughout all views
Revision cloud on all changes	Every area changed from the previous revision is circled; revision table updated with description and date
Layer structure correct	All content on named layers per convention; nothing on Layer 0; line weights assigned through layers
File format confirmed compatible	Format and version match the downstream requirement; INSUNITS set correctly before any XREFs inserted
Drawing standard stated	General note referencing ASME Y14.5-2018, ISO 1101, or equivalent; standard clear to any reader
Peer review completed	A second engineer has checked the drawing; checker name and date in title block or review record

The two-minute check that prevents two-week delays: Print this checklist or keep it on your second monitor. Before issuing any drawing, run through every item. Cross off each one as you confirm it is present and correct. If any item cannot be crossed off, the drawing is not ready to issue. The checklist takes two minutes. The rework it prevents takes days or weeks.

GD&T Errors: When Geometry Looks Right but Cannot Be Inspected

Geometric Dimensioning and Tolerancing errors occupy a specific category of CAD drafting mistake because their consequences are not always visible at fabrication. A part made to a drawing with incorrect GD&T may be dimensionally correct by the manufacturer’s interpretation but fail inspection under the correct interpretation, or pass inspection and then fail to assemble correctly because the GD&T should have controlled a form error that the manufacturer did not realise was significant.

The Most Common GD&T Drafting Errors

No datum reference frame: GD&T callouts for position, orientation, and runout are all meaningless without a defined datum structure. A positional tolerance of 0.2mm means nothing unless it is stated relative to a specific datum. Define primary, secondary, and tertiary datums that correspond to how the part will be fixtured and inspected.
Datum letters not consistent across views: Datum A references one face in the front view and appears to reference a different face in the right side view due to unclear label placement. Inspection builds on the wrong surface. All positional measurements are invalid.
Mixing ASME and ISO GD&T symbols: Concentricity is deprecated in ASME Y14.5-2018 but valid in ISO 1101. Using it on an ASME drawing creates an undefined callout. The drawing standard must be stated and symbols must be sourced from that standard alone.
GD&T applied where plus/minus is sufficient: Adding unnecessary feature control frames to every dimension adds complexity without adding information. GD&T should be applied where form, orientation, or position genuinely needs controlling beyond what a size tolerance provides.
Feature control frame referencing non-existent datum: The positional callout references datum D, but datum D is not labelled anywhere on the drawing. The manufacturer cannot inspect the feature to the stated control. The drawing must be re-issued before inspection can proceed.

Layer Structure and File Management Errors: The Hidden Source of Review Time

Layer management errors and file management mistakes do not always cause physical manufacturing problems, but they consistently cause review delays, collaboration failures, and the kind of confusion that makes a drawing set difficult to use efficiently. In an outsourcing or multi-discipline environment, a drawing with disorganised layers adds rework time at every stage of review, coordination, and update.

Single-Layer Drafting: The Most Persistent Bad Habit

Drawing all content on a single layer (or on Layer 0 in AutoCAD) is one of the most widespread CAD drafting mistakes in practice and one of the most difficult to correct retroactively. When all content is on a single layer, it is impossible to isolate object lines from annotations, to hide dimension layers for presentation, to control line weights by layer, or to extract specific content for coordination or fabrication.

The minimum layer set for a mechanical drawing is: Object (visible geometry), Hidden (hidden lines), Centre (centre lines and axes), Dimension (dimension lines and text), Annotation (notes, leaders, hatching), Titleblock (title block content), Viewport (viewport borders in layout space). Every element on the drawing belongs to exactly one of these layers. No element should ever be on Layer 0 in a drawing issued for production.

File Format and Version Incompatibility

Specifying or delivering the wrong file format or wrong software version is a drafting workflow mistake that is entirely preventable and entirely common. The three most frequent situations: a DWG file saved in a newer format than the recipient’s software can open, a STEP file exported with the wrong geometry kernel for the recipient’s CAD system, and a PDF that is a rasterised image rather than a vector file, making text and dimensions unsearchable and non-scaleable.

The prevention is a one-line confirmation: ask the recipient what format and version they require before the first file is delivered. State the required format in the drawing transmittal. For recurring partners, include format requirements in your CAD drawing specification document.

How AI and DFM Tools Are Catching CAD Drafting Errors in 2026

The category of CAD drawing errors that AI and automated DFM tools are most effective at catching in 2026 is geometric manufacturability violations: internal corners too tight for available tooling, pocket depths exceeding standard tool reach, walls lacking required draft angles, holes too close to bends. These are systematic, rule-based errors that human reviewers consistently miss because they are focused on technical content rather than process compliance.

Tool	What it checks	CAD integration	2026 status
DFMXpress (SolidWorks)	DFM violations: corner radii, draft, hole ratios	Native in SolidWorks	Built-in, available to all SW users
Fusion 360 DFM workspace	Machining, 3D printing, and sheet metal rules	Native in Fusion 360	Active development, cloud-connected
CoLab AutoReview	Drawing best practices, standard compliance	Browser-based, no CAD required	Comment on 3D models; emerging tool
Xometry Instant DFM	CNC, moulding, printing manufacturability	STEP file upload, cloud	Returns feedback with quote instantly
Autodesk Forma / ACC	Clash detection, coordination checking	Cloud BIM environment	For architecture and civil, not mechanical
InfinitForm	Active geometry optimisation for DFM	Fusion 360 and SolidWorks	Automated fix, not just flag
GD&T Advisor	GD&T completeness and consistency	Embedded in PTC Creo	Specialist GD&T checking tool

What AI Tools Cannot Catch

AI DFM tools in 2026 are strong on geometric rules and process compliance. They are weak on intent. A drawing that is geometrically manufacturable but functionally wrong, where the correct dimension was entered but the feature is in the wrong location relative to the datum, will pass most automated checks and fail only when the part is assembled. This category of error still requires human peer review.

The most effective quality system in 2026 combines automated first-pass checking for geometric and format compliance (using DFMXpress, Xometry, or similar tools) with mandatory human peer review for technical content, and a structured pre-release checklist as the final gate before issue. Each layer catches what the others miss.

Building Habits That Prevent CAD Drafting Mistakes

The majority of common drafting errors are not caused by a lack of knowledge about what is correct. They are caused by habits, by defaults that were set up incorrectly long ago, by time pressure that shortcuts review, and by the absence of a system that makes the correct practice the path of least resistance.

Use a Drawing Template, Not a Blank File

Every engineering drawing should be started from a company-standard template that pre-configures units, projection method, title block, layer structure, text styles, dimension styles, and general tolerance reference. A blank file requires the engineer to set all of these correctly each time. A template makes the correct configuration automatic.

A well-built DWT template file in AutoCAD, or a drawing template in SolidWorks, Revit, or Civil 3D, eliminates the unit setup error, the missing title block, the wrong projection symbol, and the default layer problem in one action. It is the single highest-leverage investment against systematic CAD drafting mistakes.

Make Peer Review Non-Negotiable

Industry data is unambiguous on this point: drawings reviewed by a second engineer before issue have significantly fewer drafting errors reaching manufacturing than drawings reviewed only by the drafter. The peer reviewer does not need to check every dimension for technical correctness. They need to run through the pre-release checklist and verify that the drawing is complete and internally consistent.

In organisations where peer review is consistently applied, the rate of engineering drawing errors reaching manufacturing falls significantly. In organisations where it is treated as an optional step to be skipped under schedule pressure, the same errors recur in every batch of rework.

Treat the Drawing as a Manufacturing Instruction, Not a Visual Record

The most powerful mental shift for eliminating CAD drafting mistakes is to change how you think about what a drawing is. It is not a visual record of a 3D model. It is a manufacturing instruction set. Every element on the drawing is there to tell the manufacturer something they need to know. Every element that is missing prevents the manufacturer from knowing something they need to know.

If an element on the drawing would not help a skilled machinist build the part correctly, it probably does not need to be there. If an element that would help the machinist is not there, it needs to be added. That single question, ‘what does this manufacturer need to know and have I told them?’, is the foundation of every effective drawing review.

Conclusion:

The CAD drafting mistakes covered in this guide are not the result of inadequate engineering skill. They are the result of process gaps: no template, no pre-release checklist, no peer review, no revision distribution system. Every one of them is preventable with a structured approach that takes less time to apply than the rework it prevents.

The statistics are consistent: approximately 29 percent of project reworks start with simple drafting errors. The cost multiplier between fixing a drawing error at the CAD stage versus fixing it after fabrication is measured in orders of magnitude. The prevention investment, a proper template, a 13-item checklist, a peer review gate, and a revision distribution protocol, is measured in engineering hours per project.

Start with the checklist. Apply it to the next drawing you release. Identify which items you are currently not checking. Those gaps are where your manufacturing delays are coming from.

The drawing is the instruction. Write it so clearly that the manufacturer can follow it without stopping to ask a single question.

Frequently Asked Questions

What are the most common CAD drafting mistakes that cause manufacturing delays?

The most common CAD drafting mistakes that cause manufacturing delays are: missing or incomplete dimensions that force the manufacturer to stop and query, incorrect or undefined units causing scale errors in fabrication, outdated drawing revisions issued to the shop floor, ambiguous or missing tolerances, missing projection symbols that cause views to be read as mirrored, and file formats incompatible with the downstream tool. Industry data shows approximately 29 percent of project reworks in design teams come from simple drafting errors.

How do missing dimensions on a CAD drawing cause manufacturing delays?

Missing dimensions cause manufacturing delays because the fabricator cannot proceed without knowing the exact size of a feature. When a dimension is missing, the standard workflow is to raise a query to the engineer, wait for the response, receive a revised drawing, and then begin fabrication. This cycle typically costs one to five days. On time-critical projects, a single missing dimension can push a part off a machine schedule entirely, adding weeks to the programme if the machinist’s capacity is allocated and cannot be immediately recovered.

Why do wrong units in a CAD drawing cause such expensive problems?

Wrong units in a CAD drawing cause expensive problems because the scale error is invisible until the fabricated part is measured or assembled. A part designed in millimetres and cut in inches is 25.4 times the intended size. A part designed in inches and cut in millimetres is 25.4 times too small. The material is scrapped, the order must be repriced, the lead time restarts, and the programme delay can range from days to weeks depending on material availability. Industry case studies consistently cite unit errors as one of the most expensive single-drawing mistakes.

What is the difference between a drafting error and a design error in CAD?

A design error is a technical decision that is wrong: the part will not function, the assembly will not fit, or the structure will not carry the load. A drafting error is a documentation error: the design intent is correct but the drawing fails to communicate it accurately to the manufacturer. A missing dimension is a drafting error. A hole in the wrong position is a design error. Both cause manufacturing delays, but drafting errors are generally cheaper to fix at the drawing stage and more expensive to catch after fabrication because they are easy to overlook during design review.

How do I prevent outdated CAD drawings from reaching the manufacturing floor?

Preventing outdated drawings from reaching the manufacturing floor requires three practices. First, a drawing distribution system where only the current approved revision is accessible to the manufacturing team, with older revisions archived and clearly marked as superseded. Second, a revision control block on every drawing sheet showing the current revision letter, change description, date, and approver. Third, a document transmittal process where every drawing issue is logged, dated, and acknowledged by the recipient, so there is an auditable record of who received which revision and when.

Can AI tools catch CAD drafting mistakes before drawings are released?

Yes. AI and automated DFM tools in 2026 can catch many common CAD drafting mistakes before drawings are released to manufacturing. DFMXpress in SolidWorks checks for geometric manufacturability violations. Xometry’s Instant DFM returns manufacturability feedback at the same time as a quote. CoLab AutoReview checks drawings against best practice standards. InfinitForm actively corrects geometry rather than just flagging it. These tools do not replace peer review, but they catch the systematic and geometric errors that human reviewers tend to miss because they are focused on technical content rather than drawing compliance.

Printform 2026: the top 10 CAD design mistakes that delay manufacturing’

May 19, 2026

How to Write a Proper CAD Drawing Specification for Your Outsourcing Partner

60% cost saving reported by engineering firms outsourcing CAD drafting to specialist providers vs maintaining equivalent in-house capacity (C-Design, 2026)
3-4x higher cost of an in-house CAD and BIM team in the US or UK compared to specialist outsourcing, per published 2026 industry benchmarks
Go-by set the single most effective tool for reducing rework on outsourced drawings, per leading providers who make it a mandatory first step
Free pilot the most credible outsourcing partners offer a no-charge pilot on a representative sample before any volume commitment is made

Introduction:

Outsourcing CAD drawing work is a legitimate and increasingly common strategy for engineering teams in 2026. The cost advantage is real. Access to specialist skills is real. The ability to scale without permanent headcount is real. What is also real is the pattern of what happens when the briefing is done informally.

An engineer sends a sketch, a PDF of an old drawing, and a brief email. The outsourcing partner, skilled and capable, produces drawings based on what they understood from those inputs. The drawings arrive. They are technically competent but in the wrong style, wrong file format, wrong drawing standard, with a title block the client has never seen, and layer names that make no sense in the client’s drawing management system.

None of that is the partner’s fault. They were not told what was required. They applied their defaults. The rework is expensive and entirely avoidable, caused by the absence of a proper CAD drawing specification at the start of the engagement.

This guide explains what a drawing specification must contain, how to use go-by drawings to communicate what a written document cannot, how to structure a pilot project that genuinely tests a partner before you commit production volume, and the mistakes that cause rework even when everyone involved is competent.

Quick answer: A CAD drawing specification for outsourcing is a written document defining the drawing standard, CAD software and version, file delivery formats, layer naming, title block requirements, revision protocol, and quality acceptance criteria. Without it, every assumption your partner makes is a potential source of rework. Provide go-by drawings alongside it to communicate style and quality that words alone cannot capture.

Why a Written Specification Is Not Optional

Every gap in the briefing becomes an assumption. Every assumption your partner makes that differs from your expectation becomes rework. The disciplines that benefit most from documented specifications are also the ones where rework is most expensive: mechanical drawing packages for manufacturing, structural drawing sets for construction, and MEP coordination drawings where errors propagate across multiple trades.

What Happens Without a Specification

The partner applies their default drawing standard. If they work to ISO and your manufacturing base works to ASME, the GD&T interpretation is immediately wrong.
The partner uses their own title block template. Your drawing register uses a specific format. Every drawing must be recreated, not just corrected.
The partner uses their preferred layer naming convention. New drawings cannot be integrated with your existing archive without a conversion exercise.
The partner selects the file format they use most. If they deliver DWG 2024 and your CNC software requires DWG 2018, every file must be individually converted.
The revision protocol is improvised. Mark-ups go by email. Three revisions in, neither party has a reliable audit trail.

Each problem is entirely preventable with a written drawing specification document provided before any work begins.

What Your CAD Drawing Specification Must Contain

A complete CAD drawing specification covers three categories: technical standards governing what the drawing contains, format requirements governing how files are delivered, and process requirements governing how work is managed. Missing any category produces avoidable rework.

Specification Item	What to State Precisely	Why It Matters If Missing
Drawing standard	ASME Y14.5-2018, ISO 1101:2017, or DIN EN ISO equivalent	Partner applies wrong GD&T defaults; form controls misinterpreted
CAD software and version	SolidWorks 2025, AutoCAD 2026, Revit 2026, NX 2312	Incompatible file format or missing features if version differs
Deliverable file formats	DWG, STEP, PDF/A, IFC, native format, or combinations	Wrong format blocks downstream workflow with manufacturer or client
Sheet size and orientation	ASME A-E or ISO A4-A0, landscape or portrait per sheet	Printed sets misaligned; PDF pagination incorrect for review
Title block template	Provide your template file; specify required fields	Partner creates own title block; branding and fields are wrong
Layer naming convention	Provide layer standard file or reference document	Layer chaos makes file management and overlay work impossible
Line weights and types	Specify or provide a line weight table	Drawings look inconsistent; printed output does not match standard
General tolerance standard	ISO 2768-mK or ASME title block tolerance note	Ambiguous tolerances lead to over- or under-constrained parts
Projection method	Third-angle (ASME) or first-angle (ISO)	Views misread as mirrored; wrong features on wrong faces
Units	Millimetres, inches, or mixed (state clearly)	Dimensional errors from unit conversion if mixed unwittingly
Scale convention	1:1 default; NTS where stated; scale bar required	Printed drawings used for measurement; wrong parts made
Revision control system	Revision letter sequence, revision table format, ECN ref	Revision history lost; old revisions used in production
Numbering and drawing register	Part number format, drawing number format, BOM numbering	Mismatched part numbers between drawing and procurement
BOM format and content	Required columns, hierarchy, link to drawing numbers	BOM does not match drawing; procurement builds wrong assembly
Confidentiality level	Proprietary, controlled distribution, or open	Intellectual property risk if unmarked drawings are shared

The Drawing Standard Declaration

This is the single most technically consequential element. State the standard by name and year: ASME Y14.5-2018, ISO 1101:2017, or DIN EN ISO 2768-mK. If your drawings use multiple standards, state each separately with a clear note about which governs which element.

The Scope Document: Structure That Prevents Disputes

Alongside the technical specification, provide a scope document defining the commercial and process boundaries of the engagement.

Document Section	What It Must Contain	Common Gap If Missing
Project overview	What is being designed, industry context, end use	Partner draws without understanding function; misses safety-critical features
Deliverable list	Every drawing type, quantity, and format required	Drawing types or formats missed; argument about scope at invoice
Input documents	Go-by drawings, sketches, models, specifications provided	Partner works from memory or assumptions; wrong style or standard
Drawing standard reference	Standard name, year, and which elements it governs	Partner applies default standard; GD&T and projections conflict
Software requirements	Software name, version, required plugins or templates	File compatibility issues at delivery; cannot open without conversion
Timeline and milestones	Submission date per batch, review period, revision deadline	No accountability; delivery slips without contractual reference
Revision protocol	How mark-ups are sent, turnaround time, back-redline req	Revision cycles become unstructured; changes get lost or duplicated
Quality check requirement	What QA the partner must perform before submission	Unchecked errors submitted; review burden falls entirely on client
Communication protocol	Primary contact, escalation path, response time SLA	Communication gaps; decisions made without documentation
IP and confidentiality	NDA status, marking requirements, data security standard	Intellectual property risk; no contractual protection if breach occurs
Acceptance criteria	What constitutes a complete and acceptable deliverable	Disputes about quality at completion; rework without clear definition

Go-by Drawings: The Most Effective Tool in Your Specification Package

A specification document tells a partner what you require. Go-by drawings show them. Leading CAD outsourcing providers ask for go-by drawings before beginning any work because a written description of dimension text height 3.5mm with closed filled arrowheads is not as unambiguous as a drawing where the engineer can see exactly what those requirements produce visually.

Go-by drawing element	What it communicates to your outsourcing partner
Title block layout and field positions	Exactly which field goes where, how your company name and logo appear, what the revision table looks like
Layer naming and colour assignments	The visual hierarchy of the drawing; what is visible in which colour on screen and in print
Line weight hierarchy	Which features print heavy (object lines), medium (hidden), or fine (centre lines, dimension lines)
Text height and font	Annotation style throughout: dimension text, note text, title text, table text
Dimension style and arrow type	Closed filled arrows vs open arrows; leader line style; tolerance annotation format
View layout and spacing	How views are arranged on the sheet; spacing between views; section label placement
General notes format and content	Standard notes your drawings carry: projection symbol note, general tolerance note, surface finish default
BOM table format	Column headers, row spacing, part number format, quantity and unit format
Revision table format	Column headers, revision letter format, description field length, approval field
Section and detail view labelling	How section cuts are labelled (A-A, B-B), how detail enlargements are referenced
Weld symbol and GD&T callout style	How feature control frames are placed; leader line and flag note conventions

How to Select Good Go-by Drawings

The best go-by drawings are: technically complete with no missing information, representative of the complexity of work the partner will produce, free of known errors that crept in under schedule pressure, and recently produced to reflect your current standards. Provide at least two to three go-by drawings covering different drawing types and complexity levels.

Go-by drawing rule: Redact proprietary dimensional information from go-by drawings before sending if they show commercially sensitive products. Replace specific dimensions with representative values while keeping all stylistic and format information intact. The partner needs to see how the drawing is built, not the exact dimensions of the product.

The Pilot Project: Testing a Partner Before Committing Volume

A pilot project is the most reliable way to discover whether a partner can genuinely meet your specification before you commit significant volume. Every credible outsourcing provider offers pilot work, and many offer it at no charge because they understand it is the normal due diligence step before a production relationship begins.

Pilot phase	What to include	What you are testing
Scope selection	One to three drawings of moderate complexity	Real capability, not a showcase best effort on an easy drawing
Full spec provision	Provide your complete specification, templates, and go-by drawings as if for full production	Whether partner can absorb and apply your standards correctly
Defined timeline	Set the same turnaround expectation as production; do not give extra time	Real delivery performance, not a padded demonstration
Structured review	Review against your specification point by point; document every finding	Whether partner quality matches your requirement, not just your impression
Revision round	Issue one complete set of mark-ups; request back-redlined copy with changes highlighted	Revision discipline: how thoroughly and accurately changes are applied
Communication log	Note response times, question quality, escalation handling across the pilot period	Whether working relationship will be productive at scale
Go/no-go decision	Set explicit criteria before the pilot; do not grade on a curve at the end	Whether this partner can safely receive production work

Evaluating the Pilot

The pilot review should answer four questions. Did the partner apply your specification correctly without constant reminders? Are the drawings technically complete and accurate, not just visually correct? How did they handle gaps in the specification that required judgment? And was the revision round productive, with changes applied completely and a back-redlined copy returned? The go/no-go decision should be based on objective criteria defined before the pilot begins, not on a general impression.

Defining Your Revision Protocol

The revision protocol governs how changes are communicated between your team and the outsourcing partner. Without a documented protocol, mark-up cycles become an email chain where changes get applied partially and both parties lose track of the current revision state.

Mark-up format: Annotated PDF, redlined DWG, numbered comment list, or cloud review tool. State the format and provide a template.
Turnaround time: 24 hours, 48 hours, or by a named date. State it explicitly.
Back-redline requirement: After implementing changes, the partner should return a back-redlined copy showing exactly what changed. This confirms the mark-up was understood and applied completely.
Revision letter protocol: What triggers a revision letter increment? State it in advance.
Scope of change vs new drawing: When is a change large enough to become a new drawing? Define the threshold.

The back-redline rule: Always require a back-redlined copy after every revision round. A partner who returns a clean updated drawing without a back-redline cannot prove every mark-up was addressed. This single practice eliminates the majority of revision disputes.

Quality Assurance: What to Require Before Submission

Every drawing your outsourcing partner submits should have passed their own internal quality check before it reaches you. Specifying what that check must cover transfers the first-pass review burden to the partner.

QA check item	What the partner should verify before submission
Drawing standard compliance	GD&T symbols, datum notation, and projection method match the stated standard
Title block completeness	All mandatory fields populated: drawing number, revision, date, scale, units, approval
Layer compliance	All content on correct layers per naming convention; no content on Layer 0 or default layers
Revision table accuracy	Revision letter, description, date, and approver fields match the current revision and change log
BOM accuracy vs drawing	Every part called out on the drawing appears in the BOM with correct quantity and description
Dimension completeness	Every feature required for manufacture is dimensioned; no features defined only by scale
Tolerance consistency	No dimension lacks a tolerance where one is required; general tolerance reference in title block
View completeness	All referenced views exist on the sheet or a named sheet; all section cuts reference their views
File format delivery	All required formats delivered (DWG, PDF, STEP etc.); file naming matches drawing register convention
Scale accuracy (model space)	Model drawn at 1:1 in model space; viewports set to specified scales; NTS noted where applicable
Spell check and nomenclature	Notes, labels, and BOM descriptions spell-checked; terminology consistent with client standards

Revision Cycle Workflow in CAD Drawing Specification — *A documented revision cycle with back-redline requirement eliminates the most common revision disputes.*

Intellectual Property and Data Security

When you outsource CAD drawings, you share information about your products, designs, and clients with a third party. That information needs legal and procedural protection before it is shared, not after a breach has occurred.

The NDA: Sign Before You Brief

A Non-Disclosure Agreement should be signed before any project information is shared, including during scope discussions and before providing go-by drawings. Make it a standing rule: NDA first, then specification, then go-by drawings, then project briefing.

Drawing Confidentiality Markings

Every drawing sheet should carry a confidentiality marking: PROPRIETARY, CONFIDENTIAL, or CONTROLLED DISTRIBUTION. Specify the required markings in your drawing specification and provide a template that includes them in the correct title block position.

Data Security Requirements

File storage: State where project files must be stored. Prohibit storage on personal devices or consumer file-sharing services.
Access control: Who within the partner organisation may access the files?
Subcontracting: Is the partner permitted to pass work to subcontractors? Under what conditions?
File deletion: When and how are your files deleted at project end? Request written confirmation.
Software licensing: Confirm the partner uses fully licensed CAD software.

The most common IP mistake in CAD outsourcing: Providing go-by drawings and project sketches before the NDA is signed because the partner needs to see the scope to quote it. A responsible partner will sign the NDA before receiving any design information. If a prospective partner resists signing before the briefing, that is itself a red flag about their approach to client data.

Managing the Outsourcing Relationship After It Starts

Single Point of Contact

Nominate one internal contact for all communication with the outsourcing partner. When multiple team members brief the partner independently, the partner receives conflicting instructions. The resulting drawings satisfy one internal stakeholder and disappoint another.

Regular Output Review

Do not wait for a large batch to be complete before reviewing quality. Schedule periodic light reviews of recent submissions against your specification. Drift happens gradually: a partner fully compliant at pilot end may begin taking shortcuts on elements rarely checked.

Specification Version Control

Treat the drawing specification exactly as you would treat an engineering drawing: version-control it, note what changed in each revision, and confirm the partner has received and understood the updated version before they produce work to it.

10 CAD Outsourcing Briefing Failures That Produce Rework

These are the patterns that appear most consistently when outsourced drawing quality falls short. Almost all trace back to something not specified at the start rather than any failure of partner capability.

Failure	What happens	How to prevent it
Spec given verbally or by email thread	Partner interprets differently; no audit trail	Always deliver a written specification document, not a call summary. Version control it.
No go-by drawings provided	Partner creates own style; training rework needed	Provide go-by drawings before work starts. Allow no assumptions about style.
Drawing standard not stated	Partner applies their default; GD&T misinterpreted	State the standard explicitly. ASME Y14.5-2018 or ISO 1101:2017.
Software version not specified	File delivered in incompatible format or version	Name the exact software and version. Include required plugins or template files.
No pilot project run	Misalignment discovered after full batch submitted	Always run a scoped pilot before committing full production volume to a new partner.
Revision protocol undefined	Mark-ups lost; changes applied inconsistently	Define revision turnaround, back-redline requirement, and mark-up format before work begins.
NDA not signed before briefing	IP disclosed before legal protection is in place	Execute NDA before any project information is shared, including during scope discussion.
No acceptance criteria defined	Disputes about what correct means at delivery	Define acceptance criteria in the specification before work starts, not during review.
Single point of contact not defined	Multiple people brief partner inconsistently	Nominate one internal contact for all communication. Document this in the spec.
No versioning on specification itself	Spec updated informally; partner works to old version	Version-control your specification document. Treat it like an engineering drawing.

The outsourcing briefing checklist: Before assigning any work: (1) NDA signed. (2) Written specification provided and version-controlled. (3) Go-by drawings provided for all drawing types. (4) CAD template and layer standard files provided. (5) Pilot project scoped, run, and evaluated against objective criteria. (6) Revision protocol agreed. (7) QA checklist provided. (8) Single point of contact confirmed on both sides. (9) File format and software version confirmed compatible. (10) IP and data security requirements stated in writing. Ten items. All preventable rework if addressed before work begins.

AI and Digital Collaboration Tools in CAD Outsourcing in 2026

Cloud-based review platforms like Bluebeam Revu and Autodesk Construction Cloud allow mark-ups in a shared environment with every comment timestamped and tracked. AI-assisted review tools like CoLab AutoReview automate first-pass checks of submitted drawings against company standards. AI tools like Claude can draft a complete CAD drawing specification from a conversational description of requirements, reducing the time from ‘we need a spec’ to ‘the partner has it’ from days to hours.

Conclusion:

The quality of your CAD outsourcing relationship is determined before the first drawing is produced. It is determined by the completeness of the specification you provide, the relevance of the go-by drawings you include, the rigour of the pilot project you run, and the clarity of the protocols you define for revision, QA, and communication.

Outsourcing partners in 2026 are generally capable. What they cannot invest in is your specific drawing standard, your specific title block, your specific revision convention, and your specific layer naming. That knowledge lives in your organisation and must travel to them in writing.

A good specification is the contract between what you need and what you receive. Write it that way.

Frequently Asked Questions

What is a CAD drawing specification for outsourcing?

A CAD drawing specification for outsourcing is a written document defining every technical, format, and process requirement your external CAD partner must meet. It covers the drawing standard, CAD software and version, file delivery formats, layer naming, title block requirements, general tolerance reference, revision control protocol, and quality acceptance criteria. Without it, every assumption your partner makes is a potential source of rework.

What are go-by drawings in CAD outsourcing?

Go-by drawings are representative examples from your existing drawing set provided to a partner as a visual reference for style, standard, and quality expected. They communicate what a written specification cannot: layer structure, line weights, text heights, dimension style, title block layout, and BOM format. A good go-by set covers a range of drawing types representative of the work the partner will produce.

How do you run a pilot project with a new CAD outsourcing partner?

A pilot project involves issuing one to three representative drawings to a new partner before committing full volume. Provide the complete specification, templates, and go-by drawings. Set the same timeline as production. Review output against your specification point by point. Issue one revision round and check whether all changes are applied correctly with a back-redlined copy returned. Define go/no-go criteria before the pilot begins.

What file formats should I specify for CAD drawing outsourcing?

File format for CAD drawing requirements depend on your downstream workflow. For manufacturing: DWG and PDF/A. For BIM coordination: Revit native plus IFC. For machining: STEP alongside 2D DWG. For sheet metal: DXF for flat patterns. Always specify the software version alongside the format because DWG from AutoCAD 2026 may not open correctly in AutoCAD 2019 without conversion.

How do I protect my IP when outsourcing CAD drawings?

IP protection requires three measures. First, a signed NDA before any project information is shared. Second, confidentiality markings on every drawing sheet. Third, data security requirements in the specification covering file storage location, access control, subcontracting restrictions, and file deletion procedures at project end.

What should a CAD drawing outsourcing scope document contain?

A scope document should contain: a project overview, a complete deliverable list, a list of input documents provided, the applicable drawing standard, software and version requirements, a timeline with milestones, the revision protocol, QA requirements the partner must perform before submission, communication protocols, IP and confidentiality requirements, and acceptance criteria defining what constitutes a complete and acceptable deliverable.

‘ASME Y14.100: the engineering drawing practices standard governing drawing completeness and approval’

May 18, 2026

Engineering Drawing Standards: ASME, ISO, and DIN — What Is the Difference?

86% of US engineering companies use ASME Y14.5 as their GD&T standard (Krulikowski survey, 133 respondents across 27 countries)
56% of non-US international companies also use ASME Y14.5, making it the most-used GD&T standard globally despite ISO GPS being the international standard
100+ individual modular standards in the ISO GPS family, compared to approximately 17 documents in the ASME Y14 series
R2024 ASME Y14.5-2018 reaffirmed in 2024, confirming it remains the current ASME GD&T standard. No new revision is in force as of 2026.

Introduction:

A machined shaft is designed in the United States under ASME Y14.5. The purchase order goes to a precision machinist in Germany who works exclusively to DIN EN ISO standards. The drawing arrives. The machinist reads the cylindricity tolerance as independently controlled, as ISO 8015 requires, and machines the shaft to those standards. The shaft arrives in the US. Inspection rejects it because under ASME’s envelope principle, the size tolerance was supposed to control the cylindricity automatically, and the part’s form errors fall outside what the ASME-reading inspector considers acceptable.

Nobody did anything wrong. The drawing was correct. The machinist was correct. The inspector was correct. The problem was that the drawing did not state which engineering drawing standard governed its GD&T, and the two parties operated under different default assumptions about what the same symbols and tolerance values meant.

This guide explains what ASME, ISO, and DIN drawing standards are, how they differ technically and philosophically, which industries and geographies use which, and what the specific conflicts are between standards that cause parts to be made or inspected incorrectly when engineers do not know which standard applies.

Quick answer: ASME Y14.5 is the US standard for GD&T and engineering drawings, using third-angle projection and the envelope principle by default. ISO GPS (ISO 1101 and related standards) is the international standard, using first-angle projection and the independency principle. DIN standards are German national standards that have largely been harmonised with ISO since the 1990s and are now cited as DIN EN ISO in most cases. All three must be explicitly stated in the drawing title block because mixing them without notation causes misinterpretation of tolerances and views.

Engineering Drawing Standards ASME, ISO, and DIN — *Always check the projection symbol in the title block before reading any view on a drawing from an unfamiliar source.*

ASME, ISO, and DIN: What Each Standard System Actually Is

ASME: The American Engineering Drawing Language

ASME stands for the American Society of Mechanical Engineers, a non-profit professional organisation founded in 1880. Its Y14 series of standards defines how engineering drawings are produced and interpreted in the United States. The most important of these is ASME Y14.5, which defines GD&T: the symbolic language for communicating dimensional requirements and tolerances.

ASME Y14.5 can trace its roots to MIL-STD-8, a US military standard from 1949. It was the wartime need for interchangeable parts produced at multiple facilities that drove the early development of formalised geometric tolerancing. The standard has been revised approximately every decade since the 1960s. The current version is ASME Y14.5-2018, reaffirmed in 2024 (designated R2024), confirming it remains in force. No newer revision is in effect as of 2026.

The 2018 edition made two changes that every engineer working to ASME standards should know: it deprecated the concentricity and symmetry symbols, replacing them with positional or profile controls, and it explicitly incorporated Model-Based Definition (MBD), recognising that tolerances are increasingly embedded in 3D models rather than printed on 2D drawings.

ISO GPS: The International Drawing Language

ISO is the International Organization for Standardization, founded in 1947. Its ISO GPS system (Geometrical Product Specifications) is the international framework for engineering drawing standards, covering everything from line types (ISO 128) to surface texture (ISO 1302) to the full GD&T system (ISO 1101, ISO 8015, and over 100 related standards).

Unlike ASME’s relatively consolidated Y14 series of around 17 documents, the ISO GPS system is modular and composed of more than 100 interrelated standards, each covering a narrow, specific aspect of geometric specification. ISO 1101 covers tolerancing symbols. ISO 8015 defines the fundamental rules. ISO 5459 covers datum references. ISO 14638 defines the masterplan for the GPS system. This modularity is both a strength, each standard can be updated independently, and a challenge, because understanding the full system requires familiarity with multiple documents.

ISO GPS is the default standard in Europe, increasingly adopted in Asia, and the required standard for international supply chains that cross multiple regulatory jurisdictions. Its first-angle projection convention and independency principle for tolerancing represent fundamentally different default assumptions from ASME.

DIN: The German National Standard

DIN stands for Deutsches Institut fur Normung, the German Institute for Standardization, founded in 1917. DIN standards for engineering drawings have been through significant harmonisation with ISO since the 1990s as part of European standardisation efforts. The consequence is that most current DIN engineering drawing standards are designated DIN EN ISO, meaning they are the German national adoption of a European (EN) adoption of an International (ISO) standard.

The practical meaning: DIN EN ISO 1101 is the same standard as ISO 1101 in technical content. DIN EN ISO 2768 is the same as ISO 2768. When a German supplier cites DIN EN ISO standards, they are working to the same technical requirements as any other ISO GPS user. The DIN-specific designation indicates the standard has been formally adopted as a German national standard, which carries regulatory significance in some procurement contexts.

Where DIN remains genuinely distinct is in standards that have not been harmonised, such as DIN 7168 (German general tolerances, which differs from ISO 2768 in some tolerance classes), older DIN standards that remain in use in specific industries, and VDA (Verband der Automobilindustrie) supplementary standards for German automotive supply chains that have no direct ISO equivalent.

Attribute	ASME (Y14 series)	ISO (GPS system)	DIN (German standard)
Governing body	American Society of Mechanical Engineers	International Organization for Standardization	Deutsches Institut fur Normung (German Institute for Standardization)
Primary geography	USA, Canada, parts of Asia	Europe, Asia, global baseline	Germany, Austria, German-speaking markets
GD&T standard	ASME Y14.5-2018 (R2024)	ISO 1101, ISO 8015, 100+ GPS standards	DIN ISO 1101 (mirrors ISO GPS)
Projection method	Third-angle projection (ANSI)	First-angle projection (ISO)	First-angle projection (ISO-aligned)
Line standards	ASME Y14.2	ISO 128	DIN ISO 128
Title block standard	ASME Y14.1	ISO 7200	DIN 6771
Tolerance philosophy	Envelope principle (Taylor principle)	Independency principle (ISO 8015)	Independency principle (ISO-aligned)
Default for dimensions	All dims controlled by size limits	Form error independent of size	Form error independent of size
Standards structure	~17 documents in Y14 series	100+ modular GPS standards	Aligned to ISO, with German national supplements
Industry dominance	Aerospace, defence, US automotive	European mfg, pharma, global supply	German automotive (VDA), machinery, industrial

Third-Angle vs First-Angle Projection: The Most Visible Difference

This is the difference that causes the most obvious manufacturing errors when it is not checked. The projection method determines where each view sits on the drawing sheet relative to the front view, and getting it wrong means reading a right side view where a left side view should be, and vice versa.

Aspect	Third-angle projection (ASME / ANSI)	First-angle projection (ISO / DIN)
Where views sit	View placed on the side you look from. Right side view sits to the right of front view.	View placed on the opposite side. Right side view sits to the LEFT of front view.
Top view position	Top view sits ABOVE the front view	Top view sits BELOW the front view
Identification symbol	Circle on left, cone pointing right	Circle on right, cone pointing left
Dominant standard	USA, Canada, Australia (some use)	Europe, Asia, rest of world
Risk of confusion	Reading first-angle as third-angle produces mirrored or inverted parts	Same risk applies in reverse for non-European readers
Where stated	Always in the title block	Always in the title block
Critical check	Confirm before reading any drawing from an unfamiliar source	Never assume. Always check the projection symbol in the title block first.

The projection symbol in the title block is small and easy to overlook. It is also the single most important piece of information on the drawing for anyone who has not worked with both systems. An engineer trained exclusively in ASME drawings, reading a European supplier’s first-angle drawing without checking the symbol, will consistently misidentify which side of the part each view shows.

The manufacturing consequence of projection confusion: A bracket designed with a mounting boss on the right side, read from a first-angle drawing by an engineer expecting third-angle, will be interpreted as having the boss on the left side. The machinist machines what the drawing appears to show. The part is wrong. By the time it is discovered, the setup, material, and machining time are wasted. The root cause is not the drawing. It is failing to check the projection symbol before reading the views.

Envelope vs Independency: The Most Important Technical Difference

This is the difference that causes the most subtle and expensive manufacturing problems when standards are mixed, because the same tolerance value means something different depending on which principle applies. A 25mm shaft toleranced at plus or minus 0.1mm under ASME and the same shaft under ISO are not the same specification, even though the numbers are identical.

Aspect	Envelope Principle (ASME Y14.5)	Independency Principle (ISO 8015 / DIN)
What it means	The size tolerance automatically controls form. A 25mm +/-0.1mm cylinder may not exceed a perfect 25.1mm envelope at any cross-section.	Size and form are independent. A 25mm +/-0.1mm cylinder may be anywhere between 24.9mm and 25.1mm at any cross-section, but form errors must be separately controlled.
Who controls form errors	The size limits do this automatically for ASME drawings without extra symbols	Form errors (straightness, cylindricity, flatness) must be explicitly called out with GD&T symbols
Effect on design	Fewer symbols needed for simple prismatic features	More symbols required to fully constrain form, but intent is more explicit
Effect on inspection	Envelope gauge checks form and size simultaneously	Form and size inspected separately unless combined control is explicitly stated
Which standard applies	ASME Y14.5 (default, unless E modifier reverses it)	ISO 8015 (default for ISO drawings). ASME can invoke ISO 8015 using the E modifier.
Risk of misinterpretation	An ISO-trained inspector may not apply the envelope check on an ASME drawing	An ASME-trained inspector may assume form is controlled when it is not on an ISO drawing

A Practical Example of the Difference

An ASME drawing specifies a shaft diameter of 25.00mm plus or minus 0.10mm. Under the envelope principle, this means the shaft must pass through a perfect 25.10mm ring gauge (the maximum material boundary) and must be no smaller than 24.90mm anywhere. The ring gauge check automatically verifies that the shaft is straight and circular within the size tolerance. No separate cylindricity callout is needed.

The same shaft on an ISO GPS drawing with the same diameter tolerance of 25.00mm plus or minus 0.10mm operates under the independency principle. The shaft may be anywhere between 24.90mm and 25.10mm at any cross-section, but the form errors (how straight and circular it is) are not controlled by the size tolerance. If the shaft must also be straight within a certain tolerance, a separate straightness callout is required. If cylindricity must be controlled, a cylindricity callout is required.

GD&T principles comparison Envelope Principle vs Independency Principle — *The envelope vs independency difference is invisible on the drawing unless you know which standard applies.*

The practical result: a shaft manufactured to the ASME specification may have better form control than required by ISO, or an ISO shaft may have worse form than an ASME-trained inspector expects. Both are correct for their respective standards. Neither is wrong. But if an inspector trained in ASME applies the envelope principle to an ISO-drawn part, they may accept or reject parts incorrectly.

GD&T Symbol Differences Between ASME and ISO: Where Conflicts Actually Live

Most are identical between ASME Y14.5 and ISO 1101. The flatness symbol, the straightness symbol, the angularity symbol, the position symbol: all use the same geometric shapes with the same meaning. This convergence has been deliberate and sustained over decades of parallel standard development. The conflicts that exist are important precisely because they are not obvious from a visual scan of the symbols.

Feature / Symbol	ASME Y14.5	ISO GPS (ISO 1101)	Practical consequence of mixing
Flatness	Flatness symbol (parallelogram)	Same symbol, different default scope	Both use same symbol but ISO requires explicit callout where ASME uses envelope rule
Cylindricity	Explicit callout required	Explicit callout required	No difference in symbol, significant difference in when it is needed
Position (Location)	True position symbol, bidirectional	Same symbol, ISO may use differently	Always verify datum scheme matches between supplier and buyer
Datum feature symbol	Filled triangle on leader	Same but triangle placement differs	Datum A may point to different surface if convention not stated
Angularity	Angularity symbol	Same symbol	No symbol conflict, same interpretation
Concentricity	In ASME Y14.5-2018: deprecated	Still used in ISO	Critical conflict: ASME has removed this symbol. ISO still uses it.
Symmetry	In ASME Y14.5-2018: deprecated	Still used in ISO	Critical conflict: same as concentricity situation above.
Runout	Circular and total runout	Circular and total runout	Same meaning, same symbols, no conflict
Projected tolerance zone	PTZ modifier in ASME	ISO uses P modifier differently	PTZ application differs between standards. State standard on drawing.
Surface texture (Ra)	ASME B46.1	ISO 1302 / ISO 4287	Both use Ra value but measurement method and filtering can differ

The Concentricity and Symmetry Deprecation: A Live Conflict

The most significant current conflict between ASME and ISO GD&T symbol sets is the deprecation of concentricity and symmetry in ASME Y14.5-2018. These symbols remain in active use in ISO GPS drawings and are taught in ISO-based GD&T training globally.

In ASME Y14.5-2018, both were removed and replaced by position or profile of a surface controls, which Subcommittee 5 argued were more precisely defined and more readily inspectable. The argument has merit: concentricity as defined required deriving a median point from every diametrically opposed pair of points on the surface, which is mathematically rigorous but metrologically challenging.

The practical consequence for engineers: if you receive a drawing with a concentricity symbol and you are working to ASME Y14.5-2018, the symbol is formally undefined in your standard. If the drawing states ISO 1101 as its reference, the symbol is valid and means what it says. If the drawing states nothing, you have no way of knowing which interpretation to apply without asking. This is exactly the situation the title block note requirement is intended to prevent.

Key Engineering Drawing Standards: Complete Reference Table

The table below provides a quick reference to the most important engineering drawing standards across all three systems, covering what each standard covers and its current status.

Standard	Body	Year / Status	What it covers
ASME Y14.5	ASME	2018 (R2024)	Geometric dimensioning and tolerancing: all GD&T symbols, datum references, tolerance zones
ASME Y14.1	ASME	Current	Drawing sheet sizes, title block format, and drawing format requirements
ASME Y14.2	ASME	Current	Line conventions and lettering for engineering drawings
ASME Y14.41	ASME	Current	Digital product definition data practices (MBD, 3D annotation)
ASME Y14.100	ASME	Current	Engineering drawing practices: completeness, approval, revision control
ISO 128	ISO	ISO 128-1:2020	General principles for technical drawings: line types, projections, views
ISO 1101	ISO	ISO 1101:2017	Geometrical tolerancing: symbols, definitions, tolerance zones (ISO GPS core standard)
ISO 8015	ISO	ISO 8015:2011	Fundamentals of tolerancing: independency principle, ISO default rules
ISO 2768	ISO	ISO 2768-1/2	General tolerances for linear and angular dimensions (medium m, fine f classes)
ISO 7200	ISO	ISO 7200:2004	Title block format and data fields for technical drawings
ISO 1302	ISO	ISO 1302:2002	Surface texture indication on technical drawings (Ra, Rz symbols)
ISO 10628	ISO	ISO 10628-2:2012	Symbols for process plant diagrams (P&IDs and flow diagrams)
DIN 6771	DIN	Current	German title block standard, supplementary to ISO 7200
DIN ISO 1101	DIN	Mirrors ISO 1101	German national adoption of ISO geometrical tolerancing standard
DIN 7168	DIN	Current	German general tolerances for linear and angular dimensions (precedes ISO 2768)
DIN EN ISO 2768	DIN	Current	German adoption of ISO 2768 general tolerances, often still cited as DIN 2768

Practical rule for cross-border drawings: When creating a drawing that will be manufactured outside your home country, look up whether the standards you are referencing are recognised by your supplier’s standards system. Most ASME standards are not formally adopted in Europe. Most ISO standards are available in the USA but not universally taught or enforced. When in doubt, state all relevant standards explicitly in the general notes and confirm with the supplier’s quality team that they hold the referenced documents.

General Tolerances: ISO 2768, DIN 7168, and the ASME Approach

General tolerances are the tolerances that apply to all undimensioned or untoleranced features on a drawing, defined by a single title block reference rather than individual callouts. They are one of the most frequently misunderstood elements of cross-standard drawing practice.

ISO 2768: The International General Tolerance Standard

ISO 2768 defines general tolerances for linear and angular dimensions in two parts. ISO 2768-1 covers linear dimensions and angles in four classes: fine (f), medium (m), coarse (c), and very coarse (v). ISO 2768-2 covers geometrical tolerances in three classes: H, K, and L. A drawing referencing ISO 2768-mK in its general notes is specifying medium-class linear tolerances and K-class geometrical tolerances for all features not individually dimensioned.

ISO 2768 medium (m) is the most commonly specified class for general machined parts and represents what most competent machine shops can hold in production without special process controls. Fine (f) requires tighter process discipline and is appropriate for precision assemblies. The class should be chosen to match the actual manufacturing process capability of the supplier, not to the tightest possible requirement.

DIN 7168 and DIN 2768: The German Predecessors

DIN 7168 is the German general tolerance standard that predates ISO 2768 and covers similar ground with some different tolerance class definitions. Many older German engineering drawings reference DIN 7168 rather than ISO 2768. The two are not identical in all tolerance class values, which means a drawing referencing DIN 7168 fine and a drawing referencing ISO 2768-f are not necessarily specifying the same tolerances on every feature.

DIN 2768 is frequently cited in engineering contexts but refers to the German national adoption of ISO 2768, technically designated DIN EN ISO 2768 in its current form. For practical purposes, DIN EN ISO 2768 and ISO 2768 are technically equivalent. DIN 7168 is the historically distinct German standard that should not be assumed equivalent to ISO 2768 without checking the specific tolerance values.

ASME and General Tolerances

ASME does not use ISO 2768. The ASME approach to general tolerances is different: ASME Y14.5 provides for general tolerance notes in the title block that define plus/minus values for specific dimension ranges, and ASME Y14.100 covers drawing practices including default tolerances. An ASME drawing with a title block note reading ‘3-place decimals: plus/minus 0.005 inch’ is applying a general tolerance, but under a completely different framework from ISO 2768.

An engineer moving from an ISO GPS environment to an ASME environment cannot assume that referencing ISO 2768 is meaningful on an ASME drawing. It is not part of the ASME drawing practice system. The general tolerances must be expressed using ASME-compatible notation.

Which Industries Use Which Standards: The Real-World Map

Standard selection in most organisations is driven by customer requirements, regulatory obligations, and the geographic location of the primary manufacturing base, not by any abstract technical preference. Understanding which standards dominate which industries tells you immediately which standard to use for a given project.

Industry	Dominant standard	Reason	Typical supplementary standards
US Aerospace and Defence	ASME Y14.5-2018	MIL-STD heritage, US OEM requirement	AS9100, ASME Y14.100, ASME Y14.41 for MBD
European Aerospace	ISO GPS (EN 9100 aligned)	EU OEM and EASA regulatory chain	ISO 10135, ISO 1302, NADCAP quality reqs
German Automotive (VDA)	DIN / ISO GPS + VDA norms	VDA 2 quality and DIN tool standards	VDA 2, VDA 6.1, DIN 7168, DIN ISO 2768
US Automotive (AIAG)	ASME Y14.5 + AIAG	Big-Three OEM supply chain standard	AIAG PPAP, MSA, FMEA documentation
Medical devices (FDA)	ASME or ISO by choice	FDA 21 CFR Part 820 references both	ISO 13485, FDA guidance on drawings
Pharmaceutical (EU GMP)	ISO GPS preferred	EU GMP and EMA regulatory alignment	EU GMP Annex 15, ISO 9001
Industrial machinery	ISO / DIN (Europe)	EN machinery directive compliance	ISO 4156, DIN 7168 general tolerances
Consumer electronics	ISO or ASME by region	Depends on where manufactured / sold	IPC standards for PCB, ISO 2768 general
Oil and gas (ASME PCC)	ASME B31, API standards	ASME pressure vessel and piping codes	API 6A, ASME B16.5, ASME VIII Div 1

The US Dominance of ASME in a Global Market

The survey data from GD&T educator Alex Krulikowski, with 133 respondents from 27 countries, found that 86 percent of US participants use ASME Y14.5 and 56 percent of international participants also use ASME Y14.5. These numbers reflect the historical dominance of US manufacturing, defence, and aerospace programs in setting supply chain documentation standards globally. A German tier-two supplier working for a US aerospace prime must produce ASME-compliant drawings for that program regardless of what their domestic German customers require.

The result is that many engineering teams outside the US maintain dual capability: ISO GPS for domestic and European customers, ASME Y14.5 for US and US-primed programs. This is manageable but requires explicit drawing management discipline, because the same part designed to two different standards requires two different drawings, and mixing elements from each into a single drawing creates the type of ambiguity that the shaft example at the beginning of this guide illustrates.

The Title Block: Where the Standard Is Declared and Why It Must Be

Every engineering drawing has a title block in the bottom-right corner. That title block is the drawing’s identity document, and it is also where the applicable drawing standard must be stated. Without an explicit standard reference in the title block or general notes, any GD&T on the drawing is ambiguous.

What the Title Block Must State for Standard Compliance

Applicable GD&T standard: ‘Geometric tolerancing per ASME Y14.5-2018’ or ‘Geometric tolerancing per ISO 1101:2017’ — state the standard and the year of issue
General tolerance reference: ‘Unless otherwise specified, general tolerances to ISO 2768-mK’ or the equivalent ASME general tolerance note
Projection method: The first-angle or third-angle projection symbol — this should be graphic, not text, so it is recognisable internationally
Surface texture standard: If Ra values are used: ‘Surface texture per ISO 1302’ or ‘Surface texture per ASME B46.1’
Units: Millimetres or inches — never ambiguous, always stated
Material standard: The full material specification including the relevant standard (ASTM, DIN, EN, JIS) not just the alloy name

ASME Y14.1 and ISO 7200: Title Block Format Standards

ASME Y14.1 defines the drawing sheet sizes and title block requirements for ASME drawings. ISO 7200 defines the data field structure for title blocks on ISO drawings. DIN 6771 is the German supplementary title block standard.

The field names in a DIN title block are often in German: ‘Werkstoff’ means Material, ‘Massstab’ means Scale, ‘Datum’ means Date, ‘Zeichen’ means Signature. An engineer unfamiliar with German who receives a DIN-format drawing from a German supplier will be able to read all the technical geometry but may misidentify which field contains the material specification versus the scale versus the date. Knowing the key field names in the languages of your main supplier countries is a practical working skill.

Model-Based Definition: How Standards Apply in 3D Environments

The engineering drawing is no longer always a 2D sheet. Model-Based Definition (MBD) embeds the tolerances, GD&T callouts, surface finish specifications, and material notes directly into the 3D CAD model as annotations, eliminating the 2D drawing entirely for some workflows.

Both ASME and ISO have standards for MBD. ASME Y14.41 defines digital product definition data practices, including how 3D annotations are structured, what must be captured in the model, and how the model functions as a design authority without a 2D drawing. ISO 16792 covers the equivalent requirements under the ISO GPS framework.

The standard selection question does not go away in MBD: it becomes more important, because the software that manages the 3D PMI (Product and Manufacturing Information) must be configured to apply the correct standard’s rules and defaults. CATIA, SolidWorks, NX, and Creo all support both ASME and ISO annotation modes, but the engineer must select the correct mode before applying tolerances to the model. A model annotated in ASME mode and interpreted by a supplier’s software in ISO mode will produce the same misinterpretation as a misread 2D drawing.

Which Drawing Standard Should You Use? A Decision Framework

This is the practical question that engineers and engineering managers actually need answered. The decision is not primarily technical. It is driven by the manufacturing context.

Use ASME Y14.5-2018 when:

Your customer is a US aerospace or defence prime contractor
Your parts are inspected in the USA under ASME training and tooling
Your CAD system is configured with ASME defaults and your team is ASME-trained
The supply chain is primarily North American with US-standard inspection infrastructure

Use ISO GPS (ISO 1101 and GPS family) when:

Your customer is European, particularly in Germany, France, Scandinavia, or other ISO-dominant markets
Your parts will be manufactured in Asia, where ISO standards are increasingly the baseline
The project involves international supply chains across multiple countries
Your team has ISO training and your CAD system is configured for ISO annotation

Use DIN EN ISO when:

Your customer or program requires DIN references explicitly (common in German automotive and industrial machinery)
You are supplying into German automotive programs requiring VDA supplementary standards
The drawing must be formally compliant with German national adoption standards for procurement or regulatory reasons

When your supply chain crosses standards:

State the governing standard explicitly in the title block. Do not leave it implicit.
If the drawing will be used by both ASME and ISO-trained engineers, produce two drawing sets or add a clear cross-reference note explaining which standard governs each section.
Train your suppliers in the standard you are issuing. Do not assume they know both.
Audit supplier inspection equipment and training against the standard you require. Gauges calibrated for ASME inspection may not be valid for ISO GPS inspection requirements.

The one rule that prevents most cross-standard problems: State the drawing standard in the title block on every drawing, every time. Not as a company logo or a footer note that gets overlooked. As a mandatory general note: ‘All geometric tolerances to ASME Y14.5-2018 unless otherwise stated.’ A two-second addition to the title block setup prevents the type of shaft rejection scenario described at the start of this guide.

10 Engineering Drawing Standard Mistakes That Cause Real Manufacturing Problems

These are the errors that show up most consistently in cross-border drawing reviews, supplier qualification audits, and failure investigations where the root cause traces back to a standards mismatch rather than a design error.

Mistake	Consequence	Prevention
Not stating the drawing standard in title block	Manufacturer interprets GD&T under wrong standard. Form controls and datum behaviour differ.	Always include a general note: ‘Unless otherwise specified, this drawing is to ASME Y14.5-2018’ or equivalent ISO/DIN reference.
Reading a first-angle drawing as third-angle	Parts built with holes and features mirrored or on the wrong face	Check the projection symbol in the title block before reading any view. Never assume.
Mixing ASME and ISO symbols on one drawing	Ambiguous or conflicting tolerance interpretation	Commit to one standard per drawing. If global supply chain requires both, produce two drawing sets.
Assuming ISO 2768 applies on an ASME drawing	ISO 2768 is not referenced in ASME. ASME uses its own general tolerance block.	State the applicable general tolerance standard explicitly in the title block or general notes.
Using concentricity from ISO on an ASME drawing	Concentricity was deprecated in ASME Y14.5-2018. Coaxiality is now defined via position or profile.	Use ASME-compliant controls for coaxiality: true position relative to datum axis, or profile of a surface.
Assuming DIN 2768 and ISO 2768 are identical	They are not. DIN 7168 and DIN 2768 have different tolerance classes and some different values.	Check the exact DIN standard referenced on the drawing. Do not assume ISO equivalence without verification.
Applying the independency principle to an ASME drawing	Form errors are not separately controlled on ASME drawings by default. The envelope rule applies.	For ASME drawings, if you need form independent of size, add the circle-E modifier explicitly to invoke independency.
Ignoring the title block language on international drawings	DIN drawings from German suppliers will use German abbreviations (Werkstoffe, Massstab, Datum, Zeichen)	Learn the key title block field names in the languages of your main supplier countries.
Specifying Ra surface finish without stating the standard	Ra values are measured differently under ASME B46.1 and ISO 4287. The number is not directly comparable.	State the applicable surface texture standard alongside the Ra value. Ra 1.6 per ISO 4287 is different from Ra 1.6 per ASME B46.1.
Using old DIN standards superseded by ISO adoptions	Old DIN-only standards may reference values not in use at the supplier	Check whether the DIN standard cited has been replaced by a DIN EN ISO version. Many have since the 1990s harmonisation.

Conclusion:

The purpose of engineering drawing standards is to create a shared language between the person who designs a part and the person who makes or inspects it. ASME Y14.5, ISO GPS, and DIN standards all achieve this goal within their respective domains. The problems arise at the boundaries: when a drawing produced in one standard travels to a reader trained in another.

The technical differences between ASME and ISO GPS are real and significant: the envelope vs independency principle changes what a size tolerance means. The deprecation of concentricity and symmetry in ASME Y14.5-2018 creates a live conflict with ISO GPS. The projection method difference produces mirrored or inverted parts if not checked. None of these differences are obscure. All of them are well-documented in the respective standards. The problem is that they only become visible at the moment the wrong assumption is applied to the wrong drawing.

The prevention is straightforward: state the applicable standard in the title block. Check the projection symbol before reading views on an unfamiliar drawing. Never assume that the same symbol means the same thing under a different standard without verifying. And when working across standards in a global supply chain, treat the standards gap as a project risk to be managed explicitly, not a detail to be resolved by whoever is holding the drawing when the question arises.

State the standard. Check the projection. Verify the defaults. Every time.

Frequently Asked Questions

What is the difference between ASME and ISO engineering drawing standards?

ASME standards, primarily ASME Y14.5, govern engineering drawings in the USA and North America and use third-angle projection. ISO standards, the GPS (Geometrical Product Specifications) system centred on ISO 1101, are the international standard used in Europe, Asia, and globally, and use first-angle projection. The most significant technical difference is tolerancing philosophy: ASME uses the envelope principle where size controls form by default, while ISO GPS uses the independency principle where form must be explicitly controlled with separate symbols. Some GD&T symbols also differ: concentricity and symmetry were deprecated in ASME Y14.5-2018 but remain in use under ISO.

What does DIN stand for in engineering drawings?

DIN stands for Deutsches Institut fur Normung, which is the German Institute for Standardization. DIN standards for engineering drawings have been largely harmonised with ISO since the 1990s, and most current DIN drawing standards are cited as DIN EN ISO, meaning the German national adoption of an international ISO standard. DIN standards remain particularly influential in German automotive supply chains (VDA requirements), precision machinery, and industrial equipment sectors where German-originated specifications are common.

What is third-angle vs first-angle projection on an engineering drawing?

Third-angle projection is used on ASME and ANSI drawings, primarily in the USA. In third-angle, each view is placed on the same side as the direction you are looking from: the top view sits above the front view, and the right side view sits to the right. First-angle projection is used on ISO and DIN drawings, primarily in Europe and Asia. In first-angle, each view is placed on the opposite side: the top view sits below the front view, and the right side view sits to the left. A small symbol in the drawing title block identifies which projection is used. Misreading one as the other produces parts with features on the wrong faces.

What is the envelope principle in ASME Y14.5?

The envelope principle, also called the Taylor principle, is ASME Y14.5’s default rule for size tolerances. It states that the size tolerance limits of a feature also control the maximum variation in form. A shaft with a diameter tolerance of 25mm plus or minus 0.1mm cannot exceed a perfect cylinder of 25.1mm diameter at any cross-section. This means size tolerances implicitly control straightness and circularity without requiring additional GD&T symbols. ISO GPS uses the opposite default: the independency principle, where size and form errors are controlled independently. ISO requires explicit GD&T callouts to control form even on simple sized features.

Which drawing standard is used in aerospace?

US aerospace programs follow ASME Y14.5-2018 as the primary GD&T standard, supplemented by ASME Y14.100 for drawing practices and ASME Y14.41 for Model-Based Definition. European aerospace programs follow ISO GPS standards aligned with EN 9100 quality requirements. Multinational programs, such as those where US OEMs work with European suppliers, sometimes require drawings to comply with both, which is one of the most challenging aspects of global aerospace supply chain management. The drawing must explicitly state which standard applies to avoid ambiguity.

Can ASME and ISO GD&T symbols be used on the same drawing?

Mixing ASME and ISO GD&T symbols on the same drawing without explicit notation creates serious risk of misinterpretation because the same symbol can mean different things under different standards, and default assumptions differ significantly. Concentricity is a direct example: the symbol exists in ISO but has been deprecated in ASME Y14.5-2018. If a drawing must be used in both ASME and ISO manufacturing contexts, the safest approach is to produce two separate drawing sets, one referencing each standard, or to add a prominent general note specifying which standard governs all GD&T callouts.

‘asme.org/codes-standards/find-codes-standards/y14-5-dimensioning-tolerancing‘

May 16, 2026

What Is Design for Manufacturability (DFM) and How Does It Affect Your CAD Drawings?

10x cost multiplier at each development stage for fixing the same manufacturing issue. A sketch-stage fix costs hours. A post-tooling fix costs months and six figures.
1981 year the first DFM software was released on an Apple II Plus, offering real-time feedback to engineers. DFM as a discipline predates the modern CAD era.
30-50% typical quote price reduction achievable by applying DFM to sheet metal and machined parts before issue to suppliers (published fabrication industry data, 2026)
Weeks to days DFM review cycle time compression reported by CoLab AutoReview users by sharing designs with manufacturing and quality engineers simultaneously, without requiring CAD access

Introduction:

There is a particular type of engineering problem that happens quietly, costs a lot, and is almost entirely avoidable. An engineer spends three weeks building a detailed CAD model. The drawing is clean, well-dimensioned, and geometrically precise. It goes to the fabricator. A week later, the quote comes back with a price that is 40 percent higher than expected and a list of queries about features the machinist cannot make with standard tooling.

Or worse: the drawing passes quoting, the parts are made, and the first batch comes back with features that are technically within drawing tolerance but functionally wrong because the drawing was not specific enough about what the manufacturing process needed to deliver.

Both of these problems have the same root cause: the design was completed without Design for Manufacturability applied. The engineer knew what the part needed to do. They did not build the knowledge of how it would be made into the decisions that shaped the geometry, the tolerances, and the drawing notes.

This guide explains what DFM is, how it changes the specific content of CAD drawings, what the most important rules are for each common manufacturing process, how tolerances should actually be allocated rather than how they usually are, what AI DFM tools are doing differently in 2026, and the ten mistakes that most consistently make parts expensive, slow, or wrong.

Quick definition: Design for Manufacturability (DFM) is the practice of designing parts and assemblies so they can be manufactured efficiently, at minimum cost, and without the defects that result from ignoring process constraints during design. Applied to CAD drawings, DFM changes how features are geometrically defined, how tolerances are allocated, and what notes and specifications the drawing must contain to produce a manufacturable part.

What Is Design for Manufacturability? The Clear Explanation

The idea behind Design for Manufacturability is straightforward. Every manufacturing process has constraints. CNC milling cutters are round, so they cannot cut perfectly sharp internal corners. Injection moulds open and close in a single direction, so walls must have draft to release cleanly. Sheet metal presses bend material in a way that deforms nearby holes if they are too close to the bend line.

DFM is the practice of knowing these constraints and designing around them from the start, rather than discovering them when the quote comes back with a problem list or when the first batch fails inspection. It is not a single review step at the end of the design process. It is a continuous mindset applied to every feature as the model is built.

The core disciplines within the broader DFM umbrella include:

DFM (Design for Manufacturability): individual part geometry designed to be made efficiently by the target process
DFA (Design for Assembly): assemblies designed to be assembled with minimum parts, minimum operations, and mistake-proof orientations
DFMA (Design for Manufacture and Assembly): both combined, which is how most mature organisations approach the methodology
DFQ (Design for Quality): geometry and tolerances designed so that inspection and quality control are practical and reliable
DFS (Design for Sustainability): material selection and geometry designed for minimum material waste, energy use, and end-of-life disassembly

This guide focuses on DFM in its most direct engineering application: how the manufacturing process a part will go through should determine the geometry, tolerances, and documentation of the CAD drawing that produces it.

Why DFM Has Been Around Since 1981 and Still Gets Ignored

The first DFM software was released in 1981 on an Apple II Plus. Boothroyd Dewhurst, Inc. was founded in 1983 to commercialise DFM and DFA methodology. The principles have been taught in mechanical engineering degrees for four decades. And yet, the most common feedback from manufacturing engineers reviewing designs from product engineers is still that basic DFM rules have not been applied.

The reason is structural, not individual. In most product development workflows, the design engineer and the manufacturing engineer are separated by process, timeline, and sometimes by geography. The design engineer’s incentive is to get the design right functionally. The manufacturing engineer’s knowledge enters the process only at review gates that happen after significant design investment has been made. By the time a DFM problem is formally identified, it is expensive to fix.

AI DFM tools in 2026 are beginning to solve this by giving the design engineer manufacturing feedback at the moment they are making the decisions that create the problem, not after those decisions are locked into a finished drawing.

The Cost of Getting DFM Wrong: Why Early Matters So Much

The relationship between when a manufacturing problem is discovered and what it costs to fix it is not linear. It is exponential. Published data from the manufacturing industry consistently shows a ten times cost multiplier at each stage of the development process.

Stage	Who catches the issue	Typical correction cost	Time impact
Concept / sketch	Design engineer	Near zero: edit the sketch	Hours
CAD model complete	DFM review or tool	$1,000 – $5,000	Days to 1 week
Drawing issued	Manufacturer or DFM check	$5,000 – $20,000	1-3 weeks
Prototype built	Testing team	$20,000 – $100,000	Weeks to months
Tooling cut or ordered	Production engineer	$50,000 – $500,000+	Months
Volume production	Quality / customer return	$500,000 – millions	Programme delay

These are not theoretical figures. They reflect the actual economics of product development: engineering time to redesign, management overhead to approve the change, supplier communication to revise the order, scrapped tooling or scrapped parts, extended lead times, and in volume production, the cost of customer returns and warranty claims.

The table makes the business case for DFM review at the concept stage self-evident. The cost of an engineering hour at concept is the same as at prototype. But an engineering hour at concept prevents a problem that would cost a hundred times more to fix at the same stage one step later in the process.

The most common DFM timing mistake: Treating DFM as a drawing release gate rather than a design activity. When DFM review only happens after the CAD model is complete and the drawing is drafted, every finding requires changes to finished work. The model must be reopened and edited. The drawing must be revised and re-checked. If DFM is instead applied feature by feature as the model is being built, the cost of each correction is essentially zero because the geometry does not yet exist in final form.

Cost of Design Change by Development Stage Bar Chart — *DFM is not about adding cost to the design process. It is about avoiding the far larger costs that come when manufacturing problems are discovered late*

How DFM Directly Affects Your CAD Drawings: Element by Element

The clearest way to understand how DFM in CAD works in practice is to look at specific drawing elements and compare how they appear with and without DFM applied. The differences are not cosmetic. They are the difference between a drawing that a manufacturer can confidently execute and one that generates a query list before production starts.

Drawing Element	Without DFM thinking	With DFM applied
Internal corner radius	Sharp 90-degree corners on pocketed features	Minimum radius callout matching available tool size
Draft angles	Vertical walls on moulded or cast parts	1-3 degree draft on every wall with draw direction arrow
Tolerances	Uniform tight tolerance on all features	Selective: tight on functional interfaces, ISO 2768 elsewhere
Wall thickness	Variable wall, thicker for stiffness, thinner for weight	Uniform wall, stiffness achieved through ribs and form
Hole placement	Holes positioned by assembly need alone	Holes checked against DFM rules for process before finalising
Surface finish	Single Ra value across all surfaces	Surface finish specified by zone: mating, sealing, general
Material callout	Nominal material grade, no processing spec	Full material spec with temper, condition, and standard reference
Weld symbols	Generic weld callout	Process-specific: groove type, joint prep, inspection class
GD&T	All dimensions in plus/minus	GD&T applied at functional interfaces, datum structure defined
Notes	Generic manufacturing notes	Process-specific notes: tool access, assembly sequence, inspection

The Tolerance Conversation: What Most Engineers Get Wrong

Tolerance over-specification is one of the most consistently expensive DFM failures, and one of the most consistently overlooked. When a drawing applies the same tight tolerance to every dimension regardless of whether that dimension affects function, the fabricator must either meet every tolerance at premium cost or query the drawing. Most of the time, tight tolerances are applied by default because the engineer did not consciously decide what each feature’s tolerance should be.

The correct approach is selective tolerancing: apply tight tolerances only to features that genuinely require them for assembly or function, and let everything else default to a general tolerance standard like ISO 2768 medium (m). This approach communicates clearly to the fabricator what is critical and what is not, allowing them to prioritise process control where it matters and use their judgment elsewhere.

Feature type	Standard tolerance	Precision tolerance	When to specify precision
Non-functional dimensions	ISO 2768-m	Not needed	Never. Leave to process default.
Mating clearance fits	ISO 2768-m	H7/g6 or similar	When assembly requires controlled clearance
Press fits / interference	ISO 2768-f	H7/p6 or tighter	When retention force is load-bearing
Bearing seats	IT6-IT7 typical	IT5 for precision	All rotating or oscillating bearing interfaces
Sealing surfaces	Ra 1.6 surface finish	Ra 0.8 or 0.4	All elastomeric or metal-to-metal seals
Bolt clearance holes	H12 or H13	Not needed	Only for precise pin/dowel location
General machined faces	ISO 2768-m	Avoid	General form only, not functional mating
Welded joint gaps	Plus/minus 1.0mm	Plus/minus 0.5mm	Only for precision structural weld joints

The tolerance audit habit: Before releasing any drawing, go through every toleranced dimension and ask one question: does the function of this part or assembly change measurably if this dimension is at the opposite end of its tolerance? If the answer is no, the tolerance is over-specified. Remove it or replace it with a general note reference. This single habit reduces manufacturing cost on most parts by 10 to 30 percent without changing function.

DFM Rules by Manufacturing Process: What the Drawing Must Communicate

The most important DFM knowledge for a design engineer is process-specific. The rules for CNC machining DFM are different from the rules for injection moulding, which are different from sheet metal, which are different from casting. The manufacturing process determines what the drawing must say, and a drawing that does not communicate the right things for its intended process is not a complete engineering document.

Manufacturing Process	Key DFM Rules for CAD	Common CAD drawing violations
CNC Machining	Min internal corner radius = tool radius + 10%. Max depth-to-width = 4:1 for slots. Uniform wall thickness. Limit setups to one or two sides.	Sharp internal corners, pockets deeper than tool reach, features requiring 5-axis where 3-axis is spec
Injection Moulding	Draft angle 1-2 degrees on all walls. Min wall 1.2mm, uniform thickness. Rib height max 3x wall thickness. Gate location away from mating faces.	No draft on tall walls, variable wall thickness causing sink marks, undercuts needing side actions
Sheet Metal	Min hole diameter = material thickness. Hole-to-bend distance = 2.5x thickness. Flange height = 4x thickness. Bend relief at intersecting bends.	Holes too close to bends, flanges too short for press brake, no bend relief at corners
Die Casting	Draft 1-3 degrees. Wall uniformity critical. Parting line position chosen to minimise surface marks. Draft on cores and inserts.	Non-uniform walls causing porosity, draft violations, undercuts on parting plane
3D Printing (FDM)	Orient to minimise supports. Min feature 2x nozzle diameter. Avoid horizontal overhangs beyond 45 degrees. Bridge length under 50mm without support.	Features requiring excessive support, thin horizontal bridges, tolerance expectations beyond FDM capability
Casting (sand/invest.)	Min wall 3-5mm depending on alloy. Generous draft 2-5 degrees. Avoid sharp transitions, use fillets everywhere. Core placement feasibility.	Thin sections that cannot fill, missing draft, sharp corners causing stress concentration in casting
Welded fabrication	Access for welding torch and visual inspection. Joint gap specification. Weld sequence to minimise distortion. Avoid welds in high-stress zones.	No access for torch, joints requiring simultaneous multi-position welding, tolerance on welded geometry too tight
Turning / lathe work	Consistent diameters to minimise tool changes. Undercuts need relief groove. Chamfers on all transitions. Length-to-diameter max 4:1 without steady.	Long slender parts with no steady provision, multiple non-standard diameters, undercuts without relief

CNC Machining DFM: The Internal Corner Is Where It Always Breaks

The single most common CNC machining DFM violation is the sharp internal corner in a pocketed feature. A milling cutter is round. It cannot cut a 90-degree internal corner. It leaves a radius equal to its own radius. If the design requires a sharp corner, either a different operation is needed (EDM wire cutting, broaching, or grinding), or the part cannot be made as drawn.

The solution is not complicated: specify a minimum internal corner radius in every pocketed feature, equal to the cutter radius plus ten percent clearance. For a 10mm end mill, specify R6mm internal corners. For a 6mm end mill, R4mm. If the mating part that fits into the pocket has a sharp corner, chamfer or relieve that part’s corner rather than requiring the pocket to be square.

The second most common issue is feature depth relative to available tooling. Standard end mills have a flute length to diameter ratio of around 3:1 to 4:1. A pocket 60mm deep requiring a 10mm end mill cannot be machined with standard tooling because the flute length is only 30 to 40mm. The feature requires special extended-reach tooling, which adds cost, delivery time, and vibration risk to the operation. If the pocket depth is driven by function, acknowledge in the notes that extended tooling is required and confirm with the machinist before releasing.

Injection Moulding DFM: Draft and Wall Thickness Are Not Optional

Draft angle is the first and most critical injection moulding DFM rule. When a part is injected into a mould, it must be ejected cleanly as the mould opens. Without draft on the walls, the part grips the mould and either damages the surface, requires excessive ejection force that marks the part, or sticks entirely. The minimum draft angle depends on the surface finish: polished surfaces require at least 0.5 degrees, textured surfaces require 3 to 5 degrees in addition to the texture depth.

Wall thickness uniformity is the second critical rule. Injection-moulded parts cool from the outside in. Thick walls cool slowly, thin walls cool quickly. Where thick and thin sections meet, the differential cooling creates internal stress, sink marks on the surface opposite the thick section, and warping as the part cools unevenly. The DFM-compliant approach is to design uniform wall thickness throughout and use ribs and gussets to add stiffness, not increased wall thickness.

Rib design follows specific proportions from the wall: rib height maximum 3 times the wall thickness, rib thickness 50 to 60 percent of the wall thickness, and a draft of 0.5 to 1 degree on each rib face. These proportions prevent the rib from causing sink marks on the visible face while providing the stiffness that the design requires.

Sheet Metal DFM: The Rules That Are Invisible Until You Break Them

Sheet metal DFM rules are covered in depth in our guide on sheet metal design for manufacturing. The most consequential rules that affect CAD drawings specifically are the hole-to-bend distance (minimum 2.5 times material thickness from the hole edge to the nearest bend tangent line), the flange height minimum (4 times material thickness for press brake grip), and the requirement for bend relief cuts at all intersecting bends.

These rules are invisible on the finished drawing to anyone who does not know them. A hole positioned 3mm from a bend in 2mm steel looks like a standard hole. The drawing does not announce that it will deform oval during bending. The experienced fabricator will query it. The inexperienced one will cut it and discover the problem at forming.

AI DFM Tools in 2026: From Rule Checkers to Active Design Optimisers

The AI DFM tool landscape in 2026 has split into two distinct categories: tools that check designs against rules and flag problems, and tools that actively optimise designs against manufacturing constraints without requiring the engineer to make every correction manually. Understanding the difference helps set realistic expectations about what each tool can deliver.

AI DFM Analysis Interface Real-Time Feedback on CAD Model — *I DFM tools in 2026 flag issues as you model, not after the drawing is released. The fix takes seconds. The same fix after tooling takes months.*

Tool	Type	What it checks	CAD integration
Xometry DFM	Cloud / upload	CNC, 3D printing, injection moulding	STEP upload, instant feedback online
CoLab AutoReview	Collaboration AI	Best practices, company-specific standards	Comment on 3D models in browser, no CAD needed
InfinitForm	In-CAD AI	Actively optimises geometry, not just flags	Direct Fusion 360 and SolidWorks integration
Autodesk DFM (Fusion)	In-CAD integrated	Machining, additive, sheet metal	Native in Fusion 360 Manufacture workspace
DFMXpress	In-CAD integrated	Machining and injection moulding rules	Native in SolidWorks, runs on active model
Dashnode AI DFM	Cloud / upload	CNC, turning, sheet metal, additive	STEP/IGES upload, detailed feature-level report
Protolabs DFM	Cloud / upload	Injection moulding, machining, 3D printing	Part upload on quoting platform
Fictiv DFM feedback	Cloud / upload	All common processes with manufacturability	Integrated in quoting and ordering workflow

Static Rule Checkers vs AI-Driven Optimisers

Traditional DFM tools, including the built-in DFMXpress in SolidWorks and early versions of cloud upload tools, apply static geometric rule sets. The rules are hard-coded: minimum corner radius, minimum draft, minimum hole diameter. When a feature violates a rule, the tool flags it. The engineer decides what to do.

The limitation identified in a March 2026 CoLab analysis is that static rule checkers often generate high volumes of false positive alerts on designs that are technically acceptable for the specific tooling and process setup being used, even if they violate a generic rule. Engineers begin ignoring the alerts because too many are irrelevant. The signal-to-noise ratio degrades the value of the tool.

AI-trained tools like InfinitForm and the newer generation of analysis engines trained on real manufacturing outcomes are beginning to address this. Rather than applying static geometric rules, they are trained on historical manufacturing data: which designs were quoted at a premium, which resulted in scrap, which required tool changes or process deviations. The feedback is contextual rather than generic, which reduces false positives and increases engineer trust in the outputs.

InfinitForm: The Active Optimiser Approach

InfinitForm represents a conceptually different approach from flagging tools. Rather than producing a list of problems for the engineer to solve, it applies automated geometry corrections directly to the CAD model: rounding corners, adding draft, adjusting wall thickness, all within the CAD environment without requiring the engineer to identify and manually fix each issue.

For engineering teams processing high volumes of similar part geometries, this approach delivers significant throughput gains. For complex or novel designs where the engineering judgment behind each feature is important, the active optimiser approach needs careful supervision: automated corrections can change the design intent if the optimiser does not understand why a specific geometry exists. The engineer remains responsible for reviewing what the tool has changed.

Cloud Upload Tools: Xometry, Protolabs, and Fictiv

The cloud quoting platforms operated by Xometry, Protolabs, and Fictiv have built DFM analysis directly into their quoting workflow. When an engineer uploads a STEP file for a quote, the platform analyses the geometry against the selected process rules and returns both a price and a DFM report in the same response.

This is probably the most consequentially positioned DFM feedback in any workflow: the engineer receives manufacturing feedback at the exact moment they are deciding whether to proceed with the design. A DFM issue flagged at the quoting stage costs an email and a model revision. The same issue discovered during production at that same supplier costs a production hold and an emergency re-design.

Design for Assembly: The DFM Dimension That Affects the Whole Product

If DFM focuses on how individual parts are made, Design for Assembly (DFA) focuses on how those parts come together. The principles are related but distinct, and both have direct effects on what appears on CAD drawings and assembly documentation.

The Boothroyd-Dewhurst Principles That Still Apply in 2026

Geoffrey Boothroyd and Peter Dewhurst codified the foundational DFA principles in the 1970s and 1980s. Four decades later, they remain the most consistently useful framework for assembly design decisions in CAD:

Minimise the part count. Every part is a cost: material, manufacturing, inspection, inventory, and assembly time. Ask whether each part can be combined with an adjacent part without losing function. The part count is the single highest-lever driver of assembly cost.
Design parts with unambiguous assembly orientation. If a part can be inserted in the wrong orientation, it will be, eventually, and the consequence will be a field failure or an assembly line stoppage. Use asymmetric geometry or assembly features to make the wrong orientation physically impossible.
Design for top-down assembly. Where possible, design assemblies so each part is added from above and drops into place under gravity. This enables robotic assembly and reduces the number of repositioning steps required during manual assembly.
Minimise fastener count and types. Each different fastener type requires a different tool, a different bin, and a different training requirement. Standardise on a minimum number of fastener types and sizes across a product family.

How DFA Appears in CAD Drawings

Poka-yoke features (asymmetric tabs, locating pins, orientation notches) that make wrong assembly physically impossible
Assembly sequence notes specifying the order of sub-assembly and final assembly operations
Fastener callouts using the minimum number of standardised types across the assembly
Clearance specifications for assembly tool access (screwdriver, spanner, rivet gun)
Datum references that are accessible and measurable during assembly, not just during inspection

Integrating DFM Into Your CAD Modeling Workflow

DFM is most effective when it is not a separate activity from CAD modeling but a habit embedded in how the model is built. The following approach integrates DFM thinking at each stage of the modeling process without adding a separate review gate that is often compressed or skipped under schedule pressure.

Before Opening the CAD Software

The most important DFM decision is often the first one: selecting the manufacturing process. The process determines every subsequent DFM rule that applies. A design engineer who does not know whether a part will be machined, moulded, or fabricated cannot make any sensible geometry decisions because the constraints are completely different for each.

If the process is not yet fixed, the concept design should use geometry that is agnostic enough to work for at least two candidate processes. Do not design sharp internal corners as a default if the part might be injection moulded, because adding draft later is more disruptive than designing with draft from the start. Use the concept stage to test which process is most appropriate before committing to the geometry that locks the choice.

During Feature Creation

Apply the most critical DFM rule for the chosen process to each feature as it is created. For machined parts: never create an internal pocket without specifying the corner radius in the feature. For moulded parts: apply draft before finalising any extruded wall. For sheet metal: check hole-to-bend clearance before placing any hole near a fold line.

This is not additional work. It is the same modeling time applied with process awareness rather than pure geometry focus. The feature takes the same time to create. The only difference is whether the geometry that is created will need to be reopened and corrected when the DFM check is run after drawing completion.

At Drawing Creation

The drawing is where DFM is either confirmed or undermined by tolerances and notes. Three things matter most at the drawing stage.

First, tolerance allocation: apply the tolerance table approach from earlier in this guide. Tight only where function requires it. General reference everywhere else. Add a general tolerance block in the title block referencing ISO 2768-m so the fabricator knows the default.

Second, drawing notes: add process-specific notes that the drawing geometry alone cannot communicate. Tool access direction for inspection. Acceptable substitution materials if the primary specification is unavailable. Required testing before acceptance. Any feature that is critical to assembly or safety, marked as such.

Third, run the AI DFM check before releasing. With tools like DFMXpress in SolidWorks or the Fusion 360 DFM workspace, this takes minutes and catches the geometric violations that might have slipped through modeling. Treat any critical finding as a mandatory fix, not an optional consideration.

10 DFM Mistakes That Make Parts Expensive, Slow, or Wrong

These are the DFM failures that come up most consistently across machined, moulded, and fabricated part reviews. Each one has a specific, measurable cost consequence and a straightforward prevention strategy.

Mistake	Cost consequence	Prevention
Sharp internal corners in CNC pockets	100% rejection or EDM rework: $500-$5,000/part	Specify minimum internal radius = tool radius + 10% in all pocketed features. Put it in the drawing notes.
No draft on injection-moulded walls	Mould tools reworked or part sticks on ejection	Apply 1-2 degree draft to all walls in draw direction. Check mould flow simulation before tooling.
Over-toleranced non-critical features	Quote 30-50% higher than necessary	Apply ISO 2768-m as default. Tighten only mating and functional interfaces. Mark critical dimensions clearly.
Variable wall thickness in moulding	Sink marks, warping, weld lines in production	Design uniform wall thickness. Add ribs for stiffness. Transition thickness changes with tapered sections.
Undercuts without side actions budgeted	Tooling cost overrun by 20-40%	Identify all undercuts during DFM review and confirm whether side actions are in tooling budget and lead time.
Material specified without temper	Wrong material properties, wrong machinability	Always specify full material standard: alloy, grade, temper, condition. Not ‘aluminium’ but ‘6061-T6 per AMS 2770’.
Feature depth exceeding tool reach	Special tooling ordered, programme delayed	Check all pocket depths against standard end mill reach ratios (max 4:1 depth:diameter for standard tooling).
No tool access for inspection	In-process inspection impossible, defects missed	Design inspection access for all critical features. Confirm measurement method with quality team before drawing release.
Assembly sequence not considered	Parts cannot be assembled in the designed order	Build assembly sequence into notes. Check that every fastener has access and every sub-assembly can reach its position.
Ignoring DFM until drawing is complete	Rework of finalised model is expensive and slow	Integrate DFM checks at the concept and mid-model stage, not as a gate after the drawing is finished.

The DFM checklist for every drawing release: Before releasing any CAD drawing: (1) Internal corner radii specified for all machined pockets. (2) Draft angles on all moulded or cast walls. (3) Wall thickness uniform or tapered for injection moulding. (4) Hole positions checked against bend distances for sheet metal. (5) Tolerance callouts reviewed, non-critical features set to ISO 2768-m. (6) Full material specification including temper and standard. (7) AI DFM check run and all critical findings resolved. (8) Assembly sequence and tool access confirmed where relevant. Two minutes of checking here prevents two weeks of rework later.

DFM and Sustainability: The 2026 Dimension

Sustainability-focused DFM is the fastest-growing component of the discipline in 2026. Regulatory pressure, customer expectations, and genuine cost savings from material efficiency are driving its adoption in sectors from consumer electronics to industrial equipment.

Sustainability-focused design for manufacturability applies the same logic as cost-focused DFM: the design decision made at the CAD stage determines the material waste, energy consumption, and end-of-life recyclability of every part produced. Those outcomes cannot be improved significantly once the geometry is fixed and tooling is committed.

Material efficiency: topology-optimised geometry removes material from low-stress regions, reducing both part weight and the energy required to produce the raw material
Process selection for carbon footprint: machining from solid generates significant swarf waste; near-net-shape forming processes such as forging and casting use materially less input stock for the same output part
Fastener-free joining: snap-fit, press-fit, and adhesive-bonded joints reduce the number of dissimilar materials in an assembly, improving recyclability at end of life
Recycled material specification: calling out recycled aluminium alloys or post-consumer recycled polymer grades in the material specification is now a viable and often cost-neutral choice on many standard part types
Design for disassembly: ensuring that assembled parts can be separated at end of life without destroying either component, by avoiding permanent bonding of dissimilar materials and designing accessible fastener access

Conclusion:

The engineers who produce drawings that go directly to manufacture without a problem list are not the ones with the most experience. They are the ones who have internalised the constraints of the processes they are designing for, and who apply those constraints feature by feature as the model is built rather than as a checklist after it is finished.

Design for Manufacturability is not complicated. The rules for each process are learnable in an afternoon. The tolerance strategy is a decision framework, not a table to memorise. The DFM habits, checking corner radii in machined pockets, adding draft to moulded walls, keeping holes away from bends, take no additional time once they are reflexive.

What makes DFM expensive to ignore is the compounding cost of discovering problems late. What makes it worth prioritising is the compounding benefit of designs that work the first time: faster first article acceptance, fewer supplier queries, lower quoted prices, and manufacturing teams that trust the drawings they receive.

In 2026, AI DFM tools from InfinitForm, Xometry, CoLab, and others are making it easier to catch the remaining violations that slip through even experienced design reviews. But the tools only work well on designs that were already being thought about correctly. The AI catches what the engineer missed. It does not replace the engineer thinking about manufacturability while the model is being built.

Design the process into the part. The process cannot be designed in after the drawing is released.

Frequently Asked Questions

What is design for manufacturability (DFM)?

Design for manufacturability (DFM) is an engineering methodology that ensures products are designed to be manufactured efficiently, reliably, and at minimum cost. It involves applying process-specific design rules during CAD modeling, reviewing geometry against manufacturing constraints before drawings are released, and selecting materials and tolerances that match what the production process can actually achieve. DFM reduces rework, scrap, and tooling corrections by catching problems at the design stage rather than on the shop floor.

How does DFM affect CAD drawings specifically?

DFM changes what a CAD drawing must communicate. A DFM-compliant drawing includes minimum internal corner radii that match available tooling, draft angles on moulded and cast walls, hole-to-bend distances for sheet metal, and selective tolerances that are tight only on functional interfaces while leaving the rest to ISO 2768 defaults. The manufacturing process determines what the drawing must say. Without DFM applied, drawings routinely specify features that are impossible for the intended process, tolerances that add cost without functional benefit, and geometry that a fabricator must query or reject.

When in the design process should DFM be applied?

DFM should be applied at the concept stage, before detailed CAD modeling begins. The cost of fixing a manufacturing issue increases by roughly a factor of 10 at each development stage. Fixing a DFM issue at concept costs engineering time only. The same problem found after tooling is cut costs tens of thousands to hundreds of thousands of dollars and delays the programme by months. The most effective DFM is not a gate review at drawing completion but a continuous habit of checking each feature against the target process as the model is built.

What are the most important DFM rules for CNC machining?

The most critical DFM rules for CNC machining in CAD are: minimum internal corner radius equal to the cutter radius plus ten percent, maximum pocket depth to width ratio of 4:1 for standard tooling, uniform wall thickness to avoid chatter and deflection, feature access from two setups maximum, chamfers rather than sharp edges on all transitions, and thread relief grooves on all threaded sections. Each of these rules is directly reflected in how the part is dimensioned and annotated on the drawing.

What is the difference between DFM and DFA?

DFM (Design for Manufacturability) focuses on how individual parts are made. DFA (Design for Assembly) focuses on how parts are assembled together. DFM asks whether a single part can be manufactured efficiently by the intended process. DFA asks whether the number of parts can be reduced, whether fasteners are accessible, whether parts can be assembled in only one orientation, and whether the assembly sequence is practical. Both disciplines are related and both affect CAD drawings, but they address different failure modes in product development.

How does AI DFM analysis work in 2026?

AI DFM tools in 2026 analyse CAD geometry automatically when a model is uploaded or as it is being built inside the CAD environment. They check features against process-specific rule libraries, flag violations with location, severity, and suggested fix, and in the most advanced tools such as InfinitForm, they automatically optimise the geometry rather than simply flagging the problem. Tools like Xometry and Protolabs integrate DFM feedback directly into the quoting workflow, so engineers receive manufacturability feedback at the same time as they receive a price. The shift from static geometric rules to AI trained on manufacturing outcomes is making DFM analysis faster, more accurate, and more accessible to engineering teams without dedicated DFM specialists.

‘Boothroyd Dewhurst: the founding research organisation for DFMA methodology‘

May 16, 2026

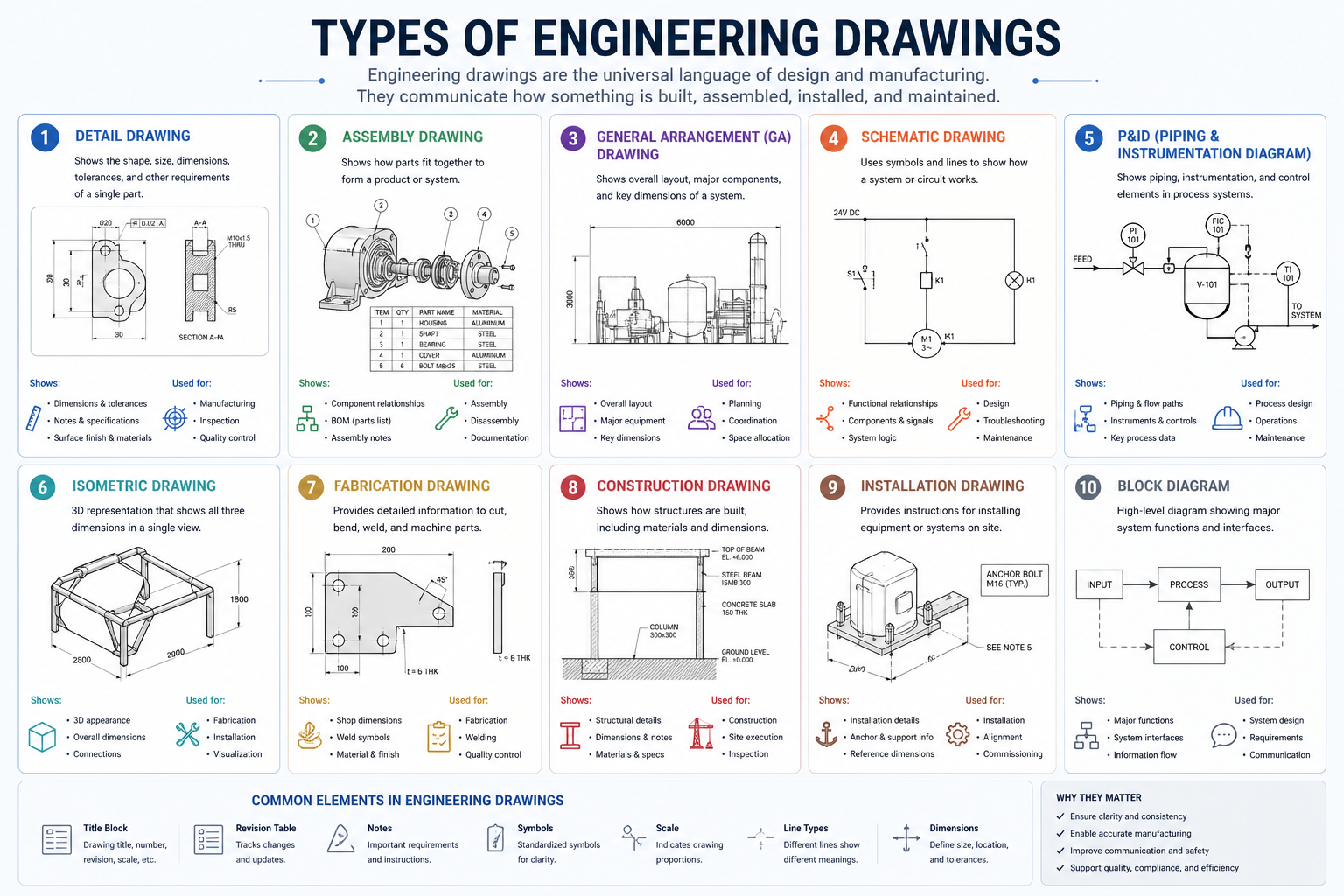

The Most Common Types of Engineering Drawings (And What Each One Is Actually For)

If you’ve ever handed a design to a manufacturer and gotten back something completely wrong, there’s a good chance the issue wasn’t the design, it was the drawing. Understanding the different types of engineering drawings isn’t just technical trivia; it’s the difference between a project that flows and one that bleeds time and money on avoidable revisions.

Engineering drawings are the universal language of making things. From a steel bracket for a conveyor system to an entire building’s HVAC layout, every physical product or structure gets communicated through drawings before it ever becomes real. But not all engineering drawings are the same, and using the wrong type, or misunderstanding what a drawing is supposed to communicate, is one of the most common and costly mistakes in product development and manufacturing.

This guide covers the four most common drawing types, what each one does, who reads it, and where teams typically go wrong, followed by a quick-reference table and an FAQ optimised for the questions engineers and manufacturing managers are actually searching for.

Quick Reference: Engineering Drawing Types at a Glance

Drawing Type	Primary Purpose	Key Content	Who Reads It
Detail Drawing	Define how to manufacture a single part	Dimensions, tolerances, material, surface finish, GD&T	Machinists, CNC operators, fabricators
Assembly Drawing	Show how parts fit and connect	Exploded or assembled view, BOM balloon callouts, clearances	Technicians, assembly teams, QA inspectors
Schematic / Diagram	Communicate system function and flow	Standardised symbols, logic connections, not to scale	Electrical, instrumentation, process engineers
Layout / GA Drawing	Define spatial arrangement within an envelope	Overall dims, equipment placement, clearances, interfaces	All disciplines, clients, contractors, planners

An article from ScienceDIrect says: “The modern engineering drawing has become a very sophisticated method of relaying information about the geometry of parts and assemblies.”

Detail Drawings, The Blueprint for a Single Part

If you only know one type of engineering drawing, make it this one. A detail drawing, sometimes called a part drawing, is a fully dimensioned, annotated drawing of a single component. Its entire job is to give a manufacturer or machinist every piece of information they need to produce that one part exactly as designed. Nothing more, nothing less.

A complete detail drawing includes orthographic views (front, top, side), all critical dimensions, tolerances, material specifications, surface finish requirements, and any relevant notes about manufacturing processes. In environments using GD&T (Geometric Dimensioning and Tolerancing), the detail drawing is also where those callouts live, defining not just size, but shape, orientation, and location of every controlled feature.

A detail drawing is not a sketch. It is a legal-grade manufacturing document. Manufacturers produce exactly what the drawing says, not what you meant. Every ambiguity on a detail drawing is a defect waiting to happen on the shop floor.

What it’s for: Manufacturing a single, discrete part. If someone at a machine shop is going to cut, mill, turn, or fabricate something from your design, they need a detail drawing.

A detail drawing is also the document that gets revised when a part changes. Version control on detail drawings is not optional in a serious engineering environment, it is what keeps the machinist, the inspector, and the assembly technician all working from the same revision.

Where teams go wrong: Over-constraining the drawing with redundant dimensions that create closed loops, making it mathematically impossible to satisfy all tolerances simultaneously. Equally common is leaving tolerances out entirely and assuming the shop will apply sensible defaults. Neither approach ends well.

Assembly Drawings, Showing How the Parts Come Together

Once you have individual parts designed, someone needs to understand how they fit together. That is the job of an assembly drawing. Rather than describing how to manufacture each component, an assembly drawing shows the spatial relationships between components, which part connects to which, in what orientation, and how the complete unit looks when assembled.

Assembly drawings typically show the product in an assembled state, with callout numbers (called balloons) that correspond to a parts list or Bill of Materials (BOM). They do not include manufacturing dimensions, that information lives in the detail drawings. What they do include is clearances, mating features, fastener locations, and sometimes assembly sequence instructions.

There are two common sub-types:

General assembly (GA) drawings show the complete, final assembly at a high level, useful for understanding the overall product and communicating with clients, procurement teams, or project managers who need a picture of the whole before the parts.

Sub-assembly drawings focus on a specific module or section of a larger product. A complex machine might have dozens of sub-assemblies, each with its own drawing, before they all come together in the general assembly. This keeps individual drawings readable and reduces the risk of assembly errors on the floor.

Real-World Example: A Hydraulic Pump Unit
Consider a small hydraulic pump unit being built for an industrial client. The pump housing, shaft, seals, and end plates each have their own detail drawing. The assembly drawing is what the technician in the assembly shop refers to during build, it shows which seal goes where, the correct bolt torque sequence, and how the shaft aligns to the motor. Without the assembly drawing, those individual detail drawings are a pile of disconnected information. With it, the build is repeatable by any trained technician, every time.

What it’s for: Communicating assembly instructions to technicians, verifying that components fit together correctly before manufacturing begins, and supporting procurement by identifying all required parts in one document.

Schematic and Diagram Drawings, Communicating Systems, Not Shapes

Not every engineering drawing is about physical geometry. A significant category of drawings deals with systems, how energy, fluid, or signals flow through a design. These schematic and diagram drawings use standardised symbols rather than realistic shapes to communicate function. They answer ‘how does it work?’ rather than ‘how is it shaped?’

The most common types in this category:

Electrical schematics show how electrical components are connected, resistors, switches, relays, power sources, using standardised IEC or ANSI symbols. They do not show where components are physically located on a board; they show how they are logically connected. A schematic for a motor control panel maps every contact, coil, and protection device without any concern for physical layout.

P&ID drawings (Piping and Instrumentation Diagrams) are the backbone of process engineering, oil and gas, chemical plants, water treatment facilities. A P&ID shows all piping, instrumentation, valves, and control elements in a process system, along with their interconnections. It is not drawn to scale, and it does not tell you where a pipe physically runs in a building, it tells you what connects to what and how the system is controlled.

Wiring diagrams are a step closer to physical reality than schematics, they show actual wire routing between components and are commonly used by electricians and field technicians during installation. When a schematic answers ‘what is connected to what?’, a wiring diagram answers ‘which wire goes where?’

A P&ID is not the same as a general arrangement drawing. A schematic is not a wiring diagram. In industries like oil and gas or industrial electrical, using the wrong drawing type to communicate system information creates real-world errors, and those errors can be costly or dangerous.

What they’re for: Designing, troubleshooting, and communicating how a system functions. In maintenance and operations, technicians rely on schematic and diagram drawings daily to diagnose faults, plan modifications, and verify that systems are correctly configured.

Layout and General Arrangement Drawings, The Big Picture

Sometimes you need to step back from individual parts and systems and show the whole picture. Layout drawings, also called general arrangement or GA drawings in a spatial context, communicate how everything fits within a physical space or envelope. They are the coordination document: the drawing that aligns mechanical, structural, electrical, and civil disciplines before anyone starts building.

These drawings are common in three broad contexts:

Facility and plant design, where equipment placement, access paths, maintenance clearances, and structural interfaces all need to be coordinated across multiple engineering disciplines before any steel is ordered or any concrete is poured.

Structural engineering, where a GA drawing might show beam placements, column grid lines, and connection locations across an entire building level, giving the structural team, the architect, and the MEP engineers a shared spatial baseline.

Product packaging and enclosure design, where a layout drawing shows how components fit inside a chassis, panel, or housing, ensuring that every PCB, connector, cooling element, and cable run actually fits before detailed design work begins on each individual part.

A layout drawing answers ‘where does everything go?’, not ‘how is each part made?’ These are different questions that require different documents. When layout drawings start accumulating manufacturing dimensions, they become ambiguous and difficult to maintain.

What it’s for: Spatial coordination, client approval, interdisciplinary design review, and installation planning. In construction and large-scale engineering projects, the layout drawing is often the first drawing reviewed in any project meeting, because it gives everyone in the room a shared spatial understanding of what is being built.

What to watch out for: Layout drawings can become a crutch. Some teams try to include too much detail in a layout drawing, blurring it with detail drawings or assembly drawings. Keep your drawing types disciplined. The moment a layout drawing tries to be everything, it becomes useful to no one.

Putting It All Together, Which Drawing Do You Actually Need?

Before a design goes into production, a complete drawing package typically includes all four types working together. A practical way to decide which drawings your project needs:

Question	If Yes	Drawing Type Needed
Will someone manufacture this part from scratch?	Yes	Detail Drawing
Does someone need to assemble multiple parts together?	Yes	Assembly Drawing (GA or Sub-Assembly)
Does the product involve electrical, fluid, or gas systems?	Yes	Schematic / P&ID / Wiring Diagram
Does the design need to fit within a space or facility?	Yes	Layout / General Arrangement Drawing
Is this a complex product with all of the above?	Yes	Full drawing package, all types working together

Experienced engineers and CAD teams don’t think in terms of ‘just drawing something.’ They think in terms of what each drawing needs to communicate, and to whom. A detail drawing speaks to a machinist. An assembly drawing speaks to a technician. A schematic speaks to an instrumentation engineer. A layout drawing speaks to everyone in the room.

The moment you start expecting one drawing type to do another’s job, the communication breaks down, and that breakdown shows up later as rework, delays, or parts that simply do not fit.

A Note on Standards

Engineering drawings do not exist in a vacuum. They follow international or regional standards that define everything from line weights and title block formats to how tolerances and symbols are expressed. The two most common frameworks are ASME Y14 (widely used in North America, especially in manufacturing and mechanical engineering) and ISO 128 (dominant in Europe and international projects).

Understanding which standard your project or client uses matters. A drawing that is perfectly correct under one standard can be ambiguous or misread under another. When working with international suppliers or distributed manufacturing, always state the applicable standard in the title block of every drawing, and verify that all parties are reading from the same convention.

Common Mistakes When Working With Engineering Drawing Types

Getting drawing types right is half the battle. These are the most common errors seen when teams misapply or misunderstand their drawing package:

Mistake	What Goes Wrong	How to Avoid It
Using a layout drawing instead of a detail drawing	The manufacturer has spatial context but no dimensions, tolerances, or material specs. The part gets made wrong or the shop asks for a complete re-draw.	Produce a detail drawing for every unique manufactured component. Layout drawings support coordination, they do not replace manufacturing documentation.
Expecting one assembly drawing to cover everything	Complex products with dozens of sub-assemblies become unreadable when forced into one drawing. Technicians miss components or misread orientations.	Break large assemblies into logical sub-assembly drawings. Each sub-assembly gets its own drawing. The general assembly references them all.
Confusing a schematic with a wiring diagram	A schematic shows logical connections. A wiring diagram shows physical routing. Using one when you need the other causes field installation errors.	Use schematics for design and troubleshooting. Use wiring diagrams for physical installation. Produce both for complex electrical systems.
Mixing drawing standards (ASME vs ISO) in one package	Projection angles, tolerancing conventions, and symbol interpretations differ between standards. Mixed packages create ambiguity that shows up as machined errors.	Establish one standard per project and apply it throughout. State the applicable standard in the title block of every drawing.

Frequently Asked Questions

1. What is the difference between a detail drawing and an assembly drawing?

A detail drawing defines how to manufacture a single part, it contains all dimensions, tolerances, and material specifications for that component in isolation. An assembly drawing shows how multiple parts fit together in the final product. It references detail drawings through a parts list but does not contain manufacturing dimensions itself.

2. Do I need all types of engineering drawings for every project?

No. The drawing package you need depends on the complexity of your product. A simple machined bracket might only need one detail drawing. A complete industrial machine will need detail drawings for every custom component, assembly drawings at sub-assembly and general assembly level, schematic drawings if it has electrical or pneumatic systems, and a layout drawing if it needs to be integrated into a facility.

3. What is a P&ID drawing and when is it used?

A P&ID (Piping and Instrumentation Diagram) is a type of schematic drawing used in process engineering, oil and gas, chemical processing, water treatment, and similar industries. It shows all piping, valves, instrumentation, and control systems in a process, along with how they are interconnected. It is not drawn to scale and does not show physical routing, it communicates system logic.

4.What standards apply to engineering drawings?

The two primary frameworks are ASME Y14 (used widely in North America, particularly in manufacturing and mechanical engineering) and ISO 128 (dominant in Europe and international projects). These standards govern projection method, line types, title block content, and tolerancing conventions. GD&T specifically follows ASME Y14.5 or ISO 1101. Always confirm which standard applies before producing or reviewing a drawing package.

5. What is a general arrangement (GA) drawing?

A general arrangement drawing, sometimes called a layout drawing, shows the overall spatial organisation of a product, system, or facility. It communicates where everything sits relative to everything else: overall envelope dimensions, major component positions, access clearances, and key interfaces. It is the coordination document used across engineering disciplines and with clients.

The Bottom Line

Engineering drawings are the contract between designers and builders. When they are done right, correct type, correct content, correct standard, they eliminate ambiguity and let production move with confidence. When they are done wrong or misunderstood, the costs show up in ways that are rarely traceable back to the drawing itself: defective parts, assembly failures, missed timelines.

Whether you are building a single custom component or managing a complex multi-discipline project, getting your drawing types right from the start is not a formality. It is a foundation.

Need Drawings That Work the First Time?
At Simutecra Engineering Services, our engineering team handles CAD drafting and 3D modeling for mechanical and structural projects of all scales, from individual part drawings to full assembly and layout packages. We produce drawing sets that are correctly typed, correctly formatted, and correctly toleranced from the start.Share your project requirements and we will review your current drawing package or build a new one, the right drawing types, done correctly.
Reach out to us today, Simutecra

April 27, 2026

What Is Engineering Drafting? A Beginner’s Guide to Technical Drawing

Every physical object that has ever been manufactured — from a bolt to a skyscraper — started as a drawing. Engineering drafting is the discipline that turns design intent into the precise, standardised documents that make manufacturing possible.

If you have ever received a set of technical drawings from an engineering firm, worked alongside a design team, or commissioned fabrication work, you have already interacted with engineering drafting — even if you did not know what to call it. This guide explains what engineering drafting actually is, what it produces, how it works, and why it still matters in an era of 3D modeling and digital manufacturing.

What Is Engineering Drafting?

Engineering drafting is the process of creating precise, standardised technical drawings that communicate the design of a part, structure, or system to the people responsible for building it. These drawings — sometimes called technical drawings, engineering drawings, or blueprints — define geometry, dimensions, tolerances, materials, and surface specifications in a format that leaves no room for interpretation.

Unlike a sketch or a concept illustration, an engineering drawing carries legal and contractual weight. It is the document a manufacturer refers to when setting up a machine, a fabricator refers to when cutting and welding steel, and a contractor refers to when installing mechanical systems. If something is built incorrectly, the drawing is the reference against which the dispute is resolved.

Engineering drafting sits at the intersection of engineering and communication. Its job is not to be beautiful — it is to be unambiguous.

The shift from hand-drawn drafting to Computer-Aided Design (CAD) transformed the speed and accuracy of the process, but it did not change its fundamental purpose. Today, the vast majority of engineering drawings are produced using CAD software such as AutoCAD, SolidWorks, or CATIA — but the standards, conventions, and principles that govern what a drawing must contain have remained largely consistent for decades.

Get the difference between 2D vs 3D CAD Drafting and when to used each

Engineering Drafting vs Engineering Design: An Important Distinction

These two terms are often used interchangeably, but they describe distinct activities. Engineering design is the process of solving an engineering problem — deciding how something should work, what it should be made of, and what form it should take. Engineering drafting is the process of documenting that solution in a precise, communicable format.

In practice, the same person often does both. But understanding the distinction matters when you are commissioning work: if you have a resolved design and simply need it documented for manufacturing, you need drafting. If you need someone to help figure out the design itself, you need design engineering. SimuTecra provides both, which is why understanding where your project sits on that spectrum is the starting point of any engagement.

What Does an Engineering Drawing Actually Contain?

A well-produced engineering drawing is structured — not a freeform document. Every element has a defined purpose and a defined location. Here is what you will find on a standard engineering drawing and why each element exists:

Drawing Element	What It Contains	Why It Matters
Title Block	Part name, drawing number, scale, revision, drafter, date, company name	Identifies the drawing and confirms you have the correct, latest revision
Revision Table	History of changes: revision letter, description, date, approver	Tracks every change made to the drawing over its lifetime
Orthographic Views	Front, top, side, and section views of the part	Communicates shape and geometry from multiple angles without ambiguity
Dimensions	Linear, angular, radius, and diameter measurements with units	Tells the manufacturer exactly how large every feature needs to be
Tolerances	Allowable variation on each dimension (plus/minus, limits, or GD&T)	Defines how precisely each feature must be made — controls fit and function
Material Callout	Material specification, grade, and sometimes heat treatment or finish	Tells the manufacturer what to make the part from
Surface Finish	Ra values, finish symbols, or text notes on specific surfaces	Controls how smooth or rough a surface needs to be for its function
Notes Section	General and specific notes: standards, treatments, inspection requirements	Captures any requirement that cannot be expressed graphically
BOM (assemblies)	List of all components: part number, description, quantity, material	Provides a complete parts list for assembly drawings

The level of detail included on any given drawing depends on its purpose. A detail drawing for a machined part will be heavily dimensioned with tight tolerances. A general arrangement drawing for a process plant might show only positional relationships and overall sizes, with the detail left to subordinate drawings. Both are equally valid — the question is always whether the drawing contains everything the reader needs to do their job.

A Real-World Example: The Humble Pressure Vessel Flange

Consider a standard pressure vessel flange — a circular steel fitting used to connect pipes in industrial systems. A complete drawing package for that flange includes a detail drawing specifying the exact outer diameter, bore, flange thickness, bolt hole circle diameter, number and size of bolt holes, and surface finish on the sealing face. It will call out the material grade (say, ASTM A105), specify any heat treatment, and reference the applicable standard (ASME B16.5).

Without that drawing, the machinist is guessing. With it, the flange can be produced to the same specification anywhere in the world — by any competent machinist, in any country — and it will fit correctly when it arrives on-site. That universality is the entire point of engineering drafting.

The Main Types of Engineering Drawings

Engineering drawings are not one-size-fits-all. Different types of drawings serve different purposes at different stages of a project. The table below covers the most common types you are likely to encounter:

Drawing Type	What It Shows	Common Use
Detail Drawing	A single component in full — all dimensions, tolerances, material	Machined parts, fabricated components
Assembly Drawing	How multiple parts fit together; includes BOM	Gearboxes, structural frames, product assemblies
GA Drawing	Overall layout and spatial arrangement of a system	Plant design, facilities, building services
Fabrication Drawing	Weld symbols, bend lines, cut profiles, material for fabricated items	Steel structures, sheet metal, pressure vessels
Schematic Drawing	System logic using symbols — not physical layout	Electrical, hydraulic, pneumatic systems
As-Built Drawing	What was actually constructed, updated after installation	Facilities management, renovation, maintenance
Shop Drawing	Contractor-produced drawing showing how they intend to build or fabricate	Construction, steelwork, glazing, joinery

Most projects require more than one drawing type. A new industrial facility, for example, might require general arrangement drawings for overall layout, fabrication drawings for structural steelwork, schematics for electrical and hydraulic systems, and as-built drawings once construction is complete. Each drawing type feeds into the next stage of the project.

Drawing Standards: Why ASME, ISO, and DIN Exist

Engineering drawings only work as a universal communication tool if everyone reading them interprets them the same way. That is the job of drawing standards — they define exactly how dimensions should be presented, what symbols mean, how tolerances are expressed, and how views should be arranged.

Drawing Standards: Why ASME, ISO, and DIN Simutecra

The three major standards frameworks you will encounter are:

ASME Y14.5 (American Society of Mechanical Engineers): The dominant standard in the United States and widely used in North America. Governs dimensioning, tolerancing, and GD&T notation. Most manufacturing and engineering firms in the US work to ASME standards unless a client specifies otherwise.
ISO 128 / ISO 1101 (International Organization for Standardization): The international standard used across Europe, Asia, and most of the rest of the world. Similar in intent to ASME but with some differences in projection method, GD&T notation, and symbology. When working with international suppliers or clients, knowing which standard applies is critical.
DIN (Deutsches Institut fur Normung): The German standard, now largely harmonised with ISO. Still referenced on drawings produced in Germany and sometimes seen in Central European manufacturing supply chains.

When commissioning engineering drawings, always specify which standard you require. A drawing produced to ISO first-angle projection cannot be read correctly by someone trained only on ASME third-angle projection — the views appear mirrored.

SimuTecra produces drawings to ASME, ISO, or client-specified standards. If you are not sure which applies to your project, the answer is usually determined by where the parts will be manufactured or which country the client is based in.

What Does an Engineering Drafter Actually Do?

The role of an engineering drafter is more than operating CAD software. A competent drafter interprets design intent from sketches, specifications, or engineer markups and translates it into precise drawings. They apply the correct dimensioning scheme, select appropriate tolerances based on fit and function requirements, add surface finish callouts, reference applicable material standards, and structure the drawing package so it can be read and used without ambiguity by the manufacturing team.

They also manage revisions — when a design changes, the drafter updates affected drawings, increments the revision level, records the change in the revision table, and reissues the affected sheets. In a production environment, drawing control is as important as drawing quality. An outdated drawing in the hands of a machinist is a manufacturing defect waiting to happen.

At SimuTecra, drafters work closely with engineers and clients through each revision cycle, maintaining a clear audit trail from concept through to final issued-for-construction drawings.

Frequently Asked Questions

Question	Answer
Is engineering drafting still relevant with 3D modeling?	Absolutely. 3D modeling is a powerful design tool, but a 2D drawing package remains the standard deliverable for manufacturing. Fabricators, machinists, and contractors work from 2D drawings because they define the legal specification of what is to be made. In most projects, 3D modeling and 2D drafting are used together — the model is the design environment, the drawing is the manufacturing document.
What software do engineering drafters use?	The most widely used tools are AutoCAD (2D drafting, all industries), SolidWorks (mechanical and product design), CATIA (aerospace and automotive), Autodesk Inventor (mechanical), and Revit (building and infrastructure, used alongside AutoCAD for MEP and structural work). The right tool depends on the industry and the complexity of the work.
How long does it take to produce an engineering drawing?	It depends entirely on complexity. A simple machined part detail drawing might take two to four hours. A complex assembly drawing with a full BOM could take two days. A full drawing package for a structural steel frame or a process plant module could take several weeks. The most reliable way to estimate is to share your scope with a drafting partner and request a breakdown.
What industries use engineering drafting?	Engineering drafting is used in virtually every industry that involves physical construction or manufacturing: mechanical and product engineering, civil and structural engineering, architecture, oil and gas, mining, aerospace, automotive, marine, HVAC and building services, electronics manufacturing, and more. The specific drawing types and standards vary by industry, but the underlying discipline is the same.
What is the difference between a blueprint and an engineering drawing?	Technically, ‘blueprint’ refers to an older reproduction process that produced white lines on a blue background. The term has stuck as a colloquial term for any engineering drawing, even though modern drawings are produced digitally and printed on white paper. In professional practice, ‘engineering drawing’ or ‘technical drawing’ is the correct term.

The Bottom Line

Engineering drafting is one of the oldest and most essential disciplines in engineering — and despite decades of technological change, its core purpose has not shifted: to communicate design intent precisely enough that anyone with the relevant skill can build the thing correctly, first time.

Whether you are a project manager reviewing a drawing package, a business owner commissioning fabrication work, or an engineer looking to understand what your drafting team actually produces, the fundamentals covered in this guide give you the foundation to engage with technical drawings with confidence.

The next step is learning how to read what is on them — which is exactly what the next article in this series covers.

Need Engineering Drawings You Can Actually Build From?

SimuTecra produces 2D drafting packages and 3D CAD models for manufacturing, fabrication, and construction clients worldwide. Every drawing is produced to your specified standard — ASME, ISO, or client-specific — and reviewed for accuracy before delivery.

Send us your project details and get a clear scope and quote — no obligation.

April 8, 2026
