The Most Common Types of Engineering Drawings (And What Each One Is Actually For)

If you’ve ever handed a design to a manufacturer and gotten back something completely wrong, there’s a good chance the issue wasn’t the design, it was the drawing. Understanding the different types of engineering drawings isn’t just technical trivia; it’s the difference between a project that flows and one that bleeds time and money on avoidable revisions.

Engineering drawings are the universal language of making things. From a steel bracket for a conveyor system to an entire building’s HVAC layout, every physical product or structure gets communicated through drawings before it ever becomes real. But not all engineering drawings are the same, and using the wrong type, or misunderstanding what a drawing is supposed to communicate, is one of the most common and costly mistakes in product development and manufacturing.

This guide covers the four most common drawing types, what each one does, who reads it, and where teams typically go wrong, followed by a quick-reference table and an FAQ optimised for the questions engineers and manufacturing managers are actually searching for.

Quick Reference: Engineering Drawing Types at a Glance

Drawing Type	Primary Purpose	Key Content	Who Reads It
Detail Drawing	Define how to manufacture a single part	Dimensions, tolerances, material, surface finish, GD&T	Machinists, CNC operators, fabricators
Assembly Drawing	Show how parts fit and connect	Exploded or assembled view, BOM balloon callouts, clearances	Technicians, assembly teams, QA inspectors
Schematic / Diagram	Communicate system function and flow	Standardised symbols, logic connections, not to scale	Electrical, instrumentation, process engineers
Layout / GA Drawing	Define spatial arrangement within an envelope	Overall dims, equipment placement, clearances, interfaces	All disciplines, clients, contractors, planners

An article from ScienceDIrect says: “The modern engineering drawing has become a very sophisticated method of relaying information about the geometry of parts and assemblies.”

Detail Drawings, The Blueprint for a Single Part

If you only know one type of engineering drawing, make it this one. A detail drawing, sometimes called a part drawing, is a fully dimensioned, annotated drawing of a single component. Its entire job is to give a manufacturer or machinist every piece of information they need to produce that one part exactly as designed. Nothing more, nothing less.

A complete detail drawing includes orthographic views (front, top, side), all critical dimensions, tolerances, material specifications, surface finish requirements, and any relevant notes about manufacturing processes. In environments using GD&T (Geometric Dimensioning and Tolerancing), the detail drawing is also where those callouts live, defining not just size, but shape, orientation, and location of every controlled feature.

A detail drawing is not a sketch. It is a legal-grade manufacturing document. Manufacturers produce exactly what the drawing says, not what you meant. Every ambiguity on a detail drawing is a defect waiting to happen on the shop floor.

What it’s for: Manufacturing a single, discrete part. If someone at a machine shop is going to cut, mill, turn, or fabricate something from your design, they need a detail drawing.

A detail drawing is also the document that gets revised when a part changes. Version control on detail drawings is not optional in a serious engineering environment, it is what keeps the machinist, the inspector, and the assembly technician all working from the same revision.

Where teams go wrong: Over-constraining the drawing with redundant dimensions that create closed loops, making it mathematically impossible to satisfy all tolerances simultaneously. Equally common is leaving tolerances out entirely and assuming the shop will apply sensible defaults. Neither approach ends well.

Assembly Drawings, Showing How the Parts Come Together

Once you have individual parts designed, someone needs to understand how they fit together. That is the job of an assembly drawing. Rather than describing how to manufacture each component, an assembly drawing shows the spatial relationships between components, which part connects to which, in what orientation, and how the complete unit looks when assembled.

Assembly drawings typically show the product in an assembled state, with callout numbers (called balloons) that correspond to a parts list or Bill of Materials (BOM). They do not include manufacturing dimensions, that information lives in the detail drawings. What they do include is clearances, mating features, fastener locations, and sometimes assembly sequence instructions.

There are two common sub-types:

General assembly (GA) drawings show the complete, final assembly at a high level, useful for understanding the overall product and communicating with clients, procurement teams, or project managers who need a picture of the whole before the parts.

Sub-assembly drawings focus on a specific module or section of a larger product. A complex machine might have dozens of sub-assemblies, each with its own drawing, before they all come together in the general assembly. This keeps individual drawings readable and reduces the risk of assembly errors on the floor.

Real-World Example: A Hydraulic Pump Unit
Consider a small hydraulic pump unit being built for an industrial client. The pump housing, shaft, seals, and end plates each have their own detail drawing. The assembly drawing is what the technician in the assembly shop refers to during build, it shows which seal goes where, the correct bolt torque sequence, and how the shaft aligns to the motor. Without the assembly drawing, those individual detail drawings are a pile of disconnected information. With it, the build is repeatable by any trained technician, every time.

What it’s for: Communicating assembly instructions to technicians, verifying that components fit together correctly before manufacturing begins, and supporting procurement by identifying all required parts in one document.

Schematic and Diagram Drawings, Communicating Systems, Not Shapes

Not every engineering drawing is about physical geometry. A significant category of drawings deals with systems, how energy, fluid, or signals flow through a design. These schematic and diagram drawings use standardised symbols rather than realistic shapes to communicate function. They answer ‘how does it work?’ rather than ‘how is it shaped?’

The most common types in this category:

Electrical schematics show how electrical components are connected, resistors, switches, relays, power sources, using standardised IEC or ANSI symbols. They do not show where components are physically located on a board; they show how they are logically connected. A schematic for a motor control panel maps every contact, coil, and protection device without any concern for physical layout.

P&ID drawings (Piping and Instrumentation Diagrams) are the backbone of process engineering, oil and gas, chemical plants, water treatment facilities. A P&ID shows all piping, instrumentation, valves, and control elements in a process system, along with their interconnections. It is not drawn to scale, and it does not tell you where a pipe physically runs in a building, it tells you what connects to what and how the system is controlled.

Wiring diagrams are a step closer to physical reality than schematics, they show actual wire routing between components and are commonly used by electricians and field technicians during installation. When a schematic answers ‘what is connected to what?’, a wiring diagram answers ‘which wire goes where?’

A P&ID is not the same as a general arrangement drawing. A schematic is not a wiring diagram. In industries like oil and gas or industrial electrical, using the wrong drawing type to communicate system information creates real-world errors, and those errors can be costly or dangerous.

What they’re for: Designing, troubleshooting, and communicating how a system functions. In maintenance and operations, technicians rely on schematic and diagram drawings daily to diagnose faults, plan modifications, and verify that systems are correctly configured.

Layout and General Arrangement Drawings, The Big Picture

Sometimes you need to step back from individual parts and systems and show the whole picture. Layout drawings, also called general arrangement or GA drawings in a spatial context, communicate how everything fits within a physical space or envelope. They are the coordination document: the drawing that aligns mechanical, structural, electrical, and civil disciplines before anyone starts building.

These drawings are common in three broad contexts:

Facility and plant design, where equipment placement, access paths, maintenance clearances, and structural interfaces all need to be coordinated across multiple engineering disciplines before any steel is ordered or any concrete is poured.

Structural engineering, where a GA drawing might show beam placements, column grid lines, and connection locations across an entire building level, giving the structural team, the architect, and the MEP engineers a shared spatial baseline.

Product packaging and enclosure design, where a layout drawing shows how components fit inside a chassis, panel, or housing, ensuring that every PCB, connector, cooling element, and cable run actually fits before detailed design work begins on each individual part.

A layout drawing answers ‘where does everything go?’, not ‘how is each part made?’ These are different questions that require different documents. When layout drawings start accumulating manufacturing dimensions, they become ambiguous and difficult to maintain.

What it’s for: Spatial coordination, client approval, interdisciplinary design review, and installation planning. In construction and large-scale engineering projects, the layout drawing is often the first drawing reviewed in any project meeting, because it gives everyone in the room a shared spatial understanding of what is being built.

What to watch out for: Layout drawings can become a crutch. Some teams try to include too much detail in a layout drawing, blurring it with detail drawings or assembly drawings. Keep your drawing types disciplined. The moment a layout drawing tries to be everything, it becomes useful to no one.

Putting It All Together, Which Drawing Do You Actually Need?

Before a design goes into production, a complete drawing package typically includes all four types working together. A practical way to decide which drawings your project needs:

Question	If Yes	Drawing Type Needed
Will someone manufacture this part from scratch?	Yes	Detail Drawing
Does someone need to assemble multiple parts together?	Yes	Assembly Drawing (GA or Sub-Assembly)
Does the product involve electrical, fluid, or gas systems?	Yes	Schematic / P&ID / Wiring Diagram
Does the design need to fit within a space or facility?	Yes	Layout / General Arrangement Drawing
Is this a complex product with all of the above?	Yes	Full drawing package, all types working together

Experienced engineers and CAD teams don’t think in terms of ‘just drawing something.’ They think in terms of what each drawing needs to communicate, and to whom. A detail drawing speaks to a machinist. An assembly drawing speaks to a technician. A schematic speaks to an instrumentation engineer. A layout drawing speaks to everyone in the room.

The moment you start expecting one drawing type to do another’s job, the communication breaks down, and that breakdown shows up later as rework, delays, or parts that simply do not fit.

A Note on Standards

Engineering drawings do not exist in a vacuum. They follow international or regional standards that define everything from line weights and title block formats to how tolerances and symbols are expressed. The two most common frameworks are ASME Y14 (widely used in North America, especially in manufacturing and mechanical engineering) and ISO 128 (dominant in Europe and international projects).

Understanding which standard your project or client uses matters. A drawing that is perfectly correct under one standard can be ambiguous or misread under another. When working with international suppliers or distributed manufacturing, always state the applicable standard in the title block of every drawing, and verify that all parties are reading from the same convention.

Common Mistakes When Working With Engineering Drawing Types

Getting drawing types right is half the battle. These are the most common errors seen when teams misapply or misunderstand their drawing package:

Mistake	What Goes Wrong	How to Avoid It
Using a layout drawing instead of a detail drawing	The manufacturer has spatial context but no dimensions, tolerances, or material specs. The part gets made wrong or the shop asks for a complete re-draw.	Produce a detail drawing for every unique manufactured component. Layout drawings support coordination, they do not replace manufacturing documentation.
Expecting one assembly drawing to cover everything	Complex products with dozens of sub-assemblies become unreadable when forced into one drawing. Technicians miss components or misread orientations.	Break large assemblies into logical sub-assembly drawings. Each sub-assembly gets its own drawing. The general assembly references them all.
Confusing a schematic with a wiring diagram	A schematic shows logical connections. A wiring diagram shows physical routing. Using one when you need the other causes field installation errors.	Use schematics for design and troubleshooting. Use wiring diagrams for physical installation. Produce both for complex electrical systems.
Mixing drawing standards (ASME vs ISO) in one package	Projection angles, tolerancing conventions, and symbol interpretations differ between standards. Mixed packages create ambiguity that shows up as machined errors.	Establish one standard per project and apply it throughout. State the applicable standard in the title block of every drawing.

Frequently Asked Questions

1. What is the difference between a detail drawing and an assembly drawing?

A detail drawing defines how to manufacture a single part, it contains all dimensions, tolerances, and material specifications for that component in isolation. An assembly drawing shows how multiple parts fit together in the final product. It references detail drawings through a parts list but does not contain manufacturing dimensions itself.

2. Do I need all types of engineering drawings for every project?

No. The drawing package you need depends on the complexity of your product. A simple machined bracket might only need one detail drawing. A complete industrial machine will need detail drawings for every custom component, assembly drawings at sub-assembly and general assembly level, schematic drawings if it has electrical or pneumatic systems, and a layout drawing if it needs to be integrated into a facility.

3. What is a P&ID drawing and when is it used?

A P&ID (Piping and Instrumentation Diagram) is a type of schematic drawing used in process engineering, oil and gas, chemical processing, water treatment, and similar industries. It shows all piping, valves, instrumentation, and control systems in a process, along with how they are interconnected. It is not drawn to scale and does not show physical routing, it communicates system logic.

4.What standards apply to engineering drawings?

The two primary frameworks are ASME Y14 (used widely in North America, particularly in manufacturing and mechanical engineering) and ISO 128 (dominant in Europe and international projects). These standards govern projection method, line types, title block content, and tolerancing conventions. GD&T specifically follows ASME Y14.5 or ISO 1101. Always confirm which standard applies before producing or reviewing a drawing package.

5. What is a general arrangement (GA) drawing?

A general arrangement drawing, sometimes called a layout drawing, shows the overall spatial organisation of a product, system, or facility. It communicates where everything sits relative to everything else: overall envelope dimensions, major component positions, access clearances, and key interfaces. It is the coordination document used across engineering disciplines and with clients.

The Bottom Line

Engineering drawings are the contract between designers and builders. When they are done right, correct type, correct content, correct standard, they eliminate ambiguity and let production move with confidence. When they are done wrong or misunderstood, the costs show up in ways that are rarely traceable back to the drawing itself: defective parts, assembly failures, missed timelines.

Whether you are building a single custom component or managing a complex multi-discipline project, getting your drawing types right from the start is not a formality. It is a foundation.

Need Drawings That Work the First Time?
At Simutecra Engineering Services, our engineering team handles CAD drafting and 3D modeling for mechanical and structural projects of all scales, from individual part drawings to full assembly and layout packages. We produce drawing sets that are correctly typed, correctly formatted, and correctly toleranced from the start.Share your project requirements and we will review your current drawing package or build a new one, the right drawing types, done correctly.
Reach out to us today, Simutecra

April 27, 2026

Context Engineering for CAD Systems: The Future of Prompting

You Have Been Optimising the Wrong Thing

If your AI-assisted CAD workflow produces inconsistent results, you have probably been trying to fix it the same way. You rewrite the prompt. You try a different phrasing. You add more detail or remove it. Sometimes it helps. Often it does not.

Here is why: the prompt is not the problem. The problem is everything around the prompt. What the AI knows, what it remembers, what context it is operating in, and what information gets loaded before it generates an answer.

This is the insight behind context engineering for CAD and why it is replacing basic prompt engineering as the core skill for engineers working with AI. In June 2025, Shopify CEO Tobi Lutke and former OpenAI researcher Andrej Karpathy publicly endorsed the term. By July 2025, Gartner declared that context engineering was in and prompt engineering was out. Anthropic published its own definition and framework shortly after.

This article explains what context engineering 2025 actually means, why it matters specifically for CAD and engineering workflows, and how to start building it into the way you work with AI today.

The 2025 Context Engineering Moment
Gartner (July 2025): Gartner context engineering 2025: Declared that context engineering is in and prompt engineering is out, advising AI leaders to prioritise context-aware architectures with dynamic data pipelines over prompt optimisation.
Anthropic (2025): Anthropic context engineering: Published a formal definition of context engineering as the set of strategies for curating and maintaining the optimal set of tokens during LLM inference, covering system prompts, retrieved documents, memory, tools, and conversation history.
Tobi Lutke + Andrej Karpathy (June 2025):
context engineering Tobi Lutke and context engineering Andrej Karpathy: Both publicly endorsed context engineering as the correct framing for production AI, triggering rapid adoption across the AI community within weeks.

What Is Context Engineering and Why Do Engineers Need to Know It

The cleanest way to understand context engineering vs prompt engineering is with a single contrast: prompt engineering focuses on what you say to the AI. Context engineering focuses on what the AI knows when you say it.

A prompt is a single instruction. Context is the full environment the AI operates in: the system message that defines its role, the conversation history it carries, the relevant documents or data it can access, the tools it can call, and the constraints it operates under.

Think of it this way. You can write the most perfectly crafted prompt in the world. But if the AI is receiving that prompt without knowing your design standards, your material library, your company tolerances, or which project you are working on, it will give you a generic answer. Context engineering for CAD is the practice of making sure the AI always has the right information loaded before it responds.

Why Context Engineering Emerged in 2025

The transition from prompt engineering limitations CAD to context engineering reflects how AI has changed. In 2023, most AI interactions were single-turn: ask a question, get an answer. Those interactions could be improved significantly by writing better prompts.

By 2025, engineering teams started building multi-step AI workflows: design brief to CAD to FEA to documentation, with the AI involved at every stage. Single prompts were not sufficient. The AI needed persistent knowledge about the project, the constraints, the standards, and the decisions made in previous steps. That need for persistent, structured knowledge is exactly what context engineering 2025 is designed to address.

What Is Context Engineering for Mechanical Engineers

Definition: What Is Context Engineering for Mechanical Engineers
what is context engineering for mechanical engineers: Context engineering is the practice of deliberately designing and managing all the information that an AI model has access to before and during an engineering task. This includes the role and rules you give the AI at the start of a session (the system prompt), the design standards and material specifications you load into the context window, the conversation history that carries design decisions forward, and any external data you retrieve from your parts library or PLM system. Rather than hoping a good prompt will compensate for missing information, context engineering ensures the AI always starts from a well-informed position.

The Problem With Prompt-Only Approaches in CAD Workflows

To understand why context engineering for CAD matters, you need to understand the three ways that prompt-only AI interactions fail in engineering environments.

Problem 1: The AI Does Not Know Your Design Environment

When you open a new Claude session and type a prompt about designing a bracket, the AI has no knowledge of your company standards, your preferred material grades, your tolerance conventions, the existing parts already in your library, or the design intent of the system this bracket will join. It answers from general engineering knowledge.

This is not a prompting problem. You could write the most detailed prompt ever constructed and still not cover everything the AI would need to know to give you an expert-level, company-specific answer. CAD knowledge graph AI and structured context loading is the correct solution, not better prompting.

Problem 2: Context Rot Across Multi-Step Workflows

Context rot engineering is the gradual degradation of AI response quality as a conversation grows longer. Research from Stanford found that LLM accuracy drops by 24.2 percent when relevant information is buried in long contexts, even when the model has theoretically received all the necessary information.

In a long CAD session, the design brief you wrote in turn one gradually loses influence as the context window fills with subsequent exchanges. By turn fifteen, the AI is less reliably grounded in the original constraints. CAD AI context window management means actively curating what stays visible and what gets summarised or removed.

Problem 3: No Memory Between Sessions

Every time you start a new Claude session, the AI has forgotten everything from the previous session. The design decisions, the material choices, the reasoning behind the configuration: all gone. Engineering projects span days or weeks. A prompt-only approach means re-explaining the project context every single time, which is exactly the kind of repetitive work AI is supposed to eliminate.

Proper AI context for CAD design includes a persistent context document that carries project information forward across sessions, eliminating the re-explanation problem entirely.

How to Use Context Engineering in CAD: Building Your Context System

Here is the practical framework for how to use context engineering in CAD today. You do not need to build complex software systems. You need to be deliberate about what information the AI has before every engineering session.

Layer 1: The System Prompt (Role and Rules)

Every CAD AI session should start with a well-defined role and a set of operating rules. This is the foundation of AI system prompt CAD design. The system prompt tells the AI who it is, what standards it applies, what format it uses, and how it handles uncertainty.

Example: Context-Engineered CAD System
Prompt“You are a senior mechanical design engineer at [company name] working on [product type]. You apply the following standards to all design and documentation: SI units throughout, ISO 2768 medium general tolerance, ISO surface roughness notation, and internal material standards from the context document provided. You always ask for clarification before making design recommendations that affect safety-critical features. You flag any design choices that conflict with the loaded standards rather than silently overriding them.”
✔ What you get:
A role-defined, standards-aware AI session that produces company-consistent outputs from the very first response.
AI system prompt CAD x context engineering for CAD

Layer 2: The Context Document (Persistent Knowledge)

A context document is a short reference file (200 to 500 words) that captures everything the AI needs to know about a specific project, product, or design environment. You paste it into every session before starting work. This is the single most practical step in context engineering CAD workflow 2025, and it takes about 20 minutes to create the first time.

What Goes Into a CAD Context Document

Project identity: Product name, project number, revision status, applicable standards
Material library: Approved materials with grades, yield strengths, and any substitution rules
Dimensional conventions: Unit system, preferred tolerance grades, critical fits and clearances
Design constraints: Weight limits, envelope limits, mounting interface requirements, safety classifications
Decisions already made: Key design choices from previous sessions, reasons for any non-standard approaches
Things to avoid: Specific materials, geometries, or approaches ruled out earlier in the project

Layer 3: Session Memory Summary (Preventing Context Rot)

At the end of each working session, ask the AI to generate a summary of the key decisions, dimensions, and constraints established during the session. Paste this summary into the context document before the next session. This prevents context rot engineering and ensures knowledge carries forward without the AI needing to re-derive everything from scratch.

Prompt: End-of-Session Context Summary
“Summarise the key engineering decisions, dimensions, constraints, and design choices we established in this session. Format as a structured context update I can add to my project context document. Flag any open items or unresolved decisions.”
✔ What you get:
A clean, structured summary of session decisions that maintains the continuity of your context-aware CAD workflow across multiple sessions.
context-aware CAD workflow x AI context management for engineering design

Layer 4: Dynamic Context Retrieval (Advanced)

The most advanced form of context engineering for CAD uses retrieval-augmented generation (RAG) to pull specific relevant information from a larger knowledge base into the context window on demand. Instead of manually loading everything, the system retrieves only what is relevant to the current task.

For engineering teams, this means building a searchable library of design standards, test reports, approved material data sheets, and simulation results. When you ask a question about a specific material or design scenario, the system automatically retrieves the relevant sections and includes them in the context. This is RAG for engineering applied at the team level, and it is the direction that enterprise CAD AI tools like Siemens Teamcenter Copilot and PTC Windchill AI are already moving toward.

Context engineering for CAD four-layer framework system prompt context document session memory dynamic retrieval

Context Engineering vs Prompt Engineering: What Changes for CAD

Here is a direct comparison of what context engineering vs prompt engineering means in day-to-day CAD and engineering AI work:

What Prompt Engineering Does	What Context Engineering Does	Why It Matters for CAD
Optimises the words in a single instruction to get a better response in this session	Designs the entire information environment the AI operates in, across sessions and tools	AI prompt CAD systems: prompts alone cannot carry company standards or project memory
Requires re-explaining context every session from scratch	context-aware CAD workflow: persistent context documents carry project knowledge forward automatically	Saves 20-30 min per session not re-explaining project context
Quality degrades when context window fills up (context rot)	context rot engineering mitigation: regular session summaries keep context clean and relevant	Longer sessions remain reliable without accuracy degradation
Works well for isolated one-off tasks	context engineering CAD workflow 2025: designed for multi-step workflows where AI must retain design intent across stages	Essential for design-to-simulation-to-documentation pipelines
No memory of design decisions made in previous sessions	AI context management for engineering design: structured session summaries create continuity across the project lifecycle	AI builds on previous work rather than starting over every time

Putting Context Engineering Into Practice: A CAD Session Workflow

Here is exactly how to run a context engineering for CAD session using Claude or any similar AI tool. This workflow takes about five minutes to set up and produces consistently better outputs than cold-start prompting.

Open a new session. Do not start with your question. Start by pasting your system prompt (Layer 1) to establish the AI role and operating rules.
Load your context document. Paste your project context document immediately after the system prompt. This gives the AI everything it needs to know about the design environment before you ask a single question. This is AI context for CAD working as designed.
Work normally. Ask your design questions, iterate on geometry, check calculations, generate documentation. The AI now responds with your specific standards, materials, and constraints in mind rather than general engineering knowledge.
Maintain the window. If the session grows long (over 20 exchanges), ask the AI to summarise the decisions made so far and paste that summary as a new message at the top of the thread. This prevents context rot engineering and keeps the AI grounded.
Close with a summary. At the end of each session, use the end-of-session prompt to generate a structured decisions summary. Add it to your context document. Your context-aware CAD workflow now carries forward seamlessly to the next session.

Where Context Engineering for CAD Is Going

What engineers are doing manually today with context documents and session summaries, CAD software will do automatically within the next two to three years. Context engineering CAD workflow 2025 is the leading edge of a shift that major platforms are already building toward.

CAD Software Is Becoming Context-Aware

AutoCAD 2026 introduced AI-powered Smart Blocks and an Autodesk Assistant that understands the project context within the design environment. SolidWorks AURA learns from user habits and project history to provide contextual suggestions. PTC Creo AI embeds context from PLM data directly into design assistance. These are all early implementations of context engineering for CAD at the platform level.

The CAD Knowledge Graph Is Coming

The next step is CAD knowledge graph AI: a structured representation of your entire design knowledge including parts, standards, materials, simulation results, and project history, all queryable by an AI in real time. Siemens Teamcenter Copilot already lets engineers query BOM structures and design documents using plain English. PTC Windchill AI identifies duplicate parts across the enterprise BOM. These are knowledge graph retrieval systems applied to engineering data.

When these systems mature, context engineering for CAD will not require manual context documents. The platform will assemble the relevant context automatically from your PLM, PDM, and simulation data every time you start an AI-assisted design session.

Multi-Agent CAD Pipelines

The furthest edge of LLM context design for engineering is multi-agent CAD pipelines: networks of specialised AI agents where each agent has a carefully engineered context for its specific role. One agent holds the design intent context. Another holds the simulation constraints context. A third holds the manufacturing process context. They collaborate within a shared project knowledge environment.

This is already emerging in research environments and early enterprise deployments. Teams that understand context engineering 2025 today are the ones best positioned to work effectively with these systems as they reach production.

Context engineering for CAD timeline 2023 to future from prompt engineering to context-aware CAD AI systems

Pro Tips for Context Engineering in Engineering Teams

Practical Guidance for Engineering Teams Starting With Context Engineering

Start with one project context document. Pick your most active project and write a 300-word context document covering role, standards, materials, constraints, and current design status. Use it for every AI session this week. The quality difference will convince your team.
Keep context documents in version control. Your context documents are engineering artefacts. Store them alongside your drawings, specifications, and models. Update them when design decisions change. AI context management for engineering design is a discipline, not a one-time setup.
Make the system prompt a team standard. Write one shared system prompt for your engineering team that defines the AI role, applicable standards, and documentation conventions. Everyone who uses AI for CAD work starts from the same AI system prompt CAD baseline.
Use session summaries as meeting notes. End-of-session summaries are not just context management tools. They are a record of what the AI helped you decide in that session. Store them as project documentation.
Build your context library incrementally. Your first context document covers one project. Over six months, you build a library covering your common material grades, tolerance standards, manufacturing processes, and customer requirements. Each new project benefits from everything that came before. This compound effect is how context engineering for CAD becomes a team capability rather than an individual practice.

Conclusion: The Engineers Who Master This Now Will Lead

Context engineering for CAD is the natural evolution of how engineers work with AI. Prompt engineering was the first step: learning how to ask AI the right questions. Context engineering is the second step: learning how to build the right environment so AI can answer those questions well every time.

Gartner declared in July 2025 that context engineering was in and prompt engineering was out. Anthropic formalised the practice. Andrej Karpathy and Tobi Lutke endorsed it publicly. CAD platforms like AutoCAD, SolidWorks, and PTC Creo are building it into their products. The shift is real and it is already underway.

What engineers can do right now is begin the transition deliberately. Write the system prompt. Build the context document. Start a context-aware CAD workflow on one project. Within three sessions, the difference in output quality will be clear.

The engineers who understand context engineering 2025 today will be the most effective users of the context-aware CAD platforms arriving over the next two years. That is the practical case for learning this now rather than later.

Ready to Build a Smarter CAD Workflow With Context Engineering
At Simutecra Engineering Services, e help engineering teams move beyond single-prompt interactions and build structured AI context systems for CAD, simulation, and documentation workflows. We design the context architecture so your AI always knows what it needs to know.
Smarter context means better outputs, less rework, and more time on actual engineering.
Reach out today at Simutecra

Frequently Asked Questions

Brief answers to the most common questions about context engineering for CAD.

What is context engineering?

Context engineering 2025 is the practice of designing and managing everything the AI model has access to during a task: the system prompt, relevant documents, conversation history, tools, and memory. It goes beyond writing better prompts by ensuring the AI always operates in a well-informed environment.

How is context engineering different from prompt engineering?

Context engineering vs prompt engineering: prompt engineering optimises a single instruction. Context engineering designs the entire information system around the AI. Prompt engineering is what you say. Context engineering is what the AI knows when you say it.

Why does context engineering matter for CAD?

CAD workflows are multi-step and project-specific. Context engineering for CAD ensures the AI knows your design standards, materials, constraints, and past decisions across every session. Without it, the AI answers from generic engineering knowledge instead of your specific engineering environment.

What is a context document for CAD?

A context document is a 200 to 500 word reference file covering your project identity, approved materials, dimensional conventions, design constraints, and current decisions. You paste it at the start of every AI session to give the AI the context it needs before you ask your first question.

What is context rot in engineering AI?

Context rot engineering is the gradual loss of accuracy as a long AI session grows. Earlier instructions and constraints get diluted by the volume of later exchanges. Managing the CAD AI context window with regular summaries prevents this.

Is context engineering the same as RAG?

No, but RAG is one component of it. RAG for engineering retrieves relevant documents into the context window at query time. Context engineering is the broader discipline that includes RAG, system prompt design, memory management, and tool use.

How do I start using context engineering for CAD today?

Start with two steps. Write a system prompt defining the AI role and your engineering standards. Create a context document for your current project covering materials, constraints, and design status. Paste both at the start of every AI context for CAD session. That is a working context-aware CAD workflow you can use immediately.

External Reference

For Anthropic’s official research and guidance on context engineering principles and agent context management:

Effective Context Engineering for AI Agents, Anthropic Engineering Blog (anthropic.com) (Official Anthropic source, primary research reference for context engineering)

April 26, 2026

Building an AI Pipeline for CAD + Simulation Using Prompts | Simutecra

The Problem: Your Design and Simulation Stages Are Still Disconnected

Here’s a situation most mechanical engineers know well. You finish a CAD model, export the geometry, hand it to a simulation analyst (or switch tools yourself), spend half a day setting up the mesh and boundary conditions, run the solver overnight, get results that point to a design change, and then go back to the beginning.

That cycle, design, export, setup, simulate, revise, is slow. It was designed for a world where simulation was expensive and rare. But in 2026, simulation tools are faster and AI is everywhere. The bottleneck isn’t the solver anymore. It’s the AI CAD pipeline connecting everything together.

What engineers actually need is an AI-driven engineering pipeline, a connected sequence of intelligent tools and prompts that carries a design from concept through CAD modelling, FEA or CFD setup, results interpretation, and documentation without the constant manual handoffs that kill momentum.

That’s exactly what this guide builds. Step by step. With real prompts you can use today.

3
hrs/daysaved on average

Industry benchmarks for 2026 show that integrating AI into the CAD-to-simulation workflow saves engineers an average of 3 hours per day, reclaimed from manual data extraction, repetitive setup, and documentation (Energent.ai, 2026).

94.4%
AI accuracy

Leading AI data agents now achieve up to 94.4% accuracy when reading complex unstructured engineering documents and schematics, dramatically reducing downstream specification errors.

What an AI Pipeline for CAD and Simulation Actually Looks Like

Before building one, it helps to have a clear mental model. An AI pipeline for CAD and simulation is not a single tool, it’s a chain of connected AI interactions, each stage feeding the next with better, more specific information.

Think of it like a relay race. The first runner (your LLM for engineering design) carries the design intent. The second (your CAD tool or text-to-CAD platform) turns that intent into geometry. The third (your FEA or CFD solver with AI setup) validates the geometry against physics. The fourth (your AI interpretation layer) tells you what the results mean and what to change. The baton never drops. The pipeline keeps moving.

What makes this different from just ‘using AI tools’ is the prompt-based CAD workflow that threads through every stage. Prompts aren’t just for chatting, they’re the connective tissue of the pipeline. The right prompt at each stage ensures the output of one tool becomes a clean, usable input for the next. That’s what CAD simulation using prompts actually means in practice.

The Four Roles Prompts Play in the Pipeline

Understanding how prompts function at each stage clarifies why prompt engineering for design and simulation is worth learning deliberately, not just picking up informally.

Prompt as brief: At the design stage, a structured prompt is your engineering requirements document, it captures loads, materials, constraints, and manufacturing intent in a format AI tools can act on directly.
Prompt as translator: Between CAD and simulation, a prompt converts geometry decisions into AI prompts for FEA and simulation, boundary conditions, mesh guidance, load cases, and solver settings expressed in clear language.
Prompt as analyst: After simulation, a prompt frames your results for AI interpretation, ‘This stress concentration is at the fillet. What does that indicate and what geometry change would address it?’
Prompt as documenter: At the close of the pipeline, a prompt generates technical reports, design summaries, and revision notes automatically, closing the AI design loop cleanly.

How to Build an AI CAD Simulation Pipeline, The 5 Stages

Here is how to build a working AI pipeline for CAD and simulation using prompts. Each stage includes the tool stack, the prompt structure, and what to hand forward to the next stage. These aren’t theoretical, they’re the practices that effective AI simulation workflow teams are using in 2026.

1. Design Brief, Define Intent Before You Touch the Software
Most pipeline failures start here. Engineers open CAD immediately and start modelling before the requirements are precise. An AI-driven pipeline starts with a structured brief that captures everything the downstream stages need: geometry constraints, loads, materials, manufacturing method, and success criteria.
Prompt, Stage 1 Design Brief (use with Claude AI):
“You are a senior mechanical engineer. I need to design [part description]. Loads: [specify]. Material: [specify]. Manufacturing: [specify, e.g. CNC aluminium]. Key constraints: [tolerances, fits, standards]. Output a structured engineering brief with: (1) critical dimensions to define, (2) primary failure modes to simulate, (3) recommended simulation type (FEA/CFD/thermal), (4) suggested boundary conditions.”

Keywords active: Claude AI engineering prompts · LLM for engineering design · prompt-based CAD workflow

2. CAD Modelling, Geometry From Your Brief
Take your Stage 1 brief directly into your CAD or text-to-CAD tool. The brief is already formatted in the way AI geometry tools work best: specific, dimensioned, and constraint-aware. This is where connecting CAD to simulation with AI begins, the model you build now must be simulation-ready from the start.
Prompt, Stage 2 CAD Model (use with Zoo, AdamCAD, or SolidWorks + Claude):
Based on this engineering brief: [paste brief from Stage 1]. Generate a [STEP / parametric feature list / AutoLISP script] for this part. Ensure all simulation-critical features, fillets, contact surfaces, load application areas, are explicitly defined. Flag any geometry that may require simplification before meshing.”
Keywords active: connecting CAD to simulation with AI · Zoo text-to-CAD pipeline · CAD AI prompts

3. Simulation Setup, The Bridge Most Engineers Get Wrong
This is the stage where most manual pipelines collapse. Moving a CAD model into FEA or CFD correctly requires specialist knowledge of meshing, boundary conditions, and solver settings. AI FEA automation now handles the bulk of this, but only if you feed it well-structured prompts.
Prompt, Stage 3 Simulation Setup (use with SimScale AI, Ansys, or Claude for setup notes):
“I have a [material + geometry description] part. Load case: [describe loads and constraints]. I need to set up a [static structural / modal / CFD] simulation. Output: (1) recommended mesh density at critical features, (2) boundary condition checklist, (3) material properties to confirm, (4) expected failure modes to monitor in post-processing, (5) convergence criteria.”
Keywords active: AI prompts for FEA and simulation · CAD to FEA automation · Ansys SimAI pipeline

4. Results Interpretation, From Numbers to Engineering Decisions
Raw simulation output, stress plots, displacement fields, pressure distributions, is information, not insight. This is where the AI interpretation layer converts numbers into engineering decisions. The prompt structures your results in a way that surfaces the most important findings and recommends specific design changes.
Prompt, Stage 4 Results Interpretation (use with Claude AI):
“I have run a static FEA on a [part description]. Results: maximum von Mises stress = [X] MPa at [location], material yield = [Y] MPa, safety factor = [Z]. Displacement at load point = [A] mm. Tell me: (1) Is this design safe? (2) What is driving the peak stress, geometry or boundary conditions? (3) What are the top 2 design changes I should model next? (4) Are there any non-obvious failure modes I should check?”
Keywords active: AI-powered design validation · automated simulation pipeline · AI design loop

4. Documentation, Closing the Pipeline Cleanly
The last stage is where most AI pipelines leak value. Engineers interpret their results, make design changes, and move on, without recording the engineering rationale. A single prompt closes this gap and produces documentation that serves revision history, client reporting, and team knowledge transfer simultaneously.
Prompt, Stage 5 Documentation (use with Claude AI):
“Based on this design and simulation session: [paste summary of design brief, model choices, simulation results, and decisions made]. Write a structured engineering design note covering: (1) Design intent and requirements, (2) Key modelling decisions and rationale, (3) Simulation summary and findings, (4) Design changes implemented and why, (5) Open items and recommended next steps. Format for inclusion in a technical design review package.”
Keywords active: prompt-to-simulation workflow · AI-driven engineering pipeline · AI simulation workflow

Going Further: The Surrogate-Driven Design Loop

Once you have the basic five-stage pipeline working, the next level is the surrogate-driven design loop. This is where the AI pipeline for CAD and simulation becomes genuinely autonomous in the optimisation stage, running tens or hundreds of design variants without human intervention between each one.

What a Surrogate-Driven Loop Actually Is

A surrogate model is a lightweight AI trained on your simulation results. Instead of running the full solver for every new design variant, the surrogate predicts the outcome in milliseconds. You explore the parameter space, wall thickness, fillet radius, hole placement, across 50 or 100 points, then run full-fidelity AI-powered CAE simulations only on the most promising candidates.

Research published on arXiv (July 2025¹) demonstrated that LLMs can convert natural-language descriptions into valid CAD command sequences, essentially ‘prompt-to-feature-tree.’ When combined with surrogate-speed predictions, this creates a prompt-to-simulation workflow that is genuinely new, not just faster, but architecturally different from any previous engineering process.

Practical Surrogate Loop Using Prompts

Define your parameter space with a prompt: ‘I want to optimise a bracket for minimum weight with a safety factor ≥ 3. Variables: wall thickness 3–8mm, fillet radius 2–6mm, rib height 0–12mm. Generate a 25-point design of experiments (DOE) table spanning these ranges.’
Run initial simulations: Feed the DOE table into your Ansys SimAI pipeline or SimScale. Run all 25 variants, this takes hours, not days, with AI-accelerated solvers.
Build the surrogate: Use the 25 results to train a lightweight surrogate. Tools like Altair HyperWorks and Monolith AI handle this automatically. Your surrogate-driven design loop is now active.
Explore with prompts: Ask Claude: ‘Based on these surrogate predictions, which 3 design points offer the best weight-to-safety-factor trade-off? What would happen if I increased the rib height by 2mm at those points?’ Use AI interpretation to guide the next round.
Validate the winner: Run one full AI-powered CAE simulation on your selected design. Document with Stage 5 prompt. Pipeline complete.

Surrogate-driven design loop AI pipeline for CAD simulation prompt-based optimisation mechanical engineering

The Tool Stack That Powers This Pipeline

You don’t need all of these tools on day one. Build the pipeline incrementally, starting with the prompt layer and adding specialist tools as your team grows into them. Here’s how the stack fits together for a complete AI-driven engineering pipeline:

Pipeline Stage	Tool(s)	AI Role	Prompt Use
Stage 1, Brief	Claude AI	LLM for engineering design	Requirements → structured brief
Stage 2, CAD	Zoo / AdamCAD / SolidWorks	Zoo text-to-CAD pipeline	Brief → geometry prompt
Stage 3, Sim Setup	SimScale AI / Ansys	Ansys SimAI pipeline	Brief + model → boundary conditions
Stage 4, Interpret	Claude AI	AI-powered design validation	Results → engineering decisions
Stage 5, Docs	Claude AI	prompt-to-simulation workflow	Session → design note
Optimisation Loop	Altair / Monolith AI	surrogate-driven design loop	DOE → surrogate → prompt queries

A note on tool choice: Claude AI engineering prompts are the unifying thread across all five stages. Claude handles design briefs, prompt refinement, results interpretation, and documentation, making it the single most versatile tool in the AI CAD pipeline. Specialist tools (Zoo for geometry, SimScale or Ansys for physics) handle what Claude can’t: actual geometry generation and physics solving. Together, they form a complete automated simulation pipeline.

Making the Pipeline Stick: Practical Guidance for Engineering Teams

An AI pipeline for CAD and simulation is only valuable if it actually gets used. Here’s what separates teams who build a lasting AI-driven engineering pipeline from those who run one project and revert to old habits.

Build a Prompt Library, Not Just Skills

Individual prompt skills don’t scale. What scales is a shared prompt library, a documented set of tested, refined prompts for each stage of the prompt-based CAD workflow. Every time someone writes a prompt that produces an excellent output, that prompt goes into the library. Within six months, the library becomes the team’s most valuable AI asset.

Organise it by stage and part type: Stage 1 briefs for brackets, housings, and pressure vessels. Stage 3 AI prompts for FEA and simulation for static structural, modal, and thermal studies. The prompt-to-simulation workflow becomes systematic, not tribal.

Start With One Bottleneck

Don’t try to deploy all five stages at once. Identify your team’s single biggest time sink, typically Stage 3 (simulation setup) or Stage 5 (documentation), and build the pipeline around that first. A team that reduces CAD to FEA automation setup time by 60% on one project type will have all the internal buy-in needed to expand the pipeline further.

AI pipeline CAD simulation prompt template card annotated Stage 3 FEA setup engineering 2026

Validate Ruthlessly at Every Stage

The AI simulation workflow must include validation checkpoints. Every Stage 3 setup should be reviewed against a checklist before the solver runs. Every Stage 4 interpretation should be confirmed by a qualified engineer before becoming a design decision. AI-powered design validation accelerates the process, it doesn’t replace the judgement that keeps your products safe.

Use the Surrogate Loop for Design Families, Not One-Offs

The surrogate-driven design loop is most powerful when applied to repeating design families, a family of brackets, a set of housing geometries, a series of pressure vessel variants. Building one surrogate for a design family and reusing it across multiple projects multiplies the ROI dramatically. The first project absorbs the setup cost; every subsequent project runs on near-instant predictions.

What an Excellent AI Pipeline Looks Like in Practice

Let’s make this concrete. Below is how a complete CAD simulation using prompts session plays out for a real engineering task, designing and validating a structural mounting bracket, using the five-stage pipeline.

Complete Pipeline Example: Steel Mounting Bracket

Part: Steel mounting bracket for industrial conveyor motor (2kN steady-state + 500N peak dynamic load)

Material: S275 structural steel, CNC machined

Standard: ISO 2768 medium tolerance, safety factor ≥ 3

Stage 1 prompt:

“You are a senior mechanical engineer. I need to design a CNC steel mounting bracket for a 45kg conveyor motor. Loads: 2kN static vertical, 500N horizontal dynamic. Material: S275 steel, 5mm minimum wall. Fixed to machine frame via 4 × M10 bolts. ISO 2768 medium. Output a structured brief with critical dimensions, failure modes to simulate, and recommended FEA boundary conditions.”

What Claude returns:

A fully structured design brief: 3 critical geometry dimensions with recommended ranges, 4 failure modes ranked by likelihood, meshing guidance, boundary condition checklist, and a FEA load case matrix, ready to use as the Stage 2 and Stage 3 inputs.

Stage 4 interpretation prompt (after FEA run):

“Max von Mises: 187 MPa at inside fillet radius on primary leg. S275 yield: 275 MPa. Safety factor: 1.47. This fails my ≥3 SF requirement. Displacement at motor mount: 0.8mm. What is driving the stress, fillet radius or wall thickness? What is the minimum wall change to meet SF ≥ 3?”

Claude identifies the fillet radius as the primary driver, recommends increasing the fillet from 3mm to 8mm as the highest-impact change (reducing peak stress 35–40% based on standard stress concentration data), and suggests a secondary wall increase from 5mm to 6mm as insurance. Total time for Stage 4: 4 minutes.

Conclusion: Prompts Are the Infrastructure of the Modern Engineering Pipeline

Building an AI pipeline for CAD and simulation isn’t about replacing engineering expertise, it’s about giving that expertise a faster, more connected environment to work in.

The five-stage framework covered in this guide, from structured design brief through CAD simulation using prompts, FEA setup with AI prompts for FEA and simulation, results interpretation, and automated documentation, is not a future vision. It’s a working system that engineering teams are deploying today.

What separates the teams getting the most from this approach is discipline in the prompt-based CAD workflow: specific inputs, clear output requirements at every stage, and a shared prompt library that compounds in value over time. The AI-driven engineering pipeline rewards consistency and specificity.

Start with one stage. Build the brief prompt first, it’s the cheapest, fastest change and it improves the quality of every downstream stage immediately. Add Stage 3 automated simulation pipeline prompts next. Within a month, your team will have the bones of a full AI simulation workflow that is genuinely faster, more documented, and more repeatable than anything you were doing before.

Ready to Build Your AI Engineering Pipeline?
At Simutecra Engineering Services, we design and implement AI-driven CAD and simulation pipelines for mechanical engineering teams, from prompt strategy and tool integration to FEA automation and digital validation.
We bring the engineering expertise and the AI know-how so your team can focus on building better products. Reach out to us today, www.simutecra.com
Let’s engineer the future together.

Frequently Asked Questions

Answers to the real questions engineers and engineering managers are asking about AI pipeline for CAD and simulation in 2026.

What is an AI pipeline for CAD and simulation?

An AI pipeline for CAD and simulation is a connected sequence of AI tools and structured prompts that carries an engineering project from concept design through CAD modelling, simulation setup, results interpretation, and documentation, without the manual handoffs that slow traditional workflows down. Each stage feeds clean, structured output into the next using a prompt-based CAD workflow, so information never gets lost in the gaps between tools. The result is a faster, more consistent, and better-documented AI-driven engineering pipeline.

Do I need specialist simulation knowledge to use this pipeline?

Not to get started, but you do need it to validate the outputs. The pipeline is designed so that AI prompts for FEA and simulation guide setup and interpretation, lowering the barrier for engineers who aren’t simulation specialists. But AI doesn’t replace engineering judgement. Every stage includes a validation step that requires an engineer to confirm the setup is physically sensible before proceeding. The automated simulation pipeline is faster because AI handles the repetitive parts, not because engineers have checked out.

What is the best way to start building an AI CAD simulation pipeline?

Start with Stage 1, the design brief prompt. It requires no new software, produces immediate value (a structured brief is better than an informal one in any workflow), and forces the kind of requirement clarity that improves every downstream stage. Use Claude AI engineering prompts to refine your brief format over 3–5 projects. Then add Stage 3, CAD to FEA automation prompts, once you have a feel for how structured AI outputs change the quality of your simulation setup. Build the pipeline stage by stage, not all at once.

How does a surrogate-driven design loop work with AI prompts?

A surrogate-driven design loop starts with a DOE (design of experiments) table, which you can generate with a prompt. You run the DOE points through high-fidelity simulation, train a lightweight surrogate model on the results, then use prompts to query the surrogate for engineering insights: which design points offer the best trade-off, what happens if you change a parameter, which candidates warrant full-fidelity validation. The surrogate handles prediction speed; the prompt-to-simulation workflow handles interpretation and decision-making. Together they make parametric optimisation practical for projects that would previously have required a dedicated optimisation specialist.

Can this pipeline be used for CFD as well as FEA?

Yes. The five-stage structure applies to any simulation type. For CFD, the Stage 1 brief captures flow conditions, fluid properties, and performance targets instead of structural loads. The Stage 3 AI prompts for FEA and simulation address mesh density at boundary layers, turbulence model selection, and convergence criteria rather than contact definitions. The AI simulation workflow is physics-agnostic, the prompt structure adapts to whatever physics your project requires.

How do I make sure AI pipeline outputs are trustworthy enough for production use?

Trustworthiness comes from validation discipline, not from the AI itself. Every stage should have a review checkpoint: the Stage 1 brief should be signed off by the lead engineer before geometry work begins; Stage 3 simulation setup should be checked against a standard boundary conditions checklist before the solver runs; Stage 4 interpretation should be confirmed by a qualified engineer before it drives a design decision. AI-powered design validation accelerates the process, the review checkpoints ensure the AI-driven engineering pipeline output meets the same engineering standards as any manually produced result.

For peer-reviewed research on LLMs for generative CAD automation and prompt engineering for design and simulation workflows, see: Generative AI for CAD Automation: Leveraging LLMs for 3D Modelling, arXiv:2508.00843 (2025) (Peer-reviewed research, arXiv, highly authoritative EE

Generative AI for CAD Automation: Leveraging LLMs for 3D Modelling, arXiv:2508.00843 (2025) ↩︎

April 20, 2026

Prompt Engineering for CAD Modeling: Write Better AI Prompts and Design Faster in 2026

The Skill Every CAD Engineer Needs Right Now

You’ve probably heard about AI changing the engineering world. But here’s what most people don’t talk about: the quality of your results depends almost entirely on how you write your prompts.

That’s what prompt engineering for CAD modeling is all about. It’s the skill of writing clear, specific instructions to an AI — like Claude — so it gives you exactly what you need for your CAD project, not a generic guess.

Whether you’re working with AI prompts for CAD design in AutoCAD, generating geometry parameters in SolidWorks, or drafting technical specs — a well-written prompt is the difference between wasting 20 minutes and getting a perfect result in 30 seconds.

This guide is for anyone using CAD AI tools today. Beginners, students, professionals — this one is for you.

⚡ Quick Answer
Prompt engineering for CAD modeling means writing structured, specific instructions to an AI tool so it produces accurate CAD outputs — such as scripts, design parameters, technical documentation, or geometry calculations. A good AI prompt for CAD design includes: the part type, exact dimensions, material, software name (e.g. AutoCAD / SolidWorks), and desired output format. The better your prompt, the better your AI-assisted CAD workflow.

What Is Prompt Engineering and Why Does It Matter for CAD?

Prompt engineering is simply the art of writing good instructions for an AI. Think of it like this: when you search Google, you’ve learned to write better search queries over time. Prompt engineering is the same idea — but for AI systems like Claude, ChatGPT, or any other AI mechanical design assistant.

In CAD modeling with AI, this matters enormously because:

A vague prompt gives a vague answer — useless for engineering work
A specific, structured prompt gives you working scripts, calculations, or design logic
The right natural language CAD commands unlock capabilities most engineers never discover
Good prompts turn a general AI into a focused AI CAD software assistant

Here’s a simple example of the difference between a bad prompt and a great one:

Weak Prompt:
“Create a part for me.”Result: Generic, unusable, requires 5 follow-up questions.

Strong Prompt“
Write an AutoLISP script for AutoCAD that draws a steel bracket: 150mm x 80mm x 6mm wall thickness, with 4 x M8 bolt holes at 20mm from each corner. Output as a ready-to-run .lsp script.”Result: Working code, ready to paste and run.

The 5 Elements of a Perfect AI Prompt for CAD Design

After testing hundreds of AI prompts for CAD design, the best ones always include these five elements. Master these and your AI-assisted CAD workflow will transform overnight.

Element 1: Role Definition

Start your prompt with a role. This primes the AI to think like an expert. Example: “You are a senior mechanical engineer specializing in SolidWorks parametric design.” This simple step dramatically improves the precision of every Claude AI CAD modeling prompt you write.

Element 2: Specific Context

Tell the AI exactly what software, material, and constraints you’re working with. For best AI prompts for AutoCAD, always include: the AutoCAD version if relevant, the units (mm/inches), layer names, and drawing standards (ISO, ANSI, etc.).

Element 3: Precise Dimensions and Parameters

Never leave out numbers. Prompt engineering for CAD modeling fails most often when people say ‘make it big’ instead of ‘250mm x 180mm x 12mm.’ Always specify dimensions, tolerances, thread types, radii, and material grades.

Element 4: Desired Output Format

Tell the AI what you want back. Do you need an AutoLISP script? A table of parameters? A written specification? A step-by-step design plan? Specifying the output format is critical for CAD modeling with AI — otherwise the AI decides for you, and it often guesses wrong.

Element 5: Constraints and Standards

Include any real-world constraints: load limits, manufacturing method (CNC, 3D printing, casting), applicable standards (ISO 2768, ASME Y14.5), or client requirements. This is what separates a beginner prompt from a professional-grade AI prompt for mechanical drawing.

Step-by-Step Guide: How to Write AI Prompts for SolidWorks, AutoCAD & More

Let’s walk through the exact process for how to write AI prompts for SolidWorks, AutoCAD, and FreeCAD. The framework is the same for all three — only the software-specific details change.

Open your AI tool (Claude at claude.ai, or your preferred platform) alongside your CAD software.
Start with a role statement. Type: “You are an expert mechanical engineer working in [SolidWorks / AutoCAD / FreeCAD].”
Add your context — project type, industry, drawing standard, and units.
Describe the part or task in full detail — shape, dimensions, tolerances, material, and finish.
Specify your output. ‘Give me a ready-to-run script,’ or ‘Give me a parameter table,’ or ‘Write the GD&T notes for this drawing.’
Read the response carefully. If something is off, follow up: ‘Change the wall thickness to 8mm and add a 2mm fillet on all inside edges.’
Test and apply. Paste scripts into your software. Validate the logic of any calculations.

Real Prompt Example: AutoCAD AI Automation 2026

Here is a full, working example of AutoCAD AI automation 2026 using Claude:

💬 Full Prompt for AutoCAD (Copy & Use):“You are a senior AutoCAD drafter. Write an AutoLISP script that does the following: (1) Creates a new layer called STEEL_FRAME with color red. (2) Draws a rectangular frame 400mm x 250mm centered at 0,0. (3) Adds 4 circles of diameter 20mm at each corner, inset 25mm from each edge. (4) Adds the text FRAME-01 in the center at 10mm height. Output only the complete .lsp code with no explanation.”

Result: Claude produces a clean, ready-to-run script in seconds. No syntax errors. No guessing.

Real Prompt Example: How to Write AI Prompts for SolidWorks

For how to write AI prompts for SolidWorks, the focus shifts from scripts to design parameters and feature logic:

💬 Full Prompt for SolidWorks Parametric Design:“You are a SolidWorks expert. I am designing a plastic snap-fit enclosure for a PCB (120mm x 80mm). The enclosure must: use ABS plastic at 2mm wall thickness, have a snap-fit lid with 0.3mm interference fit, include 4 x M3 boss inserts at each PCB mounting corner, and meet IEC 60529 IP54 rating. List all the key parametric design features I need to model, with recommended dimensions for each feature“

Result: Claude returns a structured feature list with exact dimensions, ready to model directly in SolidWorks.

Advanced Prompt Techniques: Generative CAD and Parametric Design with AI

Once you have the basics down, these advanced techniques take your CAD AI tools usage to the next level.

Chained Prompts for Complex Assemblies

Instead of trying to do everything in one prompt, break complex assemblies into a chain. First prompt: overall dimensions and material. Second prompt: fastener and joint specifications. Third prompt: GD&T and tolerance stack-up. This approach is the backbone of serious generative CAD design workflows.

Using AI for Parametric Design Reviews

Describe your parametric design with AI intent — for example, a gear train where the module changes drive the entire assembly — and ask Claude to flag potential interference issues or suggest which parameters should be driven vs. driving. This kind of logic review catches problems before you even open SolidWorks.

Text-to-CAD AI Workflows

The frontier of text-to-CAD AI is moving fast. Tools like Autodesk’s AI features, combined with a well-engineered prompt from Claude, can now produce rough geometry from a text description. While full automation is still maturing, using natural language CAD commands to generate parameter sheets and design intent documents is production-ready right now.

Iterative Refinement — The Power Move

The best AI-assisted CAD workflow professionals use iteration as a core strategy. They start with a broad prompt, review the output, then ask the AI to refine, tighten, or expand specific sections. Each round gets them closer to the exact output they need — far faster than traditional trial and error.

Benefits of Prompt Engineering for CAD Modeling — By User Type

User Type	Benefit from AI Prompts for CAD Design	Time Saved Per Week
Engineering Students	Learn CAD faster with AI explanations and instant feedback on prompts	3–5 hrs
Freelance Drafters	Automate documentation, scripts, and client specs using CAD modeling with AI	5–8 hrs
Mechanical Engineers	Speed up calculations, tolerance reviews, and GD&T using AI-assisted CAD workflow	4–7 hrs
CAD Managers / Teams	Standardize prompt templates across the team for AutoCAD AI automation 2026	8–12 hrs
Non-Engineers / PMs	Understand drawing specs and design intent with plain-English AI explanations	2–3 hrs

Common Mistakes in AI Prompt Engineering for CAD (And How to Fix Them)

Even experienced engineers make these mistakes when they first start using AI prompts for CAD design. Avoid these and you’ll be ahead of 90% of users.

Mistake 1: Using Generic Prompts
‘Make me a CAD design’ tells the AI nothing. You get nothing useful back. Prompt engineering for CAD modeling starts with specificity. Always include software, dimensions, material, and output type.

Mistake 2: Skipping the Role Statement
Skipping ‘You are a senior mechanical engineer…’ means you get a generalist answer. Always set the role first. This single habit transforms your Claude AI CAD modeling prompts from average to expert-level.

Mistake 3: Not Specifying Units
In engineering, mm and inches are worlds apart. Any AI prompt for mechanical drawing must include the unit system explicitly — metric (ISO), imperial (ANSI), or both. Never leave this to the AI to guess.

Mistake 4: One-and-Done Prompts
The biggest mistake in CAD modeling with AI is expecting a single prompt to do everything. The most productive workflows are iterative. Write a prompt, review the output, refine. Each iteration gets you closer to the perfect result.

Mistake 5: Not Validating AI Output
Whether it’s an AutoLISP script or a calculation table, always review AI output before applying it. AI CAD software assistance is powerful, but it’s not infallible. A quick sanity check takes 2 minutes and saves hours of rework.

Pro Tips: Expert-Level Prompt Engineering for CAD Modeling

Pro Tips from the Field

Build a Prompt Library: Save your best AI prompts for CAD design in a shared document. A team prompt library is the fastest route to consistent results.
Use the ‘Explain Your Reasoning’ Trick: Add ‘Explain each decision’ to your prompt. This turns any AI mechanical design assistant into a learning tool — you understand the engineering, not just get an answer.
Combine Claude with AutoCAD AI Automation: Use Claude to write and debug your AutoCAD AI automation 2026 scripts, then run them inside AutoCAD. Best of both worlds.
Reference Drawing Standards: Mention ISO 2768, ASME Y14.5, or DIN standards in your prompt. This lifts your output to professional quality automatically.
Unlock Generative CAD Design: For complex assemblies, ask Claude to propose multiple generative CAD design alternatives with trade-offs. You get options, not just one answer.
Parametric First: When working in SolidWorks or Inventor, always ask Claude to structure outputs as parametric design with AI recommendations — driven dimensions, relations, and design intent — not just static values.
Use Structured Output Requests: End every complex prompt with ‘Format your answer as a table / numbered list / .lsp script.’ Clear format requests are the single biggest upgrade you can make to any CAD modeling with AI workflow.

Annotated example of prompt engineering for CAD modeling in Claude AI showing all 5 prompt elements

For the latest research on AI-assisted design and generative CAD design developments, see Autodesk’s official AI research hub:

Conclusion:

Prompt engineering for CAD modeling is not a nice-to-have skill in 2026 — it’s the core skill that separates engineers who struggle with AI tools from those who use them to design faster, better, and smarter.

You’ve now learned the five elements of a great AI prompt for CAD design, seen real working examples for both how to write AI prompts for SolidWorks and best AI prompts for AutoCAD, and picked up pro-level techniques for generative CAD design and parametric design with AI.

The next step? Open Claude, write your first structured prompt, and see the results for yourself. Your AI-assisted CAD workflow starts today.

Want the complete picture?
Read our Pillar Guide: Prompt Engineering in Mechanical Engineering — Complete Guide — the ultimate resource for using AI across every part of your engineering workflow.

Frequently Asked Questions

These questions are based on real Google ‘People Also Ask’ queries for prompt engineering for CAD modeling.

Q1. What is prompt engineering for CAD modeling?

Prompt engineering for CAD modeling is the practice of writing structured, detailed instructions to an AI (like Claude) so it generates accurate CAD outputs — such as scripts, parameters, technical specs, or design logic. The more specific and well-structured your prompt, the better the output. It requires no coding — just clear, detailed writing about what you need.

Q2. What are the best AI prompts for AutoCAD in 2026?

The best AI prompts for AutoCAD always include: the software name (AutoCAD), the desired output (AutoLISP script / command sequence / macro), exact dimensions with units, layer specifications, and any drawing standards. Always add ‘Output only the ready-to-run code with no explanation’ for script requests. This is the core of AutoCAD AI automation 2026.

Q3. How do I write AI prompts for SolidWorks?

For how to write AI prompts for SolidWorks: start with a role statement (‘You are a SolidWorks expert’), then specify your part type, material, key dimensions, manufacturing method, and applicable standards. Ask for a parametric feature list or design intent document as your output. This structure works for any CAD modeling with AI platform.

Q4. Is Claude AI good for CAD modeling prompts?

Claude AI CAD modeling prompts work exceptionally well because Claude handles long, detailed technical instructions with high accuracy. It understands engineering terminology, material science, GD&T notation, and software-specific scripting. It also remembers context throughout a conversation, making it ideal for iterative AI-assisted CAD workflow sessions.

Q5. What is generative CAD design and can AI help with it?

Generative CAD design means using algorithms or AI to automatically generate design options based on goals and constraints — like minimizing weight while meeting load requirements. AI tools like Claude can help you define the parameters, explore trade-offs, and generate design intent documents that feed into software like Autodesk Fusion or SolidWorks Simulation.

Q6. Do I need coding skills to use AI prompts for CAD design?

No. AI prompts for CAD design require no coding knowledge. You write in plain English and the AI produces scripts, code, or calculations for you. If you want the output in a specific format (e.g. AutoLISP or a parameter table), just say so in your prompt. Natural language CAD commands via AI are accessible to complete beginners.

Q7. How does text-to-CAD AI work alongside prompt engineering?

Text-to-CAD AI tools take a text description and generate 3D geometry or 2D drawings directly. Prompt engineering for CAD modeling sits one layer upstream — it helps you write the right description to feed into these tools, or generates detailed parameter sheets and scripts when full text-to-CAD isn’t available. Together they form the most powerful AI CAD software workflow available in 2026.

April 16, 2026

GD&T Explained: How Geometric Dimensioning and Tolerancing Works in CAD

Two machined parts are designed to fit together. The drawing shows a diameter of 25.00 mm with a plus/minus tolerance of 0.10 mm — but it says nothing about whether that bore is allowed to be oval, tapered, or tilted relative to the mating face. The parts are made to the numbers on the drawing. They still do not fit.

This is the problem that Geometric Dimensioning and Tolerancing (GD&T) was developed to solve. Traditional plus/minus tolerancing defines size. GD&T defines shape, orientation, location, and form. It is the difference between telling a machinist how big to make a feature and telling them exactly how precise its geometry needs to be, in every dimension that matters functionally.

This guide covers what GD&T is, how it works, the 14 core symbols, how to read a feature control frame, and the most common mistakes that drive up manufacturing cost unnecessarily.

What Is GD&T and Why Does It Exist?

GD&T stands for Geometric Dimensioning and Tolerancing. It is a standardised symbolic language applied to engineering drawings to define the allowable variation in the shape, size, orientation, and location of part features. In the United States, it is governed by ASME Y14.5-2018 (the most recent revision of the standard). Internationally, the equivalent is ISO 1101.

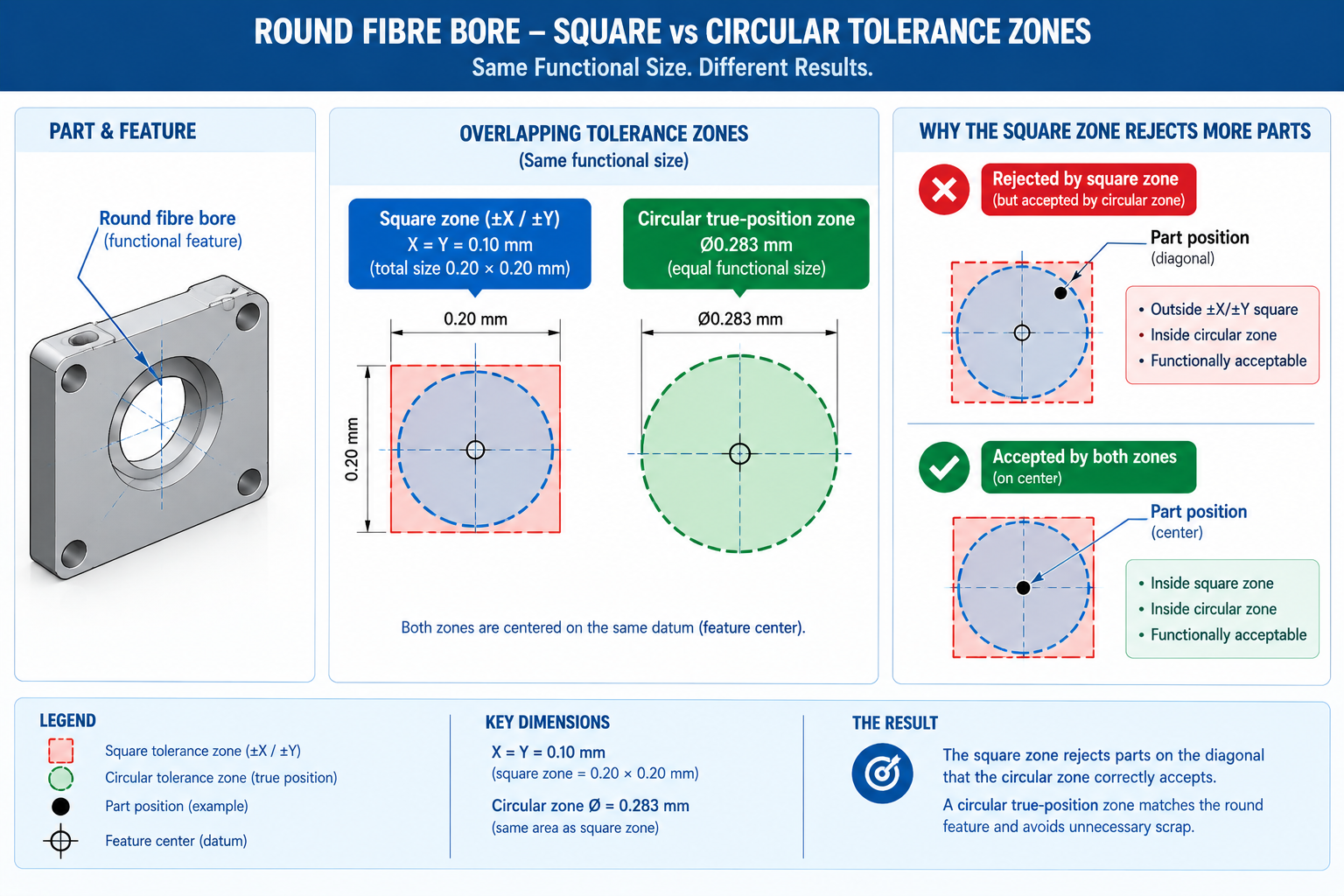

The system exists because coordinate tolerancing — the older method of simply assigning plus/minus values to X, Y, and Z dimensions — is inherently limited. Consider a bolt hole pattern on a flange. A coordinate tolerance defines a square tolerance zone around each hole’s nominal position. GD&T’s True Position control defines a cylindrical tolerance zone centred on the exact theoretically perfect location. The cylindrical zone is 57% larger in area than the equivalent square zone for the same stated tolerance value — meaning more parts pass inspection without any compromise to the functional requirement. That directly reduces scrap and rework cost.

GD&T does not make tolerances tighter. Used correctly, it makes tolerances more precisely matched to functional requirements — which often means they can be looser in areas that do not affect fit or function.

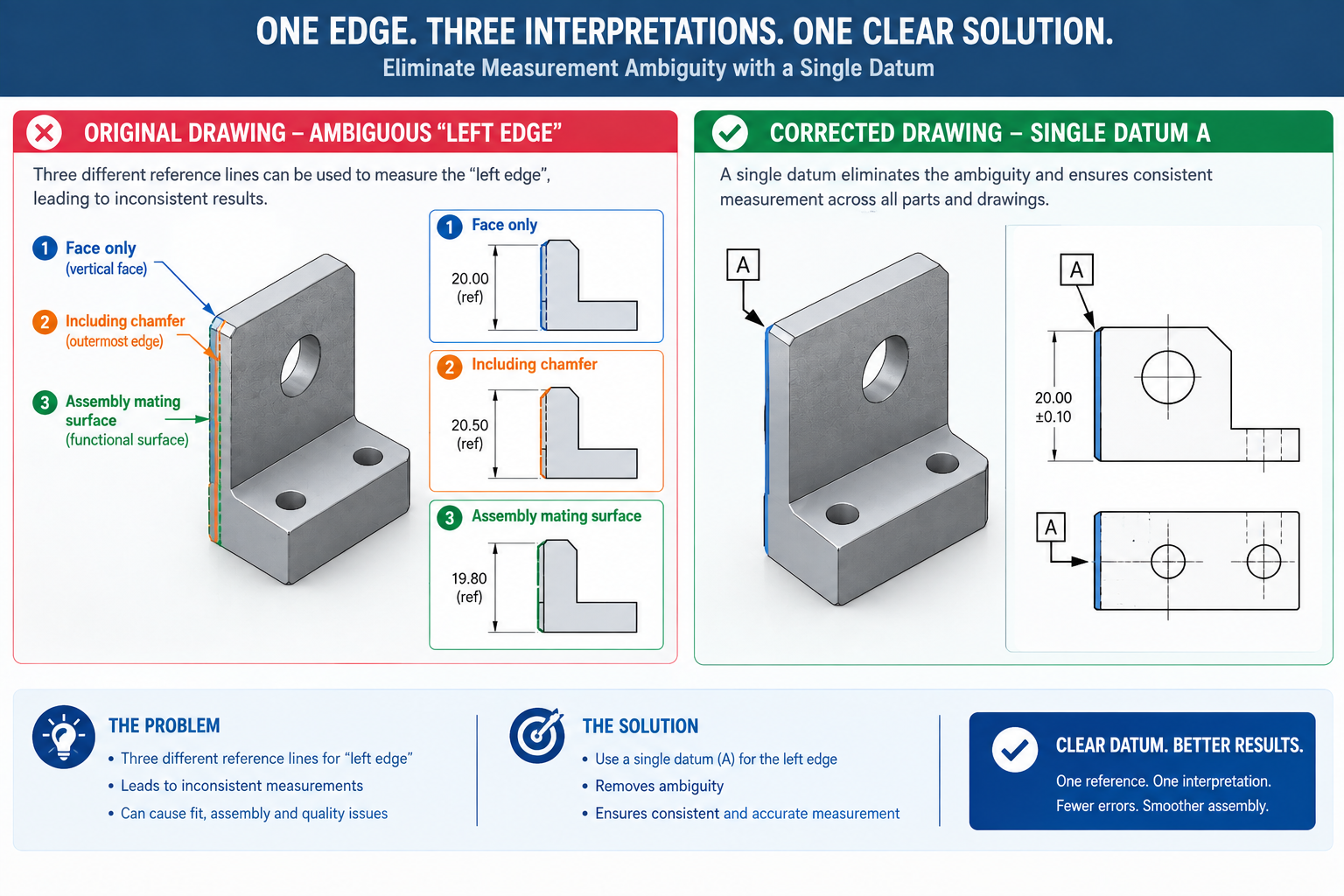

Beyond the efficiency argument, GD&T eliminates ambiguity. A drawing annotated with GD&T controls is interpreted the same way by any engineer, machinist, or quality inspector who knows the standard — whether they are in your facility or a supplier facility on the other side of the world. That universality is essential when manufacturing is distributed across multiple suppliers or geographies.

The 5 Categories of GD&T Controls

5 Categories of GD&T Controls | ASME Y14.5 | ISO 1101 | MMC

GD&T controls are grouped into five categories, each addressing a different aspect of geometric variation. Understanding these categories is the foundation for knowing which symbol to apply and when.

Category	Controls	Symbols Included	Typical Use Case
Form	Shape of a surface or feature in isolation — no datum needed	Flatness, Straightness, Circularity, Cylindricity	Sealing faces, bearing bores, precision guide rails
Orientation	Angle of a feature relative to a datum	Parallelism, Perpendicularity, Angularity	Mating flanges, gearbox housings, mounting faces
Location	Position of a feature relative to a datum reference frame	True Position, Concentricity, Symmetry	Bolt hole patterns, shaft centrelines, symmetric slots
Runout	Variation of a surface as a part rotates about a datum axis	Circular Runout, Total Runout	Rotating shafts, pulleys, brake rotors
Profile	Shape and location of any surface or line	Profile of a Line, Profile of a Surface	Aerofoil sections, complex curves, cast/moulded surfaces

The critical distinction between Form controls and all other categories is that Form controls — flatness, straightness, circularity, and cylindricity — do not reference a datum. They describe the shape of a feature in isolation. Every other control references at least one datum because it describes the relationship of a feature to something else.

The 14 GD&T Symbols: A Complete Reference

ASME Y14.5 defines 14 geometric characteristic symbols, one for each type of control. The table below provides the name, category, and a plain-English description of what each symbol controls. Keep this as a reference when annotating drawings or reviewing a drawing package from a supplier or design partner.

14 GD&T Symbols | ASME Y14.5 | Simutecra

Symbol Name	Category	Symbol / Abbr.	What It Controls
Flatness	Form	Flat symbol	How flat a surface is — all points must lie within two parallel planes
Straightness	Form	Straight symbol	How straight a line or axis is — applies to surface lines or feature axes
Circularity	Form	Circle symbol	How round a circular cross-section is at any given point along its length
Cylindricity	Form	Cylinder symbol	Combines roundness and straightness — controls the full cylinder surface
Parallelism	Orientation	// symbol	Controls a surface or axis to be parallel within a tolerance to a datum
Perpendicularity	Orientation	90 deg symbol	Controls a surface or axis to be perpendicular within a tolerance to a datum
Angularity	Orientation	Angle symbol	Controls a surface or axis to be at a specified angle to a datum
True Position	Location	Target symbol	Defines the exact (theoretically perfect) location of a feature from datums
Concentricity	Location	Circle-dot	Controls the axis of a feature to coincide with a datum axis (rarely used now)
Symmetry	Location	= symbol	Controls the median points of a feature to lie in a datum plane (rarely used)
Circular Runout	Runout	Single arrow	Controls surface variation at any single cross-section when part rotates
Total Runout	Runout	Double arrow	Controls cumulative variation across the entire surface as the part rotates
Profile of a Line	Profile	Arc open symbol	Controls the shape of a cross-sectional curve relative to a true profile
Profile of a Surface	Profile	Arc filled sym.	Controls the shape of an entire surface relative to its true theoretic form

Note on Concentricity and Symmetry: Both symbols are retained in ASME Y14.5-2018 but their use is now actively discouraged for most applications. They require median-point measurement, which is expensive and difficult to inspect reliably. In most cases, True Position with an appropriate material condition modifier achieves the same functional result and is far easier to measure. When you see these symbols on a drawing, it is worth questioning whether they are the right choice.

How to Read a Feature Control Frame

The feature control frame is the rectangular annotation box on a drawing that specifies a GD&T requirement. Every GD&T callout uses one. Reading it correctly is a fundamental skill for anyone working with engineering drawings.

A feature control frame is divided into compartments read from left to right:

Box 1	Box 2	Box 3	Box 4 (optional)
True Position symbol	Diameter symbol + 0.5	A (primary datum)	B (secondary datum)
Which geometric characteristic is being controlled	The tolerance value (and shape of the tolerance zone — diameter symbol = cylindrical zone)	The primary datum this control references	Additional datums if needed (up to three)

Worked example: A True Position callout reads as follows — the leftmost compartment shows the True Position symbol (a circle with crosshairs). The second compartment shows the diameter symbol followed by 0.5. The third compartment shows ‘A’. This means: the axis of this feature must fall within a cylindrical tolerance zone of diameter 0.5 mm, centred on the theoretically exact position defined relative to datum A. If a second datum ‘B’ appears in a fourth compartment, the position is also constrained relative to that secondary reference.

Geometric Dimensioning and Tolerancing (GD&T) is governed by internationally recognized standards such as the ASME Y14.5 standard, which provides rules, symbols, and guidelines for interpreting engineering drawings accurately.
Geometric Dimensioning and Tolerancing (GD&T)

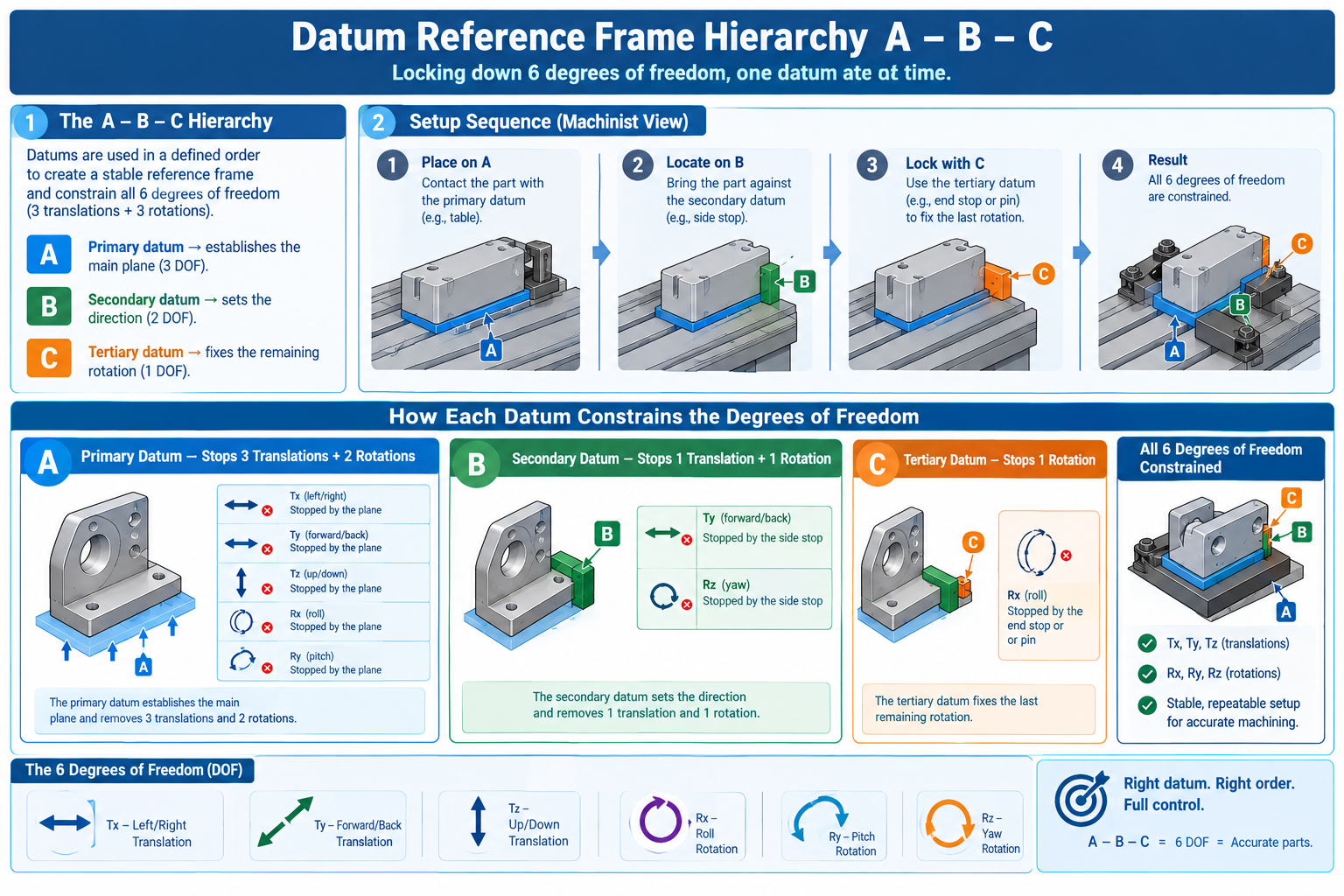

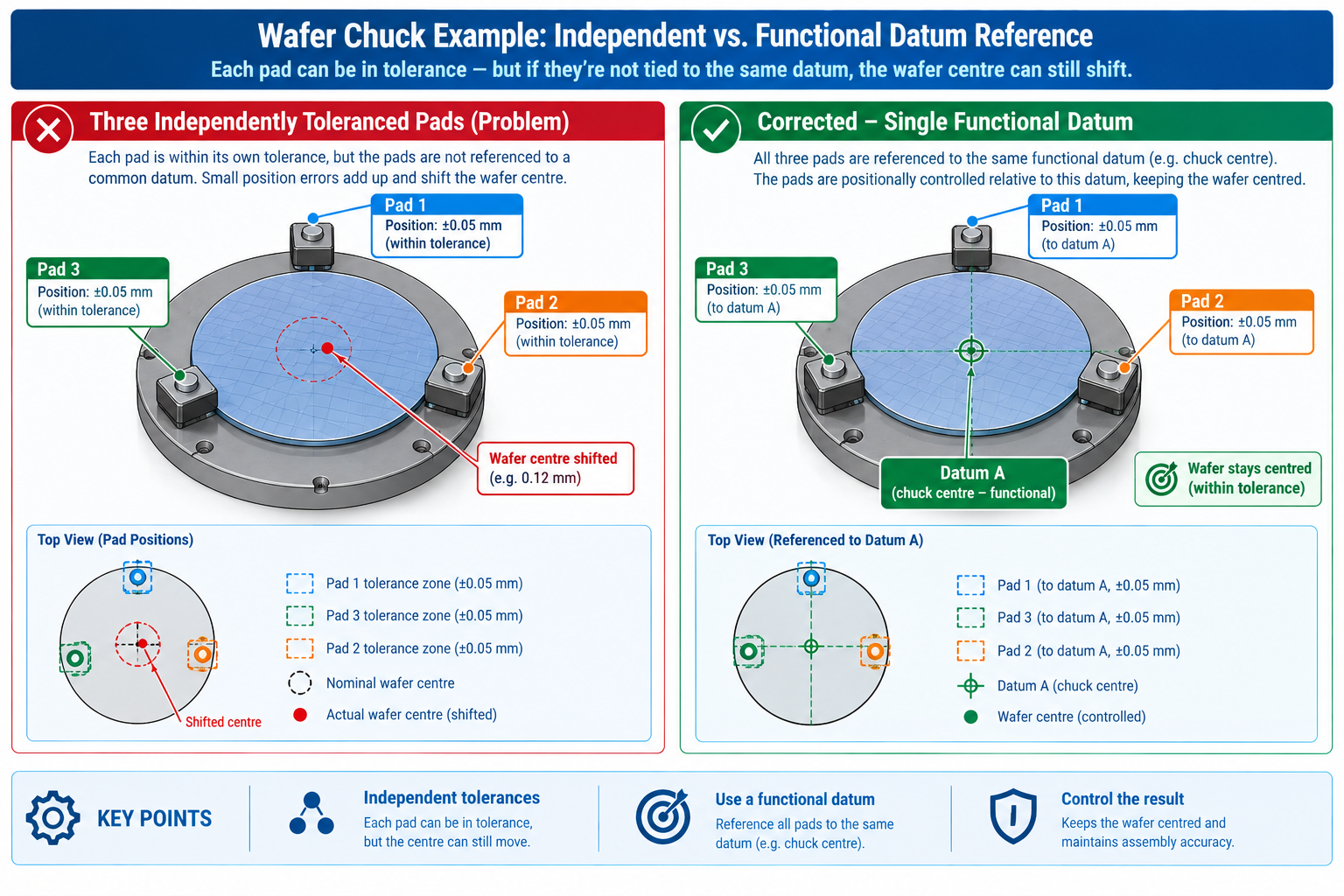

Understanding Datums

A datum is a theoretically exact point, axis, or plane from which measurements on a drawing are taken. In practice, datums are established by physical contact with datum features — the real surfaces, bores, or faces on the actual part that approximate the theoretical datum.

Datums are hierarchical. The primary datum (A) constrains the most degrees of freedom — typically established by the largest flat surface, which removes three degrees of freedom in a Cartesian system. The secondary datum (B) constrains two more. The tertiary datum (C) constrains the final degree of freedom. Together, the three-datum reference frame fully defines where the part sits in space, making every measurement repeatable and unambiguous.

The selection of datums is one of the most important decisions in applying GD&T. Datums should reflect the functional interface of the part — how it is located, constrained, and mated when it is in service. A datum chosen for manufacturing convenience rather than functional interface will produce parts that are easy to make but difficult to assemble correctly.

Real-World Example: A Precision Pump Housing

A pump housing has a central bore that must align accurately with the motor shaft axis. The mating face (the flat surface that bolts to the motor) is established as Datum A. The central bore of the housing is Datum B. The bolt hole pattern is controlled with True Position relative to Datums A and B.

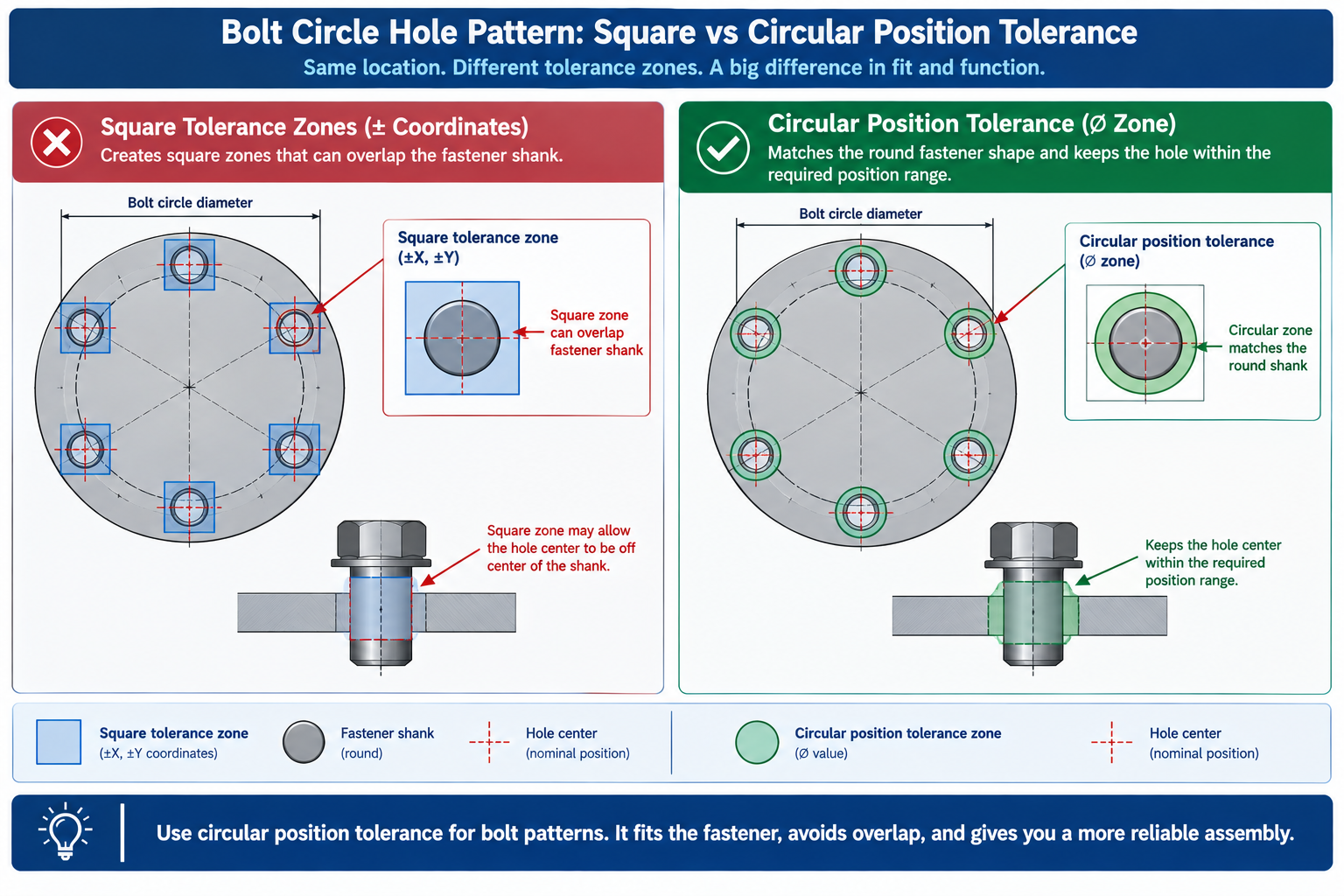

Without GD&T: the bolt holes are dimensioned from an edge with plus/minus tolerances. The machinist makes the holes to the numbers. But if the mating face is not perfectly square to the bore, the holes end up in the right coordinate positions but the housing does not align when assembled. The parts are technically within tolerance and still fail functionally.

With GD&T: the perpendicularity of the bore axis to the mating face is controlled explicitly. The bolt hole positions are defined relative to the bore centreline. The machinist and the inspector both have unambiguous requirements. Parts made to the drawing will assemble correctly — not because they happened to be made well, but because the drawing required it.

Common GD&T Mistakes That Drive Up Manufacturing Cost

GD&T applied well reduces manufacturing cost by ensuring tolerances match functional requirements — no tighter, no looser. Applied poorly, it can make drawings unnecessarily expensive to manufacture and inspect. These are the most frequent errors seen in GD&T annotations:

Mistake	What Goes Wrong	How to Avoid It
Over-tolerancing	Every feature is given a very tight tolerance ‘just to be safe’. Machining costs skyrocket because tight tolerances require slower speeds, more passes, and inspection at every stage.	Apply tight tolerances only where fit or function genuinely requires them. Most features can tolerate far more variation than designers assume.
Missing datum references	A positional or orientation tolerance is called out with no datum specified. The machinist has no reference frame — the control is unenforceable.	Every location and orientation control requires at least one datum. Form controls (flatness, circularity) are the exception — they do not need datums.
Redundant dimensions	Dimensions are duplicated across views, creating a closed loop. When tolerances stack up, it becomes mathematically impossible to satisfy all of them simultaneously.	Use reference dimensions (marked REF) for informational dimensions that already appear elsewhere. Never create a fully closed dimension chain.
Ignoring material condition modifiers	MMC (Maximum Material Condition) and LMC (Least Material Condition) modifiers allow tolerances to vary with feature size. Ignoring them means leaving allowable tolerance on the table, which raises manufacturing cost unnecessarily.	Understand MMC and LMC for hole-shaft fits and bolt patterns. Apply the appropriate modifier when the function of the part allows it.
Applying GD&T to the wrong features	A surface finish control is applied to a non-functional surface that has no mating or sealing requirement. This adds inspection cost for no functional benefit.	Apply controls only where they serve a functional purpose. Ask: ‘What breaks if this is out of specification?’ If nothing breaks, the control is unnecessary.

GD&T in CAD Software

Most professional 3D CAD platforms include GD&T annotation tools that apply feature control frames, datum labels, and tolerances directly to the model or to drawings generated from it. In SolidWorks, GD&T is added through the Annotations toolbar using the Geometric Tolerance dialog. CATIA uses its FT&A (Functional Tolerancing and Annotation) workbench. AutoCAD Mechanical includes a dedicated GD&T toolbar.

Increasingly, manufacturers and OEMs are moving towards Model-Based Definition (MBD) — embedding all GD&T and drawing information directly in the 3D model rather than generating 2D drawings. Under MBD, the 3D model itself is the authoritative manufacturing document. While MBD is not yet universal, its adoption is accelerating in aerospace, automotive, and precision manufacturing sectors.

Regardless of whether GD&T is applied to 2D drawings or 3D models, the underlying standard — and the functional thinking behind it — remains the same.

Frequently Asked Questions

1. Is GD&T required on all engineering drawings?

No, Geometric Dimensioning and Tolerancing (GD&T) is not required on all drawings. It is only used when form, orientation, or location of a feature is functionally critical.
For simple parts, coordinate tolerancing is usually sufficient. The key is to apply GD&T based on functional requirements, not habit.

2. What is the difference between ASME Y14.5 vs ISO 1101?

ASME Y14.5 and ISO 1101 are both GD&T standards, but they differ in rules and usage:

ASME Y14.5 → Common in the U.S., uses third-angle projection and specific rules for MMC, RFS
ISO 1101 → Used in Europe & Asia, has different symbols and interpretations

👉 Always confirm the standard used in drawings to avoid misinterpretation.

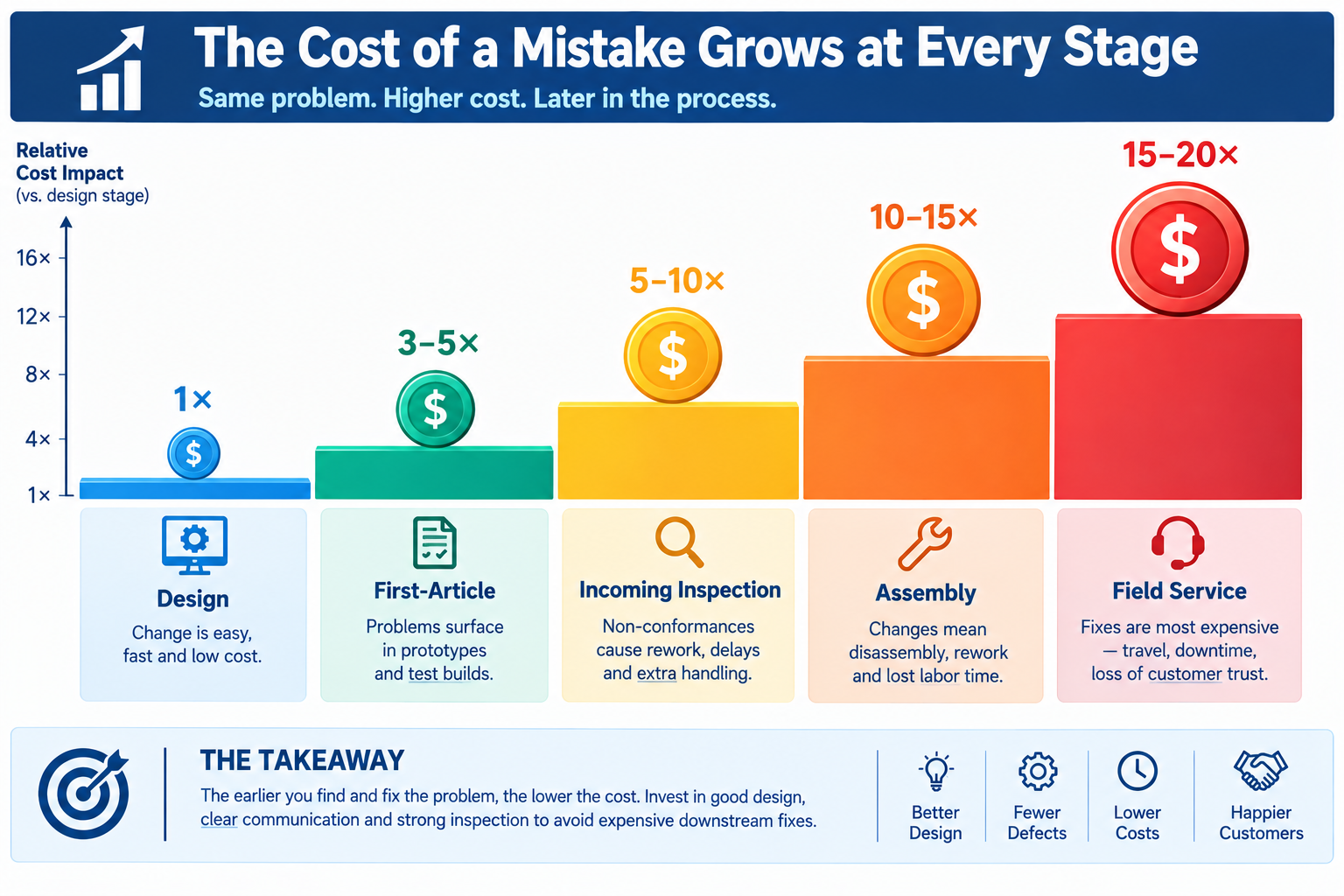

3. How does GD&T affect machining cost?

GD&T directly impacts manufacturing cost:

Tighter tolerances = more machining time, tooling, and inspection
Proper GD&T reduces scrap, rework, and errors

A well-defined GD&T drawing ensures precision only where needed, optimizing both cost and performance

4. Can GD&T be applied in 3D CAD models?

Yes. This is called Model-Based Definition (MBD).
GD&T is embedded directly into 3D CAD models using tools like:

SolidWorks MBD
CATIA FT&A
NX PMI

Benefits include a single source of truth, reduced errors, and improved engineering communication.

5. What does MMC (Maximum Material Condition) mean?

MMC (Maximum Material Condition) refers to the state where a feature contains the maximum amount of material:

Shaft → Largest diameter
Hole → Smallest diameter

Using the MMC modifier allows bonus tolerance, increasing flexibility and reducing manufacturing rejection rates without affecting function.

The Bottom Line

GD&T is not an optional extra for complex parts — it is a precision tool for communicating exactly what a part needs to do geometrically, and exactly how much variation is acceptable before it stops doing it. Used correctly, it reduces manufacturing cost, eliminates inspection ambiguity, and prevents the most common class of fit-and-function failures: parts made to the right dimensions that still do not work when assembled.

The investment in understanding GD&T — whether you are an engineer annotating drawings, a buyer reviewing a supplier’s documentation, or a quality manager setting up inspection criteria — pays back directly in fewer scrapped parts, fewer assembly problems, and fewer drawing revisions after the fact.

If you are reviewing an existing drawing set and want a second opinion on whether the tolerances are appropriate, or if you need GD&T applied correctly to a new design, that is exactly the kind of review SimuTecra’s drafting team provides.

Getting GD&T Right the First Time Saves Significant Cost

SimuTecra’s drafters apply GD&T to ASME Y14.5-2018 and ISO 1101 standards. We review every tolerance callout against the functional requirements of your part — not just the geometry. That means your drawings are manufacturable, inspectable, and cost-appropriate.

Share your part requirements and we will review your current drawing or produce a new one — correctly toleranced from the start.

April 12, 2026

How to Use Claude to Understand Engineering Drawings (A Guide for Non-Engineers)

You are in a project meeting. The engineer slides a drawing across the table — or emails you a PDF — and asks if you are happy with it. It is full of lines, numbers, symbols, and notations that mean nothing to you. You nod along, take a copy, and plan to figure it out later. This happens constantly in product development, procurement, and construction management, and it creates real risk: decisions made without understanding what is actually being decided.

Claude AI gives non-engineers a practical way out of this situation. You do not need to learn to read engineering drawings from scratch. You need to be able to ask the right questions about a specific drawing in front of you — and get answers in plain language that let you make informed decisions. This guide shows you exactly how to do that.

Why Engineering Drawings Are Hard to Read Without Training

Engineering drawings use a standardised visual language developed over more than a century. Views that show the same object from multiple angles simultaneously. Dimension lines with tolerances expressed in notation most people never encounter outside an engineering context. Symbols for surface finish, geometric tolerancing, and material treatment that have precise technical meanings invisible to the untrained eye.

Engineering drawings are the standardized,2D technical representations of 3D objects, essential for manufacturing and engineering communication. They are governed by international standards (ISO, ASME) and are critical, with roughly 70% of modern industrial product quality problems originating from drawing errors.
Source: Wikipedia — Engineering Drawing

This language exists for good reason. It communicates information precisely and unambiguously between trained engineers and machinists around the world — without that precision, manufactured parts would not fit together reliably. But that same precision makes drawings opaque to anyone who did not spend years learning the notation.

The gap this creates is significant. Project managers approve designs they cannot fully evaluate. Procurement teams sign off on drawing packages without knowing whether a tolerance is achievable or a specification is realistic. Founders receive deliverables from CAD partners without being able to verify they got what they paid for. Claude does not replace engineering knowledge — but it closes this gap meaningfully for the people who need it most.

You do not need to become an engineer to have a useful conversation about an engineering drawing. You need to know what to ask and how to ask it. Claude handles the translation.

engineering drawing explained for beginners | how to read technical drawing | engineering blueprint parts labelled

What Claude Can Actually Help You Decode

Before walking through the prompts, it helps to know what kinds of information are on a typical engineering drawing — and which of those Claude can explain in plain language when you describe or paste them in.

The Title Block

Every engineering drawing has a title block — usually in the bottom-right corner — that contains the part name, drawing number, revision level, material specification, scale, drawing standard (ASME or ISO), and the name of the engineer who created and approved it. This block tells you what you are looking at and whether the drawing is current. Claude can explain any field in the title block if you describe what you see.

Views and Projections

Engineering drawings typically show the same object from multiple angles — front, top, and side views — arranged in a standard layout. There may also be section views (which cut through the part to show internal features) and detail views (which zoom in on complex areas). Claude can explain why each view exists and what it is showing you.

Dimensions and Tolerances

Numbers on a drawing tell the manufacturer how big each feature is. The tolerance — shown as a plus/minus value or as a range — tells them how much variation is acceptable. When you see a dimension like ‘25.0 ±0.1’, Claude can explain what that means in practice: how precise the machinist needs to be, and what happens functionally if that tolerance is not met.

GD&T Symbols

Geometric Dimensioning and Tolerancing symbols are the most opaque part of a drawing for non-engineers. Small boxes containing geometric symbols and numbers define requirements for flatness, perpendicularity, position, and other geometric properties of features. Claude can translate these into plain language and explain why each control matters.

Notes and Specifications

Most drawings include a general notes section that specifies things like surface finish requirements, heat treatment, cleaning specifications, and drawing standards that apply across the whole part. Claude can explain any note you copy and paste in.

The Prompts to Use — and When to Use Them

These prompts are designed for the specific situations a non-engineer typically faces when dealing with engineering drawings. Use them directly in Claude — describe what you are seeing, paste text from the drawing where possible, and ask follow-up questions until you have clarity.

When You Need to Understand the Drawing Overall

PROMPT 1 — General Understanding

I have received an engineering drawing and I am not an engineer. I will describe what I can see on it. Please explain each element in plain language — what it means, why it is there, and what a manufacturer needs to do with it.[Describe the drawing: how many views there are, what the part appears to be, what numbers and symbols you can see, what the title block says, any notes sections, anything else that stands out]

This is your starting point when you are looking at an unfamiliar drawing for the first time. Claude will give you a structured explanation of what each part of the drawing communicates. Take notes on the things you want to follow up on.

When You Need to Verify a Specific Dimension or Tolerance

PROMPT 2 — Tolerance Check

On this engineering drawing, there is a dimension that reads [describe the dimension exactly — e.g. ‘18.5 +0.0/-0.2 mm on a shaft diameter’]. Can you explain:1. What this means in plain language2. How precise the machinist needs to be3. Whether this is a tight tolerance or a loose one for this type of feature4. What would happen functionally if this tolerance was not met

Use this when a specific dimension is being discussed in a meeting or when you want to understand whether a quoted tolerance is reasonable for the application. Claude’s answer gives you informed questions to ask your engineering team rather than having to take their answer on faith.

When You See a GD&T Symbol You Do Not Recognise

PROMPT 3 — GD&T Symbol Explanation

On this engineering drawing, there is a rectangular box with symbols in it. From left to right it shows: [describe what you see — e.g. ‘a circle with a cross inside it, then the diameter symbol and 0.5, then the letter A’].Please explain:1. What type of geometric control this is2. What it is requiring the manufacturer to achieve3. Why this control might be on this particular feature4. What would go wrong if this requirement was ignored

GD&T symbols are the most intimidating part of a drawing for non-engineers. This prompt turns any symbol combination into a plain-language explanation. You do not need to know what the symbol is called — just describe what you see.

When You Are Reviewing a Drawing Before Approving It

PROMPT 4 — Pre-Approval Review

I need to review and approve an engineering drawing before it goes to a manufacturer. I am not an engineer but I am responsible for sign-off.I will describe the drawing to you. Please help me:1. Identify the most important things to check before approving2. Flag any information that appears to be missing or incomplete3. Suggest questions I should ask the engineer before I sign off4. Highlight anything that seems unusual or worth querying[Describe the drawing in as much detail as you can]

This prompt is for procurement leads, project managers, and technical directors who need to sign off on drawing packages without having the engineering background to evaluate them independently. Claude acts as a structured second pair of eyes — not verifying the engineering, but identifying gaps and generating informed questions.

When You Want to Understand How the Part Is Made

PROMPT 5 — Manufacturing Context

Based on this engineering drawing, I want to understand how this part would typically be manufactured. The drawing shows [describe: the part shape, material noted, any surface finish callouts, any notes about manufacturing process].Please explain:1. What manufacturing process would most likely be used to make this part2. Which features are the most difficult or expensive to machine3. Whether the tolerances specified look typical or unusually tight for this type of part4. What I should understand about the manufacturing process when reviewing the timeline and cost estimate

This is particularly useful when you are evaluating a quote from a manufacturer. Understanding which features drive cost and lead time means you can have a much more productive conversation about schedule and price — and spot if something in the quote does not add up.

What to Do With Claude’s Answers

Claude gives you information and language. What you do with it determines the value. A few habits that make the most of Claude’s explanations in a real engineering context:

Write down the questions Claude’s answers generate. The goal is not to become an engineer overnight — it is to have better conversations with the engineers you work with. Use Claude to develop specific, informed questions and then take those questions to your engineering team or CAD partner.
Do not use Claude’s output as a substitute for engineering sign-off. Claude explains and interprets — it does not verify that a design is correct, that tolerances are achievable, or that a material is appropriate for the application. Those judgments require a qualified engineer.
Use the vocabulary Claude gives you. When Claude explains that the symbol on the drawing is a True Position control with a cylindrical tolerance zone referenced to Datum A, you now have the right terminology to ask your engineer a specific, targeted question. That changes the conversation.
Keep a running note of terms you have looked up. Engineering drawing vocabulary is consistent — once you have learned what a feature control frame is, that knowledge applies to every drawing you encounter. Build your own glossary as you go.

Check our blog to get free 20 prompts every engineer should know

The Limits of What Claude Can Do

Claude works from descriptions. It cannot see images or PDFs directly — you need to describe what you are looking at in text. This means some nuance is inevitably lost: the exact geometry of a complex surface, the precise arrangement of views, the specific layout of a drawing that a trained engineer would read at a glance. For complex drawings, describing everything accurately enough to get a fully useful response takes effort.

Claude also cannot tell you whether the engineering itself is correct. It can explain what a tolerance means but not whether that tolerance is achievable with the manufacturing process specified. It can explain what a material designation refers to but not whether that material is appropriate for the operating environment. It can tell you what questions to ask — not whether the answers are right.

For high-stakes approvals — drawings that will go directly to manufacturing, structural components, pressure-containing parts — there is no substitute for a qualified engineering review. What Claude offers is the ability to participate meaningfully in that review process rather than being a passive spectator.

Claude is the most useful engineering drawing tool you have access to if you are not an engineer. It is most valuable not as an answer machine, but as a question generator — giving you the language and confidence to have better conversations with the people who are.

The Bottom Line

Engineering drawings communicate with precision in a language most people never learn. That language barrier creates real risk in product development and procurement — decisions made by people who do not fully understand what they are deciding on. Claude does not eliminate that risk, but it reduces it meaningfully by giving non-engineers a way to engage with technical drawings in plain language.

The five prompts in this guide cover the situations non-engineers encounter most often: understanding a drawing from scratch, checking a specific dimension, decoding a GD&T symbol, preparing for a sign-off review, and understanding the manufacturing implications of what is specified. Start there, follow up on anything that is not clear, and use what you learn to have better conversations with the engineers and CAD partners you work with.

Working With Engineers But Not One Yourself?SimuTecra works with clients at every level of technical experience. Whether you are an engineer reviewing a complex drawing package or a project manager trying to understand what you are signing off on, our team communicates clearly and ensures you have the context you need at every stage of the project.Send us your drawings or your brief — we’ll take it from there.

April 11, 2026

What Is Engineering Drafting? A Beginner’s Guide to Technical Drawing

Every physical object that has ever been manufactured — from a bolt to a skyscraper — started as a drawing. Engineering drafting is the discipline that turns design intent into the precise, standardised documents that make manufacturing possible.

If you have ever received a set of technical drawings from an engineering firm, worked alongside a design team, or commissioned fabrication work, you have already interacted with engineering drafting — even if you did not know what to call it. This guide explains what engineering drafting actually is, what it produces, how it works, and why it still matters in an era of 3D modeling and digital manufacturing.

What Is Engineering Drafting?

Engineering drafting is the process of creating precise, standardised technical drawings that communicate the design of a part, structure, or system to the people responsible for building it. These drawings — sometimes called technical drawings, engineering drawings, or blueprints — define geometry, dimensions, tolerances, materials, and surface specifications in a format that leaves no room for interpretation.

Unlike a sketch or a concept illustration, an engineering drawing carries legal and contractual weight. It is the document a manufacturer refers to when setting up a machine, a fabricator refers to when cutting and welding steel, and a contractor refers to when installing mechanical systems. If something is built incorrectly, the drawing is the reference against which the dispute is resolved.

Engineering drafting sits at the intersection of engineering and communication. Its job is not to be beautiful — it is to be unambiguous.

The shift from hand-drawn drafting to Computer-Aided Design (CAD) transformed the speed and accuracy of the process, but it did not change its fundamental purpose. Today, the vast majority of engineering drawings are produced using CAD software such as AutoCAD, SolidWorks, or CATIA — but the standards, conventions, and principles that govern what a drawing must contain have remained largely consistent for decades.

Get the difference between 2D vs 3D CAD Drafting and when to used each

Engineering Drafting vs Engineering Design: An Important Distinction

These two terms are often used interchangeably, but they describe distinct activities. Engineering design is the process of solving an engineering problem — deciding how something should work, what it should be made of, and what form it should take. Engineering drafting is the process of documenting that solution in a precise, communicable format.

In practice, the same person often does both. But understanding the distinction matters when you are commissioning work: if you have a resolved design and simply need it documented for manufacturing, you need drafting. If you need someone to help figure out the design itself, you need design engineering. SimuTecra provides both, which is why understanding where your project sits on that spectrum is the starting point of any engagement.

What Does an Engineering Drawing Actually Contain?

A well-produced engineering drawing is structured — not a freeform document. Every element has a defined purpose and a defined location. Here is what you will find on a standard engineering drawing and why each element exists:

Drawing Element	What It Contains	Why It Matters
Title Block	Part name, drawing number, scale, revision, drafter, date, company name	Identifies the drawing and confirms you have the correct, latest revision
Revision Table	History of changes: revision letter, description, date, approver	Tracks every change made to the drawing over its lifetime
Orthographic Views	Front, top, side, and section views of the part	Communicates shape and geometry from multiple angles without ambiguity
Dimensions	Linear, angular, radius, and diameter measurements with units	Tells the manufacturer exactly how large every feature needs to be
Tolerances	Allowable variation on each dimension (plus/minus, limits, or GD&T)	Defines how precisely each feature must be made — controls fit and function
Material Callout	Material specification, grade, and sometimes heat treatment or finish	Tells the manufacturer what to make the part from
Surface Finish	Ra values, finish symbols, or text notes on specific surfaces	Controls how smooth or rough a surface needs to be for its function
Notes Section	General and specific notes: standards, treatments, inspection requirements	Captures any requirement that cannot be expressed graphically
BOM (assemblies)	List of all components: part number, description, quantity, material	Provides a complete parts list for assembly drawings

The level of detail included on any given drawing depends on its purpose. A detail drawing for a machined part will be heavily dimensioned with tight tolerances. A general arrangement drawing for a process plant might show only positional relationships and overall sizes, with the detail left to subordinate drawings. Both are equally valid — the question is always whether the drawing contains everything the reader needs to do their job.

A Real-World Example: The Humble Pressure Vessel Flange

Consider a standard pressure vessel flange — a circular steel fitting used to connect pipes in industrial systems. A complete drawing package for that flange includes a detail drawing specifying the exact outer diameter, bore, flange thickness, bolt hole circle diameter, number and size of bolt holes, and surface finish on the sealing face. It will call out the material grade (say, ASTM A105), specify any heat treatment, and reference the applicable standard (ASME B16.5).

Without that drawing, the machinist is guessing. With it, the flange can be produced to the same specification anywhere in the world — by any competent machinist, in any country — and it will fit correctly when it arrives on-site. That universality is the entire point of engineering drafting.

The Main Types of Engineering Drawings

Engineering drawings are not one-size-fits-all. Different types of drawings serve different purposes at different stages of a project. The table below covers the most common types you are likely to encounter:

Drawing Type	What It Shows	Common Use
Detail Drawing	A single component in full — all dimensions, tolerances, material	Machined parts, fabricated components
Assembly Drawing	How multiple parts fit together; includes BOM	Gearboxes, structural frames, product assemblies
GA Drawing	Overall layout and spatial arrangement of a system	Plant design, facilities, building services
Fabrication Drawing	Weld symbols, bend lines, cut profiles, material for fabricated items	Steel structures, sheet metal, pressure vessels
Schematic Drawing	System logic using symbols — not physical layout	Electrical, hydraulic, pneumatic systems

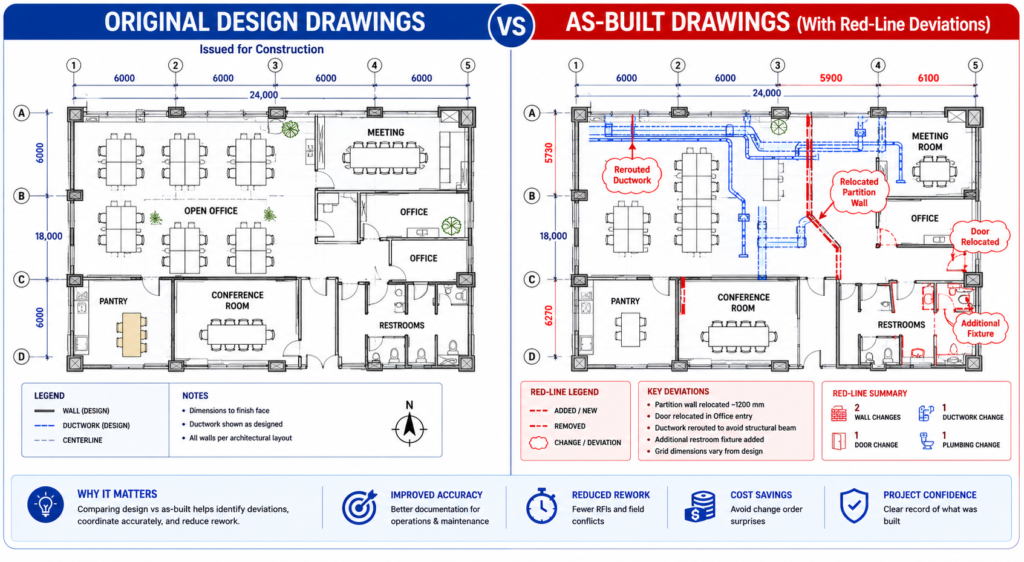

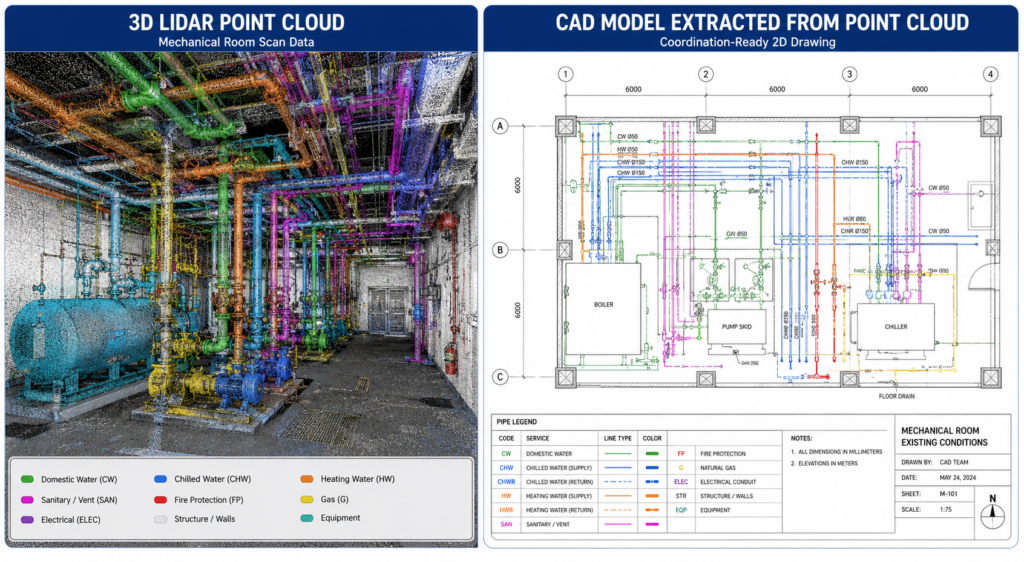

As-Built Drawing	What was actually constructed, updated after installation	Facilities management, renovation, maintenance
Shop Drawing	Contractor-produced drawing showing how they intend to build or fabricate	Construction, steelwork, glazing, joinery

Most projects require more than one drawing type. A new industrial facility, for example, might require general arrangement drawings for overall layout, fabrication drawings for structural steelwork, schematics for electrical and hydraulic systems, and as-built drawings once construction is complete. Each drawing type feeds into the next stage of the project.

Drawing Standards: Why ASME, ISO, and DIN Exist

Engineering drawings only work as a universal communication tool if everyone reading them interprets them the same way. That is the job of drawing standards — they define exactly how dimensions should be presented, what symbols mean, how tolerances are expressed, and how views should be arranged.

Drawing Standards: Why ASME, ISO, and DIN Simutecra

The three major standards frameworks you will encounter are:

ASME Y14.5 (American Society of Mechanical Engineers): The dominant standard in the United States and widely used in North America. Governs dimensioning, tolerancing, and GD&T notation. Most manufacturing and engineering firms in the US work to ASME standards unless a client specifies otherwise.
ISO 128 / ISO 1101 (International Organization for Standardization): The international standard used across Europe, Asia, and most of the rest of the world. Similar in intent to ASME but with some differences in projection method, GD&T notation, and symbology. When working with international suppliers or clients, knowing which standard applies is critical.
DIN (Deutsches Institut fur Normung): The German standard, now largely harmonised with ISO. Still referenced on drawings produced in Germany and sometimes seen in Central European manufacturing supply chains.

When commissioning engineering drawings, always specify which standard you require. A drawing produced to ISO first-angle projection cannot be read correctly by someone trained only on ASME third-angle projection — the views appear mirrored.

SimuTecra produces drawings to ASME, ISO, or client-specified standards. If you are not sure which applies to your project, the answer is usually determined by where the parts will be manufactured or which country the client is based in.

What Does an Engineering Drafter Actually Do?

The role of an engineering drafter is more than operating CAD software. A competent drafter interprets design intent from sketches, specifications, or engineer markups and translates it into precise drawings. They apply the correct dimensioning scheme, select appropriate tolerances based on fit and function requirements, add surface finish callouts, reference applicable material standards, and structure the drawing package so it can be read and used without ambiguity by the manufacturing team.

They also manage revisions — when a design changes, the drafter updates affected drawings, increments the revision level, records the change in the revision table, and reissues the affected sheets. In a production environment, drawing control is as important as drawing quality. An outdated drawing in the hands of a machinist is a manufacturing defect waiting to happen.

At SimuTecra, drafters work closely with engineers and clients through each revision cycle, maintaining a clear audit trail from concept through to final issued-for-construction drawings.

Frequently Asked Questions

Question	Answer
Is engineering drafting still relevant with 3D modeling?	Absolutely. 3D modeling is a powerful design tool, but a 2D drawing package remains the standard deliverable for manufacturing. Fabricators, machinists, and contractors work from 2D drawings because they define the legal specification of what is to be made. In most projects, 3D modeling and 2D drafting are used together — the model is the design environment, the drawing is the manufacturing document.
What software do engineering drafters use?	The most widely used tools are AutoCAD (2D drafting, all industries), SolidWorks (mechanical and product design), CATIA (aerospace and automotive), Autodesk Inventor (mechanical), and Revit (building and infrastructure, used alongside AutoCAD for MEP and structural work). The right tool depends on the industry and the complexity of the work.
How long does it take to produce an engineering drawing?	It depends entirely on complexity. A simple machined part detail drawing might take two to four hours. A complex assembly drawing with a full BOM could take two days. A full drawing package for a structural steel frame or a process plant module could take several weeks. The most reliable way to estimate is to share your scope with a drafting partner and request a breakdown.
What industries use engineering drafting?	Engineering drafting is used in virtually every industry that involves physical construction or manufacturing: mechanical and product engineering, civil and structural engineering, architecture, oil and gas, mining, aerospace, automotive, marine, HVAC and building services, electronics manufacturing, and more. The specific drawing types and standards vary by industry, but the underlying discipline is the same.
What is the difference between a blueprint and an engineering drawing?	Technically, ‘blueprint’ refers to an older reproduction process that produced white lines on a blue background. The term has stuck as a colloquial term for any engineering drawing, even though modern drawings are produced digitally and printed on white paper. In professional practice, ‘engineering drawing’ or ‘technical drawing’ is the correct term.

The Bottom Line

Engineering drafting is one of the oldest and most essential disciplines in engineering — and despite decades of technological change, its core purpose has not shifted: to communicate design intent precisely enough that anyone with the relevant skill can build the thing correctly, first time.

Whether you are a project manager reviewing a drawing package, a business owner commissioning fabrication work, or an engineer looking to understand what your drafting team actually produces, the fundamentals covered in this guide give you the foundation to engage with technical drawings with confidence.

The next step is learning how to read what is on them — which is exactly what the next article in this series covers.

Need Engineering Drawings You Can Actually Build From?

SimuTecra produces 2D drafting packages and 3D CAD models for manufacturing, fabrication, and construction clients worldwide. Every drawing is produced to your specified standard — ASME, ISO, or client-specific — and reviewed for accuracy before delivery.

Send us your project details and get a clear scope and quote — no obligation.

April 8, 2026
