    How to Create a 3D Model from 2D Views in AutoCAD

    Most AutoCAD users start their careers working in 2D: drawing lines, arcs, and polylines on a flat plane. At some point, the need arises to take those 2D drawings, whether they are orthographic views from a hand drawing, a scanned technical sketch, or an existing 2D CAD file, and construct a proper 3D solid model from them. This is the fundamental skill that bridges 2D drafting and 3D engineering design.

    It is also, honestly, one of the tasks that AutoCAD tutorials handle poorly. Most guides either teach 3D modelling from scratch without explaining how to interpret existing 2D views, or they explain how to generate 2D drawings FROM an already-completed 3D model. Neither of those answers the question most engineers and students are actually asking: I have a set of 2D orthographic drawings and I need to build the 3D solid from them. Where do I start?

    This guide answers that question from beginning to end. It covers the complete workflow: understanding orthographic projection, setting up the AutoCAD 3D modelling workspace, configuring the User Coordinate System (UCS) for each operation, building the 3D solid using EXTRUDE, REVOLVE, LOFT, SWEEP, and PRESSPULL, adding features using Boolean operations, and finally generating professional 2D drawing views from the completed 3D model using FLATSHOT and VIEWBASE. Every section includes numbered steps and practical guidance that works in the real drawing environment.

    Quick Overview:  The process of creating a 3D model from 2D views in AutoCAD has five stages: (1) Read and understand the 2D orthographic views to mentally reconstruct the 3D shape. (2) Set up the 3D Modelling workspace and configure visual styles. (3) Draw 2D profiles on the correct planes using the UCS. (4) Use solid creation commands (EXTRUDE, REVOLVE, LOFT, SWEEP, PRESSPULL) to generate 3D geometry from those profiles. (5) Use Boolean operations (UNION, SUBTRACT, INTERSECT) to combine and cut geometry to produce the final form.

    Understanding Orthographic Projection: Reading 2D Views Correctly

    Before touching AutoCAD, the most important skill for creating a 3D model from 2D views is the ability to read orthographic projection drawings correctly. Orthographic projection is the system used to represent a 3D object on a 2D drawing sheet using multiple flat views, each showing the object from a different direction.

    First angle versus third angle orthographic projection diagram showing view arrangement and projection symbols for engineering drawing interpretation

    First Angle vs Third Angle Projection

    There are two projection systems used globally, and confusing them leads to completely wrong 3D models:

    Projection TypeUsed InView ArrangementSymbol
    First Angle (European)UK, Europe, Asia (except USA/Canada/Australia)The front view is in the centre. The right-side view is placed to the LEFT of the front view. The top view is placed BELOW the front view.Circle with a truncated cone pointing left
    Third Angle (American)USA, Canada, AustraliaThe front view is in the centre. The right-side view is placed to the RIGHT of the front view. The top view is placed ABOVE the front view.Circle with a truncated cone pointing right

    Always check which projection system a drawing uses before modelling. The projection symbol is usually located in the title block. Building from the wrong projection system produces a mirror-image or incorrectly oriented 3D model.

    The Three Standard Views and What Each Shows

    • Front View (Elevation): Shows the height and width of the object as seen from the front. This is almost always the most informative view and the starting point for 3D modelling.
    • Top View (Plan): Shows the width and depth of the object as seen from above. Reveals the footprint and any features on the top surface.
    • Side View (Right or Left): Shows the height and depth of the object. Reveals the profile of the side face and any features not visible from the front.
    The golden rule of orthographic reading: any dimension that appears in two adjacent views refers to the same feature. Width is shared between the front view and the top view. Height is shared between the front view and the side view. Depth is shared between the top view and the side view. When a feature is visible in all three views, it is fully defined: you know its exact position, shape, and size in 3D space.

    Hidden Lines and Centre Lines in 2D Views

    On engineering drawings, hidden lines (dashed lines) indicate edges and features that exist behind the visible surface being shown. These are critically important when 3D modelling: they reveal holes, channels, recesses, and internal features that are not visible in the current view but must be represented in the 3D solid. Centre lines (dashed-dot lines) indicate the axis of symmetry, the centre of circular features, and the position of holes. Always account for every hidden line in your 3D model.

    Read pillar content: AutoCAD tutorials for beginners and professionals

    Setting Up the AutoCAD 3D Modelling Workspace

    AutoCAD organises its tools into workspaces. The default Drafting and Annotation workspace is configured for 2D work and hides the 3D tools. Before any 3D modelling, switch to the dedicated 3D environment.

    AutoCAD 3D modelling four-viewport layout showing top, front, right, and isometric views of a 3D bracket model simultaneously

    Switching to the 3D Modelling Workspace

    1. Click the Workspace Switching icon in the bottom-right of the status bar (gear icon).
    2. Select 3D Modelling from the menu. The ribbon updates to show 3D-specific tabs and panels: Home (with 3D tools), Solid, Surface, Mesh, Visualize, and others.

    Setting Up the Visual Style

    AutoCAD’s visual style controls how 3D geometry is displayed on screen. For most 3D modelling work, the ideal visual style is Conceptual or Shades of Gray: these display solid faces with shading that makes the 3D form clearly visible while keeping edges defined.

    1. In the View tab > Visual Styles panel, click the dropdown and select Conceptual or Shades of Gray.
    2. Alternatively, type VSCURRENT in the command line, press Enter, and type C for Conceptual.

    Setting Up Multiple Viewports

    Working in 3D is significantly easier when you can see the model from multiple directions simultaneously. Setting up a four-viewport layout (Top, Front, Right, Isometric) at the start of any 3D session is strongly recommended.

    1. Go to View tab > Viewports panel > Named Viewports.
    2. Select Four: Equal from the standard viewports list and click OK.
    3. Click in each viewport and use the View Cube (top-right corner) or type VIEW to set each viewport to a different view direction: Top, Front, Right/Left, and SE Isometric.
    Professional Habit:  Before starting 3D work, set your 3D coordinate system to World UCS by typing UCS and pressing Enter, then W and Enter. This resets the UCS to the standard X (right), Y (up), Z (toward you) orientation. All subsequent modelling operations will reference a known, consistent coordinate base.

    Understanding the User Coordinate System (UCS) in 3D

    The User Coordinate System (UCS) is the single most important concept to understand in AutoCAD 3D modelling. Every drawing operation in AutoCAD happens relative to the current UCS. In 2D work, the UCS is always flat on the screen and most users never think about it. In 3D, you must actively control the UCS to draw profiles on the correct planes.

    Think of the UCS as a movable drawing board. When you draw a 2D profile to extrude, AutoCAD draws it on the current XY plane of the UCS. If the UCS is oriented with its XY plane aligned to the front face of your model, you will draw the front profile correctly. If you need to draw on the top face, you rotate or move the UCS so its XY plane aligns to the top. Getting the UCS wrong is the most common cause of 3D profiles appearing in the wrong position or orientation.

    Key UCS Commands

    Command / OptionWhat It DoesWhen to Use It
    UCS > W (World)Resets UCS to the default World coordinate system: X right, Y up, Z toward viewerAt the start of any modelling session and whenever you want to return to the global reference system
    UCS > F (Face)Aligns the UCS XY plane to a selected face of a 3D solidWhen you need to draw on or extrude from a specific face of an existing solid
    UCS > V (View)Aligns the UCS to the current view direction (XY plane perpendicular to the view)When you need to draw text or 2D annotation flat to the current view
    UCS > 3P (3 Points)Defines the UCS using three picked points: origin, X direction, Y directionWhen you need to define a custom inclined or angled plane not aligned to any standard view
    UCS > X / Y / ZRotates the current UCS around the specified axis by a defined angleWhen you need to tilt the drawing plane by a known angle from its current orientation
    UCSMAN (UCS Manager)Opens the UCS Manager dialogue to save, restore, and manage named UCS configurationsIn complex models where you use many different UCS orientations and need to switch between them reliably
    The Most Common UCS Mistake:  Drawing a 2D profile for extrusion without first verifying the current UCS orientation. If you draw what you think is a front-face profile but the UCS is still set to Top view orientation, the profile will be flat on the ground plane and the extrusion will go sideways rather than forward. Always check the UCS icon orientation before drawing. The X arrow should point in the direction you expect, and the Y arrow should point upward (for front-face profiles).

    Step 1: Draw Your 2D Profiles in the Correct Planes

    The foundation of AutoCAD 3D modelling is a correctly drawn 2D profile. A profile is a closed 2D shape (polyline, region, or a closed boundary of lines and arcs) that defines the cross-section or outline of a 3D feature. The accuracy of your 3D model depends entirely on the accuracy of these profiles.

    Rules for Profiles That Work Reliably

    • Profiles must be closed: A polyline must have its last segment connecting back to its first point. Use PEDIT > Close to close an open polyline, or REGION to convert a set of connected objects into a closed region.
    • Profiles must be on the correct plane: Set the UCS before drawing. Draw all profile geometry while the UCS XY plane is aligned to the intended extrusion plane.
    • Profiles must be drawn at true scale: Draw dimensions exactly as stated on the 2D drawing. Use the exact dimensions from the front, top, or side view as appropriate. Do not scale or approximate.
    • Use OSNAP for all intersections: Ensure endpoints connect precisely. Use PEDIT > Join to combine separate line segments into a single closed polyline before extruding.
    • One profile per closed region: If your profile has nested closed shapes (for example, an outer rectangle with a circular hole), you can create both as separate closed profiles and then subtract the inner from the outer after extrusion.

    Drawing a Profile from a 2D Front View

    1. Set the UCS to World (type UCS, Enter, W, Enter).
    2. In your isometric or front viewport, type PL (POLYLINE) and Enter.
    3. Draw the outline of the front view profile using the dimensions from the 2D drawing, using ORTHO (F8) to constrain to horizontal and vertical.
    4. When the polyline is closed back to the start point, type C and Enter to close it exactly. Verify closure with PEDIT > Close if needed.
    5. To include arcs within a polyline profile, switch between line and arc mode within the POLYLINE command using the A (Arc) and L (Line) sub-options.

    Step 2: EXTRUDE — Pushing a 2D Profile into a 3D Solid

    EXTRUDE is the most fundamental and widely used 3D solid creation command in AutoCAD. It takes a closed 2D profile and pushes it a specified distance perpendicular to its plane, generating a 3D solid with the cross-section of the profile.

    When to Use EXTRUDE

    Use EXTRUDE for any component that has a consistent cross-section along one axis: prismatic parts, beams, channels, frames, extruded aluminium profiles, panels, plates with cutouts, and most architectural elements. It is the right command when the front view and side view are different but the top view shows a uniform shape.

    Full Step-by-Step: EXTRUDE Command

    1. Draw your closed 2D profile on the correct UCS plane (see Step 1).
    2. Type EXT (EXTRUDE) and press Enter.
    3. Select the closed profile (polyline or region). Press Enter to confirm selection.
    4. AutoCAD prompts: Specify height of extrusion or [Direction/Path/Taper angle/Expression]:
    5. For a straight extrusion to a specific depth, type the depth dimension from your 2D side view and press Enter. The profile extrudes perpendicular to its drawing plane.
    6. The 3D solid appears. Use the orbit tool (type 3DORBIT or press Shift + middle mouse button) to inspect the result from different angles.

    EXTRUDE Advanced Options

    • Direction: Specify two points to define the direction vector of the extrusion instead of the default perpendicular. Allows diagonal extrusions.
    • Path: Extrude the profile along a drawn path (line, arc, polyline, or spline). Produces tapered or curved extrusions following the path. Similar to SWEEP (covered next).
    • Taper angle: Adds a draft angle to the extrusion walls. Positive angle tapers inward, negative angle tapers outward. Used for injection moulded parts and castings requiring draft.
    Best Practice:  After extruding, immediately check the result in the isometric viewport. The depth of the extrusion should match the depth dimension shown in the top view of your 2D drawing. If the solid looks correct in the front viewport but wrong from above, the extrusion direction may need to be reversed. Type EXTRUDE, select the profile, and enter a negative depth value to extrude in the opposite direction.

    Step 3: REVOLVE — Creating Solids of Revolution

    The REVOLVE command creates a 3D solid by rotating a 2D profile around a specified axis. It is the correct command for any object that is radially symmetric: shafts, bolts, cylinders, cones, pipes, flanges, turned components, and any part whose cross-section, when rotated 360 degrees around its centre axis, produces the complete 3D form.

    Identifying Parts That Require REVOLVE

    On 2D orthographic drawings, parts suited to REVOLVE are easy to identify: the front view and side view are identical or nearly identical (circular symmetry), and the top view shows a circle or concentric circles. The 2D profile for REVOLVE is drawn as a half-section: the right half of the cross-sectional outline from the centre axis outward.

    Full Step-by-Step: REVOLVE Command

    1. Draw the half-profile of the component as a closed polyline or region. Draw it on the side you want to revolve: one edge of the profile must lie exactly on the intended axis of revolution.
    2. Draw the axis line for the revolution, or identify that the profile’s straight edge will serve as the axis.
    3. Type REV (REVOLVE) and press Enter.
    4. Select the closed profile. Press Enter.
    5. AutoCAD prompts: Specify axis start point or define axis by [Object/X/Y/Z]:. Click the first point of the revolution axis.
    6. Click the second point of the revolution axis, or type X to revolve around the X axis, Y for Y axis, or Z for Z axis.
    7. AutoCAD prompts: Specify angle of revolution:. For a complete solid, type 360 and press Enter. For a partial revolution (e.g. a half-pipe or swept arc), enter the angle.

    Step 4: LOFT — Blending Between Two or More Profiles

    The LOFT command creates a 3D solid or surface that blends smoothly between two or more cross-section profiles located at different positions along the model. It is the correct command when a component changes shape from one cross-section to another: tapered housings, aircraft fuselage shapes, transitions between square and round ducts, and any component whose profile varies along its length.

    Full Step-by-Step: LOFT Command

    1. Draw at least two closed 2D profiles at different positions along the intended axis of the solid. Each profile defines the cross-section of the solid at that location.
    2. Type LOFT and press Enter.
    3. Select the cross-section profiles in order from one end of the solid to the other. Press Enter after selecting all profiles.
    4. AutoCAD prompts with options: Guides / Path / Cross-sections only / Settings. For most cases, press Enter to accept cross-sections only and AutoCAD creates the lofted solid.
    5. In the Loft Settings dialogue, choose Smooth Fit for organic shapes or Ruled for a linear (flat-faceted) transition between profiles.

    Step 5: SWEEP — Extruding a Profile Along a Path

    The SWEEP command extrudes a 2D profile along any drawn path: a line, arc, polyline, circle, ellipse, or spline. Unlike EXTRUDE (which always extrudes perpendicular to the profile plane), SWEEP follows the geometry of the path. It is the correct command for curved parts: pipe bends, handrails, spiral springs, cam profiles, and any component with a consistent cross-section following a curved or complex path.

    Full Step-by-Step: SWEEP Command

    1. Draw the cross-section profile (the shape you want to sweep). This must be a closed polyline or region.
    2. Draw the path that the profile will follow (a line, arc, polyline, circle, or spline).
    3. Type SWEEP and press Enter.
    4. Select the cross-section profile. Press Enter.
    5. AutoCAD prompts: Select sweep path or [Alignment/Base point/Scale/Twist]:. Click the path object.
    6. AutoCAD sweeps the profile along the entire path, generating the 3D solid.

    Step 6: PRESSPULL — The Fastest Way to Add or Remove Material

    PRESSPULL is one of the most intuitive and fastest tools for modifying 3D solids in AutoCAD. It detects closed bounded regions on the surface of a solid or within a 2D drawing and either pushes (removes material) or pulls (adds material) those regions to create features. It works like a physical push-and-pull action: click inside a bounded area and drag to add or subtract a boss or pocket.

    Full Step-by-Step: PRESSPULL Command

    1. Type PRESSPULL and press Enter.
    2. Move the cursor over the bounded region you want to press or pull (a face of a solid, a closed polyline on a solid face, or a 2D closed boundary in model space). The region highlights.
    3. Click inside the highlighted region.
    4. Move the cursor upward to pull (add material) or downward to press (remove material). The solid face deforms dynamically.
    5. Type the exact distance and press Enter, or click a second point to define the depth of the press or pull.
    PRESSPULL vs EXTRUDE:  PRESSPULL is best for quickly adding or removing features on an existing solid (adding a boss, cutting a pocket, pushing a hole). EXTRUDE is better for creating the initial solid from a flat profile or for complex extrusions with taper or path options. In practice, most engineers use EXTRUDE or REVOLVE to create the base solid and PRESSPULL to add or remove features.

    Step 7: Boolean Operations — Combining and Cutting Solids

    Boolean operations are the fundamental tools for combining, cutting, and intersecting 3D solids to create complex forms from simpler ones. In AutoCAD, the three Boolean commands are UNION, SUBTRACT, and INTERSECT. Together they form the backbone of constructive solid geometry (CSG) modelling, the approach underlying most 3D solid modelling workflows.

    AutoCAD SUBTRACT Boolean operation diagram showing 3D solid body and cylinder cutter before and after subtraction to create a through hole

    UNION — Combining Two or More Solids

    UNION merges two or more overlapping or touching 3D solids into a single combined solid object. Use it to combine separate solid features into one complete component.

    1. Type UNION and press Enter.
    2. Select all the 3D solid objects you want to combine. Press Enter.
    3. AutoCAD merges all selected solids into one unified solid.

    SUBTRACT — Cutting One Solid from Another

    SUBTRACT removes the volume of one solid from another. It is used to create holes, pockets, slots, recesses, and any feature that removes material. The workflow is: create the solid body first, then create the cutting solid (a cylinder for a hole, a box for a rectangular pocket), then subtract the cutter from the body.

    1. Create the body solid (the part from which material will be removed).
    2. Create the cutter solid (the shape of the material to be removed: a CYLINDER for a hole, BOX for a rectangular pocket, etc.). Position it precisely where the hole or pocket needs to be.
    3. Type SU (SUBTRACT) and press Enter.
    4. Select the body solid (the one you are cutting FROM). Press Enter.
    5. Select the cutter solid (the one being subtracted). Press Enter.
    6. AutoCAD removes the cutter volume from the body, creating the hole or pocket.

    INTERSECT — Keeping Only the Overlapping Volume

    INTERSECT retains only the volume where two or more solids overlap, discarding everything outside the intersection. It is useful for complex shapes that can be defined as the intersection of two simpler shapes, and for checking whether components clash in an assembly.

    1. Type INTERSECT and press Enter.
    2. Select the two or more solids to intersect. Press Enter.
    3. AutoCAD keeps only the overlapping volume.

    Step 8: Adding Holes, Fillets, and Chamfers to the 3D Model

    After the primary 3D form is established using EXTRUDE, REVOLVE, LOFT, or SWEEP and combined using Boolean operations, most mechanical components require additional features: holes, fillets (rounded edges), and chamfers (bevelled edges). These are added directly to the 3D solid.

    Adding Holes Using SUBTRACT

    To add a hole to a 3D solid: type CYLINDER and press Enter. Specify the centre of the hole (snap to the exact position using OSNAP and the dimensions from the 2D drawing), the radius (from the drawing), and the height (at least as deep as the solid thickness). Then use SUBTRACT: select the body solid, Enter, select the cylinder, Enter. The hole is cut.

    Adding Fillets Using the 3D FILLET Command

    The FILLET command works on 3D solid edges as well as 2D objects. Type FILLET (or F) and press Enter. Select the edge(s) of the 3D solid you want to round. Type the fillet radius from the engineering drawing and press Enter. AutoCAD rounds the selected edges.

    Adding Chamfers Using the 3D CHAMFER Command

    Similarly, the CHAMFER command (CHA) works on 3D solid edges. Select the base surface first (AutoCAD may highlight a face), confirm the correct face, select the edge to chamfer, and specify the chamfer distances. Chamfers on external edges of machined components are common and necessary to represent accurately for manufacturing.

    Step 9: Generating 2D Drawing Views from the 3D Model

    Once the 3D model is complete, the final step in the workflow is generating professional 2D drawing views from it for documentation, manufacturing, or client delivery. AutoCAD provides two main approaches: FLATSHOT for quick 2D projections directly in model space, and VIEWBASE/VIEWPROJ for full paper space drawing view management.

    Method A: FLATSHOT — Quick 2D Projections

    FLATSHOT creates a flat 2D projection of all visible geometry from the current view direction, placing the result as a block in model space. It is fast and simple, ideal for quickly generating a front, top, or side view outline.

    1. Set the current view to the direction you want to flatten (e.g. Front View using the View Cube).
    2. Type FLATSHOT and press Enter.
    3. In the Flatshot dialogue, set visible lines to a solid line and hidden lines to the HIDDEN linetype (or no hidden lines if not required).
    4. Click Create. AutoCAD asks where to insert the resulting block.
    5. Click a location in model space to place the 2D view. Scale it to your requirements.

    Method B: VIEWBASE — Professional Drawing Views in Paper Space

    VIEWBASE generates intelligent, associative 2D drawing views from a 3D model directly in a paper space layout. These views update automatically if the 3D model is modified, making VIEWBASE the professional standard for generating 2D documentation from AutoCAD 3D models.

    1. Switch to a Layout tab (paper space).
    2. Go to Layout tab > Create View panel > Base > From Model Space.
    3. In the Drawing View Creation tab that appears, set the view orientation (Front, Top, etc.) and scale.
    4. Click to place the base view on the layout sheet.
    5. AutoCAD automatically prompts you to add projected views. Click to the right of the base view to add a right-side view, above for a top view, and diagonally for an isometric view.
    6. Press Esc when all required views are placed.
    7. Add dimensions, annotations, and title block as normal. If you later modify the 3D model, all views update automatically.

    Complete Worked Example: Bracket from Orthographic Views

    To tie all of the above together, here is a complete step-by-step workflow for building a typical mounting bracket from a three-view orthographic drawing. The bracket is an L-shaped plate with two mounting holes and a fillet on the internal corner.

    StageWhat You DoCommands Used
    1. Read the drawingIdentify front, top, and side views. Note the L-shape in the front view, the depth dimension in the side view, and the hole positions in the top view.None — analysis only
    2. Set up workspaceSwitch to 3D Modelling workspace. Set visual style to Conceptual. Set up 4 viewports (Top, Front, Right, Isometric). Type UCS > W to reset to World.VSCURRENT, VPORTS, UCS
    3. Draw base profileOn World UCS (XY = front plane), draw closed polyline of the L-shape from the front view dimensions. Include the inner corner at exact coordinates.PL (POLYLINE), ORTHO (F8)
    4. Extrude baseSelect the L-profile, type EXT, press Enter. Enter the bracket thickness (depth from side view). 3D L-shape solid appears.EXT (EXTRUDE)
    5. Add fillet to internal cornerType F (FILLET), select the internal vertical edge of the L-solid, enter fillet radius from drawing.F (FILLET)
    6. Create hole cuttersType CYLINDER, snap to hole centre positions (from top view dimensions), enter hole radius and full height through bracket. Create one cylinder per hole.CYLINDER, OSNAP
    7. Subtract holesType SU (SUBTRACT). Select the L-solid (body). Press Enter. Select all cylinders (cutters). Press Enter. Holes are cut.SU (SUBTRACT)
    8. Inspect the modelUse 3DORBIT to rotate and inspect all faces. Check holes appear in correct positions, fillet is correct, proportions match the drawing.3DORBIT, ZOOM
    9. Generate 2D viewsSwitch to Layout tab. Use VIEWBASE > From Model Space to place Front, Top, Right, and Isometric views at correct scale in paper space.VIEWBASE, VIEWPROJ
    10. Add dimensions and annotationsDimension all views using DIMLINEAR, DIMRADIUS, etc. Add surface finish, GD&T, and title block information.DLI, DRA, MTEXT

    Common Mistakes When Creating 3D Models from 2D Views

    MistakeWhat HappensHow to Avoid It
    Drawing profiles without setting the UCS firstThe profile is created on the wrong plane, and the extrusion goes in the wrong direction or appears at an unexpected locationAlways type UCS > W (World) to reset first. Then reorient the UCS to the correct face before drawing any profile.
    Open polyline profileEXTRUDE fails with ‘Object is not a closed loop’ error, or creates a surface instead of a solidBefore extruding, type PEDIT, select the polyline, choose Close. Or use REGION to convert connected line objects into a closed region.
    Not checking projection type (First vs Third Angle)The side view is placed on the wrong side, leading to an incorrectly mirrored or rotated 3D modelAlways check the projection symbol in the title block before reading any orthographic drawing.
    Extruding in the wrong directionThe solid extrudes toward the viewer instead of into the screen, or vice versaAfter extruding, inspect in the isometric viewport. If depth is wrong, use EXTRUDE with a negative value, or use MOVE to reposition the solid.
    Forgetting to account for hidden linesThe 3D model represents only the visible features, missing internal channels, recesses, or holes shown by dashed lines in the 2D viewsGo through every dashed line in every view before starting the model. Create a checklist of features represented by hidden lines.
    SUBTRACT selecting objects in wrong orderThe wrong object gets subtracted, leaving the cutter solid and removing the body insteadSUBTRACT: first click selects the body (what you cut FROM). Second click selects the cutter (what you remove). Always confirm which is body and which is cutter before pressing Enter.
    Not verifying dimensions against all three viewsA feature looks correct in one view but is the wrong size or position when checked against another viewAfter completing each feature, check it against all three views. The object must read consistently from front, top, and side.

    Frequently Asked Questions (FAQ)

    How do you create a 3D model from 2D views in AutoCAD?

    To create a 3D model from 2D views in AutoCAD: (1) Read the orthographic projection views to understand the 3D shape. (2) Switch to the 3D Modelling workspace and set the visual style to Conceptual. (3) Set the UCS (User Coordinate System) to align with the plane you want to draw on. (4) Draw closed 2D profiles representing the cross-sections of the component. (5) Use EXTRUDE, REVOLVE, LOFT, or SWEEP to generate 3D solids from those profiles. (6) Use UNION and SUBTRACT to combine and cut solids. (7) Add fillets, chamfers, and holes. (8) Use VIEWBASE to generate 2D drawing views from the completed model.

    What is the EXTRUDE command in AutoCAD?

    The EXTRUDE command (EXT) in AutoCAD takes a closed 2D profile (polyline or region) and pushes it a specified distance perpendicular to its plane, creating a 3D solid with that profile’s cross-section. It is the most commonly used 3D modelling command for prismatic parts, plates, frames, and any component with a consistent cross-section. It supports tapered extrusions (with a draft angle) and path-following extrusions.

    What is the difference between EXTRUDE and REVOLVE in AutoCAD?

    EXTRUDE creates a 3D solid by pushing a 2D profile straight in one direction (or along a path). It is used for prismatic parts with a constant cross-section. REVOLVE creates a 3D solid by rotating a 2D profile around a specified axis, producing a radially symmetric solid. It is used for turned parts, shafts, cylinders, flanges, and any component that is symmetric around an axis of rotation. If the front and side views are identical in shape, REVOLVE is almost certainly the right command.

    What is the UCS in AutoCAD 3D and why does it matter?

    The User Coordinate System (UCS) defines the orientation of the drawing plane in AutoCAD 3D. All drawing operations happen relative to the current UCS’s XY plane. In 3D modelling, you must actively manage the UCS to ensure profiles are drawn on the correct face or plane of the model. If the UCS is on the wrong plane, your 2D profiles will be in the wrong position and your extrusions will go in the wrong direction. Type UCS > W to reset to World UCS, or UCS > F to align to a specific face of an existing solid.

    How do I generate 2D drawings from a 3D model in AutoCAD?

    AutoCAD provides two main methods. FLATSHOT creates a quick 2D projection from the current view direction directly in model space as a block. VIEWBASE (in a paper space layout) creates intelligent, associative drawing views that update automatically if the 3D model changes. VIEWBASE is the professional standard: switch to a Layout tab, go to Layout > Create View > Base > From Model Space, place the base view, then add projected views (right, top, isometric) using VIEWPROJ. Annotate with dimensions in the layout as normal.

    What are Boolean operations in AutoCAD 3D?

    Boolean operations are commands that combine or modify 3D solids by performing mathematical set operations on their volumes. UNION merges two or more solids into one. SUBTRACT removes one solid’s volume from another (used to cut holes, slots, and pockets). INTERSECT keeps only the overlapping volume of two solids. Together, these three commands allow complex 3D forms to be built from combinations of simpler solid primitives (boxes, cylinders, cones) and profile-based solids (extruded or revolved shapes).

    Can I create a 3D model from a scanned 2D drawing in AutoCAD?

    Yes, with some preparation. Insert the scanned 2D drawing as an image (use INSERT > Attach or the IMAGEATTACH command) and scale it to the correct dimensions using a known reference length. Then trace the 2D profiles over the image using POLYLINE with OSNAP. Once you have accurate traced profiles, delete or turn off the image reference and use EXTRUDE, REVOLVE, or other solid creation commands as normal. This method works well for relatively simple parts. For complex components, redrawing the profiles from the scanned dimensions (rather than tracing) typically produces more accurate results.

    Conclusion

    Creating a 3D model from 2D views in AutoCAD is the skill that completes the engineering CAD workflow. It transforms flat orthographic drawings into solid models that can be inspected from any angle, analysed, modified, and documented to manufacturing standards. The workflow is logical and methodical: read and understand the 2D views, set up the 3D environment correctly, draw accurate profiles on the right planes, build the solid geometry using the appropriate creation commands, combine and cut using Boolean operations, and generate professional 2D drawing output.

    The UCS is the key that unlocks everything in AutoCAD 3D. Getting comfortable with setting and re-setting the UCS to align with different faces and planes is the single skill that most transforms a beginner’s 3D modelling ability. Every other concept in this guide builds on it.

    Practise the worked example in this guide using a simple bracket or plate, then progress to more complex parts. The same workflow — read, profile, extrude/revolve, boolean, document — applies whether you are modelling a simple bracket or a multi-feature mechanical component.

    Continue building your AutoCAD 3D skills: read How to Make a 3D Solid from Profile Outlines for a deeper dive into profile-based modelling, or return to the full guide: AutoCAD Tutorials for Beginners and Professionals.

  • Why Is My AutoCAD Ribbon Empty? (All Fixes 2026)

    Why Is My AutoCAD Ribbon Empty? (All Fixes 2026)

    You open AutoCAD and the ribbon is empty, blank, or showing the message “The Ribbon does not have any tabs or panels currently loaded“. The drawing area is there, the command line is there, but the entire ribbon at the top of the screen has vanished. Nothing works the way it should.

    This is one of the most common AutoCAD problems reported by users at every experience level. The good news is that it almost always has a quick fix. The reason it feels so frustrating is that there are several possible causes, and if you try the wrong fix first, you can waste significant time. This guide eliminates that guesswork.

    It covers every reason an AutoCAD ribbon disappears or goes blank, in order from the most common and easiest to fix to the most complex. For each cause, there is a clear, numbered step-by-step solution. A diagnostic table at the top helps you match what you are seeing on screen to the exact fix you need.

    Quick Fix:  If you just need the ribbon back immediately, type RIBBON in the command line and press Enter. If that does not work, check that the correct workspace is loaded using the gear icon in the bottom-right status bar. These two steps fix the majority of empty ribbon problems in under 30 seconds.

    Diagnose Your Ribbon Problem: Match Your Symptom to the Fix

    Before working through individual fixes, use this diagnostic table to identify which cause matches what you are seeing. This saves time and gets you to the right solution immediately.

    AutoCAD blank ribbon showing the message 'The Ribbon does not have any tabs or panels currently loaded' error state
    What You See on ScreenMost Likely CauseGo to Fix
    Ribbon area is completely absent. No tabs, no panels, no blank bar.Ribbon was turned off via command or menuFix 1: RIBBON Command
    Ribbon area shows a blank/empty bar with the message: ‘The Ribbon does not have any tabs or panels currently loaded’Wrong workspace selected, or corrupted CUIX fileFix 2: Workspace, then Fix 6: CUIX File
    Entire AutoCAD interface is full-screen with no ribbon, no status bar, no toolbars at allClean Screen mode is activeFix 3: Clean Screen Mode
    A thin ribbon title bar is visible at the top but the panels collapse when you move the mouse awayRibbon is set to Auto-Hide modeFix 4: Auto-Hide Setting
    Ribbon is present but has drifted or is floating as a separate window, partially off-screenRibbon was undocked and dragged off-screenFix 5: Undocked Ribbon
    Ribbon was working fine until AutoCAD was updated or a new plugin was installedCUIX file corrupted or overwritten by update or pluginFix 6: Reset CUIX File
    Ribbon blank only for certain toolsets (e.g. Architecture, Mechanical) not standard tabsIndustry toolset not installed or profile settings incorrectFix 6 or Fix 7: Profile Reset
    Ribbon has been blank since a settings migration from an older version of AutoCADUser profile from previous version incompatibleFix 7: Reset User Profile
    All above fixes have been tried and nothing worksDeep corruption in AutoCAD installation or profileFix 8: Reset to Defaults or Reinstall

    Fix 1: The Ribbon Was Accidentally Turned Off (RIBBON Command)

    This is the most common cause of a missing AutoCAD ribbon and the easiest fix. The ribbon can be toggled off accidentally by pressing Ctrl + 0 (which activates Clean Screen), by clicking the X button on the ribbon, or by navigating to Tools > Palettes > Ribbon and unchecking it. Many users do this unintentionally while reaching for a nearby keyboard shortcut.

    Step-by-Step Fix

    1. Click anywhere in the AutoCAD command line at the bottom of the screen to make sure it is active.
    2. Type RIBBON and press Enter.
    3. The ribbon should immediately reappear at the top of the screen.
    4. If the ribbon reappears but is not the correct workspace, continue to Fix 2.

    Alternatively, if the classic menu bar is visible at the top (Tools, Draw, Modify etc.), go to Tools > Palettes > Ribbon and click to enable it. If the menu bar is not visible either, the command line is your only entry point.

    Command Line Not Visible?  If the command line itself has disappeared alongside the ribbon, press Ctrl + 9 to restore it. Once the command line is back, type RIBBON and press Enter to restore the ribbon.

    Fix 2: Wrong Workspace Selected

    AutoCAD uses workspaces to define the arrangement of the interface: which ribbon tabs are visible, where the toolbars sit, and what the screen layout looks like. If the wrong workspace is loaded, the ribbon may appear completely blank or show only partial tabs. This is one of the most common causes of the message “The Ribbon does not have any tabs or panels currently loaded“.

    AutoCAD workspace switching gear icon in status bar with workspace dropdown showing Drafting and Annotation option highlighted

    Step-by-Step Fix

    1. Look at the status bar at the very bottom-right of the AutoCAD screen. Find the gear icon (Workspace Switching).
    2. Click the gear icon to open the workspace menu.
    3. Select one of the standard workspaces: Drafting and Annotation (for 2D work), 3D Modelling (for 3D work), or 3D Basics (simplified 3D interface).
    4. If the ribbon does not load, try switching to a different workspace first, then switching back to your preferred workspace.
    5. Alternatively, type WORKSPACE in the command line, press Enter, then type RESTORE followed by the workspace name (e.g. RESTORE “Drafting & Annotation”).

    If the gear icon is not visible in the status bar, right-click the status bar and make sure Workspace Switching is ticked. Alternatively, type WSCURRENT in the command line and press Enter to see which workspace is currently active.

    After the Update Problem:  If the ribbon went blank after an AutoCAD update, a workspace settings migration often causes this. After updating, go to the workspace switcher, select the appropriate workspace, and then go to Tools > Workspaces > Save Current As to save a clean version of the workspace. This prevents the same issue occurring after the next update.

    Fix 3: AutoCAD Is in Clean Screen Mode

    AutoCAD’s Clean Screen mode maximises the drawing area by hiding all interface elements: the ribbon, toolbars, status bar, and palettes. It is designed for users who need maximum drawing space, particularly on smaller monitors. If you accidentally activated it, the entire interface appears to have vanished.

    The giveaway sign that you are in Clean Screen mode (rather than a genuine ribbon failure) is that the drawing area fills the entire screen right to the edges, with no interface elements visible anywhere, not even a thin title bar at the top.

    Step-by-Step Fix

    1. Press Ctrl + 0 (zero) to toggle Clean Screen mode off. This is a single keyboard shortcut that toggles the mode on and off.
    2. The full interface including the ribbon should immediately reappear.
    3. Alternatively, look for the Clean Screen icon in the far bottom-right corner of the screen (a small double-headed arrow icon) and click it to toggle Clean Screen off.
    Quick Test:  Press Ctrl + 0 twice in quick succession. If the ribbon disappears and then comes back, you have confirmed that Clean Screen mode is being toggled. The first press activates it (hiding the ribbon), the second press deactivates it (restoring the ribbon). Now you know the shortcut that caused the problem and can avoid pressing it accidentally in the future.

    Fix 4: The Ribbon Is Set to Auto-Hide

    The AutoCAD ribbon auto-hide feature collapses the ribbon to just a thin title bar at the top of the screen when the cursor is not hovering over it, and expands it again when the cursor moves into the ribbon area. If this is active, the ribbon appears to be missing whenever the cursor is in the drawing area, leading users to believe something has gone wrong.

    The difference between Auto-Hide and a genuinely missing ribbon: when you move the cursor to the very top of the screen, a thin ribbon bar becomes visible momentarily and then disappears again. If this is what you are seeing, Auto-Hide is the cause, not a technical problem.

    Step-by-Step Fix

    1. Move your cursor to the very top of the screen until the ribbon appears.
    2. Look for the small upward-pointing arrow icon (pin/unpin icon) at the far right of the ribbon.
    3. Click this icon once to toggle Auto-Hide off. The ribbon will remain permanently expanded.
    4. Alternatively, right-click on the ribbon title bar at the top and look for the Auto-Hide Ribbon option. Uncheck it.

    Fix 5: The Ribbon Has Been Undocked and Is Floating Off-Screen

    The AutoCAD ribbon can be undocked from its default position at the top of the screen and dragged to any location, including off the visible screen area. If this has happened (usually after a monitor configuration change, a switch from dual to single monitor, or an accidental drag), the ribbon appears to be missing even though it technically still exists.

    Step-by-Step Fix

    1. Type RIBBON in the command line and press Enter. This restores and re-docks the ribbon to its default position at the top of the interface.
    2. If the ribbon reappears but is floating as a separate window, grab its title bar and drag it back to the top of the AutoCAD window until the docking highlight appears, then release to dock it.
    3. To lock the ribbon in place and prevent future accidental undocking, right-click on the ribbon title bar and select Lock Location > Floating Windows.

    Fix 6: Corrupted or Missing CUIX File

    The CUIX file (Customisation User Interface file) is what defines the entire AutoCAD ribbon: which tabs exist, which panels are in each tab, and which commands appear in each panel. The main file is called acad.cuix (or acadlt.cuix for AutoCAD LT). If this file becomes corrupted, is accidentally overwritten by a software update or third-party plugin, or cannot be located by AutoCAD, the ribbon loads blank or empty.

    AutoCAD CUI dialogue showing right-click context menu with Reset option highlighted to fix corrupted CUIX file and restore blank ribbon

    This is the most technically involved fix but also one of the most reliable. Resetting or reloading the CUIX file resolves the vast majority of persistent AutoCAD ribbon blank problems that the simpler fixes above do not address.

    Method 1: Reset the CUIX File via the CUI Command

    1. Type CUI in the command line and press Enter. The Customize User Interface dialogue box opens.
    2. In the top-left panel, you will see a list of loaded customisation files. Find ACAD (or the relevant product: ACADLT, C3D, etc.).
    3. Right-click on the ACAD entry.
    4. From the context menu, select Reset.
    5. A confirmation dialogue will appear. Click Yes to confirm the reset.
    6. Click OK to close the CUI dialogue.
    7. The CUIX file is now reset to its factory default state. Restart AutoCAD and check whether the ribbon has been restored.

    Method 2: Reload the CUIX File via CUILOAD

    1. Type CUILOAD in the command line and press Enter.
    2. Click the Browse button in the dialogue that appears.
    3. Navigate to the AutoCAD support folder. The default location for acad.cuix is typically:

    Windows: C:\Users\[username]\AppData\Roaming\Autodesk\AutoCAD [version]\[release]\[language]\Support\

    1. Select acad.cuix and click Load.
    2. If the file is already loaded, first select it in the Loaded Customisation Files list, click Unload, and then reload it using Browse.
    3. Click Close and check whether the ribbon has been restored.

    Method 3: Check the Support File Search Path

    If AutoCAD cannot find the CUIX file because the support file path is missing or incorrect (this commonly happens after installation of a new AutoCAD version or after moving user files to a new computer), you need to add the correct path to AutoCAD’s Options.

    1. Type OPTIONS (or OP) in the command line and press Enter.
    2. Go to the Files tab.
    3. Expand the Support File Search Path node.
    4. Click Add and browse to the folder containing your CUIX file.
    5. Click OK to close Options.
    6. Restart AutoCAD and verify the ribbon has been restored.
    Warning: Third-Party Plugins and the CUIX File:  Installing or uninstalling third-party AutoCAD plugins (add-ons, structural analysis tools, MEP tools, or manufacturer-specific libraries) can overwrite or corrupt the acad.cuix file. If the ribbon went blank immediately after installing a plugin, the CUI Reset method (Method 1 above) is almost always the solution. After resetting, you may need to re-install the plugin if you still need it, or contact the plugin developer for an updated version compatible with your AutoCAD version.

    Fix 7: Corrupted AutoCAD User Profile

    AutoCAD stores each user’s interface settings, support paths, and customisations in a user profile. If this profile becomes corrupted, particularly during version upgrades where settings are migrated from an older version, the ribbon may load blank or with missing panels even after the CUIX file has been reset.

    Step-by-Step Fix: Switch Profile and Reset

    1. Type OPTIONS (or OP) in the command line and press Enter.
    2. Go to the Profiles tab.
    3. In the Available Profiles list, select <<Unnamed Profile>> (or any profile that is not your current one).
    4. Click Set Current.
    5. Close Options and check whether the ribbon loads correctly on this profile.
    6. If the ribbon now works on the new profile, return to Options > Profiles and either delete the corrupted profile or click Reset to restore it to defaults.
    7. If switching profiles restores the ribbon, save the working profile as your new default using Set Current.
    Migration Tip:  When upgrading to a new version of AutoCAD, Autodesk recommends importing all settings from the previous version rather than only the profile. Importing only the profile, without the associated customisation files, is a known cause of blank ribbons in freshly upgraded installations. If you are setting up a new AutoCAD version, use the Migrate Custom Settings option from the Windows Start menu under the new AutoCAD version folder.

    Fix 8: AutoCAD Needs a Reset to Defaults

    If none of the above fixes have restored the ribbon, a full AutoCAD reset to factory defaults is the next step. This resets all settings, profiles, and customisations to the state they were in immediately after installation. It is a more drastic step because any custom settings, toolbars, aliases, or profiles you have built will need to be reconfigured, but it is very reliable at resolving deep corruption issues.

    Step-by-Step: Reset AutoCAD to Factory Defaults

    1. Close AutoCAD completely.
    2. In Windows, search for AutoCAD [version] in the Start menu.
    3. Look for Reset Settings to Default in the AutoCAD folder within the Start menu.
    4. Click Reset Settings to Default. A dialogue will ask you to backup your settings or reset without backup.
    5. Choose your preferred option and confirm the reset.
    6. Relaunch AutoCAD. It will start with a completely clean default configuration.
    7. If the ribbon now loads correctly, the issue was a deep corruption in the user settings. Rebuild only the custom settings you actually need rather than restoring from the corrupted backup.

    If even a full reset does not restore the ribbon, the issue likely lies in the AutoCAD installation itself. In this case, use the Autodesk desktop app or Programs and Features to run a Repair on the AutoCAD installation. If the repair fails, a full uninstall and clean reinstall of AutoCAD using the latest installer from your Autodesk account will resolve installation-level corruption.

    Why Does the AutoCAD Ribbon Keep Disappearing?

    If the AutoCAD ribbon keeps disappearing repeatedly rather than just once, there is usually an underlying cause that the temporary fix is not addressing. The most common reasons for a ribbon that keeps going missing are:

    AutoCAD Is Not Saving Workspace Changes

    By default, AutoCAD does not always save changes to the workspace automatically. If you restore the ribbon but AutoCAD is not configured to save the workspace state on exit, the ribbon position and visibility settings are lost the next time you open the program.

    The fix: type WSSETTINGS in the command line and press Enter to open the Workspace Settings dialogue. Enable Automatically Save Workspace Changes. This ensures any interface configuration changes you make are preserved between sessions.

    A Plugin or Script Is Modifying the Interface on Startup

    Some third-party plugins load their own CUIX customisation on AutoCAD startup, which can overwrite the standard ribbon. If the ribbon disappears every time you restart AutoCAD but is fine after being restored manually, check whether any startup suite scripts or plugins are loading on AutoCAD startup. Go to Tools > Load Application > Startup Suite and review what is loading automatically. Removing or updating a conflicting plugin often resolves the persistent ribbon problem.

    Incompatible Customisation Files from a Previous Version

    If customisation files (CUIX, MNS, MNR) from a previous version of AutoCAD are being loaded by the new version, they may not be fully compatible and can cause the ribbon to load incorrectly on every startup. Remove old version customisation files from the Support File Search Path in Options and recreate any custom tool entries in the current version’s native format.

    How to Stop Your AutoCAD Ribbon from Disappearing Again

    Once your AutoCAD ribbon is restored, three habits will prevent the problem from recurring:

    Prevention HabitHow to Implement ItWhat It Prevents
    Save your workspace explicitly after setting it upAfter configuring the interface the way you want it, go to Tools > Workspaces > Save Current As and save it with a clear name (e.g. ‘MY-2D-WORKSPACE’)Interface configuration being lost on restart or after an AutoCAD update
    Enable automatic workspace savingType WSSETTINGS, press Enter, and tick ‘Automatically Save Workspace Changes’Ribbon position and tab visibility changes being lost between sessions
    Keep a saved backup of your CUIX fileAfter setting up your customisations, export your profile via Options > Profiles > Export and save the .arg file to a safe locationHaving to rebuild all customisations from scratch after a CUIX corruption
    Be selective about which plugins you installBefore installing any third-party AutoCAD plugin or add-on, check that it is compatible with your specific AutoCAD version number on the developer’s websitePlugin-triggered CUIX corruption and ribbon blank problems after installation
    Use AutoCAD’s Migrate Settings correctly during upgradesWhen installing a new AutoCAD version, use the ‘Migrate Custom Settings’ option and choose to migrate all settings, not just the profileBlank ribbon in freshly upgraded AutoCAD installations due to incomplete settings migration

    Frequently Asked Questions (FAQ)

    Why is my AutoCAD ribbon empty?

    An empty AutoCAD ribbon is most commonly caused by one of five things: the ribbon was accidentally turned off (fix: type RIBBON in the command line and press Enter); the wrong workspace is selected (fix: use the gear icon in the status bar to switch to Drafting and Annotation); AutoCAD is in Clean Screen mode (fix: press Ctrl + 0 to toggle it off); the ribbon is set to Auto-Hide (fix: click the pin icon at the top-right of the ribbon title bar); or the CUIX file is corrupted (fix: type CUI, right-click ACAD, select Reset). The RIBBON command fixes the majority of cases immediately.

    How do I restore the AutoCAD ribbon?

    To restore a missing AutoCAD ribbon, type RIBBON in the command line and press Enter. If the ribbon reappears but shows the message ‘The Ribbon does not have any tabs or panels currently loaded’, switch to the correct workspace using the gear icon in the status bar and select Drafting and Annotation. If the ribbon still does not load correctly, reset the CUIX file by typing CUI, right-clicking the ACAD entry, selecting Reset, and restarting AutoCAD.

    What does ‘The Ribbon does not have any tabs or panels currently loaded’ mean in AutoCAD?

    This message means that AutoCAD has loaded but the ribbon definition file (the CUIX file) either cannot be found, has been corrupted, or has not been associated with the current workspace. The most reliable fix is to: first try switching workspaces using the gear icon in the status bar; if that does not work, type CUI in the command line, right-click the ACAD customisation file in the top-left panel, and select Reset. Restart AutoCAD after the reset.

    Why does my AutoCAD ribbon disappear every time I restart?

    If the AutoCAD ribbon disappears on every restart, it is almost always because AutoCAD is not saving your workspace settings between sessions. Type WSSETTINGS in the command line, press Enter, and enable ‘Automatically Save Workspace Changes’. Also verify that no startup script or third-party plugin is resetting the interface on launch by checking Tools > Load Application > Startup Suite.

    How do I fix the AutoCAD ribbon after an update?

    After an AutoCAD update, a blank ribbon is usually caused by a workspace settings migration issue. Switch to the Drafting and Annotation workspace using the gear icon in the status bar. If the ribbon loads, save this workspace using Tools > Workspaces > Save Current As. If the ribbon is still blank, type CUI, right-click ACAD, select Reset, and restart AutoCAD. For a permanent fix, type WSSETTINGS and enable automatic workspace saving.

    What is the CUIX file in AutoCAD and why does it affect the ribbon?

    The CUIX file (Customisation User Interface file) is an XML-based file that defines the entire AutoCAD ribbon: which tabs exist, which panels are in each tab, which commands are in each panel, and how toolbars and menus are structured. The main file is called acad.cuix. When this file is corrupted, accidentally overwritten by a plugin or update, or cannot be found by AutoCAD, the ribbon loads blank. The fix is to reset the CUIX file using the CUI command: right-click ACAD and select Reset.

    Conclusion

    A blank or empty AutoCAD ribbon is always fixable. The vast majority of cases resolve in under two minutes with either the RIBBON command, a workspace switch, or turning off Clean Screen mode. For the minority of cases involving a corrupted CUIX file or user profile, the fixes are still well within reach of any AutoCAD user who follows the numbered steps above.

    The key is to identify the correct cause first using the diagnostic table at the top of this article, then apply the right fix rather than working through every solution sequentially. Once the ribbon is restored, implementing the five prevention habits will stop the problem from recurring.

    Back to the full AutoCAD guide: AutoCAD Tutorials for Beginners and Professionals. Or continue with the next tutorial: How to Draw a Line from Its Midpoint in AutoCAD.

  • AutoCAD Tutorial for Beginners and Professionals 2026

    AutoCAD Tutorial for Beginners and Professionals 2026

    AutoCAD is the most widely used CAD software in the world. With over 4 million active subscribers globally and adoption across architecture, mechanical engineering, civil engineering, electrical design, and manufacturing, it is the tool that connects a design concept to a finished technical drawing more reliably than any other software in existence.

    Whether you have never opened a CAD program before, or you have been using AutoCAD for years and want to sharpen the professional skills that separate competent users from genuinely efficient ones, this guide covers the full spectrum. It is structured as a genuine beginner-to-professional learning path, not a reference list or a tips collection.

    You will learn what AutoCAD is, how its interface works, the foundational 2D drawing commands every user must know, how to set up drawings correctly from day one, how layers and blocks work and why they matter, how to produce professional-grade 3D models, how to print and plot drawings to industry standards, and how to apply AutoCAD skills across different engineering and design disciplines. The guide also covers the professional-level habits, keyboard shortcuts, and workflow principles that experienced AutoCAD users use daily but that beginners rarely encounter in online tutorials.

    Quick Answer:  AutoCAD is a Computer-Aided Design (CAD) software developed by Autodesk, first released in 1982. It is used to create precise 2D drawings and 3D models across engineering, architecture, and design. Learning AutoCAD typically takes 1 to 3 months to reach productive competence for 2D drafting, and 3 to 6 months to develop solid 3D modelling skills. It remains the most in-demand CAD skill in the global job market.

    What Is AutoCAD? A Complete Overview

    AutoCAD is a commercial computer-aided design and drafting software developed and marketed by Autodesk. First released on 1 December 1982 as one of the first CAD programs to run on personal computers, it has grown into the global standard for technical drawing and design across dozens of industries.

    At its core, AutoCAD allows users to create precise geometric drawings in 2D (lines, arcs, circles, polygons) and 3D (solid models, surfaces, meshes) with exact dimensional control that paper drawing and general-purpose illustration software cannot match. Every object in an AutoCAD drawing exists in coordinate space: it has a precise location, dimension, and relationship to other objects that can be measured, queried, and modified with engineering-level accuracy.

    What AutoCAD Is Used For

    AutoCAD is used to produce engineering drawings (mechanical component drawings, assembly drawings, schematics), architectural drawings (floor plans, elevations, sections, construction documents), civil engineering plans (site plans, road layouts, drainage networks, surveys), and electrical and piping diagrams (single-line diagrams, P&IDs, wiring schematics). In manufacturing, it is used to produce the 2D drawings that define component dimensions, tolerances, and surface finishes for machining and fabrication.

    Who Uses AutoCAD

    • Mechanical engineers and designers: Creating component drawings, assembly drawings, and manufacturing documentation
    • Architects: Producing construction documentation, floor plans, sections, and elevations
    • Civil engineers: Site layouts, road design, drainage plans, earthwork sections
    • Structural engineers: Reinforcement drawings, connection details, structural layout plans
    • Electrical designers: Circuit diagrams, cable routing plans, switchboard layouts
    • Interior designers: Space planning, furniture layouts, interior elevations
    • Students and trainees: Learning CAD fundamentals applicable to multiple disciplines

    AutoCAD Versions: Which One Should You Use?

    Autodesk releases a new version of AutoCAD annually, typically numbered by year. The current version is AutoCAD 2026 for the 2026/2026 subscription year. Understanding which version to use and which licensing option suits your situation is the first practical decision any new user must make.

    Version / OptionWho It Is ForKey FeaturesCost Model
    AutoCAD 2026 (full)Professional engineers, architects, and designers in industryFull 2D/3D capability, all industry toolsets, AutoCAD Web and Mobile, cloud collaborationSubscription: ~$2,230/year or ~$195/month (Autodesk 2026 pricing)
    AutoCAD LTUsers needing 2D drafting only, budget-conscious professionalsFull 2D drafting capability, no 3D modelling or custom programmingSubscription: ~$570/year (significantly lower cost)
    AutoCAD with ToolsetsSpecialists (mechanical, architecture, electrical, civil, plant, MEP)All standard AutoCAD features plus industry-specific symbol libraries, automated tools, and templatesSame subscription as full AutoCAD; toolsets included
    AutoCAD WebLight users, collaboration review, remote access to drawingsBrowser-based, core 2D commands, DWG compatibleIncluded with full AutoCAD subscription; limited standalone access
    AutoCAD MobileSite engineers, field access to drawingsView, markup, and basic editing on iOS/AndroidBasic free tier; full features with subscription
    AutoCAD for Students (Education)Students and educatorsFull AutoCAD functionalityFree for verified students and educators via Autodesk Education Community
    Key Recommendation:  If you are a student, get the free AutoCAD student licence from the Autodesk Education Community immediately. It is identical in functionality to the professional version and is valid for 1 year, renewable. If you are a professional evaluating AutoCAD, Autodesk offers a 30-day free trial of the full version. For 2D-only work in a professional setting, AutoCAD LT offers excellent value at less than one-quarter of the full version’s annual cost.

    Mastering the AutoCAD Interface

    The AutoCAD interface can look intimidating the first time you open it. There are panels, toolbars, tabs, a command line, and a drawing area that all compete for your attention simultaneously. The good news is that once you understand what each element does and why it is there, the interface becomes logical and highly efficient. Most experienced users find that AutoCAD’s interface structure is one of the most streamlined in the professional CAD world.

    Annotated AutoCAD interface screenshot showing Application Menu, Ribbon, Drawing Area, Command Line, and Status Bar labelled for beginners

    The Application Menu

    The Application Menu (the AutoCAD logo in the top-left corner) provides access to file management commands: New, Open, Save, Save As, Print, Publish, and Export. It also provides access to recent documents and drawing utilities. Think of it as AutoCAD’s equivalent of a File menu.

    The Quick Access Toolbar

    Directly to the right of the Application Menu is the Quick Access Toolbar (QAT), which contains the most frequently used file and undo commands: New, Open, Save, Save As, Print, Undo, and Redo. This toolbar can be customised to add any command you use frequently. Experienced users typically add the LAYER command and PLOT command to their QAT to save navigation time.

    The Ribbon

    The Ribbon is the large tabbed panel at the top of the interface, introduced in AutoCAD 2009 to replace the classic menu bar and toolbar system. It is organised into tabs (Home, Insert, Annotate, Parametric, View, Manage, Output, Add-ins, Collaborate) and within each tab, into panels containing related commands. The Home tab contains the most frequently used drawing and modification commands and is where most users spend the majority of their working time.

    If your ribbon has disappeared or appears empty, this is one of the most common AutoCAD problems for new users. It is easily resolved: type RIBBON in the command line and press Enter to restore it. Alternatively, check that the correct workspace is loaded under the Workspace Switching icon in the bottom-right status bar.

    The Drawing Area

    The Drawing Area is the large central space where your design exists. It represents an infinite 2D coordinate plane (or 3D space in the 3D workspace). The drawing area has no physical size: you draw at real-world scale (a 10-metre wall is drawn as 10 metres long) and control the print scale when plotting. The cursor crosshair tracks your position in coordinate space, displayed in the bottom-left status bar.

    The Command Line

    The Command Line at the bottom of the drawing area is the most important element of the AutoCAD interface for productive work. It is where you type command names and shortcuts (LINE, CIRCLE, TRIM, etc.), where AutoCAD prompts you for input, and where you enter dimensions, angles, and coordinates. Experienced AutoCAD users rely heavily on the command line because typing a command alias is almost always faster than clicking through the ribbon.

    AutoCAD’s command autocomplete means you only need to type the first few letters of a command to see a filtered list of options. Typing LA reveals LAYER and all layer-related commands. Typing TR reveals TRIM and TRIM-related commands. This is the single biggest productivity accelerator for new AutoCAD users to learn early.

    The Status Bar

    The Status Bar runs along the very bottom of the screen and contains toggleable drawing aids that profoundly affect how you interact with AutoCAD: SNAP (snaps cursor to a defined grid), GRID (displays a reference grid), ORTHO (constrains drawing to horizontal and vertical directions only), POLAR (constrains to specified angles), OSNAP (Object Snap: snaps to specific points on existing objects), and DYNAMIC INPUT (displays coordinates and prompts near the cursor).

    The most critical status bar setting to understand immediately is OSNAP (Object Snap). When OSNAP is active, moving the cursor near an existing object snaps it to precise points: endpoints, midpoints, centres, intersections, perpendiculars. Drawing without OSNAP active leads to inaccurate drawings where lines appear to connect but are actually slightly misaligned. Experienced AutoCAD users virtually always work with OSNAP on.

    Interface ElementKeyboard Shortcut / AccessWhat It DoesPro Tip
    Application MenuClick the AutoCAD logoFile management: New, Open, Save, Print, ExportAdd frequently used files to the recent documents list for one-click access
    RibbonType RIBBON to restore if missingAll drawing, modification, annotation, and output commands organised by tabRight-click any panel to add it to the Quick Access Toolbar
    Command LineCtrl + 9 to toggle on/offType commands, receive prompts, enter values and coordinatesPress F2 to expand the command history window
    Drawing AreaScroll wheel to zoom, middle-button drag to panYour design canvas: infinite 2D or 3D coordinate spaceType Z then Enter, then E then Enter (ZOOM EXTENTS) to fit drawing to screen
    Status BarFunction keys and status bar iconsToggle ORTHO, OSNAP, POLAR, SNAP, GRID, DYNAMIC INPUTF8 = ORTHO, F3 = OSNAP, F10 = POLAR TRACKING – memorise these three
    Properties PaletteCtrl + 1View and modify all properties of selected objectsUse to change layer, colour, linetype of multiple selected objects at once
    Layer Properties ManagerLA then EnterCreate, modify, and manage all layers in the drawingPin it as a docked palette for drawings with complex layer structures

    Setting Up Your Drawing Correctly from Day One

    One of the most common mistakes new AutoCAD users make is starting to draw without setting up their drawing environment properly. Drawing setup takes five to ten minutes and saves hours of correction work later. Experienced CAD professionals always work from a correctly configured template file, never from a blank default drawing.

    Setting Drawing Units

    Type UNITS (or UN) and press Enter to open the Drawing Units dialogue. Set the unit type (Decimal for metric engineering, Architectural for feet and inches) and precision (typically 0.00 for most engineering work, 0.000 for precision parts). Set the Insertion Scale to the units your drawing will use. Getting units wrong at setup means all dimensions will be incorrect and all blocks inserted from external sources will scale incorrectly.

    Setting Drawing Limits

    Type LIMITS to define the extent of your drawing. For most mechanical engineering work at 1:1 scale, set limits to match your drawing sheet size multiplied by your intended print scale. A drawing to be printed at 1:10 on an A1 sheet would have limits of 8,400 x 5,940 mm (A1 dimensions: 841 x 594 mm multiplied by 10).

    Setting Up Layers Before Drawing

    Never draw everything on Layer 0. Create your layer structure before drawing a single line. A well-structured layer scheme for a mechanical drawing might include layers for: Object Lines, Hidden Lines, Centre Lines, Dimensions, Text/Annotations, Hatching, Title Block, and Construction Lines. Each layer should have a defined colour, linetype, and lineweight. This investment at setup saves enormous time when editing, plotting, and sharing drawings.

    Using a Template File

    A drawing template file (.DWT) saves your standard layer structure, units settings, text styles, dimension styles, and title block layout so you do not need to recreate them for every new drawing. Create your company or personal standard template once and select it in the New Drawing dialogue whenever you start a drawing. Autodesk also provides standard template files (acad.dwt for imperial, acadiso.dwt for metric) as starting points.

    Essential AutoCAD Drawing Commands for Beginners

    The following AutoCAD drawing commands are the foundation of 2D drafting. Every AutoCAD user, from student to 30-year professional, uses these commands daily. Learn them thoroughly before moving to more advanced topics.

    CommandAliasWhat It DoesKey Input Tips
    LINELCreates straight line segments between specified pointsClick points or type coordinates. Press Enter or Esc to end. Type C then Enter to close a polygon back to the start point
    CIRCLECCreates a circle by centre point and radius (default), or by diameter, 2 points, or 3 pointsType C, click centre, type radius value and press Enter. Or type C, then D for diameter mode
    ARCACreates an arc defined by 3 points, or start/centre/end, or other combinationsDefault is 3-point arc. Right-click during ARC command to see all arc definition methods
    RECTANGLERECCreates a closed rectangular polyline by two diagonal corner pointsType REC, click first corner, type relative coordinates @width,height (e.g. @150,80) and Enter
    POLYGONPOLCreates a regular polygon with a specified number of sidesType POL, enter number of sides, specify centre, choose inscribed or circumscribed, enter radius
    POLYLINEPLCreates connected line and arc segments as a single objectUnlike LINE, a polyline is one object. Essential for shapes that need to be edited as a unit
    ELLIPSEELCreates an ellipse by axis endpoint and other axis distance, or by centreType EL, specify axis endpoint, second endpoint of same axis, then other axis distance
    SPLINESPLCreates a smooth curve through or near specified control pointsUsed for irregular curves. Click control points, press Enter to end
    HATCHHFills a closed area with a pattern (hatching) or solid fillType H to open Hatch Creation. Click inside a closed boundary. Select hatch pattern and scale
    POINTPOPlaces a point object at a specified locationSet point display style with PDMODE before placing points. Useful as construction references
    Critical Habit for Beginners:  Always use Object Snap (OSNAP) when drawing. Press F3 to toggle it on and off. With OSNAP on, your cursor will snap to the exact endpoints, midpoints, centres, and intersections of existing objects. Drawing without OSNAP leads to drawings that look correct visually but have tiny gaps and overlaps that cause major problems when trimming, hatching, or exporting to manufacturing. Professional AutoCAD users virtually never draw with OSNAP off.

    Essential AutoCAD Modify Commands

    Drawing commands create geometry. Modify commands are how you edit, refine, and complete that geometry. In professional AutoCAD use, modify commands are used more frequently than drawing commands. The ability to efficiently trim, extend, offset, mirror, array, and fillet geometry is what separates fast, accurate drafters from slow ones.

    CommandAliasWhat It DoesProfessional Tip
    ERASEEDeletes selected objectsSelect objects first, then press Delete key as an alternative to typing ERASE
    COPYCOCreates copies of selected objects at specified offsetsType CO, select objects, press Enter, specify base point, then displacement point. Use multiple copy mode for placing many copies
    MOVEMMoves selected objects to a new positionType M, select objects, press Enter, specify base point, then new position. Combine with OSNAP for precision
    ROTATERORotates selected objects around a specified base pointType RO, select objects, Enter, base point, then rotation angle. Add R for Reference to rotate to a specific angle
    SCALESCScales selected objects up or down from a base pointType SC, select objects, Enter, base point, scale factor. Use R (Reference) to scale by known dimensions
    MIRRORMICreates a mirrored copy of selected objects about a mirror lineType MI, select objects, Enter, two points defining mirror line, then Yes/No to delete original
    OFFSETOCreates a parallel copy of a line, arc, circle, or polyline at a specified distanceType O, specify offset distance, click the object, click the side to offset toward. One of the most-used commands in all of AutoCAD
    TRIMTRTrims objects back to cutting edges defined by other objectsType TR, press Enter (selects all objects as potential cutting edges), then click objects to trim. In AutoCAD 2021+, press Enter twice to use quick trim mode
    EXTENDEXExtends objects to meet a boundary edgeSame workflow as TRIM. In recent AutoCAD versions, holding Shift while in TRIM mode switches to EXTEND
    FILLETFCreates a rounded corner (arc) between two lines or edgesType F, set radius (R then value), then click the two lines to fillet. Set radius 0 to create sharp corners at intersections
    CHAMFERCHACreates a bevelled corner between two linesSimilar to FILLET but creates a flat bevel. Set distances with D option
    ARRAYARCreates a rectangular grid, polar ring, or path-distributed array of objectsType AR, select objects, Enter, choose array type. Associative arrays update when the source object changes
    STRETCHSStretches part of a drawing while keeping connections intactMust use a crossing selection (right to left selection window). Excellent for adjusting geometry without rebuilding it
    EXPLODEXBreaks blocks, polylines, and other compound objects into individual elementsUse with caution: exploded objects lose their block properties and polyline width information

    AutoCAD Layers: The Professional’s Most Important Tool

    If there is one AutoCAD concept that separates professional-quality drawings from amateur ones, it is the correct use of layers. Layers in AutoCAD function like transparent overlays: each layer contains specific types of drawing content, and layers can be turned on or off, locked, frozen, or plotted independently. A drawing with a well-designed layer structure is infinitely easier to edit, plot, and share than one where everything exists on a single layer.

    AutoCAD drawing comparison showing no layer structure versus professional layer structure with correct colours, linetypes, and lineweights

    How Layers Work

    Every object in an AutoCAD drawing exists on a layer. The default layer is Layer 0, which has special properties useful for block creation but should not be used for general drawing content. Each layer has four key properties that can be set independently:

    • Colour: Controls the display colour of objects on that layer. In plotting, colour is used to control lineweight through colour-based plot styles (CTB files).
    • Linetype: Controls whether lines are continuous, dashed, centre-line style, dotted, etc. Load linetypes with the LINETYPE command before assigning them to layers.
    • Lineweight: Controls the physical width of plotted lines. Set in millimetres (0.25mm for thin lines, 0.5mm for medium, 0.7mm for thick/outline lines is a common convention).
    • Plot/No Plot: Controls whether a layer is included in plots. Construction lines and reference layers should typically be set to No Plot.

    Professional Layer Naming Conventions

    Industry standards for AutoCAD layer naming vary by discipline and company, but all good naming conventions share the same principle: the layer name should immediately communicate what type of content is on that layer. A mechanical engineering drawing might use:

    Layer NameColourLinetypeLineweightContent
    OBJ-VISIBLEWhite / 7Continuous0.50 mmVisible object outlines and edges
    OBJ-HIDDENBlue / 5HIDDEN20.25 mmHidden lines (edges not visible in current view)
    OBJ-CENTRERed / 1CENTER20.25 mmCentre lines for holes, arcs, and symmetry axes
    DIMGreen / 3Continuous0.18 mmAll dimension objects
    TEXT-NOTESCyan / 4Continuous0.18 mmGeneral annotation and notes text
    HATCHMagenta / 6Continuous0.18 mmAll hatch and fill patterns
    TITLE-BLOCKWhite / 7Continuous0.50 mmTitle block and border geometry
    CONSTRUCTIONGrey / 8Continuous0.18 mmConstruction lines and reference geometry (No Plot)
    VIEWPORTGrey / 8Continuous0.18 mmPaper space viewport borders (No Plot)
    Professional Rule:  Never override layer properties at the object level (avoid using ‘BYLAYER’ exceptions) unless you have a specific reason. Keep all colour, linetype, and lineweight assignments set to BYLAYER. This means each object’s appearance is controlled entirely by its layer, making drawing-wide changes as simple as modifying a layer property once. Drawings where individual objects have overridden colours and linetypes are extremely difficult to maintain and edit professionally.

    Dimensions, Text, and Annotations in AutoCAD

    A drawing without dimensions and annotations is just a picture. AutoCAD dimensions are intelligent objects that measure and display the size of geometric features automatically, and they update when the geometry changes. Setting up dimension styles correctly before annotating is as important as setting up layers before drawing.

    Setting Up Dimension Styles

    Open the Dimension Style Manager (DIMSTYLE or D) to create and modify dimension styles. Key settings to configure include: text height (should match your drawing scale so text prints at 2.5-3.5mm high on the final sheet), arrow size (typically equal to or slightly larger than text height), precision (number of decimal places), tolerances (if applicable), and overall scale (DIMSCALE: set this to your drawing scale factor to ensure dimensions plot at the correct size).

    Key Dimensioning Commands

    • DIMLINEAR (DLI): Creates horizontal or vertical linear dimensions. The most commonly used dimension type.
    • DIMALIGNED (DAL): Creates a linear dimension aligned to an angled line.
    • DIMRADIUS (DRA): Dimensions the radius of an arc or circle.
    • DIMDIAMETER (DDI): Dimensions the diameter of a circle or arc.
    • DIMANGULAR (DAN): Measures the angle between two lines or between three points.
    • QDIM: Quickly creates a series of dimensions from selected objects simultaneously.
    • DIMCONTINUE (DCO): Creates a chain of dimensions from the endpoint of an existing dimension.
    • DIMBASELINE (DBA): Creates stacked dimensions all measured from a common baseline point.

    Text in AutoCAD: MTEXT vs DTEXT

    AutoCAD has two text objects: MTEXT (MT) (Multiline Text) and DTEXT (DT) (Dynamic Text, also called Single-Line Text). MTEXT is the preferred method for most annotation: it supports paragraph formatting, automatic wrapping within a defined boundary, and advanced text editing features. DTEXT is useful for quick single-line labels. Always create a Text Style (STYLE command) that references a standard font (SHX or TTF) and set a standard text height before creating text in any drawing.

    AutoCAD Blocks: Build Once, Use Forever

    AutoCAD blocks are one of the most powerful productivity tools in the software. A block is a named collection of objects grouped into a single reusable entity. Once defined, a block can be inserted into a drawing as many times as needed, at any scale and rotation, and any change to the block definition automatically updates all instances in the drawing.

    Why Blocks Matter for Professional Work

    In professional drafting, the same standard elements appear repeatedly: bolt holes, surface finish symbols, weld symbols, title blocks, door and window symbols, electrical components, piping fittings. Drawing these elements from scratch every time they appear is a massive waste of time. AutoCAD blocks allow you to create or import these standard elements once and insert them with a single command, at any scale and orientation, across any number of drawings.

    Creating a Block

    1. Draw the geometry that will form the block (draw it at 1:1 scale, centred on or near the origin).
    2. Type BLOCK (B) and press Enter to open the Block Definition dialogue.
    3. Enter a name for the block (descriptive and unique, e.g. M8-HOLE-SYMBOL or SURFACE-FINISH-125).
    4. Specify the Base Point: the insertion handle for the block. Pick a logical point (bottom-left corner, centre, or a specific snap point).
    5. Select Objects: select all the geometry that should form the block.
    6. Choose block settings: decide whether to convert selected objects to a block, retain them, or delete them.
    7. Click OK. The block is now defined in the drawing and can be inserted with the INSERT (I) command.

    Dynamic Blocks: The Professional Standard

    Dynamic blocks extend standard blocks with parameters and actions that allow a single block to represent multiple configurations. A dynamic block for a bolt, for example, might allow the user to choose bolt length from a drop-down list by clicking the block after insertion. A door swing block might allow the swing angle to be adjusted by dragging a grip. Creating dynamic blocks requires the Block Editor (BEDIT command) and is an intermediate-to-advanced AutoCAD skill, but using existing dynamic blocks is straightforward and significantly accelerates drafting.

    Master AutoCAD Keyboard Shortcuts: The Complete Reference Table

    Keyboard shortcuts are the single most effective way to increase AutoCAD productivity. Experienced AutoCAD users rarely click the ribbon for common commands: they type aliases in the command line. The difference in speed between a user who draws by clicking ribbon icons and one who types command aliases is dramatic: alias users are typically 30 to 50 percent faster on equivalent tasks.

    Shortcut / AliasFull CommandCategoryWhat It Does
    LLINEDrawingCreate line segments
    CCIRCLEDrawingCreate circle
    AARCDrawingCreate arc
    RECRECTANGLEDrawingCreate rectangle
    PLPOLYLINEDrawingCreate polyline
    POLPOLYGONDrawingCreate regular polygon
    ELELLIPSEDrawingCreate ellipse
    HHATCHDrawingCreate hatch pattern
    SPLSPLINEDrawingCreate spline curve
    EERASEModifyDelete selected objects
    COCOPYModifyCopy objects
    MMOVEModifyMove objects
    ROROTATEModifyRotate objects
    SCSCALEModifyScale objects
    MIMIRRORModifyMirror objects
    OOFFSETModifyOffset / parallel copy
    TRTRIMModifyTrim objects to cutting edge
    EXEXTENDModifyExtend objects to boundary
    FFILLETModifyCreate filleted corner
    CHACHAMFERModifyCreate chamfered corner
    ARARRAYModifyCreate array of objects
    XEXPLODEModifyExplode compound objects
    SSTRETCHModifyStretch part of drawing
    PEPEDITModifyEdit polylines
    LALAYERLayer / ViewOpen Layer Properties Manager
    VPVPORTSLayer / ViewCreate/manage viewports
    ZZOOMNavigationZoom (add E for Extents, W for Window, P for Previous)
    PPANNavigationPan the view
    REREGENNavigationRegenerate drawing display
    UNUNITSSetupDrawing units settings
    OPOPTIONSSetupAutoCAD options/preferences
    DSDSETTINGSSetupDrafting settings (OSNAP, POLAR, etc.)
    DDIMSTYLEDimensionDimension style manager
    DLIDIMLINEARDimensionLinear dimension
    DANDIMANGULARDimensionAngular dimension
    DRADIMRADIUSDimensionRadius dimension
    DDIDIMDIAMETERDimensionDiameter dimension
    MTMTEXTTextMultiline text
    DTDTEXTTextSingle line text
    STSTYLETextText style manager
    IINSERTBlocksInsert block
    BBLOCKBlocksCreate block definition
    WWBLOCKBlocksWrite block to external file
    PLPLOTOutputPrint / plot drawing
    PUPURGEUtilitiesRemove unused objects, layers, styles
    Ctrl + ZUNDOGeneralUndo last action
    Ctrl + YREDOGeneralRedo last undone action
    Ctrl + SSAVEGeneralSave current drawing
    Ctrl + 1PROPERTIESGeneralOpen properties palette
    Ctrl + 9COMMANDLINEGeneralToggle command line visibility
    F3OSNAP toggleStatus BarToggle Object Snap on/off
    F8ORTHO toggleStatus BarToggle Ortho mode on/off
    F10POLAR toggleStatus BarToggle Polar Tracking on/off
    EscCancelGeneralCancel current command
    Enter / SpaceRepeat last commandGeneralPressing Enter or Space repeats the last command

    AutoCAD Layouts and Paper Space Explained

    The distinction between Model Space and Paper Space is one of the most confusing concepts for new AutoCAD users, and one of the most important to understand for professional drafting. Misunderstanding this distinction leads to drawings that look correct on screen but print incorrectly or that have dimensions and text at the wrong scale.

    AutoCAD model space versus paper space comparison showing 2D drawing in model space and the same drawing composed in a paper space layout with title block

    Model Space: Where You Draw

    Model Space is the infinite drawing environment accessed from the Model tab at the bottom of the drawing area. This is where you draw everything at full real-world scale: a 5-metre beam is drawn as 5000mm long, a 50mm bolt is drawn as 50mm. There is no concept of paper size or print scale in Model Space. Everything exists at its true physical scale.

    Paper Space: Where You Compose for Printing

    Paper Space (accessed via Layout tabs at the bottom of the screen) represents a physical sheet of paper at its actual print size (A1, A2, A3, A4, etc.). In Paper Space, you create Viewports: rectangular (or custom-shaped) windows that display views of your Model Space content at specific scales. A single Paper Space layout can contain multiple viewports at different scales, allowing you to show an overall plan at 1:100 and a detail at 1:10 on the same sheet.

    The professional workflow is always: draw in Model Space at 1:1, compose and annotate in Paper Space using appropriately scaled viewports, and plot from Paper Space at 1:1. This is the workflow used by every professional CAD office globally, and it is the only workflow that correctly handles scale-dependent elements like dimension text, annotation symbols, and title blocks.

    Printing and Plotting AutoCAD Drawings Professionally

    Producing a correctly formatted, accurately scaled plot from an AutoCAD drawing is a skill that many users never fully master, leading to drawings that print at the wrong scale, with incorrect lineweights, or without the right elements included. The following workflow produces professional-quality plots consistently.

    The Professional Plotting Workflow

    1. Work from a Paper Space Layout: set up your title block, viewports, and scale from Paper Space.
    2. Set viewport scales exactly: double-click inside a viewport to enter it, type Z, then 1/50XP for 1:50 scale (replace 50 with your scale denominator), then press Enter.
    3. Lock viewports after scaling: select the viewport border, right-click, Display Locked > Yes. This prevents accidental zoom changes to the viewport scale.
    4. Open the Plot dialogue: Ctrl + P or type PLOT and Enter.
    5. Select the correct printer/plotter: choose your physical printer, PDF driver (DWG to PDF for digital output), or multi-format publisher.
    6. Set paper size: match the paper size to your layout (A1, A2, A3, A4).
    7. Plot from Layout: ensure ‘What to Plot’ is set to Layout, not Extents or Window.
    8. Select Plot Style Table (CTB or STB): choose your company standard plot style. CTB (colour-based) is most common for mechanical engineering.
    9. Enable Plot with Plot Styles and Plot Object Lineweights.
    10. Preview before plotting: always use Preview (bottom of Plot dialogue) to verify the output before committing to print.

    Introduction to AutoCAD 3D Modelling

    While AutoCAD is most widely used for 2D drafting, its 3D modelling capabilities are substantial and are used extensively in mechanical engineering, architecture, and product design for creating solid models, surface models, and conceptual 3D layouts.

    Switching to the 3D Modelling Workspace

    AutoCAD organises its tools into Workspaces. Switch from the default Drafting and Annotation workspace to the 3D Modelling workspace using the Workspace Switching icon in the status bar (bottom right). This changes the Ribbon to show 3D-specific tools including Solid, Mesh, and Surface creation panels.

    Core 3D Solid Modelling Commands

    • BOX: Creates a rectangular 3D solid. Specify corner, opposite corner, and height.
    • CYLINDER: Creates a cylindrical solid. Specify centre, radius, and height.
    • SPHERE: Creates a spherical solid. Specify centre and radius.
    • EXTRUDE (EXT): Extrudes a 2D closed profile (polyline, circle, region) into a 3D solid to a specified height. The most commonly used 3D command in mechanical engineering.
    • REVOLVE (REV): Revolves a 2D closed profile around an axis to create a solid of revolution. Essential for shafts, turned parts, and axisymmetric components.
    • LOFT: Creates a solid or surface that transitions between two or more cross-section profiles.
    • SWEEP: Sweeps a 2D profile along a specified path curve to create a 3D solid.
    • UNION: Combines two or more 3D solids into one by Boolean union.
    • SUBTRACT: Cuts one 3D solid from another by Boolean subtraction. Used to create holes, pockets, and cutouts.
    • INTERSECT: Creates a solid from the overlapping volume of two intersecting solids.
    • FILLET (3D): Applies rounded fillets to edges of 3D solids. Select edge(s) and specify fillet radius.
    • CHAMFER (3D): Applies bevelled chamfers to edges of 3D solids.
    3D vs Dedicated CAD Software:  AutoCAD’s 3D modelling capability is suitable for conceptual models, spatial layouts, and relatively simple mechanical parts. For complex parametric mechanical design, detailed assembly modelling, or integrated FEA simulation, dedicated parametric CAD tools such as SolidWorks, CATIA, Fusion 360, or NX are more appropriate. AutoCAD 3D is best used when you are already working in AutoCAD for 2D documentation and need to add 3D geometry to support the drawing set, or when producing architectural 3D layouts that complement 2D construction documents.

    AutoCAD for Different Industries: Mechanical, Architectural, and Civil

    While AutoCAD is the same software across industries, the way it is used, the drawing standards applied, the templates used, and the industry toolsets employed differ significantly by discipline.

    IndustryPrimary Use of AutoCADKey Standards AppliedTypical AutoCAD ToolsetUnique Workflow Considerations
    Mechanical EngineeringComponent drawings, assembly drawings, manufacturing documentation, GD&T annotationISO 128, ASME Y14.5, BS 8888 (UK)AutoCAD Mechanical Toolset (symbol libraries, automated drawing standards)Drawing at 1:1 scale; precise tolerances and surface finish callouts; extensive block libraries for standard hardware
    ArchitectureFloor plans, elevations, sections, construction documents, site plansAIA Layer Standards, local building codes, NBS specifications (UK)AutoCAD Architecture Toolset (walls, doors, windows as intelligent objects)Multiple scale views on same sheet; schedule tables; coordination with structural and MEP drawings
    Civil EngineeringSite plans, road layouts, drainage networks, earthwork sections, land surveysNHSS, local highway standards, OS grid conventions (UK)AutoCAD Civil 3D (terrain modelling, road corridors, drainage networks)Working with real-world geographic coordinates; large drawing extents; contour data from survey
    Electrical EngineeringSingle-line diagrams, circuit schematics, cable routing plans, switchboard layoutsIEC 60617, BS 3939, NFPA 79AutoCAD Electrical Toolset (intelligent wiring diagrams, panel layouts, wire numbering)Symbol libraries for components; wire numbering and cable scheduling automation
    Structural EngineeringReinforcement drawings, connection details, structural layout plans, foundation drawingsBS EN 1992, ACI 318, local structural drawing standardsStandard AutoCAD with custom block librariesCoordination with architectural drawings; RC detailing conventions; bar bending schedules

    AutoCAD vs Other CAD Software: Honest Comparison

    Understanding how AutoCAD compares to alternative CAD platforms helps engineers and designers choose the right tool for their needs and understand AutoCAD’s genuine strengths and limitations.

    SoftwareBest ForKey Advantage over AutoCADKey Disadvantage vs AutoCADTypical Industries
    AutoCAD2D drafting across all disciplines; documentation; multi-industryDWG is the universal exchange format; largest user base; widest discipline coverage2D-oriented; limited parametric 3D capability compared to dedicated ME CAD toolsAll engineering disciplines, architecture, construction
    SolidWorksParametric 3D mechanical design and engineeringFull parametric feature-based 3D modelling; integrated FEA (SolidWorks Simulation); assembly managementLess capable for 2D documentation and drawing annotation; not used outside mechanical engineeringMechanical engineering, product design, manufacturing
    AutoCAD (Fusion 360)Integrated 3D design, CAM, and collaboration for mechanical/product designCloud-based; integrated CAM for machining; lower cost; generative design featuresLess mature 2D drafting than AutoCAD; learning curve for transition usersProduct design, small manufacturers, startups
    Revit (Autodesk)Building Information Modelling (BIM) for architecture and constructionTrue 3D BIM model with intelligent building elements; all views generated from single modelArchitecture/structural/MEP only; not suitable for mechanical engineering drawing productionArchitecture, structural engineering, MEP engineering
    MicroStation (Bentley)Large infrastructure and civil engineering projectsExcellent for very large files (city-scale infrastructure); used widely in rail, roads, and utilitiesSmaller user base; different file format; steeper learning curve for AutoCAD-trained usersInfrastructure, transport, utilities, government
    FreeCAD / LibreCADBudget-conscious users, students, open-source advocatesCompletely free and open sourceLimited professional features; less reliable for high-stakes production work; smaller support communityHobbyists, students, small businesses, developing markets

    Professional Workflow Habits That Separate Good Users from Great Ones

    The difference between an AutoCAD user who is competent and one who is genuinely efficient comes down to habits. The following professional workflow habits are what experienced AutoCAD practitioners use consistently, and they are almost never taught in beginner tutorials.

    Work from the Command Line, Not the Ribbon

    The single fastest way to improve AutoCAD productivity is to stop clicking the ribbon for common commands and start typing aliases in the command line. The alias for OFFSET is O: two keystrokes. Finding and clicking the Offset icon in the Modify panel of the Home ribbon takes five to seven seconds. Multiplied across hundreds of commands per day, the time difference is enormous. Set a goal to memorise five new command aliases per week until you have mastered the 40 most common ones.

    Use Selection Sets Intelligently

    AutoCAD has multiple selection methods, and choosing the right one for each situation is a significant efficiency multiplier. Window selection (left to right drag) selects only objects entirely within the window. Crossing selection (right to left drag) selects all objects that the window crosses or contains. FENCE selection (type F during selection) selects all objects the fence line crosses. SELECT ALL (Ctrl + A) selects everything in the current space. Quick Select (QSELECT command) allows filtering selections by layer, object type, colour, or any other property: invaluable for changing all objects on a specific layer or of a specific type at once.

    Use OVERKILL to Clean Drawings

    The OVERKILL command removes duplicate or overlapping objects from a drawing, a common problem when drawings have been built up over time or imported from external sources. Run OVERKILL on any drawing before submitting it to a client, sharing it with a contractor, or importing it into another application. It dramatically reduces file size and eliminates geometric inconsistencies.

    PURGE Drawings Before Saving

    The PURGE command (PU) removes all unused named objects from a drawing: unused layers, block definitions, text styles, dimension styles, and linetypes. Run PURGE and OVERKILL before archiving or sharing any drawing. Unpurged drawings accumulate enormous quantities of redundant data, particularly when blocks from external sources have been inserted and then deleted without purging.

    Save with Incremental Version Numbers

    Professional CAD practice involves saving drawings with version-tracked file names (e.g. PROJECT-PIPE-LAYOUT-R1.dwg, PROJECT-PIPE-LAYOUT-R2.dwg) rather than overwriting the same file. This provides a recovery path if a drawing is damaged, incorrectly modified, or if a previous version is needed to resolve a design query. A simple R1, R2, R3 suffix system is sufficient for most projects.

    AutoCAD Learning Path: From Zero to Job-Ready

    The following structured learning path takes a complete beginner from zero AutoCAD knowledge to job-ready professional competence. The timeline assumes approximately 1 to 2 hours of daily practice.

    StageDurationFocus TopicsMilestone to Achieve
    Stage 1: OrientationWeek 1-2Interface navigation, drawing setup, units, OSNAP, ORTHO, basic LINE and CIRCLE commandsDraw a simple mechanical part (bracket or plate) from a sketch with correct dimensions
    Stage 2: Core 2D DrawingWeek 3-5All draw commands (arc, rectangle, polygon, hatch, polyline), OFFSET, TRIM, FILLET, CHAMFER, basic layersProduce a complete 2D mechanical drawing with all geometry correct and properly layered
    Stage 3: AnnotationWeek 6-7Dimension styles, all dimension types, MTEXT, text styles, tables, leadersAdd complete GD&T-style dimensioning and annotation to a mechanical drawing
    Stage 4: Blocks and EfficiencyWeek 8-9Block creation and insertion, WBLOCK, XREF, ARRAY, MIRROR, advanced selection methods, command aliasesCreate a reusable block library for standard mechanical hardware; demonstrate 40% faster drawing time
    Stage 5: Paper Space and PlottingWeek 10-11Layouts, viewports, MVIEW, viewport scale, plot styles (CTB), professional plotting workflowProduce a plot-ready multi-view drawing on an A2 sheet with correct scales and title block
    Stage 6: 3D FundamentalsWeek 12-143D workspace, UCS, EXTRUDE, REVOLVE, UNION, SUBTRACT, FILLET 3D, solid editingCreate a 3D model of a simple mechanical component and generate 2D views from it
    Stage 7: Professional PracticeWeek 15-20Dynamic blocks, parametric constraints, XREF management, OVERKILL/PURGE, industry-specific standards, template creationBuild a professional drawing template with full layer structure, text styles, and dimension styles; complete a multi-sheet drawing set for a real project

    AutoCAD Certifications and Career Value

    Formal AutoCAD certification from Autodesk validates your proficiency for employers and clients and distinguishes you from candidates who are self-taught without formal validation. Autodesk offers two levels of certification for AutoCAD.

    Autodesk Certified User (ACU) in AutoCAD

    The Autodesk Certified User (ACU) certification is the entry-level validation, targeting students and early-career professionals. It tests competency in the core 2D drawing, modifying, annotating, and file management tasks covered in Stages 1 through 5 of the learning path above. The exam is available through Autodesk Authorised Testing Centres and takes approximately 50 minutes.

    Autodesk Certified Professional (ACP) in AutoCAD

    The Autodesk Certified Professional (ACP) certification is the professional-level validation, targeting experienced users with at least 400 hours of AutoCAD use. It tests advanced 2D and 3D skills, complex block and xref workflows, parametric constraints, customisation, and professional plotting. The ACP designation is recognised by engineering and architecture employers globally and provides a meaningful CV differentiator in competitive job markets.

    AutoCAD Career Value in 2026

    AutoCAD proficiency remains one of the most consistently in-demand technical skills in engineering job postings globally. According to LinkedIn job posting data analysed by multiple career research platforms in 2024 and 2026, AutoCAD appears as a required or preferred skill in more engineering and design job postings than any other single software tool. Starting salaries for engineering technicians and drafters with verified AutoCAD proficiency are typically 10 to 20 percent higher than equivalents without documented CAD skills. For mechanical engineers, AutoCAD (combined with SolidWorks or CATIA for 3D) represents the fundamental software stack that virtually all employers expect.

    Frequently Asked Questions (FAQ)

    What is AutoCAD used for?

    AutoCAD is used to create precise 2D drawings and 3D models across engineering, architecture, and design. Mechanical engineers use it for component and assembly drawings. Architects use it for floor plans, sections, and construction documents. Civil engineers use it for site plans, road layouts, and drainage designs. Electrical engineers use it for circuit diagrams and wiring schematics. It is the most widely deployed CAD software globally, with over 4 million active subscribers across virtually every industry that produces technical drawings.

    How long does it take to learn AutoCAD?

    With consistent daily practice, most beginners can achieve productive 2D drafting competence in 4 to 8 weeks. Reaching professional-level proficiency in 2D drafting, including layers, blocks, paper space layouts, and professional plotting, typically takes 3 to 5 months. Adding solid 3D modelling competence requires a further 2 to 3 months. Full professional mastery, including dynamic blocks, parametric constraints, customisation, and industry-specific workflows, develops over 1 to 2 years of regular use on real projects.

    Is AutoCAD hard to learn?

    AutoCAD has a moderate learning curve. The basic drawing commands (LINE, CIRCLE, TRIM, OFFSET) can be learned in a few hours. The concepts that require more effort are the professional workflow principles: layers, paper space vs model space, drawing setup, and annotation scaling. These take most new users 4 to 8 weeks of practice to master. The good news is that AutoCAD’s logic is consistent: once you understand how one command works, similar commands follow the same pattern. The investment pays off quickly because AutoCAD proficiency is one of the most transferable and in-demand technical skills in engineering.

    What is the difference between AutoCAD and AutoCAD LT?

    AutoCAD LT is a lower-cost version of AutoCAD that includes full 2D drafting capability but excludes 3D modelling, the AutoCAD programming API (for custom scripts and applications), and the industry-specific toolsets (Mechanical, Architecture, Electrical, etc.). For professionals who need only 2D drafting and documentation, AutoCAD LT provides excellent value at approximately one-quarter of the full AutoCAD subscription cost. Most drafters, engineering technicians, and architects working on 2D documentation can work effectively with AutoCAD LT.

    What are the most important AutoCAD commands for beginners?

    The most important AutoCAD commands for beginners to learn first are: LINE (L), CIRCLE (C), RECTANGLE (REC), OFFSET (O), TRIM (TR), FILLET (F), COPY (CO), MOVE (M), ERASE (E), LAYER (LA), and HATCH (H). These ten commands cover the majority of basic 2D drafting tasks. Alongside these, mastering OSNAP (F3), ORTHO (F8), and the ZOOM and PAN navigation commands is essential. Once these are fluent, the next priority is BLOCK (B), INSERT (I), MTEXT (MT), and the dimensioning commands (DIMLINEAR, DIMRADIUS, DIMDIAMETER).

    What is the difference between model space and paper space in AutoCAD?

    Model Space is where you draw your design at true real-world scale (1:1). Paper Space (accessed via Layout tabs) represents a physical sheet of paper at its actual print size, where you compose viewports of your Model Space content at specific scales for printing. The professional workflow is: draw in Model Space at 1:1, compose and annotate in Paper Space using scaled viewports, and plot from Paper Space at 1:1. This is the correct, professional method for producing multi-scale, multi-view drawings.

    What is the best way to learn AutoCAD for free?

    The best free resources for learning AutoCAD are: the Autodesk student licence (free full AutoCAD for verified students via the Autodesk Education Community), Autodesk’s own free tutorial library at learn.autodesk.com, the 30-day free trial of AutoCAD for non-students, and the tutorial articles on this site which cover specific commands and workflows in detail. YouTube channels by experienced AutoCAD instructors provide excellent supplementary video content. The most important free resource, however, is simply regular practice on real drawing projects: reading tutorials without applying them in a live drawing environment is far less effective.

    Is AutoCAD still relevant in 2026?

    Yes, AutoCAD is fully relevant and widely in demand in 2026. While dedicated parametric 3D tools (SolidWorks, CATIA) are preferred for complex mechanical 3D design, and BIM tools (Revit) are increasingly used in architecture and construction, AutoCAD remains the universal standard for 2D technical drawing production, drawing exchange, and documentation across all engineering and design disciplines. Its DWG file format is the universal language of technical drawing. AutoCAD proficiency consistently appears in more engineering and design job postings than any other single software tool.

    Conclusion

    AutoCAD has been the global standard for technical drawing for over 40 years, and in 2026 it remains the most in-demand CAD skill across engineering, architecture, and design. Whether you are learning it for the first time, transitioning from paper-based drafting, or seeking to sharpen professional-level skills you already have, the path is consistent: understand the interface, master the foundational 2D commands, build professional habits around layers and drawing setup, learn blocks and paper space properly, and then extend into 3D and industry-specific workflows.

    The articles in this cluster provide deep, step-by-step coverage of specific AutoCAD topics that complement this pillar guide. Each supporting article addresses a specific task or workflow that engineers and designers encounter regularly and struggle to find clear, practical answers for.

    Explore the full AutoCAD tutorial series on this site. Start with our guides on the most common AutoCAD problems and workflows: Why Is My AutoCAD Ribbon Empty?, How to Draw a Line from Its Midpoint, How to Create a 3D Model from 2D Views, and Dynamic Block Lookup Tables Explained.

  • Mechanical Engineering Careers and Industries (2026)

    Mechanical Engineering Careers and Industries (2026)

    Few engineering disciplines can match the career versatility of mechanical engineering. A mechanical engineer can begin their career designing automotive powertrains, spend a decade in oil and gas, transition into renewable energy, consult across multiple industries, and retire as a technical director in medical devices, all with the same foundational degree. No other engineering qualification opens as many doors across as many industries.

    The challenge, for students and early-career engineers especially, is navigating that breadth intelligently. With so many mechanical engineering career paths available, and with the profession changing faster than at any point in the past century, making informed decisions about which industry to enter, which specialisation to develop, and how to progress strategically requires reliable, current, and comprehensive information.

    This guide provides exactly that. It covers all 12 major industries that employ mechanical engineers, with real salary data from the U.S. Bureau of Labor Statistics (BLS), typical roles, work environments, growth outlook, and major employers. It maps the complete career progression from graduate engineer to engineering director. It compares salaries globally. It explains how to pivot between industries. And it answers the questions engineers actually ask when planning their careers.

    Key Data Point:  According to the U.S. Bureau of Labor Statistics, 293,000+ mechanical engineers are currently employed in the United States. The profession is projected to grow 9 percent from 2024 to 2034 (much faster than average), generating approximately 18,100 new job openings annually. The median annual wage was $102,320 in May 2024, with the top 10 percent earning over $161,240. The highest-paying single industry for mechanical engineers is oil and gas extraction at a median of $195,700 per year.

    Why Mechanical Engineering Career Choice Matters More Than Most Engineers Realise

    The industry you enter as a mechanical engineer shapes far more than your immediate salary. It determines the technical problems you work on, the pace of professional development, the stability of your income through economic cycles, the ceiling on your long-term earnings, and even your quality of life outside of work. Industry choice is arguably the single most consequential career decision a mechanical engineer makes, yet it is often made almost casually, based on which company happened to offer an internship or which graduate scheme had the best signing bonus.

    The data tells a clear story: median mechanical engineer salaries vary by a factor of nearly two across industries, from around $93,000 to $180,000+ in the US, depending on sector. A mechanical engineer who spends 20 years in a lower-paying sector, even with strong performance and regular promotions, may never reach the starting salary of a counterpart who chose a premium industry from the outset.

    At the same time, higher pay is not always the right metric. Some of the highest-paying industries (oil and gas, nuclear) also have the most demanding work environments, the most geographic constraints, and the greatest exposure to commodity price cycles. Some of the most personally rewarding specialisations (medical devices, educational robotics, sustainable engineering) do not top the salary tables. Understanding the full picture, across pay, growth, stability, work environment, and personal fit, is what this guide is designed to provide.

    Salary by Industry: The Master Table Every ME Should Study

    The following table presents mechanical engineer salary data by industry sourced from the U.S. Bureau of Labor Statistics (BLS) Occupational Employment and Wage Statistics survey, May 2024. This is the most authoritative and comprehensive salary dataset available for the US engineering job market.

    Bar chart showing mechanical engineer median annual salary by industry from highest-paying oil and gas sector to manufacturing, based on BLS 2024 data
    Industry SectorMedian Annual Wage (US, 2024)Employment Level10-Year Growth OutlookEntry-Level Salary Range
    Oil and Gas Extraction$195,700~4,800 MEsModerate; offset by energy transition risk$85,000 – $105,000
    Solar Electric Power Generation$167,170Growing rapidlyVery strong through 2035$72,000 – $90,000
    Natural Gas Distribution$145,920StableModerate; transitioning to hydrogen$75,000 – $92,000
    Nuclear Electric Power Generation$137,810Stable to growing (new reactor programmes)Strong with nuclear renaissance$78,000 – $95,000
    Semiconductor and Electronic Components$107,890~14,000+ MEsStrong: CHIPS Act investment driving growth$75,000 – $92,000
    Transportation Equipment Manufacturing$103,210~29,000 MEsStrong; EV transition reshaping roles$68,000 – $82,000
    Aerospace and Defence$100,000 – $115,000*~50,000+ MEsSteady; commercial space driving new demand$70,000 – $85,000
    Architecture, Engineering Services$102,990~52,000 MEs (largest single employer)Strong; multi-industry consulting growth$65,000 – $80,000
    Medical Devices and Instruments$95,000 – $110,000*~20,000 MEsVery strong; ageing population and robotics$68,000 – $82,000
    Machinery Manufacturing$96,690~41,000 MEsSteady; automation integration driving change$62,000 – $76,000
    HVAC and Building Services$85,000 – $98,000*~15,000 MEsStrong; net-zero building requirements$58,000 – $72,000
    Robotics and Automation OEMs$95,000 – $115,000*Rapidly growingVery strong; fastest growing sector$68,000 – $82,000

    *Ranges marked with asterisk are estimated from BLS industry-adjacent codes and ASME salary survey data where specific BLS codes do not precisely match these sectors. All other figures are BLS OEWS May 2024 data for SOC 17-2141 (Mechanical Engineers).

    Important Context:  US salary data does not translate directly to other markets. A mechanical engineer earning $103,000 in the US might earn GBP 55,000 in the UK, EUR 75,000 in Germany, or AUD 110,000 in Australia. Each market has different cost-of-living profiles, tax structures, and industry concentrations. The international comparison section later in this article covers these differences in detail.

    Industry 1: Automotive Engineering

    The automotive industry is one of the largest and most historically prominent employers of mechanical engineers, and it is currently in the middle of its most significant transformation since the invention of the internal combustion engine. Automotive mechanical engineering is simultaneously losing traditional ICE roles and creating new ones in EV powertrain, battery thermal management, lightweighting, and autonomous systems engineering at a rate that is reshaping the entire talent landscape.

    What Automotive MEs Work On

    • Powertrain engineering: Engine and transmission design (ICE), electric motor and inverter integration, hybrid system development
    • Chassis and suspension: Structural design, ride and handling optimisation, NVH (noise, vibration, harshness) analysis
    • Battery thermal management: Cooling system design for lithium-ion and solid-state battery packs
    • Lightweighting: Advanced aluminium alloys, carbon fibre composites, topology-optimised structures to offset EV battery mass
    • Safety and crashworthiness: FEA-based crash simulation, regulatory homologation (NCAP, FMVSS)

    Work Environment and Culture

    Automotive engineering ranges from fast-paced, competitive OEM environments (Ford, GM, Stellantis, Toyota, BMW, Volkswagen) to Tier 1 supplier roles (Bosch, Continental, Aptiv, BorgWarner) and fast-growing EV startups (Tesla, Rivian, Lucid, NIO). OEM roles tend to offer structured development programs, defined processes, and exposure to complex multi-disciplinary projects. Startup automotive roles offer more autonomy, faster learning, and equity upside at higher personal risk.

    By 2030, 40 percent of automotive engineering jobs are projected to require expertise in EV powertrains and AI-driven diagnostics according to industry analysis. Engineers who understand both mechanical fundamentals and battery electrochemistry basics, thermal management, and electric motor integration are in the strongest position.

    Industry 2: Aerospace and Defence

    Aerospace engineering is widely regarded as the most technically demanding and professionally prestigious application of mechanical engineering. It consistently ranks among the highest-paying industries for mechanical engineers and offers exposure to the most rigorous structural analysis, thermal engineering, and precision manufacturing challenges in the profession.

    What Aerospace MEs Work On

    • Structural analysis: FEA-based stress and fatigue analysis of airframes, wings, and pressure vessels to meet FAA/EASA airworthiness standards
    • Propulsion systems: Gas turbine component design, combustor development, turbine blade cooling, additive manufactured engine parts
    • Thermal management: Aircraft environmental control systems, avionics cooling, re-entry thermal protection systems for space vehicles
    • Mechanisms and actuation: Landing gear, flight control surfaces, cargo handling systems, docking mechanisms for space vehicles
    • Reusable launch vehicles: Structural design, propellant system engineering, thermal protection, and landing system design for commercial space

    Key Employers and Locations

    Major aerospace employers include Boeing, Airbus, Lockheed Martin, Northrop Grumman, Raytheon, BAE Systems, Rolls-Royce, GE Aerospace, Safran, SpaceX, Blue Origin, and hundreds of Tier 1 and Tier 2 suppliers. Geographic concentrations in the US include Seattle, Southern California, Houston, and Huntsville. In Europe, Toulouse, Hamburg, Bristol, and Munich are primary aerospace hubs.

    The commercial space sector, valued at approximately $630 billion in 2024, is creating a new category of aerospace mechanical engineering jobs focused on reusable rockets, satellite constellations, and in-orbit servicing, areas with significant demand for engineers who combine structural and thermal expertise with an appetite for rapid development cycles.

    Industry 3: Energy (Oil, Gas, and Renewables)

    The energy sector is the single highest-paying industry for mechanical engineers in the US and one of the most rapidly transforming. Oil and gas extraction pays a median of $195,700 for MEs, while solar electric power generation pays a median of $167,170. Both figures significantly exceed the all-industry ME median of $102,320, reflecting the technical complexity, physical remoteness, and high-consequence nature of energy engineering work.

    Oil and Gas: Still the Highest Payer

    Mechanical engineers in oil and gas work on drilling systems, wellhead equipment, pipeline integrity, compression and processing facilities, and offshore platform structures. The premium pay reflects demanding work environments (offshore rotation, remote onshore facilities), high safety requirements, and the commercial value of engineering decisions in an industry measured in billions of dollars. Required expertise includes ASME pressure vessel codes, API standards, corrosion engineering, and rotating equipment design. Engineers considering this path should weigh the premium pay against long-term career risk as the energy transition progresses.

    Renewables: The Fastest Growing Energy Sector

    The renewable energy sector employed mechanical engineers at 35 percent of its total workforce according to 2026 industry data, with solar alone supporting approximately 263,000 engineering jobs in the US. Mechanical engineers in renewables work on wind turbine structural design and drivetrain engineering, solar tracker mechanisms and mounting system structures, offshore wind foundation design, energy storage thermal management, and hydrogen production and storage systems. Federal clean energy investment is driving sustained and rapidly growing demand, with the IEA projecting renewable energy investment to reach $1.74 trillion in 2026.

    Industry 4: Manufacturing and Industrial Automation

    Manufacturing employs more mechanical engineers than any other single sector, accounting for approximately 50 percent of all ME employment in the US according to the BLS. Within manufacturing, machinery manufacturing alone employs 41,000 mechanical engineers and transportation equipment manufacturing employs a further 29,000. Industrial automation, driven by the reshoring of manufacturing to the US and Europe and by Industry 4.0 investment, is one of the fastest-growing sub-sectors.

    What Manufacturing MEs Work On

    • Process engineering: Designing and optimising production processes, selecting and specifying manufacturing equipment, implementing lean manufacturing
    • Tooling and fixture design: CNC machining fixtures, press tools, injection moulding tools, assembly jigs
    • Quality engineering: Statistical process control, measurement system analysis, GD&T, coordinate measuring machine (CMM) programming
    • Automation integration: Robotic cell design, cobot integration, conveyor and handling system engineering
    • DFM/DFA consultation: Reviewing designs from product development for manufacturability and assembly efficiency

    The manufacturing industry is projected to have 2.1 million unfilled jobs by 2030 due to a skills gap, according to Deloitte and the Manufacturing Institute. Mechanical engineers with automation and robotics integration skills are particularly scarce and command premiums of 10 to 20 percent above conventional manufacturing ME roles.

    Industry 5: Medical Devices and Biomedical Engineering

    The medical device industry is one of the most technically demanding and personally rewarding sectors for mechanical engineers. Products must meet the same level of structural and functional reliability as aerospace components, operate in the most hostile chemical environment possible (the human body), navigate complex regulatory pathways including FDA 510(k) and PMA submissions in the US and CE marking in Europe, and often be designed to the smallest possible size and mass.

    What Medical Device MEs Work On

    • Implantable device design: Orthopaedic implants, cardiovascular devices (stents, heart valves, pacemaker housings), spinal implants
    • Surgical instrument and robot design: Laparoscopic tools, surgical robot mechanisms, robotic actuator systems (da Vinci, Medtronic Hugo)
    • Diagnostic equipment: MRI bore structures, CT gantry mechanisms, ultrasound transducer housings
    • Wearable and ingestible devices: Drug delivery systems, continuous monitoring devices, remote patient monitoring hardware
    • Verification and validation (V&V): Mechanical testing to FDA standards, fatigue life testing, accelerated aging

    Major employers include Medtronic, Boston Scientific, Abbott, Stryker, Zimmer Biomet, BD (Becton Dickinson), Intuitive Surgical, Edwards Lifesciences, and Philips Healthcare. Geographic hubs include the Minneapolis-St Paul medical device corridor, Boston’s Route 128 corridor, and the San Francisco Bay Area. Knowledge of FDA Design Controls (21 CFR Part 820) and ISO 13485 quality management is essentially mandatory for experienced roles in this sector and adds a meaningful salary premium.

    Industry 6: Robotics and Advanced Automation

    Robotics is the fastest-growing employer of mechanical engineers globally, driven by the convergence of falling component costs, expanding AI capabilities, and mounting demand for automation in logistics, healthcare, agriculture, and construction. The global industrial robotics market reached $48 billion in 2024 and is projected to exceed $100 billion by 2030 according to the International Federation of Robotics (IFR).

    What Robotics MEs Work On

    • Robot structural design: Frame and link design for articulated, SCARA, delta, and collaborative robots
    • Actuator and joint engineering: Harmonic drives, torque sensors, cable-driven mechanisms, soft pneumatic actuators
    • End effector design: Grippers, tool changers, welding torches, dispensing heads
    • AMR design: Autonomous mobile robot chassis, wheel modules, suspension systems, LiDAR mounting structures
    • Mechanism design: Four-bar linkages, cam mechanisms, compliant mechanisms for precision motion

    The World Economic Forum’s Future of Jobs Report 2026 identified robotics, automation, and mechatronics as the most important knowledge areas for manufacturing sector engineers over the next 10 years. Mechanical engineers with Python programming skills alongside mechanical design expertise command salary premiums of 15 to 25 percent.

    Industry 7: HVAC and Building Services Engineering

    Heating, Ventilation, and Air Conditioning (HVAC) engineering applies thermodynamics and fluid mechanics to control the thermal environment of buildings, data centres, hospitals, industrial facilities, and transportation systems. Given that buildings account for approximately 40 percent of global energy consumption, HVAC engineers are at the front line of the global decarbonisation effort.

    HVAC roles generally offer some of the best work-life balance in mechanical engineering: work is predominantly office-based, projects follow predictable cycles, and demand is stable across economic cycles because buildings always require thermal management. Salary is below the top-paying industries but competitive, and demand is being boosted by net-zero building regulations that are requiring significant HVAC system upgrades across existing building stock globally.

    Key employers include major MEP (Mechanical, Electrical, Plumbing) consultancies including Arup, WSP, Jacobs, AECOM, Atkins, and Thornton Tomasetti, alongside equipment manufacturers including Carrier, Trane, Daikin, Johnson Controls, and Honeywell.

    Industry 8: Semiconductor and Electronics Manufacturing Equipment

    The semiconductor equipment industry is one of the most technically demanding and financially rewarding sectors for mechanical engineers, yet it is significantly under-represented in conventional career guidance resources. Mechanical engineers in this sector design the precision machines that make chips: photolithography systems, CVD reactors, ion implant equipment, wafer handling robots, and CMP tools. These are arguably the most precision-demanding mechanical systems built in any industry.

    Major employers include ASML, Applied Materials, Lam Research, KLA Corporation, and Tokyo Electron. The US CHIPS and Science Act, signed in 2022, committed $52 billion to domestic semiconductor manufacturing expansion, driving sustained demand for mechanical engineers in semiconductor equipment design and process engineering. Median ME salary in this sector is $107,890 (BLS May 2024), one of the highest across all manufacturing sub-sectors.

    Industry 9: Consumer Products and Durable Goods

    Consumer products engineering offers mechanical engineers broad design experience, fast development cycles, and the visible satisfaction of seeing their work on store shelves and in people’s homes. Companies including Dyson, Whirlpool, Black and Decker, Apple, Samsung, and dozens of smaller consumer product companies employ large numbers of mechanical engineers in product development, industrial design support, and manufacturing engineering roles.

    The work combines structural analysis (drop testing, durability), thermal management (electronics cooling), DFM optimisation, and supply chain engineering. Salaries in consumer products tend to sit in the mid-range compared to industrial and energy sectors, but the work environment, pace of development, and breadth of exposure make it an excellent launching pad for engineers early in their careers.

    Industry 10: Defence and Government Research

    Defence engineering offers mechanical engineers some of the most technically challenging and financially rewarding work in the profession, alongside the highest level of employment security available in any engineering sector. Defence budgets tend to be counter-cyclical: they increase or remain stable during economic downturns when private sector engineering contracts contract.

    Key areas include weapons systems structural design, armour and ballistic protection engineering, submarine pressure hull design, missile and rocket propulsion, unmanned vehicle systems, and directed energy weapon thermal management. Security clearances are typically required for classified work, which creates a significant barrier to entry but also a meaningful salary premium and reduced competition. Major employers include Lockheed Martin, Northrop Grumman, Raytheon Technologies (RTX), BAE Systems, L3 Harris, DARPA, and national laboratories including Sandia and Los Alamos.

    Industry 11: Marine and Offshore Engineering

    Marine and offshore engineering applies mechanical engineering to ships, submarines, offshore oil and gas platforms, floating production facilities, and the rapidly expanding offshore wind sector. It is one of the most specialised mechanical engineering disciplines, combining structural analysis for a fatigue environment (constant wave loading), corrosion management in saline environments, propulsion system design, and the engineering of systems that must operate without maintenance for extended periods in remote locations.

    The growth of offshore wind energy is creating significant new demand for marine mechanical engineers with expertise in floating foundation design, mooring systems, marine corrosion protection, and subsea cable management. The global offshore wind market is projected to grow from $57 billion in 2023 to over $150 billion by 2030.

    Industry 12: Consulting Engineering

    Engineering consulting is the most versatile career path in mechanical engineering: consulting engineers are paid for their specialised technical knowledge and apply it across multiple clients, industries, and projects simultaneously. Engineering services is the single largest employer of mechanical engineers in the US by sector, employing over 52,000 MEs at a median salary of $102,990.

    Consulting can take several forms: large multi-discipline consultancies (Arup, Jacobs, AECOM, Mott MacDonald), specialist boutique firms focusing on a specific technical area (FEA simulation, tribology, forensic engineering), and independent sole-trader consultants. The consulting career path rewards depth of specialist knowledge, excellent communication skills, and the ability to build and maintain client relationships. Senior consulting engineers can command very high day rates and have significant control over their working patterns.

    Career Progression Roadmap: Graduate Engineer to Director

    Understanding the typical mechanical engineering career progression at each stage helps engineers set realistic expectations, identify what they need to develop, and make strategic decisions about when and how to advance.

    Mechanical engineering career progression roadmap infographic showing stages from graduate engineer to engineering director with salary ranges and development milestones
    Career StageYears ExperienceTypical TitlesKey ResponsibilitiesTypical US Salary RangeWhat Drives Progression
    Graduate / Entry-Level0-3 yearsGraduate Engineer, Junior ME, Engineer ICAD modelling, analysis tasks directed by seniors, documentation, test support$65,000 – $82,000Technical depth, initiative, asking smart questions, building foundational skills
    Mid-Level Engineer3-8 yearsMechanical Engineer, Engineer II/III, Design EngineerOwning subsystems, running analysis independently, leading design reviews, mentoring juniors$82,000 – $110,000Independent judgement, communication, cross-functional leadership, specialisation depth
    Senior Engineer8-15 yearsSenior ME, Principal Engineer, Lead EngineerTechnical ownership of programs, setting design standards, customer/executive interaction, complex problem-solving$110,000 – $140,000Technical reputation, mentoring effectiveness, business awareness, breadth of impact
    Staff / Principal Engineer12-20 yearsStaff Engineer, Distinguished Engineer, Technical FellowDefining technology direction, cross-organisation influence, patents and publications, strategic R&D input$130,000 – $170,000Recognised expertise, thought leadership, internal and external reputation
    Engineering Management10+ yearsEngineering Manager, Director of Engineering, VP EngineeringTeam leadership, budget management, program oversight, talent development, strategic planning$130,000 – $200,000+People skills, business acumen, strategic thinking, successful team delivery
    Executive / Director Level15-25+ yearsChief Engineer, CTO, VP/SVP Engineering, Engineering DirectorTechnology strategy, organisational leadership, stakeholder management, P&L responsibility$180,000 – $300,000+Track record of delivery, executive presence, industry network, strategic vision
    Career Strategy Insight:  The most powerful career accelerator in mechanical engineering is developing a reputation as the person who solves problems that others cannot. Early in a career, this means going deep on a technical specialisation while maintaining broad fundamentals. From mid-career onward, it means adding cross-functional leadership, business awareness, and communication skills to that technical foundation. Engineers who remain purely technical specialists throughout their careers can still reach excellent compensation at the Staff/Principal level. Engineers who combine technical depth with leadership capability have the highest career ceiling.

    International Salary Comparison: US, UK, Germany, Australia, and Singapore

    For engineers considering international careers or comparing offers across markets, the following table provides a realistic comparison of mechanical engineer salaries by country at different career stages. All figures are approximate annual gross salaries in local currency and approximate USD equivalent.

    World map showing mechanical engineer mid-career salaries by country including US, UK, Germany, Australia, Singapore, and Canada
    CountryEntry Level (0-3 yrs)Mid-Level (3-8 yrs)Senior (8-15 yrs)Highest-Paying Industry in Country
    United States$65,000 – $82,000$82,000 – $110,000$110,000 – $155,000Oil and gas ($195,700 median BLS 2024)
    United KingdomGBP 28,000 – 36,000 (~$35-45k)GBP 42,000 – 62,000 (~$53-78k)GBP 65,000 – 90,000 (~$82-113k)Aerospace and defence; oil and gas North Sea
    GermanyEUR 45,000 – 58,000 (~$49-63k)EUR 62,000 – 82,000 (~$68-90k)EUR 82,000 – 115,000 (~$90-126k)Automotive (BMW, Volkswagen, Mercedes-Benz); aerospace
    AustraliaAUD 65,000 – 82,000 (~$42-53k)AUD 90,000 – 120,000 (~$58-78k)AUD 120,000 – 165,000 (~$78-107k)Mining and resources; defence
    SingaporeSGD 48,000 – 62,000 (~$36-46k)SGD 70,000 – 100,000 (~$52-74k)SGD 100,000 – 145,000 (~$74-107k)Semiconductor equipment; aerospace MRO
    CanadaCAD 65,000 – 80,000 (~$48-59k)CAD 85,000 – 115,000 (~$63-85k)CAD 115,000 – 155,000 (~$85-115k)Oil sands (Alberta); aerospace (Bombardier, Pratt & Whitney Canada)

    USD equivalents are approximate based on exchange rates as of early 2026 and are provided for comparison purposes only. Purchasing power parity differs significantly between countries. Germany and Australia offer particularly strong value when cost of living is factored in.

    Mechanical Engineering Career Pivots: How to Switch Industries

    One of the most underappreciated advantages of a mechanical engineering career is the ability to pivot between industries. Because the underlying technical foundations (mechanics, thermodynamics, FEA, fluid mechanics, materials) are universal, a mechanical engineer can move between sectors more readily than most other engineering disciplines. However, successful pivots require understanding what transfers and what needs to be learned.

    From IndustryTo IndustryWhat Transfers DirectlyWhat You Need to LearnTypical Timeline to Full Competence
    AutomotiveAerospaceFEA, CAD, structural analysis, DFM, fatigue analysisFAA/EASA airworthiness standards, aerospace material specifications (AMS), safety case methodology12-24 months with target employer training
    Oil and GasRenewable EnergyPressure system design, rotating equipment, fluid mechanics, ASME codesWind turbine structural specifics or solar tracker mechanisms; IEC wind energy standards6-18 months; certification courses available
    ManufacturingRobotics and AutomationProcess knowledge, fixture design, quality engineering, DFMRobot kinematics, ROS basics, cobot programming, motion control systems12-18 months; supplement with online courses and personal projects
    Any IndustryMedical DevicesMechanical design, FEA, precision manufacturingFDA design controls (21 CFR 820), ISO 13485, verification and validation methodology, biocompatibility basics18-24 months; specific V&V experience critical
    EngineeringConsultingAll technical skills from previous industryClient management, proposal writing, multi-project juggling, commercial awareness, billing practicesImmediate on technical content; 2-3 years to build client relationships

    Certifications and Professional Development That Accelerate Careers

    Professional certifications and development activities that genuinely add career value in mechanical engineering fall into three categories: professional licensure, technical software certifications, and specialist knowledge qualifications.

    Professional Licensure

    • Professional Engineer (PE) License (US): Required for engineering work that affects public safety in infrastructure, government, and consulting roles. Pass FE exam, gain 4 years’ supervised experience, pass PE exam. Adds $10,000 to $20,000 to annual salary on average.
    • Chartered Engineer (CEng) Status (UK): The UK benchmark for senior engineering professionals. Awarded by IMechE on demonstration of competency and experience. Required for many senior roles in UK industry and opens doors internationally via IPEA mutual recognition.
    • Professional Engineer (P.Eng.) (Canada): Required to practise engineering independently in Canada. Province-regulated; requires accredited degree plus 48 months’ supervised work experience.

    Technical Software Certifications

    • SOLIDWORKS Certified Professional (CSWP) and Expert (CSWE): Widely recognised in product development and manufacturing. Validates proficiency in SOLIDWORKS 3D modelling and simulation. Entry-level engineers benefit most.
    • ANSYS Certifications: ANSYS offers certifications in Mechanical (FEA), Fluent (CFD), and other modules. Recognised by aerospace, automotive, and energy employers.
    • Autodesk Certified Professional (AutoCAD, Fusion 360): Valuable for drafting-heavy roles in manufacturing, construction, and consulting.

    Specialist Knowledge Qualifications

    • Certified Manufacturing Engineer (CMfgE): Awarded by SME (Society of Manufacturing Engineers). Validates manufacturing process knowledge for senior manufacturing ME roles.
    • Six Sigma Black Belt (SSBB): Valuable for manufacturing and quality engineering roles. Demonstrates advanced statistical process improvement expertise. Recognised across all manufacturing-heavy industries.
    • Project Management Professional (PMP): Not technically specific but adds significant value for engineers moving into project or program management. Recognised across all industries.
    • ISO 13485 Lead Auditor: Specific to medical devices but adds meaningful salary premium in that sector. Combined with FDA design controls training, it significantly strengthens medical device career progression.

    Read related blog on Frontiers of Mechanical Engineering

    Frequently Asked Questions (FAQ)

    What industries do mechanical engineers work in?

    Mechanical engineers work across virtually every industry that involves physical systems and products. The 12 major industries employing the most mechanical engineers are: automotive, aerospace and defence, energy (oil, gas, and renewables), manufacturing and industrial automation, medical devices, robotics and automation, HVAC and building services, semiconductor equipment, consumer products, defence and government research, marine and offshore, and consulting engineering. Manufacturing is the largest employer overall, accounting for around 50 percent of total ME employment, while oil and gas pays the highest median salary.

    What is the highest-paying industry for mechanical engineers?

    According to the U.S. Bureau of Labor Statistics (BLS) May 2024 data, the highest-paying industry for mechanical engineers is oil and gas extraction, with a median annual wage of $195,700. Rounding out the top five highest-paying industries are solar electric power generation ($167,170), natural gas distribution ($145,920), nuclear electric power generation ($137,810), and semiconductor and electronic product manufacturing ($107,890). These premiums reflect technical complexity, physical demands, and high-consequence operating environments.

    What is a good career path for a mechanical engineer?

    A good mechanical engineering career path combines strong foundational education with deliberate industry choice, early specialisation in a high-growth area, and progressive development of leadership and communication skills alongside technical depth. The typical progression runs from graduate engineer through mid-level, senior, and principal engineer to engineering management or technical director. The most financially rewarding and professionally fulfilling paths tend to involve entering a high-growth sector (renewable energy, medical devices, robotics, aerospace), developing genuine specialist depth, and adding cross-functional leadership capability from mid-career onward.

    Is mechanical engineering a good career in 2026?

    Yes, mechanical engineering is an excellent career in 2026 and beyond. The U.S. Bureau of Labor Statistics projects 9 percent job growth from 2024 to 2034, much faster than average, with approximately 18,100 new openings annually. The median salary of $102,320 is more than double the national median for all occupations. The World Economic Forum’s Future of Jobs Report 2026 identified environmental and renewable energy engineering, electrotechnology, and automation, all falling within the mechanical engineering umbrella, as the fastest-growing engineering subfields. The combination of strong demand, high pay, and broad industry applicability makes it one of the most resilient career choices available.

    Can mechanical engineers switch industries?

    Yes, mechanical engineers can and regularly do switch industries, making it one of the most portable engineering qualifications. The foundational skills (FEA, CAD, thermodynamics, fluid mechanics, materials science) transfer across industries with varying levels of supplementary learning required. The most common successful pivots are from automotive to aerospace, oil and gas to renewables, manufacturing to robotics, and any industry to medical devices (which requires learning FDA regulatory knowledge) or consulting (which requires developing client management skills). Most successful pivots take 12 to 24 months to achieve full competence in the new sector.

    How much do mechanical engineers earn globally?

    Mechanical engineer salaries vary significantly by country. In the US, the median is $102,320 (BLS 2024). In the UK, mid-career salaries range from GBP 42,000 to GBP 62,000. In Germany, mid-career ranges from EUR 62,000 to EUR 82,000. Australian mid-career ranges are AUD 90,000 to AUD 120,000. Singapore mid-career ranges from SGD 70,000 to SGD 100,000. Germany stands out for exceptional purchasing power: near-zero public university tuition, lower cost of living than equivalent UK and US cities, and strong salaries from world-class engineering employers including BMW, Volkswagen, Siemens, and Bosch.

    What certifications help mechanical engineers advance their careers?

    The certifications most reliably associated with salary increases and career advancement in mechanical engineering are: Professional Engineer (PE) license in the US (adds $10,000 to $20,000 to annual salary on average), Chartered Engineer (CEng) in the UK (required for senior roles in many sectors), SOLIDWORKS Certified Professional (CSWP) for product development roles, ANSYS certifications for analysis-heavy roles, Six Sigma Black Belt for manufacturing engineering, and ISO 13485 Lead Auditor for medical devices careers.

    What are the fastest-growing sectors for mechanical engineering jobs?

    The fastest-growing sectors for mechanical engineering employment in 2026 are renewable energy (solar and wind), robotics and automation, electric vehicle engineering, and medical devices. Renewable energy alone employs approximately 35 percent of its workforce in ME roles, with solar supporting 263,000 engineering jobs in the US. Industrial robotics is projected to double its market size to $100 billion by 2030. EV engineering is transforming automotive, with 40 percent of automotive jobs projected to require EV expertise by 2030. Medical devices benefit from ageing population demographics and surgical robotics adoption.

    Conclusion

    Mechanical engineering offers one of the most genuinely versatile career landscapes of any profession. The same foundational knowledge that allows an engineer to design automotive suspension systems also enables them to analyse offshore pipeline fatigue, optimise wind turbine drivetrains, develop surgical robot mechanisms, and lead engineering teams through industrial transformation programs.

    The data is clear and compelling: mechanical engineering careers are growing faster than average, paying significantly above the national median, and expanding into new sectors at a rate that creates continuous new opportunities for engineers at every career stage. The profession’s combination of problem-solving depth, practical impact, and career mobility is not matched by many other fields.

    What this guide has attempted to provide is not just the data, but the context to interpret it: understanding why industry choice is so consequential, what the work actually looks like in each sector, where the premium salaries come from, how careers progress at each stage, and what levers engineers have at their disposal to shape their own trajectory.

    The engineers who build the most rewarding careers are those who approach their mechanical engineering career with the same analytical rigour they apply to engineering problems: gathering the best available information, identifying the key variables, evaluating the options systematically, and making deliberate decisions rather than drifting. This guide is the information foundation for that approach.

    Continue building your knowledge. Read What Is Mechanical Engineering? for the foundational context, explore What Does a Mechanical Engineer Do? for the daily reality of the profession, and discover the Latest Advances in Mechanical Engineering to understand where the most exciting new opportunities are emerging.

  • Frontiers of Mechanical Engineering Explained (2026)

    Frontiers of Mechanical Engineering Explained (2026)

    Every discipline has a core and a frontier. The core is what is established, taught in textbooks, and applied daily by practitioners. The frontier is where the known ends and the unknown begins: the territory where researchers are actively pushing, where the limits of what is possible are being tested, and where today’s experimental result becomes tomorrow’s engineering standard.

    The frontiers of mechanical engineering in 2026 are simultaneously exciting and demanding. They span scales from the sub-nanometre to the planetary. They reach across disciplinary boundaries into biology, quantum physics, computer science, neuroscience, and environmental science. They address challenges ranging from the decarbonisation of global energy systems to the design of machines that can survive and operate on other planets.

    Conceptual diagram showing 12 frontier areas of mechanical engineering radiating from the classical engineering core including tribology, quantum engineering, soft robotics and bio-inspired design

    This article provides the most comprehensive, readable, and practically relevant guide to the frontiers of mechanical engineering available outside of academic journals. It is written for engineering students who want to understand where the discipline is heading, for practising engineers considering whether to pursue research or advanced specialisation, and for anyone who wants to understand what the brightest engineering minds in the world are currently working on and why it matters.

    What We Mean by ‘Frontiers’:  The frontiers of mechanical engineering are the research-active boundaries of the discipline: areas where current knowledge is being extended, where conventional methods reach their limits, where new tools and theories are being created, and where the results of today’s research will become the engineering standards of the next decade. Understanding the frontiers is how engineers anticipate where the profession is heading before it arrives.

    Understanding the Concept of a Discipline’s Frontier

    The word “frontier” in the context of an engineering or scientific discipline describes the region at the edge of current knowledge, where established methods no longer provide complete answers and where new approaches, tools, materials, and theories are being actively developed. A frontier of mechanical engineering is therefore not simply an advanced topic: it is an area where the profession’s current best knowledge is genuinely insufficient to solve the problem at hand.

    Frontiers matter for several practical reasons beyond intellectual curiosity. They are where the highest-value research positions exist. They are where industry is willing to pay the largest premiums for specialised knowledge. They are where today’s PhD thesis becomes tomorrow’s commercially deployed technology. And they are where mechanical engineering’s identity as a discipline is continuously being renewed and expanded.

    The frontiers of mechanical engineering are also where the discipline is most overtly interdisciplinary. The core of mechanical engineering, statics, dynamics, thermodynamics, and manufacturing, is relatively self-contained. The frontiers almost never are. They require mechanical engineers to engage deeply with biology, chemistry, physics, neuroscience, data science, and materials science simultaneously. Engineers who work at these frontiers are genuinely hybrid practitioners.

    Important Distinction:  The frontiers of mechanical engineering are distinct from the latest advances covered in the previous article in this cluster. Advances are technologies and methods that have crossed from research into deployment: they are being used in factories and products today. Frontiers are the research-active boundary conditions: the places where engineers and scientists are working right now to build knowledge that does not yet exist in a commercially deployable form. Some of today’s frontiers will become tomorrow’s advances; others will remain at the frontier for decades.

    Frontier 1: Nano-Scale Mechanical Engineering and Molecular Machines

    At the deepest frontier of scale, mechanical engineering is grappling with the behaviour of matter at the nanometre and even angstrom level, where classical mechanics gives way to quantum mechanical effects and where the dominant forces are surface interactions rather than gravitational or inertial loads. Nano-scale mechanical engineering is the field that designs, fabricates, and analyses mechanical systems with features measured in billionths of a metre.

    Mechanical engineering scale range comparison turbine blade at macro scale versus nano-architected lattice material at nanometre scale under electron microscopy

    Nano-Architected Materials: Tuning Mechanics at the Atomic Scale

    MIT graduate research (featured in MIT News, 2024) by Somayajulu Dhulipala with advisor Professor Carlos Portela has focused on developing nano-architected materials with tunable mechanical properties through scalable fabrication methods. Unlike conventional materials whose properties are fixed by composition, nano-architected materials derive their mechanical behaviour from their geometric structure at the nanoscale, enabling engineers to programme stiffness, strength, and energy absorption by design rather than by material selection alone.

    The ability to fine-tune the mechanical properties of specific materials at the nanoscale brings versatility across multiple industries. Applications include ultra-lightweight structural panels for aerospace, impact-absorbing helmets with precisely graduated energy dissipation zones, implantable scaffolds for bone tissue engineering that match the mechanical compliance of natural bone, and nano-scale thermal management structures for next-generation semiconductor devices.

    Molecular Machines: Mechanical Engineering at the Biological Scale

    Biology has been running molecular machines for billions of years. Proteins such as myosin (the motor protein responsible for muscle contraction), ATP synthase (the rotary motor that produces cellular energy), and kinesin (which transports cargo along microtubule tracks inside cells) are all mechanical machines operating at the molecular scale with astounding efficiency and precision.

    Mechanical engineers and biophysicists are studying these biological machines not merely out of curiosity but with the explicit aim of copying their principles in synthetic systems. Artificial molecular motors, molecular switches, and DNA-based mechanical actuators are all active research areas, with potential applications in targeted drug delivery, molecular assembly of materials, and ultra-compact energy conversion devices.

    Frontier 2: Bio-Inspired and Biohybrid Engineering

    Nature is the most sophisticated engineer on Earth, operating over four billion years with the most rigorous possible selection pressure: anything that does not work is eliminated. Bio-inspired mechanical engineering studies biological systems, from spider silk and mantis shrimp claws to bird wing aerodynamics and tree root anchor mechanics, to extract design principles that can be translated into engineered systems.

    Biological Structures as Engineering Inspiration

    The mantis shrimp’s dactyl club, which delivers impact forces of up to 1,500 Newtons while striking hard-shelled prey, has a layered helicoidal composite microstructure that distributes crack propagation energy with extraordinary efficiency. Researchers at UC Riverside and other institutions have used this structure as a template for impact-resistant composite materials for helmets, body armour, and aircraft panels. Spider silk, with its combination of strength, toughness, and extensibility that no synthetic fibre matches, has inspired decades of biomimetic fibre research. Gecko adhesion, achieved through millions of micro-scale hair-like structures that exploit van der Waals forces, is the basis for research into dry, reversible adhesives for robotics, medical devices, and structural repair.

    Bio-inspired soft robotic gripper based on biological design principles in a laboratory setting, representing the frontier of bio-inspired mechanical engineering

    Biohybrid Systems: Merging Living Tissue with Mechanical Structures

    The most radical frontier in this area is biohybrid engineering: the integration of living biological tissue with mechanical structures to create systems that cannot be built from either component alone. Researchers have demonstrated biohybrid robots powered by muscle tissue grown from stem cells, in which the living muscle provides actuation force while a synthetic mechanical scaffold provides structure and constraint. These systems can be actuated by electrical stimulation or by light, and they self-repair, a capability no conventional actuator possesses.

    MIT research highlighted in 2024 includes work by graduate student Loïcka Baille developing remote sensing technologies to study and protect marine life, and by Carlos Díaz-Marín designing salt-polymer materials that capture humidity from air for water generation and thermal energy storage. Both represent mechanical engineers working at the frontier between the physical and biological worlds.

    Frontier 3: Tribology at the Extreme: Zero-Wear and Self-Lubricating Systems

    Tribology, the science of friction, wear, and lubrication between interacting surfaces, is one of the oldest mechanical engineering disciplines and one of the most economically significant. Friction and wear losses account for approximately 23 percent of global energy consumption, according to estimates from the International Energy Agency and tribology research institutions. Eliminating or reducing these losses is one of the most impactful engineering challenges on the planet.

    Superlubricity: Near-Zero Friction Surfaces

    Superlubricity is the phenomenon in which friction between two sliding surfaces approaches zero. First observed at the atomic scale between misaligned graphene layers, superlubricity has now been demonstrated in engineering-relevant conditions using graphene-based coatings, carbon nanotube arrays, and engineered surface topographies. Achieving superlubricity in macroscale engineering components, such as engine bearings, gears, and hydraulic seals, at practical operating temperatures and loads, is an active and commercially compelling research frontier.

    Solid Lubricants and Self-Healing Coatings

    Conventional liquid lubrication is impossible in many extreme environments: the vacuum of space, cryogenic temperatures, and high-radiation nuclear environments all preclude conventional oils and greases. Solid lubricant research is developing coatings based on materials including molybdenum disulfide (MoS2), hexagonal boron nitride, and diamond-like carbon (DLC) that can provide low-friction surfaces in these extreme conditions. The next frontier in tribology is self-healing tribological coatings: surfaces that autonomously repair wear damage through the release of embedded lubricant reservoirs or through surface chemistry triggered by frictional heat.

    Economic Impact:  A 2017 study published in Tribology International estimated that tribological advances already in existence, if fully implemented globally, could reduce energy consumption by up to 40 percent in transport applications alone. The potential economic saving runs to trillions of dollars annually. This is why tribology research, despite its low public profile, is one of the most heavily funded areas at the frontier of mechanical engineering.

    Frontier 4: Turbomachinery for Next-Generation Energy Systems

    Turbomachinery, the design of turbines, compressors, fans, and pumps that exchange energy between a fluid and a rotating shaft, is one of the most mature branches of mechanical engineering. And yet it remains one of the most active research frontiers, driven by the urgent need to make turbomachinery more efficient, more durable, and capable of operating with new working fluids including hydrogen, supercritical carbon dioxide, and ammonia.

    Supercritical CO2 Power Cycles

    Supercritical carbon dioxide (sCO2) power cycles operate with CO2 as the working fluid at conditions above its critical point (31 degrees Celsius and 73.8 bar), where it behaves as a dense fluid with properties between a liquid and a gas. sCO2 turbines can achieve thermal efficiencies significantly higher than conventional steam turbines at the same operating temperature, while being physically much smaller and more compact. They are potentially transformative for concentrated solar power, nuclear power, and waste heat recovery applications, but they operate in conditions of extreme pressure and temperature that push current materials and seal technologies to their limits.

    Hydrogen-Fuelled Turbines and Combustion Engineering

    The transition of gas turbines from natural gas to hydrogen fuel is a frontier research problem of enormous commercial importance. Hydrogen combustion is fundamentally different from methane combustion: it burns at higher temperatures, with a much wider flammability range, higher flame speeds, and greater tendency toward flashback (where the flame propagates back into the fuel supply). Designing combustor geometries that handle these challenges while maintaining low NOx emissions requires new computational tools, new experimental rigs, and deep collaboration between mechanical engineers, combustion chemists, and materials scientists.

    Additive Manufacturing of Turbine Components

    The ability to produce turbine blades with internal cooling channel geometries impossible to achieve by casting or machining is one of the most commercially significant applications of metal additive manufacturing in any industry. Current research is focused on qualifying AM-produced turbine components for service, developing post-processing methods to achieve the surface finish and dimensional accuracy required, and pushing the temperature capability of AM-compatible nickel superalloys to enable higher turbine inlet temperatures and greater thermal efficiency.

    Frontier 5: Quantum Engineering and Mechanical Systems

    The intersection of quantum physics and mechanical engineering is one of the most intellectually fascinating frontiers in contemporary science. Quantum mechanical engineering is not a single coherent field but a collection of research areas in which quantum phenomena are either exploited for engineering purposes or in which mechanical systems are used as platforms to study and control quantum states.

    Optomechanics: Controlling Mechanical Motion with Light

    Optomechanical systems use the radiation pressure of light to cool, drive, and sense the motion of mechanical resonators at the micro and nano scale. Researchers have cooled micro-mechanical oscillators to their quantum ground state, the lowest energy state allowed by quantum mechanics, using laser cooling techniques. This enables precision measurements of mechanical motion with sensitivity far below the standard quantum limit, with applications in ultra-sensitive force and mass sensors, gravitational wave detectors, and fundamental tests of quantum mechanics.

    Quantum Sensing Using Mechanical Systems

    MEMS and NEMS (Nano-ElectroMechanical Systems) devices are being developed as quantum sensors capable of detecting forces, fields, and masses at the single-molecule or single-atom level. These devices are relevant to medical diagnostics (detecting disease biomarkers at vanishingly low concentrations), defence (detecting trace chemical and biological agents), and fundamental physics (searching for dark matter and testing quantum gravity theories). The mechanical engineering challenges of fabricating, characterising, and operating these devices at the required sensitivity are at the very frontier of the discipline.

    Why This Matters for Engineers:  Quantum engineering may seem remote from practical mechanical engineering, but its applications are converging rapidly with mainstream practice. The inertial navigation systems in autonomous vehicles, the gravimeters used in oil and gas exploration, the accelerometers in smartphones, and the force sensors in precision manufacturing equipment are all heading toward quantum-enhanced sensitivity in the next decade. Mechanical engineers who understand the physical principles will be the ones designing and deploying these systems.

    Frontier 6: Autonomous and Self-Adaptive Mechanical Systems

    The frontier of autonomous mechanical systems goes significantly beyond current industrial robotics. The research frontier is concerned with systems that can not only execute pre-programmed tasks autonomously but can perceive their environment, adapt their behaviour in response to unexpected conditions, learn from experience, and make decisions in contexts their designers did not explicitly anticipate.

    Morphing Structures: Machines That Change Their Shape

    Morphing structures are mechanical systems that can change their shape, stiffness, or topology in response to changing conditions, optimising their performance across multiple operating regimes rather than being fixed to a single geometry. Aircraft morphing wings, which can change their profile for optimal efficiency at different flight speeds and altitudes, have been a research frontier for two decades. Recent advances in smart material actuators (shape memory alloys, dielectric elastomers, and piezoelectric actuators) and in lightweight compliant mechanism design are making morphing structures genuinely viable for practical deployment.

    Self-Healing Mechanical Structures

    A frontier that bridges materials science and mechanical engineering, self-healing structural materials can autonomously repair damage such as cracks, delamination, or corrosion without human intervention. Vascular networks embedded in composite materials release healing agents when crack propagation ruptures the vascular channels. Research published in 2024 and 2026 demonstrates self-healing efficiencies of 80 to 95 percent of original fracture toughness in fibre-reinforced composite systems. The engineering frontier is moving from demonstration at coupon scale to application in structural components for aerospace panels, wind turbine blades, and offshore infrastructure.

    Swarm Robotics and Distributed Mechanical Systems

    Swarm robotics applies principles from collective biological behaviour (ant colonies, bird flocking, fish shoaling) to large numbers of simple robots that collectively achieve complex tasks no individual robot could accomplish alone. The mechanical engineering challenges include designing robust, miniaturised robots capable of operating in swarms, developing compliant mechanisms for ground and aerial locomotion at small scales, and creating fault-tolerant mechanical systems that maintain collective functionality even when individual robots fail.

    Read the blog on: Nature of Mechanical Engineering Explained (2026)

    Frontier 7: Sustainable and Circular Manufacturing Engineering

    If there is a single frontier that is reshaping the entire profession rather than a specific technical sub-domain, it is the frontier of sustainable and circular engineering. The pressure to decarbonise manufacturing, eliminate waste, and design products for longevity, repairability, and material recovery is not merely a regulatory requirement: it is a fundamental redesign of the engineering brief itself.

    Net-Zero Carbon Manufacturing

    Achieving net-zero carbon manufacturing requires mechanical engineers to address energy consumption at every stage of the production process: material extraction and processing, forming and machining, assembly, and end-of-life treatment. Research frontiers include electrification of high-temperature industrial processes that currently rely on fossil fuel combustion (cement kilns, steel furnaces, glass melting), the use of green hydrogen as an industrial reductant (replacing coking coal in iron and steel production), and the development of low-energy precision manufacturing processes that reduce material waste.

    Design for Circularity: Engineering Products That Can Be Fully Recovered

    The circular economy requires products designed from the outset for disassembly, component recovery, and material recycling. Design for circularity (DfC) is a mechanical engineering frontier that challenges virtually every conventional design heuristic. Designs that are optimised for manufacturing (minimising fasteners, using permanent joins, co-moulding multiple materials) are often the hardest to disassemble and recycle. Developing design methodologies that optimise simultaneously for manufacturability, performance, and end-of-life material recovery requires new computational design tools, new joining technologies, and new frameworks for quantifying circular value alongside structural and thermal performance.

    Frontier 8: Extreme Environment Engineering: Deep Sea, Polar, and Space

    Mechanical engineering has always operated at environmental extremes, but the frontiers of extreme environment engineering in 2026 are being pushed further than ever by the demands of deep-sea resource exploration, polar scientific infrastructure, and the emerging commercial space economy.

    Deep-Sea Engineering

    The deep ocean, defined as depths below 200 metres, covers more than 60 percent of the Earth’s surface and remains one of the least-explored environments on the planet. Hydrostatic pressures at full ocean depth (11,000 metres, the depth of the Challenger Deep) reach more than 1,100 bar: equivalent to supporting the weight of 50 passenger aircraft on a square centimetre of surface. Deep-sea mechanical engineering faces challenges including the design of pressure housings that maintain structural integrity under these loads, the development of buoyancy materials for full-ocean-depth operation, corrosion management in oxygen-depleted saline environments, and the engineering of low-power, long-endurance unmanned underwater vehicles (UUVs) capable of multi-year autonomous operation.

    Space Mechanical Engineering: From Launch to In-Situ Manufacturing

    The commercial space sector, valued in 2024 at approximately $630 billion and growing at 9 percent annually, is creating new mechanical engineering frontiers across propulsion, structures, thermal control, and manufacturing. The mechanical engineering challenges of space-based manufacturing range from the design of in-space assembly robots for large orbital structures, to the development of ISRU (In-Situ Resource Utilisation) systems for manufacturing structural materials and propellant from lunar or Martian regolith, to the engineering of mechanisms that can reliably operate in the thermal cycling, vacuum, and radiation environment of space over mission durations of a decade or more.

    MIT graduate student Somayajulu Dhulipala’s research on nano-architected materials is explicitly motivated by applications in making space habitable: lightweight, high-performance materials engineered at the nanoscale could provide thermal insulation, radiation shielding, and structural support with mass fractions that conventional materials cannot achieve.

    Frontier 9: Neuro-Mechanical Engineering and Brain-Machine Interfaces

    Neuro-mechanical engineering is one of the newest and most intellectually challenging frontiers in the discipline: the design of mechanical systems that interface directly with the human nervous system, reading neural signals to control external devices and delivering mechanical or electrical actuation to restore or augment physical function.

    Prosthetics at the Frontier: Restoring Sensation and Dexterity

    Advanced prosthetic limbs have moved far beyond passive mechanical replacements. The current frontier involves bidirectional neural interfaces: prosthetic hands that can not only be controlled by motor nerve signals decoded from the residual limb but can also send sensory feedback signals back to the nervous system, giving the user a sense of touch and proprioception. The mechanical engineering challenges include designing actuated fingers with sufficient degrees of freedom and force capacity to replicate natural hand dexterity, embedding sensor arrays to measure contact force, texture, and slip, and packaging all of this into a prosthetic of appropriate weight and form factor.

    Exoskeletons: Augmenting Human Physical Capability

    Powered exoskeletons for rehabilitation, workplace ergonomic assistance, and military load-bearing are an active engineering frontier with several products already in commercial deployment. The mechanical engineering challenges at the frontier include developing lightweight, compliant actuation systems that can match the kinematics of the human musculoskeletal system across its full range of motion, designing control systems that interpret user intent from muscle electromyography (EMG) signals with sufficient speed and accuracy, and creating wearable structures that are comfortable and safe for extended daily use.

    Frontier 10: Multi-Scale and Multi-Physics Simulation as a Design Frontier

    Simulation is not new in mechanical engineering, but the frontier of multi-scale and multi-physics simulation represents a qualitative change in what computational engineering can achieve. Traditional FEA operates at a single scale (the component scale) and typically addresses a single physics domain (structural mechanics). The frontier involves coupling simulations across scales and physics domains in ways that capture emergent behaviours that no single-domain, single-scale analysis can reveal.

    Molecular Dynamics to Continuum Mechanics: Bridging the Scale Gap

    The behaviour of engineering materials at the macroscale is fundamentally determined by phenomena at the atomic and microstructural scale: dislocation motion controls plasticity, grain boundary chemistry controls corrosion, nanoscale defects initiate fatigue cracks. Multi-scale modelling seeks to bridge from molecular dynamics simulations (picosecond timescales, nanometre length scales) through crystal plasticity models (microsecond timescales, micron scales) to continuum FEA (second timescales, component scales). Achieving this bridging reliably for complex loading histories and environments is an unsolved computational engineering challenge of the first order.

    Physics-Informed Machine Learning: AI at the Simulation Frontier

    Physics-Informed Neural Networks (PINNs) represent one of the most exciting developments at the intersection of machine learning and engineering simulation. PINNs encode the governing differential equations of physics (Navier-Stokes, heat equation, elastic wave equation) as constraints in the training of neural networks, enabling them to solve complex physical problems at speeds that conventional numerical methods cannot match. MIT research groups and commercial simulation vendors are actively developing PINN-based solvers for fluid dynamics, structural mechanics, and heat transfer, with the potential to make high-fidelity simulation accessible for real-time design optimisation.

    Frontier 11: In-Body Mechanical Engineering: Ingestible and Implantable Devices

    One of the most remarkable frontiers in mechanical engineering is the design of devices that operate inside the human body, subject to an environment of extraordinary complexity: corrosive fluids, living tissue that can respond immunologically to foreign objects, mechanical loads from breathing, heartbeat, and movement, and spatial constraints measured in millimetres.

    Ingestible Mechatronic Capsules

    MIT graduate student Jimmy McRae’s research focuses on ingestible electronic and mechatronic devices that can perform continuous monitoring and remotely triggerable actuation from within the gastrointestinal tract. These devices range from ingestible electroceutical capsules that modulate hunger-regulating hormones by delivering electrical stimulation to the stomach lining, to devices capable of continuous ultralong monitoring of gut chemistry, pH, temperature, and motility. The mechanical engineering challenges include miniaturisation, biocompatible sealing, power harvesting from body motion or chemical energy, and wireless communication through tissue.

    Next-Generation Implantable Devices

    Beyond conventional pacemakers and orthopaedic implants, the frontier of implantable mechanical engineering includes totally artificial hearts driven by continuous-flow turbopumps, cochlear implants with MEMS-based frequency selective membranes that replicate the basilar membrane of the inner ear, retinal implants that convert light to electrical nerve stimulation to restore partial vision, and drug delivery implants with MEMS-actuated valves that release precise drug doses on demand in response to biosensors monitoring disease markers. Each of these devices is a complete mechanical and electrical engineering system operating in one of the most demanding environments imaginable.

    Frontier 12: The Convergence Frontier: Where Mechanical Engineering Meets Everything

    The most distinctive characteristic of mechanical engineering’s frontier in the 2020s is that the most exciting and impactful work is almost never confined within a single discipline. It happens at convergence points: where mechanical engineering meets biology, quantum physics, neuroscience, data science, environmental engineering, or space science.

    This convergence is not a diffusion of the discipline’s identity. It is an expansion. The core physical principles, mechanics, thermodynamics, fluid mechanics, materials science, remain the analytical foundation. What changes at the frontier is the context in which those principles are applied and the collaborators alongside whom they are developed. A mechanical engineer at the nano-scale frontier is using continuum mechanics and nanofabrication in the same breath. A mechanical engineer at the neuro-mechanical frontier is applying biomechanics and control systems theory to human anatomy.

    The Frontiers in Mechanical Engineering journal (published by Frontiers Media) explicitly recognises this convergence in its scope, covering biomechanical engineering, digital manufacturing, engine and automotive engineering, fluid mechanics, heat transfer, mechatronics, MEMS, solid and structural mechanics, tribology, turbomachinery, and vibration systems simultaneously. The Frontiers of Mechanical Engineering journal (published by Higher Education Press / Springer, formerly sponsored by China’s Ministry of Education) covers machines and mechanisms, mechanical design and bionics, manufacturing automation, precision engineering, mechatronics, micro/nano manufacturing, robotics, and green manufacturing. Both journals reflect the reality that the frontier of mechanical engineering does not exist at a single point: it is a wide, multidimensional boundary.

    How the Frontiers Shape Mechanical Engineering Careers

    Understanding the frontiers of mechanical engineering is not merely intellectually rewarding. It is a practical career advantage. Engineers and researchers who position themselves at a frontier, particularly one with strong commercial pull, are among the most sought-after professionals in the field.

    Frontier AreaCareer PathwaysDegree Level Typically RequiredWhere the Jobs Are
    Nano-scale ME and molecular machinesNanomaterials engineer, MEMS design engineer, nanotechnology R&D scientistMSc or PhDSemiconductor industry, biomedical devices, defence, space technology companies
    Bio-inspired and biohybrid engineeringSoft robotics engineer, biomimetic materials scientist, biohybrid systems researcherMSc or PhDMedical device companies, robotics startups, university research labs, defence R&D
    Tribology: superlubricity and self-healing coatingsTribology engineer, surface technology specialist, lubrication systems engineerBEng + specialisation or MScAutomotive OEMs, aerospace, energy sector, bearing and seal manufacturers
    Advanced turbomachineryTurbomachinery aerodynamicist, combustion engineer, AM turbine component engineerMEng or MSc, PhD for research rolesGas turbine OEMs (GE, Siemens, Rolls-Royce), energy utilities, aerospace propulsion
    Quantum engineering and sensingQuantum sensor engineer, optomechanics researcher, precision instruments engineerPhD almost universally requiredNational laboratories, quantum computing companies, defence, precision instrument manufacturers
    Autonomous and self-adaptive systemsMorphing structures engineer, swarm robotics engineer, smart materials engineerMSc or PhDAerospace R&D, defence, advanced manufacturing, robotics companies
    Sustainable and circular manufacturingCircular design engineer, sustainable manufacturing specialist, LCA engineerBEng + experience or MScAll major manufacturing industries; green technology sector; consulting
    Extreme environment engineeringDeep-sea systems engineer, space mechanisms engineer, nuclear materials engineerMEng or MScEnergy majors, space agencies, nuclear operators, defence
    Neuro-mechanical engineeringProsthetics engineer, exoskeleton designer, neural interface mechanical engineerMSc or PhDMedical device companies, rehabilitation technology, defence, neurotechnology startups
    In-body devicesIngestible device engineer, implantable systems engineer, bioMEMS engineerMSc or PhDMedical device OEMs, hospital technology, biotech companies
    Career Strategy Insight:  The highest-value career positioning at the frontiers of mechanical engineering comes from combining a deep classical mechanical engineering foundation with genuine expertise in one frontier area. The engineer who understands tribology from first principles and can also write Python scripts to analyse surface metrology data is significantly more valuable than one with either skill alone. The frontier engineer is almost always a bridge builder: between classical ME and a partner discipline, between academic research and industrial application, between physical and digital engineering.

    Academic Journals Covering the Frontiers of Mechanical Engineering

    For engineers and students who want to engage with the primary research literature at the frontiers of the discipline, the following journals are the most relevant and widely read.

    JournalPublisherFocus AreaKey Metric (2024/2026)
    Frontiers of Mechanical EngineeringHigher Education Press / SpringerAll major ME branches; machines, mechanisms, tribology, manufacturing, precision engineering, mechatronics, MEMS, green manufacturingImpact Factor: ~4.5-5.1; SJR: Q1; H-index: 48
    Frontiers in Mechanical EngineeringFrontiers Media (open access)Biomechanical engineering, digital manufacturing, fluid mechanics, heat transfer, mechatronics, MEMS, solid mechanics, tribology, turbomachineryOpen access; ESCI indexed; growing citation base
    International Journal of Machine Tools and ManufactureElsevierMachining processes, manufacturing technology, precision engineeringTop-ranked in manufacturing ME; highly cited
    Journal of the Mechanics and Physics of SolidsElsevierTheoretical solid mechanics, fracture, plasticity, metamaterialsPremier journal for solid mechanics frontiers
    Nature Machine IntelligenceSpringer NatureAI and robotics frontiers, machine learning in engineering systemsHigh-impact interdisciplinary; key for AI-ME convergence
    Science RoboticsAAASAdvanced robotics: soft robots, surgical robots, biohybrid systemsAmong the highest-impact robotics journals
    Applied Physics Letters / Physical Review AppliedAIP / APSMEMS, optomechanics, quantum mechanical systems, nanoscale MEEssential for quantum engineering and MEMS frontiers

    Frequently Asked Questions (FAQ)

    What are the frontiers of mechanical engineering?

    The frontiers of mechanical engineering are the research-active boundary areas where current knowledge is being extended, where conventional methods are insufficient, and where new tools, materials, and theories are being created. In 2026, the most active frontiers include nano-scale mechanical engineering and molecular machines, bio-inspired and biohybrid systems, tribology research on superlubricity and self-healing coatings, next-generation turbomachinery for hydrogen and sCO2 cycles, quantum mechanical engineering, autonomous and self-adaptive systems, sustainable and circular manufacturing, extreme environment engineering, neuro-mechanical engineering, and multi-scale simulation. These are the areas where today’s PhD research becomes tomorrow’s engineering standard.

    What is the difference between the frontiers and the latest advances in mechanical engineering?

    The latest advances in mechanical engineering are technologies and methods that have already crossed from research into industrial deployment: they are being used in factories, products, and systems today. The frontiers of mechanical engineering are the research-active boundary conditions where knowledge is still being built: engineers and scientists are working at the frontier right now to create knowledge that does not yet exist in commercially deployable form. Some frontiers become advances in five to ten years; others remain at the frontier much longer. Understanding both is important for strategic career planning in engineering.

    What is bio-inspired mechanical engineering?

    Bio-inspired mechanical engineering is a research frontier that studies biological systems to extract design principles that can be translated into engineered systems. Examples include mantis shrimp-inspired impact-resistant composite materials, gecko adhesion-inspired reversible dry adhesives, spider silk-inspired high-toughness synthetic fibres, and bird wing-inspired morphing aircraft structures. Biohybrid engineering extends this further by integrating living biological tissue directly with mechanical structures, such as robots powered by stem-cell-derived muscle tissue.

    What is tribology and why is it a frontier of mechanical engineering?

    Tribology is the science of friction, wear, and lubrication between interacting surfaces. It is a frontier of mechanical engineering because friction and wear losses account for approximately 23 percent of global energy consumption, making tribological improvement one of the highest-impact engineering opportunities on the planet. Current frontier research includes superlubricity (near-zero friction achieved through graphene coatings and engineered surface architectures), self-healing tribological coatings, and solid lubricants for extreme environments where conventional oils and greases cannot function.

    What is quantum mechanical engineering?

    Quantum mechanical engineering is the emerging frontier where quantum physics phenomena are exploited in engineering applications. It includes optomechanics (using laser light to control and sense mechanical motion at the quantum level), quantum sensing using MEMS and NEMS devices capable of detecting forces at the single-atom level, and the development of mechanical systems that operate as platforms for quantum information processing. While still largely a research discipline, quantum sensors based on mechanical principles are already entering commercial use in precision navigation, geological surveying, and medical imaging.

    How do I build a career at the frontiers of mechanical engineering?

    Building a career at the frontiers of mechanical engineering typically requires a postgraduate qualification (MSc or PhD) in a specific frontier area, built on a solid classical mechanical engineering undergraduate foundation. The most effective approach is to identify one frontier area with strong commercial pull (hydrogen systems, advanced tribology, autonomous systems, biomedical ME) and develop genuine deep expertise in it while maintaining and demonstrating classical ME foundations. Adding cross-disciplinary skills, whether data science, biology, materials science, or control engineering, significantly increases both research and industry employability at the frontier.

    What are the Frontiers in Mechanical Engineering and Frontiers of Mechanical Engineering journals?

    These are two separate academic journals. Frontiers in Mechanical Engineering is published by Frontiers Media (Switzerland) as an open-access journal covering biomechanical engineering, digital manufacturing, fluid mechanics, heat transfer, mechatronics, MEMS, tribology, turbomachinery, and vibration systems. Frontiers of Mechanical Engineering is published by Higher Education Press / Springer and was formerly sponsored by China’s Ministry of Education, covering machines and mechanisms, tribology, manufacturing automation, precision engineering, mechatronics, micro/nano manufacturing, robotics, and green manufacturing (and is now being renamed to ENGINEERING Mechanical Engineering as of 2026). Both are legitimate, indexed, peer-reviewed journals covering cutting-edge research in the field.

    What is the scope of the frontiers of mechanical engineering?

    The scope of the frontiers of mechanical engineering is extraordinarily broad, spanning scales from nanometres to planetary dimensions, disciplines from quantum physics to environmental science, and applications from ingestible medical devices to space-based manufacturing. The frontiers are not a single location on a map of knowledge but a multi-dimensional boundary: wherever established mechanical engineering methods encounter a problem they cannot yet fully solve, a frontier exists. The convergence with biology, quantum physics, neuroscience, data science, and sustainability science is particularly defining the character of the frontier in 2026.

    Conclusion

    The frontiers of mechanical engineering are not distant or abstract. They are the active research programmes happening in laboratories at MIT, ETH Zurich, Imperial College, TU Munich, NUS, and hundreds of other institutions globally right now. They are the questions that the best mechanical engineers in the world are spending their careers trying to answer. And they are the source of the technologies that will define engineering practice in the decade ahead.

    From the molecular machines that may one day deliver drugs to individual cancer cells, to the superlubricious coatings that could eliminate 23 percent of global energy losses, to the quantum sensors that will navigate autonomous vehicles more precisely than any GPS, to the in-body mechatronic devices that will transform medicine, the frontiers of mechanical engineering represent the most intellectually rich and practically consequential territory in the discipline’s long history.

    Understanding these frontiers, even at the level of an informed non-specialist, gives any engineer a significant advantage: in research conversations, in strategic career decisions, in identifying where to invest in further learning, and in recognising which industries and technologies are worth paying attention to in the years ahead.

    Continue exploring the discipline. Read our guide to the Latest Advances in Mechanical Engineering for the technologies already crossing from frontier to deployment, understand What Does a Mechanical Engineer Do? to see how these frontiers connect to practice, or explore the Nature of Mechanical Engineering for the philosophical foundations that make all of this possible.

  • How Engineering Design Services Reduce Development Time & Cost

    How Engineering Design Services Reduce Development Time & Cost

    A mid-size manufacturer of industrial packaging equipment was eighteen months into a new product development cycle. The project had consumed significant internal engineering time, produced three physical prototypes, each requiring expensive rework, and was already six months behind the original launch date. When they finally brought in an external engineering design firm for a DFM (design for manufacturability) review, the outside team identified eleven design features that were unnecessarily expensive to produce and two assembly sequences that could be consolidated. The resulting redesign cut per-unit manufacturing cost by 23 percent and the remaining development timeline by four months.

    This is not an exceptional outcome. It is a typical one when engineering design services are applied at the right stage of product development. What is exceptional about that company’s situation is how long they waited before bringing outside expertise in.

    Engineering design services encompass a broad range of specialized capabilities: mechanical and industrial design, CAD modeling and detailing, design for manufacturability analysis, FEA and CFD simulation, value engineering, prototyping support, and full product development outsourcing. When applied strategically, they compress development timelines, reduce manufacturing costs, and prevent the expensive late-stage rework that consumes R&D budgets and delays market entry.

    This guide explains exactly how each mechanism works, backs every claim with published research and market data, and gives you a practical framework for identifying where engineering design services can create the most impact for your specific development challenge.

    Chart showing how engineering design services reduce product development time by 30-50% and manufacturing costs by 15-30% across automotive, consumer goods, and industrial sectors

    1. The Scale of the Problem: What Product Development Really Costs

    Before examining how engineering design services reduce development costs, it is worth establishing what those costs actually look like and where the largest waste occurs.

    Product development costs for a new physical product range from $20,000 for a simple consumer product with established manufacturing processes to well over $1 million for complex hardware in regulated industries. The wide range reflects differences in development complexity, required certifications, tooling costs, and the number of prototype iterations needed. For most industrial, mechanical, or electromechanical products, the realistic range is $150,000 to $500,000 from concept to production-ready design.

    DATA POINT:  PwC digital product development research. Digital product development is expected to increase efficiency by 19%, reduce time-to-market by 17%, and reduce production costs by 13% compared to conventional processes (PwC, cited in multiple 2025 research analyses).

    Where Development Waste Actually Occurs

    Most product development cost overruns and timeline delays share common root causes. Understanding where the waste occurs is essential to understanding how engineering design services address it.

    Waste CategoryDescriptionTypical Cost ImpactPrimary Cause
    Late-stage design changesChanges to design after tooling has been committed or prototypes have been built$10,000 – $500,000+ per significant changeManufacturability issues not identified in design phase
    Excess prototype iterationsBuilding more physical prototypes than necessary because simulation was insufficient$5,000 – $50,000 per iteration plus timeUnder-investment in simulation and analysis upfront
    Overly tight tolerancesSpecifying precision tighter than functional requirements demand15-40% cost increase on affected featuresDesign engineers specifying to what they can model, not what manufacturing requires
    Over-engineered componentsParts designed to perform beyond requirements, adding material and complexity cost10-30% avoidable material costLack of value engineering discipline; conservative design culture
    Rework from drawing errorsManufacturing errors caused by ambiguous or incorrect engineering drawings$2,000 – $50,000+ per incidentInadequate drafting standards, no QC review of drawings
    Sequential development delaysEach phase waiting for the previous to complete (design finishes before manufacturing input begins)4-12 additional weeks per projectLack of concurrent engineering approach
    KEY FINDING:  The 70% rule. Research consistently shows that approximately 70% of a product’s total manufacturing cost is determined by design decisions made in the early engineering phase. Changes made after tooling commitment are exponentially more expensive than those made on screen.

    2. The Data: How Engineering Design Services Impact Time and Cost

    The claims made about engineering design services, faster timelines and lower costs, are backed by a consistent body of research across industry reports, academic studies, and documented project outcomes. Here is what the evidence actually shows.

    MetricFindingSource / Context
    Project completion time reduction30-50% reduction in project completion times for companies outsourcing engineering servicesIDC research, cited across multiple 2025 engineering outsourcing analyses
    Manufacturing cost reduction via DFM15-30% manufacturing cost reduction typical when DFM is applied early in designMultiple DFM implementation studies; Modus Advanced, Source Engineering, SixSigma.us analyses
    CAD software prototype cost reductionUp to 25% reduction in physical prototype costs in some industries through advanced CAD-driven digital validationIntelevo Research Engineering Design Software Market Report, 2025
    DFM assembly time reduction30% reduction in assembly time demonstrated in smartphone manufacturing case study through DFM implementation from initial design phaseSixSigma.us DFM implementation analysis
    DFM ROI timeline15-25% ROI improvement within 12-24 months for companies implementing DFM disciplineSource Engineering DFM analysis, 2025
    Digital development efficiency19% efficiency increase, 17% time-to-market reduction, 13% production cost reduction from digital product developmentPwC digital product development research
    Engineering design software simulation savingsOrganizations report cuts of up to 30% in physical prototyping costs and time savings of several weeks per project from simulation-driven workflowsIntelevo Research, Engineering Design Software Market, 2025
    Cost savings vs. internal hiringClients save 30-50% compared to hiring equivalent engineering capability internallyEngon Technologies outsourced mechanical engineering analysis

    These figures deserve honest contextualization. The 30 to 50 percent project completion time reduction is an aggregate finding that reflects well-managed outsourcing arrangements on appropriate project types. It does not mean every project becomes half as long by bringing in external engineers. The savings are most pronounced in specific scenarios: projects where specialist skills are the bottleneck, organizations with under-resourced internal engineering teams, and products where DFM has not previously been applied. The following sections explain the specific mechanisms through which these savings are generated.

    3. Mechanism 1: Design for Manufacturability (DFM) — Solving Cost Problems at the Source

    Design for manufacturability is the single highest-impact mechanism through which engineering design services reduce product development cost. It is also the most consistently underused discipline in product development, particularly at small and mid-size manufacturers whose internal teams are primarily trained in design and modeling, not in manufacturing process optimization.

    What DFM Actually Does

    DFM is the engineering practice of designing a product to reduce the cost and complexity of its manufacture, without compromising its functional performance. It operates on a fundamental principle that is easy to state and surprisingly difficult to implement internally: the design phase is the cheapest and most powerful place to make cost decisions.

    Research from multiple DFM implementation studies confirms that approximately 70% of a product’s total manufacturing cost is locked in by design decisions made before a single physical part is produced. Material selection, part geometry, tolerance specifications, assembly sequence, and component count: each of these decisions, made on screen by a design engineer, determines what a machinist, fabricator, or assembler will spend years executing.

    When those decisions are made by engineers who understand manufacturing processes deeply, costs are naturally controlled. When they are made by designers optimizing primarily for function and aesthetics, manufacturing inefficiencies are designed in and discovered later, at much greater expense.

    Specific DFM Cost Levers

    • Tolerance rationalization: Overly tight tolerances are a pervasive and silent cost driver. A tolerance specification that requires specialized fixturing, slower machining, or 100% inspection adds cost with no functional benefit if the tolerance is tighter than the application demands. DFM review consistently finds opportunities to relax non-critical tolerances, often reducing machining costs by 20 to 40% on affected features.
    • Part count reduction: Every component in an assembly adds cost: material cost, machining or molding cost, inventory cost, assembly labor, inspection, and potential failure points. DFM analysis looks for opportunities to combine functions into fewer parts. A two-part assembly that becomes a one-part assembly eliminates an entire component’s cost stack.
    • Standardized hardware: Custom fasteners, specialty hardware, and non-standard materials add procurement cost and supply chain risk. DFM substitutes standard hardware wherever functional requirements permit, reducing both per-unit cost and purchasing complexity.
    • Manufacturing process alignment: A design that looks manufacturable in CAD may be difficult or impossible to produce efficiently with the actual manufacturing processes available to your supply chain. DFM bridges this gap, ensuring that geometry, features, and tolerances align with what your specific manufacturing partners can do efficiently.
    • Assembly sequence optimization: Assembly operations are labor-intensive and error-prone. DFM reviews assembly sequences to reduce the number of steps, eliminate orientations that require skilled judgment, and design for assembly automation where volume justifies it.
     REAL WORLD:  DFM cost reduction in practice. A smartphone manufacturer integrating DFM principles from the initial design phase achieved a 30% reduction in assembly time for their latest model (SixSigma.us case study). Effective DFM implementation typically reduces manufacturing costs by 15-30% without compromising functionality, with some comprehensive programs reporting even higher savings.

    Why Internal Teams Miss DFM Opportunities

    The reason DFM is underused is structural, not a matter of skill or intention. Internal design engineers are evaluated primarily on whether the product works. Their performance metrics rarely include manufacturing cost or assembly time. External engineering design service firms, whose value proposition includes manufacturability optimization, approach the same design from a different incentive structure. They are looking for cost and complexity that can be removed, not just function that needs to be preserved.

    This is not a criticism of internal engineering teams. It is an observation about organizational incentive structures. The most effective approach is to ensure that DFM discipline, whether delivered internally or through an engineering design service partner, is applied before tooling commitments are made.

    4. Mechanism 2: Expert CAD and Simulation — Fewer Prototypes, Faster Validation

    Physical prototyping is expensive. A machined prototype of a moderately complex mechanical component can cost $1,000 to $10,000 and take one to four weeks to produce. An injection-molded prototype, if the mold is purpose-built, can cost $5,000 to $50,000. Complex assembly prototypes for industrial products can run $50,000 to $200,000 each. Most product development programs require multiple iteration cycles.

    Engineering design services that include advanced CAD modeling, FEA (finite element analysis), and CFD (computational fluid dynamics) simulation reduce the number of physical prototypes required by validating designs digitally before physical production. The savings are substantial and well-documented.

    How Simulation Replaces Physical Prototyping

    FEA simulation allows engineers to apply virtual loads, stresses, temperatures, and forces to a 3D CAD model and observe how it responds, identifying failure points and optimization opportunities without building a physical part. CFD simulation models fluid flow, heat transfer, and pressure distribution for fluidic and thermal applications. Both capabilities are standard offerings of experienced engineering design service firms.

    Engineering design software market research published in late 2025 documents that organizations using simulation-driven workflows report cuts of up to 30% in physical prototyping costs and time savings of several weeks per project. The mechanism is straightforward: a simulation run that takes hours replaces a prototype iteration that takes weeks.

    DATA POINT:  Simulation-driven development. Organizations report up to 30% reduction in physical prototyping costs and several weeks of time savings per project when simulation-driven workflows replace or supplement physical prototyping (Intelevo Research Engineering Design Software Market Report, 2025).

    The Role of Expert CAD in Reducing Rework

    Beyond simulation, the quality of CAD modeling and drawing production directly affects downstream cost. Ambiguous drawings, incorrect tolerances, missing specifications, or drawing errors discovered during first article inspection create costly correction cycles. Engineering design service firms with experienced drafters and established QA processes produce fewer drawing errors, which translates directly to fewer manufacturing corrections and lower first article failure rates.

    This is a cost savings that is invisible until you calculate what manufacturing corrections actually cost: rescheduled production runs, material waste, expedited re-delivery, and the project management time spent resolving a problem that originated on a drawing. For complex mechanical assemblies, a single undetected drawing error can cost $10,000 to $50,000 in manufacturing consequences.

    Digital Twins and Their Growing Role

    At the enterprise end of engineering design services, the integration of digital twin capabilities is extending the simulation advantage further. A digital twin is not just a simulation model; it is a continuously updated virtual replica of the physical product that can be used throughout the product’s lifecycle for ongoing validation, maintenance prediction, and design iteration. Established engineering design service firms offering digital twin capabilities are enabling clients to compress not just initial development cycles but ongoing product evolution cycles as well.

    5. Mechanism 3: Concurrent Engineering — Compressing the Development Timeline

    Traditional product development follows a sequential model: concept is approved, then detailed design begins, then manufacturing planning begins, then procurement begins, then tooling is ordered. Each phase waits for the previous to complete. In a complex product development program, this sequential handoff structure can add 12 to 20 weeks of elapsed time to a development cycle that has no functional reason to be that long.

    Concurrent engineering, also called simultaneous engineering, overlaps development phases so that manufacturing planning, procurement qualification, and tooling design begin while detailed engineering is still in progress. Engineering design service firms that work alongside client engineering teams facilitate concurrent engineering in ways that internal teams often cannot, simply because a client’s internal engineers are already fully occupied with the design work itself.

    How It Works in Practice

    An external engineering design services partner can take ownership of detailed drawing production, BOM development, and supplier qualification while the client’s internal team focuses on design decisions and customer requirement management. This parallel workflow structure removes the sequential wait times that inflate development timelines.

    Research published by IDC and cited across multiple 2025 engineering services analyses finds that companies outsourcing engineering services experience 30 to 50 percent reductions in project completion times. The concurrent engineering effect is a primary driver of the upper end of this range.

      📊  DATA POINT:  Concurrent engineering timeline impact. Companies outsourcing engineering services to enable concurrent workflows experience 30-50% reduction in project completion times compared to sequential internal development models (IDC research, 2025).

    The Follow-the-Sun Advantage

    For organizations engaging offshore engineering design service partners, the time zone difference that initially sounds like a communication challenge can become a timeline accelerator. A design change reviewed internally at 5 PM can be modeled and returned as updated drawings by 8 AM the next morning, because the engineering team in a complementary time zone was working while the client team slept. For projects on tight timelines, this follow-the-sun workflow can reduce elapsed calendar time by 15 to 25 percent on drawing-intensive phases.

    6. Mechanism 4: Value Engineering — Cost Reduction Without Compromising Performance

    Value engineering is a structured methodology for analyzing the function of a product, component, or process and finding ways to deliver the same function at lower cost. It is different from cost-cutting in a critical way: cost-cutting reduces cost by reducing what you do. Value engineering reduces cost while preserving or improving what the product does.

    Engineering design service firms experienced in value engineering bring an external perspective that is extremely difficult to replicate internally. When your engineers have been working on a product for two years, they have cognitive ownership of design decisions that made sense when they were made. Questioning whether a part needs to be aluminum or whether a five-component assembly could be one injection-molded part requires fresh eyes and process discipline that external partners provide naturally.

    Value Engineering in Action: Key Techniques

    • Material substitution: Replacing an over-specified material with one that meets functional requirements at lower cost. Aluminum for steel where weight is not a concern, commodity-grade plastics for engineering polymers where chemical resistance requirements do not justify the premium.
    • Process substitution: Changing the manufacturing process to one that is more cost-effective for the required quantity. Switching from CNC machining to casting for high-volume components, or from welded fabrication to bent-and-formed sheet metal for certain enclosure geometries.
    • Assembly consolidation: Redesigning multi-component assemblies into single molded or formed parts. Fewer parts mean less assembly labor, fewer inventory line items, fewer potential failure points, and lower total cost.
    • Standard component substitution: Replacing custom or specialty components with standard catalog items. Standard bearings, fasteners, seals, and hardware are less expensive, more reliably available, and supported by established maintenance practices.
    • Tolerance optimization: Identifying and relaxing tolerances that are tighter than functional requirements. This is a DFM concept applied through a value engineering lens: every tolerance that can be relaxed reduces manufacturing cost without reducing product performance.
     INSIGHT:  When to apply value engineering. The highest-value window for value engineering is during design development, before tooling commitments. Applied after tooling, value engineering still has potential, but it must work within the constraints of existing tooling geometry. Applied at the design stage, it has full freedom.

    7. Mechanism 5: Access to Specialization — Solving Problems Faster with the Right Expertise

    One of the least quantified but most practically significant ways engineering design services reduce development time is by eliminating the learning curve that occurs when an internal team encounters a design challenge outside their primary expertise.

    A mechanical engineering team with deep expertise in rotating equipment may spend three weeks researching best practices for designing a compliant mechanism that is new to their portfolio. An engineering design service firm that has designed fifty compliant mechanisms can solve the same problem in three days. The difference is not capability; it is accumulated domain knowledge that is not worth building internally for a one-time challenge.

    Where Specialization Creates the Biggest Timeline Advantage

    Specialization AreaWhen It Creates Timeline AdvantageTypical Internal vs. External Timeline Difference
    Structural simulation (FEA)When internal team has limited simulation expertise and is iterating physically3-5 weeks physical vs. 3-5 days simulation
    GD&T and tolerance stack analysisWhen drawings are being returned by manufacturers due to ambiguous tolerancesDays of correction cycles vs. hours with an expert
    Medical device design controlsWhen product must meet FDA 21 CFR Part 820 or ISO 13485 requirementsMonths of compliance learning vs. weeks with a specialist
    BIM coordination and clash detectionWhen construction project has multi-discipline coordination requirementsWeeks of manual coordination vs. days with BIM specialists
    DFM for a new manufacturing processWhen product design requires a process the internal team has not used beforeMultiple prototype iterations vs. expert guidance upfront
    Sheet metal or injection mold design rulesWhen designers are modeling geometry that is expensive or impossible to produceMultiple quote rejections vs. producible geometry first time
    ASME Y14.5 GD&T complianceWhen drawings must meet standard for a defense, aerospace, or regulated clientRedline review cycles vs. correct first submission

    The market data reflects the economic value of this specialization access: the global product engineering services market was valued at approximately $1.38 billion in 2025 and is projected to grow at a compound annual growth rate of 9.7% through 2034, driven substantially by organizations accessing specialized engineering capabilities they do not maintain internally. According to Fortune Business Insights, the growing focus on faster product deliveries and time-to-market systems is a primary driver of this sustained market expansion.

    8. Mechanism 6: Elastic Capacity — Scaling Without Hiring Cycles

    Hiring a mechanical engineer in a competitive market takes three to six months from job posting to productive contributor. An experienced senior mechanical engineer with the specific specialization you need may take longer. During that period, your product development program either waits, proceeds with understaffed engineering resources and accepts the quality consequences, or pays premium contract rates for interim coverage.

    Engineering design services provide elastic capacity: the ability to scale engineering bandwidth up or down in response to project demand without the fixed cost commitment of employment or the delays of a recruiting cycle. This elasticity directly reduces development time by ensuring that engineering bandwidth is never the bottleneck.

    Where Elastic Capacity Has the Highest Impact

    • Program surges: When a large contract win or accelerated launch date requires engineering bandwidth that exceeds internal team capacity, engineering design services provide immediate scale-up without a hiring cycle.
    • Specialist gaps: When a specific phase of development requires expertise (BIM coordination, FEA simulation, medical device design controls) that the internal team does not maintain, engineering services fill the gap without requiring permanent headcount.
    • Geographic expansion: When projects require knowledge of local building codes, regional standards, or specific regulatory environments, engineering service partners with local expertise eliminate the learning curve.
    • Peak-and-valley workloads: Many product development organizations have inherently cyclical workloads: intense during design and development phases, lower during production. Engineering design services allow organizations to staff their engineering function for average load and supplement at peak, rather than staffing for peak and carrying idle capacity at valley.
     DATA POINT:  Elastic capacity economics. Large enterprises dominated the product engineering services market in 2025 with 61% market share, driven by their need for flexible, scalable engineering resources that can be deployed without fixed overhead commitments (SNS Insider Market Report, 2026).

    9. Industry-Specific Impact: Where Engineering Design Services Deliver the Most Value

    The impact of engineering design services is not uniform across industries. The following analysis identifies where the benefits of time reduction, cost savings, and specialized expertise are most pronounced.

    Industry comparison infographic showing engineering design services impact across automotive, medical device, consumer goods, industrial equipment, and AEC sectors by primary benefit category
    IndustryPrimary Benefit AreaKey MechanismTypical Outcome
    Automotive and EVTime-to-market compressionConcurrent engineering, simulation-driven design, offshore parallel workflows30-50% development timeline reduction; significant DFM savings at production scale
    Medical devicesRegulatory compliance speedDesign control documentation, FDA/ISO 13485 expertise, risk management integrationMonths saved in FDA submission preparation; reduced design history record rework
    Consumer goods / CPGManufacturing cost reductionDFM, value engineering, tooling optimization for high-volume production15-30% manufacturing cost reduction; part count reduction reduces per-unit cost
    Industrial equipmentSpecialization accessFEA/CFD simulation, mechanical system design, custom component DFMPrototype reduction; fewer field failures from simulation-validated designs
    AEC (Architecture, Engineering, Construction)Drawing production speedBIM coordination, MEP drafting, structural detailing outsourcingProject schedule acceleration; fewer RFI and clash-driven delays
    Aerospace and defenseTechnical documentation qualityGD&T compliance, AS9100 drawing standards, configuration managementReduced first article rejections; lower audit finding rate
    SME manufacturersAccess to capabilities not maintained internallyFull product development outsourcing; DFM review; CAD modeling supportAccess to senior engineering capability without full-time employment cost

    10. Where Engineering Design Services Do NOT Reduce Costs or Time

    Intellectual honesty requires naming the situations where engineering design services do not produce the outcomes described in vendor marketing. Understanding these limits prevents misaligned expectations and poor procurement decisions.

    When the Brief Is Inadequate

    An engineering design service firm, however experienced, cannot produce accurate, manufacturable, cost-optimized drawings from a vague or incomplete brief. The output quality of engineering design services is directly bounded by the quality of input they receive. Organizations that engage external engineering partners without investing in clear scope definition, organized input materials, and responsive communication during execution will not see the timeline and cost benefits described in this guide. The fault will be on the client side, not the provider side, but the result is the same: wasted time and rework.

    When IP Risk Is Undermanaged

    For organizations with highly proprietary designs, outsourcing engineering work without proper contractual protections (work-for-hire clauses, NDAs, data handling agreements) creates IP risk that can offset the economic benefits. This does not mean outsourcing is inappropriate; it means the legal and contractual infrastructure must be established before any design files are shared. Organizations that skip this step, often because the procurement felt informal or the timeline was tight, create vulnerabilities that can be costly to resolve.

    When the Work Is Too Context-Dependent

    Some engineering design work is so deeply embedded in institutional knowledge, customer relationships, and ongoing system context that external partners cannot contribute effectively without a disproportionate knowledge transfer investment. If explaining the project context to an external partner would take longer than doing the work internally, the economics of outsourcing break down. This is particularly true for complex systems with years of accumulated design decisions, regulatory certifications, and customer-specific requirements.

    When Cost Savings Come at the Expense of Quality

    Selecting an engineering design service partner primarily on price, particularly for offshore providers at the lowest end of the market rate range, can produce drawings and models that require extensive internal correction before they are usable. The cost of that correction often exceeds the price savings from the low-cost provider. The quality of engineering design services varies significantly across providers, and the selection process must include portfolio review, standards compliance verification, and ideally a pilot project before committing to a major engagement.

     WATCH OUT:  The low-cost trap. A per-sheet rate that looks 60% cheaper than market rate may result in drawings that require three rounds of redlining before they are useful. Calculate the total cost of engagement, including your internal review time, not just the provider’s quoted rate.

    11. How to Evaluate Whether Engineering Design Services Are Right for Your Project

    Not every product development challenge benefits from external engineering design services. The following decision framework helps identify the scenarios where the time and cost benefits are most likely to be realized.

    The High-Value Indicators

    Engineering design services are most likely to reduce your development time and cost when one or more of the following conditions apply:

    • Specialist skill gap: Your project requires expertise your internal team does not have. Bringing in specialists is faster and cheaper than building the skill internally for a single application.
    • Capacity constraint: Your internal engineering team is already fully occupied. Adding external resources is more efficient than delaying the project or burning out internal staff on overtime.
    • DFM opportunity: Your product is in design development and has not yet undergone a formal manufacturability review. The 70% rule applies: this is your best window to lock in cost-efficient design decisions.
    • High prototype count: Your recent development programs have required more physical prototypes than planned. Simulation and expert design review can reduce that number on the next program.
    • Cyclical workload: Your engineering demand peaks during design phases and drops during production. External services allow you to match capacity to demand rather than staffing for peak.
    • Regulated environment with compliance gaps: Your product must meet FDA, AS9100, ITAR, or similar regulatory requirements that your team is not fully experienced with. External partners with compliance expertise reduce risk and timeline.

    The Low-Value Indicators

    Engineering design services are less likely to reduce time and cost when:

    • Institutional knowledge is the primary bottleneck: If the limiting factor is deep product-specific knowledge that cannot be efficiently transferred, external engineers will spend more time learning context than producing output.
    • The brief cannot be clearly defined: If the project scope is genuinely ambiguous and exploratory, an external partner working from an unclear brief will require extensive revision cycles that negate the timeline benefit.
    • IP sensitivity is high and legal infrastructure is not in place: If you cannot establish appropriate contractual protections before sharing design files, the risk may outweigh the benefit.
    • Volume is too low to justify onboarding: A single two-hour drafting task does not justify the time investment of briefing, standards transfer, and QC review for a new external partner. Minimum economics apply.

    12. FAQ: Engineering Design Services and Product Development Efficiency

    How much can engineering design services actually reduce development time?

    The documented range is 17 to 50 percent, depending on project type and the specific services applied. PwC research on digital product development documents a 17 percent time-to-market reduction from digital development practices. IDC research on engineering outsourcing documents 30 to 50 percent project completion time reduction. The upper end of that range reflects concurrent engineering arrangements where external resources run in parallel with internal development, compressing the elapsed timeline. The lower end reflects more targeted applications like simulation-based prototype reduction or specialist skills engagement. Neither figure applies universally. The specific impact on your program depends on where your current development process has the most friction.

    What is the most cost-effective first step when evaluating engineering design services?

    For most manufacturers, a DFM review of a product that is currently in design development or has recently entered production is the highest-confidence first engagement. It is contained in scope, has a clear deliverable (a list of design changes with estimated cost impact), and the ROI is directly measurable by comparing manufacturing costs before and after implementation. A DFM review for a moderately complex product typically costs $3,000 to $15,000 and can identify cost savings of $30,000 to $150,000 or more on a product with meaningful production volume. That is a risk-justified first engagement that establishes the value of the relationship.

    How do engineering design services compare to hiring internally for reducing development costs?

    The cost comparison favors external services when specialization access, capacity flexibility, or time-to-market speed is the primary objective. Published analyses from engineering outsourcing practitioners show cost savings of 30 to 50 percent compared to equivalent internal hiring when fully loaded employee costs (salary, benefits, software, training, onboarding) are included. The case for internal hiring is strongest when the design work is ongoing, deeply context-dependent, requires real-time collaboration throughout the day, or involves highly sensitive IP that needs to remain within your own infrastructure. Many organizations reach the optimal outcome with a hybrid model: core engineering capability internally, supplemented by external services for specialist tasks and volume overflow.

    Does outsourcing engineering design work create quality risks?

    It can, if the engagement is managed poorly. The quality risks associated with external engineering design services are well-understood and manageable: inadequate brief causing misaligned output, insufficient QC review before drawings enter production, and standards compliance gaps if the provider is not familiar with your applicable standards. Organizations that establish clear drawing standards documentation, include a defined QC review step in the workflow, and vet providers on their specific discipline experience routinely achieve quality equivalent to or better than their internal baseline. The risk is real but not inherent. It is a function of process discipline, not of the outsourcing model itself.

    At what stage of product development should engineering design services be engaged?

    The greatest leverage is at design development, before tooling commitments. This is where DFM review, value engineering, and simulation-driven prototype reduction deliver the most impact. The 70 percent cost-determination rule makes this timing critical. After tooling is committed, value engineering and DFM still have potential, but they work within constraints that limit the available savings. At concept stage, engineering services are most valuable for feasibility analysis and technology selection. At production stage, the primary engineering service value shifts to as-built documentation, manufacturing support drawings, and process improvement analysis.

    How do I measure ROI from engineering design services?

    The most accessible ROI metrics are manufacturing cost per unit before and after DFM engagement, number of prototype iterations per development program, elapsed development time from design freeze to production release, first article acceptance rate, and engineering revision cycles per drawing release. For an organization new to measuring engineering design service ROI, we recommend selecting one clear baseline metric from your most recent comparable development program and tracking it against the program where engineering design services are applied. A single metric tracked rigorously tells you more than multiple metrics tracked loosely.

    Conclusion: Engineering Design Services as a Strategic Investment, Not a Line-Item Cost

    The framing of engineering design services as a cost center, something to minimize or avoid, is the most expensive mistake organizations make in managing their product development operations. The data is consistent: applied strategically, engineering design services reduce product development costs by 15 to 30 percent, compress timelines by 17 to 50 percent, and produce ROI improvements of 15 to 25 percent within 12 to 24 months.

    Those outcomes are not generated by simply hiring a cheaper external engineer to do work your internal team would otherwise do. They are generated by applying specific mechanisms, DFM, simulation-driven validation, concurrent engineering, value engineering, and specialization access, at the right stage of development, with sufficient organizational discipline to act on what those services recommend.

    8-month product development timeline showing where engineering design services — DFM, simulation, concurrent engineering, and value engineering — deliver time and cost savings at each phase'

    The 70 percent rule is the most important number in this entire discussion. Seventy percent of your product’s manufacturing cost is determined by design decisions made before a single physical part is produced. Every week you spend in design development without DFM discipline, simulation validation, and expert review is a week of cost decisions being locked in by default rather than by intent.

    Engineering design services give you the ability to make those decisions intentionally, with the specialized knowledge and fresh perspective that internal teams, however capable, often cannot provide for themselves. The organizations that treat this as a strategic investment rather than an operational cost are the ones whose products consistently reach market faster, cost less to produce, and require fewer post-launch corrections.

    Ready to reduce your product development time and cost?

    Explore our related guides on in-house versus outsourced CAD drafting, how to write a comprehensive RFQ for engineering design services, and what CAD drafting costs in 2026 to build a complete procurement and operational framework for your engineering projects.

  • Latest Advances in Mechanical Engineering (2026)

    Latest Advances in Mechanical Engineering (2026)

    Mechanical engineering has always been a discipline in motion, but the pace of change in 2026 is unlike anything the profession has experienced in living memory. In less than a decade, the field has absorbed artificial intelligence, quantum sensing, advanced soft robotics, 4D-printed metamaterials, hydrogen propulsion systems, and real-time digital twins, each transformative individually, and together reshaping what it means to be a mechanical engineer.

    This is not a list of futuristic concepts. These are technologies being deployed in factories, hospitals, laboratories, and energy systems right now. Mechanical engineers who understand them are commanding salary premiums of 15 to 25 percent above industry averages. Companies that have adopted them are reducing development timelines by 30 to 40 percent and cutting production costs significantly. The advances covered in this guide are not optional knowledge for the modern engineering professional. They are the new baseline.

    This article covers the 12 most significant latest advances in mechanical engineering as of 2026: what each one is, why it matters, the data behind its adoption, the industries it is transforming, and what it means for engineers building careers today. Every section includes market data, real-world application examples, and direct career implications, content that no competing article provides.

    Infographic showing 12 latest advances in mechanical engineering ranked by technology readiness level from research to industrial deployment with market size data
    Key Statistic:  The U.S. Bureau of Labor Statistics reports the median annual wage for mechanical engineers reached $102,320 in May 2024, more than double the national median for all occupations. Employment is projected to grow 11 percent from 2023 to 2033, described as ‘much faster than average’, generating approximately 19,800 new job openings annually. Specialisations in AI-integrated roles, renewable energy, and robotics are commanding premiums of 15 to 25 percent above manufacturing averages.

    Why 2026 Is a Pivotal Year for Mechanical Engineering

    Mechanical engineering has always evolved, but typically in cycles measured in decades. A new manufacturing process here, a new simulation method there. What is different now is the simultaneous convergence of multiple transformative technologies, each mature enough to deploy at industrial scale, each reinforcing and enabling the others.

    Artificial intelligence is accelerating the design phase. Metal 3D printing is enabling geometries that were previously impossible. Digital twins are closing the loop between virtual design and physical reality. Advanced materials are overturning decades-old assumptions about what is strong, light, and thermally stable. Robotics is no longer confined to cage-enclosed factory automation. Hydrogen and electrification are reshaping propulsion engineering from its foundations.

    The engineers who will thrive in this environment are not those who understand one of these shifts in isolation. They are those who understand how they connect, how mastery of AI-assisted generative design changes what additive manufacturing can achieve, how digital twins enable predictive maintenance, how soft robotics and metamaterials are creating new categories of mechanical devices that did not exist five years ago. This guide provides that connected view.

    Technology AreaMarket Size 2024/2026Projected GrowthPrimary Engineering Impact
    Factory Automation$227 billion (2026)$461 billion by 2031 (ASME)Cobots, adaptive manufacturing, AI-controlled production lines
    Additive Manufacturing (global)$21 billion (2024)$73 billion by 2031 (MarketsandMarkets)Metal AM for production parts; medical implants; aerospace structures
    Digital Twins Market$17 billion (2024)$110 billion by 2032 (Grand View Research)Real-time monitoring; predictive maintenance; virtual testing
    Industrial Robotics$48 billion (2024)$100+ billion by 2030 (IFR)Cobots, autonomous mobile robots, surgical robots
    Hydrogen Economy$260 billion (2023 investment)Projected $1+ trillion/year by 2050 (IEA)Fuel cell systems, hydrogen turbines, storage vessel design
    Nanomaterials Market$12.42 billion (2023)15% CAGR through 2030Lightweight composites, MEMS, energy storage, biomedical implants
    Soft Robotics Market$2.5 billion (2024)$10.7 billion by 2030 (Grand View Research)Medical devices, food handling, wearables, search-and-rescue

    Advance 1: AI-Driven Design and Generative Engineering

    Artificial intelligence has entered the mechanical engineering design process at multiple levels simultaneously, and its impact is already measurable. AI-driven design tools and generative design software are not replacing engineers. They are dramatically expanding the design space any engineer can explore in a given time.

    Comparison of AI generative design component versus traditional machined component showing weight reduction and geometric complexity in mechanical engineering

    Generative Design: Exploring Thousands of Solutions Simultaneously

    Generative design uses AI algorithms to explore thousands of potential design geometries based on engineering constraints and objectives defined by the engineer: load cases, material constraints, manufacturing method, weight targets, and cost limits. The software produces optimised geometry candidates that are typically organic in shape, because they are mathematically optimised rather than geometrically intuited, and often achieve the same structural performance as a conventional design at 30 to 50 percent lower mass.

    Autodesk Fusion 360, SolidWorks with SOLIDWORKS Simulation, and nTop (formerly nTopology) are among the leading platforms offering generative design capabilities. SOLIDWORKS’ AI-powered co-pilot Aura, launched in 2026, adds conversational AI assistance directly into the design workflow, allowing engineers to query design performance, request automatic geometry modifications, and receive real-time suggestions.

    AI in Manufacturing: From Toolpath to Quality Control

    Beyond design, AI in manufacturing is being embedded into CNC machining, injection moulding, and additive manufacturing workflows. AI-driven toolpath optimisation in CAM software reduces machining time and tool wear. Computer vision systems on production lines detect surface defects in real time at accuracy levels that exceed human inspectors. Machine learning models monitor process parameters and adjust them automatically to maintain dimensional accuracy as tools wear.

    Career Impact:  The role of AI Systems Integration Engineer is already appearing on engineering job boards, requiring the ability to embed AI algorithms directly into mechanical systems while maintaining rigorous understanding of physical constraints. Engineers with combined mechanical and AI/ML competency are commanding premiums of 20 to 30 percent above peers without those skills.

    Advance 2: Metal Additive Manufacturing at Production Scale

    Metal additive manufacturing has crossed the threshold from prototyping tool to genuine production technology. This is arguably the single most structurally significant manufacturing advance of the past decade for mechanical engineers, because it removes geometric constraints that have governed component design since the invention of machining.

    Metal additive manufactured aerospace component cross-section showing internal lattice structure and complex cooling channels produced by laser powder bed fusion

    What Metal AM Enables That Machining Cannot

    Traditional subtractive manufacturing (machining) produces components by removing material from a solid block. This imposes fundamental geometric constraints: internal channels must be accessible to cutting tools, undercuts require special fixturing, and complex organic geometries are prohibitively expensive to machine. Metal additive manufacturing builds components layer by layer from metal powder or wire, removing virtually all geometric constraints. Internal lattice structures, conformal cooling channels, biomimetic organic geometries, and topology-optimised shapes can all be produced directly from CAD data.

    Key Metal AM Technologies in 2026

    • Laser Powder Bed Fusion (LPBF / SLM): The dominant technology for producing dense, high-accuracy metal parts in titanium, Inconel, stainless steel, and aluminium alloys. Used for aerospace brackets, medical implants, and tooling inserts.
    • Directed Energy Deposition (DED): Enables the addition of material onto existing components (repair and overhaul) and the production of large near-net-shape components. Used in aerospace repair, energy sector component refurbishment.
    • Binder Jetting: High-throughput, lower-cost process suited to high-volume production of smaller components in steel and copper alloys. Advancing rapidly toward automotive-scale deployment.
    • Wire Arc Additive Manufacturing (WAAM): Uses welding wire and an arc heat source to deposit large metallic structures at low cost. Suited for maritime and offshore structural components, large aerospace structural elements.

    The global additive manufacturing market was valued at approximately $21 billion in 2024 and is projected to reach $73 billion by 2031, with metal AM representing the fastest-growing segment. SpaceX’s Raptor engine uses 3D-printed metal components for its combustion chamber. GE Aviation produces more than 100,000 fuel nozzle tips annually using metal AM, achieving a component that is 25 percent lighter and five times more durable than its machined predecessor.

    Advance 3: Digital Twins Moving from Prototype to Standard Practice

    A digital twin is a real-time, high-fidelity virtual model of a physical system, continuously updated with live sensor data from its physical counterpart. The concept has existed in research for two decades. What is new is that the combination of affordable IoT sensors, cloud computing, and physics-based simulation has made digital twins practical and cost-effective at industrial scale.

    What Digital Twins Enable

    A well-implemented digital twin allows engineers to monitor asset health in real time, simulate the consequences of proposed changes before implementing them on the physical system, predict maintenance needs before failures occur, and optimise operational parameters continuously based on actual operating conditions rather than design assumptions. In industries where unplanned downtime is extremely costly, the return on investment is compelling: documented industrial deployments report reductions in unplanned downtime of 30 to 50 percent.

    Siemens, GE, and Rolls-Royce all operate digital twin programs for their turbine and engine products. Rolls-Royce’s IntelligentEngine initiative creates a digital twin for every engine it produces, enabling remote performance monitoring and predictive maintenance scheduling that has significantly reduced airline maintenance costs and in-service disruptions.

    Multi-Physics Simulation: Beyond Single-Domain Analysis

    Parallel to the digital twin advance, multi-physics simulation has become standard practice for complex mechanical systems. Where engineers once simulated structural, thermal, and fluid behaviour separately and sequentially, modern platforms such as ANSYS, Comsol Multiphysics, and Siemens NX allow simultaneous coupled simulation across multiple physics domains. For automotive power electronics cooling systems, for example, engineers now routinely model fluid flow, heat transfer, and structural stress simultaneously, a workflow that has been reported to reduce development time by 40 percent while improving design confidence.

    Advance 4: Collaborative Robotics and Adaptive Automation

    Industrial robotics is not new. What is new is collaborative robotics (cobots): robots designed to work alongside human workers in shared spaces, without safety cages, sensing proximity, adjusting force, and performing precision tasks in environments that are too hazardous or ergonomically demanding for humans.

    Why Cobots Are Changing Manufacturing

    Traditional industrial robots are programmed for highly repetitive tasks in precisely defined environments. They are expensive to reprogram, require significant safety infrastructure, and cannot safely share a workspace with humans. Cobots address all three limitations. They are force-limited, vision-guided, and easily reprogrammed by non-specialists through direct teaching (physically guiding the robot through a task). They are being deployed in small and medium manufacturers who could not previously justify robotic automation.

    The global industrial robotics market reached approximately $48 billion in 2024 and is projected to exceed $100 billion by 2030 according to the International Federation of Robotics (IFR). Autonomous Mobile Robots (AMRs), which navigate dynamically through warehouse and factory environments using LIDAR and computer vision, are now standard in logistics facilities operated by companies including Amazon, DHL, and Ocado.

    Engineering Reality Check:  Mechanical engineers are central to cobot and robot development, designing the structural frames, actuator systems, wrist mechanisms, and end effectors. The transition from rigid industrial robots to soft, compliant cobots requires deep mechanical engineering expertise in flexible mechanism design, contact mechanics, and force-controlled actuation, precisely the areas where mechanical engineers with robotics specialisation are most scarce and most valuable.

    Advance 5: Soft Robotics and Bio-Inspired Mechanical Systems

    Soft robotics represents one of the most philosophically significant departures from traditional mechanical engineering thinking. Conventional mechanical systems are built from rigid components: metal frames, hard actuators, stiff linkages. Soft robotics replaces rigid structures with compliant, deformable bodies made from elastomers, hydrogels, and pneumatically or thermally actuated smart materials, drawing direct inspiration from biological organisms.

    Why Soft Robots Solve Problems Rigid Robots Cannot

    Rigid robots interact with the world through precise, force-controlled contact. They excel at tasks with well-defined geometry and predictable environments. They struggle in unstructured environments, with fragile objects, in confined spaces, and in direct contact with human tissue. Soft robots, because they deform and conform rather than imposing rigid force, are inherently safer, more adaptable, and more capable in these scenarios.

    Applications are advancing rapidly: soft robotic grippers for food handling and agricultural harvesting (where fragile produce must be grasped without damage), soft robotic endoscopes and surgical tools that navigate the human body through natural orifices, wearable soft exosuits that augment human strength and assist post-stroke rehabilitation, and 4D-printed soft microrobots that change shape in response to temperature, magnetic fields, or chemical stimuli for targeted drug delivery and minimally invasive surgery.

    The soft robotics market was valued at approximately $2.5 billion in 2024 and is projected to reach $10.7 billion by 2030. Harvard’s Wyss Institute, MIT’s CSAIL, and a growing cohort of commercial startups are driving development, but the mechanical engineering principles at the heart of soft robotics, continuum mechanics, flexible beam theory, nonlinear elasticity, and fluid-structure interaction, are exactly the subjects covered in advanced ME programs.

    Advance 6: Mechanical Metamaterials and 4D Printing

    Mechanical metamaterials are engineered structures whose mechanical properties derive from their geometric architecture rather than the intrinsic properties of the material they are made from. By carefully designing the arrangement of unit cells at the micro or meso scale, engineers can produce structures with properties that no naturally occurring material possesses: negative Poisson’s ratio (expanding laterally when stretched), programmable stiffness, acoustic cloaking, and energy absorption profiles engineered to a specific crash event.

    From Lattice Structures to Programmable Matter

    The intersection of mechanical metamaterials and additive manufacturing has opened a new domain of engineering capability. Lattice-structured parts produced by metal LPBF can be designed to have tailored stiffness in specific directions, density distributions that match the load path through a component, and progressive crushing behaviour for energy absorption applications.

    4D printing extends this further by adding time as a design dimension. 4D-printed structures are made from stimuli-responsive materials (shape memory polymers, hydrogels, liquid crystal elastomers) that change shape, stiffness, or other properties in response to heat, moisture, light, or magnetic fields. Published research in 2026 and 2026 demonstrates 4D-printed metamaterials with programmable reconfiguration capability for applications including deployable aerospace structures, autonomous health-monitoring systems, biomimetic soft robotic actuators, and adaptive wearable devices.

    Research Frontier:  Magnetoactive metamaterials (MMs), which integrate magnetoactive soft composite materials with architected mechanical structures, can dynamically change their mechanical, acoustic, and elastic properties through the application of an external magnetic field. This enables tunable vibration dampers, shape-morphing medical devices, and remotely reconfigurable robotic systems, applications that were entirely in the realm of research science five years ago and are now moving toward early commercial deployment.

    Advance 7: Hydrogen Energy Systems and Mechanical Engineering

    Hydrogen is widely regarded as the most technically viable pathway to decarbonising industrial processes and long-distance transport that cannot be practically electrified. The mechanical engineering challenges of the hydrogen economy are enormous and diverse, spanning materials science, thermodynamics, fluid mechanics, and structural integrity.

    The Mechanical Engineering Challenges of Hydrogen

    Hydrogen is the smallest molecule in existence, which creates unique engineering challenges. It diffuses through many conventional materials, causing hydrogen embrittlement: a reduction in ductility and fracture toughness that can lead to unexpected failure in steel pressure vessels and pipelines. Mechanical engineers specialising in hydrogen systems engineering must select and qualify materials resistant to hydrogen embrittlement, design storage vessels that maintain structural integrity under cyclic pressurisation, and develop sealing systems capable of preventing the escape of a molecule that passes through most conventional seals.

    Cryogenic hydrogen storage (liquid hydrogen at -253 degrees Celsius) introduces a further set of thermal engineering challenges: insulation systems must prevent heat ingress at temperatures approaching absolute zero, and structural materials must maintain ductility and toughness at cryogenic temperatures where many metals become brittle.

    Hydrogen Turbines and Fuel Cell Mechanical Systems

    The adaptation of gas turbines to burn hydrogen rather than natural gas is a significant mechanical engineering undertaking. Hydrogen combustion produces higher flame temperatures and significantly different combustion dynamics than natural gas, requiring redesigned combustor liners, modified turbine blade cooling circuits, and new coating systems to handle the increased thermal load. Siemens Energy and GE Vernova are both conducting field trials of hydrogen-capable gas turbines, and the engineering demand for specialists in this area is projected to grow 45 percent by 2030 according to sector analysis.

    Advance 8: Electric Vehicle Powertrain and Thermal Engineering

    The global transition to electric vehicles is creating one of the largest structural shifts in automotive mechanical engineering since the introduction of computer-controlled fuel injection. By 2030, 40 percent of automotive engineering jobs are projected to require expertise in EV powertrain systems and AI-driven diagnostics, with traditional internal combustion engine roles transforming into energy optimisation and electromechanical systems engineering.

    Battery Thermal Management: The Critical Mechanical Engineering Problem in EVs

    Lithium-ion battery cells perform optimally within a narrow temperature range of approximately 15 to 35 degrees Celsius. Below this range, capacity drops sharply. Above it, degradation accelerates and thermal runaway (an uncontrolled exothermic reaction that can cause fire) becomes a risk. Battery thermal management system (BTMS) design is one of the most demanding thermal engineering challenges in current automotive work, requiring the design of cooling plates, phase-change material systems, and heat pipe networks that maintain uniform cell temperatures across a battery pack spanning hundreds of cells.

    Lightweight Structural Engineering for EVs

    Battery packs are heavy. A typical EV battery pack weighs 400 to 700 kilograms, placing significant mass at the vehicle’s base. Mechanical engineers working in EV structural design must offset this weight through aggressive lightweighting of the vehicle body and chassis using advanced aluminium alloys, carbon fibre composites, and topology-optimised structural components. Companies like Tesla and Rivian are prioritising lightweight material expertise, with composite engineers reportedly earning 20 percent higher salaries than equivalent conventional automotive roles.

    Advance 9: Advanced Composites and Smart Materials

    The materials available to mechanical engineers in 2026 are fundamentally more capable than those available a generation ago, and the pace of materials innovation is accelerating. Three areas are particularly significant: advanced composites, self-healing materials, and shape memory alloys.

    Carbon Fibre Reinforced Polymers (CFRP): Expanding from Aerospace to Mainstream

    Carbon fibre reinforced polymer composites offer specific stiffness and specific strength values that no metal alloy can match. Once confined to aerospace and motorsport, CFRP is now entering automotive, wind energy, medical devices, and consumer products as manufacturing processes have matured and costs have reduced. Automated Fibre Placement (AFP) and resin transfer moulding at scale are enabling the production of large composite structures at automotive production rates.

    Self-Healing Materials: Components That Repair Themselves

    Self-healing materials are a class of advanced engineering materials that can autonomously repair damage such as cracks, scratches, or delamination. They contain microencapsulated healing agents that release and polymerise when a crack propagates through the material, restoring structural integrity without human intervention. Published research from 2024 demonstrates self-healing polymer matrices for fibre composite structures with healing efficiency of 80 to 95 percent of original fracture toughness, opening potential applications in offshore wind turbine blades, pressure vessels, and aerospace panels that are difficult to inspect and repair conventionally.

    Shape Memory Alloys and Actuators

    Shape memory alloys (SMAs), most commonly Nitinol (nickel-titanium alloy), undergo a reversible phase transformation when heated or cooled, enabling them to recover a programmed shape after deformation. SMAs are used in stents, orthodontic wires, actuators in aerospace morphing structures, and thermal actuators in HVAC systems. Their capacity to serve simultaneously as structural material and actuation mechanism makes them particularly attractive for applications where conventional actuators (motors, hydraulics) are too heavy or too complex.

    Advance 10: Microelectromechanical Systems (MEMS) and Nanotechnology

    Microelectromechanical Systems (MEMS) are microscale devices that combine mechanical and electrical components on a single silicon or polymer chip, fabricated using semiconductor manufacturing processes. MEMS are not a new technology, but their capabilities, range of applications, and volume of deployment are expanding rapidly.

    MEMS Applications Transforming Industries

    MEMS accelerometers in every modern smartphone trigger airbags, enable screen rotation, and provide orientation data for augmented reality applications. MEMS pressure sensors monitor tyre pressure, blood pressure, and industrial process conditions continuously and wirelessly. MEMS microfluidic chips (lab-on-a-chip) perform medical diagnostic tests in minutes using a drop of blood, bringing laboratory-quality analysis to point-of-care settings globally.

    Nanomaterials: The Materials Science Frontier

    At the nanoscale, materials behave differently from their bulk counterparts, and this opens engineering opportunities that are not available at conventional scales. Graphene, carbon nanotubes (CNTs), and metallic nanoparticles are among the most engineered nanomaterials, offering extraordinary combinations of strength, electrical conductivity, and thermal conductivity. The global nanomaterials market, valued at $12.42 billion in 2023, is projected to grow at 15 percent annually through 2030, driven by demand from electronics, medical devices, energy storage, and structural composites.

    Advance 11: Space-Based Manufacturing and Extreme Environment Engineering

    The commercialisation of space is creating a new frontier for mechanical engineering that requires both extreme performance engineering and a fundamental rethinking of manufacturing logic. Space-based manufacturing is no longer purely speculative: NASA, ESA, and commercial operators are actively developing in-space manufacturing capabilities for structural components, optical fibres, pharmaceutical crystals, and semiconductor devices that can be produced with superior properties in the microgravity environment of orbit.

    Reusable Launch Systems: The Structural Engineering Achievement of the Decade

    The development of fully reusable launch vehicles by SpaceX (Falcon 9 and Starship) is perhaps the most demanding structural and thermal mechanical engineering achievement of the past decade. Rocket structures must survive launch loads, re-entry thermal gradients exceeding 1,600 degrees Celsius on heat shield surfaces, and precision propulsive landing, while being refurbishable and re-flyable with minimal inspection and maintenance. The fatigue analysis, thermal protection system design, and propellant system engineering required for reusable launch vehicle development represent the cutting edge of applied mechanical engineering.

    Extreme Environment Materials Engineering

    Beyond space, the demand for components that can survive extreme environments is growing in nuclear energy, deep-sea energy extraction, and high-performance aerospace. Next-generation nuclear reactors require structural materials that can maintain integrity under high-flux neutron bombardment, elevated temperatures, and corrosive coolants for decades without replacement. Oxide Dispersion Strengthened (ODS) steels and ceramic matrix composites (CMCs) are among the advanced materials being developed for these applications, both requiring sophisticated mechanical engineering analysis and manufacturing process development.

    Advance 12: Predictive Maintenance and Industrial IoT

    The combination of Industrial Internet of Things (IIoT) sensor networks and machine learning algorithms is transforming how mechanical systems are maintained. Traditional maintenance is either scheduled (replace after a fixed time or number of cycles regardless of actual condition) or reactive (repair after failure). Predictive maintenance uses continuous sensor data (vibration signatures, acoustic emissions, temperature distributions, oil particle counts) and machine learning models to predict when a component is approaching failure, allowing maintenance to be scheduled precisely when needed, not too early and not too late.

    What Predictive Maintenance Requires from Mechanical Engineers

    Implementing an effective predictive maintenance system requires mechanical engineers who understand both the physics of component degradation (which failure modes are occurring, why, and how they manifest in sensor signatures) and the data infrastructure for collecting, transmitting, and analysing large volumes of sensor data. This is precisely the cross-disciplinary skill set that defines the most sought-after mechanical engineers in 2026: deep domain knowledge of mechanical systems combined with data literacy and machine learning awareness.

    Rolls-Royce, Siemens, SKF, and dozens of industrial equipment manufacturers have deployed predictive maintenance systems that have documented reductions in unplanned downtime of 30 to 50 percent, maintenance cost reductions of 10 to 25 percent, and extensions in asset operating life. These are not marginal improvements: for a large industrial facility, they translate to savings of tens of millions of dollars annually.

    How These Advances Are Changing Mechanical Engineering Careers

    The latest advances in mechanical engineering are not abstract research topics for most of the profession. They are actively reshaping the skills that employers are looking for, the roles that are being created, and the salary premiums available to engineers who develop the right competencies.

    Technology AdvanceNew / Transformed RolesSkills RequiredSalary Premium (vs. Avg. ME)
    AI-Driven DesignAI Systems Integration Engineer; Generative Design SpecialistPython/ML basics, ANSYS/Fusion 360 with AI tools, topology optimisation+20 to 30%
    Metal Additive ManufacturingAM Process Engineer; DfAM Specialist; Powder MetallurgistLPBF/DED process knowledge, DfAM principles, metallurgy+15 to 25%
    Digital TwinsDigital Twin Engineer; Simulation Data EngineerIoT sensor integration, physics-based modelling, cloud platforms (Azure/AWS)+15 to 20%
    Cobots / RoboticsRobotics Mechanical Engineer; Cobot Integration SpecialistROS, robot kinematics, mechanism design, force-controlled actuation+15 to 25%
    Soft RoboticsSoft Robotics Engineer; Compliant Mechanism DesignerContinuum mechanics, elastomer materials, pneumatic actuation+20 to 30% (specialist scarcity)
    Hydrogen SystemsHydrogen Systems Engineer; Fuel Cell Mechanical EngineerHydrogen embrittlement, cryogenics, high-pressure vessel design, codes/standards+20 to 35%
    EV Powertrain / BTMSBTMS Engineer; EV Structural Engineer; Battery Integration EngineerThermal management, CFD, lightweight materials, battery cell chemistry basics+15 to 25%
    Predictive Maintenance / IIoTReliability Engineer with ML skills; IIoT Mechanical Systems EngineerVibration analysis, sensor systems, Python/MATLAB, machine learning basics+10 to 20%
    Strategic Career Advice:  The data is clear: mechanical engineers who develop depth in one or two of these advancing areas, while maintaining strong mechanical engineering fundamentals, are in the highest demand and command the strongest salary premiums. The most powerful combination in 2026 is strong classical ME foundations plus one high-growth specialisation (hydrogen, additive manufacturing, EV thermal systems, or AI-integrated design). Adding basic Python or MATLAB data skills amplifies the premium further in roles involving simulation, predictive maintenance, or digital twin development.

    Frequently Asked Questions (FAQ)

    What are the latest advances in mechanical engineering?

    The most significant latest advances in mechanical engineering in 2026 include AI-driven generative design, metal additive manufacturing at production scale, real-time digital twins, collaborative robotics and cobots, soft robotics and bio-inspired systems, mechanical metamaterials and 4D printing, hydrogen energy system engineering, electric vehicle thermal management, advanced composites and self-healing materials, MEMS and nanotechnology, space-based manufacturing, and IIoT-driven predictive maintenance. Each of these is being deployed at industrial scale and is creating new career opportunities for mechanical engineers.

    How is AI changing mechanical engineering?

    AI is changing mechanical engineering in several simultaneous ways: generative design algorithms explore thousands of optimised design geometries based on engineering constraints; AI-assisted CAM software optimises machining toolpaths and reduces tool wear; computer vision systems perform real-time quality inspection on production lines; machine learning models embedded in digital twins predict equipment failures before they occur; and AI-powered chatbot assistants in CAD platforms offer real-time design suggestions. Engineers with combined mechanical engineering and AI/ML competency are commanding salary premiums of 20 to 30 percent above peers without those skills.

    What is additive manufacturing in mechanical engineering?

    Additive manufacturing (3D printing) in mechanical engineering is a family of processes that build components layer by layer from digital design data, most commonly from metal powders, polymer filaments, or resins. For mechanical engineers, the most significant advance is metal additive manufacturing, which enables the production of complex geometries that cannot be machined, including internal lattice structures, conformal cooling channels, and topology-optimised organic shapes. The global additive manufacturing market was valued at $21 billion in 2024 and is projected to reach $73 billion by 2031.

    What is a digital twin in mechanical engineering?

    A digital twin in mechanical engineering is a real-time virtual model of a physical asset or system, continuously updated with live sensor data from its physical counterpart. It allows engineers to monitor asset health remotely, simulate the effect of proposed changes before implementing them, predict maintenance needs before failures occur, and optimise operational parameters based on actual conditions. Industrial deployments have documented reductions in unplanned downtime of 30 to 50 percent, and the digital twins market is projected to reach $110 billion by 2032.

    What is the future of mechanical engineering?

    The future of mechanical engineering is defined by the convergence of traditional physical engineering with digital intelligence, sustainable energy systems, and advanced materials. Key directions include: AI-assisted design becoming standard practice; metal additive manufacturing replacing machining for complex components; hydrogen and electrification reshaping energy and transport engineering; soft robotics expanding into healthcare and agriculture; and predictive maintenance transforming industrial operations. The U.S. BLS projects 11 percent employment growth from 2023 to 2033, with the highest demand in renewable energy, robotics, and AI-integrated engineering roles.

    What is soft robotics in mechanical engineering?

    Soft robotics in mechanical engineering is a sub-discipline that designs robots and actuators from compliant, deformable materials (elastomers, hydrogels, shape memory polymers) rather than rigid metal or plastic structures. Inspired by biological organisms, soft robots can safely interact with humans and delicate objects, navigate confined and unstructured environments, and change shape in response to environmental stimuli. Applications include surgical robots, agricultural harvesting systems, wearable exosuits, and 4D-printed microrobots for targeted drug delivery. The soft robotics market is projected to reach $10.7 billion by 2030.

    What are mechanical metamaterials?

    Mechanical metamaterials are engineered structures whose mechanical properties (stiffness, density, acoustic behaviour, Poisson’s ratio) derive from their geometric architecture rather than the intrinsic properties of their constituent material. By designing the arrangement of unit cells at the micro or meso scale, engineers can produce structures with properties not found in nature, such as negative Poisson’s ratio, programmable stiffness, and tailored energy absorption. Combined with 4D printing, mechanical metamaterials can be designed to change shape or properties in response to stimuli, enabling applications in deployable aerospace structures, adaptive wearables, and soft robotic actuators.

    How is mechanical engineering involved in the hydrogen economy?

    Mechanical engineering is central to the hydrogen economy across multiple technical dimensions: designing high-pressure storage vessels and pipelines that are resistant to hydrogen embrittlement, developing cryogenic insulation systems for liquid hydrogen storage, engineering combustor modifications to gas turbines for hydrogen firing, designing mechanical compression and liquefaction systems for hydrogen logistics, and developing fuel cell stack mechanical assemblies. The demand for hydrogen systems engineers is projected to grow 45 percent by 2030, with salary premiums of 20 to 35 percent above manufacturing averages.

    Conclusion

    The latest advances in mechanical engineering are not isolated innovations. They are interconnected, mutually reinforcing transformations that are collectively redefining what the discipline does, what tools it uses, what problems it can solve, and what it means to be competitively skilled as a practising engineer.

    AI-driven generative design changes what additive manufacturing can produce. Additive manufacturing enables mechanical metamaterial geometries that no other process can create. Digital twins close the loop between virtual design and physical reality, making predictive maintenance economically viable. Soft robotics and advanced materials are creating entirely new categories of mechanical devices. Hydrogen and electrification are reshaping propulsion engineering at its foundations.

    For students, the implication is clear: the most valuable mechanical engineering education in 2026 pairs rigorous classical engineering fundamentals with at least one of these advancing specialisations, plus data literacy sufficient to engage with AI tools, simulation platforms, and sensor-driven systems.

    For practising engineers, the message is equally direct: the engineers commanding the strongest salary premiums are those who have extended their classical training into these new domains. The field has never offered more opportunity for those willing to keep learning.

    Explore the broader context in our pillar guide What Is Mechanical Engineering?, understand the Frontiers of Mechanical Engineering for the research-level view, or review our guide to Mechanical Engineering Careers and Industries to see where these advances are creating the most new employment opportunities.

  • How to Convert Hand-Drawn Sketches into Professional CAD Drawings | Sketch to CAD

    How to Convert Hand-Drawn Sketches into Professional CAD Drawings | Sketch to CAD

    Xometry Aug 2025  tested seven AI text-to-CAD tools and found all required substantial engineering refinement before the output could be used for manufacturing
    600 DPI  minimum scan resolution for clean raster-to-vector conversion; below this threshold, noise interferes with line recognition in both manual and AI workflows
    Ragnar CAD  February 2026 sketch-to-3D AI tool claims to close the gap between ‘I can see it’ and ‘I can model it’ for concept geometry from annotated sketches
    Gartner 2026  projects that a majority of digital design workflows will include some level of AI-assisted modelling, with sketch interpretation as a growing entry point

    Introduction:

    Before any engineer opens CAD software, before any parametric model is built, before any drawing is dimensioned, there is usually a sketch. On the back of an envelope, on a whiteboard, on graph paper in a site meeting, on a napkin at a client conversation. The sketch is where the design intent lives in its earliest, most honest form.

    The challenge is that a sketch, no matter how clear to the person who drew it, is not a manufacturing instruction. It has no scale guarantee, no tolerance definition, no projection convention, no standard symbol for surface finish or weld specification. A fabricator or machinist working from a hand sketch is working from engineering intent without the engineering rigour that turns that intent into a part.

    Converting a hand drawn sketch to CAD is the process that bridges that gap. It is not simply tracing lines. It is a structured engineering activity that takes the intent captured in the sketch and translates it into a document that carries enough information for a manufacturer to build the part correctly without needing to contact the engineer for clarification.

    This guide covers the complete workflow for sketch to CAD conversion, from preparing the sketch before scanning to issuing the final drawing for manufacturing. It also covers where AI tools genuinely help in 2026, where they do not, and the mistakes that produce wrong geometry at every stage of the process.

    Quick answer:  To convert a hand-drawn sketch into a CAD drawing: annotate the sketch with all critical dimensions before scanning, scan at 600 DPI minimum, import as a scaled underlay in your CAD software, trace geometry with geometric constraints applied, add dimensions from the sketch annotations, apply GD&T and manufacturing specifications, verify against the original sketch, and peer-review before issue. AI tools can assist with concept geometry but cannot yet produce manufacturing-ready drawings without engineering validation.

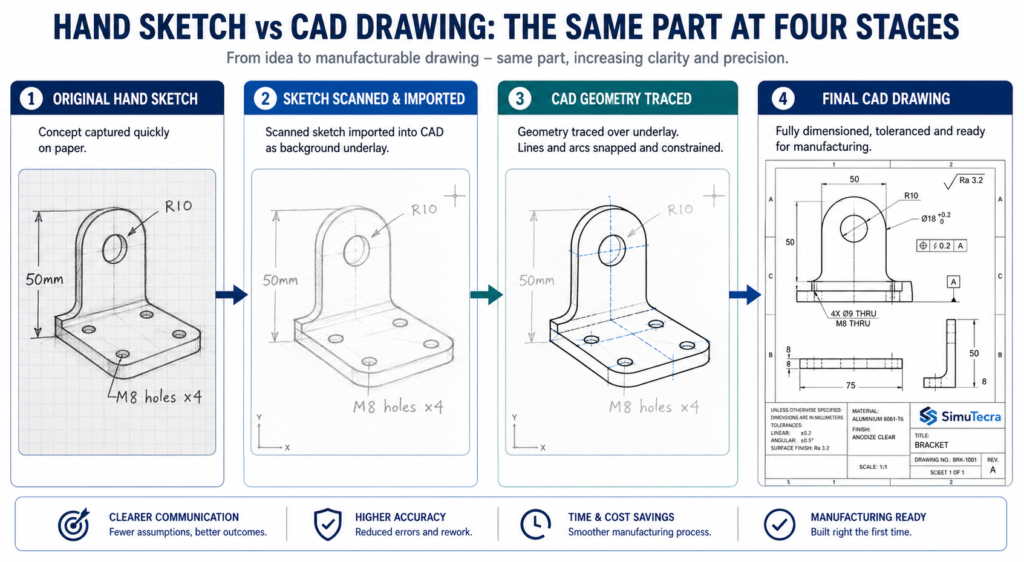

    How to Convert Hand-Drawn Sketches into Professional CAD Drawings  Sketch to CAD
    The sketch is the idea. The CAD drawing is the instruction. The conversion is an engineering activity, not a drawing exercise.

    Choosing Your Conversion Approach: Five Methods and When to Use Each

    Before starting any CAD drawing from sketch work, the most important decision is which conversion method is appropriate for the output required. The method determines how much time the conversion takes, what quality of output it produces, and whether that output is suitable for its intended use.

    ApproachWhat It InvolvesBest When
    Manual trace (2D CAD)Engineer imports scanned sketch as underlay, traces lines manually, applies dimensionsSketch is complex, requires GD&T, or is destined for a manufacturing drawing package
    AI-assisted sketch conversionUpload sketch to AI tool; AI generates geometry; engineer validates and refinesSimple geometry, concept visualisation, or getting a 3D starting point quickly
    AutoCAD Markup ImportImport scanned or PDF sketch; AutoCAD interprets marks and suggests geometryExisting AutoCAD workflow; sketch is relatively clean and line-based
    Photogrammetry + CADPhotograph physical object or model; import into CAD as reference mesh or point cloudPart physically exists but no drawing exists; RE workflow supplements sketch
    Outsourced sketch-to-CADProvide annotated sketch to a CAD specialist; they produce the drawingTeam lacks CAD capability; volume of conversions is high; deadline is tight

    The Honest Reality About AI Sketch Conversion in 2026

    The AI sketch-to-CAD landscape in 2026 is significantly more active than it was two years ago. Ragnar CAD, launched in February 2026, describes itself as purpose-built to close the gap between seeing an idea and modeling it. AutoCAD Markup Import has been present since the 2023 release and handles line-based sketches reasonably well. Autodesk Raster Design converts scanned images to editable vector geometry in AutoCAD.

    However, when Xometry, a major manufacturing marketplace, tested seven text-to-CAD and sketch-to-CAD tools in August 2025, the findings were consistent: all tools produced geometry that required significant engineering refinement before it could be used for manufacturing. The AI is interpreting visual patterns, not engineering intent. It does not know that a circle represents a through-hole of a specific standard size. It does not apply geometric constraints that would make two lines parallel. It does not understand that a tangent transition must be mathematically smooth.

    This does not make AI tools useless. For concept geometry, early-stage visualisation, and getting a 3D starting point from an annotated sketch, tools like Ragnar CAD can save meaningful time. But the output requires validation, refinement, and the addition of all manufacturing information before it can be used as a production drawing. The engineer remains responsible for every dimension that appears on the final drawing, regardless of how it was generated.

    AI sketch conversion red flag:  Any tool that claims to convert a hand sketch directly to a manufacturing-ready DWG or STEP file without engineering input is making a claim that current technology cannot support. A sketch has no tolerances, no GD&T, no datum structure, and no manufacturing specifications. None of these can be inferred from sketch geometry alone. They must be added by an engineer. The AI handles geometry interpretation. The engineer handles engineering.

    Preparing Your Sketch for CAD Conversion: The Step Most People Skip

    The quality of the CAD drawing you produce is determined before you open the software. A sketch that is fully annotated, clearly drawn, and systematically organised converts quickly and accurately. A sketch that is vague, proportionally distorted, and missing dimensions forces the CAD operator, whether that is you or an outsourcing partner, to make engineering decisions that should have been made by the designer.

    The time spent annotating the sketch thoroughly before scanning pays back immediately in the conversion process and many times over if the drawing is being produced by a CAD specialist. Every query raised during conversion, every dimension that must be estimated rather than read, adds cost and delay and risks introducing errors that the original sketch did not contain.

    Sketch ElementWhat Makes It CAD-ReadyWhat Causes Problems at the CAD Stage
    Line clarityBold, continuous lines; no broken strokesFaint pencil lines that digitise as noise; overlapping smudged strokes
    Dimension annotationsAll critical dimensions written clearly next to featuresMissing dimensions force CAD operator to guess or query; incorrect output guaranteed
    ProportionsSketch roughly to scale; major features proportionally correctWildly distorted proportions make the CAD baseline incorrect before any refinement
    Feature identificationEach feature clearly bounded; circles closed; arcs labelled as arcsAmbiguous lines that could be a tangency, a step, or a gap produce wrong geometry
    Orthographic viewsFront, top, and side views clearly labelled and positionedMissing view or mislabelled projection produces 3D model with features on wrong faces
    Reference planesCentre lines, axis of symmetry, and datum planes markedNo reference planes forces CAD operator to assume datum structure; may be wrong
    Notes and calloutsMaterial, finish, special requirements noted on the sketchUndocumented requirements surface after CAD is complete; rework cycle begins
    Scale referenceOne known dimension or scale bar presentNo scale reference means AI tools guess proportions; manual trace loses context

    The Annotation Checklist: What to Add Before You Scan

    1. All critical dimensions written in pen next to every feature. Length, width, height, hole diameter, radius, depth, thread specification. Not ‘approximately 50mm’. Exactly 50mm or the correct tolerance range.
    2. Orthographic view labels. Write ‘FRONT VIEW’, ‘TOP VIEW’, ‘RIGHT SIDE VIEW’ clearly next to each view. Label the projection method if you know it (first-angle or third-angle).
    3. Centre lines and axes of symmetry drawn as thin lines with alternating long-short dashes, or simply labelled ‘CL’ or ‘SYM’. These define the datum structure that the CAD model must reference.
    4. At least one scale reference. Either a dimensioned scale bar or one known dimension from which everything else can be scaled. Without this, the CAD operator has no way to set the underlay at the correct scale.
    5. Material and surface finish notes. Write the material grade and any surface finish requirement directly on the sketch. Add thread standards where relevant (M12x1.75, 1/2-13 UNC).
    6. Special requirements and constraints. If a feature must be concentric with another, write it. If a surface must be flat within a stated tolerance, note it. If there is a mating part, sketch the mating geometry or note the mating part number.
    The pre-scan annotation habit:  Treat the annotation step as a design review of your own sketch. If you cannot write a dimension next to a feature because you do not yet know what the dimension should be, the design is not ready for CAD conversion. The sketch annotation step forces every engineering decision to be made before the drawing production starts, which is exactly when those decisions cost the least to change.

    Step-by-Step: Converting a Hand Sketch to a CAD Drawing

    This is the complete workflow for converting a hand-drawn sketch into a professional CAD drawing in AutoCAD or SolidWorks. The same sequence applies for most CAD platforms. The tool names vary but the logic is the same.

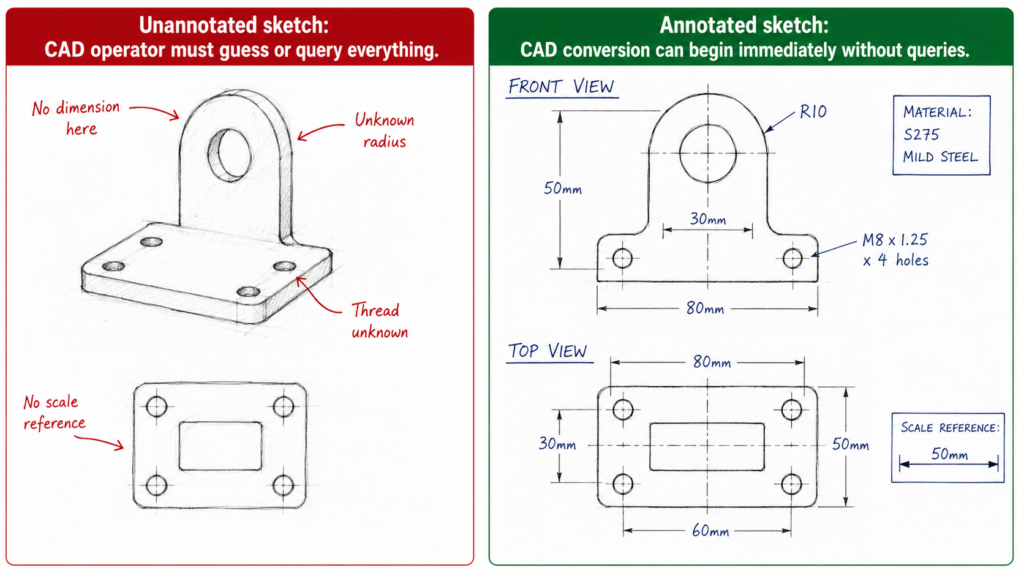

    Sketch to Cad Annotated vs Unannotated sketch
    The annotation is not extra work. It is the engineering work. The CAD conversion is just the documentation
    StepWhat HappensKey Action RequiredCommon Error at This Step
    1. PrepareAnnotate sketch fully before scanningAdd all dimensions, labels, and reference marks to the physical sketchScanning first then trying to add annotation to the digital image
    2. Scan / photographCreate a clean digital image of the sketch600 DPI minimum for scanning; good lighting for photography; no distortionLow-resolution scan; angled photograph; shadow across sketch
    3. Import underlayBring the image into CAD as a reference underlayScale the underlay using a known dimension (INSUNITS + reference scale)Importing without scaling; drawing on top of wrong-scale reference
    4. Set up drawingConfigure units, projection method, layers, and templateUse company drawing template before creating any geometryStarting on Layer 0 with no template; default settings applied
    5. Trace 2D geometryDraw CAD lines and arcs over the underlayUse constraints to make geometry geometrically correct, not just visually closeTracing visually without applying geometric constraints; drawing remains unconstrained
    6. Apply dimensionsDimension every feature required for manufactureCheck every dimension against the sketch annotation; query anything unclearScaling dimensions from the underlay instead of reading the sketch annotation
    7. Add GD&TApply tolerances, datum structure, and surface finish calloutsUse the drawing standard appropriate to the manufacturing destinationSkipping GD&T entirely and relying on general tolerance for everything
    8. Add 3D modelExtrude or revolve 2D profile to create 3D solid if requiredVerify every sketch profile is a closed loop before 3D operationOpen profiles that prevent extrusion; missing fillet or chamfer detail
    9. Final checkOverlay CAD drawing on original sketch to verify correspondenceEvery feature in the sketch should be present in the CAD; every dimension should matchMissing features; dimensions that do not match the annotated sketch values
    10. IssueRelease drawing through normal review and approval processPeer review against the drawing standard; title block completeIssuing without peer review; reverting to the sketch as the production reference

    Step 1 to 3: Preparing and Importing the Sketch

    The first three steps happen before you draw a single CAD line. Sketch annotation ensures every engineering decision is made before conversion starts. Scanning at 600 DPI minimum produces an image with enough resolution for clean line recognition, whether you are tracing manually or using an AI assist tool. Anything below 400 DPI produces a raster image where sketch lines are broken or blurred at the edges, making accurate tracing significantly harder.

    Scaling the underlay correctly is the most technically critical step in the import process. The INSUNITS system variable in AutoCAD controls how the software interprets the scale of inserted content. If INSUNITS is set to millimetres and you import an image scanned at 96 DPI (standard screen resolution), the image will import at screen-pixel scale, not millimetre scale. Use the SCALE command with the reference option immediately after import: select the underlay, pick two points at either end of a known dimension on the sketch, and type the known dimension value. The software scales the underlay so that dimension matches exactly.

    Step 4 to 6: Setting Up, Tracing, and Dimensioning

    Setting up the drawing before tracing is not optional. Tracing on Layer 0 without a template is the single most common error in sketch-to-CAD conversion work. Layer 0 geometry cannot be managed by layer, cannot have line weights assigned correctly, and creates a drawing that does not meet any professional drawing standard. Open your company template file or create a new drawing with the correct layer structure, then import the underlay into that environment.

    When tracing, work with geometric constraints active. Every relationship visible in the sketch that should be geometric, not just visual, must be applied as a constraint. Two lines that look parallel are not necessarily parallel until a parallel constraint is applied. A circle that appears tangent to a line may not be until a tangent constraint is set. Geometry that is visually approximate but not mathematically constrained produces a drawing that cannot be used reliably for manufacturing because the relationships it shows are not guaranteed to hold.

    Dimensioning from the sketch annotation, not from the underlay geometry, is the rule that prevents scale errors from propagating into the drawing. The underlay is a reference image. Its geometric proportions may be accurate or may not, depending on how the original sketch was drawn. The annotations on the sketch are the engineering values. Always type the annotated value into the dimension, not the measured distance from the underlay.

    Step 7 to 10: GD&T, 3D, Checking, and Issue

    Adding GD&T from a sketch is a translation exercise. The sketch may show a circle with a note ‘concentric with boss’. The CAD drawing translates that into a position tolerance referenced to the appropriate datum axis. The sketch may show a surface with a note ‘flat, smooth surface’. The CAD drawing translates that into a flatness tolerance and an Ra surface finish callout. The sketch provides the design intent. The CAD drawing provides the engineering specification.

    For 3D modeling from a sketch, the critical check is profile closure. Every 2D sketch profile that will be extruded, revolved, or used as a sweep path must be a closed loop with no gaps, overlaps, or branching lines. In SolidWorks, use the Sketch Doctor tool before any 3D operation to identify open contours. In Fusion 360, the extrude command will warn if the profile is not closed. In AutoCAD, the BOUNDARY command helps identify closed regions from traced geometry.

    The final check is the overlay: place the completed CAD drawing alongside the original sketch and compare every feature. Every view that existed in the sketch should exist in the CAD drawing. Every dimension that was annotated on the sketch should appear on the CAD drawing with the correct value. Any feature present in the sketch that is absent from the CAD drawing is a missing element that must be added before issue.

    Using AutoCAD Markup Import for Sketch Conversion

    AutoCAD Markup Import, introduced in AutoCAD 2023 and developed further in subsequent releases, is Autodesk’s built-in tool for converting scanned drawings and markups into editable CAD geometry. It handles the most common use case for sketch to AutoCAD conversion: a sketch or marked-up drawing on paper, scanned to PDF or image, that needs to become editable DWG geometry.

    How Markup Import Works

    The workflow: import the scanned image or PDF markup into AutoCAD, which places it as a background reference. Markup Import’s AI analyses the image and identifies lines, arcs, circles, and text. It then overlays suggested geometry on the image, which the engineer accepts, rejects, or modifies. Accepted geometry becomes editable AutoCAD objects on specified layers.

    The tool is genuinely useful for drawings with clear, clean lines, straight edges, and simple geometry. It struggles with freehand curves, overlapping lines, and complex connection points. It does not interpret engineering intent: a circle with four lines radiating from it at 90-degree intervals might be a bolt circle pattern, a wheel, a connection diagram, or a structural element. Markup Import will create a circle and four lines. Deciding what they mean is an engineering judgment that the tool does not make.

    Autodesk Raster Design: The More Powerful Alternative

    For organisations with more demanding raster-to-vector conversion requirements, Autodesk Raster Design (a free add-on for AutoCAD subscribers) provides more comprehensive raster image processing. It cleans image noise, straightens lines, converts raster arcs to vector arcs, and handles complex legacy drawing conversion more reliably than Markup Import alone.

    Raster Design is particularly useful for converting large volumes of legacy scanned drawings to editable CAD, a common requirement in industries that have paper drawing archives from pre-CAD decades. For converting fresh hand sketches, Markup Import is usually sufficient.

    AI Sketch-to-CAD Tools: What Actually Works in 2026

    The AI sketch to CAD market in 2026 is loud and active. New tools appear regularly with significant marketing claims. The honest engineering assessment is that all current tools sit somewhere on the spectrum between ‘useful starting point for concept geometry’ and ‘requires complete engineering rebuild before manufacturing use’. None sits at ‘production-ready manufacturing drawing from sketch without engineering input’.

    ToolTypeWhat It Actually DoesBest Realistic Use CaseHonest Limitation
    Ragnar CADSketch-to-3D AIInterprets sketch geometry; generates 3D mesh or solidConcept geometry from annotated sketchOutput needs significant refinement for manufacturing use
    AutoCAD Markup ImportDrawing importRecognises lines and shapes in scanned markup; suggests CAD geometryUpgrading scanned 2D drawings to editable DWGDoes not understand engineering intent; produces dumb geometry
    Autodesk Raster DesignRaster-to-vectorConverts scanned raster image to vector lines in AutoCADExisting AutoCAD workflow with scan inputManual cleanup of noise and artefacts still required
    Leo AIEngineering AISearches existing CAD vault; assists with design intent; not sketch-to-CADFinding similar existing parts; reuse of previous designsNot a sketch conversion tool; often mispositioned in marketing
    Pixa / similarAI image-to-visualGenerates technical-style visual from sketch imageVisualisation and presentation imagesNot a CAD file; not manufacturable; not dimensioned
    SketchUpManual 3D modelingSimple push-pull 3D from 2D sketch input; not AI-drivenArchitecture concept models from floor plan sketchNo engineering GD&T capability; not suitable for manufacturing
    Traditional tracingManual CADEngineer manually traces sketch in AutoCAD or SolidWorksAny application requiring a production-ready drawingSlowest method; most reliable for manufacturing output

    The Xometry Test Results: What the Data Actually Shows

    When Xometry tested seven AI sketch and text-to-CAD tools in August 2025, the findings were consistent across all tools: simple prismatic geometry was handled reasonably; complex geometry with multiple interacting features was inconsistent; none produced output with tolerances, GD&T, or manufacturing specifications; all required significant engineering review and refinement.

    This is not a criticism of the tools. It reflects the fundamental challenge: interpreting sketch geometry is a different problem from understanding engineering intent. A sketch line that represents a wall might be 2mm thick, 20mm thick, or structural steel. The sketch looks the same. The engineering specification does not. Until AI tools can reliably infer engineering intent from visual sketch input, the engineer remains essential to every sketch-to-CAD workflow that produces a manufacturing deliverable.

    Where AI Sketch Tools Add Genuine Value

    • Concept geometry for client presentations. Getting a rough 3D view of a concept in minutes rather than days. The geometry does not need to be manufacturing-ready.
    • Starting point acceleration. A reasonable first-pass geometry from Ragnar CAD or Markup Import gives the engineer a starting model to refine rather than building from a blank file.
    • Legacy drawing digitisation at volume. Converting hundreds of scanned paper drawings to editable DWG where speed matters more than perfection on each individual drawing.
    • Rapid iteration on proportions. Testing multiple layout interpretations of the same sketch quickly before committing to detailed CAD work.

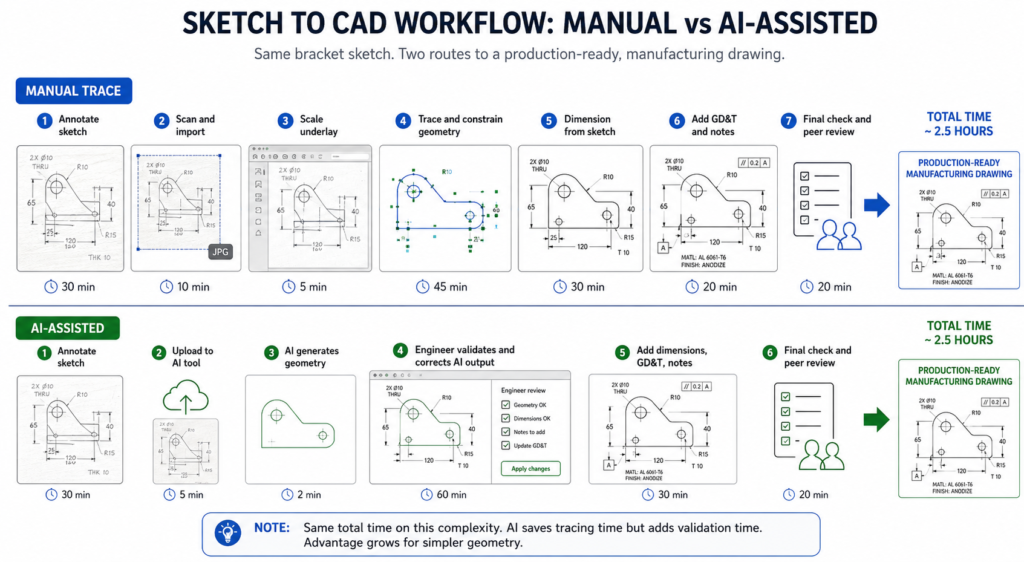

    Sketch to CAD Workflow: Manual vs AI-Assisted Side-by-Side Timeline
    AI tools accelerate the geometry step. The engineering steps remain the same.

    Working in SolidWorks: Converting a Sketch to a Parametric 3D Model

    When the end deliverable is a 3D parametric model rather than a 2D drawing, SolidWorks (or Creo, Inventor, or Fusion 360) is the appropriate tool. The workflow differs from AutoCAD in a fundamental way: instead of tracing the sketch as a 2D drawing, you trace it as a 2D sketch profile inside SolidWorks that will then be extruded, revolved, or used as a path sweep to create the 3D solid.

    The SolidWorks Sketch Import Workflow

    1. Create a new part document using your company SolidWorks template.
    2. Insert the scanned sketch as a sketch picture on the front plane or the plane most representative of the primary view in the sketch.
    3. Scale the sketch picture by dragging the scale handle or entering a scale factor. Use the same reference dimension method: identify a known dimension on the sketch and scale until the measured distance in SolidWorks matches the annotated value.
    4. Trace the 2D profile over the sketch picture using sketch tools. Apply all geometric constraints. Every relationship in the sketch that should be mathematical must be a constraint, not an approximation.
    5. Verify closure before any 3D operation. Use Sketch Doctor or the profile highlighting that appears when you hover over the Extrude feature to confirm the sketch is fully closed.
    6. Apply driving dimensions from the sketch annotations. Make the sketch fully defined before extruding.
    7. Extrude or revolve to create the 3D body. Delete or hide the sketch picture underlay after the 3D model is complete.
    8. Create the 2D drawing from the 3D model using SolidWorks Drawing. The drawing views are generated from the model, ensuring the drawing and model are always consistent.

    Why SolidWorks Produces a More Complete Output

    The SolidWorks workflow produces two deliverables from one sketch: a parametric 3D model and a manufacturing drawing derived from that model. The drawing and model are linked: change the dimension in the drawing and the model updates; change the model and the drawing views update. This is significantly more valuable than a 2D AutoCAD drawing alone for parts that will be revised, analysed, or used as the basis for a part family.

    For straightforward 2D applications (construction drawings, civil layouts, P&IDs, structural floor plans) AutoCAD is the more efficient route. For mechanical part design that will go through multiple iterations, SolidWorks or an equivalent parametric 3D platform produces an output that serves the full product development lifecycle, not just the initial manufacturing order.

    Outsourcing Sketch-to-CAD Conversion: When and How

    Sketch-to-CAD conversion is one of the most commonly outsourced engineering drawing activities, and for good reason. It is a well-defined scope of work with a clear input (the annotated sketch) and a clear output (the CAD drawing), and it benefits from specialists who do this type of work repeatedly and efficiently.

    The conditions under which outsourcing sketch-to-CAD conversion makes sense: the volume of conversions is higher than in-house capacity can handle efficiently, the in-house team lacks CAD capability or CAD proficiency for the specific type of drawing required, the deadline is tighter than the in-house workflow can meet, or the drawing type (architectural floor plans, structural steel, MEP schematics) requires specialist CAD knowledge that the in-house team does not have.

    What to Give an Outsourcing Partner for Sketch Conversion

    • The annotated sketch: fully dimensioned, labelled, with material and finish notes, and at least one scale reference. If the sketch is inadequately annotated, the partner will query or guess. Both add cost and risk.
    • The drawing specification: your drawing standard (ASME Y14.5 or ISO 1101), CAD software and version, file format required, layer naming convention, and title block template. Without these, the partner produces a technically competent drawing in their own style, not yours.
    • Go-by drawings: two or three representative drawings from your existing archive that show your exact style, layer structure, line weights, and annotation conventions. A written specification and a visual example together eliminate virtually all style-related rework.
    • A clear brief of any constraints not visible in the sketch: mating part requirements, assembly context, functional requirements that affect manufacturing priority. The sketch shows geometry. The brief provides the engineering context that the sketch cannot communicate.

    Common Mistakes in Sketch-to-CAD Conversion

    These are the errors that most consistently produce wrong output from sketch to CAD conversion, whether the work is done in-house or by an outsourcing partner.

    MistakeWhat Goes WrongPrevention
    Scanning sketch before annotating itDigital image has no dimensions; guessing from proportions throughoutComplete all annotations on the physical sketch before scanning. Scanning is the last step in sketch preparation.
    Importing at wrong scale (INSUNITS mismatch)All traced geometry is at the wrong scale; dimensions incorrectSet INSUNITS before import. Scale the underlay using one known dimension immediately after import.
    Tracing visually without geometric constraintsLines appear parallel but are not; circles appear tangent but are notApply constraints (parallel, perpendicular, tangent, concentric) to every geometric relationship in every sketch.
    Using scale from underlay for dimensionsDimensions reflect the scan proportions, not the design intentAlways read dimensions from the sketch annotation. Never scale from the underlay image.
    Treating AI-generated geometry as production-readyMesh or approximated geometry sent to manufacturer; parts cannot be madeAI tools produce starting points. Every AI output requires engineering validation before manufacturing release.
    Skipping the 3D profile closure checkExtrude fails or creates wrong solid because sketch profile is not closedCheck every sketch profile for closure before any 3D operation. Use the profile analysis tool before extruding.
    No peer review before issueDrawing released with errors that a second set of eyes would have caughtApply the pre-release checklist. Require a second engineer to sign off before any drawing is issued from a sketch.
    Losing the original sketch after CAD is completeConflict between sketch intent and CAD output cannot be resolvedArchive the annotated sketch alongside the CAD file as a permanent project record.
    The final overlay check:  The single most effective quality check in any sketch-to-CAD workflow is placing the finished CAD drawing alongside the original annotated sketch and comparing them feature by feature. Every view present in the sketch should be present in the CAD. Every annotated dimension should appear in the CAD with the correct value. Every note should be accounted for. This check takes five minutes and catches the majority of conversion errors before the drawing is issued.

    Conclusion:

    A hand-drawn sketch is the most natural form of engineering communication. It is fast, flexible, and honest. It captures proportions, relationships, and intent in a way that talking around a table cannot. But it is not an engineering instruction. It is the raw material that an engineering drawing is made from.

    The process of converting a hand drawn sketch to CAD is the process of translating that raw material into a precise, complete, and unambiguous manufacturing instruction. It requires engineering judgment at every step: which tolerances apply, which GD&T controls are needed, which dimensions govern assembly, and which features are critical versus general. These judgments cannot be made by tracing lines. They cannot be made by AI tools in 2026. They are made by the engineer who understood what the sketch was trying to say.

    AI tools are genuinely useful for concept geometry, for getting a 3D starting point from an annotated sketch, and for converting large volumes of legacy scanned drawings. They are not yet useful for producing manufacturing-ready engineering drawings from sketches without engineering validation. The tools are evolving quickly. The engineering requirement remains constant.

    Annotate the sketch fully. Import it correctly. Trace with constraints. Dimension from the sketch, not the underlay. Verify against the original. Then issue.

    Frequently Asked Questions

    How do you convert a hand-drawn sketch into a CAD drawing?

    To convert a hand-drawn sketch into a CAD drawing, follow this sequence: annotate the sketch with all critical dimensions, notes, and labels before scanning; scan at a minimum of 600 DPI or photograph with good even lighting; import the image into your CAD software as an underlay; scale the underlay using a known reference dimension; set up your drawing template with correct units, layers, and projection method; trace the geometry over the underlay and apply geometric constraints to all relationships; add dimensions, GD&T, surface finish, and material callouts; verify the CAD output against the original sketch by overlaying; and peer-review before issuing the drawing for manufacturing.

    Can AI tools convert a hand-drawn sketch to a CAD file automatically?

    AI tools can interpret sketch geometry and generate a starting point for a CAD model, but they cannot currently produce manufacturing-ready drawings from sketches without significant engineering input. When Xometry tested seven text-to-CAD tools in August 2025, all required substantial refinement for engineering use. Tools like Ragnar CAD (February 2026) and AutoCAD Markup Import can accelerate the process for simple geometry. For production drawings requiring GD&T, tolerances, and manufacturing specifications, human engineering validation remains essential regardless of which AI tool is used.

    What makes a hand-drawn sketch ready to convert to CAD?

    A hand-drawn sketch is ready to convert to CAD when it includes: all critical dimensions written clearly next to every feature, orthographic views labelled by name (front, top, side), centre lines and axes of symmetry marked, a scale reference or at least one known dimension, all feature boundaries clearly closed with no ambiguous lines, material and surface finish notes where relevant, and any special requirements or constraints annotated on the drawing. A sketch without dimensions is not a CAD input. It is a visual concept that requires engineering decisions before CAD work can begin.

    What is the difference between tracing a sketch in CAD and using AI conversion?

    Manual tracing in CAD involves importing the sketch as an underlay, drawing lines and arcs over it with geometric constraints applied, dimensioning every feature from the sketch annotations, and adding GD&T and manufacturing specifications. The result is an engineering drawing with full design intent. AI conversion interprets sketch geometry automatically and generates geometry without manual input. It is faster for simple shapes but produces approximate geometry without constraints, tolerances, or manufacturing specifications. Manual tracing is required for any drawing that will be used for manufacturing. AI conversion is useful for concept visualisation and early-stage geometry.

    How do I scale a hand-drawn sketch correctly in AutoCAD?

    To scale a hand-drawn sketch correctly in AutoCAD: first set the INSUNITS variable to match the unit system of your drawing before importing the image. Import the scanned image using the IMAGEATTACH command. Identify one dimension on the sketch where you know the exact real-world value. Use the SCALE command with the reference option to scale the image so that the known dimension matches its correct value in the drawing. Once the underlay is correctly scaled, all traced geometry will automatically be at the correct scale provided your INSUNITS setting is correct.

    Should I use AutoCAD or SolidWorks to convert a sketch to CAD?

    The choice between AutoCAD and SolidWorks depends on the output required. For 2D manufacturing drawings, construction drawings, or any application where a flat drawing set is the deliverable, AutoCAD is the more efficient tool. The underlay workflow is well-established and the 2D output is directly usable. For parts that require a 3D parametric model, assembly checking, FEA, or a manufacturing drawing derived from a 3D model, SolidWorks is more appropriate. The sketch becomes the reference for a 2D sketch profile in SolidWorks, which is then extruded or revolved to create the solid body. For most engineering manufacturing applications, SolidWorks produces a more complete and useful output from a hand sketch.


    ‘Autodesk: how AutoCAD Markup Import converts scanned drawings and sketches to editable geometry

  • Version Control for Engineering Drawings | Revision Guide

    Version Control for Engineering Drawings | Revision Guide

    Picture this: your manufacturing team is three weeks into production, cutting steel and assembling components, when someone discovers they have been working from the wrong revision of a critical assembly drawing. The updated hole pattern from Rev C never made it to the shop floor. They have been building from Rev A. The cost? Thousands of dollars in rework, delayed shipment, and a client relationship that takes months to repair.

    This scenario plays out in engineering firms, manufacturing plants, and design offices every week. It is not a technology failure. It is a version control failure.

    Managing revisions in engineering drawings is one of the most overlooked yet consequential disciplines in technical work. Unlike software code, where a bad commit can be rolled back in seconds, a machined part built from the wrong revision may be impossible to undo. The stakes are real and the margin for error is slim.

    This guide walks you through everything you need to know about version control for engineering drawings: what it means, how revision systems work, what tools are available, and what best practices separate teams that get it right from those that constantly fight drawing chaos.

    Engineering drawing revision history timeline showing incremental design changes from Rev A to Rev F

    1. What Is Version Control for Engineering Drawings?

    Version control, in the context of engineering drawings, refers to the systematic process of tracking, managing, and preserving every change made to a technical drawing over its lifecycle. Each change is documented with a unique revision identifier, a description of what changed, who made the change, and when it was made.

    At its core, version control ensures that at any point in time, every person on a project is working from the correct, approved version of a drawing, and that the full history of previous revisions remains accessible for reference, audit, or analysis.

    This is fundamentally different from simply saving multiple copies of a file. True version control is structured, traceable, and governed by defined rules about how changes are approved and communicated.

    Key Terms You Need to Know

    • Revision: A formally approved change to a drawing, typically labeled alphabetically (Rev A, Rev B) or numerically depending on the organization’s standard.
    • Revision Block / Title Block: The section of a drawing, usually in the lower right corner, that records the revision history including revision letter, date, description, and authorization.
    • Release: The formal process of issuing a drawing for use in production or construction after it has been reviewed and approved.
    • ECO / ECR (Engineering Change Order / Request): A formal document that initiates, describes, and authorizes a change to an engineering drawing or design.
    • As-Built Drawing: A drawing updated after construction or manufacturing to reflect the actual final state of the built item.
    • Controlled Copy: An official version of a drawing distributed through a managed process, ensuring it matches the current approved revision.

    2. Why Drawing Revision Management Matters

    If you have worked in manufacturing, construction, aerospace, or any engineering-heavy field, you already know that drawings are not static documents. They evolve. Materials change. Tolerances are refined. Assembly sequences get optimized. Customer requirements shift mid-project.

    What separates high-performing engineering organizations from those constantly in firefighting mode is not the absence of change. It is the ability to manage change systematically.

    The Business Cost of Poor Revision Control

    Poor drawing revision management creates a cascade of downstream problems:

    • Rework and scrap costs: Parts manufactured to an outdated drawing must be scrapped or expensively reworked. In precision machining, a single wrong revision can cost thousands of dollars in material and labor.
    • Project delays: When teams cannot quickly identify which drawing revision is current, time is wasted chasing clarification instead of executing work.
    • Safety risks: In structural, aerospace, and medical device engineering, using a superseded drawing can have life-safety consequences. This is why regulatory bodies like the FAA and ISO mandate formal revision control procedures.
    • Audit failures: Companies in regulated industries are required to demonstrate traceability of design changes. Without proper version control, passing a quality audit becomes nearly impossible.
    • Communication breakdown: When suppliers, subcontractors, and internal teams operate from different revisions, collaboration breaks down. Finger-pointing replaces problem-solving.

    3. How Engineering Drawing Revision Systems Work

    Most engineering organizations follow a structured revision numbering convention. While the specifics vary by company and industry, the underlying logic is consistent.

    Alphabetical vs. Numerical Revision Schemes

    The two most common approaches are alphabetical and numerical revision systems. Each has practical advantages depending on the type of project and the organization’s workflow.

    SchemeFormatTypical Use CaseProsCons
    AlphabeticalRev A, B, C…General engineering, manufacturingSimple, widely understoodLimited to 26 revisions; ambiguity with I, O
    NumericalRev 1, 2, 3…Software-influenced teams, PLM systemsUnlimited revisions, easy sortingLess intuitive in traditional shops
    Alpha-NumericRev A1, A2, B1…Complex, multi-phase projectsTracks major/minor changesCan become confusing without clear rules
    Date-Based2024-03-15Construction as-builtsSelf-explanatory timestampsHard to determine sequence at a glance

    The Revision Block: The Heart of Drawing Version Control

    Every properly formatted engineering drawing includes a revision block, typically located in the title block area. This block is the official record of the drawing’s revision history and should include:

    • Revision letter or number
    • Date of revision
    • Description of the change (brief but specific)
    • Name or initials of the person who made the change
    • Authorization or approval signature

    The revision block should be updated every time a formal change is made. Informal or undocumented changes (sometimes called ‘pencil changes’ in traditional shops) are a major source of version control breakdown.

    The Role of the Engineering Change Order (ECO)

    For any organization handling product design, the ECO is the formal mechanism that bridges the gap between someone identifying a needed change and that change being officially incorporated into the drawing. A well-designed ECO process includes:

    1. Change Request: Anyone on the team can submit a request identifying the problem or improvement needed.
    2. Impact Assessment: Engineering reviews the request to understand how the change affects related drawings, parts, assemblies, and processes.
    3. Approval Workflow: The change goes through an approval chain (engineering, quality, manufacturing, program management depending on impact).
    4. Drawing Update: The drafter or engineer updates the drawing, increments the revision, and records the change in the revision block.
    5. Release and Distribution: The new revision is formally released and distributed to all stakeholders, and old revisions are clearly marked as superseded.
    Flowchart of an Engineering Change Order process showing steps from change request to drawing release and distribution

    4. Manual vs. Digital vs. PLM-Based Version Control

    The method an organization uses to manage drawing revisions has a massive impact on efficiency, accuracy, and scalability. There is no single right answer. The best approach depends on team size, project complexity, and industry requirements. Let us walk through the three primary models.

    Manual Revision Control (Paper and Shared Folders)

    Many small shops and independent contractors still manage drawings through physical files or shared network folders. This approach works at a small scale but introduces serious risk as teams grow.

    Common signs of a manual system include: print-and-mark revision tracking, emailed drawings with revision numbers in the filename, and a shared folder structure like ‘Engineering > Drawings > Current’ with a separate ‘Archive’ folder.

    The core problem with manual systems is that they rely entirely on human discipline. One person saving over the wrong file, or forgetting to move the old version to the archive, can create silent errors that do not surface until significant damage is done.

    Digital Version Control (CAD Software and EDM Systems)

    Modern CAD platforms including SolidWorks PDM, Autodesk Vault, PTC Windchill, and CATIA come with built-in document management and revision control capabilities. These systems track file versions at the software level, making it much harder (though not impossible) to lose or overwrite revision history.

    Key features to look for in a digital drawing management system include:

    • Check-in and check-out functionality to prevent simultaneous editing
    • Automatic version incrementing on save or release
    • Audit trail showing who made changes and when
    • Role-based access control (not everyone should be able to release drawings)
    • Search and retrieval by revision number, date, or associated project
    • Integration with CAD software to link drawing files directly to revision records

    PLM-Based Version Control (Enterprise-Scale)

    Product Lifecycle Management (PLM) systems like Siemens Teamcenter, PTC Windchill, and Dassault Enovia represent the most comprehensive approach to engineering drawing revision control. PLM systems manage not just the drawings themselves, but the entire product data ecosystem: BOMs, change orders, supplier drawings, manufacturing processes, and quality records.

    For large manufacturers, aerospace companies, and automotive OEMs, PLM is often mandatory. These systems ensure that every drawing revision is linked to its originating change order, the associated BOM impact has been assessed, and all downstream teams receive automatic notification when a new revision is released.

    The tradeoff is cost and complexity. PLM implementations require significant investment in software licensing, IT infrastructure, and training. They are overkill for a 10-person fabrication shop but essential for a tier-1 aerospace supplier.

    5. Best Practices for Managing Drawing Revisions

    Whether your team uses paper folders or a full PLM system, the following practices consistently separate organizations with clean revision control from those drowning in drawing chaos.

    Establish a Revision Numbering Convention and Stick to It

    Pick a revision scheme and document it formally. Define what triggers a new revision (versus an informal markup), how revisions are labeled, and where the revision history lives. Share this standard with every person who touches drawings, including external suppliers and contractors.

    Consistency is more important than the specific scheme you choose. A team using alphabetical revisions impeccably will outperform one with a sophisticated system applied inconsistently.

    Never Delete Old Revisions

    This one cannot be overstated. Superseded revisions must be retained, not deleted. Why? Because products already in service were built from those older revisions. If a field failure occurs, your maintenance team needs to know exactly what design was in place at the time of manufacture. If you have deleted Rev B because Rev C is current, you have lost critical traceability.

    In digital systems, superseded revisions should be moved to an ‘Obsolete’ status, not deleted from the database. They should still be searchable and accessible to authorized personnel but clearly marked so no one accidentally uses them for production.

    Use Meaningful Change Descriptions

    A revision block entry that says ‘Updated per ECO-1042’ is useful only if someone can look up ECO-1042. An entry that says ‘Updated per ECO-1042: changed hole pattern on flange face from 4x M6 to 6x M8 per customer RFI-217’ is genuinely informative to anyone reading the drawing years later without access to the ECO database.

    Train your team to write revision descriptions that stand alone. Future engineers, quality auditors, and production teams will thank you.

    Control Distribution of Drawings

    The best revision control system in the world fails if people can bypass it. Establish a single source of truth for current drawings, whether that is your PDM system, your PLM, or a strictly managed shared drive with clear folder governance.

    When a new revision is released, formally notify all stakeholders and pull back or obsolete distributed copies of the previous revision. In digital environments, this means updating the file status. In physical environments, it means collecting and stamping old prints as ‘superseded.’

    Separate Internal Working Revisions from Released Revisions

    Many teams use a preliminary revision scheme (often lowercase letters or draft numbers) for drawings that are in development but not yet formally released. This protects the integrity of the official revision record while still providing version tracking during the design phase.

    For example, a drawing might go through internal iterations a, b, c as the design evolves, then be formally released as Rev A when it is ready for production. This way, the official revision record stays clean and only reflects formally approved states.

    Engineering drawing title block showing revision history from Rev A to Rev D with change descriptions, dates, and initials

    Implement a Formal Drawing Review and Release Workflow

    Drawings should not be released directly by the person who created them. A formal review step, even a lightweight one for small teams, catches errors before they propagate into production. At minimum, define who can review drawings, who can approve them, and who can release them. These can be the same person in a small shop but the process should still be intentional.

    For higher-stakes drawings (safety-critical parts, customer-deliverable documents, regulatory submissions), require multi-discipline review including manufacturing, quality, and sometimes the customer.

    6. Common Revision Control Mistakes (and How to Avoid Them)

    Using File Names as the Version Control System

    File names like ‘bracket_assembly_FINAL_v3_REVISED_USE-THIS-ONE.dwg’ are a warning sign. When the file name is your only version indicator, you are one accidental save away from losing your revision history. Use a proper revision tracking system and keep file names simple and consistent.

    Maintaining Multiple ‘Current’ Folders

    Teams under pressure sometimes create parallel folder structures (‘Current,’ ‘Current-2024,’ ‘Latest from Supplier’) that each claim to hold the authoritative version. This leads directly to the scenario described in the introduction. Enforce a single source of truth.

    Skipping the Revision Block Update

    When a drawing is updated quickly or informally, it is tempting to skip updating the revision block. This creates a drawing that has changed physically but whose metadata says otherwise. Make revision block updates a non-negotiable step in the drawing change process, not an optional one.

    Not Linking Drawings to Change Orders

    A revision with no associated change order is a revision with no traceable rationale. Future engineers, auditors, and customers cannot understand why a change was made if it was never documented. Even for minor updates, a simple ECR takes five minutes and creates invaluable traceability.

    7. Tools and Software for Engineering Drawing Version Control

    Choosing the right tool depends heavily on your workflow, team size, and industry. Here is a practical overview of what is available across the spectrum.

    Tool / SystemTypeBest ForKey Feature
    SolidWorks PDM StandardCAD-Integrated EDMSmall to mid-size teams using SolidWorksCheck-in/out, vault storage, revision workflow
    Autodesk VaultCAD-Integrated EDMAutodesk Inventor / AutoCAD usersTight CAD integration, lifecycle management
    PTC WindchillFull PLMMid to large manufacturers, OEMsBOM management, multi-site collaboration
    Siemens TeamcenterFull PLMAerospace, automotive, defenseDigital twin integration, regulatory compliance
    OnshapeCloud CAD + PDMDistributed teams, cloud-first orgsBuilt-in branching, real-time collaboration
    SharePoint + Custom WorkflowDocument ManagementOrganizations already using Microsoft 365Low cost, familiar interface
    Git / Git LFSSoftware-style VCSTeams with CAD text formats (e.g. OpenSCAD)Branching, diffing, open source

    A Note on Git for Engineering Drawings

    Software developers use Git as their version control backbone, and some engineering teams have explored applying Git to CAD files. This works reasonably well for text-based CAD formats (OpenSCAD, FreeCAD, KiCad) where actual file differences can be compared line by line. For binary formats like CATIA or SolidWorks native files, Git stores the entire file on each commit rather than the difference, which becomes storage-intensive. Git LFS (Large File Storage) partially addresses this. For most traditional engineering workflows, a purpose-built PDM or PLM system will be more practical than Git.

    8. Version Control in Regulated and Aerospace Industries

    In regulated industries, drawing revision control is not a best practice. It is a legal and contractual requirement.

    ISO 7200 and Drawing Title Block Standards

    ISO 7200 defines the required fields for technical drawing title blocks used in ISO-compliant organizations. It specifies fields for legal owner, document status, revision identifier, dates, approvals, and related document references. Organizations seeking ISO certification are expected to maintain drawings that conform to this standard or an equivalent organizational standard derived from it.

    AS9100 and Aerospace Drawing Control

    The AS9100 quality management standard, used throughout the aerospace and defense supply chain, mandates rigorous control of technical documentation including engineering drawings. AS9100 requires that organizations control documents to ensure only the correct revision is available at points of use, changes are reviewed and approved by authorized personnel, the identity of the current document status is clear, and records of obsolete documents are maintained.

    Failure to demonstrate compliant drawing revision control can result in failed audits, lost contracts, and in the case of safety-critical parts, regulatory action.

    FDA and Medical Device Drawing Requirements

    Medical device manufacturers operating under FDA 21 CFR Part 820 (Quality System Regulation) and the ISO 13485 standard face similar requirements. Device History Records (DHR) must be traceable to specific drawing revisions. If a device is manufactured to a revision that differs from what was validated, it constitutes a serious regulatory non-conformance.

    FAQ:

    What is the difference between a revision and a version in engineering drawings?

    In engineering practice, a ‘revision’ typically refers to a formally approved and released change to a drawing, documented in the revision block. A ‘version’ is a more informal term and may refer to any iteration of a file, including working drafts not yet formally released. Some organizations use these terms interchangeably, but best practice is to reserve ‘revision’ for formally controlled changes only.

    How do you handle drawing revisions when working with external suppliers?

    When sharing drawings with external suppliers, always include the revision number prominently on the drawing and in any accompanying purchase order or work order documentation. Establish a formal process for notifying suppliers when a new revision is released, and confirm that they have received and acknowledged the update before production begins. Include drawing revision numbers in acceptance criteria and inspection records.

    Should you use letters or numbers for engineering drawing revisions?

    Either works, and the choice depends largely on organizational convention and industry norms. Alphabetical revisions (A, B, C) are traditional in manufacturing and aerospace. Numerical revisions (1, 2, 3) are common in software-influenced organizations and some PLM systems. What matters most is consistency: pick a scheme, document it, and apply it uniformly across all drawings.

    What should be included in a drawing revision description?

    A good revision description should be specific enough to be understood without referencing other documents. Include what changed (the specific geometry, dimension, note, or specification), why it changed (customer requirement, design improvement, manufacturing feedback), and the reference number of any associated change order. Aim for one to three sentences of clear, factual description.

    How long should you retain obsolete drawing revisions?

    Retention requirements vary by industry and contractual obligation. As a general rule, retain all superseded revisions for the full service life of the product plus the applicable statutory limitation period. In aerospace and defense, this often means 20 to 30 years or longer. In regulated industries, consult applicable standards (AS9100, ISO 13485, FDA QSR) and your legal counsel for specific requirements.

    Can you use cloud storage like Google Drive or Dropbox for engineering drawing version control?

    Cloud storage platforms can provide basic version history for files, but they are not purpose-built for engineering drawing revision control. They lack features like formal release workflows, revision block integration, role-based approval authority, and audit trails required by quality standards. They can serve as a step up from unmanaged shared drives for small teams, but growing organizations should invest in a proper PDM or EDM system.

    Conclusion:

    Version control for engineering drawings is ultimately about trust. When your manufacturing team picks up a drawing, they need to trust that it is the correct revision. When your quality auditor traces a field failure back to its source, they need to trust that the revision history is complete. When your customer asks for the design documentation package, they need to trust that what they receive reflects exactly what was built.

    No software system, however sophisticated, creates that trust on its own. It is built through disciplined processes, clear standards, and a team culture that treats drawing revision control not as administrative overhead but as a core engineering responsibility.

    Start where you are. If your organization is still managing revisions through file names and shared folders, move to a structured naming convention and a formal release process first. If you have a basic PDM system, audit how consistently it is being used and tighten the workflows. If you are at the PDM stage and scaling fast, evaluate whether a PLM investment is justified.

    The cost of getting revision control right is modest. The cost of getting it wrong, measured in rework, audit failures, and damaged customer relationships, is substantial.

  • Engineering Mechanics Explained: Complete Guide 2026

    Engineering Mechanics Explained: Complete Guide 2026

    Every structure that stands, every machine that moves, and every vehicle that travels owes its safe and predictable behaviour to one foundational discipline: engineering mechanics. It is the scientific backbone of engineering, the toolkit that allows engineers to move from “I think this will hold” to “I can prove this will hold, here is the calculation.”

    And yet, for many engineering students encountering it for the first time, engineering mechanics can feel abstract, disconnected from the real world, or simply overwhelming. A subject full of vectors, free body diagrams, Newton’s laws, and equilibrium equations does not always arrive with a clear sense of why it matters or how it connects to the things engineers actually build.

    This guide fixes that. It explains engineering mechanics from the ground up: what it is, how it is structured, what each branch covers, how its principles are applied in practice, which tools engineers use to apply them, and how mastery of the subject translates into a professional engineering career. Whether you are a first-year student facing your first mechanics module, a professional refreshing your foundations, or simply someone who wants to understand the science behind the built world, this is the most complete and readable explanation you will find.

    Free body diagram example showing a simply supported beam with applied loads, pin support reaction, and roller support reaction in engineering mechanics
    Quick Answer:  Engineering mechanics is the branch of applied science that uses the principles of physics and mathematics to predict and analyse how physical bodies respond to forces, motion, and deformation. It is the foundational discipline of virtually all engineering fields and is divided into three primary branches: statics (bodies in equilibrium), dynamics (bodies in motion), and mechanics of materials (how materials deform and fail under load).

    What Is Engineering Mechanics? A Clear Definition

    Engineering mechanics is the application of the principles of classical mechanics, a branch of physics, to solve practical engineering problems. It deals with the behaviour of physical bodies when subjected to forces or displacements, and the subsequent effects those forces and displacements have on the bodies and their surrounding environments.

    The word “engineering” in engineering mechanics is important. Pure or theoretical mechanics asks: “What happens?” Engineering mechanics asks: “What happens, and how do we use that knowledge to design something safe, efficient, and reliable?” The distinction is the difference between scientific knowledge and the professional application of that knowledge.

    At its core, engineering mechanics is concerned with three fundamental physical quantities: force, motion, and deformation. Every problem in engineering mechanics ultimately reduces to understanding how these three quantities interact in a specific physical situation.

    Simple Everyday Example:  When you sit on a chair, engineering mechanics explains why the legs do not buckle (statics), why the chair does not vibrate excessively when you move (dynamics), and why the material of the chair deforms slightly but springs back when you stand up (mechanics of materials). All three branches of engineering mechanics are at work simultaneously in that single, unremarkable act.

    The Full Map of Engineering Mechanics: How It Is Structured

    Most introductory resources present engineering mechanics as simply “statics and dynamics”. That is a significant oversimplification. The full discipline is structured as a hierarchy of sub-fields, each building on the one before it.

    Infographic comparing statics (bridge under static load) and dynamics (vehicle in accelerating motion) as the two primary branches of engineering mechanics.
    LevelSub-FieldWhat It StudiesPrerequisite
    FoundationClassical MechanicsThe general science of motion, force, and matter: Newton’s Laws, conservation of momentum, energyMathematics (vectors, calculus, differential equations)
    Primary Branch 1Rigid Body MechanicsBodies that do not deform under load: all statics and most dynamics problemsClassical mechanics
    Sub-branch 1aStaticsForces on bodies in equilibrium (at rest or constant velocity)Rigid body mechanics
    Sub-branch 1bDynamics: KinematicsDescription of motion (displacement, velocity, acceleration) without reference to forceStatics
    Sub-branch 1cDynamics: KineticsForces that cause or result from motion; Newton’s 2nd Law applied to moving bodiesKinematics
    Sub-branch 1dVibrationsOscillatory motion in mechanical systems; forced and free vibrations, resonanceKinetics
    Primary Branch 2Deformable Body Mechanics (Mechanics of Materials)How real materials stretch, compress, bend, and fail under loadStatics
    Sub-branch 2aStress and Strain AnalysisInternal force distribution and deformation in loaded bodiesMechanics of materials
    Sub-branch 2bFracture and Fatigue MechanicsCrack propagation, fatigue life prediction, failure analysisStress and strain analysis
    Sub-branch 2cContinuum MechanicsGeneralised treatment of both solid and fluid deformation under loadAdvanced mathematics
    Primary Branch 3Fluid MechanicsHow liquids and gases respond to forces; pressure, flow, viscosity, turbulenceClassical mechanics
    Sub-branch 3aHydrostaticsFluids at rest: pressure distribution, buoyancy, forces on submerged surfacesFluid mechanics
    Sub-branch 3bHydrodynamics / CFDFluids in motion: Bernoulli’s equation, pipe flow, aerodynamics, turbulenceHydrostatics

    This hierarchy matters because it explains the logical order in which engineering mechanics is taught. You cannot understand dynamics without statics. You cannot understand mechanics of materials without statics. You cannot understand vibrations without dynamics. The subject is hierarchical by nature, which is why first-year engineering students universally encounter statics before any other engineering mechanics topic.

    Why Engineering Mechanics Is Taught First

    Almost every accredited engineering degree in the world, regardless of whether it is mechanical, civil, aerospace, structural, chemical, or industrial, includes engineering mechanics in its first or second semester. This is not a coincidence or an academic tradition preserved from habit. There are precise and compelling reasons why engineering mechanics occupies this foundational position.

    It Is the Language of Engineering Analysis

    Engineering mechanics provides the conceptual vocabulary and analytical framework that every other engineering subject uses. Structural analysis uses statics. Machine design uses dynamics and mechanics of materials. Thermodynamics uses concepts of force and energy from mechanics. Fluid mechanics is itself a branch of engineering mechanics. Without a solid foundation in engineering mechanics principles, none of the more advanced engineering subjects can be properly understood.

    It Develops the Problem-Solving Mindset Engineering Requires

    Engineering mechanics is one of the most rigorous training grounds for the analytical problem-solving approach that all engineering practice demands. The discipline requires students to extract the physically relevant information from a real-world situation, draw a free body diagram, write the governing equations, solve for unknowns, check the result for physical plausibility, and present a clear, defensible answer. This disciplined problem-solving loop is the method all engineers use, regardless of their specialism.

    It Instils the Habit of Quantification

    A core engineering habit is that gut feelings and intuitions must always be tested against numbers. Engineering mechanics is where engineers first learn to be quantitative about the physical world: to ask not just “will this beam bend?” but “by how much will it deflect under this load, and is that deflection within the allowable limit?” This habit of quantification is what distinguishes professional engineering from guesswork.

    Historical Context:  The formalisation of engineering mechanics as a taught discipline dates to the 18th century and the work of mathematicians and physicists including Leonhard Euler, Joseph-Louis Lagrange, and later Augustin-Louis Cauchy. Euler’s equations of motion for rigid bodies, Lagrange’s analytical mechanics, and Cauchy’s stress tensor are all contributions that still appear, in simplified form, in first-year engineering mechanics textbooks today.

    Newton’s Laws of Motion: The Engine of Engineering Mechanics

    The entire edifice of engineering mechanics rests on three laws formulated by Sir Isaac Newton in 1687. Understanding these laws at the level of a working engineer, not just a physics student, is the single most important conceptual foundation in the discipline.

    Newton’s First Law: The Law of Inertia

    A body remains at rest, or continues to move in a straight line at constant velocity, unless acted upon by a net external force.

    Engineering application: This law is the conceptual foundation of statics. If a structure is at rest, the net force and net moment acting on it must both equal zero. That is the condition of static equilibrium, and it is the governing principle for every static analysis in structural and mechanical engineering. It is also why a satellite in orbit does not need continuous thrust to stay in motion: there is no net force opposing it in the vacuum of space.

    Newton’s Second Law: The Law of Acceleration

    The net force acting on a body is equal to the product of its mass and its acceleration: F = ma.

    Engineering application: This is the governing equation of kinetics, the branch of dynamics that deals with forces and motion. It is used to calculate the braking distance of a vehicle, the thrust required to accelerate a rocket, the force on a connecting rod in a reciprocating engine, and the loads transmitted through a vehicle suspension system during a pothole impact. It is perhaps the single most applied equation in all of mechanical engineering.

    Newton’s Third Law: The Law of Action and Reaction

    For every action there is an equal and opposite reaction.

    Engineering application: This law explains why a rocket accelerates in one direction by expelling mass in the other. It explains why a beam exerts an upward reaction force on a support equal to the downward load the beam carries. It is why the analysis of forces in any connected system must account for reaction forces at every joint, support, and contact point. In structural analysis, identifying and correctly calculating reaction forces is one of the most fundamental skills a student of engineering mechanics must develop.

    Newton’s LawStatementPrimary Mechanics BranchKey Engineering Applications
    First Law (Inertia)A body at rest or constant velocity has zero net forceStaticsStructural support design, bridge analysis, building load calculations, static equilibrium of machines
    Second Law (F = ma)Net force equals mass times accelerationDynamics (Kinetics)Vehicle braking, engine load analysis, rocket propulsion, crash mechanics, earthquake response
    Third Law (Action-Reaction)Every force has an equal and opposite reaction forceStatics and DynamicsReaction forces at supports, joint loads in trusses, thrust and propulsion, ground contact forces

    Branch 1: Statics Explained in Full

    Statics is the branch of engineering mechanics that studies the behaviour of bodies under forces that produce a state of equilibrium: a condition where there is no net force and no net moment (turning effect) acting on the body. In simple terms, statics is the study of things that are not accelerating.

    The name “statics” can be misleading. A body does not need to be literally stationary to be in static equilibrium. A car travelling at constant velocity on a straight road is in dynamic equilibrium: the driving force exactly balances the drag and rolling resistance, producing zero net force and zero acceleration. Statics applies to both these situations.

    The Two Conditions of Static Equilibrium

    For any body to be in static equilibrium, two conditions must be simultaneously satisfied:

    • The sum of all forces acting on the body must equal zero (translational equilibrium: the body does not accelerate in any direction).
    • The sum of all moments (torques) acting on the body must equal zero (rotational equilibrium: the body does not rotate).

    In two-dimensional problems (the vast majority of introductory statics), this produces three scalar equations: the sum of forces in the x-direction equals zero, the sum of forces in the y-direction equals zero, and the sum of moments about any chosen point equals zero. These three equations can be used to solve for up to three unknown forces or reactions.

    Core Concepts in Statics

    Force vectors and resultants: All forces are vectors: they have both magnitude and direction. When multiple forces act on a body, they can be combined into a single resultant force using vector addition.

    Moments and torques: A moment is the turning effect of a force about a point. It is calculated as the product of the force magnitude and the perpendicular distance from the line of action of the force to the point (the moment arm). Moments are responsible for bending in beams and rotation in mechanisms.

    Support reactions: Real structures are supported in ways that prevent certain types of motion. A pin support prevents translation but allows rotation. A fixed support prevents both translation and rotation. Engineering mechanics provides the tools to calculate the reaction forces and moments at these supports.

    Trusses and frames: A truss is a structure made of straight members connected at joints, designed to carry loads efficiently. The method of joints and the method of sections are standard techniques in statics for determining the forces in individual truss members.

    Friction: Coulomb friction is the tangential resistance force between surfaces in contact. Statics includes the analysis of systems where friction plays a role, such as wedges, screws, belt drives, and braking systems.

    Real-World Applications of Statics

    ApplicationHow Statics Is Used
    Bridge designCalculating support reactions, member forces in trusses, and stability under traffic loads
    Building structural analysisEnsuring floors, beams, and columns can safely carry occupancy and wind loads without collapsing
    Crane and lifting equipmentDetermining the stability of lifting arms and calculating loads on cables and pulleys
    Bolt and fastener designCalculating the shear and tensile loads on fasteners in mechanical assemblies
    Ergonomic tool designAnalysing the forces and moments at the hand and wrist to minimise repetitive strain risk
    Dam wall designCalculating the hydrostatic pressure distribution and overturning moment from retained water

    Branch 2: Dynamics Explained in Full

    Dynamics is the branch of engineering mechanics that deals with bodies in motion, and specifically with cases where the motion involves acceleration. While statics describes equilibrium, dynamics describes change: changing velocity, changing direction, and the forces responsible for those changes.

    Dynamics is divided into two distinct sub-areas that are often studied sequentially: kinematics and kinetics. Understanding the distinction between these two is one of the first conceptual milestones in any dynamics course.

    Kinematics: Describing Motion Without Forces

    Kinematics is the purely geometric description of motion. It deals with how position, velocity, and acceleration relate to each other and to time, without asking what forces caused the motion. A kinematic analysis of a car journey calculates displacement, speed, and acceleration purely from the geometry of the motion.

    Key kinematic quantities include: displacement (change in position), velocity (rate of change of displacement), acceleration (rate of change of velocity), and angular equivalents of each for rotating bodies. Kinematics is particularly important in the design of mechanisms: gear trains, cam-follower systems, linkages, and robotic arms, where the designer needs to understand the motion geometry before analysing the forces.

    Kinetics: Relating Forces to Motion

    Kinetics applies Newton’s Second Law (F = ma) to relate the forces acting on a body to its resulting acceleration. Where kinematics asks “how does the body move?”, kinetics asks “why does the body move that way, and what force is required to produce that motion?”

    Kinetics methods include Newton-Euler direct application (summing forces and moments), work-energy methods (relating force and displacement to changes in kinetic energy), and impulse-momentum methods (relating force and time to changes in momentum). Each method has situations where it is particularly efficient, and a skilled engineer chooses the most appropriate method for each problem.

    Vibrations: The Dynamic Behaviour of Elastic Systems

    Vibrations is a sub-discipline of dynamics that studies oscillatory motion. Almost every mechanical system vibrates to some degree when disturbed, and understanding and controlling those vibrations is critically important in engineering. Excessive vibration causes fatigue failure, noise, discomfort, and loss of precision.

    Key concepts in vibration analysis include natural frequency (the frequency at which a system naturally oscillates when disturbed), resonance (the catastrophic amplification of vibration that occurs when an excitation frequency matches the natural frequency), damping (energy dissipation that reduces vibration amplitude), and forced vibration (oscillation driven by a sustained external force).

    Famous Engineering Failure: Resonance in Action:  The Tacoma Narrows Bridge collapsed in 1940 because wind-induced oscillations matched the bridge’s natural frequency, causing resonance. The amplitude of vibration grew until the structure tore itself apart. This disaster fundamentally changed how engineers account for dynamic loads and aerodynamic effects in bridge design, and it remains the most cited example of resonance failure in engineering education worldwide.

    Real-World Applications of Dynamics

    ApplicationHow Dynamics Is Used
    Automotive engineeringCrash analysis, suspension dynamics, engine vibration, drivetrain load calculation, ABS braking system design
    Aerospace engineeringFlight dynamics, landing gear impact loads, aeroelastic analysis, satellite orbit mechanics, launch vehicle trajectory
    RoboticsJoint torque calculations, trajectory planning, dynamic stability of walking robots, end-effector force control
    Rotating machineryBalancing of rotating components, shaft critical speeds, bearing load analysis in turbines and motors
    Earthquake engineeringDynamic response of structures to ground motion; resonance avoidance in building and bridge design
    Sports engineeringBiomechanical analysis of athletic motion; equipment dynamics in golf clubs, tennis rackets, bicycle frames

    Branch 3: Mechanics of Materials (Strength of Materials) Explained

    Statics and dynamics treat bodies as rigid: they analyse forces and motion without considering how the material of a body deforms under those forces. Mechanics of materials (also called strength of materials) removes that simplification and asks: given the forces a component must carry, how does the material actually deform, and will it survive?

    This branch of engineering mechanics bridges the gap between theoretical statics and practical design. Knowing the forces on a beam from a statics analysis is only the first step. The second step, which mechanics of materials provides, is determining whether a given material and cross-sectional shape can carry those forces without yielding, fracturing, or deflecting beyond acceptable limits.

    Stress and Strain: The Language of Material Behaviour

    Stress is the internal force per unit area within a material, measured in Pascals (Pa) or pounds per square inch (psi). It represents how intensely a material is being loaded at any given point. Strain is the ratio of deformation to original dimension: a dimensionless measure of how much the material has changed shape relative to its unloaded state.

    The relationship between stress and strain is described by a material’s stress-strain curve. In the elastic region (below the yield strength), stress and strain are proportional, described by Hooke’s Law: stress = E x strain, where E is the Young’s modulus of elasticity, a material property describing stiffness. Beyond the yield point, permanent (plastic) deformation occurs.

    Stress-strain curve diagram for a typical engineering material showing elastic region, yield strength, plastic deformation, and ultimate tensile strength

    Types of Stress in Engineering Components

    • Axial (normal) stress: Stress acting perpendicular to a cross-section, caused by tensile or compressive forces along a member’s axis. Applicable to columns, tie rods, and fasteners.
    • Shear stress: Stress acting parallel to a cross-section, caused by forces that tend to cause sliding failure. Critical in bolts, welds, and shaft keyways.
    • Bending stress: Stress distribution across the cross-section of a beam due to a bending moment. Maximum at the outer fibres, zero at the neutral axis. Governs the design of most structural beams and shafts.
    • Torsional stress: Stress caused by twisting moments (torques) applied to shafts. Critical in drive shafts, bolts, and any rotating component.
    • Combined loading: Most real components experience several stress types simultaneously. Combined loading analysis and failure criteria such as Von Mises and Tresca determine whether a component will survive the combined stress state.

    Buckling: The Failure Mode Unique to Compression

    Buckling is a sudden failure mode that can occur in slender compression members (columns) well below the material’s yield stress. It is a stability failure, not a strength failure: the column becomes geometrically unstable and bends sideways catastrophically. Euler’s buckling formula gives the critical compressive load above which a column will buckle, and it is one of the most important results in structural engineering.

    Branch 4: Fluid Mechanics as Part of Engineering Mechanics

    Fluid mechanics is the branch of engineering mechanics that studies the behaviour of fluids (liquids and gases) under the action of forces. It is sometimes treated as a standalone discipline, but it is deeply rooted in the same physical principles (Newton’s laws, conservation of energy, conservation of mass) that govern solid mechanics.

    Engineers encounter fluid mechanics problems in an enormous range of contexts: the flow of water through pipes in a building, the aerodynamics of a vehicle body, the lubrication of a bearing, the cooling of a computer chip, the thrust generated by a jet engine, and the pressure distribution on a dam wall. Without a working understanding of fluid mechanics principles, mechanical and civil engineers could not design any of these systems.

    Hydrostatics vs. Hydrodynamics

    Hydrostatics deals with fluids at rest. Its primary concerns are pressure distribution in stationary fluids, buoyancy forces on submerged objects (described by Archimedes’ principle), and forces on submerged surfaces such as dam walls and tank floors.

    Hydrodynamics (fluid dynamics) deals with fluids in motion. It analyses how velocity, pressure, and density change through a flowing fluid system. Bernoulli’s equation is the most famous result of fluid dynamics, relating fluid speed, pressure, and elevation in an ideal (frictionless, incompressible) flow. Real flows involve viscosity and turbulence, requiring the full Navier-Stokes equations, which can generally only be solved numerically using Computational Fluid Dynamics (CFD) software.

    Branch 5: Continuum Mechanics and Advanced Applications

    Continuum mechanics is the generalised mathematical framework that treats both solid and fluid mechanics within a single unified theory. It assumes that matter is continuously distributed throughout a body (as opposed to treating materials as collections of discrete atoms), and it uses tensor mathematics to describe stress, strain, and deformation in three dimensions.

    Continuum mechanics provides the theoretical foundation for advanced finite element analysis, computational fluid dynamics, and the analysis of complex materials such as polymers, biological tissues, and composite materials that do not behave in the simple linear-elastic manner assumed by introductory mechanics of materials.

    While continuum mechanics is an advanced topic typically encountered at postgraduate level, its practical consequences appear in everyday engineering tools. When a mechanical engineer uses ANSYS or Abaqus to run a finite element analysis on a complex 3D part, the mathematical engine underneath that simulation is built on continuum mechanics principles.

    Free Body Diagrams: The Most Important Tool in Engineering Mechanics

    If there is one practical skill that is absolutely central to engineering mechanics, it is the ability to draw an accurate free body diagram (FBD). An FBD is a simplified sketch of a body or system, isolated from its surroundings, showing all the external forces and moments acting on it. It is the engineer’s method of translating a complex physical situation into a tractable mathematical problem.

    How to Draw a Free Body Diagram: Step by Step

    1. Identify the body of interest: Decide clearly which object or system you are analysing. Draw it in isolation, separated from everything it contacts.
    2. Identify all external forces: Include applied loads (weights, pressures, applied forces), support reactions (from pins, rollers, fixed supports), and contact forces (friction, normal contact forces at surfaces).
    3. Represent each force as a vector: Show the direction, line of action, and point of application of each force. Label each force with a symbol (F1, W, R_A, etc.).
    4. Establish a coordinate system: Choose x and y axes (and z for 3D problems) to resolve forces into components.
    5. Write the equilibrium equations: For statics, set sum of forces and sum of moments equal to zero. For dynamics, set sum of forces equal to ma (Newton’s Second Law).
    6. Solve for unknowns: Use the equations to calculate unknown forces, reactions, or accelerations.
    Pro Tip:  The quality of a free body diagram determines the quality of the subsequent analysis. An incomplete or incorrectly drawn FBD will produce wrong answers even with perfect mathematics. Experienced engineers draw FBDs carefully, checking that every contact surface, every support, and every applied load is accounted for before writing a single equation. This habit, developed in engineering mechanics courses, is one of the most transferable analytical skills in the entire engineering curriculum.

    Engineering Mechanics vs. Theoretical Mechanics: What Is the Difference?

    A question that occasionally arises is: how does engineering mechanics differ from theoretical or classical mechanics as studied by physicists?

    AspectEngineering MechanicsTheoretical / Classical Mechanics
    Primary GoalProvide tools to design and analyse safe, functional engineering systemsUnderstand the fundamental laws governing physical reality
    Mathematical DepthApplied mathematics: vectors, basic calculus, differential equationsAdvanced mathematics: Hamiltonian mechanics, Lagrangian mechanics, tensor calculus
    Approach to ProblemsIdealised models designed to be tractable and practically usefulGeneralised, abstract formulations applicable to all physical systems
    Treatment of ConstraintsPractical support conditions, friction, and contact modelled pragmaticallyHolonomic and non-holonomic constraints treated with full generality
    OutputForces, stresses, deflections, accelerations: numbers that inform design decisionsEquations of motion, conservation laws, symmetry principles: fundamental understanding
    Who Studies ItAll engineering students; foundation of engineering practicePhysics students, applied mathematicians, research engineers at advanced level

    Engineering Mechanics vs. Mechanical Engineering: Understanding the Distinction

    These two terms are frequently confused, even by people within the engineering profession. The distinction is clear and important.

    Engineering mechanics is a subject or scientific discipline: a specific body of knowledge about forces, motion, and deformation. It is a foundational subject studied across many engineering programs.

    Mechanical engineering is a professional field and degree program: a comprehensive engineering discipline that uses engineering mechanics as one of its foundational tools, alongside thermodynamics, fluid mechanics, manufacturing, materials science, design, and control systems.

    The analogy: engineering mechanics is to mechanical engineering what grammar is to literature. You cannot write well without knowing grammar, but knowing grammar does not make you a novelist. Engineering mechanics is the grammatical foundation; mechanical engineering is the full creative and professional practice built on that foundation.

    AspectEngineering MechanicsMechanical Engineering
    What it isA foundational scientific discipline: the study of forces, motion, and deformationA professional engineering field: broad application of science to design, build, and maintain mechanical systems
    ScopeFocused: mechanics of rigid bodies, deformable bodies, and fluidsBroad: encompasses EM plus thermodynamics, design, manufacturing, controls, materials science
    Studied byStudents across all engineering disciplines in first/second yearMechanical engineering students specifically, plus relevant electives in related programs
    OutputAnalytical results: forces, stresses, deflections, motionsEngineering products: machines, systems, devices, processes
    RelationshipEngineering mechanics is a foundational component of mechanical engineeringMechanical engineering is the broader discipline that applies EM and many other tools

    How Engineering Mechanics Is Applied Across Industries

    The principles of engineering mechanics are applied in some form in virtually every industry that involves physical systems. The following examples illustrate how specific concepts from the discipline translate into real engineering work.

    IndustryEngineering Mechanics Concepts AppliedSpecific Example
    AutomotiveStatics (load paths), dynamics (crash analysis, NVH), mechanics of materials (fatigue), fluid mechanics (aerodynamics)FEA crash simulation to meet Euro NCAP safety ratings; suspension kinematics design for handling performance
    AerospaceStructural statics, flight dynamics, aeroelasticity, fracture mechanics, fluid mechanics (CFD)Wing spar stress analysis; flutter analysis to prevent resonance-induced structural failure in flight
    Civil / StructuralStatics (truss and frame analysis), dynamics (seismic response), mechanics of materials (beam design)Design of a reinforced concrete floor slab to carry specified occupancy loads with controlled deflection
    Energy (Oil, Gas, Renewables)Statics (pipe stress), dynamics (vibration of pipelines and turbines), fluid mechanics (pipe flow)Wind turbine blade structural optimisation; offshore pipeline fatigue life assessment
    Robotics and AutomationKinematics (path planning), kinetics (joint torque), statics (payload capacity)Calculation of motor torques required at each joint of a robotic arm to lift a specified load
    Biomedical / Medical DevicesStatics and mechanics of materials (implant load bearing), biomechanics (human joint forces)Hip replacement implant design: ensuring the prosthesis can survive 30 years of walking loads without fatigue fracture
    ManufacturingStatics (fixture design), dynamics (machine tool vibration), mechanics of materials (forming operations)Press tool design: calculating die forces and spring-back in sheet metal forming; avoiding chatter in CNC machining
    Consumer ProductsStatics and mechanics of materials (structural adequacy), dynamics (drop test simulation)Laptop chassis design: ensuring structural integrity under drop impact and sustained keyboard typing loads

    Modern Tools Used to Apply Engineering Mechanics

    While the principles of engineering mechanics are centuries old, the tools that engineers use to apply those principles have been transformed by computing. Modern engineering practice relies on a combination of hand analysis (for checking, scoping, and understanding) and powerful software tools (for high-fidelity analysis of complex systems).

    Finite Element Analysis (FEA) Software

    FEA software such as ANSYS, Abaqus, and SolidWorks Simulation numerically solves the governing equations of solid mechanics across complex 3D geometries by dividing them into thousands of small elements. FEA allows engineers to determine stress distributions, deflections, natural frequencies, and buckling loads in components too geometrically complex for analytical hand calculation. Proficiency in at least one FEA package is an expected skill for most structural, mechanical, and aerospace engineering roles.

    Computational Fluid Dynamics (CFD) Software

    CFD tools such as ANSYS Fluent, OpenFOAM, and STAR-CCM+ solve the Navier-Stokes equations numerically across complex fluid domains. They enable engineers to analyse airflow around vehicle bodies, thermal management in electronics, combustion in engines, and pressure drops in pipe networks, without physical wind tunnels or flow experiments in many cases.

    Multi-Body Dynamics (MBD) Software

    Multi-body dynamics tools such as Adams (MSC Software) and SIMPACK simulate the kinematic and dynamic behaviour of mechanical systems with multiple interconnected rigid or flexible bodies. They are used extensively in automotive suspension analysis, robotic mechanism design, and machinery simulation.

    Mathematical and Programming Tools

    MATLAB remains the dominant tool for engineering calculation, data analysis, and numerical simulation in academic and industrial settings. Python is increasingly used for engineering calculation scripting, particularly in research and simulation automation. Both are tools that any modern engineer working in analysis and simulation should be proficient with.

    Industry Trend:  The integration of AI and machine learning into engineering simulation workflows is accelerating. Physics-informed neural networks (PINNs), for example, use machine learning to solve partial differential equations at speeds that traditional FEA cannot match. Mechanical engineers who understand both the classical mechanics principles and the emerging AI-assisted simulation tools will be significantly better positioned in the engineering job market over the next decade.

    Career Paths Built on Engineering Mechanics

    Mastery of engineering mechanics is the entry qualification for a range of highly specialised and well-compensated engineering career paths. The following roles are directly and explicitly built on engineering mechanics expertise.

    Career RoleIndustryMechanics Knowledge Central To the RoleTypical Tools
    Structural Analyst / Stress EngineerAerospace, automotive, defence, energyStatics, mechanics of materials, FEA, fracture mechanics, fatigue analysisANSYS, Nastran, Abaqus, hand calculation
    Dynamics / NVH EngineerAutomotive, aerospace, rotating machineryDynamics, vibrations, modal analysis, transfer function analysisMATLAB, Adams, ANSYS, experimental modal testing equipment
    CFD EngineerAerospace, automotive, energy, HVACFluid mechanics, heat transfer, boundary layer theoryANSYS Fluent, OpenFOAM, STAR-CCM+, Python
    Robotics / Mechanisms EngineerRobotics, automation, medical devicesKinematics, kinetics, rigid body dynamics, mechanism synthesisAdams, SolidWorks, MATLAB/Simulink, ROS
    Geotechnical / Civil Structural EngineerCivil, infrastructure, constructionStatics, soil mechanics, structural analysis, mechanics of materialsAutoCAD Structural, SAP2000, ETABS
    Biomechanics EngineerMedical devices, sports science, rehabilitationStatics, dynamics, mechanics of materials, continuum mechanicsANSYS, Mimics, custom FEA code, motion capture systems
    Research / Academic EngineerUniversities, government labs, R&D centresAll branches of engineering mechanics at advanced levelCustom simulation codes, MATLAB, Python, FEA/CFD suites

    MIT OpenCourseWare provides free access to engineering mechanics course materials

    Frequently Asked Questions (FAQ)

    What is engineering mechanics in simple terms?

    Engineering mechanics is the science of how forces affect physical objects: whether they make things move, deform, or stay still. It uses the principles of physics and mathematics to predict how structures, machines, and materials will behave under loads, allowing engineers to design things that are safe, reliable, and efficient. It is taught to all engineering students because its principles underpin virtually every other engineering discipline.

    What are the main branches of engineering mechanics?

    The main branches of engineering mechanics are: statics (forces on bodies in equilibrium), dynamics (forces on bodies in motion, subdivided into kinematics and kinetics), mechanics of materials (how materials deform and fail under load), and fluid mechanics (how liquids and gases respond to forces). Advanced topics include vibrations, fracture mechanics, and continuum mechanics.

    What is the difference between statics and dynamics?

    Statics studies bodies that are in equilibrium: bodies at rest or moving at constant velocity, where the net force and net moment are both zero. Dynamics studies bodies that are accelerating: bodies whose velocity is changing in magnitude or direction, driven by a net unbalanced force. Statics is generally taught before dynamics because static equilibrium analysis is a prerequisite for most dynamic analysis methods.

    What is a free body diagram in engineering mechanics?

    A free body diagram (FBD) is a simplified sketch of a body or system, drawn in isolation from its surroundings, that shows all the external forces and moments acting on it. FBDs are the primary analytical tool in engineering mechanics: they translate a complex physical situation into a set of forces and moments that can be expressed as mathematical equations and solved. Drawing accurate free body diagrams is one of the most important practical skills in all of engineering analysis.

    What is the difference between kinematics and kinetics?

    Kinematics describes motion (position, velocity, acceleration) without reference to the forces that cause it. It answers the question: how does the body move? Kinetics relates forces to motion through Newton’s Second Law (F = ma). It answers the question: what forces are required to produce this motion, or what motion results from these forces? Kinematics is studied first because understanding motion geometry is a prerequisite for applying force-motion relationships in kinetics.

    Why is engineering mechanics important?

    Engineering mechanics is important because it provides the mathematical and physical tools that allow engineers to prove a design will work safely before anything is built. Without it, structural collapses, mechanical failures, and unsafe products would be far more common. It is the analytical foundation of civil, mechanical, aerospace, and structural engineering, and its principles are applied in virtually every physical engineering system in the world. Mastery of engineering mechanics is also one of the strongest predictors of success in advanced engineering study and practice.

    What is the difference between engineering mechanics and mechanical engineering?

    Engineering mechanics is a subject: a specific scientific discipline covering forces, motion, and deformation, studied as a foundational course across all engineering programs. Mechanical engineering is a professional field and degree program that is much broader in scope, covering thermodynamics, fluid mechanics, manufacturing, design, materials science, and control systems in addition to engineering mechanics. Engineering mechanics is one foundational component of mechanical engineering, not the entirety of it.

    How is engineering mechanics used in real life?

    Engineering mechanics is used in real life every time an engineer designs or analyses a physical system. It determines whether a bridge can carry traffic loads, how much a gear shaft will deflect under torque, what force an aircraft landing gear must withstand on touchdown, whether a medical implant will last 30 years under cycling body loads, and how quickly a robotic arm can accelerate its end effector without tipping over. Virtually every engineering structure, machine, and device in the modern world has been analysed using the principles of engineering mechanics.

    Conclusion

    Engineering mechanics is not simply an academic subject to be passed and forgotten. It is the analytical foundation on which the entire built world rests. Every bridge, every aircraft, every machine, and every medical implant exists because an engineer understood and correctly applied the principles of forces, motion, and deformation to predict how those objects would behave in the real world.

    From Newton’s three laws that started it all, to the full suite of statics, dynamics, mechanics of materials, and fluid mechanics that make up the modern discipline, engineering mechanics provides engineers with the vocabulary, tools, and intellectual discipline to move from intuition to proof: from “I think this will work” to “I can demonstrate with mathematical certainty that this will work safely.”

    Mastering it takes genuine effort and a willingness to engage with the mathematics carefully and systematically. But the return on that investment, in analytical capability, professional versatility, and career progression, is unmatched by almost any other component of an engineering education.

    Continue building your engineering foundation. Read our guide to the Nature of Mechanical Engineering Explained, explore What Does a Mechanical Engineer Do? in practice, or discover the CAD and simulation tools that modern engineers use to apply these mechanics principles every day.
