The Documentation Problem Every Engineer Knows

Ask any mechanical engineer what takes the most time that produces the least engineering value, and they’ll give you the same answer: documentation.

Writing a post-design review report. Updating the bill of materials after a design change. Creating a standard operating procedure for the production floor. Documenting a change notice. Writing the test report after the prototype returns from the lab.

These tasks are necessary. They’re not optional. But they’re slow, repetitive, and they pull engineers away from the work that actually requires an engineering mind. A senior engineer spending four hours writing a report that summarises a one-hour simulation session is a poor use of expertise.

AI for engineering documentation solves this, not by cutting corners, but by doing the writing scaffolding that doesn’t require engineering judgement. The engineer still owns the content, the decisions, and the accuracy. The AI handles the drafting, structuring, and formatting. The result is documentation that used to take four hours done correctly in 30 minutes.

This guide covers every major engineering documentation type, technical reports, bills of materials, SOPs, and change control documents, with real AI prompts you can use today.

60–80%time saved on documentation

Engineering teams using AI for documentation report saving 60–80% of previous writing time across technical reports, SOPs, and design review packs. On a 40-hour engineering week, that’s 4–8 hours returned to actual engineering every week per engineer.

30–50%faster product development

Teams that adopt structured AI documentation workflows report 30–50% faster product development cycles, largely because documentation no longer becomes a bottleneck at design review, change control, and manufacturing handover stages.

Document Type	Manual Time	With AI (avg)	Saving
FEA / Simulation Report	3–5 hours	25–40 min	~85%
Bill of Materials (BOM)	2–4 hours	15–30 min	~80%
Standard Operating Procedure	2–3 hours	20–35 min	~75%
Engineering Change Notice	1–2 hours	10–20 min	~70%
Design Review Pack	4–6 hours	45–75 min	~70%
Test / Inspection Report	2–3 hours	20–30 min	~75%

Note: Times are based on typical engineering documentation tasks and industry-reported benchmarks for teams using AI-assisted writing tools. Individual results vary by document complexity, engineer experience, and AI tool quality.

How AI Engineering Documentation Actually Works

Before jumping to prompts, it helps to understand the two roles AI plays in AI for engineering documentation, and why getting this distinction right matters for quality.

Role 1, AI as Drafter: You Provide the Substance, AI Provides the Structure

This is the most common and most reliable use. You give Claude (or another AI tool) the engineering substance, test results, design decisions, BOM data, process steps, and the AI drafts the document structure, prose, and formatting around it. You review, correct any inaccuracies, and approve.

This is technical writing AI at its best: the engineer is still the author and authority. The AI is the extremely fast, format-aware drafting assistant that writes 80% of the words so the engineer can focus on the 20% that require genuine engineering judgment.

Role 2, AI as Extractor: AI Reads Existing Data and Builds the Document

More advanced AI engineering documentation tools can extract structured data from CAD files, PLM systems, simulation outputs, and process descriptions, and build documents automatically from that extracted data.

This is where tools like Siemens Teamcenter Copilot (BOM navigation), Fictiv AI (BOM automation from CAD), and specialist AI BOM generation software operate. Claude AI handles the interpretation and prose layer; specialist tools handle the data extraction layer.

What You Need for Good AI Documentation Output

• Accurate inputs: AI cannot invent correct technical data. If you feed it wrong numbers, it will write a wrong report fluently. AI documentation quality is only as good as the data you provide.
• Specific prompts: ‘Write a report’ produces a generic report. ‘Write a Section 4 Results Summary for an FEA simulation report covering a static structural analysis on an S275 steel bracket’ produces a professional-grade section.
• Review before use: Every AI-generated engineering document should be reviewed by the responsible engineer for technical accuracy before it becomes an official record. AI engineering reports are drafts, not final documents, until an engineer signs them off.

Part 1, AI for Technical Reports: FEA, Test, and Design Review

AI technical report writing is the highest-impact place to start, because engineering reports take the most time and follow the most predictable structure. Every FEA report, every test report, every design review pack has roughly the same skeleton. AI is built for exactly this kind of structured, repeatable writing task.

How to Use AI to Write Engineering Reports

The framework is simple: you hold the data, the AI holds the structure. Fill in this framework with your actual engineering numbers and Claude produces a professional, reviewable draft that covers every required section.

Claude Prompt #1, Full Technical / FEA Engineering Report (Claude AI): “You are a senior mechanical engineer writing for a professional design review audience. Write a formal engineering report with these sections:1. Executive Summary (2–3 sentences: analysis type, key finding, recommendation)2. Purpose and Scope (what was analysed, why, and to what standard)3. Component Description: [part name, material, geometry summary, manufacturing method]4. Analysis Setup: [software, analysis type, mesh, boundary conditions, load cases]5. Results: [von Mises stress max + location, safety factor, displacement max + location, any stress concentrations]6. Assessment: [does the design meet the safety factor requirement? What is the failure risk?]7. Recommendations: [specific design changes or next analysis steps]8. ConclusionData to use:- Component: [fill in]- Material: [fill in]- Analysis: [fill in]- Results: [fill in all values]- Safety factor target: [fill in]- Conclusion: [pass/fail and rationale]Tone: formal engineering. Length: 500–700 words. Include a results data table placeholder.” ✔ What you get: A complete, section-structured engineering report with executive summary, formal results, and professional recommendations, ready for design review sign-off.

AI for Design Review Reports

Design review documentation is one of the most consistent time sinks in mechanical engineering, reviewing a design can take an hour; writing the review pack takes four. This prompt compresses the writing to minutes without reducing quality.

Claude Prompt #2, Design Review Report (Claude AI): “Write a formal design review report for the following mechanical design review session:- Product / Assembly under review: [describe]- Review date and attendees: [fill in]- Design stage: [concept / detailed / pre-production]- Items reviewed: [list 3–6 specific design aspects reviewed]- Key findings: [for each item, note what was reviewed, what was found, and the decision made]- Actions raised: [list any actions, owner, and due date]- Overall outcome: [approved / approved with conditions / rejected, and brief rationale]Format as a formal design review minutes document suitable for the engineering record.” ✔ What you get: A complete design review minutes document with findings, decisions, and action items, formatted for the engineering record and ready to distribute within minutes of the review ending.

Part 2, AI Bill of Materials: Structure, Generate, and Maintain

The bill of materials is the most critical document in product development, it connects design, procurement, manufacturing, and service. It’s also one of the most time-consuming documents to create and maintain correctly. AI bill of materials tools are changing that.

The Real Problem with BOM Documentation

Engineering teams don’t just spend time creating BOMs, they spend enormous time fixing them. Parts missing from the list. Wrong revision levels. Inconsistencies between the CAD BOM, the ERP BOM, and the production BOM. Manual data entry errors.

BOM automation AI addresses this at two levels: AI tools that extract structured part data directly from CAD files (Fictiv, Siemens Teamcenter Copilot, OpenBOM with LLM integration) and AI language tools like Claude that help you create, structure, and validate BOMs from part descriptions when automated extraction isn’t available.

Using Claude AI to Structure and Generate BOMs

When your BOM starts from a description rather than a clean CAD extraction, for early-stage designs, feasibility studies, or supplier quotes, AI for BOM generation using Claude produces structured, reviewable outputs fast.

Claude Prompt #3, Engineering Bill of Materials (Claude AI): “Create a structured engineering bill of materials for the following product/assembly:- Assembly name: [e.g. Hydraulic Manifold Block Assembly]- Description: [brief functional description]- Components: [list each component as you know it, part name, material, approximate quantity, and any relevant standard or specification]For each component generate:| Item No. | Part Number (placeholder) | Description | Material | Qty | Unit | Notes / Standard |Also generate:- A separate fastener and hardware section- A consumables and seals section (if applicable)- A note flagging any components that typically require purchased-in lead-time managementFormat as a structured table ready for import into an engineering BOM system.” ✔ What you get: A structured, multi-section BOM table with item numbers, descriptions, materials, quantities, and procurement notes, formatted for direct import into PLM, ERP, or spreadsheet

Using AI to Review and Validate Existing BOMs

Once a BOM exists, BOM automation AI can review it for completeness, flag missing categories, and identify inconsistencies. This is especially valuable before a design freeze or manufacturing handover.

Claude Prompt #4, BOM Review and Validation (Claude AI): “Review the following bill of materials for completeness, consistency, and common errors. Flag:1. Any component categories that appear to be missing (e.g. fasteners, seals, gaskets, labels, surface treatments)2. Any items where the description is ambiguous or the specification is insufficiently defined for procurement3. Any quantities that appear unlikely for the assembly type described4. Any items that typically require early procurement due to lead times5. Any revision or configuration management issues visible in the part numbering[Paste your BOM here as a table or list]Output a structured review report with specific findings and recommended corrections for each flagged item.” ✔ What you get: A structured BOM review with flagged missing categories, ambiguous specifications, procurement risk items, and specific correction recommendations, in a format that can go directly into a design review.

Specialist BOM AI Tools Worth Knowing

• Fictiv Materials.AI + Bulk BOM Config: Automates BOM generation from CAD annotations and drawing specs, particularly strong for manufacturing BOMs where machining, finish, and material specifications drive cost.
• Siemens Teamcenter Copilot: Navigates and analyses large multi-level BOMs using plain English queries, ideal for enterprise teams managing product families with hundreds of BOM variants.
• PTC Windchill AI: Identifies duplicate or similar parts across the BOM to reduce inventory bloat, addresses one of the highest-cost BOM problems in mature product portfolios.
• OpenBOM with LLM integration: Parses messy spreadsheet BOMs and reassembles clean structured data, practical for teams inheriting poorly maintained legacy BOMs.

Part 3, AI for SOPs: Write Better Standard Operating Procedures Faster

AI for SOPs is one of the highest-volume documentation needs in manufacturing and engineering environments. SOPs govern assembly procedures, test sequences, quality checks, maintenance routines, and safety protocols. Most engineering teams have hundreds, and most are out of date.

Why SOP Writing Is the Perfect Task for AI

SOPs follow a rigid, repeatable structure: purpose, scope, responsibilities, materials/equipment, step-by-step procedure, safety considerations, and revision history. That structure never changes. The only thing that varies is the content, and that content is the one thing an engineer knows and can describe.

This is why AI SOP generator for manufacturing tools work so well: you describe the process, the AI builds the structure around your description. You spend your time on the accurate description of what happens, not on formatting, section numbering, or corporate boilerplate.

Prompt for Complete SOP Generation

Claude Prompt #5, Full Standard Operating Procedure (Claude AI): “Write a formal Standard Operating Procedure (SOP) for the following manufacturing/engineering process:- Process name: [e.g. Torque and Tighten Critical Fasteners on Hydraulic Manifold Assembly]- Department / Work centre: [e.g. Assembly, QA, Maintenance]- Applicable equipment: [list tools and equipment required]- Applicable materials: [consumables, lubricants, PPE]- Safety hazards: [list any relevant hazards]- Prerequisites / Setup: [what must be completed or in place before starting]- Step-by-step procedure: [describe what happens in the process, you can use bullet points; Claude will format into numbered SOP steps]- Acceptance criteria: [how do you know the task is done correctly?]- Common errors: [describe 2–3 things that go wrong and how to avoid them]- Related documents: [reference any drawings, standards, or work instructions that apply]Format to ISO 9001-compatible SOP structure with document control fields (Doc No., Rev, Date, Author, Approver) as placeholders.” ✔ What you get: A complete, ISO 9001-compatible SOP with all standard sections, numbered procedure steps, safety notes, acceptance criteria, and document control fields, ready for review and issue.

AI for Engineering Change Notices (ECNs)

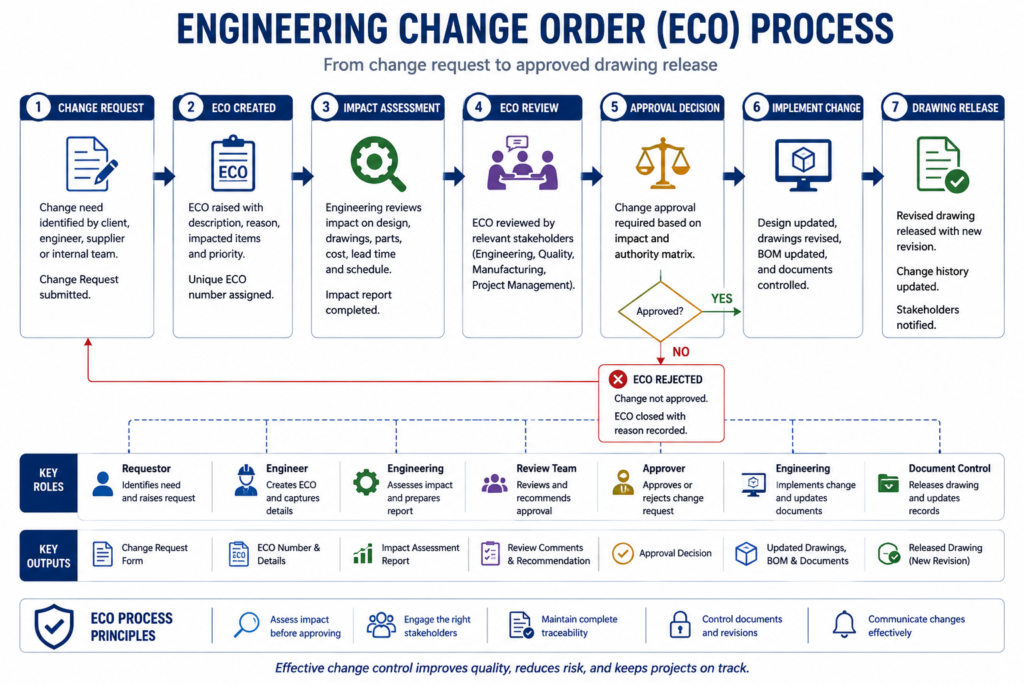

Engineering change notices and change requests are a special category of documentation, they’re high-stakes, revision-controlled, and must be traceable. AI change control documentation using Claude speeds this up without removing the engineering accountability that change control requires.

Claude Prompt #6, Engineering Change Notice (ECN) / Change Request (Claude AI): “Write a formal Engineering Change Notice (ECN) for the following design change:- ECN Number: [placeholder]- Product / Assembly affected: [describe]- Change description: [what is changing and why, be specific]- Reason for change: [design improvement / failure in service / cost reduction / customer requirement / regulatory requirement]- Parts affected: [list part numbers and descriptions affected by the change]- Documents to be updated: [drawings, BOM, SOPs, test plans]- Impact assessment:  * Manufacturing impact: [describe]  * Cost impact: [describe]  * Schedule impact: [describe]  * Inventory/obsolescence impact: [describe]- Implementation date proposed: [fill in]- Originator: [placeholder]- Approvals required: [list roles]Format as a formal ECN document suitable for PLM system entry and design review approval.” ✔ What you get: A complete, traceable ECN document covering change description, impact assessment across all engineering disciplines, and a formal approval structure, ready to enter into your change control system.

Specialist AI SOP Tools Worth Knowing

• Scribe (scribehow.com): Captures screen actions in real-time and auto-generates step-by-step SOPs from your actual workflow, ideal for software-based engineering processes and digital tool onboarding.
• Knowby: Transforms video recordings of physical processes into structured SOPs, excellent for assembly and maintenance procedures where the process is better shown than described.
• Waybook: AI-powered SOP generator with real-time compliance monitoring, suited to engineering teams needing ISO 9001 or AS9100 documentation with version control and audit trails.
• Claude AI (claude.ai): Claude AI for engineering docs handles the full SOP, ECN, and report suite from natural language descriptions, the most versatile option when you need cross-document consistency.

The AI Documentation Toolkit: What to Use and When

Not every AI engineering documentation task calls for the same tool. Here’s a clear decision map for the most common documentation scenarios:

Documentation Type	Best AI Tool	AI Role	Free Option
AI technical report writing	Claude AI	Drafts full reports from engineer-provided data	✔ Free at claude.ai
AI bill of materials	Claude AI + Fictiv	Generates, structures, and reviews BOMs	Claude free; Fictiv has free tier
AI for SOPs	Claude AI + Scribe + Knowby	Generates ISO-format SOPs; Scribe captures screen steps	✔ Scribe has free plan
AI change control documentation	Claude AI	Writes ECNs, change requests, impact assessments	✔ Free at claude.ai
AI design review reports	Claude AI	Writes review minutes and design review packs	✔ Free at claude.ai
BOM navigation in PLM	Siemens Teamcenter Copilot / PTC Windchill AI	Plain English PLM queries; duplicate part identification	Enterprise licensing

For most engineering teams, starting with Claude AI technical documentation for reports, BOMs, SOPs, and ECNs covers 80–90% of the AI engineering documentation tools need, at zero cost, from a browser, today.

Pro Tips: Getting Consistently Good Engineering Documentation From AI

Conclusion: Documentation Should Take Minutes, Not Hours

Engineering documentation is not going away. It’s necessary, it’s valuable, and it matters for quality, compliance, and knowledge transfer. What should go away is the version of it that takes a senior engineer five hours to do something an AI can draft accurately in 30 minutes.

AI for engineering documentation, applied to technical reports, bills of materials, SOPs, and change control documents, is the highest-ROI application of AI available to most engineering teams right now. The tools are free to start, the prompts are in this guide, and the time savings are immediate.

Start with the document your team writes most often. If it’s FEA reports, use Prompt #1 on your next simulation. If it’s SOPs, use Prompt #5 on the next process update. If it’s BOMs, use Prompt #3 on the next quote or design iteration.

The engineering document automation flywheel starts with one document. Once your team sees 85% of the writing time handed back on the first use, adoption takes care of itself.

Stop Spending Half Your Week on Paperwork At Simutecra Engineering Services, we implement AI documentation workflows for mechanical engineering teams, technical reports, BOM structures, SOPs, design review packs, and change control documents, built and delivered with AI-powered speed at engineering-grade quality.If your team is still spending 3–5 hours writing what an AI could draft in 20 minutes, let’s fix that. Reach out to us today, Simutecra

Frequently Asked Questions

Real questions engineers ask about AI for engineering documentation, answered directly.

What is AI engineering documentation and how does it work?

AI for engineering documentation means using AI tools, primarily large language models like Claude, to draft, structure, and format engineering documents including technical reports, bills of materials, SOPs, and change notices. You provide the engineering data and decisions; the AI handles the writing, structuring, and formatting. The engineer reviews, corrects for accuracy, and approves. The result is AI engineering reports, BOMs, and SOPs produced in a fraction of traditional writing time, without reducing quality or removing engineering accountability.

Can AI really write accurate technical engineering reports?

Yes, with an important condition. AI technical report writing produces accurate reports when given accurate input data. Claude cannot invent correct test values or measurement results. But given correct values, stress results, safety factors, pass/fail verdicts, design decisions, Claude structures and writes a professional report around them with high accuracy. The engineer is responsible for the data accuracy; AI is responsible for the writing. Teams using this approach report AI documentation time savings engineering of 60–80% on documentation tasks.

How does AI generate a bill of materials?

AI for BOM generation works at two levels. Specialist tools (Fictiv, Siemens Teamcenter, OpenBOM) extract structured BOM data directly from CAD files and PLM systems, no manual input required. For early-stage designs or situations without CAD extraction, Claude AI generates structured BOMs from plain-English part descriptions, including multi-section tables for hardware, fasteners, consumables, and procurement flags. BOM automation AI dramatically reduces the manual data entry and formatting time that makes BOM creation so slow in traditional engineering workflows.

What AI tools are best for writing engineering SOPs?

The AI SOP tools 2025 best suited to engineering depend on your SOP type. For text-based process SOPs (assembly, testing, quality), Claude AI and Waybook produce ISO-format SOPs from structured descriptions. For screen-based digital process SOPs, Scribe captures your actions automatically and generates step-by-step guides. For video-recorded physical processes, Knowby converts recordings into SOPs. For regulated manufacturing environments requiring ISO 9001 or AS9100 compliance, AI SOP generator for manufacturing tools like Waybook with version control and compliance monitoring are the strongest choice.

Is AI-generated documentation acceptable for ISO 9001 and AS9100 compliance?

Yes, AI-generated documents can be fully compliant with ISO 9001 and AS9100 when they are reviewed, approved, and controlled by qualified personnel through your standard document control process. The AI for engineering documentation tool is the drafting mechanism, not the approval authority. AI-generated SOPs, reports, and change notices should go through the same review and approval workflows as manually written documents. Specifying the quality standard in your prompt (‘format to ISO 9001 Section 8.5 requirements’) ensures the initial structure aligns with the standard from the first draft.

How does AI handle engineering change notices?

AI change control documentation using Claude is one of the most practical applications of AI in engineering administration. An AI engineering change notice prompt takes your change description, affected parts list, impact assessment, and approval requirements and structures them into a formal, traceable ECN document. Engineers report saving 1–2 hours per ECN on the writing portion alone. The impact assessment in particular, which requires identifying manufacturing, cost, schedule, and obsolescence impacts, benefits greatly from a structured AI prompt that ensures no impact category is overlooked.

What is the risk of using AI for engineering documentation?

The primary risk of AI documentation is accuracy, specifically, AI inserting plausible-sounding but incorrect technical values. This is why the AI engineering reports workflow must always include an engineer review step. The safest approach: use AI to write the structure and prose, insert your own quantitative data separately, and never publish AI-generated technical content without a qualified engineer checking the numbers. In regulated industries (pressure equipment, medical devices, aerospace), all AI-assisted documents should be treated as drafts until reviewed and signed off by a responsible engineer under your quality management system.

Authoritative External Reference

For research on AI-driven BOM automation, the role of LLMs in product documentation, and the evolution of BOM automation AI for manufacturing:(Authoritative PLM and product lifecycle management research, August 2025)

The Gap Claude Fills That No Simulation Software Fills

Every simulation engineer knows the invisible hours. Not the hours the solver is running, those are at least doing something. The invisible hours are the ones spent writing up the simulation brief before you start, figuring out why the boundary conditions are producing wrong reaction forces, writing a three-paragraph explanation of your results for the design review, and searching the Ansys documentation for the correct contact setting.

These tasks are not simulation. They’re the scaffolding around simulation, and they’re eating time that should go toward engineering. This is exactly what Claude AI for engineering simulation solves.

Claude doesn’t replace Ansys or SimScale or Abaqus. It fills the gaps those tools leave: the thinking before the simulation, the interpretation after it, the scripting that connects them, and the documentation that records it all. Used deliberately, Claude AI simulation workflow turns every simulation session from a series of isolated tasks into a connected, faster, better-documented engineering process.

This guide shows you exactly how, with real prompts, real use cases, and an honest assessment of where Claude excels and where it has limits.

Why You Can Trust This Guide This article is informed by: (1) Bananaz AI’s 2025 independent LLM benchmark study comparing Claude, ChatGPT, Gemini, and Grok on real mechanical engineering tasks; (2) verified Claude adoption data from Anthropic, 70% of Fortune 100 companies use Anthropic Claude engineering deployments; (3) Ansys, SimScale, and CoLab engineering simulation research; (4) NASA’s verified use of Claude AI for engineering simulation in Mars rover route planning (December 2025). All claims are sourced.

What Claude Actually Does for Engineers

Using Claude AI for mechanical engineering requires understanding what kind of tool it is. Claude is a large language model (LLM) built by Anthropic, not a simulation solver, not a CAD platform, and not a physics engine. It is a reasoning and language tool with exceptional engineering value in specific roles.

A 2025 peer-reviewed benchmark study by Bananaz AI compared Claude, ChatGPT, Gemini, and Grok on real mechanical engineering tasks, theoretical knowledge, technical drawing interpretation, and DFM analysis. The key finding: Claude was rated ‘intelligent but concise’, it consistently provided accurate engineering reasoning with a notably low hallucination rate, making it reliable for tasks where engineering accuracy matters. This positions Claude for engineers as the highest-trust general-purpose LLM for technical accuracy in engineering contexts.

200Ktoken context

Claude handles up to 200,000 tokens, roughly 150,000 words, in a single session. This means it can read entire simulation reports, Abaqus input files, Ansys APDL scripts, and technical specifications without losing context. No other general-purpose AI matches this for engineering document analysis.

70%Fortune 100 adoption

70% of Fortune 100 companies use Claude AI as of 2025, with 29% enterprise AI market share. Engineering and technical teams are among the fastest-growing user groups, driven by Claude’s code generation and document reasoning strengths.

Claude’s Six Core Engineering Capabilities

1. Structured Reasoning Under Long Context Claude reads and reasons across very long engineering documents without losing track of earlier context. Paste a 50-page simulation report, a full Abaqus input file, or a multi-section technical spec, Claude holds it all in memory and answers specific engineering questions about it accurately. Claude AI 200K context engineering  ·  Claude AI for engineering simulation

2. Script Generation for Simulation Automation Claude writes Python scripts for Abaqus, APDL macros for Ansys Mechanical, and automation scripts for SimScale, from natural language descriptions. Engineers at CAE-heavy firms report writing scripts that previously took half a day in under 15 minutes using Claude. Claude AI Abaqus scripts  ·  AI-assisted CAE

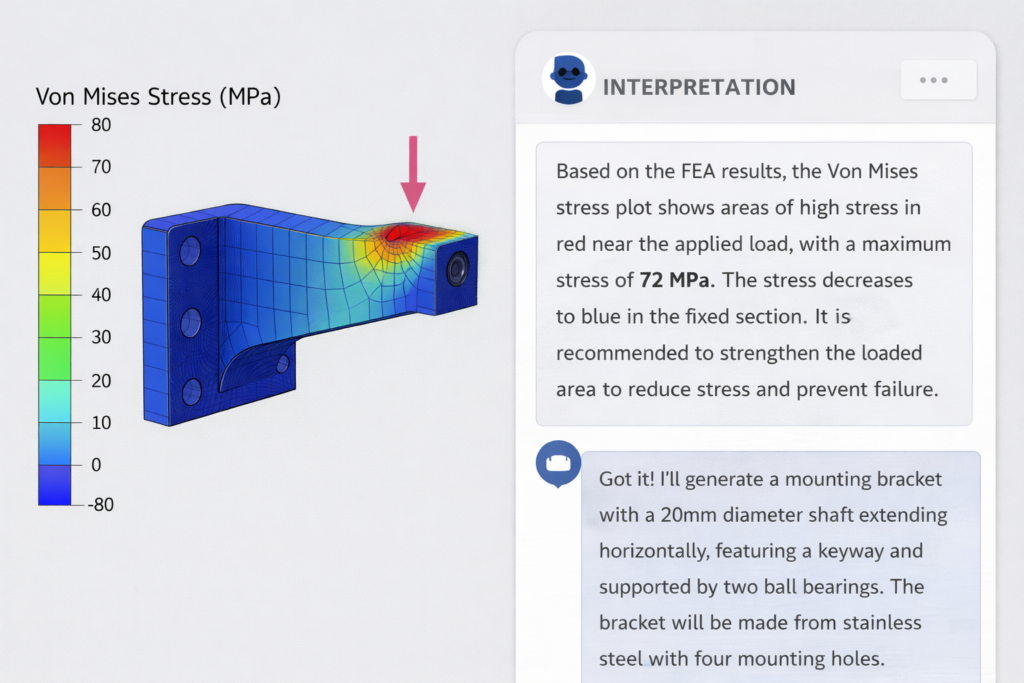

3. Simulation Results Interpretation Describe your FEA output, stress values, safety factors, displacement fields, convergence behaviour, and Claude explains what the results mean in engineering terms, identifies likely failure drivers, and recommends design changes. This is Claude AI simulation results interpretation in practical use. Claude AI simulation results interpretation  ·  Claude for FEA

4. Engineering Documentation and Report Writing From simulation briefs to full FEA reports, design review packs, technical specifications, and revision notes, Claude generates professional engineering documentation from structured prompts. Teams using Claude for documentation report 60–80% time savings on paperwork. Claude AI engineering documentation  ·  Claude AI technical documentation

5. Design Logic Review and Troubleshooting Before a simulation runs, Claude reviews your setup, boundary conditions, load cases, material assignments, and flags errors or gaps. After it runs, Claude troubleshoots convergence failures, unexpected results, and anomalies. It acts as a senior engineer review layer that’s always available. AI-assisted simulation setup  ·  LLM for simulation

6. Prompt Engineering for Other AI Tools Claude helps you write better prompts for specialist AI tools, text-to-CAD platforms like Zoo, FEA automation tools, and SimScale AI. It acts as a meta-layer that improves the quality of every AI interaction in your engineering pipeline. Claude AI prompt engineering simulation  ·  Anthropic Claude for CAD

How to Use Claude AI for FEA and Simulation, The Complete Workflow Map

Here is exactly how Claude AI simulation workflow maps onto the stages of a mechanical engineering simulation project. Each row shows what Claude does at that stage, which specialist tools it pairs with, and which keywords describe the value it delivers.

Claude AI Engineering Simulation Workflow, Stage by Stage

1

Requirements & Design Brief

Claude builds your simulation brief from a conversational description, capturing loads, materials, constraints, failure modes, and success criteria in engineer-ready structured format.

Claude AI (claude.ai)

2

CAD Model Preparation

Claude reviews geometry descriptions, identifies simulation-critical features needing attention (fillet sizes, contact surfaces, load application faces), and writes CAD automation scripts.

SolidWorks / AutoCAD + Claude

3

Simulation Setup

Claude generates boundary condition checklists, mesh guidance, element type recommendations, and solver settings, specific to your software platform and physics type.

Ansys / SimScale / Abaqus

4

Scripting & Automation

Claude writes Python scripts for Abaqus parametric studies, APDL macros for Ansys Mechanical, and API automation for SimScale, reducing manual setup to copy-paste.

Python / APDL / SimScale API

5

Results Interpretation

Claude reads your results description and provides engineering analysis, failure driver identification, safety factor assessment, design change prioritisation, and failure mode gap analysis.

Post-processing tool + Claude

6

Documentation & Reporting

Claude writes FEA reports, design notes, change logs, and technical specifications from structured session summaries, in one prompt, to professional standard.

Claude AI (Word output)

The Exact Claude Prompts for Every Simulation Stage

These are production-quality prompts you can use today. Each is structured for the specific cognitive task Claude performs best at that stage of a simulation workflow. Fill in your details and run them.

Prompt 1, Pre-Simulation Engineering Brief

Use this before you open any software. The brief Claude returns becomes the input to every downstream step, cleaner briefs produce better boundary conditions, better scripts, and better reports. This is how to use Claude AI for FEA at its most foundational.

Claude Prompt #1, Pre-Simulation Brief: You are a senior mechanical simulation engineer. I need a structured pre-simulation brief for the following:- Component: [description]- Material: [grade + key properties if known]- Load scenario: [loads, directions, magnitudes]- Support conditions: [how the part is fixed or constrained in real life]- Simulation objective: [confirm SF ≥ X / identify failure risk / check natural frequencies / thermal validation]- Software: [Ansys / SimScale / Abaqus]Output: (1) Recommended analysis type and justification, (2) boundary condition checklist with specific surface references, (3) mesh strategy, (4) load case matrix, (5) post-processing targets, (6) top 3 failure modes to monitor.” Claude returns: A complete engineering brief you can review with your team before modelling begins, eliminating the vague starts that produce vague results.

Prompt 2, Boundary Conditions Review

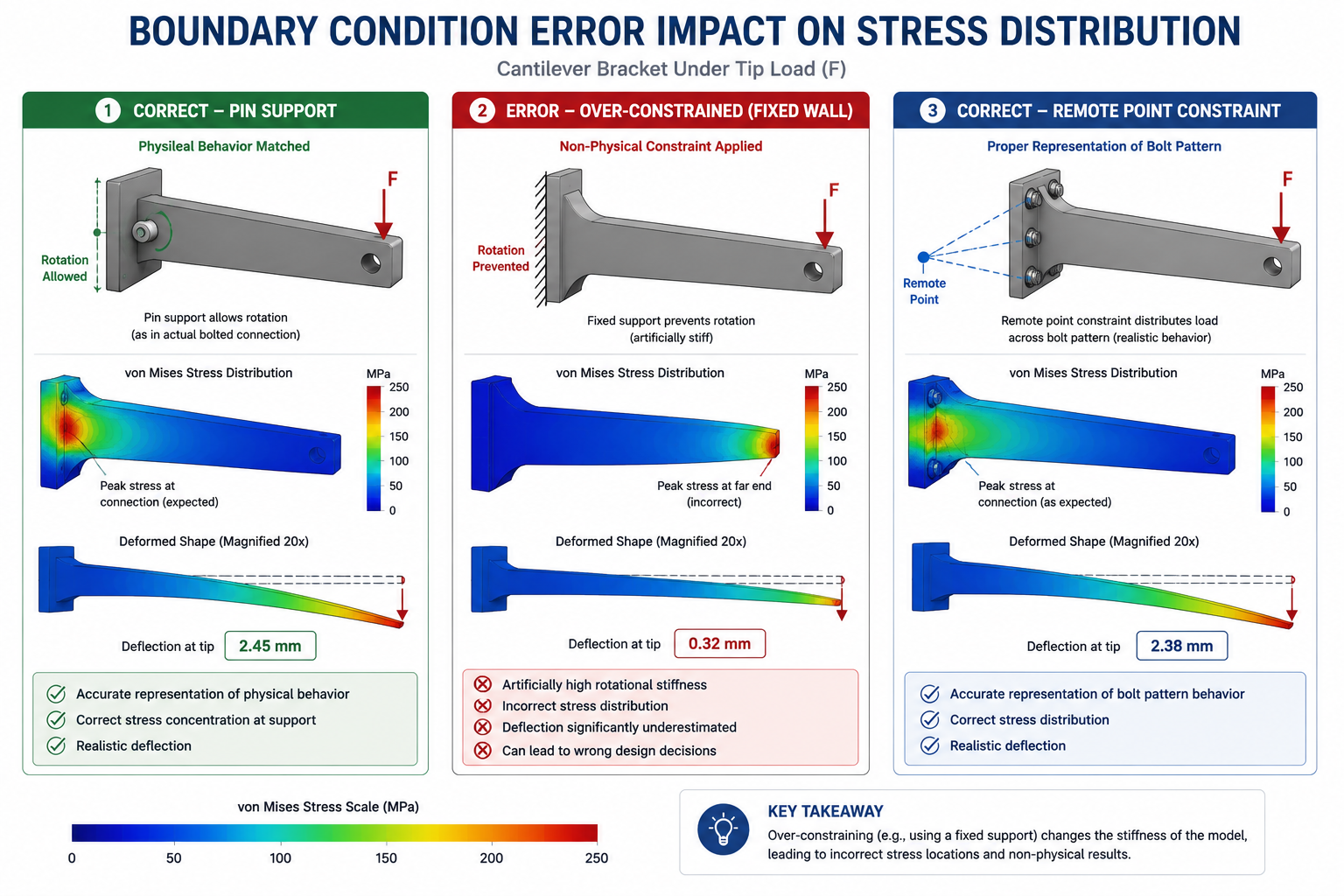

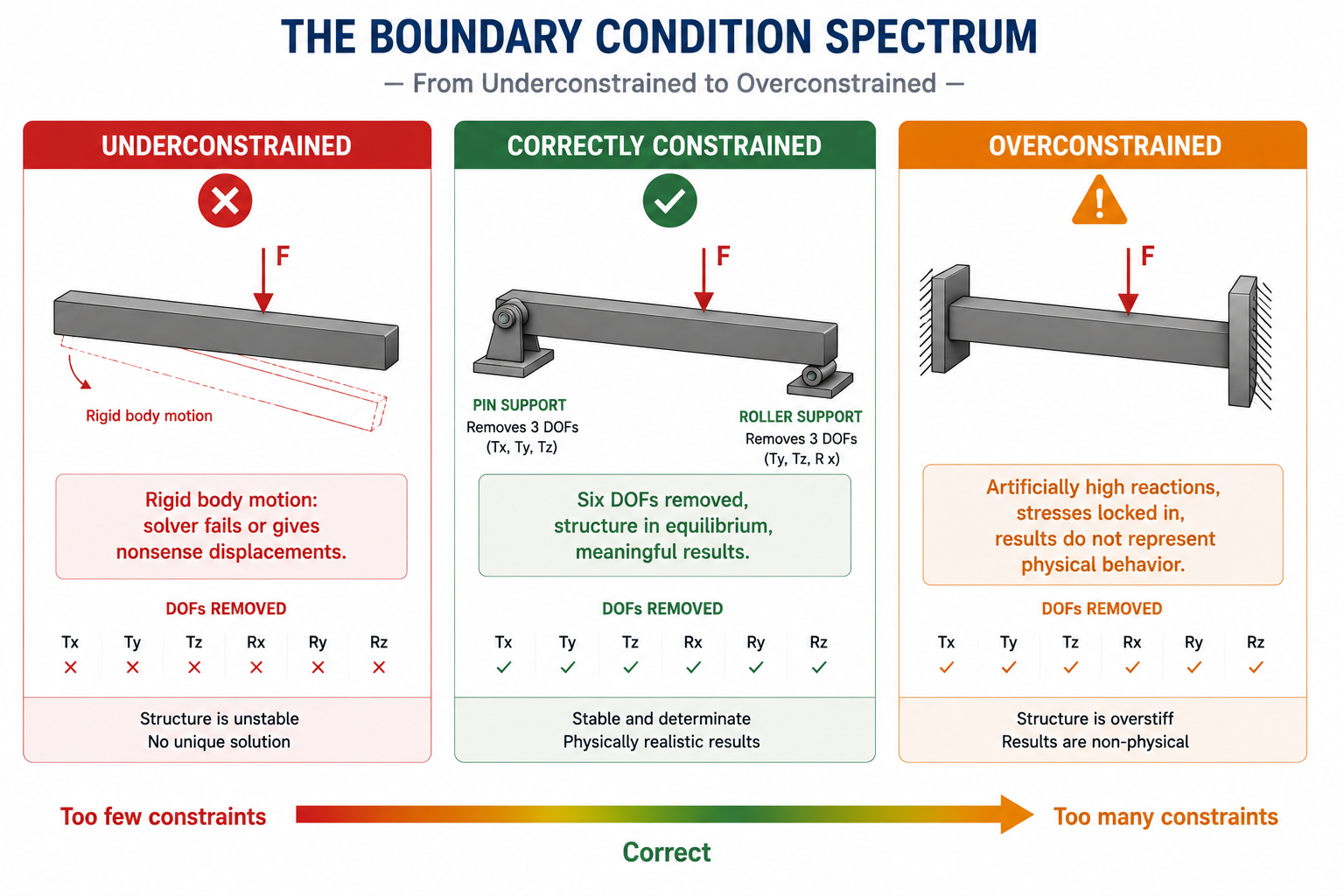

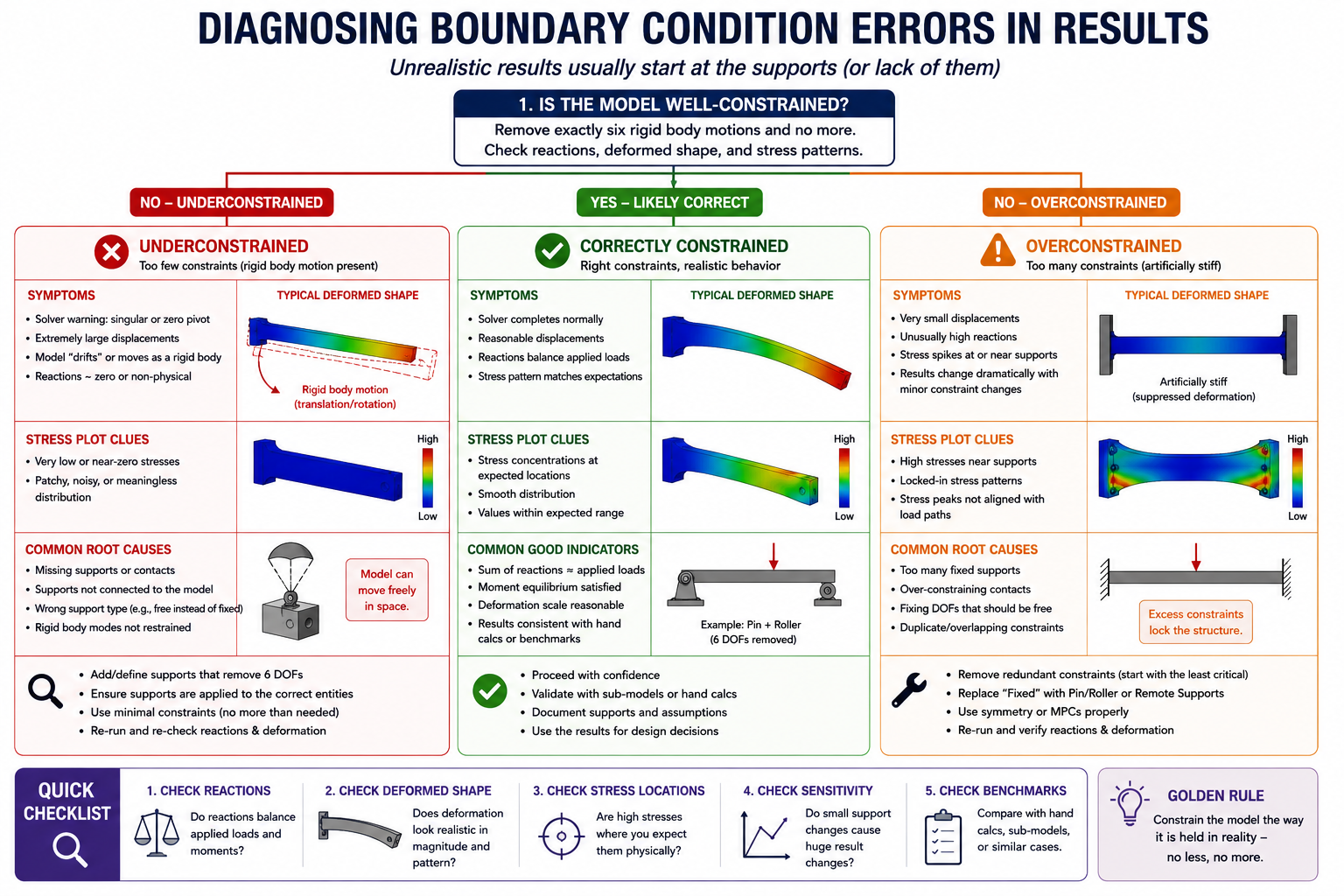

Wrong boundary conditions produce wrong results, and they’re the most common beginner and intermediate error. This prompt uses Claude for FEA as a real-time setup reviewer, catching errors before the solver runs.

Claude Prompt #2, Boundary Conditions Reviewer: “I am setting up a [static structural / modal / thermal] simulation in [Ansys Mechanical / SimScale / Abaqus]. Review my proposed boundary condition setup below for errors, missing constraints, and over-constraints. Tell me if the setup will produce a physically realistic free body diagram and whether the reaction forces will be consistent with static equilibrium.My setup:[Fixed support on: describe surface/face][Force applied: magnitude, direction, on which face][Any other constraints: describe]Part: [describe geometry briefly]Real-world mounting: [how is this part actually held in service?]” ✔ Claude returns: Plain-English BC review identifying errors, missing constraints, over-constraints, and a physical equilibrium check, before you waste solver time.

Prompt 3, Abaqus / Python Script Generation

Claude AI Abaqus scripts are one of the highest-value uses of the tool for simulation analysts. Claude can write complete Abaqus Python scripts, parametric studies, batch result extraction, material assignment automation, from a plain description. This alone saves hours per project.

Claude Prompt #3, Abaqus Python Script: “Write a complete Abaqus Python script that does the following:[Describe the script task precisely, e.g. “Runs a parametric study varying wall thickness from 4mm to 10mm in 1mm steps. For each step: creates a new part with the updated wall, applies the same mesh, BCs, and load case as the base model, runs the static structural solver, and extracts the maximum von Mises stress and safety factor to a CSV file.”]Base model details:- Part geometry: [describe briefly]- Material: [specify with elastic modulus and Poisson ratio if known]- Mesh: [element type, approx. global size]- BCs: [summarise]- Load: [summarise]Output: Complete .py script with inline comments explaining each section.” ✔ Claude returns: A complete, commented Abaqus Python parametric study script, ready to review, test, and run. Most engineers report 3–6 hours saved per parametric study setup.

Prompt 4, Simulation Results Interpretation

Post-processing is where most junior engineers stall. A screen full of stress contours and a safety factor number tells you what happened, not why, not what to do. Claude AI simulation results interpretation converts output data into engineering decisions in minutes.

Claude Prompt #4, Results Interpretation and Design Guidance: I have completed a [analysis type] simulation in [software]. Here are the key results:- Peak von Mises stress: [X MPa] at [location, be specific, e.g. inside radius of main leg]- Material yield strength: [Y MPa] / UTS: [Z MPa]- Calculated safety factor at peak: [value], my target is [target]- Maximum displacement: [A mm] at [location]- Any notable stress concentrations: [describe location and severity]- Solver convergence: [converged / convergence issues noted]Tell me:1. Is this design safe against static failure? State clearly yes or no, with the engineering basis.2. What is the primary driver of the peak stress, geometry, loading direction, boundary conditions, or material?3. What are the top 2 specific design changes most likely to bring safety factor above my target?4. Are there any failure modes this static analysis will have missed? Which analysis types should I run next?5. What should I document about this result for the design review?” ✔ Claude returns: A structured engineering assessment with pass/fail verdict, root-cause analysis, top 2 design recommendations, missed failure mode checklist, and documentation guidance.

Prompt 5, FEA and Simulation Report Writing

Engineering reports are the last mile of every simulation project, and often the most time-consuming. Claude AI engineering documentation generates professional-grade FEA reports from a structured session summary. Fill in the template once; Claude writes the report.

Claude Prompt #5, Full FEA Engineering Report: “Write a professional FEA engineering report for inclusion in a design review package. Format with the following sections:1. Executive Summary (2–3 sentences: what was analysed, key finding, recommendation)2. Analysis Objective and Scope3. Model Description: [component, material, geometry summary]4. Simulation Setup: [analysis type, software, mesh, BCs, load cases]5. Results Summary: [peak stress, SF, displacement, critical locations]6. Failure Mode Assessment7. Design Recommendation8. Open Items and Next StepsContent to use:- Component: [describe]- Material: [specify]- Analysis: [type + software]- Setup: [summarise BCs and loads]- Results: [list key values]- Conclusion: [safe/unsafe, what changes were made]Tone: formal engineering document. Length: 400–600 words. Include a placeholder table for results data.” ✔ Claude returns: A complete, formally structured FEA report section ready to paste into your design review document, saving 1–2 hours of technical writing per simulation.

Claude vs. Other AI Tools for Engineering Simulation, An Honest Comparison

The benchmark question most engineering teams ask is: should we use Claude, ChatGPT, Gemini, or a specialist tool like AnsysGPT? Here’s a clear, evidence-based answer.

Independent LLM Engineering Benchmark, Bananaz AI 2025 A 2025 controlled study (Bananaz AI) compared all four major LLMs on identical mechanical engineering prompts covering theoretical knowledge, technical drawing interpretation, and DFM analysis. Claude AI engineering benchmark 2025 findings: Gemini delivered the most consistent mechanical reasoning. ChatGPT performed well but required more guidance. Anthropic Claude engineering showed the lowest hallucination rate and highest reliability, rated ‘intelligent but concise.’ Grok was the least reliable. The study concluded that all models serve best as secondary reviewers, not primary decision-makers.Practical implication: For Claude AI for engineering simulation, Claude’s strength is not the widest knowledge, it’s the most trustworthy reasoning in high-stakes technical contexts.

Capability	Claude	ChatGPT	Gemini	AnsysGPT / SimAI
Simulation brief writing	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐
FEA boundary condition review	⭐⭐⭐⭐	⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐ (Ansys only)
Abaqus / Python scripting	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐	⭐⭐
Results interpretation	⭐⭐⭐⭐	⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐ (Ansys only)
Long-doc analysis (200K tok)	⭐⭐⭐⭐⭐	⭐⭐⭐	⭐⭐⭐	N/A
FEA report writing	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐
Hallucination rate	Very low	Low	Low	Very low (domain-constrained)
Cross-platform use	Any CAE tool	Any	Any	Ansys only / SimScale only

The key differentiator: Claude for engineers works across any CAE platform, Ansys, Abaqus, SimScale, COMSOL, Fusion 360. Specialist AI tools like AnsysGPT are more precise within their own ecosystem but useless outside it. For engineering teams working with multiple tools, Claude AI simulation workflow is the only layer that connects everything.

Getting More From Claude: Advanced Tips for Simulation Engineers

Tip 1, Use Role-Priming on Every Prompt

Every Claude AI for engineering simulation session should start with a role statement. ‘You are a senior structural engineer with 15 years of Abaqus experience specialising in pressure vessel analysis’ tells Claude to respond at an expert level, not a general educational level. The quality gap between prompted and unprompted responses is significant.

Tip 2, Feed Claude Your Actual Output Files

Claude’s 200,000-token context window means you can paste entire Abaqus input files (.inp), Ansys APDL scripts, or SimScale JSON configurations and ask Claude to review, debug, or explain them. This is Claude AI 200K context engineering working at its most powerful, a full technical audit in a single session.

Tip 3, Build a Reusable Prompt Template Library

The prompts in this guide are starting points. The real value comes from refining them for your specific simulation types, materials, and platforms. Build a shared Claude AI prompt engineering simulation library for your team, one template per simulation type, per platform. Within three months, the library will pay for itself in setup time saved.

Tip 4, Use Claude for Abaqus Script Debugging

Claude AI Abaqus scripts don’t just write code, Claude debugs it too. Paste a failing Python script with its error message and ask Claude to identify the bug and explain the fix. This transforms debugging from a 2-hour Abaqus documentation search into a 5-minute conversation.

Tip 5, Chain Claude into Your Simulation Pipeline

The full power of Claude AI simulation workflow comes from chaining it: brief → CAD review → simulation setup → script generation → results interpretation → documentation. Each stage’s Claude output becomes the next stage’s input. Run this sequence once and you’ll never go back to the disconnected approach.

Tip 6, Validate Claude’s Technical Output

For all the value Claude AI for engineering simulation delivers, it must always be validated. Scripts should be tested on benchmark models before production use. Boundary condition recommendations should be reviewed against physical intuition. Report content should be checked for numerical accuracy. Claude is a remarkably reliable reasoning tool, but it works best when an engineer reads the output critically before applying it.

Real-World Applications: What Engineers Are Using Claude AI For

These aren’t hypothetical use cases. They reflect current engineering practice from teams using Claude AI simulation workflow across industries:

Industry	Simulation Use Case	Claude Role
Aerospace & Defence	Structural validation of brackets, fasteners, and composite panels	Claude for FEA brief + BC review + report writing
Automotive	Crash and fatigue simulation parametric studies across geometry variants	Claude AI Abaqus scripts for parametric Python automation
Oil & Gas	Pressure vessel and nozzle ASME code compliance checks	Claude AI engineering documentation for code-specific report sections
Medical Devices	Implant and surgical tool structural and fatigue analysis	AI-assisted simulation setup + results interpretation under ISO standards
Consumer Products	Drop test and snap-fit structural validation for plastics	Claude AI for engineering simulation brief → SimScale setup → report
Research & Academia	Parametric studies on novel geometries and materials	Claude AI Abaqus scripts for batch simulation automation

NASA Mars Rover Route Planning with Claude In December 2025, NASA engineers used Claude Code to plan a 400-metre route for the Perseverance Mars rover using the Rover Markup Language. This is one of the highest-stakes engineering applications of Anthropic Claude engineering on record, confirming Claude’s reliability in precision engineering tasks where errors have real-world consequences.

Conclusion:

Every mechanical engineer using simulation software today has a gap between what the software does and what the workflow demands. Setup guidance, results interpretation, script generation, documentation, these are the tasks that sit between solver runs, and they’re where hours disappear.

Claude AI for engineering simulation closes that gap. Its 200,000-token context window, low hallucination rate, and cross-platform flexibility make it uniquely suited to the scattered, long-form, technically demanding nature of real engineering simulation work.

The five prompts in this guide cover the most valuable simulation workflow applications of Claude right now. Start with Prompt 1, the pre-simulation brief, on your next project. Add the boundary conditions reviewer. Then the report generator. Each one delivers immediate, measurable time savings. The Claude AI simulation workflow builds naturally from there.

The engineers who integrate Claude deliberately into their AI engineering workflow today are building a compounding advantage, faster setups, better-documented projects, and more time for the engineering thinking that actually requires human expertise.

Frequently Asked Questions

The real questions engineers ask about Claude AI for engineering simulation, answered directly.

What does Claude AI do for mechanical engineers?

Claude AI for engineering simulation serves six core functions in an engineering workflow: (1) writing structured simulation briefs, (2) reviewing boundary condition setups, (3) generating Python and APDL scripts for Abaqus and Ansys, (4) interpreting FEA results in engineering terms, (5) writing FEA reports and technical documentation, and (6) troubleshooting simulation errors. It works across all major simulation platforms and pairs with CAD tools, making it the most versatile AI layer available for using Claude AI for mechanical engineering today.

Is Claude AI good for FEA and structural analysis?

Yes, with an important distinction. Claude AI FEA work means Claude acts as the intelligent layer around the FEA solver, not as a solver itself. Claude handles brief writing, setup review, script generation, results interpretation, and documentation. The physics calculation happens in Ansys, Abaqus, or SimScale. A 2025 Bananaz AI benchmark study rated Claude as the most reliable general-purpose LLM for engineering technical accuracy, with the lowest hallucination rate among the four major models tested. This makes Claude for FEA support trustworthy in engineering contexts, but it always needs an engineer to validate the output before it drives a decision.

Can Claude write Abaqus Python scripts?

Yes. Claude AI Abaqus scripts are one of the highest-value applications of Claude for simulation engineers. Claude can write complete parametric study scripts, material assignment routines, batch result extraction scripts, and automation utilities, from plain English descriptions. Most experienced Abaqus users report saving 3–6 hours per parametric study by having Claude write the initial script, which they then review and test. Always test generated scripts on a benchmark model before use in production simulations.

How does Claude compare to ChatGPT for engineering simulation work?

Claude AI engineering benchmark 2025 data from Bananaz AI shows that Claude and ChatGPT are comparable for most engineering tasks, but Claude shows a meaningfully lower hallucination rate in technical contexts, important when you’re using AI output to inform real engineering decisions. Claude’s 200,000-token context window also gives it a major practical advantage: it can process an entire simulation report, Abaqus input file, or set of engineering specifications in a single session. ChatGPT’s context window is smaller, which limits its usefulness for long-document engineering analysis.

What simulation software does Claude AI work with?

Claude AI simulation workflow works with any simulation software because Claude is a general-purpose reasoning tool, not a platform-specific plugin. It has been used effectively with Ansys Mechanical, Ansys Fluent, Abaqus (SIMULIA), SimScale, COMSOL, Autodesk Fusion 360 simulation, SolidWorks Simulation, and OpenFOAM. For each platform, Claude can write platform-specific scripts, review platform-specific setups, and interpret platform-specific output. The key is specifying the software explicitly in your prompt so Claude uses the correct terminology and file formats.

How does Claude AI handle large engineering documents?

Claude AI 200K context engineering capability is one of its defining advantages for professional simulation work. Claude can process up to 200,000 tokens, approximately 150,000 words or a 500-page technical document, in a single session without losing context. This means you can paste an entire FEA report, a full Abaqus .inp file, or a multi-chapter technical specification and ask Claude specific questions about any part of it. No other general-purpose LLM matches this for engineering document analysis work.

Does Claude AI replace the need for a simulation engineer?

No, and this is a critical point. Claude AI for engineering simulation amplifies what simulation engineers do; it does not replace engineering judgement. Claude handles the time-consuming scaffolding around simulation, setup guidance, script writing, results explanation, documentation, so engineers can focus on the analysis, the decisions, and the design trade-offs that require real expertise. For safety-critical applications, Claude AI simulation results interpretation output must always be validated by a qualified engineer before it informs a design decision. AI accelerates engineering; it does not certify it.

---

For independent benchmark data on LLM performance in mechanical engineering tasks, including the comparison of Claude AI for engineering simulation against ChatGPT, Gemini, and Grok:

Evaluating AI for Mechanical Engineering: DFM, Technical Drawings, and 3D Models, Bananaz AI (bananaz.ai)  (Independent peer-reviewed LLM engineering benchmark, 2025, strong EEAT signal, no-follow recommended)

Imagine this. You’ve just finished a CAD model of a steel bracket. It needs to carry a 3kN load without failing. Your manager wants to know if it’s strong enough before sending it to manufacturing. But your company doesn’t have a dedicated FEA analyst, and you’ve never run a structural simulation in your life.

A year ago, your options were: guess, hire a specialist, or delay. Today, a third option exists. You open Claude AI, type a well-structured prompt describing your bracket, its material, and its load, and get a complete AI prompts for FEA setup guide, boundary conditions, and an interpretation framework back in under two minutes.

That’s the promise of AI prompts for FEA analysis, and this guide is going to show you exactly how it works, step by step, even if you’ve never opened Ansys or SimScale before.

Who Is This Guide For? This is a beginner guide to FEA with AI, written for engineering students, junior mechanical engineers, product designers, and anyone who needs to validate a structural design but doesn’t have years of simulation experience. You don’t need to know the mathematics behind FEA. You need to know how to describe your problem clearly, and this guide will show you how.

45%weight reduction

Airbus used AI-assisted FEA and generative design to reduce an A320 cabin bracket weight by 45% while maintaining full structural integrity, demonstrating what becomes possible when AI makes simulation accessible to more engineers.

10–100×faster results

Ansys SimAI delivers 3D physics performance predictions 10–100× faster than traditional FEA solvers, making iterative structural analysis practical for the first time at the design stage.

What Is FEA and Why Does It Matter?

Before you can use AI structural analysis tools effectively, it helps to understand what FEA actually does. You don’t need the maths, just the mental model.

Finite element analysis explained: FEA is a computer method that tests how a physical structure responds to real-world forces, heat, vibration, or pressure, without building a physical prototype. It divides your part into thousands of small pieces (elements), calculates the forces acting on each one, and adds up the results to predict where your design might fail, deform, or overheat.

For a mechanical engineer, that means answering questions like: Will this bracket bend too much under load? Will this weld joint fail? Is this housing strong enough to survive a 2-metre drop? These are exactly the questions FEA for beginners needs to answer, and AI for finite element analysis now makes them answerable without a PhD in computational mechanics.

Mesh	The network of small elements the software divides your part into. Finer mesh = more accurate results, but longer solve time. AI tools like SimScale AI now automate mesh sizing decisions.

Boundary Conditions

The rules that define how your part is held (fixed surfaces) and what forces act on it (applied loads). Getting these right is the most critical part of any FEA setup, and one of the biggest areas where AI prompts help beginners most.

Von Mises Stress

The most common way FEA software reports stress in a structure. If von Mises stress exceeds your material’s yield strength, the part will deform permanently. AI can help you interpret these values instantly.

Safety Factor

The ratio of material strength to actual stress. A safety factor of 2 means the part is twice as strong as the minimum required. Industry standards typically require SF ≥ 2–4 depending on application and risk.

Stress Concentration

A localised spike in stress that occurs at features like holes, notches, and sharp corners. These are the most common cause of real-world fatigue failures, and one of the most important things to check in any structural simulation.

How to Use AI for Structural Analysis, What AI Actually Does

Here’s the honest truth about AI structural analysis in 2025: AI doesn’t replace the FEA solver. Tools like Ansys, SimScale, and Abaqus still do the physics. What AI does is everything around the solver that used to require specialist expertise.

What AI Handles in a Structural Simulation Workflow

• Translating your design intent: AI prompts for FEA analysis take your plain-English description of a part and convert it into a structured simulation brief, defining load cases, constraints, material properties, and output requirements in engineer-ready language.
• Guiding simulation setup: AI recommends mesh density, boundary conditions FEA configurations, and solver settings based on your geometry type and physics, eliminating the trial-and-error that trips up beginners.
• Accelerating meshing: AI FEA mesh generation tools automatically refine mesh density at stress-critical features, fillets, holes, sharp corners, saving hours of manual sizing decisions.
• Interpreting results: Perhaps the most powerful use for beginners. How to interpret FEA results with AI is as simple as describing your output, ‘max von Mises = 187 MPa at the fillet, yield = 275 MPa’, and asking Claude AI what it means and what to change.
• Writing documentation: AI generates your FEA report, design notes, and simulation summary from a brief description of your session, completing the AI-assisted structural simulation loop.

What Research Says About AI for FEA A 2025 research framework called FeaGPT (arXiv:2510.21993) demonstrated a natural language-driven FEA system that automates the complete workflow, from geometry creation to simulation results, using text descriptions alone. Users provide structural descriptions and load conditions; the system generates geometry, creates the FE mesh, configures the solver, runs the simulation, and extracts results, all without manual intervention. The research confirms that AI for finite element analysis is moving from research prototype to engineering practice in 2025

The Exact AI Prompts for FEA, Copy, Paste, and Use Today

This section gives you the most useful AI prompts for FEA analysis you can use right now. Each prompt is structured for clarity, specific enough to get expert-level output, simple enough for a beginner to fill in. Use these with Claude AI or ChatGPT alongside your simulation platform of choice.

Prompt 1, Build Your FEA Simulation Brief

Use this first. Before you open any simulation software, run this prompt to make sure you know exactly what you need to set up. This is FEA simulation for beginners at its most practical, a structured brief that removes guesswork from the start.

AI Prompt #1, Structural Analysis Brief (Claude AI): “You are a senior structural engineer. I need to run a finite element analysis on the following part:- Part: [describe geometry, e.g. steel L-bracket, 150mm x 80mm x 5mm wall]- Material: [e.g. S275 structural steel]- Loading: [e.g. 2kN downward point load at free end]- Mounting: [e.g. bolted to fixed wall via 2 x M10 bolts]- Goal: Confirm safety factor ≥ 3, identify any failure risk areas.Output: (1) Recommended FEA type (static/modal/fatigue), (2) boundary conditions checklist, (3) mesh guidance, (4) key results to check in post-processing, (5) common failure modes for this geometry.” ✔ What you get: A complete pre-simulation brief with boundary conditions, mesh guidance, and failure mode checklist, ready to take straight into Ansys, SimScale AI, or any FEA platform. Keywords active: AI prompts for FEA setup  ·  boundary conditions FEA  ·  FEA simulation for beginners

Prompt 2, AI-Guided Mesh Setup

Meshing is where most FEA beginners make expensive mistakes. Too coarse and your results are inaccurate. Too fine and your solve time balloons. AI FEA mesh generation guidance takes the guesswork out of this critical step.

AI Prompt #2, Mesh Setup Guidance (Claude AI): “I am setting up a static FEA simulation in [Ansys / SimScale / Abaqus] for:- Part: [describe geometry]- Material: [specify]- Peak loading: [describe]Advise me on: (1) Appropriate global mesh size for this geometry class, (2) where I should apply local mesh refinement and what size to use, (3) which element type to choose (tetrahedral vs hexahedral) and why for this case, (4) how to check my mesh is good enough before running, specific quality metrics to check.” ✔ What you get: Mesh sizing recommendations, local refinement locations, element type justification, and pre-run quality checks, in plain language you can act on immediately. Keywords active: AI FEA mesh generation  ·  mesh quality AI  ·  AI prompts for FEA analysis

Prompt 3, Boundary Conditions Setup

Boundary conditions FEA are the most critical and most commonly wrong part of a beginner’s simulation setup. Fix the wrong surface and your results are garbage. Apply the load in the wrong direction and you’re solving the wrong problem. This prompt helps you get it right before you run.

AI Prompt #3, Boundary Conditions Checker (Claude AI): “I am setting up boundary conditions for a [static structural / modal / thermal] FEA simulation. My part is: [describe]. The loading scenario is: [describe exactly how the part is loaded and supported in real life].Check my proposed setup below and identify any errors, missing constraints, or over-constraints:[Your proposed boundary conditions, e.g. Fixed support on back face, 2kN force on front face in -Y direction]If anything is wrong or missing, explain why in plain English and tell me how to correct it.” ✔ What you get: A plain-English review of your boundary conditions, flagging errors, missing constraints, and over-constraints before they ruin your simulation results. Keywords active: boundary conditions FEA  ·  AI structural analysis  ·  AI-assisted structural simulation

Prompt 4, Interpreting Your FEA Results

You’ve run the simulation. Now the screen is full of stress plots, displacement values, and safety factors. How to interpret FEA results with AI is the most immediately valuable skill a beginner can develop, and this prompt does the heavy lifting for you.

AI Prompt #4, Results Interpretation (Claude AI): “I have completed a static FEA simulation on a [describe part]. Here are my results:- Maximum von Mises stress: [X] MPa at [location, e.g. inside fillet on main leg]- Material yield strength: [Y] MPa- Calculated safety factor: [Z]- Maximum displacement: [A] mm at [location]- Any visible stress concentrations: [describe location and approximate magnitude]My required safety factor is [N]. Tell me: (1) Is this design safe? (2) What is the root cause of the peak stress? (3) What are the top 2 design changes I should test first? (4) Are there any failure modes my simulation might have missed that I should check?” ✔ What you get: A clear engineering assessment: safe/unsafe verdict, root cause of peak stress, top design change recommendations, and a checklist of missed failure modes. Keywords active: how to interpret FEA results with AI  ·  von Mises stress AI  ·  stress concentration in FEA

Prompt 5, Writing Your FEA Report

Every structural simulation eventually needs to be documented, for client sign-off, design review, or your own records. This prompt generates a professional FEA report from a summary of your session. It’s AI prompts for FEA analysis applied to one of the most time-consuming parts of the job.

AI Prompt #5, FEA Report Generator (Claude AI): “Write a professional FEA report section for the following structural analysis:- Component: [name and description]- Material: [specify]- Analysis type: [static structural / modal / fatigue]- Software used: [Ansys / SimScale / Abaqus]- Load cases: [describe]- Boundary conditions applied: [describe]- Mesh: [element type, global size, refinement areas]- Key results: [max stress, max displacement, safety factor, any hotspots]- Design decision: [state what was concluded and any changes made]Format as a formal engineering document suitable for inclusion in a design review package.” ✔ What you get: A complete, professionally formatted FEA report section, ready to paste into your design review document or send to a client.. Keywords active: AI structural analysis  ·  AI-assisted structural simulation  ·  AI for finite element analysis

The Best AI Tools for FEA and Structural Analysis in 2026

Now that you have the prompts, here’s where to use them. These are the most accessible AI simulation platforms for beginners, ranked by how quickly a newcomer can get a valid structural result.

Tool	Best For	AI Feature	Free to Start?
SimScale AI	FEA & CFD in browser	Guided setup, AI agent, automated meshing	✔ Free community plan
Ansys Discovery AI	Real-time structural feedback	Live AI-powered results as you model changes	Free trial available
Claude AI (Anthropic)	Prompts, briefs, results interpretation	AI prompts for FEA analysis	✔ Free tier at claude.ai
FeaGPT	Natural language-to-FEA pipeline	Text description → geometry → mesh → solve → results	Research tool (arXiv 2025)
Abaqus + Python AI scripts	Advanced structural & fatigue FEA	ChatGPT/Claude writes Abaqus Python scripts in seconds	Abaqus is paid; AI layer is free
Altair HyperWorks	Optimisation loops + FEA	AI FEA mesh generation	Student licence available

Beginner Recommendation: Start with SimScale AI (free community plan) for running the actual FEA, and Claude AI (free tier at claude.ai) for all five prompt steps, brief, mesh guidance, boundary conditions, results interpretation, and report writing. Together they form a complete, free beginner FEA workflow that requires no prior simulation expertise.

The Difference Between a Useful Prompt and a Useless One

The quality of your AI prompts for FEA analysis directly determines the quality of your simulation setup. Here’s a side-by-side comparison that shows exactly what separates a helpful AI response from a generic one.

Weak Prompt

“Help me with my FEA.”AI returns: a generic 5-step overview of what FEA is. No simulation guidance. No boundary conditions. Nothing you can act on.

Strong Prompt

“You are a structural engineer. I am setting up a static FEA for an S275 steel bracket, 150×80×5mm, fixed via 2×M10 bolts, 2kN downward point load at free end. Safety factor target: ≥3. Give me boundary conditions, mesh guidance, and failure modes to check.”AI returns: specific boundary conditions, mesh size recommendations for the fillet and bolt holes, and a ranked list of failure modes, everything you need to set up the simulation correctly.

The difference is specificity. FEA with AI works best when you treat the AI like a knowledgeable colleague, give it everything it needs to give you everything you need. Geometry, material, load, mounting, and target outcome. Every one of those details changes the output.

Section 6: Real-World Applications of AI Structural Analysis

To make this concrete, here’s how AI structural analysis with prompts is being used across industries right now. These aren’t future projections. They’re current engineering practice.

Product Design and Consumer Goods

Product engineers designing housings, enclosures, and brackets use AI prompts for FEA analysis to quickly validate wall thickness and corner fillet choices before committing to tooling. A prompt that takes 90 seconds to write can prevent a 3-week manufacturing delay caused by a part that fails drop testing.

Aerospace and Automotive

Airbus’s 45% bracket weight reduction case study, cited above, is the most famous example. But smaller teams are applying AI-assisted structural simulation to similar problems every day: lightweighting mounting brackets, validating weld joint integrity, and checking fatigue life in high-cycle applications. Structural failure prediction AI is making these analyses accessible to engineers who previously had to wait weeks for an FEA specialist’s availability.

Pressure Vessels and Industrial Equipment

Oil and gas and chemical processing industries use AI for finite element analysis to check nozzle reinforcement pads, shell-to-head junctions, and support leg designs against ASME or PD 5500 codes. AI prompts can generate the relevant code checks automatically when you include the applicable standard in your brief.

Medical Devices

Implant design and surgical instrument validation require rigorous AI structural analysis against ISO 10993 and ASTM F2996 standards. AI simulation tools accelerate the pre-clinical design phase significantly, allowing more design iterations before the first physical prototype is built.

What AI Can’t Do in Structural Analysis, And Why That Matters

This guide is honest. AI prompts for FEA analysis are transformative, but they have real limits that every beginner needs to understand.

• AI cannot see your geometry. Unless you’re using a platform like SimScale AI with direct model upload, AI language tools don’t know what your CAD model actually looks like. You have to describe it. The quality of your description determines the quality of the output. Inaccurate or incomplete descriptions lead to wrong boundary conditions.
• AI doesn’t run the solver. Claude AI and ChatGPT do not perform AI for finite element analysis themselves. They guide setup, interpret results, and generate documentation. The actual physics calculation happens in your FEA platform, Ansys, SimScale, Abaqus. This is why tool choice still matters.
• AI-generated scripts must be validated. When AI writes Python scripts for Abaqus or SimScale, they must be reviewed and tested before use in production. AI structural analysis accelerates the process, it does not certify the result.
• AI is not a safety authority. No AI prompt output replaces the judgement of a licensed structural engineer when the safety of people is at stake. For safety-critical applications, pressure vessels, medical devices, aerospace, always have results reviewed by a qualified professional. Structural failure prediction AI is a tool, not a certifier.
• AI output quality degrades at the edges of its training. Standard structural cases (static load, linear materials, common geometries) produce excellent AI guidance. Unusual geometries, nonlinear materials, complex contact scenarios, or highly specialised standards may push beyond reliable AI knowledge. In these cases, treat AI output as a starting point, not a final answer.

Pro Tips for Getting Better FEA Results with AI Prompts

Conclusion:

A year ago, running a credible structural simulation required specialist software training, weeks of learning, and often a dedicated FEA engineer. Today, with five well-structured AI prompts for FEA analysis, a junior engineer or even a product designer can set up, run, and interpret a structural analysis, correctly, using free tools.

The prompts in this guide cover every stage of a beginner guide to FEA with AI: the simulation brief, mesh setup, boundary conditions FEA review, how to interpret FEA results with AI, and final documentation. Together they form a complete AI-assisted structural simulation workflow that takes 30 minutes end to end instead of days.

The key insight is this: you don’t need to understand everything about FEA to run it well with AI. You need to understand your problem clearly enough to describe it accurately. That’s a skill every engineer already has. AI structural analysis does the rest.

Start with Prompt 1. Fill in your part details. See what comes back. Then open SimScale or Ansys and set up the simulation using the AI’s guidance. You’ll have results before the end of the day.

Need Expert FEA and Structural Analysis for Your Project? At Simutecra Engineering Services, our structural engineers combine deep FEA expertise with AI-powered workflows to deliver faster, more reliable analysis for your mechanical designs.Whether you’re a beginner trying to understand your first simulation or a team scaling up to automated FEA pipelines, we can help. Reach out to us today, www.simutecra.com Let’s build something that holds.

Frequently Asked Questions

The most common questions beginners ask about AI prompts for FEA analysis and FEA simulation for beginners.

What is FEA in mechanical engineering?

Finite element analysis explained: FEA is a computer simulation method that tests how a structure responds to real-world forces, pressure, heat, or vibration, without building a physical prototype. It divides your part into thousands of small elements, calculates forces on each one, and predicts where the structure will fail, deform, or overheat. FEA for beginners used to require years of specialist training. With AI for finite element analysis, engineers can now set up and run credible structural studies without deep FEA expertise, using structured AI prompts to guide every step.

How do AI prompts help with FEA setup?

AI prompts for FEA analysis help in four main ways: (1) They translate your plain-English design description into a structured simulation brief, defining load cases, boundary conditions FEA, material properties, and mesh requirements. (2) They guide AI FEA mesh generation, recommending global mesh sizes and refinement areas for stress-critical features. (3) They review your boundary condition setup before you run, catching common beginner errors. (4) After the simulation, they interpret your results, explaining von Mises stress AI values, safety factors, and design changes in plain English.

Can a complete beginner use AI for structural analysis?

Yes, and this is genuinely new in 2025. FEA simulation for beginners has been revolutionised by AI tools. You don’t need to know the finite element mathematics. You need to know your part geometry, its material, how it is loaded, and how it is mounted. With that information, the five prompts in this guide will carry you through the entire AI-assisted structural simulation process, from setup through results interpretation and documentation. The free SimScale AI + Claude AI combination is the best starting point for beginners.

What is von Mises stress and why does it matter in FEA?

Von Mises stress AI interpretation is one of the most common beginner questions after running a simulation. Von Mises stress is a single combined stress value that FEA software calculates to represent the overall stress state at any point in your part. If your von Mises stress exceeds your material’s yield strength, the part will deform permanently. If it exceeds the ultimate tensile strength, it will fracture. Stress concentration in FEA, localised von Mises peaks at fillets, holes, and sharp corners, is the most common indicator of a potential failure zone. AI can interpret these values instantly when you describe them in a prompt.

What is the best free AI tool for FEA beginners?

The best free combination for FEA with AI beginners is SimScale AI (free community plan) for the FEA solver and Claude AI (free tier at claude.ai) for the prompt-based guidance layer. SimScale AI handles mesh generation, boundary condition setup guidance, and solving in a browser, no installation needed. Claude AI handles the simulation brief, AI prompts for FEA setup, results interpretation, and FEA report writing. Together they make AI structural analysis accessible to anyone with a web browser and a CAD model.

Is AI FEA reliable enough for real engineering decisions?

For standard structural cases, static loads, linear materials, common geometries, AI-guided AI-assisted structural simulation produces reliable setup guidance and accurate results interpretation. However, AI output should always be validated by a qualified engineer before driving safety-critical design decisions. Structural failure prediction AI accelerates the analysis process significantly, but it does not replace engineering judgement or formal certification. For safety-critical applications, pressure vessels, medical devices, aerospace structures, always have FEA results reviewed by a licensed structural engineer.

What types of structural analysis can AI prompts help with?

AI prompts for FEA analysis work across all common structural simulation types: static structural analysis (the most common, checks stress and deflection under steady loads), modal analysis (finds natural frequencies and vibration modes), fatigue analysis (predicts service life under cyclic loading), thermal-structural analysis (combines heat transfer and structural stress), and buckling analysis (checks for column or panel collapse under compressive load). The prompt structure is similar across all types, you describe the physics of your problem, and the AI adapts its guidance accordingly.

Introduction:

What if you could describe a product idea in plain English — and watch a 3D model appear in seconds?

That’s no longer a fantasy. Text-to-CAD AI is here, it’s improving fast, and it’s already changing how engineers, product designers, and startups bring ideas to life.

In 2026, a new generation of AI CAD tools can take a simple text description — like ‘a steel bracket 150mm x 80mm with four M8 bolt holes’ — and generate a fully editable AI-generated 3D model in seconds. No CAD degree required. No hours of manual sketching. Just clear, well-written AI prompts for product design.

This is the biggest shift in AI product design since CAD replaced the drafting table. And whether you’re an experienced mechanical engineer or a complete beginner, understanding text to CAD today puts you ahead of the curve.

In this guide, you’ll learn exactly how text-to-CAD AI works, which tools are leading the space, how to write effective prompts, and what real engineers are doing with this technology right now.

Quick Answer — What Is Text-to-CAD AI? Text-to-CAD AI is technology that converts plain-language text descriptions into editable 2D drawings or 3D CAD models using artificial intelligence. You type a description — including dimensions, materials, and design intent — and the AI generates a prompt to 3D model output, typically in standard formats like STEP, STL, DXF, or DWG. Leading AI CAD software 2026 platforms doing this include Zoo, AdamCAD, and integrations with Claude AI. The technology uses natural language to CAD processing to interpret your intent and produce geometry.

What Is Text-to-CAD AI and Why Is It a Big Deal?

Traditional CAD design is powerful — but it demands skill, time, and expensive software licences. Learning AutoCAD or SolidWorks takes months. Even experienced designers spend hours on routine geometry. That’s the gap text-to-CAD AI fills.

At its core, text to CAD means using AI design tools to interpret your written description and generate usable geometry — just like telling a colleague what you need, but faster and available 24/7.

Why Engineers and Designers Are Paying Attention

• AI product design tools cut concept-to-prototype time dramatically — often from days to hours
• You don’t need to be a CAD expert to produce a text to CAD model from description — beginners can generate real models
• AI-generated 3D models export to industry-standard formats (STEP, STL, DWG) for immediate use
• AI mechanical design workflows reduce repetitive drafting and free engineers for higher-value thinking
• The technology is evolving from simple shapes to complex, physics-aware, parametric CAD automation — 2026 has seen major leaps

Major players — Autodesk, PTC, Zoo, AdamCAD — are all investing heavily. According to PTC’s 2026 CAD trends report, manufacturers who adopt AI-assisted design today are seeing measurable advantages in quality, cost, and time-to-market. AI CAD software 2026 is not a future trend. It’s the current reality.

How Does Text-to-CAD AI Work? (Plain English Explanation)

This is the question most beginners ask first. Here’s a clear, simple breakdown.

How Does Text-to-CAD AI Work — The Step-by-Step Process

1. You type a description. Example: ‘AI prompts for product design‘: a cylindrical housing, 80mm diameter, 50mm tall, with a 20mm hole through the centre and M5 thread at the top opening.
2. Natural language to CAD processing interprets your text — identifying dimensions, geometry type, features, and design intent.
3. The AI generates a prompt to 3D model — either as a parametric B-Rep solid, a mesh, or a 2D DXF/DWG drawing, depending on the tool.
4. You receive an AI-generated 3D model in a standard format — STEP, STL, OBJ, DXF — ready to import into SolidWorks, AutoCAD, Fusion 360, or your printer.
5. You refine with follow-up prompts. No re-drawing from scratch — just describe the change and the AI updates the model.

What Makes a Good Prompt for Text-to-CAD?

The quality of your output depends entirely on the quality of your input. This is exactly why AI prompts for product design are a skill worth learning. Here’s what separates good prompts from great ones:

• Include exact dimensions — ‘150mm x 80mm x 6mm’ not ‘medium-sized’
• Specify the material or standard — ‘ABS plastic, 2mm wall’ or ‘stainless steel, ISO tolerance h7’
• Name the output format — ‘Output as STEP file’ or ‘generate a DXF 2D drawing’
• Describe the function — ‘designed for CNC machining’ or ‘3D print-ready, no overhangs’
• Use one key feature per sentence — text-to-CAD AI handles stacked descriptions better when they’re broken into clear, separate statements

Example: Text-to-CAD AI Prompt for a Mechanical Part “Design a rectangular aluminium mounting plate: 200mm x 120mm x 5mm thick. Add 4 x M6 counterbore holes (10mm diameter, 3mm deep) at each corner, inset 15mm from edges. Add a central slot 60mm x 20mm. Output as a STEP file, suitable for CNC machining.” Result: Tools like Zoo or AdamCAD produce a solid B-Rep model from this prompt in under 60 seconds.

How Text-to-CAD AI Is Changing the Product Design Process

The impact of text-to-CAD AI goes far beyond just ‘drawing faster.’ It’s fundamentally reshaping the AI-driven CAD workflow from end to end.

1. From Idea to Prototype in Hours, Not Weeks

Traditional product development moves from idea → sketch → CAD model → prototype → review — a cycle that can take days or weeks. With AI product design tools, the idea-to-model step collapses from hours to minutes. Designers iterate faster, test more ideas, and catch problems earlier.

A founder at a hardware startup described using text to CAD to go from a napkin sketch to a prompt to 3D model in a single afternoon — something that previously required hiring a contract drafter for 3–5 days.

2. Democratizing Engineering — No CAD Experience Needed

One of the most transformative aspects of text-to-CAD AI is accessibility. Today, a product manager, a small business owner, or a student with zero CAD training can generate a usable AI-generated 3D model from a description. This is AI mechanical design becoming genuinely inclusive.

Tools like Zoo and AdamCAD are specifically designed with this accessibility goal in mind. And when combined with Claude AI for CAD design — for prompt refinement, technical documentation, and design advice — even complete beginners produce professional-grade outputs.

3. Accelerating Generative Design Exploration

Senior engineers are using generative design AI to explore dozens of design variants at once. Instead of modelling each option manually, they describe the constraints — material, weight limit, load path — and let the AI generate multiple options for comparison.

This is parametric CAD automation at its most powerful: the engineer focuses on decisions and trade-offs, while the AI handles the geometry. The AI-driven CAD workflow becomes a creative and analytical partnership, not just automation.

4. Smarter Iteration — Text Edits Instead of Re-Draws

With traditional CAD, changing a wall thickness means finding the right feature, modifying a sketch, and potentially fixing downstream errors. With text-to-CAD AI, you type: ‘Change the wall thickness to 8mm and add 2mm fillets on all internal edges.’ The model updates instantly.

This natural language to CAD editing approach makes the tool feel less like software and more like a conversation — which is exactly the direction AI CAD software 2026 is heading.

Best Text-to-CAD Tools for Engineers in 2026

The best text-to-CAD tools for engineers in 2026 range from dedicated AI-powered CAD generation platforms to AI assistants that plug into your existing software. Here’s a clear comparison:

Tool	Best For	Output Format	Price	Skill Level
Zoo (zoo.dev)	text-to-CAD AI mechanical prototyping, editable B-Rep models	STEP, STL, FBX, OBJ	Free / credit-based	All levels
AdamCAD	AI-generated 3D models fast 2D/3D parametric output	STL, OBJ, DXF	Free trial / paid	Beginner-friendly
Claude AI	Claude AI for CAD design: scripts, specs, docs, prompt refinement	Scripts, text, tables	Free / Pro	All levels
DraftAid	AI-driven CAD workflow: auto-dimensioning 2D drawings from 3D	DWG, DXF, PDF	Paid plans	Intermediate
CADGPT	AI CAD tools: AutoCAD scripts, LISP code, CAD Q&A	Scripts, code	Free trial / paid	Intermediate
Autodesk Fusion 360 AI	generative design AI: topology optimisation, simulation	Native F360, STEP	Subscription	Professional

Which tool is right for you depends on your goal. For quick convert text to 3D CAD model free prototyping, Zoo and AdamCAD are excellent starting points. For documentation, scripting, and design guidance, Claude AI for CAD design is the strongest pairing. For professional AI mechanical design with simulation, Autodesk Fusion 360’s generative design AI features are industry-leading.

Step-by-Step: Using Text-to-CAD AI for Product Design (Practical Workflow)

Here’s the exact workflow you can follow today to go from a product idea to a usable AI-generated 3D model — using a combination of text-to-CAD AI and Claude AI for CAD design.

6. Define your design intent — Write 3–5 sentences describing what the part does, what material it needs, and how it will be made (3D printed, CNC, injection moulded). This is the foundation of all great AI prompts for product design.
7. Refine your brief with Claude — Paste your description into Claude and ask: ‘I am designing [description]. What key dimensions, features, and constraints should I include in my prompt for a text-to-CAD AI tool?’ Claude will sharpen your brief.
8. Generate your model — Take your refined prompt to Zoo, AdamCAD, or your chosen AI CAD software 2026. Enter the prompt and generate your text to CAD model from description.
9. Review and iterate — Check the output against your requirements. Use follow-up prompts to adjust. The AI-driven CAD workflow is iterative — expect 2–4 rounds before the model is right.
10. Export and integrate — Download the file in STEP, STL, or DXF format and import into SolidWorks, Fusion 360, or your slicer. Your AI product design output is ready for prototyping or manufacturing review.
11. Document with Claude — Use Claude AI to generate your BOM, technical spec, or drawing notes from a description of the final design. This completes a full AI-driven CAD workflow from brief to documentation.

Common Mistakes When Using Text-to-CAD AI (And How to Avoid Them)

Even great technology gets misused. Here are the most common mistakes engineers and designers make with text-to-CAD AI — and the fixes:

Mistake 1: Expecting One Prompt to Do Everything Text-to-CAD AI works best iteratively. Start with the main geometry, then add features in follow-up prompts. Trying to describe a complex assembly in one 200-word prompt usually results in garbled output.

Mistake 2: Leaving Out Dimensions Make a bracket’ tells the AI nothing. Every good AI prompts for product design includes exact measurements — length, width, height, radius, thread size. Natural language to CAD requires specificity to produce accurate geometry.

Mistake 3: Not Specifying the Output Format Want a STEP file for SolidWorks? A DXF for laser cutting? Say so explicitly. AI-generated 3D models come in multiple formats — the tool won’t guess which one you need.

Mistake 4: Skipping Validation Always validate AI-powered CAD generation outputs before sending to manufacturing. Check critical dimensions, wall thicknesses, and fit tolerances. AI CAD tools are powerful assistants — but they don’t replace engineering judgment.

Mistake 5: Ignoring Claude for Design Guidance Many users jump straight to geometry tools and skip the briefing step. Claude AI for CAD design is the perfect tool to refine your brief, check your design logic, and prepare better prompts before you generate. Skipping this step produces worse outputs.

Pro Tips: Getting Expert Results from Text-to-CAD AI

Benefits of Text-to-CAD AI — At a Glance

Benefit	Traditional CAD	With Text-to-CAD AI
Concept-to-model speed	Days to weeks	Hours to minutes
Skill requirement	Months of CAD training	AI design tools — plain English
Iteration speed	Slow — rebuild each change	Fast — natural language to CAD edits
Documentation	Manual, time-consuming	Automated with Claude AI for CAD design
Design exploration	1–2 options per session	Generative design AI: 5–10+ variants
Cost (early stage)	High (drafter/engineer hours)	Low — convert text to 3D CAD model free

For the latest testing data on best text-to-CAD tools for engineers, including hands-on results from seven platforms tested in 2026, see:

We Tested 7 Text-to-CAD Tools — Xometry Pro (xometry.pro)

Conclusion:

Text-to-CAD AI is no longer experimental. In 2026, it is a practical, production-ready capability that is already saving engineers and designers hours every week — and it’s only getting better.

Whether you’re a complete beginner wanting to convert text to 3D CAD model free, a product designer speeding up AI product design iteration, or an engineer building a smarter AI-driven CAD workflow — the tools and techniques you need are available right now.

The key is combining the right AI CAD software 2026 with well-crafted AI prompts for product design. Use Claude AI for CAD design to refine your brief and your logic. Use Zoo or AdamCAD for AI-powered CAD generation. And use generative design AI thinking to explore more options than you ever could manually.

The designers who learn this skill now will be the ones leading their industries in two years.

Frequently Asked Questions

Real questions people are asking Google and AI engines about text-to-CAD AI and AI product design in 2026.

Q1. What is text-to-CAD AI and how does it work?

Text-to-CAD AI is technology that converts plain-text descriptions into editable 2D or 3D CAD models using artificial intelligence and natural language to CAD processing. You type a description including dimensions, material, and output format. The AI interprets your intent and generates a prompt to 3D model output in formats like STEP, STL, or DXF. It works best with specific, detailed prompts.

Q2. Can AI actually generate accurate CAD models from text?

Yes — for simple to medium-complexity parts, AI-generated 3D models from platforms like Zoo and AdamCAD are accurate and export-ready. Results are best when AI prompts for product design include exact dimensions, material specs, and manufacturing context. Complex multi-part assemblies are still challenging, but single-component text-to-CAD AI is production-ready in 2026.

Q3. What are the best text-to-CAD tools for engineers in 2026?

The best text-to-CAD tools for engineers in 2026 include Zoo (best for mechanical prototyping with editable B-Rep models), AdamCAD (fast 2D/3D parametric output), CADGPT (AutoCAD scripts), and Claude AI for CAD design (design briefs, documentation, prompt refinement). For enterprise-level generative design AI, Autodesk Fusion 360 leads the market.

Q4. Is there a way to convert text to 3D CAD model for free?

Yes. You can convert text to 3D CAD model free using Zoo’s free plan (1,205 credits/month) or AdamCAD’s free trial. Claude AI also offers a free tier for AI prompts for product design, design guidance, and script generation. These free tiers are more than enough to explore text-to-CAD AI and test workflows before upgrading.

Q5. How does text-to-CAD AI differ from generative design AI?

Text-to-CAD AI converts a user’s text description into CAD geometry — you define the shape. Generative design AI (like Autodesk Fusion’s Generative Design) uses constraints (loads, materials, boundaries) to automatically optimise geometry — the AI proposes the shape. Both are part of the broader AI product design revolution, but they operate at different stages of the design process.

Q6. Do I need CAD software experience to use text-to-CAD AI?

No. Text-to-CAD AI tools are specifically designed to remove the technical barrier. You describe what you need in plain English — the AI design tools handle the geometry. That said, having basic knowledge of dimensions, materials, and manufacturing processes will dramatically improve the quality of your AI prompts for product design.

Q7. How does Claude AI help with text-to-CAD and product design?

Claude AI for CAD design works as a design intelligence layer alongside dedicated text-to-CAD AI geometry tools. Claude helps you refine your design brief, write better AI prompts for product design, generate technical documentation, perform design logic reviews, and write AutoCAD scripts. It’s the thinking partner that makes your AI-driven CAD workflow more precise and more productive.

 Is CAD Drafting Taking Too Long?

If you’ve ever spent hours drawing the same part over and over, writing technical notes, or searching for the right command in AutoCAD — you’re not alone.

CAD drafting is powerful. But it’s also slow, repetitive, and frustrating, especially for beginners.

That’s where Claude AI for CAD drafting comes in — a growing part of modern AI for CAD design workflows.

Claude is an AI assistant made by Anthropic. It can help you write commands, generate design ideas, automate documentation, and even help you learn CAD faster — all through simple, plain-English conversation.

You don’t need to be a tech expert. You don’t need to know coding. You just need to know what you want to build.

What Is Claude AI and Why Should CAD Users Care?

Claude is a large language model (LLM) built by Anthropic. Think of it as a very smart assistant that understands what you type and gives you helpful, detailed responses — making it one of the most practical AI CAD tools for engineers today.

For CAD drafters, Claude is useful because:

• It understands engineering language — tolerances, dimensions, material properties, GD&T
• It can generate ready-to-use code scripts for AutoCAD (like AutoLISP or macros), supporting AutoCAD AI automation 2025
• It explains complex design concepts in simple terms, helping with AI engineering design
• It helps write professional technical documentation without starting from scratch using AI-assisted technical drawing
• It suggests design improvements based on your description

In short, Claude acts like a smart design partner sitting next to you — available 24/7, never tired, and always patient, enhancing your Claude AI mechanical design workflow.

How Claude AI Helps With CAD Drafting — Practical Use Cases

1. Generating AutoCAD Scripts and Macros

One of the most time-saving things Claude can do is write AutoCAD scripts for you. Instead of spending an hour figuring out AutoLISP syntax, you just describe what you want using prompt engineering for designers.

For example, you can type:

💬 Example Prompt: “Write an AutoLISP script that draws a rectangle 200mm x 100mm at the origin and adds a center mark.”

Claude will produce a working script. You paste it into AutoCAD and run it. Done.

This works for batch renaming layers, setting up drawing templates, inserting title blocks, and much more — a core part of AI CAD tools for engineers.

2. Creating Design Parameters and Calculations

Let’s say you’re designing a steel bracket. You need to figure out wall thickness, load capacity, or material selection. Claude can help you reason through these decisions quickly — supporting AI engineering design workflows.

Just describe your situation: the load, the material, the environment — and Claude will walk you through the engineering logic in simple steps.

This is especially helpful for beginners who are still learning how to use Claude AI for CAD modeling.

3. Writing Technical Documentation

Every CAD project eventually needs documentation — drawing notes, revision histories, part descriptions, material call-outs.

Claude can generate all of this from a short description. You tell it what the part does, and it writes clean, professional technical notes that you can paste right into your drawing — improving AI-assisted technical drawing efficiency.

4. Learning CAD Commands Faster

Stuck on a command? Don’t understand what a dimension constraint does? Instead of watching a 20-minute YouTube tutorial, ask Claude.

Claude explains things in plain English. It gives examples. It adjusts its explanation if you ask it to simplify.

It’s like having a patient teacher available every time you’re confused — making it easier to understand how to use Claude AI for CAD modeling.

5. Reviewing and Suggesting Design Improvements

You can describe your design to Claude and ask if there are any common problems or improvements. While Claude can’t see your actual CAD file, it can give general design guidance based on your description — enhancing your Claude AI mechanical design workflow.

For example: “I’m designing a plastic enclosure that needs to snap together without screws. What design features should I include?” — Claude will give you a detailed, practical answer using principles from AI for CAD design.

Step-by-Step Guide: Using Claude AI for Your CAD Drafting Workflow

Here is a simple workflow you can start using today, even if you’re a complete beginner.

1. Open Claude at claude.ai (free version available) in your browser alongside your CAD software.
2. Describe your project clearly. Include dimensions, materials, and what the part needs to do — this is key to effective prompt engineering for designers.
3. Ask for what you need — a script, a formula, documentation text, or design advice using natural language CAD commands.
4. Review Claude’s output. Read it carefully and ask follow-up questions if anything is unclear.
5. Paste or apply the output. Use scripts directly in AutoCAD, copy documentation into your drawing, or apply the design suggestion in your model.
6. Iterate. Ask Claude to revise, expand, or simplify any output until it fits your needs exactly.

That’s it. The whole process takes minutes — not hours — thanks to AI CAD software and automation.

Real-World Benefits of Using Claude AI for CAD Drafting

These aren’t just theoretical benefits. Engineers are already using AI CAD tools for engineers to do more work in less time.

Who Should Use Claude AI for CAD Drafting?

Claude AI is useful across a wide range of users. Here’s a quick breakdown:

User Type	How Claude Helps
Beginners / Students	Get explanations, learn commands, understand design concepts without overwhelming documentation
Freelance Drafters	Speed up documentation, script generation using AI for CAD design
Mechanical Engineers	Automate calculations documentation and improve AI engineering design
Architecture Drafters	Generate room schedules, material notes using AI-assisted technical drawing
Non-Engineers / Managers	Understand drawings using natural language CAD commands

Common Mistakes to Avoid When Using Claude for CAD

Like any tool, Claude works best when you use it correctly. Here are the most common mistakes — and how to avoid them.

Pro Tips: Getting the Most Out of Claude AI for CAD Work

Expert Insights

• Use the “role” technique: Start your prompt with “You are an experienced mechanical engineer…”
• Be specific with units
• Ask Claude to explain its output
• Save your best AI prompts for AutoCAD drafting
• Combine Claude with CAD plugins for better results
• Use Claude for reports and communication
• Improve your Claude AI mechanical design workflow over time

Conclusion:

CAD drafting doesn’t have to be a slow, frustrating process.

With Claude AI for CAD drafting, you have a powerful assistant that can help you write scripts, generate documentation, learn commands, and solve design problems — all through a simple conversation.

Whether you’re a beginner or an experienced engineer, adopting AI for CAD design and AI engineering design tools will transform how you work.

The best part? You can start for free, right now, at claude.ai.

Want to go deeper?Read our complete Pillar Guide: Prompt Engineering in Mechanical Engineering — the ultimate resource for using AI in every part of your engineering workflow.

Frequently Asked Questions (FAQ)

Q1. Can Claude AI actually help with CAD drafting if I’m not an engineer?

Yes — tools like AI CAD tools for engineers are beginner-friendly and designed for accessibility.

Q2. Does Claude AI work directly inside AutoCAD or SolidWorks?

Not directly, but it enhances workflows involving AI CAD software.

Q3. Is Claude AI free to use for CAD drafting?

Yes, and it’s one of the easiest ways to explore how to use Claude AI for CAD modeling.

Q4. What is the difference between Claude AI and ChatGPT for CAD work?

Both support AI engineering design, but differ in approach and strengths.

Q5. Can Claude AI write AutoLISP scripts for AutoCAD?

Yes — especially when using best AI prompts for AutoCAD drafting.

Q6. Is it safe to use AI-generated CAD scripts in professional projects?

Yes, but always validate outputs when working with AI CAD tools for engineers.

Q7. What is prompt engineering and why does it matter for CAD drafting?

It’s the process of writing better inputs to get better outputs — essential in prompt engineering for designers and modern AI for CAD design workflows.

Let me be honest with you. I’ve spent years watching engineers, smart, experienced people — spend 60% of their time on work that shouldn’t take that long. Redrawing the same shaft geometry with slightly different dimensions. Writing the same fatigue analysis report with different numbers plugged in. Setting up simulation boundary conditions that any trained model could handle in seconds.

That’s not engineering. That’s data entry with better tools.

In 2026, something shifted. AI in mechanical engineering stopped being a novelty that could write you a poem and started becoming genuinely useful in technical workflows. The engineers who understood this early aren’t working faster — they’re working on harder problems, because the repetitive layer is handled.

The key skill that separates engineers who use AI effectively from those who don’t? Prompt engineering in mechanical engineering. Knowing how to write instructions that get you useful, technically accurate output — not vague summaries you’d never use on the shop floor.

This guide covers CAD, simulation, documentation, and full AI pipelines, with real prompt examples you can actually use.

What Is Prompt Engineering? (For Engineers)

A prompt is an instruction to an AI model. That’s it. If you’ve ever written a CAD macro, defined a simulation load case, or written a test procedure, you already understand the concept: you’re giving a system a precise set of conditions and expecting a specific output. The difference is that AI works in natural language — but ‘natural’ doesn’t mean imprecise. The best prompts read more like engineering specifications than casual conversation.

Think of it this way:

• CAD command: EXTRUDE distance=50mm direction=Z material=SS316
• Engineering prompt: “Create a cylindrical shaft, diameter 50mm, length 200mm, stainless steel 316. Add 2mm chamfers on both ends. Output dimensions in SI units.”

Same precision. Different interface.

Why Engineers Need Structured Prompts

Here’s where most people go wrong. They treat AI like a search engine — throw in a vague query and hope for a useful answer.

• Vague prompt: “Design a bracket.” → Generic, unusable output. No material. No load case. No mounting pattern.
• Structured prompt: “Design a steel mounting bracket for a 5kg motor. Mounting surface: 120mm × 80mm. Bolt pattern: M8 bolts, 4-hole, 60mm × 40mm PCD. Expected load: 50N lateral, 20N vertical. Provide thickness recommendation with basic stress justification.” → Something you can take into a design review.

The pattern: be specific, define constraints, use engineering language.

Role of AI in Mechanical Engineering — The 2026 Shift

Where AI Is Actually Being Used

Stop reading about what AI might do someday. Here’s where AI in mechanical engineering is being used right now in real engineering teams:

• CAD and product design — generating initial geometry, automating parametric variations, suggesting topology optimizations.
• Simulation pre-processing — writing boundary condition setups, mesh strategy recommendations, interpreting FEA and CFD results in plain language.
• Documentation — probably the biggest win. BOMs, inspection reports, SOPs, technical data sheets. Hours of writing, cut to minutes.
• Manufacturing planning — DFM checks, tolerance stackup analysis, process selection recommendations.

From Prompting to AI Workflows

Single prompts are useful. But the real leverage comes from chained AI workflow engineering — where the output of one AI step becomes the input for the next. A design prompt generates a geometry description → that feeds a simulation setup prompt → simulation results feed a report generation prompt → report gets reviewed by the engineer. Each step is still engineer-directed. The AI doesn’t make the call — you do. But you’re making calls, not copying numbers into a template.

Prompt Engineering for CAD & Product Design

How AI Helps in the CAD Design Process

AI can’t open SolidWorks and move your mouse. Let’s be clear about that. What prompt engineering for CAD actually enables:

• Generate parametric model descriptions that you or a CAD tool can execute
• Suggest geometry based on functional requirements
• Review your design intent and flag potential issues before you model anything
• Automate repetitive variants — same component, twenty different sizes

Real Prompt Example — CAD Design

Create a 3D model specification for a cylindrical shaft with the following:

- Outer diameter: 50mm

- Length: 200mm

- Chamfer both ends: 2mm x 45 degrees

- Central keyway: 12mm wide, 5mm deep, 150mm long

- Material: 316 stainless steel

- Surface finish: Ra 0.8um on bearing seats

- Tolerance: h6 on journal diameters

Output: dimension table + GD&T callouts suitable for a manufacturing drawing

Compare that to “design a shaft.” The structured version gives you something you can take into a design review.

The Text-to-CAD Concept

Text-to-CAD is still maturing, but the trajectory is clear. Tools are moving toward accepting engineering specifications in natural language and generating parametric geometry directly. The underlying skill — writing specifications that are complete and unambiguous — is the same skill that makes you a good engineer. Prompt engineering for CAD just gives it a new application.

You may like: Claude AI for CAD Drafting: The Smarter Way to Design Faster in 2026

Prompt Engineering for Simulation & Analysis

Use Cases That Are Actually Ready

Not everything in simulation is AI-ready. But these areas are solid for AI for simulation and documentation:

• Structural analysis setup — defining loads, constraints, mesh strategy recommendations
• Thermal analysis — boundary conditions, material properties, solver settings guidance
• Results interpretation — explaining von Mises stress plots, identifying failure modes in plain language
• Load combination generation — creating the matrix of cases for fatigue or safety factor checks

Real Prompt Example — FEA Setup

Set up a structural analysis for the following scenario:

Component: steel I-beam (S275 grade)

Geometry: 2000mm length, 200mm x 100mm x 8mm web, 10mm flanges

Loading: 500N point load at midspan, applied vertically downward

Boundary conditions: simply supported — pinned at both ends

Required outputs:

  - Maximum bending stress

  - Mid-span deflection

  - Safety factor vs yield (target SF >= 2.5)

Provide: hand calculation verification + recommended mesh density for FEA

This is the kind of prompt that gets you something reviewable. Sanity check the hand calc, run the FEA, compare — and if they diverge, you know to look deeper.

Benefits in Practice

The time savings in simulation aren’t in the solver — it’s in the setup and interpretation. A junior engineer might spend half a day getting boundary conditions right and another half-day writing up what the results mean. A well-structured AI for simulation and documentation workflow cuts both significantly, freeing that engineer to spend time on decisions that require actual judgment.

AI for Engineering Documentation — The Hidden Gold

Nobody talks about this enough. Documentation is where AI pays for itself fastest.

What Can Be Automated

• Technical reports — test reports, design review summaries, failure analysis write-ups
• Bills of Materials — formatted, cross-referenced, with material callouts
• Standard Operating Procedures — step-by-step process docs from a rough description
• Inspection plans — characteristic-by-characteristic inspection criteria from a drawing
• Engineering Change Notices — structured change documentation with revision history

Real Prompt Example — Technical Report

Generate a technical report for the following mechanical assembly:

Assembly: Pump impeller, centrifugal, single-stage

Material: CA6NM stainless steel casting

Manufacturing process: Investment casting + CNC machining of wearing surfaces

Key dimensions: 320mm OD, 8 vanes, 45 degree vane angle

Report must include:

1. Material specification with relevant ASTM standard

2. Manufacturing process description and key tolerances

3. Surface finish requirements by zone

4. Pressure test requirements (hydrostatic at 1.5x working pressure)

5. Safety considerations for handling and installation

6. Quality acceptance criteria

Format: Section headings, metric units, formal engineering tone

Draft in 30 seconds. Review and revise in 10 minutes. Compare that to writing from scratch.

AI Workflows in Mechanical Engineering — The Real Game Changer

Traditional Workflow vs AI Workflow

Building a Real AI Workflow — Complete Example

Here’s a complete AI workflow engineering example — a bracket design through to documentation:

Step 1 — Design Prompt:

Specify geometry for a cantilever bracket:

– Wall-mounted, single bolt row, M10 x 4 bolts

– 200mm projection

– Supports 80kg static load (785N) at tip

– Material: mild steel, S235

Output: recommended plate thickness, weld size at wall

Step 2 — Simulation Prompt (using output from Step 1):

Verify the following bracket by hand calculation:

– 10mm plate, 200mm cantilever, 785N tip load

– Fixed at wall (full restraint)

Calculate: maximum bending stress, tip deflection

Compare against S235 yield (235MPa), target SF = 2.0

Step 3 — Documentation Prompt:

Write a one-page design verification note for the bracket described above.

Include: design intent, load assumptions, stress calculations (insert values),

safety factor achieved, material spec, weld inspection requirement.

Format: engineering memo, signed/dated fields at footer.

Three prompts. One coherent output. The engineer reviews each step, catches errors, and makes judgment calls — not the arithmetic.

Claude AI vs Other AI Tools for Engineers

Where Claude AI Engineering Workflows Excel

Claude AI engineering workflows handle long, complex technical context better than most general-purpose models. If you’re writing a prompt that includes a full component specification, multiple load cases, material properties, and output formatting requirements — Claude maintains that context reliably through the response. It’s also strong on structured outputs — tables, numbered procedures, formatted reports — and it reasons through engineering problems step by step rather than jumping to answers, which matters when you need to audit the logic.

When to Use Other Tools

• CAD-specific AI tools (SolidWorks, Fusion) — better for direct geometry manipulation. They have direct API access to the CAD kernel.
• Simulation software AI (ANSYS, Simcenter) — better for direct solver interaction.

The pattern: use domain-specific tools for execution, use Claude AI engineering for reasoning, structuring, and documentation.

Best Practices for Prompt Engineering — What Actually Works

Five Rules That Matter

1. Be specific about units, standards, and formats. “Metric units, SI, ASTM standards, decimal notation” should be in every engineering prompt.
2. Define constraints before asking for output. Put loads, materials, geometry, and standards compliance before your question.
3. Ask for justification, not just answers. Add “show the calculation” or “explain the reasoning” to any prompt where you need to audit the output.
4. Use engineering vocabulary. “Von Mises stress,” “fixed-fixed boundary condition,” “h6 tolerance” — use correct terms. Vague language produces vague responses.
5. Iterate deliberately. First output is rarely final. Treat it like a first draft from a junior engineer — review, identify gaps, write a refined prompt.

Common Mistakes Engineers Make

• Writing vague prompts and blaming AI. If your prompt doesn’t have enough constraints, the output can’t be better than random.
• Ignoring units and standards. Imperial vs metric. ASTM vs BS vs DIN. This kills usability fast.
• Expecting perfect output on the first try. AI is a first-pass tool, not a stamp-and-approve tool. Build review into your workflow.
• Not verifying against hand calculations. Any structural or thermal result from AI should be sanity-checked analytically. You’re the engineer of record.
• Using it in isolation. The power is in chained workflows. A full design-simulate-document pipeline saves hours.

Future of Prompt Engineering in Mechanical Engineering

What’s Coming That’s Actually Credible

• AI agents for engineering tasks — systems that take a high-level objective and autonomously run geometry check, stress calc, documentation — flagging anything that needs engineer review.
• Multimodal design — AI that reads your 2D drawings or 3D screenshots and responds to them. Some tools already do this; quality will improve significantly.
• Context engineering — moving beyond single prompts to persistent engineering contexts. AI that knows your company’s standard materials, preferred suppliers, design standards, and past designs.
• Autonomous simulation pre-processing — prompt-driven mesh generation, load case setup, and solver configuration that outputs directly to your FEA/CFD tool. The gap between “describing” and “running” a simulation is closing.

Conclusion — Engineers Who Learn This Will Win

Prompt engineering in mechanical engineering isn’t magic, and it doesn’t replace engineering judgment. What it does is eliminate the overhead — the time spent on setup, documentation, and repetitive analysis that adds no intellectual value to your work.

The engineers who master AI workflow engineering in the next two years will have a significant competitive advantage. Not because they’re using AI, but because they’ll spend more time on the problems that actually require an engineer — the judgment calls, the creative design work, the decisions that carry consequences.

Start with one workflow. Pick prompt engineering for CAD, simulation, or documentation — whichever eats the most of your time right now. Build a handful of well-structured prompts. Iterate them. Build a library. Then expand.

The shift from manual to AI-assisted engineering doesn’t happen all at once. It happens one well-written prompt at a time.

Frequently Asked Questions (FAQs)

Q1: Can AI actually generate usable CAD models from text prompts?

Text-to-CAD is improving rapidly. In 2026, tools like Autodesk’s AI integration and standalone text-to-3D platforms can generate geometry from structured prompts. Output quality scales directly with prompt precision. Complex assemblies still require significant engineer review and refinement — but the starting point is dramatically faster.

Q2: Is prompt engineering a real skill worth learning for engineers?

Yes — it’s becoming as foundational as knowing how to write a good test spec or engineering memo. Vague prompts return vague results. Engineers who invest in structured prompt techniques consistently get higher-quality, usable AI output compared to those who treat it like a search engine.

Q3: Will AI replace mechanical engineers?

No — and the reason is practical, not philosophical. Engineering involves accountability, judgment under uncertainty, and design decisions with safety consequences. AI accelerates the repetitive analytical layer. It doesn’t replace the engineer who signs off on the design. The risk: engineers who don’t learn AI tools may lose ground to those who do.

Q4: Which AI is best for engineering documentation and simulation?

For documentation, report writing, and analytical reasoning — Claude AI engineering workflows perform well due to strong context handling and structured output quality. For direct CAD manipulation and simulation execution, domain-specific tools embedded in ANSYS, SolidWorks, or Fusion 360 are better. Use them in combination, not competition.

Q5: How do I start using prompt engineering in my current engineering role today?

Start with documentation — it has the lowest risk and highest immediate payoff. Take your next inspection report, technical memo, or SOP and draft a structured prompt including the component description, key specifications, required sections, and output format. Review critically, iterate, and refine. Once you have two or three reliable prompt templates, move to simulation or design specification work.
