If you’re still manually rebuilding 3D models from old 2D drawings, you’re spending hours on work that modern tools can now do in minutes. Automating 2D to 3D CAD conversion for CNC machining means using software, rather than a person at a keyboard, to turn a flat drawing into a solid model a CAM program can actually machine from.
QUICK ANSWER Yes, you can automate 2D to 3D CAD conversion using one of four methods: native CAD conversion wizards, dedicated conversion software, AI-based reconstruction, or custom API scripting. For CNC machining specifically, the output needs to be a true parametric STEP solid, not just a visual mesh, and it should always be checked for dimensional accuracy before it goes to CAM.
This guide covers all four automation methods side by side, which file format actually works for CNC, how accurate automated conversion really is, and a step-by-step process to get from a flat drawing to a CNC-ready 3D model without wasting a machining run on a bad file.
What Does It Mean to Automate 2D to 3D CAD Conversion?
Automating 2D to 3D CAD conversion means letting software interpret a 2D drawing’s lines, arcs, and dimensions, and reconstruct it as a three-dimensional solid, without an engineer manually redrawing every feature by hand.
This matters specifically for CNC machining because CAM software doesn’t cut from a 2D drawing. It needs a 3D solid model to calculate toolpaths, cutter clearances, and machining operations. If your only source is an old drawing, a scanned PDF, or a customer sketch, automated conversion is what bridges that gap without a full manual rebuild.
4 Ways to Automate 2D to 3D CAD Conversion
There isn’t one single tool that does this for everyone. The right method depends on your drawing volume, your budget, and how much accuracy you need. Here are the four real approaches used in production today.
Automation Method
How It Works
Best For
Main Limitation
Native CAD conversion tools
Built-in wizards inside SolidWorks, Autodesk Inventor, Fusion 360, and Siemens NX that read a 2D DXF/DWG sketch and extrude, revolve, or auto-sequence it into a solid model
Teams already standardized on one CAD platform who need a fast, in-house way to rebuild simple to moderately complex parts
Struggles with parts that have implied features (fillets, complex holes) not explicitly drawn on every view
Dedicated CAD conversion software
Standalone tools such as Scan2CAD or Aspose.CAD that specialize in reading raster images, PDFs, or scanned drawings and outputting clean, editable vector or solid geometry, often with batch and API automation
Digitizing large archives of legacy paper drawings or scanned PDFs at scale, especially for spare-parts and MRO workflows
Output is typically a clean 2D vector file or basic solid, still needs review before it’s treated as production CAD
AI and deep-learning reconstruction
Machine learning models trained to recognize geometric features across multiple 2D views (or even photos) and infer a 3D shape, an active and fast-moving research area as well as a growing commercial category
Fast first-pass geometry when the original CAD file is lost but a drawing, PDF, or photo still exists, and speed matters more than final precision
Output is usually a mesh or an unverified solid: no GD&T, no material data, and dimensions that must be checked before machining
Scripting and API-driven automation
Custom scripts built on CAD APIs (NX Open, SolidWorks macros, Fusion 360’s Python API) that batch-process large sets of similar 2D drawings into 3D models using a repeatable, rule-based logic
Manufacturers with high volumes of similar, well-standardized drawings, such as a family of brackets or fasteners, where the same rules apply every time
Requires upfront engineering investment to build and maintain the script; not cost-effective for one-off or highly varied parts
Feature Recognition vs. AI Mesh Generation: Know the Difference
This is the distinction most articles on this topic skip, and it’s the one that actually matters most. Feature recognition (used by native CAD tools and dedicated conversion software) analyzes geometric intent, holes, pockets, fillets, and rebuilds them as true, editable, dimensioned solid features.
AI mesh generation (used by many newer AI tools) predicts an approximate 3D shape from limited 2D input. The result often looks convincing on screen, but it’s typically a mesh with no feature history, no tolerances, and no guarantee the dimensions match the original drawing exactly. Recent peer-reviewed research on deep-learning-based reconstruction confirms this gap is a structural limitation of current methods, not just a rough edge that will disappear with the next software update (more on that in the accuracy section below).
Which File Format Actually Works for CNC Machining?
Automation only helps if the output file is something your CAM software can actually use. Here’s how the common formats stack up.
File Format
Geometry Type
Good for CNC Machining?
Why
STEP (.step/.stp)
True parametric/B-rep solid
Yes , the standard choice
Preserves exact solid geometry that CAM software can read directly for toolpath generation
DXF/DWG
2D vector lines and arcs
Only for 2D profile cutting
Fine for laser, waterjet, or simple 2D milling; not a 3D solid on its own
STL
Triangulated mesh (approximation)
Not recommended for milling
Approximates curved surfaces with flat facets, which can introduce dimensional error on tight-tolerance features
IGES (.igs)
Surface/solid model
Usable, but aging
Still supported by most CAM systems, though STEP has largely replaced it as the preferred neutral format
If a conversion tool only offers STL output, treat it as a visualization step, not a finished CNC-ready file. For milled or turned parts, always push for a STEP solid before it goes anywhere near a CAM program.
Step-by-Step: From 2D Drawing to CNC-Ready 3D Model
Choose the right automation method: match the method to your situation using the table above, don’t default to whatever tool you already own if it’s the wrong fit for the job.
Run the automated conversion: feed in the cleanest source file available, native DXF/DWG beats a scanned PDF, and a scanned PDF beats a blurry photo.
Verify every critical dimension: cross-check the converted model’s key dimensions against the original drawing before trusting it, especially on mating features and hole positions.
Add tolerances and GD&T: automated conversion rarely carries tolerance information forward, so this has to be added manually to define acceptable variation for the machinist.
Run a design-for-manufacturability (DFM) check: confirm the geometry is actually machinable, watch for internal corners, deep pockets, and wall thicknesses your specific CNC setup can’t reliably hold.
Export to STEP and import into CAM: generate toolpaths only once the solid model has passed the checks above, not directly from the raw conversion output.
How Accurate Is Automated 2D-to-3D Conversion, Really?
Accuracy depends entirely on the method and the source drawing quality. Native feature-recognition tools working from a complete, well-dimensioned DXF file can rebuild simple to moderately complex parts with very high fidelity, because they’re following explicit geometric rules, not guessing.
AI-based reconstruction is a different story. It’s genuinely useful for getting a fast first-pass shape when the original CAD file is gone and only a drawing or photo survives, but current research is clear that the output should be treated as a reference model, not production-ready CNC data, until an engineer verifies it. A 2026 peer-reviewed study on deep-learning-based 2D-to-3D conversion found that combining automated feature recognition with structured verification meaningfully reduced dimensional errors compared to AI inference alone, reinforcing that human review is still the difference between a usable model and a expensive machining mistake.
Common Mistakes to Avoid
Sending an STL straight to CAM: meshes approximate curves with flat facets, which can create real dimensional error on toleranced features.
Trusting AI-generated geometry without verification: a visually convincing model is not the same as a dimensionally accurate one.
Skipping GD&T entirely: without tolerance information, a machinist has no way to know what deviation is actually acceptable.
Using one tool for every job: a batch-scripting solution built for a family of brackets won’t serve you well for a single, highly custom part, and vice versa.
Assuming automation removes the need for review: automation speeds up the first draft; it doesn’t replace an engineer’s final check.
Frequently Asked Questions
Q: Can AI convert a 2D drawing into a CNC-ready 3D model?
AI can generate a 3D shape from a 2D drawing quickly, but the output is usually a mesh that needs dimensional verification before it’s safe to machine from. Treat it as a fast first draft, not a finished CNC file.
Q: What is the best file format for CAD to CNC conversion?
STEP is the best format for CNC milling and turning because it preserves true, editable solid geometry. STL is fine for 3D printing but can introduce dimensional error on machined parts.
Q: How accurate is automated 2D-to-3D CAD conversion?
Rule-based feature recognition from a clean, complete drawing is typically very accurate. AI-based reconstruction is faster but less reliable and should always be verified against the original dimensions before use.
Q: What software automatically converts 2D CAD drawings to 3D models?
Simutecra 2D CAD to 3D CAD, SolidWorks, Autodesk Inventor, and Fusion 360 include built-in conversion tools, while Scan2CAD and similar dedicated software specialize in converting scanned or legacy 2D drawings at scale.
Q: Do I still need an engineer to review an automatically converted 3D model?
Yes. Automation speeds up the initial rebuild, but dimension verification, tolerance assignment, and a manufacturability check still require engineering review before the file goes to CAM.
Conclusion
Automating 2D to 3D CAD conversion for CNC machining can save real time, but only if you match the method to the job and never skip verification. Use native or dedicated feature-recognition tools when accuracy matters most, reach for AI reconstruction when speed matters more than precision and the file can be reviewed afterward, and always export a true STEP solid, with tolerances added, before it reaches your CAM software.
Choosing the best CAD software for engineers is one of the most consequential technical decisions a professional, a team, or a company makes. The wrong choice does not just cost money, it costs time, efficiency, compatibility, and career development. Switching between major CAD platforms mid-career or mid-project is painful and expensive. Getting the decision right from the start matters.
The problem is that most CAD software comparison guides are either too generic (a list of tools with brief descriptions), too narrow (focused on one engineering discipline), or openly biased (written by a CAD vendor or a site earning commission on software referrals). None of them answer the questions engineers actually need answered: Which CAD tool is dominant in my specific industry? What does it actually cost for a small team? Which tools will make me more employable? When does it make sense to use free software rather than paid? What does each tool genuinely do badly?
This guide answers all of those questions honestly. It covers the 10 most important CAD software tools for engineers in 2026, with an industry-specific recommendation matrix across 8 engineering disciplines, a verified pricing comparison table, an honest assessment of each tool’s weaknesses alongside its strengths, career and job market data, a free vs paid decision guide, and a full FAQ section. No affiliate links. No vendor influence. Just the data.
Quick Recommendations by Use Case: Mechanical/product design: SolidWorks (mid-market) or CATIA/NX (enterprise). 2D drafting and documentation: AutoCAD. Startups and budget-conscious teams: Fusion 360. Aerospace and automotive: CATIA or Siemens NX. Civil and infrastructure: AutoCAD Civil 3D or Bentley MicroStation. Free alternative: FreeCAD or Onshape (free tier). The full guide below explains why.

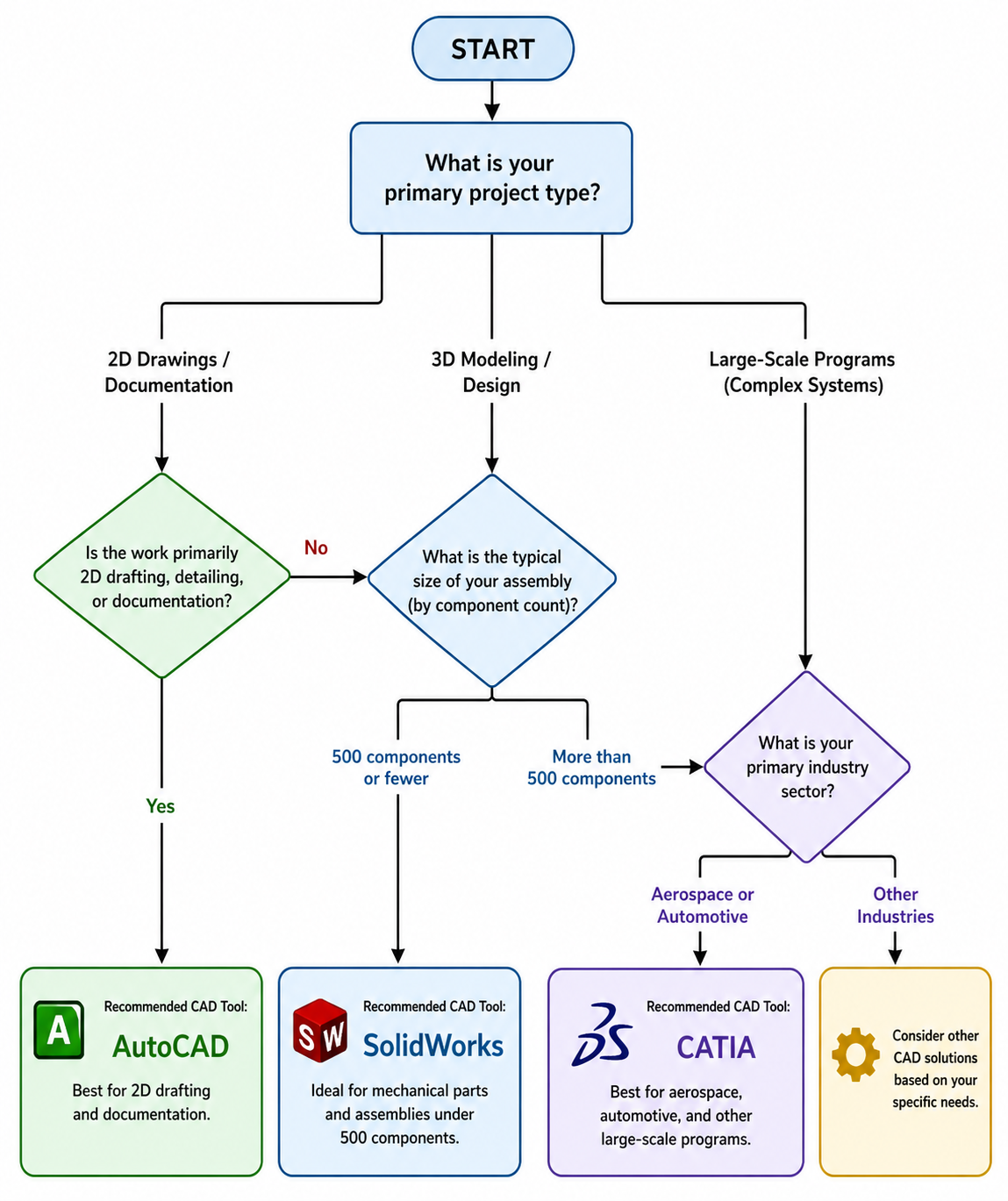

How to Choose CAD Software: The Four Deciding Factors
Before evaluating individual tools, clarifying four fundamental factors eliminates most of the complexity in choosing CAD software for engineers. Most engineers who end up with the wrong tool failed to prioritise these questions before starting their evaluation.
Factor 1: Industry and Employer Standard
The single most important factor is not which CAD tool is objectively best, it is which tool dominates your target industry and the employers you want to work for. Aerospace companies overwhelmingly use CATIA or NX. Automotive OEMs use CATIA, NX, or Creo depending on geography. Most mechanical engineering product development companies use SolidWorks. Civil and infrastructure projects use AutoCAD Civil 3D or Bentley. Knowing your industry’s standard tool and prioritising proficiency in it is the most career-efficient approach in almost every case.
Factor 2: 2D Documentation vs 3D Parametric Modelling vs Both
Many engineers, particularly those working in construction, infrastructure, or traditional manufacturing, primarily need 2D technical drawing and documentation capability. For them, AutoCAD or AutoCAD LT is sufficient and appropriate. Engineers involved in product development, component design, or manufacturing process design almost always need 3D parametric modelling capability (SolidWorks, Fusion 360, NX, CATIA, Creo). Some roles require both, in which case AutoCAD for documentation combined with a parametric 3D tool for modelling is a common workflow.
Factor 3: Team Size and Budget
CAD software costs vary by a factor of 20 to 30 across the tools in this guide. Enterprise tools (CATIA, NX) are priced at $10,000 to $80,000+ per seat per year and are designed for large engineering organisations with IT infrastructure, PLM integration, and dedicated CAD administration. They deliver exceptional value at scale but are completely impractical for individuals or small teams. Mid-market tools (SolidWorks, Creo, Inventor) are priced at $2,000 to $10,000 per seat per year. Accessible tools (Fusion 360, Onshape) are priced at $500 to $2,000 per seat per year and are available free for qualifying users. Matching the tool to the budget reality is as important as matching it to the technical requirement.
Factor 4: Collaboration Model (Desktop vs Cloud)
Traditional desktop CAD tools (AutoCAD, SolidWorks, CATIA, NX, Creo) require local installation and a dedicated hardware workstation. They offer maximum performance and the most mature feature sets, but file sharing and version control require PDM/PLM infrastructure. Cloud-native tools (Onshape, Fusion 360, Shapr3D) store all data in the cloud and allow real-time collaboration without additional infrastructure. They work on any modern computer and allow mobile access. The trade-off is that they require reliable internet connectivity and have some limitations in handling very large assemblies or complex simulations compared to desktop tools.
CAD Software Pricing Comparison Table 2026
The following pricing data is sourced from official vendor pricing pages and publicly available subscription information as of 2026. Enterprise pricing for CATIA and NX is highly variable based on contract size and varies significantly by configuration, ranges are indicative only.
CAD Software
Entry Price (per seat/year)
Full Professional
Student / Education
Free Tier Available?
Deployment
AutoCAD
$2,230/year or $195/month
Same (single product)
Free via Autodesk Education
30-day trial
Desktop + Web + Mobile
AutoCAD LT
$570/year or $55/month
Same (2D only)
Free via Autodesk Education
30-day trial
Desktop + Web
SolidWorks (Standard)
~$2,620/year (subscription)
SolidWorks Premium ~$5,500+/year
SOLIDWORKS for Students (low cost)
No (trial only)
Desktop
Autodesk Fusion 360
$545/year (Personal/Startup)
~$795/year (commercial)
Free for students/educators
Yes, personal/startup free tier
Cloud + Desktop
CATIA (3DEXPERIENCE)
$10,000-$80,000+/year (enterprise, varies)
Configured per enterprise contract
Academic access via institutions
No
Desktop + Cloud (3DX)
Siemens NX
$8,000-$70,000+/year (enterprise, varies)
Configured per enterprise contract
NX for Students (free)
No (30-day trial)
Desktop
PTC Creo
$2,500-$15,000+/year (varies by module)
Creo Advanced or Ultimate
PTC Education licence
No (30-day trial)
Desktop
Autodesk Inventor
$2,545/year (subscription)
Included in Product Design Suite
Free via Autodesk Education
30-day trial
Desktop
Onshape
$1,500/year (Standard)
Professional: $2,100/year
Free for students/educators
Yes, free public plan
Cloud-native (browser)
Bentley MicroStation
~$3,500/year (subscription)
Enterprise via Bentley contract
Academic/student licences available
No
Desktop
FreeCAD
Free (open source)
Free (open source)
Free
Yes, fully free
Desktop (cross-platform)
Note: Pricing is indicative based on publicly available information as of 2026. Enterprise contracts for CATIA, NX, and Creo are negotiated individually and typically include volume discounts, support, training, and PLM integration. Always verify current pricing directly with vendors before budgeting.

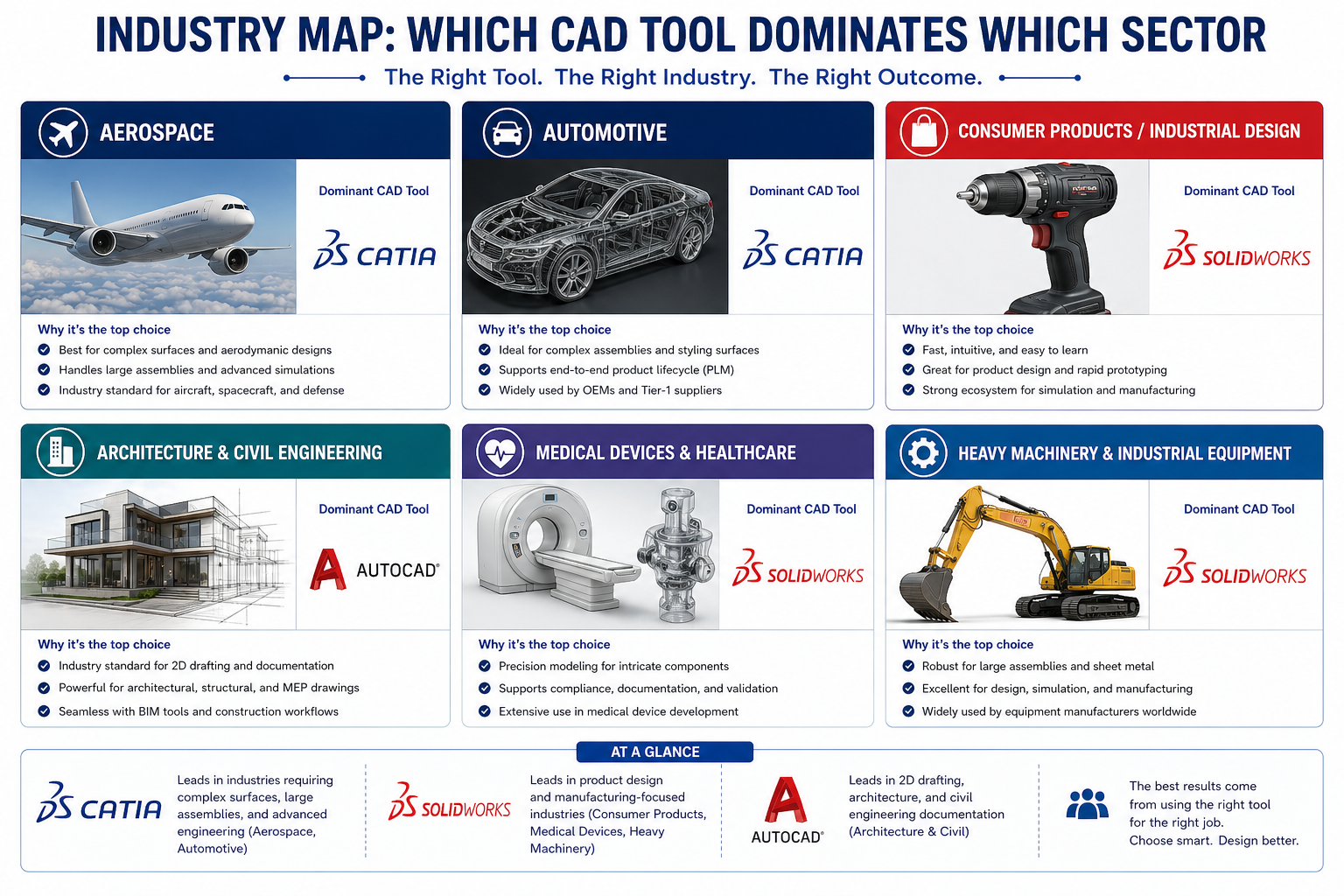

Industry-Specific Recommendation Matrix
This matrix reflects real industry adoption data based on job posting frequency, employer survey data, and engineering community usage patterns as of 2026. The Primary Tool is the tool most commonly required by employers in that sector. The Secondary Tool is a strong alternative or complement.
Engineering Discipline
Primary CAD Tool
Secondary Tool
Why This Tool Dominates
Key Reason to Learn It
Mechanical / Product Design
SolidWorks
Autodesk Inventor or Fusion 360
Market-leading parametric 3D tool for product development. Required in over 65% of mechanical engineering job postings.
Most in-demand parametric CAD skill globally for mid-market mechanical engineering roles
Aerospace and Defence
CATIA (Dassault)
Siemens NX
Airbus, Boeing, Dassault Aviation, and most global aerospace OEMs standardise on CATIA or NX. Deep surface modelling and systems engineering capability.
Essential for careers in commercial aerospace, space vehicles, and high-end defence engineering
Automotive (OEM)
CATIA or Siemens NX
Creo (PTC)
European and Asian OEMs (BMW, VW, Toyota) use CATIA; GM uses NX. Body-in-white, surface design, and digital mockup drive tool selection.
Fusion 360’s CAD+CAM integration is uniquely valuable for manufacturing engineers who also oversee machining
Tool 1: AutoCAD, The Universal Standard for Documentation
AutoCAD has been the global standard for technical drawing and documentation for over 40 years, and in 2026 it remains the most widely deployed CAD software in the world by active users. Its DWG file format is the universal language of engineering drawings, readable by virtually every other CAD system ever made.
What AutoCAD Does Best
2D technical drafting: No other tool matches AutoCAD for 2D drawing production speed, precision, and compatibility across disciplines.
Drawing documentation and annotation: Dimensions, tables, text, hatching, and plotting workflows are more mature than any competing platform.
Universal compatibility:DWG file format compatibility with every other CAD tool, CNC machine, fabricator, and engineering system.
Industry toolsets: The AutoCAD subscription includes specialist toolsets for Architecture, Mechanical, Electrical, Civil, MEP, Plant, and Map 3D at no extra cost.
Where AutoCAD Falls Short
3D parametric modelling: AutoCAD’s 3D solid modelling is functional but non-parametric. It cannot match SolidWorks or Fusion 360 for feature-based part design or assembly management.
Simulation and analysis: No built-in FEA or CFD capability. Engineers needing simulation must use separate tools (ANSYS, SolidWorks Simulation, Fusion 360 Simulation).
Cost: At $2,230/year, AutoCAD is expensive for 2D-only work when AutoCAD LT ($570/year) or free alternatives may suffice.
Best For: Civil engineers, architects, structural detailers, electrical designers, MEP engineers, manufacturing documentation engineers, and any professional whose primary output is 2D technical drawings. The single most employable CAD skill across the broadest range of engineering disciplines.
Tool 2: SolidWorks, The Mechanical Engineering Workhorse
SolidWorks by Dassault Systemes is the dominant parametric 3D CAD tool in the mid-market mechanical engineering sector. It holds approximately 30 percent of the global CAD market by paid seats and is the most frequently required 3D CAD skill in mechanical engineering job postings globally.
What SolidWorks Does Best
Feature-based parametric 3D modelling: SolidWorks’ parametric modelling engine is mature, stable, and highly efficient for mechanical component design. Changes propagate automatically through part, assembly, and drawing.
Assembly management: Large assembly tools (SpeedPak, Lightweight mode, Assembly Visualize) allow engineers to work with complex multi-component products efficiently.
Integrated simulation (SolidWorks Simulation): FEA structural analysis, fluid flow, thermal analysis, and drop test simulation are available as integrated add-ons, reducing the need for separate simulation tools.
Sheet metal and weldment design: Dedicated sheet metal and weldment workflows are among the best in class for manufacturing-focused mechanical engineers.
Ecosystem depth: PDM (Product Data Management), Inspection, Plastics, and Electrical add-ons provide a comprehensive product development platform.
Where SolidWorks Falls Short
Cost for small teams: At ~$2,620/year per seat for Standard, SolidWorks is not the most budget-friendly option for freelancers or very small teams. Fusion 360 provides substantial capability at a fraction of the cost.
Cloud and collaboration: Traditional desktop-first architecture. Real-time collaboration requires additional PDM/PLM infrastructure investment.
Surface modelling for Class A surfaces: SolidWorks’ surfacing tools are good but not as sophisticated as CATIA or NX for consumer product aesthetics and Class A automotive surfaces.
3DEXPERIENCE transition: Dassault’s push toward the 3DEXPERIENCE platform (cloud-based SolidWorks) has created some user confusion and concerns about transition costs.
Best For: Mechanical engineers, product designers, manufacturing engineers, tooling designers, R&D engineers in product development companies, and any engineer whose primary work involves 3D mechanical component and assembly design at the mid-market level.
Tool 3: Autodesk Fusion 360, Best All-in-One for Smaller Teams
Autodesk Fusion 360 occupies a unique and increasingly important position in the CAD market: it is the only platform that provides integrated 3D CAD, CAM (computer-aided manufacturing), CAE (simulation), electronics PCB design, and generative design in a single cloud-based subscription, at a price point accessible to startups, small businesses, and individual engineers.
What Fusion 360 Does Best
Integrated CAD + CAM: Fusion 360 is the most capable integrated CAD+CAM platform available at its price point. Engineers who both design components and programme their machining (CNC routing, turning, milling) in a single workflow gain significant productivity advantages.
Generative design: Fusion 360 includes generative design tools that use AI to explore optimised geometries based on engineering constraints, a capability that typically requires much more expensive enterprise software.
Cloud collaboration: All project data lives in Autodesk cloud. Team members can access, view, and comment on designs from any device without PDM infrastructure.
Price-to-capability ratio: At ~$545/year (or free for qualifying personal/startup use), Fusion 360 provides more integrated capability than any comparable subscription at this price.
Where Fusion 360 Falls Short
Large assembly performance: Fusion 360 struggles with assemblies above ~1,000 components compared to desktop tools like SolidWorks or NX.
Industry acceptance: Fusion 360 is well-accepted in manufacturing, consumer products, and startups, but is rarely seen in aerospace, automotive OEM, or large industrial engineering environments where enterprise tools are mandated.
Offline capability: While Fusion 360 can work offline, its cloud-dependency means reduced functionality without internet access.
Drawing documentation maturity: Fusion 360’s 2D drawing creation is improving but still less mature than AutoCAD or SolidWorks for complex drawing documentation.
Best For: Startups, product development startups, small manufacturing businesses, engineers who both design and machine parts, hobbyists and makers wanting professional-grade tools, and engineers in roles where CAD+CAM integration is more valuable than enterprise assembly management.
Tool 4: CATIA, Enterprise Aerospace and Automotive Standard
CATIA (Computer-Aided Three-Dimensional Interactive Application) by Dassault Systemes is the most powerful and comprehensive CAD platform in the world for complex surface modelling, large-scale assembly management, and systems engineering. It is the primary CAD tool at Airbus, Boeing (partially), Dassault Aviation, Renault, PSA Peugeot-Citroen, and dozens of other major aerospace and automotive OEMs.
What CATIA Does Best
Class A surface modelling: CATIA’s FreeStyle and Generative Shape Design workbenches are the gold standard for creating mathematically perfect curvature-continuous surfaces for aerospace exteriors, automotive body panels, and premium consumer products.
Large-scale digital mockup: CATIA handles assemblies of tens of thousands of components (entire aircraft or vehicle programs) efficiently through dedicated DMU Navigator and interference checking tools.
Knowledge-based engineering (KBE): CATIA’s product knowledge base and engineering rules engine allow companies to encode design standards, automate repetitive design tasks, and ensure design compliance at scale.
Systems engineering (SysML/MBSE): Through 3DEXPERIENCE platform integration, CATIA supports model-based systems engineering for complex multidisciplinary products.
Where CATIA Falls Short
Cost and accessibility: CATIA is priced for large enterprises and is effectively inaccessible to individuals, small businesses, or companies without a significant CAD budget. Student access is limited.
Learning curve: CATIA has the steepest learning curve of any mainstream CAD tool. The workbench-based interface and the breadth of modules require significant dedicated training investment.
Overkill for most mechanical engineering: For the vast majority of mechanical engineering work, CATIA’s power is far beyond what is needed and its complexity is a productivity cost rather than a benefit.
Who Should NOT Use CATIA: Small and medium-sized engineering businesses, individual engineers, and anyone outside aerospace, automotive OEM, or complex industrial systems engineering. SolidWorks provides 90 percent of CATIA’s utility for typical mechanical engineering at a fraction of the cost and complexity.
Tool 5: Siemens NX, The High-End Manufacturing Platform
Siemens NX (formerly Unigraphics NX) is Siemens Digital Industries Software’s flagship CAD/CAM/CAE platform, competing directly with CATIA at the enterprise end of the market. NX is the CAD standard at General Motors, BMW, Volkswagen (partially), Lockheed Martin, and many Tier 1 automotive suppliers.
What Siemens NX Does Best
Integrated CAD/CAM/CAE at scale: NX provides seamlessly integrated 3D design, advanced manufacturing programming, and simulation within a single platform, eliminating the file translation issues that occur when using separate tools for each stage.
Advanced manufacturing: NX CAM is one of the most powerful and widely used CNC programming environments for 5-axis machining, turning, and EDM in high-precision manufacturing.
Convergent modelling: NX’s Convergent Modelling technology allows engineers to work directly with mesh (scan) data alongside B-rep models, useful for reverse engineering and as-built modelling.
PLM integration (Teamcenter): NX integrates natively with Siemens Teamcenter PLM, the most widely deployed PLM system in manufacturing industry.
Best For: Automotive OEM and Tier 1 suppliers, precision manufacturing companies, aerospace and defence companies using Siemens infrastructure, and large industrial equipment manufacturers requiring integrated CAD-CAM-PLM workflows.
Tool 6: PTC Creo, Strong in Industrial and IoT Engineering
PTC Creo (formerly Pro/ENGINEER) is PTC’s parametric 3D CAD platform, historically strong in industrial machinery, consumer products, and medical devices. Creo is particularly notable for its advanced surfacing capabilities, its model-based definition (MBD) tools, and its ThingWorx IoT integration for smart connected products.
What Creo Does Best
Industrial machinery and heavy equipment: Creo’s robust assembly management and mechanism simulation tools make it particularly well-suited for complex industrial machinery design.
Model-Based Definition (MBD): Creo’s MBD tools for embedding 3D annotations (GD&T, tolerances, surface finish) directly in the 3D model as replacements for 2D drawing views are among the most mature in the industry.
IoT and smart product design: Creo’s integration with PTC’s ThingWorx IoT platform is unique among CAD tools, allowing engineers to design products and their IoT connectivity simultaneously.
Best For: Industrial machinery, heavy equipment, oil and gas equipment, medical devices, and companies with existing PTC Windchill PDM infrastructure.
Tool 7: Autodesk Inventor, SolidWorks Alternative Within the Autodesk Ecosystem
Autodesk Inventor is Autodesk’s parametric 3D mechanical CAD tool, occupying a similar market position to SolidWorks but with the advantage of native compatibility with AutoCAD DWG files and the rest of the Autodesk product suite. It is particularly strong in the UK, Australia, and markets where AutoCAD adoption is high and a natural upgrade path to 3D is valued.
Inventor is often bundled with AutoCAD in the Autodesk Product Design and Manufacturing Collection ($3,155/year), providing both 2D and 3D capability at a cost that is competitive with standalone SolidWorks. For companies already using AutoCAD and considering a move into 3D, Inventor is a natural and cost-efficient choice.
Inventor vs SolidWorks Decision: If your team already uses AutoCAD and the Autodesk ecosystem, Inventor is the logical 3D upgrade, shared licensing, native file interoperability, and familiar UI patterns. If your industry partners and clients standardise on SolidWorks files, SolidWorks is the better choice for compatibility and ecosystem depth.
Tool 8: Onshape, The Cloud-Native Challenger
Onshape is the most mature cloud-native parametric CAD platform available. Founded by SolidWorks’ original development team, Onshape runs entirely in a web browser with no local installation required, provides real-time multi-user collaboration (multiple engineers editing the same model simultaneously), and uses a built-in version control system instead of traditional PDM software.
What Onshape Does Best
Real-time collaboration: Multiple engineers can edit the same model simultaneously with conflict resolution, similar to Google Docs for CAD. This is genuinely unique among all CAD platforms.
Version control without PDM: Onshape’s branching and merging version control is built in, no Vault, Workgroup PDM, or Teamcenter installation required.
Zero IT infrastructure: No server installation, no licence management, no IT administration. Particularly valuable for small teams and remote workforces.
Access from any device: Full CAD functionality on any computer with a modern browser, including tablets with a native Onshape app.
Best For: Remote engineering teams, startups without IT infrastructure, hardware companies needing Google Docs-style collaboration, companies wanting to eliminate PDM infrastructure costs, and engineers who work across multiple devices or locations.
Tool 9: Bentley MicroStation, Infrastructure and Civil Engineering
Bentley MicroStation is the primary alternative to AutoCAD for large-scale infrastructure and civil engineering projects. It is the standard CAD platform for many national highway agencies, rail operators, utilities, and large infrastructure consultancies, particularly in projects where the scale and geographic scope exceed AutoCAD’s comfort zone.
MicroStation handles very large geographically referenced files more efficiently than AutoCAD, supports 3D infrastructure modelling with OpenRoads and OpenBridge, and integrates with Bentley’s broader infrastructure digital twin platform (iTwin). It is standard at Highways England, Network Rail (UK), TfNSW, and many large European infrastructure clients.
Who Should Learn MicroStation: Civil, structural, and transportation engineers targeting large infrastructure projects, national highway and rail operators, utilities, and water industry companies. If your target employers use MicroStation, proficiency in it adds significant value that AutoCAD training alone does not provide.
Tool 10: FreeCAD, The Best Free CAD for Engineers
FreeCAD is the most capable free, open-source parametric 3D CAD tool available in 2026. It has advanced significantly in capability over the past three years, particularly with the FreeCAD 1.0 release, which resolved many of the topological naming instability issues that had previously limited its usefulness for professional work.
What FreeCAD Does Well
Parametric 3D solid modelling: FreeCAD’s Part Design workbench provides feature-based parametric modelling comparable in workflow to SolidWorks for straightforward parts.
FEA simulation (FEM workbench): FreeCAD includes a FEM workbench based on Calculix and Elmer, providing basic structural FEA at zero cost.
Python scripting and customisation: FreeCAD’s full Python API makes it highly extensible for users who need custom workflows or automated design tasks.
Total cost: Zero. Free for all use cases including commercial.
Where FreeCAD Falls Short
Large assembly handling: FreeCAD struggles with assemblies above ~200-300 components and lacks the dedicated large assembly management tools of commercial platforms.
Drawing documentation: The TechDraw workbench for generating 2D drawings is functional but less capable and less reliable than AutoCAD or SolidWorks drawing environments.
Industry acceptance: FreeCAD is not accepted as a deliverable format by most engineering clients or manufacturers. Files must be exported to neutral formats (STEP, DXF) for sharing.
Sheet metal and weldment tools: Less mature than commercial tools for fabricated structural and sheet metal design.
Best For: Students learning parametric CAD, researchers, engineers on tight budgets who need basic 3D modelling for personal or prototype projects, open-source hardware projects, and engineers who need basic FEA capability without budget for commercial simulation tools.
Desktop vs Cloud-Native CAD: Honest Comparison
Criterion
Desktop CAD (AutoCAD, SolidWorks, NX, CATIA)
Cloud-Native CAD (Onshape, Fusion 360, Shapr3D)
Performance with large assemblies
Superior, local processing, no bandwidth limitation
Limited, large assemblies slow down cloud rendering
Collaboration and version control
Requires PDM/PLM infrastructure investment
Built-in real-time collaboration and version control
Hardware requirement
High-spec workstation or laptop required (GPU, RAM)
Any modern computer with browser; no high-spec requirement
Offline working
Full functionality offline
Reduced functionality without internet; limited offline mode
Data security
Data stays on company servers/local machines
Data lives on vendor cloud, critical for IP-sensitive sectors
Feature maturity
Most mature feature sets, decades of refinement
Rapidly improving but some gaps vs desktop tools
Initial setup cost
Higher, software, hardware, IT infrastructure, PDM
Lower, subscription only, no server infrastructure
Industry acceptance
Required by most large engineering clients and employers
Growing acceptance; not yet standard in aerospace, automotive OEM
Best for
Enterprise engineering, aerospace, automotive, large infrastructure
Startups, small teams, remote workers, education, rapid iteration
Free CAD Software for Engineers: When It Makes Sense
Free CAD tools are genuinely appropriate in specific situations, and the growth in quality of free options (FreeCAD, Onshape free tier, Fusion 360 personal use, AutoCAD Web free functionality) means the case for paying for software is weaker than it once was for some use cases.
Situation
Free Tool Recommendation
Why It Works
When to Upgrade to Paid
Student learning parametric 3D CAD
FreeCAD or Onshape (free) or SolidWorks/AutoCAD via education licence
Education licences for SolidWorks and AutoCAD are free and functionally identical to commercial versions
When entering employment, commercial proficiency is required
Personal/hobby engineering and making
Fusion 360 (personal free tier) or FreeCAD
Fusion 360 personal free tier provides excellent CAD+CAM capability for non-commercial use
When commercialising, Fusion 360 free tier prohibits commercial use above $1,000/year revenue
Startup below $100k revenue
Fusion 360 (Startup free tier, < $100k revenue) or Onshape (free public plan)
Fusion 360 offers full professional capability free for qualifying startups
At startup’s first funding round, professional licensing is expected
Viewing and reviewing CAD files (no creation)
Autodesk DWG TrueView, eDrawings, Onshape viewer
Free viewers are sufficient for review-only workflows without any CAD creation need
Never, if creation is not needed, paid tools have no value
Basic 2D drafting for personal use
AutoCAD Web (free limited tier) or LibreCAD (free)
For occasional 2D documentation tasks, free tiers are sufficient
When professional documentation output or collaboration is required
CAD Software and Career Impact: Job Market Data
The CAD software skill listed on a job posting is one of the most reliable indicators of which tool dominates a given industry. The following data reflects analysis of engineering job postings on LinkedIn, Indeed, and sector-specific job boards across the UK, US, Germany, and Australia in 2024-2026.
CAD Software
Job Posting Frequency
Industries With Highest Demand
Typical Salary Premium vs No CAD Skill
Certification Available?
AutoCAD
Highest, appears in more engineering job postings than any other single tool
All engineering disciplines, architecture, construction, civil
+10 to 20% for verified proficiency; Autodesk Certified Professional (ACP) valued
Yes, Autodesk Certified User (ACU) and Professional (ACP)
SolidWorks
Very high, most common 3D CAD requirement in mechanical engineering
Mechanical, product design, manufacturing, medical devices
+15 to 25% for CSWP/CSWE certification holders vs uncertified
Yes, SOLIDWORKS Certified Professional (CSWP) and Expert (CSWE), highly valued
Fusion 360
Growing rapidly, most common in startups and manufacturing SMEs
+10 to 15%; emerging tool with growing employer base
Yes, PTC Onshape certification available
FreeCAD
Low in commercial job postings (open-source, less employer-required)
Academia, open-source hardware, personal projects
Minimal employer premium; primarily valuable for self-development
No formal certification
Career Strategy Insight: The highest-value CAD investment for most mechanical engineers is SolidWorks proficiency plus CSWP certification. CSWP is employer-recognised, independently validated, and consistently associated with a salary premium of 15 to 25 percent over uncertified peers. For civil and multi-discipline engineers, AutoCAD ACP certification provides the broadest career coverage. For aerospace and automotive-targeting engineers, CATIA or NX proficiency (gained through employer training) is the primary differentiator.
Frequently Asked Questions (FAQ)
What is the best CAD software for mechanical engineers?
For most mechanical engineers, SolidWorks is the best CAD software: it is the most widely used parametric 3D CAD tool in the global mid-market mechanical engineering sector, required in over 65% of mechanical engineering 3D CAD job postings, and has the deepest ecosystem of simulation, sheet metal, and manufacturing tools. For smaller teams and budget-conscious engineers, Autodesk Fusion 360 provides excellent integrated CAD+CAM capability. For aerospace and automotive OEM roles, CATIA or Siemens NX are the industry-mandated standards.
What CAD software do most engineers use?
The most widely used CAD software across all engineering disciplines is AutoCAD for 2D drafting and documentation (used in architecture, civil, structural, electrical, mechanical, and MEP engineering). For 3D parametric mechanical design, SolidWorks is the most common tool in the mid-market. For aerospace, CATIA and Siemens NX are the standards. For startups and small teams, Fusion 360 is increasingly common. The tool that appears in the most engineering job postings globally remains AutoCAD by a significant margin.
Is AutoCAD or SolidWorks better for engineers?
They serve fundamentally different purposes, so the comparison depends on the engineering role. AutoCAD is best for 2D technical drawing, documentation, and multi-discipline drafting across architecture, civil, structural, and electrical engineering. SolidWorks is best for 3D parametric mechanical design, assembly modelling, simulation, and product development. Many mechanical engineers use both: SolidWorks for 3D design work and AutoCAD for 2D drawing production and documentation.
What is the best free CAD software for engineers?
The best free CAD software for engineers depends on use case. Fusion 360 offers the best free professional capability for qualifying personal/startup users (free for non-commercial use and for startups below $100k revenue). FreeCAD is the best fully open-source parametric 3D CAD with no usage restrictions. Onshape (free public plan) provides cloud-native collaboration at zero cost. For 2D drafting, AutoCAD Web has a limited free tier and LibreCAD is fully free and open-source.
Is Fusion 360 good for professional engineering?
Yes, Fusion 360 is a professional-grade engineering tool for many applications. It is particularly strong for product design startups, CNC manufacturing engineering, consumer products, and any workflow benefiting from integrated CAD+CAM capability. Its limitations are in large assembly handling (above ~1,000 components), industry acceptance in aerospace and automotive OEM environments (where CATIA and NX are mandated), and drawing documentation maturity compared to SolidWorks or AutoCAD. For the price point ($545/year commercial or free for qualifying use), it offers exceptional value.
What CAD software is used in aerospace engineering?
Aerospace engineering primarily uses CATIA (Dassault Systemes) and Siemens NX. Airbus, Dassault Aviation, many European aerospace OEMs, and major defence contractors standardise on CATIA. Boeing, General Motors, Lockheed Martin, and their supply chains typically use NX. CATIA is valued for Class A surface modelling, large digital mockup, and knowledge-based engineering. NX is valued for its integrated CAD/CAM/CAE capability and Teamcenter PLM integration. Both have steep learning curves and are priced for enterprise deployment.
How long does it take to learn CAD software?
Learning time varies by tool and target proficiency level. For AutoCAD, productive 2D proficiency typically takes 4 to 8 weeks of regular practice. For SolidWorks, productive 3D modelling competence typically takes 3 to 5 months. For Fusion 360, 2 to 4 months for CAD proficiency, longer to master the CAM workflows. For enterprise tools like CATIA or NX, initial productivity typically takes 6 to 12 months of dedicated training and practice. All tools offer much shorter learning curves if you already have proficiency in a similar competing tool.
Which CAD software certification is most valuable for engineering careers?
The most career-valuable CAD certifications for engineers are: SOLIDWORKS Certified Professional (CSWP) for mechanical engineers, consistently associated with 15 to 25% salary premiums; Autodesk Certified Professional (ACP) in AutoCAD for the broadest multi-discipline engineering recognition; and Autodesk Certified Professional in Civil 3D for civil and infrastructure engineering roles. CATIA and NX certifications are valuable but are typically obtained through employer training programs rather than independent self-study.
Conclusion: How to Make the Final Decision
The best CAD software for engineers is always context-dependent, and any guide that names a single universal winner is oversimplifying a genuinely complex decision. The frameworks in this guide are designed to cut through that complexity.
Start with your industry and target employers. If they use SolidWorks, learn SolidWorks. If they use CATIA, that is what matters. If you are a civil engineer, AutoCAD Civil 3D is not optional, it is the baseline. The most common mistake engineers make is choosing a tool based on marketing, price, or personal preference rather than industry and employer alignment.
Once you have identified the right tool for your industry, the second most important decision is certification. A validated, externally recognised certification (CSWP for SolidWorks, ACP for AutoCAD, Professional for Civil 3D) adds salary premium, recruitment signal, and professional credibility that self-reported proficiency does not.
For students and early-career engineers: use your free education access to develop genuine proficiency in the tool your industry uses. For established professionals: the investment in one additional CAD certification in a high-demand area (CSWP if you have not done it, Civil 3D ACP if you are in infrastructure) has one of the fastest returns of any professional development investment available.
Explore the broader CAD landscape: read CAD Software Explained: Types, Uses, and Best Tools for the complete overview, or deep-dive into AutoCAD Tutorials for Beginners and Professionals to start building the most universally applicable CAD skill in engineering.
AutoCAD’s dynamic blocks are one of the most powerful productivity tools in the software, allowing a single block definition to represent dozens or even hundreds of variations through parameters and actions. But even among experienced AutoCAD users who are comfortable with stretch, scale, and visibility parameters, lookup tables remain one of the least understood and most underused features of the dynamic block system.
A lookup table takes a dynamic block to a completely different level of usability. Instead of users having to manipulate grips, type specific values, or know the exact dimensions of a component they are placing, a lookup table presents them with a simple dropdown list: select ‘M8 Bolt’, or ‘Type A Door’, or ‘600mm Wide Desk’, and the block automatically sets all associated parameters to the correct values simultaneously. One selection drives everything.
This guide explains AutoCAD dynamic block lookup tables from the ground up. It covers what they are and why they are useful, the conceptual building blocks (lookup parameters versus lookup actions), how to create a single-parameter lookup table step by step, how to build a multi-parameter lookup that drives multiple block properties from one dropdown, the Allow Reverse Lookup setting that confuses almost every user who first encounters it, how to extract lookup data for bills of materials and parts lists, and a full troubleshooting reference for every common problem.
Quick Answer: A dynamic block lookup table in AutoCAD is a table inside a dynamic block definition that maps a named entry (e.g. ‘M10 Bolt x 50mm’) to a specific set of parameter values (e.g. Diameter = 10, Length = 50, Head Height = 6.4). When a user selects that entry from the block’s grip dropdown, AutoCAD automatically applies all associated parameter values simultaneously. It is created in the Block Editor using a Lookup Parameter and a Lookup Action.
What Is a Dynamic Block Lookup Table and Why Use One?
In the context of AutoCAD dynamic blocks, a lookup table is a structured internal table that associates named text entries (the list items a user sees in the dropdown) with corresponding values for one or more block parameters. It is the mechanism that converts a block from something a user manipulates by dragging grips to something a user selects from a predefined list.
Think of a lookup table as the dynamic block equivalent of a product catalogue. A block representing a structural steel section might have a lookup table containing every standard section size: UC203x203x60, UC203x203x71, UC254x254x89, and so on. The user selects the section from the dropdown, and the block instantly updates to the correct flange width, depth, and web thickness , all values set simultaneously from a single selection.
The Problem Lookup Tables Solve
Without a lookup table, a dynamic block user faces one of two sub-optimal workflows. Either they drag grips and hope they snap to the correct values, or they type exact values into the Properties palette manually. Both approaches are slow and error-prone, especially when blocks represent components with manufacturer-standard dimensions that must be exact.
A lookup table eliminates both problems. It constrains the block to only valid, predefined configurations and presents those configurations in a human-readable named list. The user never needs to know the exact numeric values , they just pick the configuration they need.
When to Use a Lookup Table vs Other Dynamic Block Features
Situation
Best Approach
Why
Block has 2-3 continuous size variations that users need to set to any value
Linear/scale parameter with value sets or increment
Lookup table adds unnecessary complexity for simple continuous size changes
Block has a fixed catalogue of named configurations (e.g. standard hardware, furniture sizes)
Lookup table
Best: presents named options, ensures only valid configurations are used, drives multiple parameters at once
Block needs to show/hide different geometry based on a selection
Visibility states
Visibility states are specifically designed for geometry show/hide. Lookup tables control parameter values, not direct visibility.
Block has named configurations AND geometry differences (e.g. door type with different swing geometry)
Lookup table + Visibility states combined
Use lookup for dimensions, visibility states for geometry changes, link them via the lookup table
Block configuration depends on 3+ parameters that all change together
Lookup table with multiple property columns
Only a lookup table can drive multiple parameters simultaneously from one selection
Lookup Parameter vs Lookup Action: Understanding the Two-Part System
The single most common source of confusion for users learning dynamic block lookup tables is not understanding the relationship between the Lookup Parameter and the Lookup Action. These are two separate objects placed in the Block Editor, and both are required. Neither works without the other. Understanding what each one does makes the entire workflow logical.
Object
What It Is
What It Does
Visible to User?
Lookup Parameter
A parameter added from the Parameters tab of the Block Authoring Palette
Provides the grip (dropdown handle) that users see and interact with when the block is inserted. It holds the currently selected lookup value name (e.g. ‘M10 Bolt x 50mm’). The parameter itself has no values until connected to a Lookup Action.
Yes , the grip appears as a small arrow or diamond on the inserted block
Lookup Action
An action added from the Actions tab of the Block Authoring Palette
Contains the actual lookup table: the rows of data mapping named entries to parameter values. The Lookup Action reads the current value of the Lookup Parameter and sets all other block parameters to the corresponding row values in its table.
No , the action is invisible in the drawing. It is a background engine.
The workflow is therefore always in this order: (1) Set up the block parameters that will be controlled by the lookup table (length, width, visibility state, etc.). (2) Place the Lookup Parameter in the Block Editor. (3) Place the Lookup Action and attach it to the Lookup Parameter. (4) Open the Lookup Table inside the Lookup Action and populate the rows with named entries and corresponding parameter values.
The Most Common Mistake: Placing a Lookup Action without first setting up the parameters it will control. A Lookup Action is only useful if there are already named parameters in the block (linear parameters, visibility states, rotation parameters, etc.) whose values the action will set. If you open the Lookup Table and the ‘Add Properties’ button produces an empty list, it means no controllable parameters are available , go back and add the required parameters first.
Prerequisites: What Your Dynamic Block Needs Before Adding a Lookup Table
Before adding a lookup table, the dynamic block must already have the parameters whose values the lookup table will control. Here is what must be in place before entering the Block Editor to add lookup functionality:
At least one controlling parameter: A Linear parameter (for size), Rotation parameter (for angle), Visibility parameter (for geometry variants), or any other named parameter that can hold a value. The lookup table will set the values of these parameters.
Parameters must be named: Each parameter should have a clear, descriptive name (e.g. ‘Width’, ‘Height’, ‘Leg Style’) so you can identify it when adding columns to the lookup table.
For multi-parameter lookups: All parameters you want the lookup to control must be present in the block before adding the Lookup Action. You cannot add parameters to the lookup table that do not yet exist in the block.
The block should be tested without the lookup: Verify that the parameters and their associated actions (Stretch, Scale, Visibility) work correctly by testing the block with grip manipulation before adding the lookup layer on top.
Step-by-Step: Creating a Single-Parameter Lookup Table
This walkthrough creates a lookup table for a bolt block that already has a Linear parameter named ‘Length’ controlling the bolt body geometry via a Stretch action. The lookup table will let users select bolt lengths from a named list (M8x20, M8x25, M8x30, M8x40) rather than dragging a grip.
Step 1: Open the Block Editor
Double-click the inserted block to open it, or type BEDIT and press Enter, then select the block definition from the list.
The Block Editor opens. The Block Authoring Palettes panel should be visible on the left. If not, go to Block Editor tab > Manage panel > Authoring Palettes to show it.
Step 2: Place the Lookup Parameter
In the Block Authoring Palettes, click the Parameters tab.
Scroll down to find Lookup in the parameter list and click it.
AutoCAD prompts: Specify parameter location:. Click a location on the block where the grip (dropdown handle) will appear when the block is inserted. A good position is just to the side of the block, away from functional grips.
AutoCAD prompts for the number of grips: accept the default of 1 and press Enter.
A Lookup grip appears at the specified location, labelled ‘Lookup’ by default. In the Properties palette (Ctrl + 1), rename the parameter to something descriptive, such as ‘Bolt Size’ or ‘Select Size’. This name appears as the label next to the grip when the block is in use.
Step 3: Place the Lookup Action
In the Block Authoring Palettes, click the Actions tab.
Click Lookup in the action list.
AutoCAD prompts: Select parameter:. Click the Lookup Parameter you placed in Step 2 (the grip labelled ‘Bolt Size’).
The Property Lookup Table dialogue opens automatically. This is the actual lookup table where you define the rows of data.
Step 4: Build the Lookup Table
In the Property Lookup Table dialogue, click Add Properties.
A list of the block’s controllable parameters appears. Select ‘Length’ (the parameter you want to control). Click OK. A ‘Length’ column appears in the table.
The table now has two columns: Lookup Name (the dropdown text the user will see) and Length (the parameter value AutoCAD will set).
Click in the first empty row of the Lookup Name column and type the first entry name (e.g. ‘M8 x 20mm’). Press Tab to move to the Length column and type the corresponding value: 20.
Press Enter or click the next row. Continue adding rows for each size:
Lookup Name (User Sees)
Length (Parameter Value)
M8 x 20mm
20
M8 x 25mm
25
M8 x 30mm
30
M8 x 40mm
40
M8 x 50mm
50
In the Lookup name column at the bottom of the table (the last row with a dropdown), set the Input Properties setting to Allow Reverse Lookup. This setting is critical , see the next section for a full explanation.
Click OK to close the Property Lookup Table dialogue.
Go to Block Editor tab > Close panel > Save Block and then Close Block Editor.
Step 5: Test the Lookup Table
Insert or select the block in the drawing.
Click the Lookup grip (the dropdown handle you placed). A dropdown list appears with the names you entered: M8 x 20mm, M8 x 25mm, M8 x 30mm, etc.
Select any entry. The block’s Length parameter updates to the corresponding value and the block geometry stretches to match.
Verification Step: After testing, open the Properties palette (Ctrl + 1) with the block selected. The palette should show the Lookup Parameter name and its current value. Check that the Length parameter value matches the number you entered in the lookup table for the selected entry. If it does not match, revisit the Lookup Action and verify the correct parameter column is mapped to the correct value.
Step-by-Step: Creating a Multi-Parameter Lookup Table
The real power of AutoCAD dynamic block lookup tables becomes apparent when driving multiple parameters simultaneously from a single dropdown selection. This worked example creates a lookup table for a desk block with three parameters: Width (linear), Depth (linear), and Style (visibility state for standard vs L-shaped desk geometry).
Block Setup Before Adding the Lookup
This block already has:
Linear Parameter ‘Width’ , controlling the desk width with a Stretch action
Linear Parameter ‘Depth’ , controlling the desk depth with a Stretch action
Visibility Parameter ‘Desk Style’ , with two visibility states: ‘Standard’ (rectangular desk) and ‘L-Shape’ (L-shaped desk geometry)
Adding the Multi-Parameter Lookup
Open the Block Editor (BEDIT) for the desk block.
Add a Lookup Parameter from the Parameters tab, placed at a convenient grip location. Name it ‘Select Desk’ in the Properties palette.
Add a Lookup Action from the Actions tab, clicking the Lookup Parameter you just placed.
The Property Lookup Table dialogue opens. Click Add Properties.
Select Width, Depth, and Desk Style from the parameter list. All three are now columns in the table.
Fill in the table with all required desk configurations:
Lookup Name
Width
Depth
Desk Style
600 x 600 Standard
600
600
Standard
800 x 600 Standard
800
600
Standard
1000 x 600 Standard
1000
600
Standard
1200 x 600 Standard
1200
600
Standard
1200 x 800 Standard
1200
800
Standard
1400 x 800 Standard
1400
800
Standard
1200 x 1200 L-Shape
1200
1200
L-Shape
1400 x 1400 L-Shape
1400
1400
L-Shape
1600 x 1600 L-Shape
1600
1600
L-Shape
Set the Input Properties for the last table row to Allow Reverse Lookup.
Click OK, save the block, and close the Block Editor.
Test the block: clicking the ‘Select Desk’ grip should show a dropdown of all nine configurations. Selecting ‘1200 x 1200 L-Shape’ should simultaneously set Width to 1200, Depth to 1200, and switch the visibility state to L-Shape geometry.
Multi-Parameter Power: Notice that one selection from the dropdown drove three separate parameters at the same time. Without a lookup table, a user would need to set Width, Depth, and Desk Style separately , three operations instead of one. As the number of parameters and configurations grows, the time savings from a lookup table multiply significantly.
Allow Reverse Lookup vs Read Only: The Most Misunderstood Setting
The Input Properties setting at the bottom of the lookup table (the dropdown in the final row of the table) is one of the most confusing aspects of dynamic block lookup tables. Almost every user who first builds a lookup table wonders why it is not working , and the answer is almost always this setting.
Setting
What It Does
Visible in Dropdown?
When to Use It
Allow Reverse Lookup
Allows the lookup table to work in both directions: the user can select from the dropdown (lookup name → parameter values) AND AutoCAD can determine the current lookup name by reading the current parameter values. The dropdown list of named entries IS visible to the user.
YES , user sees the named entries and can select from them
Almost always. This is the standard setting for any lookup table where users need to select from a dropdown list. If the lookup dropdown appears empty or shows no entries, this setting is almost certainly missing.
Read Only
The lookup table only works in one direction: parameter values → lookup name. The current lookup name updates to reflect parameter values set by other means (grip manipulation), but the user CANNOT select from the dropdown , it is read-only. Named entries are NOT visible for selection.
NO , no selectable entries in the dropdown
Only in rare specialist cases where the lookup name is used purely as a display label that tracks parameter values without allowing user selection. Not appropriate for standard dropdown-selection workflows.
The Single Most Common Lookup Table Problem: You build a lookup table, close the Block Editor, insert the block, click the grip, and the dropdown appears but shows no entries , or shows ‘Custom’ and nothing else. The cause is almost always Input Properties set to ‘Read Only’ instead of ‘Allow Reverse Lookup’. Open the Block Editor, double-click the Lookup Action, open the Property Lookup Table, and change the Input Properties dropdown at the bottom of the table from Read Only to Allow Reverse Lookup. Save and test. This fixes the problem in virtually every case.
The Custom Entry: Why It Appears and What It Means
When you insert a dynamic block with a lookup table and click the Lookup grip, you may see ‘Custom’ as an entry in the dropdown list, sometimes with a checkmark beside it. This confuses almost every user who encounters it for the first time.
What ‘Custom’ Means
‘Custom’ is AutoCAD’s way of telling you that the block’s current parameter values do not match any named entry in the lookup table. It appears as a checkmarked entry when the block is in a state that falls outside the defined catalogue of configurations.
This most commonly happens in three situations: when the block has just been inserted before any lookup selection has been made (the block is in its default state which may not match any lookup entry); when a user has manually set parameter values by dragging grips or typing in the Properties palette to a value not listed in the lookup table; or when the block has been copied from a version with different parameter defaults.
Should You Worry About ‘Custom’?
Not necessarily. ‘Custom’ is informational , it tells the user the block is currently in a non-catalogued state. To remove ‘Custom’ from the dropdown entirely: ensure that the block’s default parameter values (set in the Block Editor) match one of the entries in the lookup table. If the default Width is 800 and the lookup table has an ‘800 x 600 Standard’ entry with Width = 800, the block will start in that named state and ‘Custom’ will not appear.
Real-World Use Cases for Dynamic Block Lookup Tables
The following examples represent the most common and valuable applications of dynamic block lookup tables across engineering, architecture, and design disciplines.
Chamber diameter, cover diameter, cover type visibility
Manufacturing / Workshop
Standard channel section
25x25x3, 40x40x5, 50x50x6, 75x50x6…
Width, height, wall thickness , all simultaneously from standard size list
Extracting Lookup Table Data for Bills of Materials and Parts Lists
One of the most powerful and least-known capabilities of dynamic block lookup tables is that the lookup name value , the text that appears in the dropdown , can be extracted from the drawing as part of a Data Extraction, exactly like a block attribute. This allows a drawing containing multiple dynamic block instances to automatically generate a parts list, bill of materials, or schedule showing the lookup name for each block.
How Lookup Data Appears in Data Extraction
When you run DATAEXTRACTION on a drawing containing dynamic blocks with lookup tables, the lookup parameter name and its current value (the selected lookup name) appear in the property list on Page 3 of the wizard (Select Properties). Select the lookup parameter property to include it in the extraction, and the generated table will show the selected lookup entry for each block instance.
Step-by-Step: Extracting Lookup Table Data
Ensure all dynamic blocks in the drawing have their lookup selections set correctly.
Type DATAEXTRACTION and press Enter.
On Page 2 (Define Data Source), select Drawings/Sheet Set and check that the current drawing is included.
On Page 3 (Select Objects), select the block definition you want to extract data from. Tick Display all object types if the block does not appear in the initial list.
On Page 3 (Select Properties), scroll through the property list to find the Lookup Parameter name (e.g. ‘Bolt Size’, ‘Select Desk’). Tick it along with any other block properties or attributes you want in the extraction.
Continue through the wizard, set up the output table format, and insert the extracted table. The resulting table shows each block instance with its selected lookup name.
Practical Application: A structural engineer places 47 instances of a steel section dynamic block throughout a drawing, selecting different section sizes from the lookup dropdown for each. Running DATAEXTRACTION generates a full steel schedule automatically , showing section designation, quantity, and total length for each section size. Updating any block’s selection and refreshing the Data Extraction table updates the schedule instantly.
Editing and Updating an Existing Lookup Table
Adding new entries, changing values, or removing rows from an existing lookup table is straightforward. All changes happen inside the Block Editor.
Type BEDIT and select the block definition to edit.
In the Block Editor, locate the Lookup Action (it appears as a yellow lightning bolt action icon near the Lookup grip). Double-click the Lookup Action icon.
The Property Lookup Table dialogue opens showing the existing table.
To add a new row: click in an empty row at the bottom of the table and type the new Lookup Name and parameter values.
To edit an existing value: click the cell and type the new value.
To delete a row: select the row and press Delete.
To add a new parameter column: click Add Properties, select the new parameter from the list, and fill in values for each row.
Click OK to close the dialogue. Save the block and close the Block Editor.
All instances of the block in the drawing update immediately to reflect the revised lookup table.
Lookup Tables vs Visibility States: Choosing the Right Approach
Both lookup tables and visibility states allow users to switch between named configurations of a dynamic block from a dropdown. Understanding the distinction between them prevents the common mistake of using one when the other would be more appropriate.
Feature
Lookup Table
Visibility States
Primary purpose
Control numeric parameter values (dimensions, angles) and optionally visibility states from one dropdown
Show or hide specific geometry (objects) within the block based on the selected state
User interaction
Lookup Parameter grip , presents a dropdown of named entries
Visibility Parameter grip , presents a dropdown of named states
What changes on selection
Parameter values (Width, Height, Angle, etc.) and optionally Visibility state
Which objects are visible/hidden within the block
Can control dimensions?
Yes , primary purpose
No , dimensions must be changed separately or via a lookup table linked to the visibility state
Can show/hide geometry?
Yes , if a Visibility Parameter is included as a column in the lookup table
Yes , primary purpose
Best for
Catalogue-based selection of standard sizes; anything where exact numeric values must be enforced
Blocks with fundamentally different geometric forms (e.g. different valve types, door swings, electrical symbols)
Can be used together?
Yes , include a Visibility parameter as one column in the lookup table to drive both dimensions and geometry simultaneously
Yes , use alongside a lookup table for complete control over both geometry and dimensions
Dynamic Block Lookup Table Troubleshooting
Problem
Root Cause
Fix
Lookup dropdown appears but shows no named entries (empty list)
Input Properties is set to ‘Read Only’ instead of ‘Allow Reverse Lookup’
Open BEDIT, double-click the Lookup Action, open the Property Lookup Table, change the Input Properties dropdown at the bottom from Read Only to Allow Reverse Lookup. Save and test.
Lookup dropdown only shows ‘Custom’ and nothing else
Same as above , Read Only setting prevents forward lookup. Alternatively, lookup table has no rows filled in.
Change to Allow Reverse Lookup. Also verify the table has populated rows , scroll through the Property Lookup Table to confirm entries exist.
‘Add Properties’ shows an empty list when building the lookup table
No controllable parameters exist in the block yet. Lookup Action was added before the block parameters it should control.
Cancel, exit the Block Editor, and set up the required parameters (Linear, Visibility, Rotation, etc.) first. Then re-enter the Block Editor and add the Lookup Parameter and Action.
Selecting a lookup entry does not change the block geometry
The parameter controlled by the lookup table has no associated action (Stretch, Scale, etc.) driving the geometry
Verify that the parameters listed in the lookup table columns have associated actions. A parameter with no action holds a value but changes nothing visually.
Lookup grip does not appear on the inserted block
Lookup Parameter was placed inside the block but the block definition was not saved before closing the Block Editor
Re-open BEDIT, verify the Lookup Parameter is present, and use Save Block (not just Close) before closing the Block Editor.
All instances of the block show the same lookup selection regardless of what was chosen
Block was placed as a block reference that was then copied , all copies share the same dynamic block state if the block was not properly inserted as independent instances
Use INSERT to place each block independently, or use the Properties palette to change the lookup value on each selected instance individually.
Lookup table values appear correct but Data Extraction shows wrong or missing lookup names
Data Extraction property filter does not include the Lookup Parameter property, or the lookup name is being extracted as a block attribute rather than a dynamic property
Re-run DATAEXTRACTION. On Page 3 (Select Properties), scroll carefully to find the Lookup Parameter name in the property list and tick it specifically.
Lookup entry names are correct but the block geometry looks wrong after selection
Parameter values in the lookup table rows do not match the values expected by the block’s actions, or the parameter was renamed after the lookup table was set up
Open BEDIT, double-click the Lookup Action, verify each row’s parameter values are correct. Check that parameter names in the table match the current parameter names in the block.
Frequently Asked Questions (FAQ)
What is a dynamic block lookup table in AutoCAD?
A dynamic block lookup table in AutoCAD is an internal data table within a dynamic block definition that maps named text entries to specific parameter values. When a user selects an entry from the block’s dropdown grip (such as ‘M10 Bolt x 50mm’), the lookup table automatically sets all associated block parameters (diameter, length, head height) to the corresponding values. It is created in the Block Editor using a Lookup Parameter (which provides the dropdown grip) and a Lookup Action (which contains the table data).
How do I create a lookup table in an AutoCAD dynamic block?
To create a lookup table in an AutoCAD dynamic block: (1) Open the block in the Block Editor (BEDIT). (2) Add the parameters you want to control (Linear, Visibility, etc.) if not already present. (3) Place a Lookup Parameter from the Parameters tab of the Block Authoring Palette. (4) Place a Lookup Action from the Actions tab, clicking the Lookup Parameter. (5) In the Property Lookup Table dialogue, click Add Properties, select the parameters to control, and fill in named entries and their corresponding parameter values. (6) Set Input Properties to Allow Reverse Lookup. (7) Click OK, save the block, and close the Block Editor.
Why does my AutoCAD dynamic block lookup dropdown show no entries?
If the lookup dropdown shows no entries (or only shows ‘Custom’), the most common cause is that the Input Properties setting in the lookup table is set to ‘Read Only’ instead of ‘Allow Reverse Lookup’. To fix: open the Block Editor (BEDIT), double-click the Lookup Action icon, open the Property Lookup Table, and change the Input Properties dropdown at the bottom from Read Only to Allow Reverse Lookup. Save the block and test. This resolves the empty dropdown in the vast majority of cases.
What is the difference between Allow Reverse Lookup and Read Only in AutoCAD?
In an AutoCAD dynamic block lookup table, Allow Reverse Lookup makes the named entries visible in the dropdown list so the user can select them. The block reads the selection and sets parameter values accordingly. Read Only makes the lookup table work only in the reverse direction: it displays the lookup name that corresponds to the current parameter values (set by other means), but the user cannot select entries from the dropdown. For standard dropdown-selection workflows, always use Allow Reverse Lookup.
What does ‘Custom’ mean in an AutoCAD dynamic block lookup dropdown?
‘Custom’ appears in a dynamic block lookup dropdown when the block’s current parameter values do not match any named entry in the lookup table. It means the block is in a non-catalogued state , either its default values do not correspond to any lookup entry, or a user has manually set parameter values outside the predefined options. To prevent ‘Custom’ appearing on insertion, ensure the block’s default parameter values in the Block Editor match one of the rows in the lookup table.
Can a dynamic block lookup table control multiple parameters at once?
Yes. An AutoCAD dynamic block lookup table can control multiple parameters simultaneously from a single dropdown selection. In the Property Lookup Table dialogue, click Add Properties and select all the parameters you want the lookup to control. Each selected parameter becomes a column in the table. You then fill in values for each parameter in each row , one selection from the dropdown sets all column values at once. This is one of the most powerful features of the lookup table system.
How do I extract lookup table data from dynamic blocks for a parts list?
To extract lookup table data for a parts list: run the DATAEXTRACTION command and work through the wizard. On Page 3 (Select Properties), select the block definition and scroll through the property list to find the Lookup Parameter name (the descriptive name you gave the lookup parameter, e.g. ‘Bolt Size’ or ‘Select Desk’). Tick this property along with any block attributes and other properties needed for the parts list. Complete the wizard and insert the table. The table will show the selected lookup entry for each block instance in the drawing.
Conclusion
Dynamic block lookup tables are one of the most productivity-transforming features in AutoCAD’s block system. They take the power of dynamic blocks , already a significant step up from standard static blocks, and add a layer of usability and reliability that makes them suitable for professional production environments where accuracy and consistency are non-negotiable.
Once you understand that the system has two parts (a Lookup Parameter for the grip, a Lookup Action for the data), that Allow Reverse Lookup is almost always the correct setting, and that any number of parameters can be driven simultaneously from a single dropdown, the rest of the workflow falls into place logically.
The real returns come when lookup tables are combined with Data Extraction: a drawing full of properly configured dynamic blocks with lookup tables becomes a living document where the geometry and the parts list stay in perfect sync, updating automatically as design decisions change. That is the end state that makes the investment in building lookup table-equipped blocks worthwhile.
Continue building your AutoCAD expertise: read How to Sort Tables in AutoCAD for working with the data you extract, or return to the complete AutoCAD Tutorials for Beginners and Professionals guide.
AutoCAD tables are among the most useful but underappreciated tools in the software. A well-built table can serve as a revision schedule, a parts list, a door schedule, a material takeoff, or a bill of materials directly inside your drawing. But the moment you need to sort that table alphabetically, numerically, or by a specific column AutoCAD’s behaviour can be confusing, inconsistent, and in some versions seemingly broken.
The frustration usually looks like one of three things: the table appears to have no sort option at all; the sort works but puts 1, 11, 12, 2, 3 instead of 1, 2, 3; or the sort works in the Data Extraction preview but the inserted table does not update. Each of these has a specific cause and a specific fix but only if you know which of AutoCAD’s four distinct sorting approaches you are actually using.
This guide covers all four methods for sorting tables in AutoCAD with complete numbered steps: the built-in column header sort for manually created tables, the Data Extraction wizard sort for attribute and object data tables, the free SORTTABLE LISP utility for tables where the built-in sort is greyed out or insufficient, and the Excel data link round-trip for users who need full spreadsheet-style sort control. It also explains the alphanumeric sort issue, how to fix it, and when to use each method.
Quick Answer: To sort a manually created AutoCAD table: click inside the table to select it, then right-click a column header and choose Sort Column Ascending or Sort Column Descending. If this option is greyed out or missing, the table was created via Data Extraction re-open the Data Extraction wizard to sort (see Method 2), or use the free SORTTABLE LISP utility (see Method 3).
Understanding AutoCAD Tables and Why Sorting Is Complex
To understand why sorting tables in AutoCAD requires knowing which method to use, it helps to understand that AutoCAD tables are not all the same type of object. There are four distinct types of AutoCAD table, and they each sort differently or do not sort natively at all.
Table Type
How Created
Built-In Sort Available?
Best Sort Method
Manually created table
TABLE command, drawn row by row with typed cell content
Yes, right-click column header for sort options (AutoCAD 2008+)
Method 1: Built-in column sort
Data Extraction table
DATAEXTRACTION wizard pulls attribute data or object properties from drawing
Partial sort available in the wizard during creation; re-sorting after insertion requires re-running the wizard
Method 2: Data Extraction wizard re-sort
Excel-linked table
INSERT > Data Link live link to an Excel spreadsheet
Sort in Excel, then update the link in AutoCAD not sortable directly in AutoCAD
Method 4: Sort in Excel, update link
Any table (alternative method)
Any of the above
Yes, SORTTABLE LISP utility works on all table types
Method 3: SORTTABLE LISP utility
The key practical implication: if you right-click a Data Extraction table in AutoCAD and find the sort option greyed out or missing, you are not doing anything wrong. AutoCAD genuinely does not provide native re-sorting for Data Extraction tables after insertion. Your options are Method 2 (re-open the wizard) or Method 3 (LISP utility).
Method Chooser: Which Sorting Method Do You Need?
Your Situation
Recommended Method
Why
You have a manually typed AutoCAD table and need a quick sort
Method 1: Built-in column sort
Fastest, no setup needed, works directly in AutoCAD 2008 and later
Your table was created by the Data Extraction wizard and sort is greyed out
Method 2: Re-open Data Extraction wizard
The only way to re-sort a Data Extraction table using AutoCAD’s native tools
You need to sort any table type including Data Extraction tables, and want a simpler workflow
Method 3: SORTTABLE LISP utility (free)
Works on all table types, simpler than re-running Data Extraction wizard, one free download
Your table is linked to an Excel spreadsheet
Method 4: Sort in Excel then update link
Excel provides full spreadsheet-level sort control; update propagates to AutoCAD automatically
You need to sort a large table repeatedly and want full control
Method 4 (Excel) or Method 3 (LISP) depending on data source
Excel for maximum flexibility; LISP for tables that live purely in AutoCAD
Numbers are sorting as 1, 11, 12, 2, 3 instead of 1, 2, 3
See the Alphanumeric Sort Fix section below
This is a text-versus-number data type issue requiring a specific solution
Method 1: Built-In Column Header Sort for Manual Tables
AutoCAD has a built-in table sort feature for manually created tables, available from AutoCAD 2008 onwards. It allows you to sort a table alphabetically or numerically by any column, in ascending or descending order. It is fast, requires no additional tools, and works directly in the drawing environment.
Important Prerequisite: The Table Must Have a Header Row
The built-in sort works through column header interaction. For the sort option to appear, the table must have a header row with content. If your table has no header row (all rows are data rows), you can still sort by right-clicking any cell in the column you want to sort by.
Full Step-by-Step: Built-In Column Sort
Click anywhere inside the table to select it. The table grips appear and the Table contextual ribbon tab becomes active.
Move your cursor over the column header cell of the column you want to sort by. The column header highlights.
Right-click the column header cell. A context menu appears.
Look for Insert > Sort or directly for Sort Column Ascending / Sort Column Descending in the menu.
Select Sort Column Ascending (A to Z, or 1 to 9) or Sort Column Descending (Z to A, or 9 to 1) as required.
AutoCAD reorders all data rows in the table based on the content of the selected column. The header row remains in place at the top.
Multi-Column Sorting
To sort a table by a primary column and then by a secondary column for rows with identical primary values:
Right-click the column header and look for Sort Column Advanced or Table > Sort in the context menu (availability depends on AutoCAD version).
In the sort dialogue, set the primary sort column and direction.
Add a secondary sort column for tie-breaking.
Click OK to apply the multi-level sort.
Version Note: The built-in table sort via right-click column header was introduced in AutoCAD 2008. If you are using AutoCAD 2007 or earlier, this option does not exist. Use Method 3 (LISP utility) instead. In AutoCAD 2014 and later, the Table ribbon tab when a table is selected provides additional table management options including a Sort button in the Table panel.
Accessing Sort from the Table Ribbon Tab
In AutoCAD 2014 and later, clicking inside a table activates the Table contextual ribbon tab. This tab includes a Sort button in the Rows panel (or Table panel depending on version). Clicking Sort opens a dedicated sort dialogue where you can select the column to sort by, the sort direction, and whether to include or exclude header rows from the sort operation.
Method 2: Sorting Tables Generated by Data Extraction
When an AutoCAD table is generated by the Data Extraction wizard (DATAEXTRACTION command), it is linked to a data extraction definition stored in a .dxe file. The sort order of this type of table is controlled inside the wizard, not in the table itself after insertion. Right-clicking a Data Extraction table column and looking for sort options will often find them greyed out or absent.
Sorting During Data Extraction Creation
The best time to set sort order is during the Data Extraction wizard workflow, specifically on Page 5 of 8: Refine Data. At this stage, the data is displayed in a preview grid and you have full sorting control before the table is inserted:
Run the DATAEXTRACTION command (or go to Insert tab > Linking and Extraction panel > Extract Data).
Work through the wizard pages: data source, objects, properties, and so on.
When you reach Page 5 (Refine Data), the data appears in a preview grid.
Click any column header to sort the data by that column. Click once for ascending order, again for descending.
For multi-column sort: right-click a column header and look for Sort Column Options. This opens a sort settings dialogue where multiple columns can be prioritised.
Once sorted correctly, continue through the wizard to insert the table. The inserted table reflects the sort order set in the wizard.
Re-Sorting an Existing Data Extraction Table
If the table has already been inserted and you need to change its sort order:
Select the Data Extraction table in the drawing.
Right-click and look for Update Table or Edit Data Extraction. Alternatively, type DATAEXTRACTION in the command line and press Enter.
Choose Edit an existing data extraction and browse to or select the .dxe file associated with the table.
Click Next through the wizard until you reach Page 5 (Refine Data).
Re-sort the columns by clicking the column headers as described above.
Continue to the end of the wizard and select Update the existing table. Click Finish.
Data Extraction Sort Limitation: Once a Data Extraction table is inserted in the drawing, its sort order is frozen unless you re-run the wizard. This is a significant limitation compared to Excel or a manually typed table. If you need a table that can be re-sorted frequently without re-running the wizard, consider using Method 4 (Excel link) or Method 3 (LISP utility) instead.
Method 3: SORTTABLE LISP Utility Free and Reliable
The SORTTABLE LISP routine is a free utility that adds proper table sorting capability to AutoCAD for any table type manually created tables, Data Extraction tables, or any other AutoCAD table object. It is the simplest universal solution for table sorting and is the recommended approach when Method 1 is greyed out.
There are two main versions: the original SortTable utility from CAD Forum (cadforum.cz) and the more feature-rich JTB Sort Table from JTB World (jtbworld.com). The CAD Forum version is fully free. The JTB version has a 30-day free trial and a paid licence for ongoing use.
Step 1: Download the LISP File
Go to cadforum.cz and search for ‘SortTable’ in the download section, or search ‘SortTable LISP AutoCAD cadforum’ to find the download page directly.
Download the SortTable.lsp file and save it to a stable permanent location on your computer (e.g. C:\AutoCAD-Tools\SortTable.lsp).
Step 2: Load the LISP File into AutoCAD
In AutoCAD, type APPLOAD and press Enter to open the Load/Unload Applications dialogue.
Click Browse and navigate to the SortTable.lsp file.
Click Open, then click Load. The command line should confirm: SortTable.lsp successfully loaded.
To load automatically on every AutoCAD start: click Startup Suite Contents in APPLOAD, add SortTable.lsp, and click Close.
Step 3: Using the SORTTABLE Command
Type SORTTABLE in the command line and press Enter.
AutoCAD prompts you to select a table. Click anywhere on the AutoCAD table you want to sort.
A dialogue or command line prompt appears asking which column to sort by. Enter the column number (1 = first column, 2 = second column, etc.) or click the column header if the dialogue supports it.
Select the sort direction: Ascending (A to Z, 1 to 9) or Descending (Z to A, 9 to 1).
AutoCAD reorders the table rows according to the selected column and direction.
Why SORTTABLE Is Often the Best Choice: SORTTABLE works on all table types including Data Extraction tables where the built-in sort is greyed out. It is free, installs in under two minutes, and once loaded into the Startup Suite, is always available. For most professional AutoCAD users who work with tables regularly, adding SORTTABLE to the Startup Suite is a one-time investment that pays for itself immediately.
Method 4: Excel Data Link Round-Trip for Full Sort Control
For the most flexible and powerful table sorting capability in AutoCAD, the answer is to not sort in AutoCAD at all. Instead, maintain the data in an Excel spreadsheet, sort it there, and link the Excel file to AutoCAD using a Data Link. The table in the drawing updates automatically when the Excel source changes.
Setting Up an Excel Data Link in AutoCAD
Create and populate your table data in an Excel spreadsheet (e.g. a parts list, material schedule, or door schedule).
In AutoCAD, go to Insert tab > Linking and Extraction panel > Data Link Manager (or type DLINKMANAGER).
Click Create a new Excel Data Link, give it a descriptive name, and browse to the Excel file.
Select the specific sheet and range of cells to link.
Set link options: allow writing back to Excel, allow reading changes from Excel, and set the cell formatting options.
Click OK to create the data link.
In AutoCAD, type TABLE and press Enter. In the Insert Table dialogue, select From a data link and choose the data link you just created.
Click OK and place the table in the drawing. The Excel data populates the AutoCAD table automatically.
Sorting the Linked Table
Open the Excel file directly and sort the data using Excel’s full sorting capabilities (Data > Sort, with multiple levels and custom sort orders).
Save the Excel file.
In AutoCAD, go to Insert tab > Linking and Extraction panel > Update Data Links (or type DLUPDATEFROMEXTERNAL).
The AutoCAD table updates immediately to reflect the sorted Excel data.
Data Link Advantages: The Excel data link approach provides complete spreadsheet-level sort control including multi-column sorts, custom sort orders, case-sensitive sorts, and sorting by colour or icon. It also means your data has a single source of truth in Excel, reducing the risk of discrepancies between the spreadsheet and the AutoCAD table.
The Alphanumeric Sort Problem: Why 1, 11, 12, 2, 3 Happens and How to Fix It
One of the most commonly reported AutoCAD table sorting issues is that numbers sort as 1, 11, 12, 13, 2, 3, 4 rather than the expected 1, 2, 3, 4, 11, 12, 13. This is not a bug in AutoCAD it is the entirely predictable result of sorting text values rather than numeric values.
Why This Happens
When AutoCAD table cells contain text entries (even if those entries look like numbers), the sort algorithm compares them character by character from left to right, as text. In text sorting, “1” comes before “2” regardless of whether what follows makes the number larger. So “11” starts with “1”, which sorts before “2”, placing it before “2”, “3”, and “4” even though 11 is numerically larger.
This is the same behaviour you see in Microsoft Excel when numbers are stored as text. It is not specific to AutoCAD.
Fix 1: Use Leading Zeros for Consistent Width
The simplest fix is to format all numbers with the same number of digits using leading zeros. If your parts list has numbers 1 through 99, format them as 01, 02, 03… 09, 10, 11. Text sorting then produces the correct order because all entries have the same character width and the leading zeros ensure proper sequence.
For part numbers with prefixes (e.g. P1, P2, P11), use P01, P02, P11 or P001, P002, P011 if numbers go above 99. This approach is also professional practice in manufacturing and engineering drawing standards where consistent part number formats are required.
Fix 2: Use the Data Type Setting in Table Cells
In AutoCAD 2010 and later, table cells can be formatted with a specific data format that tells AutoCAD to treat cell content as a number rather than text. To set this:
Double-click inside the table to enter editing mode.
Select the cells in the column that contains numeric values.
Right-click and choose Data Format.
In the Table Cell Format dialogue, change the data type from Text to Number.
Click OK. The cells are now formatted as numbers.
Sort the column again. AutoCAD now performs a numeric sort (1, 2, 3… 10, 11, 12) rather than a text sort.
Fix 3: Sort in Excel
If the table is linked to Excel or can be exported to Excel, perform the sort in Excel where numeric sorting always works correctly regardless of cell formatting. Use the Method 4 Excel link workflow to maintain the sorted data in AutoCAD.
The Root Cause Summary: If AutoCAD is sorting numbers as text (1, 11, 12, 2, 3), the cells are formatted as Text data type rather than Number. The fixes in order of simplicity: (1) Use leading zeros for consistent digit width. (2) Change cell data format to Number. (3) Sort in Excel using a data link. All three produce the correct numeric sequence.
Sorting a Parts List Table: Complete Worked Example
To tie together the methods above, here is a complete workflow for creating and sorting a mechanical parts list table in AutoCAD.
Step
Action
Command / Method
1
Create the parts list table: go to Home > Annotation > Table, set 5 columns (Item No., Part Name, Part Number, Material, Qty), set appropriate number of rows for the parts list
TABLE command
2
Enter header row labels in the first row: Item No., Part Name, Part Number, Material, Qty
Double-click cells to enter edit mode
3
Enter all part data row by row. For Item No. column, use leading zeros: 01, 02, 03 etc.
Type directly in cells; Tab to move between cells
4
Format the Qty column cells as Number data type: select the Qty cells, right-click > Data Format > Number
Right-click > Data Format
5
To sort alphabetically by Part Name: right-click the Part Name column header > Sort Column Ascending
Built-in sort (Method 1)
6
To sort by Item No. numerically: right-click the Item No. column header > Sort Column Ascending (leading zeros ensure correct order)
Built-in sort (Method 1)
7
If sort is greyed out (Data Extraction table): load SORTTABLE LISP, type SORTTABLE, select table, choose column 2 (Part Name), choose Ascending
SORTTABLE LISP (Method 3)
8
Export the parts list to Excel for further manipulation: right-click the table > Export > browse to save location as .xlsx
Right-click > Export
Using Table Styles to Organise and Manage Your Tables
A well-designed Table Style makes AutoCAD tables easier to read, sort, and maintain. Table Styles define the formatting for each row type (title row, header row, data rows) including font, size, alignment, background colour, and border style. Setting up a Table Style before creating tables ensures consistency across all tables in a drawing and makes sorted tables visually clear.
Creating a Table Style
Type TABLESTYLE and press Enter (or go to Home > Annotation panel dropdown > Table Style).
Click New and give the style a descriptive name (e.g. PARTS-LIST or REVISION-SCHEDULE).
Configure each row type (Title, Header, Data) separately:
Title row: Bold, centred, larger font size, solid background fill for visual distinction
Header row: Bold, centred, lighter background fill to differentiate from data rows
Data rows: Regular weight, left-aligned for text columns, right-aligned for numeric columns
Click OK to save the style. Select it as the current table style before creating new tables.
Professional Tip: Create separate table styles for different table types: one for parts lists (with enough column width for part names), one for revision schedules (narrower columns, more rows), and one for door/window schedules (wider for description columns). Save these in your company drawing template file so they are available in every new drawing automatically.
AutoCAD Table Sorting Compared to Excel: What Is and Is Not Possible
Feature
AutoCAD Built-In Sort
AutoCAD LISP Sort
Excel via Data Link
Sort by single column ascending/descending
Yes
Yes
Yes
Sort by multiple columns (primary + secondary)
Limited AutoCAD 2014+ only
Depends on LISP version
Yes, full multi-level sort
Numeric sort (1, 2, 3 not 1, 11, 12)
Yes if cells formatted as Number data type
Depends on LISP version
Yes, always numeric when cells are numbers
Sort alphabetically (case-insensitive)
Yes
Yes
Yes
Sort Data Extraction tables after insertion
No, greyed out
Yes, works on all table types
Not applicable
Custom sort order (e.g. not A-Z or 1-9)
No
No
Yes, custom lists in Excel
Sort by cell colour or icon
No
No
Yes, Excel 2007+ feature
Sort preserves merged cells
Limited
Yes (JTB version)
N/A, Excel handles merges differently
Sort requires additional software
No
Free LISP download
Excel required
Re-sort without re-running any wizard
Yes (manual tables)
Yes (all table types)
Yes (sort in Excel, update link)
Common Table Sorting Problems and Fixes
Problem
Cause
Fix
Sort option is greyed out in right-click menu
Table was created by Data Extraction wizard native sort is not available after insertion
Use Method 3 (SORTTABLE LISP) or re-open Data Extraction wizard (Method 2)
Numbers sort as 1, 11, 12, 2, 3 instead of 1, 2, 3
Table cells are formatted as Text data type, not Number
Change cell data format to Number (right-click > Data Format > Number), or use leading zeros, or sort in Excel
Sort works but header row gets sorted into the data rows
Table sort is treating the header row as a data row
Re-run sort and look for a setting to exclude header rows. In SORTTABLE LISP, confirm that the header rows selection is set correctly
Right-click on table shows no table options at all
Clicking outside the table border rather than inside it, or the table is locked
Click precisely inside a table cell. Check the Properties panel (Ctrl+1) to see if the table or individual rows are locked unlock them if so
Sort resets after reopening the drawing
Sort was applied but the drawing was not saved
Save the drawing immediately after sorting. For Data Extraction tables, ensure the .dxe file is also saved with updated sort settings
Table export to Excel loses sort order
Excel file is created fresh from the current table state this should preserve sort order
Verify the table is in the correct sort order before exporting. The exported Excel file will reflect the table’s current state
SORTTABLE LISP fails to load or SORTTABLE command not found
LISP file path has changed, or APPLOAD did not load it successfully
Type APPLOAD, verify the LISP file path is still valid. Re-load the file if needed. Check the Startup Suite is pointing to the correct file location
Frequently Asked Questions (FAQ)
How do you sort a table in AutoCAD?
To sort a manually created table in AutoCAD, click inside the table to select it, right-click the column header of the column you want to sort by, and choose Sort Column Ascending or Sort Column Descending. AutoCAD reorders all data rows based on that column’s content. If this option is greyed out (common with Data Extraction tables), use the free SORTTABLE LISP utility: download from cadforum.cz, load with APPLOAD, then type SORTTABLE, select the table, and choose the sort column and direction.
Why is the sort option greyed out on my AutoCAD table?
The sort option is greyed out on AutoCAD tables when the table was created by the Data Extraction wizard (DATAEXTRACTION command). AutoCAD does not support native re-sorting of Data Extraction tables after they have been inserted into the drawing. The solutions are: (1) Re-open the Data Extraction wizard, navigate to Page 5 (Refine Data), and resort the preview data before reinserting the table. (2) Use the free SORTTABLE LISP utility which works on all table types including Data Extraction tables.
How do I sort an AutoCAD table numerically (1, 2, 3 not 1, 11, 12)?
AutoCAD sorts numbers as text by default when cells contain text-formatted data, producing 1, 11, 12, 2, 3 instead of 1, 2, 3. To fix this: (1) Select the cells containing numbers, right-click and choose Data Format > Number to format them as numeric data — AutoCAD will then sort numerically. (2) Use leading zeros in your number entries (01, 02, 03… 09, 10, 11) so text sorting produces the correct sequence. (3) Sort in Excel using a Data Link, where numbers are always sorted numerically when the cells are formatted as numbers.
How do I sort a Data Extraction table in AutoCAD?
To sort a Data Extraction table in AutoCAD: (1) Re-run the Data Extraction wizard by selecting the table, right-clicking, and choosing Edit Data Extraction, or by typing DATAEXTRACTION and choosing to edit the existing extraction. Navigate to Page 5 (Refine Data) and click column headers to sort. Complete the wizard and choose to update the existing table. (2) Alternatively, download and load the free SORTTABLE LISP utility from cadforum.cz, type SORTTABLE, click the table, and specify the sort column.
What is the SORTTABLE command in AutoCAD?
SORTTABLE is a command provided by a free LISP (AutoCAD programming language) utility that adds proper table sorting capability to AutoCAD. It is not a built-in AutoCAD command it must be downloaded from CAD Forum (cadforum.cz) as a .lsp file and loaded using the APPLOAD command. Once loaded, SORTTABLE works on all AutoCAD table types including manually created tables and Data Extraction tables, allowing sort by any column in ascending or descending order.
Can I sort an AutoCAD table alphabetically?
Yes. To sort an AutoCAD table alphabetically: click inside the table to select it, right-click the column header of the text column you want to sort by, and choose Sort Column Ascending for A to Z order or Sort Column Descending for Z to A order. If the sort option is greyed out (Data Extraction table), load the SORTTABLE LISP utility and use the SORTTABLE command instead. The sort is case-insensitive in most AutoCAD versions.
How do I link an AutoCAD table to Excel?
To link an AutoCAD table to Excel: (1) Create your data in an Excel spreadsheet. (2) In AutoCAD, go to Insert > Linking and Extraction > Data Link Manager, create a new Excel data link pointing to your file, and select the cell range. (3) Create a new table (TABLE command) and choose ‘From a data link’, selecting the link you just created. (4) To update the AutoCAD table after making changes in Excel: go to Insert > Update Data Links or type DLUPDATEFROMEXTERNAL. Sorting in Excel and then updating the link keeps the AutoCAD table sorted without needing any in-AutoCAD sort tools.
Conclusion
Sorting tables in AutoCAD is not difficult once you understand which type of table you are working with and which method applies to it. The built-in column sort handles most manually created tables in seconds. Data Extraction tables require re-running the wizard or using the free SORTTABLE LISP utility. Excel data links provide full spreadsheet-level sort control for complex or frequently updated tables.
The alphanumeric sort issue (1, 11, 12, 2, 3) is the single most common frustration with AutoCAD table sorting, and it has a straightforward fix once you understand that it results from cells being formatted as text rather than numbers. Applying Number data format to numeric columns, or using leading zeros, resolves it immediately.
With the four methods in this guide and the troubleshooting table covering every common failure mode, you have everything needed to sort any AutoCAD table correctly regardless of how it was created or what data it contains.
DXF files (Drawing Exchange Format) are the universal passport of the CAD world. Where the native DWG file format is AutoCAD’s proprietary drawing file, DXF is the open, interoperable format that allows AutoCAD drawings to be shared with virtually any other CAD software, CNC machine, laser cutter, vinyl cutter, or fabrication system in existence.
If you have ever needed to send a drawing to a laser cutting shop, share geometry with a client using different CAD software, import a survey from GIS software, or get an AutoCAD drawing into a 3D modelling tool like Rhino or SolidWorks, DXF is almost certainly the format that bridges that gap. Understanding how to open, import, export, and prepare DXF files correctly in AutoCAD is one of the most practically valuable skills in the professional CAD toolkit.
This guide covers everything: what DXF files actually are, the three different ways to bring them into AutoCAD (and why they are different), how to export DXF files at the correct version for your recipient, how to prepare a clean DXF for CNC and fabrication use, how to fix the most common DXF problems, and a complete comparison of DXF versus DWG to help you decide which format to use in any situation.
Quick Answer: To open a DXF file in AutoCAD: go to File > Open, change the file type filter to DXF (*.dxf), navigate to the file, and click Open. AutoCAD opens the DXF as a new drawing. To import DXF into an existing drawing: type DXFIN in the command line (only works on a blank new drawing) or use INSERT > Attach to insert the DXF as a block reference. To export as DXF: go to File > Save As and select AutoCAD DXF (*.dxf) from the format dropdown.
What Is a DXF File? Understanding the Format
DXF stands for Drawing Exchange Format (also sometimes called Drawing Interchange Format). It was developed by Autodesk in 1982, the same year AutoCAD was first released, specifically to allow AutoCAD drawings to be shared with and used by other software programs without requiring a licensed copy of AutoCAD.
At its core, a DXF file is a text-based (ASCII) or binary file that describes the contents of a CAD drawing in a structured, documented format. Unlike the proprietary DWG format (which is encoded and undocumented by Autodesk), the DXF format has a publicly documented specification, which means any software developer can write code to read and write DXF files correctly. This is why DXF has become the universal interchange standard across the entire CAD and fabrication industry.
What a DXF File Contains
A DXF file stores the same fundamental drawing data as a DWG file, but with some important limitations:
Geometric entities: Lines, arcs, circles, polylines, splines, ellipses, and all standard 2D and 3D drawing objects.
Layer structure: Layer names, colours, linetypes, and visibility states are preserved in DXF files.
Blocks: Block definitions and insert references are stored, though complex dynamic blocks may be simplified or lost depending on the DXF version.
Dimensions and annotations: Dimension objects and text are included, though font rendering may differ between applications.
Hatching: Hatch patterns are stored, though complex pattern types may not transfer correctly to all DXF readers.
NOT included in DXF: Complex parametric constraints, AutoCAD-specific object types (dynamic block properties, data links, point clouds), and some rendering and visualisation data are lost or simplified when saving to DXF.
Historical Note: Autodesk introduced DXF in 1982 specifically because early AutoCAD users needed to share drawings with other software. As AutoCAD evolved, the DXF format evolved with it, with new versions (R12, R14, 2000, 2004, 2007, 2010, 2013, 2018) supporting increasingly complex features. However, older DXF versions remain widely used because many fabrication machines and older CAD systems cannot read newer DXF versions. Choosing the right DXF version for your recipient is one of the most important practical decisions in DXF workflow.
Understanding when to use DXF versus DWG is one of the most practical decisions in professional CAD work. The two formats serve different purposes, and choosing the wrong one causes unnecessary compatibility problems.
Criterion
Use DWG
Use DXF
Working with other AutoCAD users
Yes — DWG is AutoCAD’s native format. Preserves all AutoCAD-specific features.
Not necessary — DXF adds no benefit when both parties use AutoCAD.
Sharing with users of other CAD software (SolidWorks, Rhino, Revit, Fusion 360)
Sometimes — many modern CAD tools read DWG. Check recipient first.
Yes — DXF has broader support across non-Autodesk tools and older software.
Sending to CNC machines, laser cutters, vinyl cutters, or waterjet machines
Rarely — most fabrication software and controllers prefer DXF.
Yes — DXF R14 or R2000 is the near-universal fabrication format.
Preserving all AutoCAD features (dynamic blocks, parametric constraints, xrefs)
Yes — DWG preserves all native features. DXF may lose or simplify them.
Not ideal — complex features are simplified or lost in DXF.
Sending to clients who only need to view geometry (not edit)
DWG or PDF are both suitable options.
DXF works but PDF is simpler for view-only distribution.
Importing into GIS, mapping, or survey software
Sometimes supported
Yes — DXF is widely supported by ArcGIS, QGIS, and survey software.
Archiving drawings for long-term storage
Yes — DWG with ETRANSMIT to bundle all dependent files.
Not ideal for archiving — DXF may lose some data versus DWG.
Compatibility with very old software (pre-2000)
DWG compatibility may be limited for very old versions.
Yes — DXF R12 is readable by virtually any CAD application ever made.
Rule of Thumb: Use DWG as your primary working format and for sharing with other AutoCAD users. Use DXF as your delivery format when the recipient uses non-Autodesk software, when sending to fabrication or CNC services, or when maximum compatibility with unknown software is required. Never use DXF as your internal working format — always keep a DWG master and export DXF from it as needed.
Three Ways to Open or Import a DXF File in AutoCAD
There are three distinct methods for bringing a DXF file into AutoCAD, and they produce meaningfully different results. Choosing the right method depends on whether you want the DXF content to become your working drawing, to merge into an existing drawing, or to be referenced without permanently adding to the drawing database.
Method
Command / Access
What It Does
Best For
Open as New Drawing
File > Open > change file type to DXF, or drag-and-drop DXF onto AutoCAD
Opens the DXF as a standalone new drawing. Full geometry, layers, and blocks are preserved and editable.
When the DXF IS the drawing you want to work on and edit directly
DXFIN Command
Type DXFIN in command line (must be used on a blank/new drawing only)
Imports the entire DXF file into the current drawing. Current drawing must be a new blank drawing — DXFIN fails if the drawing already contains objects.
When you need to import DXF content into a freshly created drawing before adding your own geometry
INSERT / ATTACH (as a block reference)
Type INSERT or ATTACH > browse to DXF file and change filter to *.dxf
Inserts the DXF content as a block reference at a specified insertion point, scale, and rotation. The DXF geometry is treated as a single block object.
When you need to reference DXF geometry in an existing drawing without merging it permanently — for example, importing a site plan or background reference
Method 1: Opening a DXF File as a New Drawing — Step by Step
Launch AutoCAD.
Go to File > Open (or press Ctrl + O).
In the Open dialogue, change the Files of type dropdown to DXF (*.dxf).
Navigate to your DXF file and click it to select it.
Click Open. AutoCAD opens the DXF as a new drawing. The title bar shows the DXF filename.
Immediately after opening, type ZOOM and press Enter, then type E and Enter (Zoom Extents) to fit the imported geometry to the screen.
Check units immediately (see the Units section below). A newly opened DXF may use different units from your AutoCAD default.
Method 2: DXFIN Command — Step by Step
Open a new blank drawing in AutoCAD (File > New). This is essential — DXFIN will fail if the current drawing already has any objects.
Type DXFIN and press Enter.
In the file selection dialogue that opens, navigate to the DXF file and click Open.
AutoCAD reads the DXF and populates the blank drawing with all geometry, layers, and blocks from the file.
Type ZOOM > E to fit the imported geometry to screen.
Method 3: INSERT / ATTACH — Step by Step
Open your existing drawing where you want to add the DXF reference.
Type ATTACH and press Enter (or go to Insert tab > Reference panel > Attach).
In the Select Reference File dialogue, change the file type filter to DXF (*.dxf) and browse to your file.
Click Open. The Attach External Reference dialogue opens.
Set the insertion point, scale, and rotation as needed. For a reference drawing in the same coordinate system, use 0,0,0 as the insertion point and 1 as the scale.
Click OK. The DXF is inserted as a block reference in your drawing.
To explode the block and make the DXF geometry fully editable within your drawing, select it and type X (EXPLODE), then Enter.
DXFIN Limitation: The DXFIN command is the original AutoCAD method for importing DXF files, but it only works on completely blank new drawings. If you try to use DXFIN on a drawing that already has any objects, AutoCAD will display an error. In modern AutoCAD (2010 onwards), simply opening a DXF with File > Open is almost always the better approach — it is more reliable and has no blank-drawing restriction.
How to Export a Drawing as a DXF File from AutoCAD
Exporting a DXF from AutoCAD is straightforward, but choosing the correct DXF version and preparing the drawing correctly before exporting makes the difference between a DXF that works first time and one that causes problems for the recipient.
Method A: Save As DXF (Full Drawing Export)
Ensure your drawing is in the state you want to export (correct layers visible, model space or paper space as appropriate).
Go to File > Save As (or press Ctrl + Shift + S).
In the Save As dialogue, change the Files of type dropdown from DWG to AutoCAD DXF (*.dxf).
Click the Tools > Options button in the Save As dialogue (not the main AutoCAD Options) to access DXF format settings.
Select the appropriate DXF version (see the version selection table below). The default is the current AutoCAD version — change it if the recipient needs an older format.
Enter the filename and navigate to the save location.
Click Save. The DXF file is created.
Method B: DXFOUT Command
Type DXFOUT in the command line and press Enter.
In the Save Drawing As dialogue, the file type is automatically set to DXF.
Set the filename and click Save. The DXF is exported using the most recently used DXF version setting.
Method C: Export Selected Geometry Only
To export only specific geometry (not the entire drawing) as a DXF:
Select the geometry you want to export.
Type WBLOCK (Write Block) and press Enter.
In the Write Block dialogue, select Objects and ensure the selected geometry is referenced.
Set the File name and path and change the file type to DXF.
Click OK. Only the selected geometry is exported to the DXF file.
Choosing the Right DXF Version When Exporting
This is the single most important and most commonly neglected aspect of DXF file export from AutoCAD. AutoCAD offers multiple DXF versions when saving, and choosing the wrong one causes geometry to be missing, simplified, or unreadable by the recipient’s software or machine.
DXF Version
AutoCAD Release
Best Used For
Limitations
DXF R12 (AC1009)
AutoCAD Release 12 (1992)
Maximum compatibility: CNC controllers, older plotters, vintage CAD systems, any unknown recipient
No true arc support in some readers; no true ellipses; polylines only; blocks simplified; no true colours; no modern lineweights
DXF R14 (AC1014)
AutoCAD Release 14 (1997)
CNC machines, laser cutters, vinyl cutters, most fabrication software. The fabrication industry standard.
Limited true colour support; no plot styles; no sheet sets; dynamic blocks not supported
DXF 2000 / 2000i / 2002 (AC1015)
AutoCAD 2000/2002
Sharing with slightly older CAD software; good balance of compatibility and feature support
Limited advanced annotation support; no parametric constraints
DXF 2004 / 2005 / 2006 (AC1018)
AutoCAD 2004-2006
Sharing with CAD software from mid-2000s. Good general-purpose compatibility.
No dynamic blocks in full; no parametric; still limited 3D solid support
DXF 2007 / 2008 / 2009 (AC1021)
AutoCAD 2007-2009
Sharing with modern CAD tools that support DXF 2007. Better 3D and spline support.
Not supported by older machines and controllers
DXF 2010 / 2011 / 2012 (AC1024)
AutoCAD 2010-2012
Modern CAD software exchange, 3D model data, full spline and surface support
Many CNC and fabrication systems cannot read this version
DXF 2013-2018 (AC1027/AC1032)
AutoCAD 2013-present
Sharing with current AutoCAD versions and modern design software only
Limited compatibility; many systems cannot read it; not suitable for fabrication
Fabrication Industry Standard: When sending a DXF to a laser cutting service, CNC router, waterjet cutter, plasma cutter, or vinyl cutter, always use DXF R14 (AC1014). If R14 causes any issues (rare), try R12. These two versions are readable by virtually every fabrication machine and controller ever manufactured. Never send a 2010 or later DXF to a fabrication service without first confirming they can read it.
Checking and Fixing Units After Importing a DXF
Unit mismatch is the most common problem after importing a DXF file, and it is one that goes unnoticed until dimensions are measured or the drawing is used for fabrication. A drawing that was created in millimetres but opens in AutoCAD set to inches will appear to be the correct shape but all dimensions will be wrong by a factor of 25.4.
How to Check Units After Importing
After opening or importing a DXF, type UNITS (or UN) and press Enter.
The Drawing Units dialogue opens. Check the Length Type and Insertion Scale settings.
If the units are incorrect, change the Insertion Scale to the correct unit (Millimeters or Inches as appropriate).
Click OK.
Draw a known dimension — a line you know should be, for example, 100mm long — and use DIST (Measure Distance) to verify it measures correctly.
Rescaling a Drawing That Was Imported at the Wrong Units
If a drawing was imported at the wrong scale (for example, a millimetre drawing that AutoCAD interpreted as inches), rescale the entire drawing:
Type SCALE (or SC) and press Enter.
Type ALL and press Enter to select all objects, then press Enter to confirm.
Click any point as the base point (0,0 is safest).
Enter the scale factor. For a millimetre drawing incorrectly shown in inches, the scale factor is 25.4 (to scale up from inches to mm). For an inches drawing shown in millimetres, use 0.03937 (1/25.4).
Press Enter. All geometry is rescaled. Verify dimensions with DIST.
Layer Management When Working with DXF Files
Layer information is generally preserved in DXF files, but the way layers transfer depends on the DXF version, the sending software, and how the DXF was prepared. Understanding what to expect prevents layer confusion on import.
What Layer Information DXF Preserves
Layer names: Preserved in all DXF versions.
Layer colours (by colour index): Preserved. True colour (RGB) values preserved in DXF 2000 and later only.
Linetype names: Layer linetype names are stored, but the actual linetype definition may need to be loaded manually if it is not a standard AutoCAD linetype.
Layer on/off and frozen state: Preserved in most DXF versions.
Layer lineweight: Preserved in DXF 2000 and later. May be lost in R14 and earlier.
Managing Layers After Import
After importing a DXF, open the Layer Properties Manager (LA) to review the imported layer structure. Common issues:
Unexpected layer names: Some CAD applications use non-standard layer naming conventions. Rename layers using the Layer Properties Manager to match your drawing standards.
Missing linetypes: If layers reference linetypes that are not loaded in the current drawing, objects may display with a continuous line. Use LINETYPE > Load to load the required linetypes from AutoCAD’s standard linetype library.
All geometry on one layer: Some DXF exporters flatten all geometry to a single layer. If this happens, inspect the imported geometry and manually reassign objects to appropriate layers.
Preparing a Clean DXF for CNC, Laser Cutting, and Fabrication
Sending a raw AutoCAD DXF to a fabrication service without preparing it properly is one of the most common and costly mistakes in engineering and design work. Fabrication machines and their CAM software have specific requirements for DXF files that are very different from the requirements of a standard design drawing. A DXF that looks perfect in AutoCAD can produce cut paths with errors, skipped features, double cuts, or incorrect dimensions at the machine.
The following preparation workflow produces a clean, fabrication-ready DXF that meets the requirements of virtually any CNC, laser, waterjet, or vinyl cutting service.
Step 1: Work Only in Model Space for Fabrication DXFs
Fabrication machines read only the geometry in model space. Paper space layouts, viewports, and title blocks should not be included in a fabrication DXF. Ensure that your cut profiles are in model space at 1:1 scale before beginning the export preparation.
Step 2: Ensure All Profiles Are Closed Polylines
Most fabrication CAM software requires that cut profiles are closed polylines rather than individual line and arc segments. Use PEDIT > Join to combine all segments forming each cut profile into closed polylines. Use BOUNDARY to auto-detect and create closed polylines from complex boundary areas. Verify each profile by clicking it — if it highlights as one object, it is a single polyline.
Step 3: Remove Duplicate and Overlapping Lines
Overlapping geometry causes double-cut passes at the machine, wasting material and potentially damaging the workpiece or cutting tool. Run the OVERKILL command (type OVERKILL, Enter, select all, Enter) to automatically delete duplicate and overlapping geometry. After OVERKILL, zoom into complex areas to verify no accidental geometry was removed.
Step 4: Remove All Non-Geometry Content
Fabrication DXFs should contain cut geometry only. Remove or move to a separate non-plotted layer:
Dimensions and annotations
Title blocks and borders
Centre lines and reference lines
Hatch patterns
Text labels
Construction geometry
Step 5: Explode All Blocks
Most fabrication CAM software cannot process AutoCAD block references correctly. Type EXPLODE (X) and select all geometry, then Enter. This converts all blocks into their constituent geometry. Run OVERKILL again after exploding to remove any duplicate geometry created by the explosion.
Step 6: Purge the Drawing
Type PURGE (PU) and select purge all. This removes all unused layer definitions, block definitions, text styles, and dimension styles from the drawing, reducing file size and eliminating potential compatibility issues.
Step 7: Verify Units and Scale
Confirm that the drawing units are set correctly and that all geometry is at 1:1 real-world scale. Many laser cutting services work in millimetres. Type UNITS and verify that Insertion Scale is set to Millimeters (or the correct unit for the fabrication service). Measure a known dimension with DIST to confirm.
Step 8: Export as DXF R14
Save As DXF using DXF R14 (AC1014) format. This is the fabrication industry standard. If the service specifically requests R12, use that instead. Avoid any DXF version newer than R2000 unless the service explicitly confirms they can read it.
Pro Tip for Laser Cutting: Many laser cutting services also require that profiles be organised by operation type (e.g. cut, engrave, score) into different layers with specified colours. For example: red layer for outer cuts, blue for inner cuts, green for engraving. Check the specific requirements of your fabrication service before preparing the DXF — most publish a DXF preparation guide on their website.
Using DXF Files with Other CAD and Design Software
SolidWorks imports DXF well for sketch geometry. 3D DXF geometry imports as imported bodies.
Fusion 360
Yes — 2D and 3D DXF
Yes — sketches and drawings to DXF
DXF 2007 or 2010
Fusion 360 handles modern DXF versions well. For sketch import, use 2D DXF.
Rhino 3D
Excellent — full support
Yes — DXF export well-supported
DXF 2007 or 2010
Rhino’s DXF translator is one of the most reliable available. Named UCS imports as CPlane.
Illustrator / Inkscape
Yes — 2D geometry only
Yes — vector paths to DXF
DXF R14 or 2000
Only 2D geometry transfers. Text may need converting to curves/outlines before export.
Laser Cutting Software (LightBurn, etc.)
Yes — 2D geometry
Not applicable (machine software)
DXF R14 or R12
Requires closed polylines. Remove all non-geometry content before sending.
CNC CAM Software (Mastercam, Fusion CAM)
Yes — 2D and 3D geometry
DXF export for documentation
DXF R14 for 2D profiles
Mastercam works best with clean closed polylines. Run OVERKILL before export.
QGIS / ArcGIS
Yes — geometry and layers
Yes — vector features to DXF
DXF R14 or 2000
Layer names are used as feature attributes. Coordinate system must be set correctly.
DXF File Troubleshooting: Common Problems and Fixes
Problem
Most Likely Cause
Fix
DXF opens but drawing area appears blank (nothing visible)
Geometry exists but is very far from the origin, or drawing was saved with wrong units making objects too small or large to see at default zoom
Type ZOOM > E (Zoom Extents) immediately after opening to fit all geometry to screen. Then check units with UNITS command.
Geometry appears but dimensions are completely wrong (e.g. 100x too large or small)
Unit mismatch: DXF was created in millimetres but AutoCAD interpreted it as inches or vice versa
Use SCALE command to rescale all geometry by the correct factor (25.4 for mm to inch correction, 0.03937 for inch to mm). Then reset UNITS correctly.
Some geometry is missing after import
Missing geometry was on a layer that was turned off or frozen in the source drawing, or the geometry uses object types not supported by the DXF version
Type LA to open Layer Properties Manager and turn on all layers. Check if missing geometry is of a type not supported by the DXF version used.
Blocks appear as empty outlines or are missing after import
DXF was saved with an older version that simplified or excluded block definitions
Ask the sender to re-export using a newer DXF version (2000 or later), or ask them to EXPLODE all blocks before exporting
DXFIN fails with ‘Drawing not empty’ error
DXFIN requires a completely empty new drawing — the current drawing has objects in it
Open a new blank drawing first (File > New), then run DXFIN
DXF sent to fabricator causes double cuts or missed geometry
Duplicate/overlapping lines, open polylines, or non-geometry content (dimensions, text) included in the DXF
Run OVERKILL to remove duplicates. Use PEDIT Join to close open profiles. Remove all annotations and non-cut geometry. Re-export as DXF R14.
Linetypes appear as continuous (solid) lines after import
Linetype definitions from the DXF are not loaded in the current drawing
Type LINETYPE > Load, browse the AutoCAD linetype library (acad.lin or acadiso.lin), and load the required linetypes. Then REGEN to update display.
Hatching appears incorrectly or as solid fill after import
Hatch pattern type not supported by the DXF version, or hatch scale is incompatible with current units
Re-apply hatch in AutoCAD using the HATCH command on the imported boundary. Delete and recreate any hatch that transferred incorrectly.
DXF file cannot be opened at all (error on open)
DXF file is corrupted, or was generated by software with a non-standard DXF implementation
Open the DXF in a text editor to verify it is a valid ASCII file starting with ‘0SECTION’. If corrupted, ask sender to re-export. Try RECOVER command in AutoCAD.
Batch Converting DWG Files to DXF
When you need to convert multiple DWG files to DXF format simultaneously, AutoCAD provides two approaches: the built-in Batch Plot utility and the DWG Trueview/Autodesk Batch Utility (a free tool from Autodesk).
Using the Autodesk Batch Conversion Utility
Download and install Autodesk DWG TrueView (free from Autodesk) which includes a built-in batch conversion tool.
Open DWG TrueView and go to Tools > Batch Convert.
Add the DWG files you want to convert using the Add Files button.
Set the output format to DXF and select the DXF version.
Set the output folder and click Convert. All files are converted to DXF in the output folder.
Using AutoLISP for Batch DXF Export Within AutoCAD
For advanced users who need to batch convert files with specific settings from within AutoCAD, a simple AutoLISP script can be used to open each DWG and save it as DXF automatically. This approach allows full control over DXF version, layer filtering, and preparation steps as part of the conversion batch.
Frequently Asked Questions (FAQ)
How do I open a DXF file in AutoCAD?
To open a DXF file in AutoCAD, go to File > Open (or press Ctrl + O). In the Open dialogue, change the Files of type dropdown to DXF (*.dxf). Navigate to the DXF file and click Open. AutoCAD opens the DXF as a new drawing. After opening, type ZOOM > E (Zoom Extents) to fit the geometry to the screen, then check the drawing units with the UNITS command to confirm the correct measurement units are set.
How do I export a DXF file from AutoCAD?
To export a DXF file from AutoCAD, go to File > Save As. In the Save As dialogue, change the Files of type dropdown to AutoCAD DXF (*.dxf). Click Tools > Options in the dialogue to select the DXF version (use DXF R14 for fabrication, DXF 2007 for modern CAD software exchange). Enter the filename and click Save. Alternatively, type DXFOUT in the command line and press Enter.
What is the difference between DXF and DWG in AutoCAD?
DWG is AutoCAD’s proprietary native file format that stores all AutoCAD-specific features including dynamic blocks, parametric constraints, and xrefs. DXF (Drawing Exchange Format) is an open, documented format designed for maximum compatibility with other CAD software, CNC machines, and fabrication systems. Use DWG as your working format and for sharing with other AutoCAD users. Use DXF when sharing with non-AutoCAD software, CNC and laser cutting services, or any recipient where compatibility with their system is uncertain.
What DXF version should I use for CNC and laser cutting?
For CNC machines, laser cutters, waterjet cutters, and most fabrication services, use DXF R14 (also known as AC1014). This version is readable by virtually every fabrication machine and controller ever manufactured. If R14 causes issues, try DXF R12 for maximum compatibility. Avoid DXF versions newer than 2000/2002 for fabrication — many machines cannot read them.
Why does my DXF file look wrong after importing into AutoCAD?
The most common reasons a DXF looks wrong after import are: (1) Blank screen — type ZOOM > E to fit geometry to screen. (2) Geometry at wrong scale — unit mismatch between sender and AutoCAD. Type UNITS to check and SCALE to correct by factor 25.4 (mm to inch) or 0.03937 (inch to mm). (3) Missing geometry — open the Layer Properties Manager (LA) and turn on all layers. (4) Blocks appearing empty — ask the sender to re-export with a newer DXF version or explode blocks before export.
How do I import a DXF into an existing AutoCAD drawing?
To import a DXF into an existing drawing, use the INSERT or ATTACH command rather than DXFIN (DXFIN only works on blank new drawings). Type ATTACH, change the file filter to DXF, browse to the file, and click Open. Set the insertion point, scale, and rotation. After inserting, if you want the DXF geometry to be fully editable (not a block), select the inserted reference and type X (EXPLODE) to break it into individual objects.
How do I prepare a DXF for laser cutting from AutoCAD?
To prepare a clean DXF for laser cutting from AutoCAD: (1) Work in model space at 1:1 scale. (2) Use PEDIT > Join to ensure all cut profiles are closed polylines. (3) Run OVERKILL to remove duplicate lines. (4) Delete or move all non-geometry content (dimensions, text, hatches, title blocks) to a No Plot layer or delete them. (5) EXPLODE all blocks. (6) Run PURGE (PU) to clean unused definitions. (7) Verify units with UNITS command. (8) Save As DXF R14. Organise geometry into colour-coded layers if the cutting service requires it (check their DXF preparation guide).
What is the DXFIN command in AutoCAD?
DXFIN is an AutoCAD command that imports a DXF file into the current drawing. It can only be used on a completely new blank drawing — if the current drawing contains any objects, DXFIN will fail with an error. In modern AutoCAD (2010 onwards), simply opening a DXF with File > Open is almost always preferable to DXFIN, as it has no blank-drawing restriction and is more reliable with complex DXF files.
Conclusion
DXF files are the universal currency of CAD interoperability. Mastering how to import, export, clean, and troubleshoot them in AutoCAD opens up seamless communication with virtually every other CAD platform, fabrication service, and manufacturing system in the industry.
The most important lessons from this guide are: always verify units after importing a DXF; always choose the right DXF version when exporting (R14 for fabrication, 2007 for modern CAD software); always prepare a clean, geometry-only file before sending to a fabricator; and always keep your DWG master file as the source of truth, using DXF only as a delivery format.
The troubleshooting table in this article covers every common DXF failure mode. Most problems trace back to unit mismatches, overlapping geometry, or an incorrect DXF version choice — and all three are easily fixed once you know what to look for.
Return to the full guide: AutoCAD Tutorials for Beginners and Professionals. Continue with: How to Sort Tables in AutoCAD or Dynamic Block Lookup Tables Explained.
You have drawn a 2D outline in AutoCAD. Maybe it is the cross-section of a mechanical part. Maybe it is an architectural wall layout, a swept path profile, or the silhouette of a component from an engineering drawing. Now you need to turn that flat outline into a 3D solid with actual volume, mass, and surfaces. This is one of the most fundamental workflows in AutoCAD 3D modelling, and it is also one of the most commonly broken.
The breaking point is almost always the same: the profile outline. AutoCAD’s solid creation commands — EXTRUDE, REVOLVE, LOFT, SWEEP — all have one non-negotiable requirement: the profile must be a closed, valid 2D boundary. A profile that looks closed visually is not always closed geometrically. Individual lines and arcs that appear to touch often have tiny gaps between their endpoints. Profiles drawn with separate line segments rather than a single polyline frequently fail silently, producing surfaces instead of solids or generating an error message that gives no useful guidance on how to fix it.
This guide covers the complete workflow from profile outline to finished 3D solid: how to create profiles correctly from scratch, how to diagnose and fix problem profiles that refuse to extrude, which command to use for which type of profile, how to handle complex profiles with holes and nested shapes, and a full troubleshooting reference for every common failure mode. It is the guide that should exist at the start of every AutoCAD 3D modelling tutorial but usually does not.
Quick Answer: To make a 3D solid from a profile outline in AutoCAD: (1) Ensure the profile is a single closed polyline or REGION. Use PEDIT > Join to combine separate lines/arcs, or BOUNDARY to auto-detect and create a closed polyline from intersecting geometry. (2) Set the correct UCS so the profile is on the right plane. (3) Type EXT (EXTRUDE), select the profile, press Enter, and enter the depth. AutoCAD creates the 3D solid.
What Is a Profile in AutoCAD 3D Modelling?
In AutoCAD 3D modelling, a profile is a 2D geometric boundary that defines the cross-section, outline, or path of a 3D feature. The profile is the foundation: it defines the shape, and the solid creation command (EXTRUDE, REVOLVE, LOFT, or SWEEP) gives it depth, revolution, or direction to produce a 3D solid.
Understanding profiles correctly is the single most important prerequisite for successful 3D modelling in AutoCAD. Nearly every 3D modelling failure at the beginner and intermediate level traces back to a profile problem: the profile is not closed, it is not on the right plane, it contains multiple overlapping objects, or it is made up of separate line segments rather than a unified boundary.
The relationship between a profile and the 3D solid it produces is direct and deterministic: change the profile and the solid changes with it. This is why getting the profile exactly right before invoking any solid creation command is essential. It is always faster to spend an extra two minutes verifying the profile than to debug a solid that has extruded incorrectly and needs to be rebuilt.
Profile Types: What AutoCAD Accepts and What It Rejects
Not all 2D objects can serve as profiles for solid creation commands. The following table defines exactly what each major solid creation command accepts, what it rejects, and the consequence of using an invalid profile.
Profile Object Type
Valid for EXTRUDE?
Valid for REVOLVE?
Valid for LOFT?
Valid for SWEEP?
Result if Open
Closed POLYLINE (single object)
Yes
Yes
Yes (cross-section)
Yes
N/A – polyline must be closed first
Open POLYLINE
Yes (creates surface)
Yes (creates surface)
Yes (creates surface if all open)
Yes (creates surface)
Creates a surface, not a solid
REGION (from closed boundary)
Yes
Yes
Yes
Yes
N/A – REGIONs are always closed
CIRCLE
Yes (always closed)
Yes
Yes
Yes
N/A – circles are always closed
RECTANGLE (drawn with REC command)
Yes (always closed)
Yes
Yes
Yes
N/A – rectangles are closed polylines
ELLIPSE
Yes (always closed)
Yes
Yes
Yes
N/A – ellipses are always closed
SPLINE (closed)
Yes
Yes
Yes
Yes
Creates surface if open
Individual LINES forming a shape
No (extrude fails)
No
No
No (individual lines only)
Individual lines cannot be used directly — must be joined first
Individual ARCS forming a shape
No (extrude fails)
No
No
No
Individual arcs cannot be used — must be joined into polyline or REGION
Mixed LINES and ARCS (separate)
No
No
No
No
Must be joined via PEDIT or converted to REGION
The Most Important Rule: AutoCAD’s solid creation commands require either a single closed object (closed polyline, circle, ellipse, closed spline, region) or a set of cross-sections for LOFT. They do not accept multiple separate objects that form a shape. The single most common reason EXTRUDE fails or creates a surface instead of a solid is that the profile consists of individual line and arc segments that look connected but are separate objects. The fix is always the same: join them first.
Method 1: Drawing a Profile Correctly from Scratch
The cleanest, most reliable way to create a profile for 3D solid creation is to draw it as a single closed polyline from the beginning. A polyline drawn with the POLYLINE (PL) command is a single object whose segments are internally connected, making it inherently valid for extrusion without any post-processing.
Drawing a Straight-Sided Profile with POLYLINE
Type PL (POLYLINE) and press Enter.
Set the UCS correctly first: type UCS > W for World UCS to draw on the standard XY plane, or set the UCS to align with a specific face of an existing solid using UCS > F.
With ORTHO on (F8), click the first corner of the profile.
Type each side dimension and press Enter, changing direction at each corner. For a 100mm x 60mm rectangle: type 100, Enter (draws first horizontal segment); type 60, Enter (draws vertical); type 100, Enter (draws second horizontal); type C and Enter to close the polyline back to the starting point.
The polyline is now a single closed object ready for EXTRUDE.
Drawing a Profile with Arcs and Straight Segments
Many engineering profiles mix straight edges with rounded corners or arcs. The POLYLINE command handles this with sub-options that switch between line and arc mode without ending the command:
Type PL and Enter. Click the start point.
Draw straight segments as normal. When you reach a segment that needs to be an arc, type A and press Enter to switch to Arc mode.
In Arc mode, click the endpoint of the arc (AutoCAD creates a tangent arc by default). Type L and Enter to switch back to Line mode for the next straight segment.
Continue alternating between arc and line mode as required by the profile shape.
When back at the start point, type C and Enter to close. AutoCAD closes with a straight line or arc segment as appropriate.
Pro Tip: For profiles with consistent fillets (rounded corners), it is usually faster to draw the profile with sharp corners as a closed polyline first, then use FILLET (F) in polyline mode to apply fillets to all corners at once. Type F (FILLET), type R and the fillet radius, press Enter, then type P and click the polyline. AutoCAD fillets every eligible corner simultaneously.
Method 2: Fixing an Existing Profile with PEDIT Join
PEDIT (Polyline Edit) is the command used to repair, modify, and combine existing 2D geometry into a valid profile. Its Join option is one of the most useful tools in the entire AutoCAD 3D toolkit: it takes a collection of separate connected line and arc segments and welds them into a single closed polyline.
Use PEDIT Join whenever you are working with an existing 2D drawing where the profile was built from individual lines and arcs (as most 2D engineering drawings are) rather than a single polyline. Autodesk’s official guidance on converting lines to solids
AutoCAD prompts: Select polyline or [Multiple]:. If working with multiple separate objects, type M and press Enter to use Multiple mode.
Select all the line and arc segments that make up your profile. Press Enter to confirm the selection.
AutoCAD asks whether to convert non-polyline objects. Type Y and press Enter to convert all selected lines and arcs to polyline segments.
AutoCAD prompts with edit options. Type J (Join) and press Enter.
AutoCAD prompts: Specify fuzz distance or [Jointype]:. The fuzz distance is the maximum gap between segment endpoints that AutoCAD will bridge to join them. For clean drawings, the default (0 or a very small value) is fine. For drawings with tiny gaps, type a small value such as 0.001 and press Enter.
AutoCAD joins the segments and reports how many segments were joined. Press Enter to accept and exit PEDIT.
Type C (Close) as an additional PEDIT option if the joined polyline is not yet explicitly closed back to its start point.
What the Fuzz Distance Does: The fuzz distance in PEDIT Join defines the maximum gap between two segment endpoints that AutoCAD considers close enough to join. If two lines appear to meet but have a 0.5mm gap because OSNAP was off when they were drawn, setting the fuzz distance to 1 will bridge that gap. Setting it too high (e.g. 100) will join segments that were never meant to connect. Start with a small value and increase only if the join fails at a lower value.
Verifying the Join Was Successful
After PEDIT Join, click anywhere blank to deselect, then click the profile once. If it highlights as a single object (the entire outline becomes selected at once), the join was successful. If individual segments highlight separately, some joins were not made. Run PEDIT Join again on the un-joined segments, or investigate why those endpoints are not connecting using the endpoint OSNAP to check for gaps.
Method 3: Using REGION to Create a Profile from Any Closed Boundary
The REGION command converts any collection of connected objects that form a closed boundary — regardless of whether they are lines, arcs, polylines, splines, or a mix — into a single flat 2D region object. A region is essentially a solid surface with zero thickness. It is always treated as a closed boundary by AutoCAD’s solid creation commands, making it an extremely reliable alternative to polyline profiles.
When to Use REGION Instead of PEDIT
Use REGION when the profile boundary is made up of many different object types that cannot be easily joined with PEDIT (for example, a mix of splines, arcs, and lines). Also use REGION when you need to create profiles with holes (islands) — REGION supports Boolean operations between regions to create complex profiles with internal cutouts before extruding. This is covered in detail in the islands section below.
Full Step-by-Step: REGION Command
Ensure all the objects forming the closed boundary are genuinely connected at their endpoints. Use OSNAP endpoint markers to verify that each connection is precise.
Type REGION (or REG) and press Enter.
Select all objects that form the closed boundary. Press Enter.
AutoCAD reports: 1 loop extracted. 1 Region created. (The number will vary depending on how many closed loops you selected.)
The selected objects are converted into a flat region object. The original line and arc geometry is replaced by the region.
The region is now ready for EXTRUDE, REVOLVE, LOFT, or SWEEP.
Important: REGION Replaces the Original Objects: When you run REGION, the original lines, arcs, and polylines are deleted and replaced by the region object. If you need to keep the original 2D geometry, copy it to a separate layer before running REGION, then set that layer to No Plot or freeze it after the region is created.
Method 4: Using BOUNDARY to Auto-Detect Closed Areas
The BOUNDARY command is AutoCAD’s most automated profile creation tool. It works like the HATCH boundary detection algorithm: you click inside a closed area and AutoCAD automatically traces the boundary of that area, creating a new polyline or region on top of the existing geometry. The original geometry is preserved, and the new profile object is placed precisely on top of it.
BOUNDARY is particularly useful when you have a complex drawing with overlapping geometry and you want to create a clean profile from a specific enclosed area without manually selecting and joining all the boundary segments.
Full Step-by-Step: BOUNDARY Command
Type BOUNDARY (or BO) and press Enter. The Boundary Creation dialogue opens.
Under Object Type, choose Polyline (for a closed polyline profile) or Region (for a region profile). Polyline is the default and usually the better choice.
Click Pick Points in the dialogue.
Click inside the enclosed area whose boundary you want to trace. AutoCAD analyses the geometry and highlights the detected boundary.
Press Enter to confirm. AutoCAD creates the new polyline or region object precisely on top of the detected boundary.
The new profile is now a separate, clean, closed polyline or region ready for extrusion.
BOUNDARY vs PEDIT Join — When to Use Each: Use PEDIT Join when you have a clearly defined set of connected segments that form your profile and you want to weld them into one polyline. Use BOUNDARY when the profile area is defined by intersecting geometry (lines that cross each other, overlapping shapes) and you want AutoCAD to auto-detect the enclosed area. BOUNDARY is faster and less error-prone for complex overlapping geometry.
Validating Your Profile Before Extruding
Before invoking any solid creation command, always validate the profile. This five-step check takes under a minute and prevents the frustration of discovering problems after the solid has been generated incorrectly.
Validation Check
How to Perform It
What It Confirms
Check object count
Click the profile once. Only ONE object should highlight. If multiple separate segments highlight, PEDIT Join or REGION is needed.
Profile is a single unified object, not multiple separate segments
Check closure
Type PEDIT, select the polyline. If the option ‘Close’ appears (rather than ‘Open’), the polyline is not explicitly closed. Type C to close it.
Profile endpoint connects back to start point — the polyline is geometrically closed
Check planarity
Type LIST, select the profile, press Enter. Check that all vertex Z coordinates are identical. If any differ, the profile is not flat and will extrude unpredictably.
Profile lies entirely on a single flat plane — no accidental Z deviations
Check for self-intersections
Zoom in and orbit around the profile. Look for any segments that cross each other within the boundary.
Profile boundary does not cross itself, which prevents solid creation
Test extrude direction
In the isometric viewport, check the UCS icon orientation. The extrusion will go perpendicular to the current UCS XY plane. Confirm this is the intended direction.
Extrusion will go in the correct direction relative to the profile plane
Choosing the Right Solid Creation Command for Your Profile
If Your Profile Is…
Use This Command
Why
A cross-section that is the same all the way through the depth of the part
EXTRUDE
Pushes the profile perpendicular to its plane by a specified depth. Best for prismatic parts, plates, beams, and any constant cross-section shape.
A half-section of a rotationally symmetric part (shaft, cylinder, cone, bowl)
REVOLVE
Rotates the profile around a specified axis through any angle. Creates perfectly symmetric solids of revolution without needing a full cross-section profile.
A cross-section that changes shape from one end of the part to the other
LOFT
Blends between two or more cross-section profiles placed at different positions. Correct for tapered parts, transitions, and organic shapes.
A consistent cross-section that follows a curved or custom path
SWEEP
Follows the profile along any drawn path (arc, polyline, spline, circle). Correct for pipe bends, handrails, extruded mouldings, and curved extrusions.
A flat face on an existing solid that needs a boss or pocket added
PRESSPULL
Detects enclosed regions on solid faces and directly adds (pull) or removes (press) material. Fastest for adding features to existing solids.
EXTRUDE: Straight, Tapered, and Path-Based Profiles
EXTRUDE is the most commonly used solid creation command for profile-based 3D modelling. It takes a closed profile and creates a solid by sweeping it perpendicular to its plane for a specified distance.
Standard EXTRUDE: Step-by-Step
Prepare and validate the profile (closed polyline, circle, ellipse, or region).
Type EXT (EXTRUDE) and press Enter.
Select the profile. Press Enter.
Type the extrusion height (depth) value and press Enter. Positive value extrudes in the positive Z direction of the current UCS; negative extrudes in the negative Z direction.
The 3D solid appears. Inspect in isometric view.
EXTRUDE with Taper Angle
A taper angle makes the profile shrink or expand as it extrudes, creating a draft angle. Essential for injection moulded parts, castings, and components that need release angles.
Type EXT, select profile, press Enter.
Type T (Taper angle) and press Enter.
Enter the taper angle in degrees. Positive tapers inward (profile shrinks toward the top), negative tapers outward.
Enter the extrusion height. The solid tapers along its length.
EXTRUDE Along a Path
Instead of extruding perpendicular to the profile plane, EXTRUDE with the Path option follows a drawn curve:
Draw the path (a line, arc, polyline, or spline) in the drawing.
Type EXT, select the profile, press Enter.
Type P (Path) and press Enter.
Click the path object. The profile extrudes along the full length of the path.
REVOLVE: Profiles That Rotate Around an Axis
REVOLVE creates a 3D solid by rotating a profile around a defined axis. Use it for any rotationally symmetric component: shafts, bolts, cylinders, cones, flanges, bottles, and turned parts.
Creating the Correct Profile for REVOLVE
The profile for REVOLVE is the half-section cross-section: draw only the right half of the outline (from the centre axis outward). The profile does not need to be closed if it lies entirely on one side of the intended rotation axis — AutoCAD will close the revolution automatically. However, a closed half-profile produces more predictable results.
Full Step-by-Step: REVOLVE
Draw the half-section profile as a closed polyline or as connected lines/arcs.
Optionally draw an axis line along the centre of revolution, or note which edge of the profile will be the axis.
Type REV (REVOLVE) and press Enter.
Select the profile. Press Enter.
At Specify axis start point: click the first point of the revolution axis.
Click the second axis point, or type X, Y, or Z to revolve around the corresponding world axis.
Enter the angle of revolution. Type 360 for a complete solid, or a partial angle for a sector.
LOFT: Multiple Profiles Blended into One Solid
LOFT creates a 3D solid that transitions smoothly between two or more cross-section profiles. Each profile defines the shape of the solid at that cross-sectional location, and LOFT blends between them.
Setting Up Profiles for LOFT
All profiles used in LOFT must be either all closed (to produce a solid) or all open (to produce a surface). You cannot mix closed and open profiles in a single LOFT operation. Each profile must lie on its own plane and the planes should generally be parallel for predictable results (though they do not have to be).
Full Step-by-Step: LOFT
Draw at least two cross-section profiles at different positions along the intended axis of the solid.
Type LOFT and press Enter.
Select the profiles in order from one end to the other. Selecting out of sequence produces twisted results. Press Enter when all profiles are selected.
At the Loft Options prompt, press Enter for Cross-sections only (the default, which produces the smoothest blend).
In the Loft Settings dialogue, choose Smooth Fit for organic blends, Ruled for linear face transitions, or Normal to start and end sections for blends that are perpendicular to the end profiles.
Click OK. The lofted solid appears.
SWEEP: Profiles Along a Curved or Custom Path
SWEEP extrudes a cross-section profile along any defined path object: a line, arc, circle, polyline, ellipse, or spline. Unlike EXTRUDE (which always goes perpendicular), SWEEP follows the geometry of the path exactly, making it ideal for curved extrusions such as pipe bends, architectural mouldings, and spiral springs.
Profile and Path Placement for SWEEP
The profile does not need to be drawn at the start of the path, but it must lie on a plane perpendicular to the path at the start point. AutoCAD automatically relocates the profile to the start of the path when SWEEP is run. If the profile and path are on the same plane, SWEEP handles the orientation automatically.
Full Step-by-Step: SWEEP
Draw the closed 2D cross-section profile (the shape that will be swept).
Draw the path the profile will follow (line, arc, polyline, or spline).
Type SWEEP and press Enter.
Select the profile. Press Enter.
Select the path object. AutoCAD sweeps the profile along the full path length, creating the 3D solid.
Handling Nested Profiles and Profiles with Islands (Holes)
Many mechanical components have profiles with holes or internal cutouts — a plate with mounting holes, a hollow tube cross-section, or a washer outline. These are called profiles with islands. AutoCAD handles them differently depending on whether you use the direct EXTRUDE approach or a REGION Boolean approach.
Method A: EXTRUDE Then SUBTRACT (Most Reliable)
The most straightforward and reliable method for profiles with holes:
Extrude the outer profile as normal to create the solid body.
Create separate solid cutters for each hole (cylinders for round holes, boxes for rectangular pockets). Position them at the correct locations.
Use SUBTRACT to cut the cutter solids from the body solid.
Method B: REGION Boolean Operations Before Extruding
If you prefer to define the complete profile including holes before extruding, use REGION Boolean operations:
Create a REGION from the outer boundary.
Create separate REGIONs from each hole or cutout boundary.
Type SU (SUBTRACT), select the outer region as the body, press Enter, then select all inner regions as cutters, press Enter.
The result is a single region with holes already cut into it.
Extrude this compound region. The extruded solid will have holes running through it.
Which Method Is Better? Method A (EXTRUDE then SUBTRACT) is simpler and less prone to errors. Method B (REGION Boolean then EXTRUDE) is useful when you want to verify the 2D profile visually before extruding, or when the profile shape changes because of the holes (e.g., thin walls between adjacent holes require careful profile validation before extruding).
Converting Existing Objects to Solids (CONVTOSOLID and THICKEN)
Sometimes you have existing AutoCAD objects that are not profiles but need to become solids. Two commands handle specific conversion scenarios:
CONVTOSOLID: Converting Meshes and Polyfaces
CONVTOSOLID converts AutoCAD mesh objects, polyface meshes, and zero-width closed polylines with thickness into 3D solids. Type CONVTOSOLID, select the object, press Enter. If the conversion is possible, AutoCAD creates a solid from the selected object. This is useful when working with imported mesh geometry from older files or from other software.
THICKEN: Converting Surfaces to Solids
THICKEN converts a 2D surface object (created by EXTRUDE or LOFT on an open profile) into a 3D solid by adding thickness. Type THICKEN, select the surface, press Enter, enter the thickness value. AutoCAD creates a solid of the specified thickness from the surface. This is particularly useful when you have created a complex surface shape using LOFT or SWEEP on open profiles and then need to give it physical thickness for manufacturing purposes.
This section is the one that most AutoCAD tutorials skip entirely and that users search for most desperately. Here is a complete reference for every common profile-to-solid failure mode, what causes it, and exactly how to fix it.
Error or Symptom
Root Cause
Diagnosis Method
Fix
EXTRUDE creates a surface instead of a solid
Profile is an open polyline or open spline rather than a closed boundary
Click profile. Type PEDIT, check if ‘Close’ option appears (means it is open)
Type PEDIT > Close to close the polyline, or use REGION to convert the boundary to a closed region
EXTRUDE gives error: ‘Object is not a closed loop’
Profile consists of separate line and arc segments that are not joined into a single object
Click profile. If individual segments highlight separately, they are not joined
Use PEDIT > Multiple > Join to weld all segments into one polyline. Set fuzz distance to 0.001 if needed.
Profile appears closed visually but EXTRUDE still creates a surface
Tiny gap between two segment endpoints invisible at normal zoom
Zoom in extreme (type Z, E for extents then zoom in 10x) to the endpoint area and check for gaps with endpoint OSNAP
Move one endpoint to exactly meet the other using MOVE and endpoint OSNAP, or use PEDIT Join with a small fuzz distance
EXTRUDE fails with ‘Object is not a region or 2D curve’
Profile is a 3D object or has Z-coordinate variation across its points
Type LIST on the profile. Check if any vertex Z values differ from the others
Use FLATTEN command (or set all vertices to Z=0 manually with PEDIT) to make the profile truly planar
LOFT creates a twisted solid between profiles
Profiles were selected out of sequential order
Inspect the solid. Twisting indicates profiles were joined in the wrong order
Undo and repeat LOFT. Select profiles strictly from one end to the other in order
REVOLVE creates a surface with a gap rather than a closed solid
Profile crosses the revolution axis or the axis is positioned inside the profile
Visually check profile position relative to axis line
Move the profile so its edge aligns with but does not cross the intended axis, or use an axis defined by two points that lies exactly along the profile edge
SWEEP produces an unexpected shape or the profile appears tilted
Profile is not perpendicular to the path at the sweep start point
Check the angle between the profile plane and the path start tangent in isometric view
Rotate the profile 90 degrees to align its plane perpendicular to the path direction before sweeping
BOUNDARY detects wrong area or does not close
Background geometry has overlapping or unclosed segments near the picked point
Use ZOOM to inspect the area closely. Look for stray lines or unclosed segments nearby
Clean up the background geometry. Delete stray lines and close any open segments before running BOUNDARY again
Frequently Asked Questions (FAQ)
How do you make a 3D solid from a profile outline in AutoCAD?
To make a 3D solid from a profile outline in AutoCAD: (1) Ensure the profile is a single closed object — a closed polyline, circle, ellipse, or REGION. Use PEDIT > Join to combine separate lines and arcs, or BOUNDARY to auto-detect a closed boundary. (2) Confirm the profile is on the correct UCS plane. (3) Type EXT (EXTRUDE), select the profile, press Enter, and type the extrusion depth. For rotationally symmetric parts, use REVOLVE; for profiles following a curve, use SWEEP; for profiles that blend between shapes, use LOFT.
Why does AutoCAD create a surface instead of a solid when I use EXTRUDE?
AutoCAD creates a surface instead of a solid when the profile passed to EXTRUDE is an open polyline, arc, or spline rather than a closed boundary. EXTRUDE requires a completely closed profile to produce a solid. To fix it: type PEDIT, select the polyline, choose Close to close it if its start and end points are the same location but not explicitly connected. If the profile consists of separate segments with gaps between them, use PEDIT > Join with a small fuzz distance, or use REGION to convert the entire closed boundary to a region object.
What is the PEDIT Join command in AutoCAD?
PEDIT Join (Polyline Edit Join) is an AutoCAD command that converts a collection of separate connected line and arc segments into a single unified polyline. It is the primary method for preparing profile outlines for 3D extrusion. To use it: type PEDIT, type M for Multiple mode, select all the segments forming the profile boundary, press Enter, type Y to convert to polylines, type J (Join), set a fuzz distance (0 for clean drawings, a small value like 0.001 for drawings with tiny gaps), and press Enter. The result is a single closed polyline ready for EXTRUDE.
What is the difference between REGION and a closed polyline in AutoCAD?
Both are valid profile types for 3D solid creation commands, but they have different properties. A closed polyline is a 1D curve that traces a closed boundary. A REGION is a flat 2D planar object that has area and is treated as a filled surface. REGIONs support Boolean operations (SUBTRACT, UNION, INTERSECT) between each other, allowing complex profiles with holes to be defined before extruding. Closed polylines cannot be Booleans-operated before extrusion. For simple solid profiles, either works. For complex profiles with internal cutouts, REGION is often more efficient.
What is the BOUNDARY command in AutoCAD?
The BOUNDARY command (BO) in AutoCAD automatically detects and traces the boundary of any closed area in the drawing. You click inside the area and AutoCAD creates a new polyline or region object following the exact perimeter of that enclosed space. The original geometry is preserved and the new profile object is created on top of it. BOUNDARY is faster than PEDIT Join for complex areas defined by intersecting geometry, and it preserves all the original drawing lines and arcs unchanged.
How do I extrude a profile with holes in AutoCAD?
To extrude a profile with holes in AutoCAD, use one of two methods. Method 1 (simpler): extrude the outer profile to create the body solid, then create cylinder or box solids at the hole positions and use SUBTRACT to cut them from the body. Method 2 (pre-extrusion): create a REGION from the outer boundary, create REGIONs from each hole boundary, use SUBTRACT to subtract the hole regions from the outer region, then EXTRUDE the resulting compound region. The extruded solid will have the holes built in.
Why does AutoCAD extrude in the wrong direction?
AutoCAD extrudes perpendicular to the current UCS XY plane in the positive Z direction by default. If the extrusion goes in the wrong direction, either the UCS is oriented incorrectly for the operation, or you entered a positive depth when a negative value was needed (or vice versa). To fix: type UCS > W to reset to World UCS, verify the UCS icon X and Y directions in your viewport match your expected orientation, then re-run EXTRUDE. Enter a negative depth value to extrude in the opposite direction from default.
Conclusion
Making a 3D solid from a profile outline in AutoCAD is fundamentally a two-stage process: get the profile right, then choose the right creation command. Of those two stages, getting the profile right is the one that determines whether the operation succeeds or fails, and it is the stage that most tutorials skip entirely.
A correctly prepared profile — a single closed polyline, a circle, an ellipse, or a REGION — will extrude, revolve, loft, or sweep reliably and produce exactly the solid you intended. A poorly prepared profile will fail silently, produce a surface instead of a solid, or extrude in the wrong direction. The four preparation methods in this guide (POLYLINE from scratch, PEDIT Join, REGION, and BOUNDARY) cover every scenario from clean new drawings to complex imported geometry.
The troubleshooting table at the end of this guide covers every common failure mode. Bookmark it and use it as a reference whenever a profile refuses to extrude as expected. In most cases the diagnosis takes less than a minute and the fix takes less than two.
Continue learning AutoCAD 3D: read How to Create a 3D Model from 2D Views for the complete orthographic-to-solid workflow, or return to the complete AutoCAD Tutorials for Beginners and Professionals guide.
AutoCAD’s default LINE command draws from a start point to an end point. That covers the vast majority of drafting tasks. But regularly, engineers and designers need something more specific: starting a new line precisely at the midpoint of an existing one, drawing a line whose own centre sits on a specific reference point, or positioning a centre mark that extends equally in both directions.
This comes up constantly in real drawing work. Placing centre lines through bolt holes. Drawing a symmetrical cut indicator across a component. Bisecting a wall opening. Positioning a slot centred on a datum. AutoCAD does not have a single dedicated button for this workflow, but it has four efficient methods that professional users rely on daily. Knowing which method to reach for in each situation is what separates fast, accurate drafters from those who resort to workarounds.
This guide covers all four practical methods for drawing a line from its midpoint in AutoCAD. Each method has full numbered steps, a clear explanation of when to use it, and a real engineering context. A method-chooser table at the top lets you identify the right approach before you start. Common mistakes and their fixes are covered at the end.
Quick Fix: Fastest method for most situations: activate the LINE command (L + Enter). When prompted for the first point, type MID and press Enter. Hover over the line or object whose midpoint you want. When the midpoint triangle marker appears, click. AutoCAD snaps your line start precisely to that midpoint. Specify the endpoint as normal.
Understanding the Two Different Midpoint Situations
Before choosing a method, it helps to be clear about which of two distinct situations you are in:
Situation
Description
Best Method
Start a new line AT the midpoint of an existing object
You want to snap the start point of your new line to the exact midpoint of an existing line, arc, or polyline segment
Method 1: OSNAP MIDpoint Override
Draw a line whose OWN midpoint sits on a specific location
You want a line to grow symmetrically from a clicked point, with equal length on each side, the clicked point becomes the line’s own centre
Method 4: LISP (LMP), or Method 2 with tracking
Start from a point offset from a midpoint by a known distance
You need to begin drawing a specific distance away from a midpoint reference rather than at the midpoint itself
Method 3: FROM Command
Draw from a derived midpoint with no existing object at that location
The midpoint you need is between two objects but not on either one, you want to track from both and draw from their midpoint intersection
Method 2: Object Snap Tracking
Misidentifying which situation you are in is the most common reason users apply the wrong method and produce lines that look approximately correct but are not precisely positioned. Taking ten seconds to identify your situation before starting saves significant correction time.
Method Chooser: Which Approach Fits Your Situation?
Method
Best For
Skill Level
Speed
Produces Exact Symmetry?
Extra Setup Needed?
1: OSNAP MIDpoint Override
Starting any line from the midpoint of an existing object
Beginner
Very fast (seconds)
No, starts at midpoint, ends where you choose
None
2: Object Snap Tracking
Drawing from derived midpoints; symmetrical constructions; positions not on existing objects
Intermediate
Fast once practised
Yes, with ORTHO or POLAR on
OSNAP + Tracking must both be on (F3 + F11)
3: FROM Command
Starting a line at a precise measured offset from a midpoint
Intermediate
Moderate
Not directly
None
4: LISP Utility (LMP)
True symmetrical lines centred on a clicked point; automated midpoint-centred drawing
Any level
Very fast once loaded
Yes, specifically designed for this
One-time LISP file download and load
Method 1: OSNAP MIDpoint Override, Fastest for Existing Objects
The OSNAP MIDpoint override instructs AutoCAD to snap the very next point you pick to the midpoint of whichever object the cursor is hovering over. It is a one-time override that works during any drawing or modifying command that asks for a point. It is instantaneous, requires no setup, and is accurate to full drawing precision.
When to Use This Method
Use Method 1 any time you need to start a new line (or any other object) precisely at the midpoint of an existing line, arc, or polyline segment. Common real-world uses: drawing a perpendicular bisector from the middle of a structural member, snapping a leader line to the midpoint of a component edge, starting a centre line from the midpoint of a wall, or connecting geometry to the exact centre of a part boundary.
Full Step-by-Step
Verify that Object Snap (OSNAP) is active. Press F3 to toggle it on. The OSNAP button in the status bar should appear highlighted.
Type L and press Enter to start the LINE command. AutoCAD displays the prompt: Specify first point:
At this prompt, type MID and press Enter. This activates a one-time midpoint OSNAP override for the next pick only.
Move your cursor over the line, arc, or polyline segment you want to start from. Watch for the midpoint triangle marker (a small yellow triangle) to appear at the object’s midpoint.
When the triangle marker appears, click to confirm. AutoCAD snaps the line start precisely to that midpoint.
Move your cursor to specify the direction and distance of the new line. Type an exact distance and press Enter, or click a second snap point.
Press Enter or Esc to end the LINE command.
Enabling Midpoint as a Running OSNAP (Always On)
If MIDpoint is already enabled in your running OSNAP settings, you do not need to type MID at all. The triangle marker appears automatically whenever your cursor is near the midpoint of any object. To enable it:
Right-click the OSNAP button in the status bar.
Select Object Snap Settings.
In the Drafting Settings dialogue, tick Midpoint and click OK.
Running OSNAP vs One-Time Override: Use the running OSNAP setting (always on) when you regularly need midpoint snaps during a drawing session. Use the MID one-time override when you need to force a midpoint snap on a specific object while there are other OSNAP points nearby that might otherwise take priority. The override always wins over the running setting for that one pick.
Method 2: Object Snap Tracking from a Midpoint
Object Snap Tracking is one of AutoCAD’s most powerful precision tools and one of the most underused. It lets you project alignment paths outward from acquired OSNAP points and draw from positions derived from those points, even when no object exists at the target location. For midpoint work, it enables you to draw from any position that is horizontally, vertically, or angularly aligned with a midpoint.
When to Use This Method
Use Method 2 when the position you want to draw from is not on an existing object but is derived from one or more midpoints. Examples: drawing from the geometric centre of a rectangle (intersection of horizontal and vertical midpoint tracking paths), finding the midpoint along a path between two existing objects, or projecting a line from the mid-height of a wall without an explicit object at that height.
Object Snap Tracking on: Press F11 to toggle on, or click the tracking icon in the status bar.
Full Step-by-Step
Type L and press Enter to start the LINE command.
Move your cursor slowly over the midpoint of your reference object. Pause for one second until the midpoint triangle marker and a small + sign both appear. Do not click, just hover. The + sign confirms the point is acquired for tracking.
Move your cursor away from the reference object. A dotted tracking path will extend from the acquired midpoint along the alignment direction.
Position your cursor along the tracking path at the desired distance. The dynamic tooltip shows the tracked distance from the midpoint.
Click to place the start point of your line at this tracked position.
Specify the endpoint of the line as normal.
Quick Overview: The process of creating a 3D model from 2D views in AutoCAD has five stages: (1) Read and understand the 2D orthographic views to mentally reconstruct the 3D shape. (2) Set up the 3D Modelling workspace and configure visual styles. (3) Draw 2D profiles on the correct planes using the UCS. (4) Use solid creation commands (EXTRUDE, REVOLVE, LOFT, SWEEP, PRESSPULL) to generate 3D geometry from those profiles. (5) Use Boolean operations (UNION, SUBTRACT, INTERSECT) to combine and cut geometry to produce the final form.
Method 3: The FROM Command with Midpoint Offset
The FROM command is a transparent command in AutoCAD that lets you specify any drawing point as an offset from a reference point rather than as an absolute or relative coordinate. It is one of the most useful precision tools for situations where your start point is a known distance away from a reference snap point.
When to Use This Method
Use Method 3 when you need to start drawing at a specific measured distance from a midpoint. Examples: starting a slot 30mm to the right of the midpoint of a plate edge, drawing a feature 15mm above the midpoint of a horizontal reference line, or positioning a hole offset a calculated distance from a centre point.
Full Step-by-Step
Type L and press Enter.
At the Specify first point: prompt, type FROM and press Enter.
AutoCAD prompts: Base point:. Type MID and press Enter to activate the midpoint OSNAP override for the base point selection.
Hover over and click the object whose midpoint you want to use as the reference. AutoCAD acquires this midpoint as the FROM base point.
AutoCAD prompts: <Offset>:. Type a relative coordinate using the @ prefix. Examples:
@30,0: 30 units to the right of the midpoint
@-30,0: 30 units to the left of the midpoint
@0,15: 15 units above the midpoint
@0,-15: 15 units below the midpoint
Press Enter. AutoCAD places the start point at the offset position from the midpoint.
Specify the endpoint of the line as normal.
Worked Example: You have a 200mm horizontal line and need to draw a perpendicular line starting 60mm to the right of its midpoint. Activate LINE. Type FROM, Enter. Type MID, Enter. Click the 200mm line. When AutoCAD prompts for Offset, type @60,0 and press Enter. Your line now starts at exactly 160mm from the left end of the reference line (60mm right of the midpoint at 100mm). No calculation, no construction geometry needed.
Method 4: The LineMidPoint LISP Utility (LMP)
For situations where you genuinely need a line whose own midpoint sits on a specific clicked point the line grows equally outward in both directions simultaneously the most direct solution is the free LineMidPoint LISP routine (command: LMP). Originally created by Kent Cooper and extended by Lee Mac with OSNAP support and a fixed-distance mode, it makes AutoCAD behave like a circle command but for lines.
When to Use This Method
Use Method 4 when you want to draw a line by specifying its midpoint first rather than its endpoints. The line grows symmetrically from the clicked point. Ideal for: placing bisector lines on engineering drawings, drawing centre lines that extend equally beyond a feature, creating symmetric construction lines, and any situation where equal extension on both sides of a reference point is the primary requirement.
Step 1: Download and Load the LISP File
Download LineMidPoint.lsp from the CAD Forum (cadforum.cz) search for LineMidPoint or from Lee Mac’s extended version in the Autodesk Community forum thread ‘Draw a line from its midpoint’.
Save the file to a stable permanent location (e.g. C:\AutoCAD-Tools\LineMidPoint.lsp).
In AutoCAD, type APPLOAD and press Enter.
In the Load/Unload Applications dialogue, click Browse and navigate to LineMidPoint.lsp.
Select it and click Load. The command line should confirm: LineMidPoint.lsp successfully loaded.
Click Close.
Load Automatically on Every AutoCAD Start: To avoid reloading the file each session, click Startup Suite Contents in the APPLOAD dialogue, add LineMidPoint.lsp, and click Close. The LMP command will then be available automatically every time AutoCAD opens, no manual loading needed.
Step 2: Using the LMP Command
Type LMP and press Enter.
AutoCAD prompts for the midpoint of the line. Click the point you want to be the centre of the new line, or type MID and click an existing object to snap to its midpoint.
A dynamic preview of the line appears, extending symmetrically in both directions from the picked midpoint as you move the cursor.
Move the cursor to define the direction the line should extend (use ORTHO with F8 for horizontal/vertical, or POLAR for angled lines).
For an exact total length: press D and Enter to enter distance mode. Type the total line length (not half-length) and press Enter, then confirm direction by clicking.
Click to confirm. AutoCAD draws the line with the specified centre point as its exact midpoint.
How to Draw a Line of Exact Length Centred on a Point
A very common mechanical engineering drawing task is producing a line of exact total length whose midpoint lands precisely on a reference point, for example, an 80mm centre line centred on the axis of a 40mm diameter hole. Here are two solid methods without needing the LISP file.
Approach A: Draw Half, Then Mirror
Activate LINE (L, Enter).
Snap to the reference point using MID OSNAP or Object Snap Tracking.
With ORTHO on (F8), draw in one direction to exactly half the required total length. For an 80mm line, type 40 and Enter.
Press Esc to end LINE.
Type MI (MIRROR) and Enter. Select the half-line. Press Enter.
Define the mirror line by snapping to the original reference point and specifying a perpendicular direction (type @0,1 for vertical axis, @1,0 for horizontal axis).
Type N (No) when asked to delete source objects. Both halves now form a perfectly centred line of the required total length.
Approach B: Draw Full Length, Then Move to Centre
Draw the full-length line anywhere using LINE and direct distance entry.
Type M (MOVE) and Enter. Select the line. Press Enter.
For the base point, type MID and Enter, then click the line itself to snap the base point to the line’s own midpoint.
For the destination, click or snap to the reference point where the line midpoint should land.
Press Enter. The line is now positioned with its own midpoint exactly at the reference location.
Which is Faster? Approach B (draw then MOVE to midpoint) is faster for single lines. Approach A (half then MIRROR) produces two separate line objects, which is useful if you need to trim or extend each half independently later. For repeated midpoint-centred line drawing throughout a session, Method 4 (LMP) is always the most efficient choice.
Drawing Centre Lines Through Circles, Arcs, and Rectangular Features
In mechanical engineering drawing, centre lines must pass precisely through the geometric centre of holes, shafts, arcs, and symmetric features. AutoCAD does not auto-generate centre lines like parametric CAD tools do, so they are drawn manually using precise snapping.
Centre Line Through a Circle or Arc
Set the current layer to your centre line layer (red or similar, CENTER2 linetype). Type LA to open Layer Manager.
Type L and Enter to activate LINE.
Type CEN and Enter (Centre OSNAP override). Click the circle. AutoCAD snaps to its exact centre.
With ORTHO on (F8), move the cursor horizontally. Type the extension distance beyond the circle edge and press Enter. A typical extension is 3 to 5mm beyond the circumference.
Press Esc. Activate LINE again, type CEN, Enter, click the circle again, this time move vertically and type the same extension distance for the crossing centre line.
Centre Line Bisecting a Rectangular Feature
Activate LINE.
Type MID and Enter. Click the bottom edge of the rectangle.
With ORTHO on, move the cursor straight upward toward the top edge.
Type MID and Enter. Click the top edge.
Press Enter to end LINE. The result is a perfectly centred vertical line bisecting the rectangle.
Common Mistakes and How to Avoid Them
Mistake
What Happens
How to Avoid It
OSNAP is off when attempting a midpoint snap
The cursor does not snap to any object points. The line starts at a random near-midpoint location that is not precisely accurate
Press F3 before any precision snap work to confirm OSNAP is active. Check the OSNAP button in the status bar is highlighted blue.
Midpoint not ticked in running OSNAP settings
The midpoint triangle marker never appears when hovering over a line midpoint, even with OSNAP on
Right-click the OSNAP button > Object Snap Settings > tick Midpoint. Or type MID as a one-time override before any individual midpoint pick.
Clicking before the midpoint snap marker is visible
The start point is placed near but not exactly at the midpoint
Slow down your hover. Wait for the yellow midpoint triangle to appear clearly before clicking. Never rush OSNAP picks.
Object Snap Tracking not acquiring the reference point
No dotted tracking path appears when moving the cursor away from a reference midpoint
You must hover over (not click) the OSNAP point and pause until the small + sign appears alongside the snap marker. That + confirms the point is acquired for tracking.
Forgetting ORTHO when drawing symmetrical or bisecting lines
The line extends at an unintended angle, producing a visually symmetric but geometrically incorrect result
Press F8 to toggle ORTHO on before specifying direction whenever horizontal or vertical precision is required. Use POLAR (F10) for consistent angled lines.
Drawing centre lines on the wrong layer
Centre lines appear as solid continuous lines instead of the dashed centre-line pattern
Always set the correct layer current before drawing. Click the layer dropdown in the Home ribbon or type LA and set the centre line layer current before activating the LINE command.
Frequently Asked Questions (FAQ)
How do you draw a line from its midpoint in AutoCAD?
To draw a line starting from the midpoint of an existing object in AutoCAD, activate the LINE command (type L, Enter). At the Specify first point prompt, type MID and press Enter. Hover over the object whose midpoint you want. When the midpoint triangle snap marker appears, click. AutoCAD starts the line precisely at that midpoint. Then specify the endpoint as normal. This OSNAP MIDpoint override works for lines, arcs, polyline segments, and splines.
How do I snap to the midpoint of a line in AutoCAD?
Two methods: (1) Enable Midpoint in running OSNAP settings, right-click the OSNAP button in the status bar, select Object Snap Settings, tick Midpoint. The midpoint triangle marker then appears automatically when the cursor is near any object’s midpoint. (2) Use the MID one-time override, during any command that prompts for a point, type MID and press Enter to force the next pick to snap to the nearest midpoint, overriding all other running OSNAP settings for that single pick.
How do I draw a symmetrical line centred on a point in AutoCAD?
The most direct method is the free LineMidPoint LISP utility (LMP command). Download LineMidPoint.lsp from cadforum.cz, load it with APPLOAD, then type LMP and Enter. Click the centre point (or snap to a midpoint), move the cursor to set direction, press D for an exact total length, and confirm. Without the LISP file, draw a half-length line from the reference point, then MIRROR it to create the symmetric other half.
What is the FROM command in AutoCAD?
The FROM command is a transparent AutoCAD command that lets you specify any drawing point as a relative offset from a reference point. During any command that prompts for a point, type FROM and Enter. AutoCAD asks for a Base point (where you can use any OSNAP override, including MID). After picking the base point, AutoCAD asks for the Offset: type @X,Y values to specify the displacement from the base point. The command then starts the drawing operation at the calculated offset position.
How does Object Snap Tracking work for finding midpoints not on existing objects?
With OSNAP on (F3), Midpoint ticked, and Object Snap Tracking on (F11): during any drawing command, hover over (do not click) a reference object’s midpoint until a + sign appears. This acquires the midpoint for tracking. Move the cursor away and a dotted alignment path extends from the acquired point. To find a position that is the midpoint between two objects, acquire both reference midpoints and move the cursor toward their intersection. When both tracking paths cross, an X marker confirms the intersection position. Click to draw from that derived point.
Can AutoCAD automatically draw centre lines through circles and holes?
Standard AutoCAD does not automatically generate centre lines the way parametric CAD tools like SolidWorks or CATIA do. Centre lines must be drawn manually using the LINE command with CEN (Centre) and MID (Midpoint) OSNAP snaps on the correct centre-line layer. The AutoCAD Mechanical toolset (included with the full AutoCAD subscription) does include an automated centre mark and centre line tool for mechanical drawings. If you regularly draw mechanical components with many holes and arcs, the Mechanical toolset is worth enabling through the workspace switcher.
Conclusion
Drawing a line from its midpoint in AutoCAD is a recurring need in engineering and architectural drawing, and it becomes effortless once you know the right tool for each situation. The OSNAP MIDpoint override handles the everyday case of starting from an existing object’s midpoint in seconds. Object Snap Tracking extends this to derived positions with no existing geometry at the target. The FROM command covers offset-from-midpoint positioning with precision. And the LMP LISP utility delivers true symmetrical lines centred on a picked point, the one thing the standard LINE command genuinely cannot do natively.
Each method uses tools already built into AutoCAD or freely available. Practise each one on a simple test drawing and you will find they become instinctive within a single session. The common mistakes table covers the errors that slow most users down, and avoiding them from the start keeps your drawing accurate and your workflow efficient.
Return to the full guide: AutoCAD Tutorials for Beginners and Professionals. Continue with: How to Create a 3D Model from 2D Views in AutoCAD.
You open AutoCAD and the ribbon is empty, blank, or showing the message “The Ribbon does not have any tabs or panels currently loaded“. The drawing area is there, the command line is there, but the entire ribbon at the top of the screen has vanished. Nothing works the way it should.
This is one of the most common AutoCAD problems reported by users at every experience level. The good news is that it almost always has a quick fix. The reason it feels so frustrating is that there are several possible causes, and if you try the wrong fix first, you can waste significant time. This guide eliminates that guesswork.
It covers every reason an AutoCAD ribbon disappears or goes blank, in order from the most common and easiest to fix to the most complex. For each cause, there is a clear, numbered step-by-step solution. A diagnostic table at the top helps you match what you are seeing on screen to the exact fix you need.
Quick Fix: If you just need the ribbon back immediately, type RIBBON in the command line and press Enter. If that does not work, check that the correct workspace is loaded using the gear icon in the bottom-right status bar. These two steps fix the majority of empty ribbon problems in under 30 seconds.
Diagnose Your Ribbon Problem: Match Your Symptom to the Fix
Before working through individual fixes, use this diagnostic table to identify which cause matches what you are seeing. This saves time and gets you to the right solution immediately.
What You See on Screen
Most Likely Cause
Go to Fix
Ribbon area is completely absent. No tabs, no panels, no blank bar.
Ribbon was turned off via command or menu
Fix 1: RIBBON Command
Ribbon area shows a blank/empty bar with the message: ‘The Ribbon does not have any tabs or panels currently loaded’
Wrong workspace selected, or corrupted CUIX file
Fix 2: Workspace, then Fix 6: CUIX File
Entire AutoCAD interface is full-screen with no ribbon, no status bar, no toolbars at all
Clean Screen mode is active
Fix 3: Clean Screen Mode
A thin ribbon title bar is visible at the top but the panels collapse when you move the mouse away
Ribbon is set to Auto-Hide mode
Fix 4: Auto-Hide Setting
Ribbon is present but has drifted or is floating as a separate window, partially off-screen
Ribbon was undocked and dragged off-screen
Fix 5: Undocked Ribbon
Ribbon was working fine until AutoCAD was updated or a new plugin was installed
CUIX file corrupted or overwritten by update or plugin
Fix 6: Reset CUIX File
Ribbon blank only for certain toolsets (e.g. Architecture, Mechanical) not standard tabs
Industry toolset not installed or profile settings incorrect
Fix 6 or Fix 7: Profile Reset
Ribbon has been blank since a settings migration from an older version of AutoCAD
User profile from previous version incompatible
Fix 7: Reset User Profile
All above fixes have been tried and nothing works
Deep corruption in AutoCAD installation or profile
Fix 8: Reset to Defaults or Reinstall
Fix 1: The Ribbon Was Accidentally Turned Off (RIBBON Command)
This is the most common cause of a missing AutoCAD ribbon and the easiest fix. The ribbon can be toggled off accidentally by pressing Ctrl + 0 (which activates Clean Screen), by clicking the X button on the ribbon, or by navigating to Tools > Palettes > Ribbon and unchecking it. Many users do this unintentionally while reaching for a nearby keyboard shortcut.
Step-by-Step Fix
Click anywhere in the AutoCAD command line at the bottom of the screen to make sure it is active.
Type RIBBON and press Enter.
The ribbon should immediately reappear at the top of the screen.
If the ribbon reappears but is not the correct workspace, continue to Fix 2.
Alternatively, if the classic menu bar is visible at the top (Tools, Draw, Modify etc.), go to Tools > Palettes > Ribbon and click to enable it. If the menu bar is not visible either, the command line is your only entry point.
Command Line Not Visible? If the command line itself has disappeared alongside the ribbon, press Ctrl + 9 to restore it. Once the command line is back, type RIBBON and press Enter to restore the ribbon.
Fix 2: Wrong Workspace Selected
AutoCAD uses workspaces to define the arrangement of the interface: which ribbon tabs are visible, where the toolbars sit, and what the screen layout looks like. If the wrong workspace is loaded, the ribbon may appear completely blank or show only partial tabs. This is one of the most common causes of the message “The Ribbon does not have any tabs or panels currently loaded“.
Step-by-Step Fix
Look at the status bar at the very bottom-right of the AutoCAD screen. Find the gear icon (Workspace Switching).
If the ribbon does not load, try switching to a different workspace first, then switching back to your preferred workspace.
Alternatively, type WORKSPACE in the command line, press Enter, then type RESTORE followed by the workspace name (e.g. RESTORE “Drafting & Annotation”).
If the gear icon is not visible in the status bar, right-click the status bar and make sure Workspace Switching is ticked. Alternatively, type WSCURRENT in the command line and press Enter to see which workspace is currently active.
After the Update Problem: If the ribbon went blank after an AutoCAD update, a workspace settings migration often causes this. After updating, go to the workspace switcher, select the appropriate workspace, and then go to Tools > Workspaces > Save Current As to save a clean version of the workspace. This prevents the same issue occurring after the next update.
Fix 3: AutoCAD Is in Clean Screen Mode
AutoCAD’s Clean Screen mode maximises the drawing area by hiding all interface elements: the ribbon, toolbars, status bar, and palettes. It is designed for users who need maximum drawing space, particularly on smaller monitors. If you accidentally activated it, the entire interface appears to have vanished.
The giveaway sign that you are in Clean Screen mode (rather than a genuine ribbon failure) is that the drawing area fills the entire screen right to the edges, with no interface elements visible anywhere, not even a thin title bar at the top.
Step-by-Step Fix
Press Ctrl + 0 (zero) to toggle Clean Screen mode off. This is a single keyboard shortcut that toggles the mode on and off.
The full interface including the ribbon should immediately reappear.
Alternatively, look for the Clean Screen icon in the far bottom-right corner of the screen (a small double-headed arrow icon) and click it to toggle Clean Screen off.
Quick Test: Press Ctrl + 0 twice in quick succession. If the ribbon disappears and then comes back, you have confirmed that Clean Screen mode is being toggled. The first press activates it (hiding the ribbon), the second press deactivates it (restoring the ribbon). Now you know the shortcut that caused the problem and can avoid pressing it accidentally in the future.
Fix 4: The Ribbon Is Set to Auto-Hide
The AutoCAD ribbon auto-hide feature collapses the ribbon to just a thin title bar at the top of the screen when the cursor is not hovering over it, and expands it again when the cursor moves into the ribbon area. If this is active, the ribbon appears to be missing whenever the cursor is in the drawing area, leading users to believe something has gone wrong.
The difference between Auto-Hide and a genuinely missing ribbon: when you move the cursor to the very top of the screen, a thin ribbon bar becomes visible momentarily and then disappears again. If this is what you are seeing, Auto-Hide is the cause, not a technical problem.
Step-by-Step Fix
Move your cursor to the very top of the screen until the ribbon appears.
Look for the small upward-pointing arrow icon (pin/unpin icon) at the far right of the ribbon.
Click this icon once to toggle Auto-Hide off. The ribbon will remain permanently expanded.
Alternatively, right-click on the ribbon title bar at the top and look for the Auto-Hide Ribbon option. Uncheck it.
Fix 5: The Ribbon Has Been Undocked and Is Floating Off-Screen
The AutoCAD ribbon can be undocked from its default position at the top of the screen and dragged to any location, including off the visible screen area. If this has happened (usually after a monitor configuration change, a switch from dual to single monitor, or an accidental drag), the ribbon appears to be missing even though it technically still exists.
Step-by-Step Fix
Type RIBBON in the command line and press Enter. This restores and re-docks the ribbon to its default position at the top of the interface.
If the ribbon reappears but is floating as a separate window, grab its title bar and drag it back to the top of the AutoCAD window until the docking highlight appears, then release to dock it.
To lock the ribbon in place and prevent future accidental undocking, right-click on the ribbon title bar and select Lock Location > Floating Windows.
Fix 6: Corrupted or Missing CUIX File
The CUIX file (Customisation User Interface file) is what defines the entire AutoCAD ribbon: which tabs exist, which panels are in each tab, and which commands appear in each panel. The main file is called acad.cuix (or acadlt.cuix for AutoCAD LT). If this file becomes corrupted, is accidentally overwritten by a software update or third-party plugin, or cannot be located by AutoCAD, the ribbon loads blank or empty.
This is the most technically involved fix but also one of the most reliable. Resetting or reloading the CUIX file resolves the vast majority of persistent AutoCAD ribbon blank problems that the simpler fixes above do not address.
Method 1: Reset the CUIX File via the CUI Command
Type CUI in the command line and press Enter. The Customize User Interface dialogue box opens.
In the top-left panel, you will see a list of loaded customisation files. Find ACAD (or the relevant product: ACADLT, C3D, etc.).
Right-click on the ACAD entry.
From the context menu, select Reset.
A confirmation dialogue will appear. Click Yes to confirm the reset.
Click OK to close the CUI dialogue.
The CUIX file is now reset to its factory default state. Restart AutoCAD and check whether the ribbon has been restored.
Method 2: Reload the CUIX File via CUILOAD
Type CUILOAD in the command line and press Enter.
Click the Browse button in the dialogue that appears.
Navigate to the AutoCAD support folder. The default location for acad.cuix is typically:
If the file is already loaded, first select it in the Loaded Customisation Files list, click Unload, and then reload it using Browse.
Click Close and check whether the ribbon has been restored.
Method 3: Check the Support File Search Path
If AutoCAD cannot find the CUIX file because the support file path is missing or incorrect (this commonly happens after installation of a new AutoCAD version or after moving user files to a new computer), you need to add the correct path to AutoCAD’s Options.
Type OPTIONS (or OP) in the command line and press Enter.
Go to the Files tab.
Expand the Support File Search Path node.
Click Add and browse to the folder containing your CUIX file.
Click OK to close Options.
Restart AutoCAD and verify the ribbon has been restored.
Warning: Third-Party Plugins and the CUIX File: Installing or uninstalling third-party AutoCAD plugins (add-ons, structural analysis tools, MEP tools, or manufacturer-specific libraries) can overwrite or corrupt the acad.cuix file. If the ribbon went blank immediately after installing a plugin, the CUI Reset method (Method 1 above) is almost always the solution. After resetting, you may need to re-install the plugin if you still need it, or contact the plugin developer for an updated version compatible with your AutoCAD version.
Fix 7: Corrupted AutoCAD User Profile
AutoCAD stores each user’s interface settings, support paths, and customisations in a user profile. If this profile becomes corrupted, particularly during version upgrades where settings are migrated from an older version, the ribbon may load blank or with missing panels even after the CUIX file has been reset.
Step-by-Step Fix: Switch Profile and Reset
Type OPTIONS (or OP) in the command line and press Enter.
Go to the Profiles tab.
In the Available Profiles list, select <<Unnamed Profile>> (or any profile that is not your current one).
Click Set Current.
Close Options and check whether the ribbon loads correctly on this profile.
If the ribbon now works on the new profile, return to Options > Profiles and either delete the corrupted profile or click Reset to restore it to defaults.
If switching profiles restores the ribbon, save the working profile as your new default using Set Current.
Migration Tip: When upgrading to a new version of AutoCAD, Autodesk recommends importing all settings from the previous version rather than only the profile. Importing only the profile, without the associated customisation files, is a known cause of blank ribbons in freshly upgraded installations. If you are setting up a new AutoCAD version, use the Migrate Custom Settings option from the Windows Start menu under the new AutoCAD version folder.
Fix 8: AutoCAD Needs a Reset to Defaults
If none of the above fixes have restored the ribbon, a full AutoCAD reset to factory defaults is the next step. This resets all settings, profiles, and customisations to the state they were in immediately after installation. It is a more drastic step because any custom settings, toolbars, aliases, or profiles you have built will need to be reconfigured, but it is very reliable at resolving deep corruption issues.
Step-by-Step: Reset AutoCAD to Factory Defaults
Close AutoCAD completely.
In Windows, search for AutoCAD [version] in the Start menu.
Look for Reset Settings to Default in the AutoCAD folder within the Start menu.
Click Reset Settings to Default. A dialogue will ask you to backup your settings or reset without backup.
Choose your preferred option and confirm the reset.
Relaunch AutoCAD. It will start with a completely clean default configuration.
If the ribbon now loads correctly, the issue was a deep corruption in the user settings. Rebuild only the custom settings you actually need rather than restoring from the corrupted backup.
If even a full reset does not restore the ribbon, the issue likely lies in the AutoCAD installation itself. In this case, use the Autodesk desktop app or Programs and Features to run a Repair on the AutoCAD installation. If the repair fails, a full uninstall and clean reinstall of AutoCAD using the latest installer from your Autodesk account will resolve installation-level corruption.
Why Does the AutoCAD Ribbon Keep Disappearing?
If the AutoCAD ribbon keeps disappearing repeatedly rather than just once, there is usually an underlying cause that the temporary fix is not addressing. The most common reasons for a ribbon that keeps going missing are:
AutoCAD Is Not Saving Workspace Changes
By default, AutoCAD does not always save changes to the workspace automatically. If you restore the ribbon but AutoCAD is not configured to save the workspace state on exit, the ribbon position and visibility settings are lost the next time you open the program.
The fix: type WSSETTINGS in the command line and press Enter to open the Workspace Settings dialogue. Enable Automatically Save Workspace Changes. This ensures any interface configuration changes you make are preserved between sessions.
A Plugin or Script Is Modifying the Interface on Startup
Some third-party plugins load their own CUIX customisation on AutoCAD startup, which can overwrite the standard ribbon. If the ribbon disappears every time you restart AutoCAD but is fine after being restored manually, check whether any startup suite scripts or plugins are loading on AutoCAD startup. Go to Tools > Load Application > Startup Suite and review what is loading automatically. Removing or updating a conflicting plugin often resolves the persistent ribbon problem.
Incompatible Customisation Files from a Previous Version
If customisation files (CUIX, MNS, MNR) from a previous version of AutoCAD are being loaded by the new version, they may not be fully compatible and can cause the ribbon to load incorrectly on every startup. Remove old version customisation files from the Support File Search Path in Options and recreate any custom tool entries in the current version’s native format.
How to Stop Your AutoCAD Ribbon from Disappearing Again
Once your AutoCAD ribbon is restored, three habits will prevent the problem from recurring:
Prevention Habit
How to Implement It
What It Prevents
Save your workspace explicitly after setting it up
After configuring the interface the way you want it, go to Tools > Workspaces > Save Current As and save it with a clear name (e.g. ‘MY-2D-WORKSPACE’)
Interface configuration being lost on restart or after an AutoCAD update
Enable automatic workspace saving
Type WSSETTINGS, press Enter, and tick ‘Automatically Save Workspace Changes’
Ribbon position and tab visibility changes being lost between sessions
Keep a saved backup of your CUIX file
After setting up your customisations, export your profile via Options > Profiles > Export and save the .arg file to a safe location
Having to rebuild all customisations from scratch after a CUIX corruption
Be selective about which plugins you install
Before installing any third-party AutoCAD plugin or add-on, check that it is compatible with your specific AutoCAD version number on the developer’s website
Plugin-triggered CUIX corruption and ribbon blank problems after installation
Use AutoCAD’s Migrate Settings correctly during upgrades
When installing a new AutoCAD version, use the ‘Migrate Custom Settings’ option and choose to migrate all settings, not just the profile
Blank ribbon in freshly upgraded AutoCAD installations due to incomplete settings migration
Frequently Asked Questions (FAQ)
Why is my AutoCAD ribbon empty?
An empty AutoCAD ribbon is most commonly caused by one of five things: the ribbon was accidentally turned off (fix: type RIBBON in the command line and press Enter); the wrong workspace is selected (fix: use the gear icon in the status bar to switch to Drafting and Annotation); AutoCAD is in Clean Screen mode (fix: press Ctrl + 0 to toggle it off); the ribbon is set to Auto-Hide (fix: click the pin icon at the top-right of the ribbon title bar); or the CUIX file is corrupted (fix: type CUI, right-click ACAD, select Reset). The RIBBON command fixes the majority of cases immediately.
How do I restore the AutoCAD ribbon?
To restore a missing AutoCAD ribbon, type RIBBON in the command line and press Enter. If the ribbon reappears but shows the message ‘The Ribbon does not have any tabs or panels currently loaded’, switch to the correct workspace using the gear icon in the status bar and select Drafting and Annotation. If the ribbon still does not load correctly, reset the CUIX file by typing CUI, right-clicking the ACAD entry, selecting Reset, and restarting AutoCAD.
What does ‘The Ribbon does not have any tabs or panels currently loaded’ mean in AutoCAD?
This message means that AutoCAD has loaded but the ribbon definition file (the CUIX file) either cannot be found, has been corrupted, or has not been associated with the current workspace. The most reliable fix is to: first try switching workspaces using the gear icon in the status bar; if that does not work, type CUI in the command line, right-click the ACAD customisation file in the top-left panel, and select Reset. Restart AutoCAD after the reset.
Why does my AutoCAD ribbon disappear every time I restart?
If the AutoCAD ribbon disappears on every restart, it is almost always because AutoCAD is not saving your workspace settings between sessions. Type WSSETTINGS in the command line, press Enter, and enable ‘Automatically Save Workspace Changes’. Also verify that no startup script or third-party plugin is resetting the interface on launch by checking Tools > Load Application > Startup Suite.
How do I fix the AutoCAD ribbon after an update?
After an AutoCAD update, a blank ribbon is usually caused by a workspace settings migration issue. Switch to the Drafting and Annotation workspace using the gear icon in the status bar. If the ribbon loads, save this workspace using Tools > Workspaces > Save Current As. If the ribbon is still blank, type CUI, right-click ACAD, select Reset, and restart AutoCAD. For a permanent fix, type WSSETTINGS and enable automatic workspace saving.
What is the CUIX file in AutoCAD and why does it affect the ribbon?
The CUIX file (Customisation User Interface file) is an XML-based file that defines the entire AutoCAD ribbon: which tabs exist, which panels are in each tab, which commands are in each panel, and how toolbars and menus are structured. The main file is called acad.cuix. When this file is corrupted, accidentally overwritten by a plugin or update, or cannot be found by AutoCAD, the ribbon loads blank. The fix is to reset the CUIX file using the CUI command: right-click ACAD and select Reset.
Conclusion
A blank or empty AutoCAD ribbon is always fixable. The vast majority of cases resolve in under two minutes with either the RIBBON command, a workspace switch, or turning off Clean Screen mode. For the minority of cases involving a corrupted CUIX file or user profile, the fixes are still well within reach of any AutoCAD user who follows the numbered steps above.
The key is to identify the correct cause first using the diagnostic table at the top of this article, then apply the right fix rather than working through every solution sequentially. Once the ribbon is restored, implementing the five prevention habits will stop the problem from recurring.
Back to the full AutoCAD guide: AutoCAD Tutorials for Beginners and Professionals. Or continue with the next tutorial: How to Draw a Line from Its Midpoint in AutoCAD.
AutoCAD is the most widely used CAD software in the world. With over 4 million active subscribers globally and adoption across architecture, mechanical engineering, civil engineering, electrical design, and manufacturing, it is the tool that connects a design concept to a finished technical drawing more reliably than any other software in existence.
Whether you have never opened a CAD program before, or you have been using AutoCAD for years and want to sharpen the professional skills that separate competent users from genuinely efficient ones, this guide covers the full spectrum. It is structured as a genuine beginner-to-professional learning path, not a reference list or a tips collection.
You will learn what AutoCAD is, how its interface works, the foundational 2D drawing commands every user must know, how to set up drawings correctly from day one, how layers and blocks work and why they matter, how to produce professional-grade 3D models, how to print and plot drawings to industry standards, and how to apply AutoCAD skills across different engineering and design disciplines. The guide also covers the professional-level habits, keyboard shortcuts, and workflow principles that experienced AutoCAD users use daily but that beginners rarely encounter in online tutorials.
Quick Answer: AutoCAD is a Computer-Aided Design (CAD) software developed by Autodesk, first released in 1982. It is used to create precise 2D drawings and 3D models across engineering, architecture, and design. Learning AutoCAD typically takes 1 to 3 months to reach productive competence for 2D drafting, and 3 to 6 months to develop solid 3D modelling skills. It remains the most in-demand CAD skill in the global job market.
What Is AutoCAD? A Complete Overview
AutoCAD is a commercial computer-aided design and drafting software developed and marketed by Autodesk. First released on 1 December 1982 as one of the first CAD programs to run on personal computers, it has grown into the global standard for technical drawing and design across dozens of industries.
At its core, AutoCAD allows users to create precise geometric drawings in 2D (lines, arcs, circles, polygons) and 3D (solid models, surfaces, meshes) with exact dimensional control that paper drawing and general-purpose illustration software cannot match. Every object in an AutoCAD drawing exists in coordinate space: it has a precise location, dimension, and relationship to other objects that can be measured, queried, and modified with engineering-level accuracy.
What AutoCAD Is Used For
AutoCAD is used to produce engineering drawings (mechanical component drawings, assembly drawings, schematics), architectural drawings (floor plans, elevations, sections, construction documents), civil engineering plans (site plans, road layouts, drainage networks, surveys), and electrical and piping diagrams (single-line diagrams, P&IDs, wiring schematics). In manufacturing, it is used to produce the 2D drawings that define component dimensions, tolerances, and surface finishes for machining and fabrication.
Who Uses AutoCAD
Mechanical engineers and designers: Creating component drawings, assembly drawings, and manufacturing documentation
Architects: Producing construction documentation, floor plans, sections, and elevations
Civil engineers: Site layouts, road design, drainage plans, earthwork sections
Interior designers: Space planning, furniture layouts, interior elevations
Students and trainees: Learning CAD fundamentals applicable to multiple disciplines
AutoCAD Versions: Which One Should You Use?
Autodesk releases a new version of AutoCAD annually, typically numbered by year. The current version is AutoCAD 2026 for the 2026/2026 subscription year. Understanding which version to use and which licensing option suits your situation is the first practical decision any new user must make.
Version / Option
Who It Is For
Key Features
Cost Model
AutoCAD 2026 (full)
Professional engineers, architects, and designers in industry
Full 2D/3D capability, all industry toolsets, AutoCAD Web and Mobile, cloud collaboration
Subscription: ~$2,230/year or ~$195/month (Autodesk 2026 pricing)
All standard AutoCAD features plus industry-specific symbol libraries, automated tools, and templates
Same subscription as full AutoCAD; toolsets included
AutoCAD Web
Light users, collaboration review, remote access to drawings
Browser-based, core 2D commands, DWG compatible
Included with full AutoCAD subscription; limited standalone access
AutoCAD Mobile
Site engineers, field access to drawings
View, markup, and basic editing on iOS/Android
Basic free tier; full features with subscription
AutoCAD for Students (Education)
Students and educators
Full AutoCAD functionality
Free for verified students and educators via Autodesk Education Community
Key Recommendation: If you are a student, get the free AutoCAD student licence from the Autodesk Education Community immediately. It is identical in functionality to the professional version and is valid for 1 year, renewable. If you are a professional evaluating AutoCAD, Autodesk offers a 30-day free trial of the full version. For 2D-only work in a professional setting, AutoCAD LT offers excellent value at less than one-quarter of the full version’s annual cost.
Mastering the AutoCAD Interface
The AutoCAD interface can look intimidating the first time you open it. There are panels, toolbars, tabs, a command line, and a drawing area that all compete for your attention simultaneously. The good news is that once you understand what each element does and why it is there, the interface becomes logical and highly efficient. Most experienced users find that AutoCAD’s interface structure is one of the most streamlined in the professional CAD world.
The Application Menu
The Application Menu (the AutoCAD logo in the top-left corner) provides access to file management commands: New, Open, Save, Save As, Print, Publish, and Export. It also provides access to recent documents and drawing utilities. Think of it as AutoCAD’s equivalent of a File menu.
The Quick Access Toolbar
Directly to the right of the Application Menu is the Quick Access Toolbar (QAT), which contains the most frequently used file and undo commands: New, Open, Save, Save As, Print, Undo, and Redo. This toolbar can be customised to add any command you use frequently. Experienced users typically add the LAYER command and PLOT command to their QAT to save navigation time.
The Ribbon
The Ribbon is the large tabbed panel at the top of the interface, introduced in AutoCAD 2009 to replace the classic menu bar and toolbar system. It is organised into tabs (Home, Insert, Annotate, Parametric, View, Manage, Output, Add-ins, Collaborate) and within each tab, into panels containing related commands. The Home tab contains the most frequently used drawing and modification commands and is where most users spend the majority of their working time.
If your ribbon has disappeared or appears empty, this is one of the most common AutoCAD problems for new users. It is easily resolved: type RIBBON in the command line and press Enter to restore it. Alternatively, check that the correct workspace is loaded under the Workspace Switching icon in the bottom-right status bar.
The Drawing Area
The Drawing Area is the large central space where your design exists. It represents an infinite 2D coordinate plane (or 3D space in the 3D workspace). The drawing area has no physical size: you draw at real-world scale (a 10-metre wall is drawn as 10 metres long) and control the print scale when plotting. The cursor crosshair tracks your position in coordinate space, displayed in the bottom-left status bar.
The Command Line
The Command Line at the bottom of the drawing area is the most important element of the AutoCAD interface for productive work. It is where you type command names and shortcuts (LINE, CIRCLE, TRIM, etc.), where AutoCAD prompts you for input, and where you enter dimensions, angles, and coordinates. Experienced AutoCAD users rely heavily on the command line because typing a command alias is almost always faster than clicking through the ribbon.
AutoCAD’s command autocomplete means you only need to type the first few letters of a command to see a filtered list of options. Typing LA reveals LAYER and all layer-related commands. Typing TR reveals TRIM and TRIM-related commands. This is the single biggest productivity accelerator for new AutoCAD users to learn early.
The Status Bar
The Status Bar runs along the very bottom of the screen and contains toggleable drawing aids that profoundly affect how you interact with AutoCAD: SNAP (snaps cursor to a defined grid), GRID (displays a reference grid), ORTHO (constrains drawing to horizontal and vertical directions only), POLAR (constrains to specified angles), OSNAP (Object Snap: snaps to specific points on existing objects), and DYNAMIC INPUT (displays coordinates and prompts near the cursor).
The most critical status bar setting to understand immediately is OSNAP (Object Snap). When OSNAP is active, moving the cursor near an existing object snaps it to precise points: endpoints, midpoints, centres, intersections, perpendiculars. Drawing without OSNAP active leads to inaccurate drawings where lines appear to connect but are actually slightly misaligned. Experienced AutoCAD users virtually always work with OSNAP on.
F8 = ORTHO, F3 = OSNAP, F10 = POLAR TRACKING – memorise these three
Properties Palette
Ctrl + 1
View and modify all properties of selected objects
Use to change layer, colour, linetype of multiple selected objects at once
Layer Properties Manager
LA then Enter
Create, modify, and manage all layers in the drawing
Pin it as a docked palette for drawings with complex layer structures
Setting Up Your Drawing Correctly from Day One
One of the most common mistakes new AutoCAD users make is starting to draw without setting up their drawing environment properly. Drawing setup takes five to ten minutes and saves hours of correction work later. Experienced CAD professionals always work from a correctly configured template file, never from a blank default drawing.
Setting Drawing Units
Type UNITS (or UN) and press Enter to open the Drawing Units dialogue. Set the unit type (Decimal for metric engineering, Architectural for feet and inches) and precision (typically 0.00 for most engineering work, 0.000 for precision parts). Set the Insertion Scale to the units your drawing will use. Getting units wrong at setup means all dimensions will be incorrect and all blocks inserted from external sources will scale incorrectly.
Setting Drawing Limits
Type LIMITS to define the extent of your drawing. For most mechanical engineering work at 1:1 scale, set limits to match your drawing sheet size multiplied by your intended print scale. A drawing to be printed at 1:10 on an A1 sheet would have limits of 8,400 x 5,940 mm (A1 dimensions: 841 x 594 mm multiplied by 10).
Setting Up Layers Before Drawing
Never draw everything on Layer 0. Create your layer structure before drawing a single line. A well-structured layer scheme for a mechanical drawing might include layers for: Object Lines, Hidden Lines, Centre Lines, Dimensions, Text/Annotations, Hatching, Title Block, and Construction Lines. Each layer should have a defined colour, linetype, and lineweight. This investment at setup saves enormous time when editing, plotting, and sharing drawings.
Using a Template File
A drawing template file (.DWT) saves your standard layer structure, units settings, text styles, dimension styles, and title block layout so you do not need to recreate them for every new drawing. Create your company or personal standard template once and select it in the New Drawing dialogue whenever you start a drawing. Autodesk also provides standard template files (acad.dwt for imperial, acadiso.dwt for metric) as starting points.
Essential AutoCAD Drawing Commands for Beginners
The following AutoCAD drawing commands are the foundation of 2D drafting. Every AutoCAD user, from student to 30-year professional, uses these commands daily. Learn them thoroughly before moving to more advanced topics.
Command
Alias
What It Does
Key Input Tips
LINE
L
Creates straight line segments between specified points
Click points or type coordinates. Press Enter or Esc to end. Type C then Enter to close a polygon back to the start point
CIRCLE
C
Creates a circle by centre point and radius (default), or by diameter, 2 points, or 3 points
Type C, click centre, type radius value and press Enter. Or type C, then D for diameter mode
ARC
A
Creates an arc defined by 3 points, or start/centre/end, or other combinations
Default is 3-point arc. Right-click during ARC command to see all arc definition methods
RECTANGLE
REC
Creates a closed rectangular polyline by two diagonal corner points
Type REC, click first corner, type relative coordinates @width,height (e.g. @150,80) and Enter
POLYGON
POL
Creates a regular polygon with a specified number of sides
Type POL, enter number of sides, specify centre, choose inscribed or circumscribed, enter radius
POLYLINE
PL
Creates connected line and arc segments as a single object
Unlike LINE, a polyline is one object. Essential for shapes that need to be edited as a unit
ELLIPSE
EL
Creates an ellipse by axis endpoint and other axis distance, or by centre
Type EL, specify axis endpoint, second endpoint of same axis, then other axis distance
SPLINE
SPL
Creates a smooth curve through or near specified control points
Used for irregular curves. Click control points, press Enter to end
HATCH
H
Fills a closed area with a pattern (hatching) or solid fill
Type H to open Hatch Creation. Click inside a closed boundary. Select hatch pattern and scale
POINT
PO
Places a point object at a specified location
Set point display style with PDMODE before placing points. Useful as construction references
Critical Habit for Beginners: Always use Object Snap (OSNAP) when drawing. Press F3 to toggle it on and off. With OSNAP on, your cursor will snap to the exact endpoints, midpoints, centres, and intersections of existing objects. Drawing without OSNAP leads to drawings that look correct visually but have tiny gaps and overlaps that cause major problems when trimming, hatching, or exporting to manufacturing. Professional AutoCAD users virtually never draw with OSNAP off.
Essential AutoCAD Modify Commands
Drawing commands create geometry. Modify commands are how you edit, refine, and complete that geometry. In professional AutoCAD use, modify commands are used more frequently than drawing commands. The ability to efficiently trim, extend, offset, mirror, array, and fillet geometry is what separates fast, accurate drafters from slow ones.
Command
Alias
What It Does
Professional Tip
ERASE
E
Deletes selected objects
Select objects first, then press Delete key as an alternative to typing ERASE
COPY
CO
Creates copies of selected objects at specified offsets
Type CO, select objects, press Enter, specify base point, then displacement point. Use multiple copy mode for placing many copies
MOVE
M
Moves selected objects to a new position
Type M, select objects, press Enter, specify base point, then new position. Combine with OSNAP for precision
ROTATE
RO
Rotates selected objects around a specified base point
Type RO, select objects, Enter, base point, then rotation angle. Add R for Reference to rotate to a specific angle
SCALE
SC
Scales selected objects up or down from a base point
Type SC, select objects, Enter, base point, scale factor. Use R (Reference) to scale by known dimensions
MIRROR
MI
Creates a mirrored copy of selected objects about a mirror line
Type MI, select objects, Enter, two points defining mirror line, then Yes/No to delete original
OFFSET
O
Creates a parallel copy of a line, arc, circle, or polyline at a specified distance
Type O, specify offset distance, click the object, click the side to offset toward. One of the most-used commands in all of AutoCAD
TRIM
TR
Trims objects back to cutting edges defined by other objects
Type TR, press Enter (selects all objects as potential cutting edges), then click objects to trim. In AutoCAD 2021+, press Enter twice to use quick trim mode
EXTEND
EX
Extends objects to meet a boundary edge
Same workflow as TRIM. In recent AutoCAD versions, holding Shift while in TRIM mode switches to EXTEND
FILLET
F
Creates a rounded corner (arc) between two lines or edges
Type F, set radius (R then value), then click the two lines to fillet. Set radius 0 to create sharp corners at intersections
CHAMFER
CHA
Creates a bevelled corner between two lines
Similar to FILLET but creates a flat bevel. Set distances with D option
ARRAY
AR
Creates a rectangular grid, polar ring, or path-distributed array of objects
Type AR, select objects, Enter, choose array type. Associative arrays update when the source object changes
STRETCH
S
Stretches part of a drawing while keeping connections intact
Must use a crossing selection (right to left selection window). Excellent for adjusting geometry without rebuilding it
EXPLODE
X
Breaks blocks, polylines, and other compound objects into individual elements
Use with caution: exploded objects lose their block properties and polyline width information
AutoCAD Layers: The Professional’s Most Important Tool
If there is one AutoCAD concept that separates professional-quality drawings from amateur ones, it is the correct use of layers. Layers in AutoCAD function like transparent overlays: each layer contains specific types of drawing content, and layers can be turned on or off, locked, frozen, or plotted independently. A drawing with a well-designed layer structure is infinitely easier to edit, plot, and share than one where everything exists on a single layer.
How Layers Work
Every object in an AutoCAD drawing exists on a layer. The default layer is Layer 0, which has special properties useful for block creation but should not be used for general drawing content. Each layer has four key properties that can be set independently:
Colour: Controls the display colour of objects on that layer. In plotting, colour is used to control lineweight through colour-based plot styles (CTB files).
Linetype: Controls whether lines are continuous, dashed, centre-line style, dotted, etc. Load linetypes with the LINETYPE command before assigning them to layers.
Lineweight: Controls the physical width of plotted lines. Set in millimetres (0.25mm for thin lines, 0.5mm for medium, 0.7mm for thick/outline lines is a common convention).
Plot/No Plot: Controls whether a layer is included in plots. Construction lines and reference layers should typically be set to No Plot.
Professional Layer Naming Conventions
Industry standards for AutoCAD layer naming vary by discipline and company, but all good naming conventions share the same principle: the layer name should immediately communicate what type of content is on that layer. A mechanical engineering drawing might use:
Layer Name
Colour
Linetype
Lineweight
Content
OBJ-VISIBLE
White / 7
Continuous
0.50 mm
Visible object outlines and edges
OBJ-HIDDEN
Blue / 5
HIDDEN2
0.25 mm
Hidden lines (edges not visible in current view)
OBJ-CENTRE
Red / 1
CENTER2
0.25 mm
Centre lines for holes, arcs, and symmetry axes
DIM
Green / 3
Continuous
0.18 mm
All dimension objects
TEXT-NOTES
Cyan / 4
Continuous
0.18 mm
General annotation and notes text
HATCH
Magenta / 6
Continuous
0.18 mm
All hatch and fill patterns
TITLE-BLOCK
White / 7
Continuous
0.50 mm
Title block and border geometry
CONSTRUCTION
Grey / 8
Continuous
0.18 mm
Construction lines and reference geometry (No Plot)
VIEWPORT
Grey / 8
Continuous
0.18 mm
Paper space viewport borders (No Plot)
Professional Rule: Never override layer properties at the object level (avoid using ‘BYLAYER’ exceptions) unless you have a specific reason. Keep all colour, linetype, and lineweight assignments set to BYLAYER. This means each object’s appearance is controlled entirely by its layer, making drawing-wide changes as simple as modifying a layer property once. Drawings where individual objects have overridden colours and linetypes are extremely difficult to maintain and edit professionally.
Dimensions, Text, and Annotations in AutoCAD
A drawing without dimensions and annotations is just a picture. AutoCAD dimensions are intelligent objects that measure and display the size of geometric features automatically, and they update when the geometry changes. Setting up dimension styles correctly before annotating is as important as setting up layers before drawing.
Setting Up Dimension Styles
Open the Dimension Style Manager (DIMSTYLE or D) to create and modify dimension styles. Key settings to configure include: text height (should match your drawing scale so text prints at 2.5-3.5mm high on the final sheet), arrow size (typically equal to or slightly larger than text height), precision (number of decimal places), tolerances (if applicable), and overall scale (DIMSCALE: set this to your drawing scale factor to ensure dimensions plot at the correct size).
Key Dimensioning Commands
DIMLINEAR (DLI): Creates horizontal or vertical linear dimensions. The most commonly used dimension type.
DIMALIGNED (DAL): Creates a linear dimension aligned to an angled line.
DIMRADIUS (DRA): Dimensions the radius of an arc or circle.
DIMDIAMETER (DDI): Dimensions the diameter of a circle or arc.
DIMANGULAR (DAN): Measures the angle between two lines or between three points.
QDIM: Quickly creates a series of dimensions from selected objects simultaneously.
DIMCONTINUE (DCO): Creates a chain of dimensions from the endpoint of an existing dimension.
DIMBASELINE (DBA): Creates stacked dimensions all measured from a common baseline point.
Text in AutoCAD: MTEXT vs DTEXT
AutoCAD has two text objects: MTEXT (MT) (Multiline Text) and DTEXT (DT) (Dynamic Text, also called Single-Line Text). MTEXT is the preferred method for most annotation: it supports paragraph formatting, automatic wrapping within a defined boundary, and advanced text editing features. DTEXT is useful for quick single-line labels. Always create a Text Style (STYLE command) that references a standard font (SHX or TTF) and set a standard text height before creating text in any drawing.
AutoCAD Blocks: Build Once, Use Forever
AutoCAD blocks are one of the most powerful productivity tools in the software. A block is a named collection of objects grouped into a single reusable entity. Once defined, a block can be inserted into a drawing as many times as needed, at any scale and rotation, and any change to the block definition automatically updates all instances in the drawing.
Why Blocks Matter for Professional Work
In professional drafting, the same standard elements appear repeatedly: bolt holes, surface finish symbols, weld symbols, title blocks, door and window symbols, electrical components, piping fittings. Drawing these elements from scratch every time they appear is a massive waste of time. AutoCAD blocks allow you to create or import these standard elements once and insert them with a single command, at any scale and orientation, across any number of drawings.
Creating a Block
Draw the geometry that will form the block (draw it at 1:1 scale, centred on or near the origin).
Type BLOCK (B) and press Enter to open the Block Definition dialogue.
Enter a name for the block (descriptive and unique, e.g. M8-HOLE-SYMBOL or SURFACE-FINISH-125).
Specify the Base Point: the insertion handle for the block. Pick a logical point (bottom-left corner, centre, or a specific snap point).
Select Objects: select all the geometry that should form the block.
Choose block settings: decide whether to convert selected objects to a block, retain them, or delete them.
Click OK. The block is now defined in the drawing and can be inserted with the INSERT (I) command.
Dynamic Blocks: The Professional Standard
Dynamic blocks extend standard blocks with parameters and actions that allow a single block to represent multiple configurations. A dynamic block for a bolt, for example, might allow the user to choose bolt length from a drop-down list by clicking the block after insertion. A door swing block might allow the swing angle to be adjusted by dragging a grip. Creating dynamic blocks requires the Block Editor (BEDIT command) and is an intermediate-to-advanced AutoCAD skill, but using existing dynamic blocks is straightforward and significantly accelerates drafting.
Master AutoCAD Keyboard Shortcuts: The Complete Reference Table
Keyboard shortcuts are the single most effective way to increase AutoCAD productivity. Experienced AutoCAD users rarely click the ribbon for common commands: they type aliases in the command line. The difference in speed between a user who draws by clicking ribbon icons and one who types command aliases is dramatic: alias users are typically 30 to 50 percent faster on equivalent tasks.
Shortcut / Alias
Full Command
Category
What It Does
L
LINE
Drawing
Create line segments
C
CIRCLE
Drawing
Create circle
A
ARC
Drawing
Create arc
REC
RECTANGLE
Drawing
Create rectangle
PL
POLYLINE
Drawing
Create polyline
POL
POLYGON
Drawing
Create regular polygon
EL
ELLIPSE
Drawing
Create ellipse
H
HATCH
Drawing
Create hatch pattern
SPL
SPLINE
Drawing
Create spline curve
E
ERASE
Modify
Delete selected objects
CO
COPY
Modify
Copy objects
M
MOVE
Modify
Move objects
RO
ROTATE
Modify
Rotate objects
SC
SCALE
Modify
Scale objects
MI
MIRROR
Modify
Mirror objects
O
OFFSET
Modify
Offset / parallel copy
TR
TRIM
Modify
Trim objects to cutting edge
EX
EXTEND
Modify
Extend objects to boundary
F
FILLET
Modify
Create filleted corner
CHA
CHAMFER
Modify
Create chamfered corner
AR
ARRAY
Modify
Create array of objects
X
EXPLODE
Modify
Explode compound objects
S
STRETCH
Modify
Stretch part of drawing
PE
PEDIT
Modify
Edit polylines
LA
LAYER
Layer / View
Open Layer Properties Manager
VP
VPORTS
Layer / View
Create/manage viewports
Z
ZOOM
Navigation
Zoom (add E for Extents, W for Window, P for Previous)
P
PAN
Navigation
Pan the view
RE
REGEN
Navigation
Regenerate drawing display
UN
UNITS
Setup
Drawing units settings
OP
OPTIONS
Setup
AutoCAD options/preferences
DS
DSETTINGS
Setup
Drafting settings (OSNAP, POLAR, etc.)
D
DIMSTYLE
Dimension
Dimension style manager
DLI
DIMLINEAR
Dimension
Linear dimension
DAN
DIMANGULAR
Dimension
Angular dimension
DRA
DIMRADIUS
Dimension
Radius dimension
DDI
DIMDIAMETER
Dimension
Diameter dimension
MT
MTEXT
Text
Multiline text
DT
DTEXT
Text
Single line text
ST
STYLE
Text
Text style manager
I
INSERT
Blocks
Insert block
B
BLOCK
Blocks
Create block definition
W
WBLOCK
Blocks
Write block to external file
PL
PLOT
Output
Print / plot drawing
PU
PURGE
Utilities
Remove unused objects, layers, styles
Ctrl + Z
UNDO
General
Undo last action
Ctrl + Y
REDO
General
Redo last undone action
Ctrl + S
SAVE
General
Save current drawing
Ctrl + 1
PROPERTIES
General
Open properties palette
Ctrl + 9
COMMANDLINE
General
Toggle command line visibility
F3
OSNAP toggle
Status Bar
Toggle Object Snap on/off
F8
ORTHO toggle
Status Bar
Toggle Ortho mode on/off
F10
POLAR toggle
Status Bar
Toggle Polar Tracking on/off
Esc
Cancel
General
Cancel current command
Enter / Space
Repeat last command
General
Pressing Enter or Space repeats the last command
AutoCAD Layouts and Paper Space Explained
The distinction between Model Space and Paper Space is one of the most confusing concepts for new AutoCAD users, and one of the most important to understand for professional drafting. Misunderstanding this distinction leads to drawings that look correct on screen but print incorrectly or that have dimensions and text at the wrong scale.
Model Space: Where You Draw
Model Space is the infinite drawing environment accessed from the Model tab at the bottom of the drawing area. This is where you draw everything at full real-world scale: a 5-metre beam is drawn as 5000mm long, a 50mm bolt is drawn as 50mm. There is no concept of paper size or print scale in Model Space. Everything exists at its true physical scale.
Paper Space: Where You Compose for Printing
Paper Space (accessed via Layout tabs at the bottom of the screen) represents a physical sheet of paper at its actual print size (A1, A2, A3, A4, etc.). In Paper Space, you create Viewports: rectangular (or custom-shaped) windows that display views of your Model Space content at specific scales. A single Paper Space layout can contain multiple viewports at different scales, allowing you to show an overall plan at 1:100 and a detail at 1:10 on the same sheet.
The professional workflow is always: draw in Model Space at 1:1, compose and annotate in Paper Space using appropriately scaled viewports, and plot from Paper Space at 1:1. This is the workflow used by every professional CAD office globally, and it is the only workflow that correctly handles scale-dependent elements like dimension text, annotation symbols, and title blocks.
Printing and Plotting AutoCAD Drawings Professionally
Producing a correctly formatted, accurately scaled plot from an AutoCAD drawing is a skill that many users never fully master, leading to drawings that print at the wrong scale, with incorrect lineweights, or without the right elements included. The following workflow produces professional-quality plots consistently.
The Professional Plotting Workflow
Work from a Paper Space Layout: set up your title block, viewports, and scale from Paper Space.
Set viewport scales exactly: double-click inside a viewport to enter it, type Z, then 1/50XP for 1:50 scale (replace 50 with your scale denominator), then press Enter.
Lock viewports after scaling: select the viewport border, right-click, Display Locked > Yes. This prevents accidental zoom changes to the viewport scale.
Open the Plot dialogue: Ctrl + P or type PLOT and Enter.
Select the correct printer/plotter: choose your physical printer, PDF driver (DWG to PDF for digital output), or multi-format publisher.
Set paper size: match the paper size to your layout (A1, A2, A3, A4).
Plot from Layout: ensure ‘What to Plot’ is set to Layout, not Extents or Window.
Select Plot Style Table (CTB or STB): choose your company standard plot style. CTB (colour-based) is most common for mechanical engineering.
Enable Plot with Plot Styles and Plot Object Lineweights.
Preview before plotting: always use Preview (bottom of Plot dialogue) to verify the output before committing to print.
Introduction to AutoCAD 3D Modelling
While AutoCAD is most widely used for 2D drafting, its 3D modelling capabilities are substantial and are used extensively in mechanical engineering, architecture, and product design for creating solid models, surface models, and conceptual 3D layouts.
Switching to the 3D Modelling Workspace
AutoCAD organises its tools into Workspaces. Switch from the default Drafting and Annotation workspace to the 3D Modelling workspace using the Workspace Switching icon in the status bar (bottom right). This changes the Ribbon to show 3D-specific tools including Solid, Mesh, and Surface creation panels.
Core 3D Solid Modelling Commands
BOX: Creates a rectangular 3D solid. Specify corner, opposite corner, and height.
CYLINDER: Creates a cylindrical solid. Specify centre, radius, and height.
SPHERE: Creates a spherical solid. Specify centre and radius.
EXTRUDE (EXT): Extrudes a 2D closed profile (polyline, circle, region) into a 3D solid to a specified height. The most commonly used 3D command in mechanical engineering.
REVOLVE (REV): Revolves a 2D closed profile around an axis to create a solid of revolution. Essential for shafts, turned parts, and axisymmetric components.
LOFT: Creates a solid or surface that transitions between two or more cross-section profiles.
SWEEP: Sweeps a 2D profile along a specified path curve to create a 3D solid.
UNION: Combines two or more 3D solids into one by Boolean union.
SUBTRACT: Cuts one 3D solid from another by Boolean subtraction. Used to create holes, pockets, and cutouts.
INTERSECT: Creates a solid from the overlapping volume of two intersecting solids.
FILLET (3D): Applies rounded fillets to edges of 3D solids. Select edge(s) and specify fillet radius.
CHAMFER (3D): Applies bevelled chamfers to edges of 3D solids.
3D vs Dedicated CAD Software: AutoCAD’s 3D modelling capability is suitable for conceptual models, spatial layouts, and relatively simple mechanical parts. For complex parametric mechanical design, detailed assembly modelling, or integrated FEA simulation, dedicated parametric CAD tools such as SolidWorks, CATIA, Fusion 360, or NX are more appropriate. AutoCAD 3D is best used when you are already working in AutoCAD for 2D documentation and need to add 3D geometry to support the drawing set, or when producing architectural 3D layouts that complement 2D construction documents.
AutoCAD for Different Industries: Mechanical, Architectural, and Civil
While AutoCAD is the same software across industries, the way it is used, the drawing standards applied, the templates used, and the industry toolsets employed differ significantly by discipline.
Understanding how AutoCAD compares to alternative CAD platforms helps engineers and designers choose the right tool for their needs and understand AutoCAD’s genuine strengths and limitations.
Software
Best For
Key Advantage over AutoCAD
Key Disadvantage vs AutoCAD
Typical Industries
AutoCAD
2D drafting across all disciplines; documentation; multi-industry
DWG is the universal exchange format; largest user base; widest discipline coverage
2D-oriented; limited parametric 3D capability compared to dedicated ME CAD tools
All engineering disciplines, architecture, construction
SolidWorks
Parametric 3D mechanical design and engineering
Full parametric feature-based 3D modelling; integrated FEA (SolidWorks Simulation); assembly management
Less capable for 2D documentation and drawing annotation; not used outside mechanical engineering
Limited professional features; less reliable for high-stakes production work; smaller support community
Hobbyists, students, small businesses, developing markets
Professional Workflow Habits That Separate Good Users from Great Ones
The difference between an AutoCAD user who is competent and one who is genuinely efficient comes down to habits. The following professional workflow habits are what experienced AutoCAD practitioners use consistently, and they are almost never taught in beginner tutorials.
Work from the Command Line, Not the Ribbon
The single fastest way to improve AutoCAD productivity is to stop clicking the ribbon for common commands and start typing aliases in the command line. The alias for OFFSET is O: two keystrokes. Finding and clicking the Offset icon in the Modify panel of the Home ribbon takes five to seven seconds. Multiplied across hundreds of commands per day, the time difference is enormous. Set a goal to memorise five new command aliases per week until you have mastered the 40 most common ones.
Use Selection Sets Intelligently
AutoCAD has multiple selection methods, and choosing the right one for each situation is a significant efficiency multiplier. Window selection (left to right drag) selects only objects entirely within the window. Crossing selection (right to left drag) selects all objects that the window crosses or contains. FENCE selection (type F during selection) selects all objects the fence line crosses. SELECT ALL (Ctrl + A) selects everything in the current space. Quick Select (QSELECT command) allows filtering selections by layer, object type, colour, or any other property: invaluable for changing all objects on a specific layer or of a specific type at once.
Use OVERKILL to Clean Drawings
The OVERKILL command removes duplicate or overlapping objects from a drawing, a common problem when drawings have been built up over time or imported from external sources. Run OVERKILL on any drawing before submitting it to a client, sharing it with a contractor, or importing it into another application. It dramatically reduces file size and eliminates geometric inconsistencies.
PURGE Drawings Before Saving
The PURGE command (PU) removes all unused named objects from a drawing: unused layers, block definitions, text styles, dimension styles, and linetypes. Run PURGE and OVERKILL before archiving or sharing any drawing. Unpurged drawings accumulate enormous quantities of redundant data, particularly when blocks from external sources have been inserted and then deleted without purging.
Save with Incremental Version Numbers
Professional CAD practice involves saving drawings with version-tracked file names (e.g. PROJECT-PIPE-LAYOUT-R1.dwg, PROJECT-PIPE-LAYOUT-R2.dwg) rather than overwriting the same file. This provides a recovery path if a drawing is damaged, incorrectly modified, or if a previous version is needed to resolve a design query. A simple R1, R2, R3 suffix system is sufficient for most projects.
AutoCAD Learning Path: From Zero to Job-Ready
The following structured learning path takes a complete beginner from zero AutoCAD knowledge to job-ready professional competence. The timeline assumes approximately 1 to 2 hours of daily practice.
Stage
Duration
Focus Topics
Milestone to Achieve
Stage 1: Orientation
Week 1-2
Interface navigation, drawing setup, units, OSNAP, ORTHO, basic LINE and CIRCLE commands
Draw a simple mechanical part (bracket or plate) from a sketch with correct dimensions
Build a professional drawing template with full layer structure, text styles, and dimension styles; complete a multi-sheet drawing set for a real project
Formal AutoCAD certification from Autodesk validates your proficiency for employers and clients and distinguishes you from candidates who are self-taught without formal validation. Autodesk offers two levels of certification for AutoCAD.
Autodesk Certified User (ACU) in AutoCAD
The Autodesk Certified User (ACU) certification is the entry-level validation, targeting students and early-career professionals. It tests competency in the core 2D drawing, modifying, annotating, and file management tasks covered in Stages 1 through 5 of the learning path above. The exam is available through Autodesk Authorised Testing Centres and takes approximately 50 minutes.
Autodesk Certified Professional (ACP) in AutoCAD
The Autodesk Certified Professional (ACP) certification is the professional-level validation, targeting experienced users with at least 400 hours of AutoCAD use. It tests advanced 2D and 3D skills, complex block and xref workflows, parametric constraints, customisation, and professional plotting. The ACP designation is recognised by engineering and architecture employers globally and provides a meaningful CV differentiator in competitive job markets.
AutoCAD Career Value in 2026
AutoCAD proficiency remains one of the most consistently in-demand technical skills in engineering job postings globally. According to LinkedIn job posting data analysed by multiple career research platforms in 2024 and 2026, AutoCAD appears as a required or preferred skill in more engineering and design job postings than any other single software tool. Starting salaries for engineering technicians and drafters with verified AutoCAD proficiency are typically 10 to 20 percent higher than equivalents without documented CAD skills. For mechanical engineers, AutoCAD (combined with SolidWorks or CATIA for 3D) represents the fundamental software stack that virtually all employers expect.
Frequently Asked Questions (FAQ)
What is AutoCAD used for?
AutoCAD is used to create precise 2D drawings and 3D models across engineering, architecture, and design. Mechanical engineers use it for component and assembly drawings. Architects use it for floor plans, sections, and construction documents. Civil engineers use it for site plans, road layouts, and drainage designs. Electrical engineers use it for circuit diagrams and wiring schematics. It is the most widely deployed CAD software globally, with over 4 million active subscribers across virtually every industry that produces technical drawings.
How long does it take to learn AutoCAD?
With consistent daily practice, most beginners can achieve productive 2D drafting competence in 4 to 8 weeks. Reaching professional-level proficiency in 2D drafting, including layers, blocks, paper space layouts, and professional plotting, typically takes 3 to 5 months. Adding solid 3D modelling competence requires a further 2 to 3 months. Full professional mastery, including dynamic blocks, parametric constraints, customisation, and industry-specific workflows, develops over 1 to 2 years of regular use on real projects.
Is AutoCAD hard to learn?
AutoCAD has a moderate learning curve. The basic drawing commands (LINE, CIRCLE, TRIM, OFFSET) can be learned in a few hours. The concepts that require more effort are the professional workflow principles: layers, paper space vs model space, drawing setup, and annotation scaling. These take most new users 4 to 8 weeks of practice to master. The good news is that AutoCAD’s logic is consistent: once you understand how one command works, similar commands follow the same pattern. The investment pays off quickly because AutoCAD proficiency is one of the most transferable and in-demand technical skills in engineering.
What is the difference between AutoCAD and AutoCAD LT?
AutoCAD LT is a lower-cost version of AutoCAD that includes full 2D drafting capability but excludes 3D modelling, the AutoCAD programming API (for custom scripts and applications), and the industry-specific toolsets (Mechanical, Architecture, Electrical, etc.). For professionals who need only 2D drafting and documentation, AutoCAD LT provides excellent value at approximately one-quarter of the full AutoCAD subscription cost. Most drafters, engineering technicians, and architects working on 2D documentation can work effectively with AutoCAD LT.
What are the most important AutoCAD commands for beginners?
The most important AutoCAD commands for beginners to learn first are: LINE (L), CIRCLE (C), RECTANGLE (REC), OFFSET (O), TRIM (TR), FILLET (F), COPY (CO), MOVE (M), ERASE (E), LAYER (LA), and HATCH (H). These ten commands cover the majority of basic 2D drafting tasks. Alongside these, mastering OSNAP (F3), ORTHO (F8), and the ZOOM and PAN navigation commands is essential. Once these are fluent, the next priority is BLOCK (B), INSERT (I), MTEXT (MT), and the dimensioning commands (DIMLINEAR, DIMRADIUS, DIMDIAMETER).
What is the difference between model space and paper space in AutoCAD?
Model Space is where you draw your design at true real-world scale (1:1). Paper Space (accessed via Layout tabs) represents a physical sheet of paper at its actual print size, where you compose viewports of your Model Space content at specific scales for printing. The professional workflow is: draw in Model Space at 1:1, compose and annotate in Paper Space using scaled viewports, and plot from Paper Space at 1:1. This is the correct, professional method for producing multi-scale, multi-view drawings.
What is the best way to learn AutoCAD for free?
The best free resources for learning AutoCAD are: the Autodesk student licence (free full AutoCAD for verified students via the Autodesk Education Community), Autodesk’s own free tutorial library at learn.autodesk.com, the 30-day free trial of AutoCAD for non-students, and the tutorial articles on this site which cover specific commands and workflows in detail. YouTube channels by experienced AutoCAD instructors provide excellent supplementary video content. The most important free resource, however, is simply regular practice on real drawing projects: reading tutorials without applying them in a live drawing environment is far less effective.
Is AutoCAD still relevant in 2026?
Yes, AutoCAD is fully relevant and widely in demand in 2026. While dedicated parametric 3D tools (SolidWorks, CATIA) are preferred for complex mechanical 3D design, and BIM tools (Revit) are increasingly used in architecture and construction, AutoCAD remains the universal standard for 2D technical drawing production, drawing exchange, and documentation across all engineering and design disciplines. Its DWG file format is the universal language of technical drawing. AutoCAD proficiency consistently appears in more engineering and design job postings than any other single software tool.
Conclusion
AutoCAD has been the global standard for technical drawing for over 40 years, and in 2026 it remains the most in-demand CAD skill across engineering, architecture, and design. Whether you are learning it for the first time, transitioning from paper-based drafting, or seeking to sharpen professional-level skills you already have, the path is consistent: understand the interface, master the foundational 2D commands, build professional habits around layers and drawing setup, learn blocks and paper space properly, and then extend into 3D and industry-specific workflows.
The articles in this cluster provide deep, step-by-step coverage of specific AutoCAD topics that complement this pillar guide. Each supporting article addresses a specific task or workflow that engineers and designers encounter regularly and struggle to find clear, practical answers for.
Explore the full AutoCAD tutorial series on this site. Start with our guides on the most common AutoCAD problems and workflows: Why Is My AutoCAD Ribbon Empty?, How to Draw a Line from Its Midpoint, How to Create a 3D Model from 2D Views, and Dynamic Block Lookup Tables Explained.
Introduction: Why This Comparison Actually Matters
If you have ever searched ‘AutoCAD vs SolidWorks vs CATIA‘ you have probably landed on articles that list features without telling you anything useful. This is not that article.
The truth is that picking the wrong CAD tool costs real money. Not just the license fee. The bigger cost is time spent learning a tool that is not standard in your industry, delivering drawings in a format your clients cannot open, or trying to manage an aerospace assembly in software built for 2D floor plans.
This guide gives you a straight CAD software comparison with a clear verdict for each situation. We cover the technical differences, the industry fit, the learning curve, the cost reality, and where AI in CAD design is starting to change the picture for all three platforms.
By the end you will know exactly which tool belongs in your workflow and why.
Quick answer: AutoCAD is best for 2D drafting and architecture. SolidWorks is best for 3D mechanical product design and manufacturing. CATIA is best for aerospace, automotive, and large complex assemblies. The right choice depends on your industry, project complexity, and team size.
What Each CAD Tool Actually Does
AutoCAD: The 2D Drafting Standard
AutoCAD has been in engineering offices since 1982. It is the industry-standard CAD software for 2D technical drawings and has earned that reputation through decades of refinement and near-universal adoption across architecture, civil engineering, MEP, and construction.
AutoCAD does have 3D capabilities, and those have improved significantly in recent years. But it is not a parametric solid modeler. If you change a dimension in AutoCAD, you are not driving geometry the way you would in SolidWorks. You are editing lines and arcs. That distinction matters enormously when you are doing iterative mechanical design.
Where AutoCAD genuinely excels:
2D technical drawings and construction documentation
DWG format compatibility across the entire industry
Discipline-specific toolsets: AutoCAD MEP, AutoCAD Electrical, AutoCAD Civil 3D
Annotation, title blocks, sheet sets, and drawing management
Scripting and automation with LISP, Python, and the newer AutoCAD API
SolidWorks: Parametric 3D Modeling for Mechanical Engineers
SolidWorks is the dominant 3D CAD software for mechanical engineers in general manufacturing, consumer products, industrial equipment, and medical devices. It uses a feature-based parametric approach: your model is driven by a sequence of features, each controlled by dimensions and relationships. Change a dimension and the entire model updates.
That parametric approach is what makes SolidWorks so efficient for iterative design. You are not redrawing geometry when the spec changes. You are updating a value in the feature tree.
SolidWorks core strengths:
Parametric part and assembly modeling with full design intent
Sheet metal design with bend tables, K-factors, and flat pattern output
Weldments, structural frames, and pipe routing
Built-in simulation with SolidWorks Simulation (FEA) and Flow Simulation (CFD)
PhotoView 360 rendering and SolidWorks Visualize for product presentations
BOMs, drawing views, and tight integration with manufacturing workflows
CATIA: Engineering at Scale for Complex Programs
CATIA is in a different category from the other two. It is not just a professional CAD software for individual engineers, it is a full product lifecycle platform used by engineering organizations running programs with hundreds of contributors, millions of parts, and tolerance requirements measured in fractions of a millimeter.
Boeing, Airbus, Dassault Aviation, BMW, Ferrari, and most major automotive and aerospace OEMs run CATIA. Not because it is the easiest tool in the room, but because at the scale of an A380 or a new vehicle platform, nothing else handles the complexity with the same reliability.
What sets CATIA apart:
Class-A surface modeling for automotive body design
Extremely large assembly management without performance collapse
Generative Shape Design for complex aerodynamic surfaces
Deep integration with ENOVIA for PLM, change management, and multi-site collaboration
Systems engineering capabilities that go beyond pure geometry
Kinematics, tolerancing, ergonomics, and manufacturing simulation in one environment
AutoCAD vs SolidWorks vs CATIA: Feature-by-Feature Breakdown
Here is the honest breakdown across the criteria that matter most when choosing a CAD platform.
Feature
AutoCAD
SolidWorks
CATIA
Best For
Primary use
2D drafting / 3D
3D mechanical
Complex assemblies
Depends on project
Learning curve
Moderate
Moderate
Steep
AutoCAD / SolidWorks
Parametric modeling
Limited
Excellent
Excellent
SolidWorks / CATIA
Large assemblies
Not ideal
Good
Industry-leading
CATIA
Sheet metal
Basic
Very strong
Strong
SolidWorks
Simulation (FEA/CFD)
Minimal
Built-in (basic)
Advanced
CATIA
Industry standard in
Architecture / MEP
Mfg / Consumer
Aerospace / Auto
Varies by sector
Licensing cost
Subscription
Mid-high
High / enterprise
AutoCAD (entry)
File collaboration
DWG universal
PDM / Vault
ENOVIA / PLM
CATIA (enterprise)
AI / automation
Basic scripting
Growing
Growing
Watch this space
Parametric Modeling: Where SolidWorks and CATIA Pull Ahead
AutoCAD is not a parametric modeler in the mechanical engineering sense. If you need parametric CAD modeling where geometry is driven by fully constrained sketches, feature trees, and dimensional relationships, you are in SolidWorks and CATIA territory. Both handle this well. CATIA goes further with knowledge-based engineering where design rules and formulas can drive geometry automatically.
Assembly Management: CATIA Wins at Scale
For assemblies with hundreds of components, SolidWorks handles it well but can slow down on very large models even with lightweight mode enabled. CATIA’s architecture was specifically built for massive assemblies. It manages hundreds of thousands of parts with multi-site collaboration through ENOVIA without the performance degradation you would see in SolidWorks at that scale.
For most mechanical engineering projects, SolidWorks assembly management is more than adequate. The CATIA advantage only becomes critical at aerospace or automotive program scale.
Simulation Capabilities
AutoCAD’s simulation story is minimal. SolidWorks includes a built-in FEA package (SolidWorks Simulation) that covers linear static, thermal, fatigue, frequency, and drop test analysis. It is solid for most manufacturing applications. For more advanced nonlinear or coupled physics problems, you would typically export to ANSYS or Abaqus regardless of which CAD tool you are using.
CATIA includes more advanced simulation capabilities through its Simulia integration, but the real advantage is workflow: simulation is tightly linked to the geometry model and the PLM data, which matters in programs where design changes need to be tracked and re-simulated systematically.
Learning Curve: Honest Assessment
This is one of the most common questions in any SolidWorks vs CATIA vs AutoCAD discussion, and the honest answer is:
AutoCAD: Moderate. The interface is logical for 2D work. 3D adds complexity. Most people are productive in basic AutoCAD within 2 to 4 weeks of focused learning.
SolidWorks: Moderate to steep depending on depth. Basic part modeling: a few weeks. Assemblies, drawings, simulation, and advanced features: several months to use fluently. Very well documented with a large community.
CATIA: Steep. The interface is less intuitive than SolidWorks. The sheer number of workbenches and modules is overwhelming at first. Expect months before you are productive, and years before you are truly proficient.
Key insight: Learning curve should be weighed against industry fit. CATIA’s steep curve is worth it if your career target is aerospace or automotive. If you are designing consumer products or machine components, SolidWorks gives you more output per hour of learning time.
Cost and Licensing
AutoCAD runs on a subscription model starting at roughly $255/month or $2,031/year for a single license in 2025/2026. The industry-specific toolsets are included in the higher-tier subscriptions.
SolidWorks pricing varies by reseller and region but a SolidWorks Standard license typically runs $3,000 to $4,000 per year for subscription. SolidWorks Professional and Premium add simulation, rendering, and PDM tools at higher cost tiers.
CATIA is enterprise-priced and typically sold through Dassault Systemes resellers or directly to large organizations. Expect $10,000 to $40,000+ per seat annually depending on the configuration and modules. Individual licenses for independent engineers are not the typical model, though the 3DEXPERIENCE platform has introduced more flexible options.
Budget reality: For independent engineers, startups, and small teams: AutoCAD or SolidWorks. CATIA economics only make sense in an organizational context where the PLM and collaboration value justifies the per-seat cost.
Which CAD Software Is Right for Your Industry
Aerospace and Defense
CATIA is the dominant platform and has been for decades. If you are targeting a career at Boeing, Airbus, Lockheed, Northrop Grumman, or any major aerospace tier-one supplier, learning CATIA is not optional. CATIA for aerospace engineering is effectively an industry requirement at the program level. SolidWorks appears at smaller aerospace firms and in prototyping contexts, but at the OEM level, CATIA and its ecosystem are the standard.
Automotive
CATIA again, particularly for body design, powertrain, and chassis systems. Class-A surfacing for exterior body panels requires CATIA’s Generative Shape Design capabilities. However, SolidWorks is used extensively at tier-two and tier-three automotive suppliers for component design where the complexity level does not require CATIA’s full capability.
General Manufacturing and Industrial Equipment
This is SolidWorks territory. Machine design, industrial automation equipment, pumps, valves, conveyors, presses, custom machinery: SolidWorks handles all of it with an efficiency that justifies the learning investment. The integration with manufacturing toolchains (CAM software like HSMWorks, GibbsCAM, and Mastercam) is strong and the DXF/DWG interoperability with AutoCAD for 2D drawings is good.
Consumer Product Design
SolidWorks is the most common choice for consumer product development because it handles the full workflow: concept modeling, detailed design, sheet metal enclosures, injection molding geometry with draft angles and parting surfaces, rendering for marketing, and BOM generation for procurement. SolidWorks for product design is a well-established workflow that most product development agencies have standardized on.
Architecture, Construction, and MEP
AutoCAD is the standard here, supplemented by Autodesk Revit for BIM workflows. An architect or construction professional asking whether to learn SolidWorks for building design is asking the wrong question. The AutoCAD ecosystem, particularly AutoCAD Architecture and AutoCAD MEP, has the discipline-specific tools, the DWG-based collaboration standard, and the contractor integration that the construction industry runs on.
Medical Device Engineering
SolidWorks is the most common choice in medical device development, particularly for Class I and Class II devices. The SolidWorks PDM system handles the design history and approval workflows that FDA submissions require. Some complex implant geometry and medical robotics programs use CATIA, but for most medical device companies, SolidWorks covers the need at a more accessible cost.
Quick Project-to-Tool Reference
Use this table to find your situation and get a direct recommendation.
Your project type
Best CAD software
Why
Architecture / construction
AutoCAD
DWG standard, 2D-first workflow
Consumer product design
SolidWorks
Parametric ease, sheet metal, rendering
Aerospace components
CATIA
Handles complex surfaces, tight tolerances
Automotive body design
CATIA
Class-A surfacing, OEM integration
Small machine shop parts
SolidWorks
Affordable, fast CAM integration
Construction MEP
AutoCAD MEP
Discipline-specific toolsets
Large multi-team programs
CATIA
PLM / ENOVIA data management
Startup / solo engineer
SolidWorks
Best balance of power and cost
AI in CAD Design: How It Changes the Picture in 2026
All three platforms are incorporating AI capabilities, and understanding where those capabilities are heading matters when you are making a long-term tool investment. AI in CAD design is no longer theoretical: it is showing up in generative design, automated drawing creation, simulation setup, and natural language interfaces.
AutoCAD and AI
Autodesk has been rolling out AI features across its platform including intelligent block insertion, automated linework cleanup, and early natural language tools through Project Bernini and related research. The AutoCAD API also integrates well with external AI tools for scripting and workflow automation. For engineers interested in AI workflow engineering in a drafting context, AutoCAD’s scripting layer is accessible and well-documented.
SolidWorks and AI
Dassault Systemes has been building AI into the 3DEXPERIENCE platform. SolidWorks Topology Optimization is already an AI-adjacent tool that optimizes part geometry against load conditions and manufacturing constraints. The platform is moving toward more intelligent design suggestions, automated simulation setup, and natural language-driven design assistance. This is where prompt engineering for CAD starts to have a direct workflow application.
CATIA and AI
CATIA’s AI integration is primarily through the 3DEXPERIENCE platform at the program level: AI-assisted configuration management, automated rule-based design checks, and intelligent assembly guidance. The focus is less on individual productivity and more on managing program-level complexity. For large organizations, this is where AI delivers the most measurable return.
The bigger picture: Regardless of which CAD tool you use, AI assistants like Claude can dramatically accelerate your specification writing, simulation setup documentation, technical reporting, and design review preparation. The CAD tool handles the geometry. AI handles the language layer around it. Learning to use both effectively is the 2026 engineering advantage.
For engineers who want to go deeper on this topic, the regularly covers how 3D CAD workflows are evolving alongside AI and simulation tools, with practical case studies from real engineering projects.
Should You Learn More Than One CAD Tool?
This question comes up a lot, especially from engineering students. The practical answer: go deep on one first, then build familiarity with others as your career demands it.
The core skills of parametric modeling, assembly management, GD&T, and drawing interpretation transfer across platforms. An engineer who is genuinely proficient in SolidWorks will pick up CATIA fundamentals faster than someone starting from zero, because the underlying thinking is similar. The command names differ; the logic is the same.
Where multiple tool knowledge becomes genuinely valuable: consulting roles where you work across different client environments, careers that span both concept design (often SolidWorks) and production program support (often CATIA), and roles at suppliers who serve multiple OEMs with different CAD standards.
Start with: the tool most used in your target industry or your current employer’s environment
Add later: whichever tool appears most in the job listings you want to be qualified for in three to five years
Do not spread thin: surface-level knowledge of five tools is less valuable than genuine proficiency in two
Common Mistakes When Choosing CAD Software
Choosing by what your university taught. Universities teach what they have licenses for, not necessarily what industry uses. Always check the job listings in your target sector before defaulting to the tool you learned in school.
Picking based on YouTube tutorials rather than workflow fit. The most popular tutorials are for the most popular tools. That is not the same as the right tool for your project type.
Underestimating CATIA’s complexity. Engineers who have used SolidWorks extensively sometimes assume CATIA is a straightforward step up. It is not. Budget serious time for CATIA onboarding.
Overestimating AutoCAD’s 3D capability. AutoCAD 3D is not equivalent to parametric solid modeling. If your work involves mechanical assemblies with design intent and simulation, you need SolidWorks or CATIA.
Ignoring the ecosystem. The CAD tool is only part of the decision. The PDM/PLM system, the CAM integration, the simulation tool, and the collaboration workflow all connect to your CAD choice. Evaluate the full stack.
Conclusion: Make the Decision Based on Your Actual Work
The AutoCAD vs SolidWorks vs CATIA question does not have a universal winner. It has a right answer for each engineering context, and now you have the information to find yours.
If you are in architecture, construction, or civil engineering: AutoCAD is your tool. If you are in mechanical product design, manufacturing, or medical devices: SolidWorks is your tool. If you are in aerospace, automotive, or large-scale multi-discipline programs: CATIA is the standard you need to meet.
Whichever platform you choose, the skills around it matter as much as the tool itself. Knowing how to write a complete design specification, structure a simulation correctly, document a design decision clearly, and communicate technical intent accurately: these are the skills that AI tools like Claude can help you develop faster and execute more consistently.
Choose the right tool for the work in front of you. Go deep. Then build outward.
Frequently Asked Questions
1. Which is better: AutoCAD, SolidWorks, or CATIA?
There is no single best option. AutoCAD is best for 2D drafting and architecture. SolidWorks is best for mechanical product design and manufacturing. CATIA is best for aerospace, automotive, and large-scale complex assemblies. The right choice depends entirely on your industry, project type, team size, and budget.
2. Is SolidWorks easier to learn than CATIA?
Yes, SolidWorks has a significantly shorter learning curve than CATIA. Most mechanical engineers become productive in SolidWorks within weeks. CATIA is a deeper, more complex platform designed for large engineering organizations and typically requires months of structured training to use effectively.
3. Can AutoCAD do 3D modeling like SolidWorks?
AutoCAD has basic 3D modeling tools but it is not a parametric solid modeler. SolidWorks uses a feature-based parametric approach where dimensions drive geometry. For serious 3D mechanical design with design intent, simulation, and BOMs, SolidWorks is significantly more capable than AutoCAD.
4. Which CAD software is used in aerospace?
CATIA is the dominant CAD software in the aerospace industry. Boeing, Airbus, and most major aerospace OEMs use CATIA for design, assembly management, and systems engineering. Its ability to handle extremely large assemblies, surface complexity, and integration with PLM systems like ENOVIA makes it the aerospace industry standard.
5. Is CATIA worth learning for mechanical engineers?
CATIA is worth learning if you plan to work in aerospace, automotive, or large defense programs. If your career target is general mechanical product design, manufacturing, or consumer goods, SolidWorks is more practical and widely used. Check the job listings in your target sector and choose based on what employers are asking for.
6. Can I use prompt engineering to improve my CAD workflow in any of these tools?
Yes. Prompt engineering techniques, particularly with AI tools like Claude, can significantly improve how you document designs, generate specifications, set up simulation inputs, and write technical reports, regardless of whether you use AutoCAD, SolidWorks, or CATIA as your primary modeling tool.
